OPEL KARL 2015 Owner's Manual

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
20 Keys, Doors, and Windows
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Car Pass . . . . . . . . . . . . . . . . . . . . . . 21
Radio Remote Control . . . . . . . . . 21
Memorised Settings . . . . . . . . . . . . 22
Central Locking System . . . . . . . 22
Safety Locks . . . . . . . . . . . . . . . . . . . 24
Doors
Load Compartment . . . . . . . . . . . . 25
Vehicle Security
Anti-theft Alarm System . . . . . . . . 26
Immobiliser . . . . . . . . . . . . . . . . . . . . 27
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . 27
Power Mirrors . . . . . . . . . . . . . . . . . . 27
Folding Mirrors . . . . . . . . . . . . . . . . . 28
Heated Mirrors . . . . . . . . . . . . . . . . . 28
Interior Mirrors
Manual Rearview Mirror . . . . . . . . 28

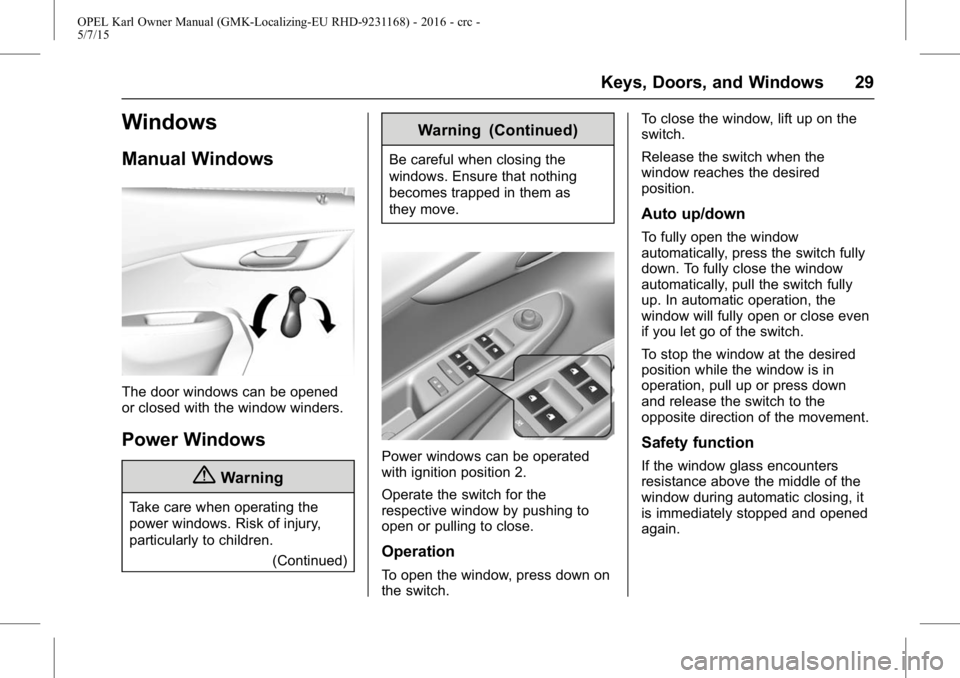

Windows
Manual Windows . . . . . . . . . . . . . . 29
Power Windows . . . . . . . . . . . . . . . 29Heated Rear Window . . . . . . . . . . 30
Sun Visors . . . . . . . . . . . . . . . . . . . . . 30
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 31
Keys and Locks
Keys
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as
it is a component of the immobiliser
system.
Locks
0Exterior Care
0191.
Key with foldaway key section
Press button to extend.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Keys, Doors, and Windows 21
To fold the key, first press the
button.
Car Pass
The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this data is required in
order to perform certain operations.
Radio Remote Control
Used to operate:
.central locking system
. anti-theft alarm system The radio remote control has a
range of approx. 20 metres. It can
be restricted by external influences.
The hazard lights confirm operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the radio remote
control, it may be due to the
following:
.
Range exceeded,
. Battery voltage too low,
. Frequent, repeated operation of
the remote control while not in
range, which will require
resynchronisation,
. Overload of the central locking
system by operating at frequent
intervals, the power supply is
interrupted for a short time,
. Interference from higher-power
radio waves from other sources.
Unlocking
0Central Locking
System 022.
Radio remote control battery
replacement
Replace the battery as soon as the
range is reduced.
Batteries do not belong in
household waste. They must be
disposed of at an appropriate
recycling collection point.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
22 Keys, Doors, and Windows
Key with foldaway key section
Extend the key and open the unit.
Replace the battery (battery type
CR 2032), paying attention to the
installation position. Close the unit
and synchronise.
Key with fixed key section
Have the battery replaced by a
workshop.
Radio remote control
synchronisation
After replacing the battery, unlock
the door with the key in the driver's
door lock. The radio remote control
will be synchronised when the
ignition is switched on.
Memorised Settings
Whenever the key is removed from
the ignition switch, the following
settings are automatically
memorised by the key:
.lighting
. infotainment system
. central locking system
. comfort settings
The saved settings are
automatically used the next time the
memorised key is inserted into the
ignition switch and turned to position
1
0Ignition Positions 0135.
A precondition is that
Personalisation by driver is
activated in the personal settings of
the Graphic-Info-Display. This must be set for each key used.
On vehicles equipped with
Colour-Info-Display, the
personalisation is permanently
activated.
Vehicle personalisation
0Vehicle
Personalisation 082.
Central Locking System
Unlocks and locks doors, load
compartment.
Note
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Keys, Doors, and Windows 23
Unlocking
PressK.
. To unlock only the driver's door,
press
Konce. To unlock all
doors and the load
compartment, press
Ktwice,
or
. press
Konce to unlock all
doors, load compartment.
The setting can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation
0Vehicle
Personalisation 082. The setting can be saved for the
key being used.
Memorised settings
0Memorised
Settings 022.
Locking
Close doors, load compartment and
fuel filler flap.
PressQ.
If the driver's door is not closed
properly, the central locking system
will not work.
Central locking button
Locks or unlocks all doors, the load
compartment from the passenger
compartment.
Press central locking button: the
doors are locked or unlocked.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
24 Keys, Doors, and Windows
Fault in radio remote control
system
Unlocking
Manually unlock the driver's door by
turning the key in the lock. Switch
on the ignition and press the central
locking button to unlock all doors,
load compartment.
By switching on the ignition, the
anti-theft locking system is
deactivated
0Anti-theft Alarm
System 026. Locking
Closed all Door, Open the Driver's
Door, press central locking button.
The vehicle is locked.
Close the Driver's door. Manually
lock the driver's door by turning
the key.
Fault in central locking system
Unlocking
Manually unlock the driver's door by
turning the key in the lock. The
other doors can be opened by
Pulling up on the sill button and
pulling the interior handle to release
the latch for other doors. The load
compartment cannot be opened.
To deactivate the anti-theft locking
system, switch on the ignition
0
Anti-theft Alarm System
026.
Safety Locks
{Warning
Use the child locks whenever
children are occupying the rear
seats.
Caution
Do not pull the inside door handle
while the child security door lock
is set to LOCK position. To do so
can damage the inside door
handle.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Keys, Doors, and Windows 25
To close the child security door lock,
move the lever up to the lock
position.
To open a rear door when the child
security door lock is activated,
unlock the door from the inside and
open the door from the outside.
To cancel the child security door
lock, move the lever down to the
unlock position.Doors
Load Compartment
Tailgate
Opening
To open the tailgate, with all doors
unlocked, press the touchpad switch
on the underside of pull cup handle
and lift up.
Central locking system
0Central
Locking System 022.
Closing
Use the inside pull handle to lower
and close the tailgate.
Do not press the touchpad switch
while closing the tailgate; it will
unlock again.
Central locking system
0Central
Locking System 022.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
26 Keys, Doors, and Windows
General hints for operating
tailgate
{Danger
Do not drive with the tailgate
open or ajar, e.g. when
transporting bulky objects, since
toxic exhaust gases, which
cannot be seen or smelled, could
enter the vehicle.
This can cause unconsciousness
and even death.
Caution
Before opening the tailgate check
overhead obstructions, such as a
garage door, to avoid damage to
the tailgate. Always check the
moving area above and behind
the tailgate.
Note
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.
Vehicle Security
Anti-theft Alarm System
It monitors:
. doors, tailgate, bonnet
. ignition
Unlocking the vehicle deactivates
both systems simultaneously.
Status LED is integrated in the
sensor on top of the instrument
panel.
Status during the first 30 seconds of
anti-theft alarm system activation:
LED illuminates : test, arming delay. LED flashes quickly : doors, tailgate
or bonnet not completely closed,
or system fault.
Deactivation
Unlocking the vehicle by pressingK
on the radio remote control
deactivates anti-theft alarm system.
Alarm
The alarm can be silenced by
pressing any button of the radio
remote control or by switching on
the ignition.
The anti-theft alarm system can be
deactivated by pressing the
Kor
switching on the ignition.
Auto door lock
If any of the doors is not opened or
the position of Ignition key is not
located in position 1 or position 2
within 3 minutes after unlocking
doors using the transmitter, all the
doors are locked and anti-theft
alarm system is activated
automatically.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Keys, Doors, and Windows 27
Automatic door unlocks
All doors will be automatically
unlocked when the impact is
delivered to impact sensors while
the ignition is position 2.
However, the doors may not be
unlocked if mechanical problems
occur with the door lock system or
battery.
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been
removed from the ignition switch.
If control indicator
Aflashes when
the ignition is on, there is a fault in
the system; the engine cannot be
started. Switch off the ignition and
then repeat the start attempt.
If control indicator
Acontinues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop. Note
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it and switch on
the anti-theft alarm system
0
Central Locking System
022,
Anti-theft Alarm System 026.
Control indicator
A 0Immobiliser
Light 074.
Exterior Mirrors
Convex Mirrors
The convex exterior mirror contains
an aspherical area and reduces
blind spots. The shape of the mirror
makes objects appear smaller,
which will affect the ability to
estimate distances.
Power Mirrors
Select the relevant exterior mirror by
turning the control to left (L) or
right (R). Then swivel the control to
adjust the mirror.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
28 Keys, Doors, and Windows
In position 0 no mirror is selected.
Folding Mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.
Heated Mirrors
Operated by pressing=.
Heating works with the engine
running and is switched off
automatically after a short time.
Interior Mirrors
Manual Rearview Mirror
To reduce dazzle, adjust the lever
on the underside of the mirror
housing.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Keys, Doors, and Windows 29
Windows
Manual Windows
The door windows can be opened
or closed with the window winders.
Power Windows
{Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.(Continued)
Warning (Continued)
Be careful when closing the
windows. Ensure that nothing
becomes trapped in them as
they move.
Power windows can be operated
with ignition position 2.
Operate the switch for the
respective window by pushing to
open or pulling to close.
Operation
To open the window, press down on
the switch. To close the window, lift up on the
switch.
Release the switch when the
window reaches the desired
position.
Auto up/down
To fully open the window
automatically, press the switch fully
down. To fully close the window
automatically, pull the switch fully
up. In automatic operation, the
window will fully open or close even
if you let go of the switch.
To stop the window at the desired
position while the window is in
operation, pull up or press down
and release the switch to the
opposite direction of the movement.
Safety function
If the window glass encounters
resistance above the middle of the
window during automatic closing, it
is immediately stopped and opened
again.
