10 In Brief
1. Power windows on pagePower
Windows 029.
Central locking system on page
Central Locking System 022.
2. Exterior mirrors on page Convex Mirrors 027.
3. Cruise control, Speed limiter on page Driver Assistance
Systems 0148.
Heated steering wheel on page
Heated Steering Wheel 060.
4. Turn and lane-change signals, headlight flash, dipped beam
and main beam on page
Indicator and Lane-Change
Signals 087.
Exit lighting on page Exit
Lighting 091.
Parking lights on page Parking
Lights 088.
5. Side air vents on page Fixed
Air Vents 0132.
6. Instruments on page Steering
Wheel Adjustment 060. 7. Driver Information Centre on
page Driver Information Centre
(DIC) 075.
8. Steering wheel controls on page Steering Wheel
Controls 060.
9. Windscreen wiper, Windscreen washer system, rear wiper, rear
washer system on page
Windscreen Wiper/
Washer 061.
10. Centre air vents on page Adjustable Air Vents 0131.
11. Hazard warning lights on page Hazard Warning Flashers 087.
12. Info-Display on page Overview 093.
13. Infotainment system on page Operation 099.
14. Glove box on page Glove
Box 053.
15. Climate control system on page Electronic Climate
Control System 0128.
16. Selector lever, manual gearbox on page Manual
Gearbox 0141. 17. Parking brake on page
Handbrake 0142.
18. Ignition switch with steering wheel lock on page Ignition
Positions 0135.
19. Horn on page Horn061.
Driver airbag on page Airbag
System 038.
20. Steering wheel adjustment on page Steering Wheel
Adjustment 060.
21. Bonnet release lever on page Bonnet 0157.
22. Fuse box on page Fuses 0169.
23. Traction control system on page Traction Control System
(TCS) 0143.
Automatic engine start/stop on
page Automatic Engine Start/
Stop Feature 0137.
City mode on page Electronic
Stability Control (ESC) 0144.
Lane departure warning on
page Lane Departure Warning
(LDW) 0150.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
In Brief 11
24. Light switch,Headlight range adjustment,
Front fog lights,
Rear fog light,
Instrument illumination on page
Exterior Lamp Controls 085.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
12 In Brief

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
In Brief 13

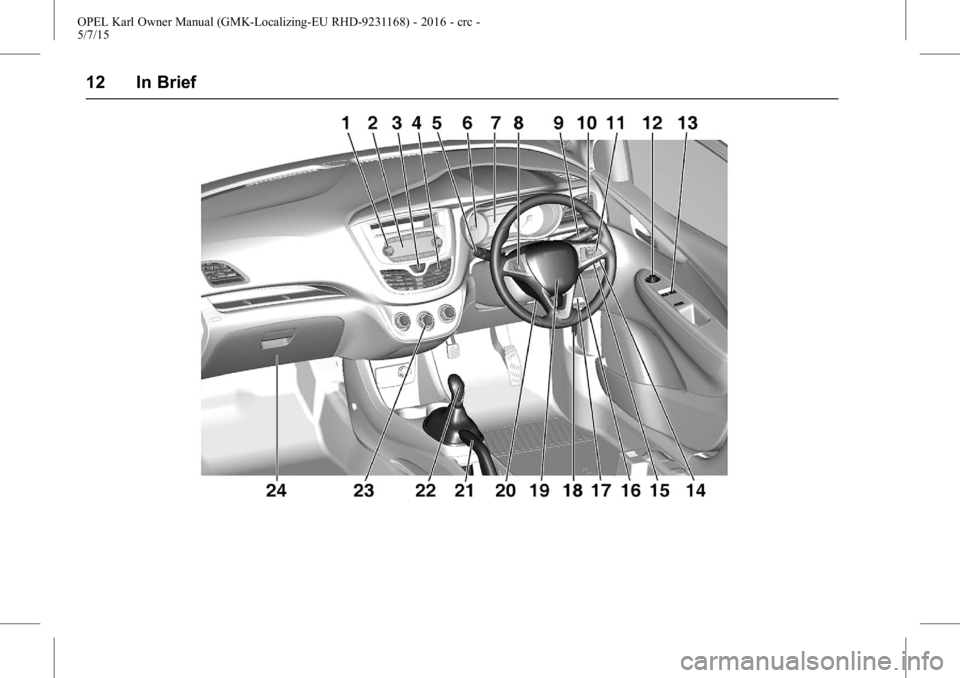

1. Infotainment system on pageOperation 099.
2. Info-Display on page Overview 093.
3. Hazard warning lights on page Hazard Warning Flashers 087.
4. Centre air vents on page Adjustable Air Vents 0131.
5. Turn and lane-change signals, headlight flash, dipped beam
and main beam on page
Indicator and Lane-Change
Signals 087.
Exit lighting on page Exit
Lighting 091.
Parking lights on page Parking
Lights 088.
6. Instruments on page Steering
Wheel Adjustment 060.
7. Driver Information Centre on page Driver Information Centre
(DIC) 075.
8. Cruise control, Speed limiter on page Driver Assistance
Systems 0148. Heated steering wheel on page
Heated Steering Wheel
060.
9. Windscreen wiper, Windscreen washer system, rear wiper, rear
washer system on page
Windscreen Wiper/
Washer 061.
10. Side air vents on page Fixed
Air Vents 0132.
11. Steering wheel controls on page Steering Wheel
Controls 060.
12. Exterior mirrors on page Convex Mirrors 027
13. Power windows on page Power
Windows 029.
Central locking system on page
Central Locking System 022.
14. Light switch, Headlight range adjustment,
Front fog lights,
Rear fog light,
Instrument illumination on page
Exterior Lamp Controls 085. 15. Traction control system on
page Traction Control System
(TCS) 0143.
Automatic engine start/stop on
page Automatic Engine Start/
Stop Feature 0137.
City mode on page Electronic
Stability Control (ESC) 0144.
Lane departure warning on
page Lane Departure Warning
(LDW) 0150.
16. Ignition switch with steering wheel lock on page Ignition
Positions 0135.
17. Fuse box on page Fuses 0169.
18. Bonnet release lever on page Bonnet 0157.
19. Horn on page Horn061.
Driver airbag on page Airbag
System 038.
20. Steering wheel adjustment on page Steering Wheel
Adjustment 060.
21. Parking brake on page Handbrake 0142.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
14 In Brief
22. Selector lever, manual gearboxon page Manual
Gearbox 0141.
23. Climate control system on page Electronic Climate
Control System 0128.
24. Glove box on page Glove
Box 053.
Exterior Lighting
Turn light switch.
9:Lights off
;:Sidelights
5:Dipped beam Fog lights
Press light switch.
#:
Front fog light
s:Rear fog light
Lighting
0Exterior Lamp
Controls 085.
Headlight flash, main beam
and dipped beam
Headlight flash : Pull lever
Main beam : Push lever
Dipped beam : Push or pull lever
Main beam
0Headlamp Main/
Dipped Beam Changer 086.
Turn and lane-change signals
Lever up : Right indicator
Lever down : Left indicator
Turn and lane-change signals
0
Indicator and Lane-Change
Signals 087,
Parking lights
0Parking
Lights 088.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
In Brief 15

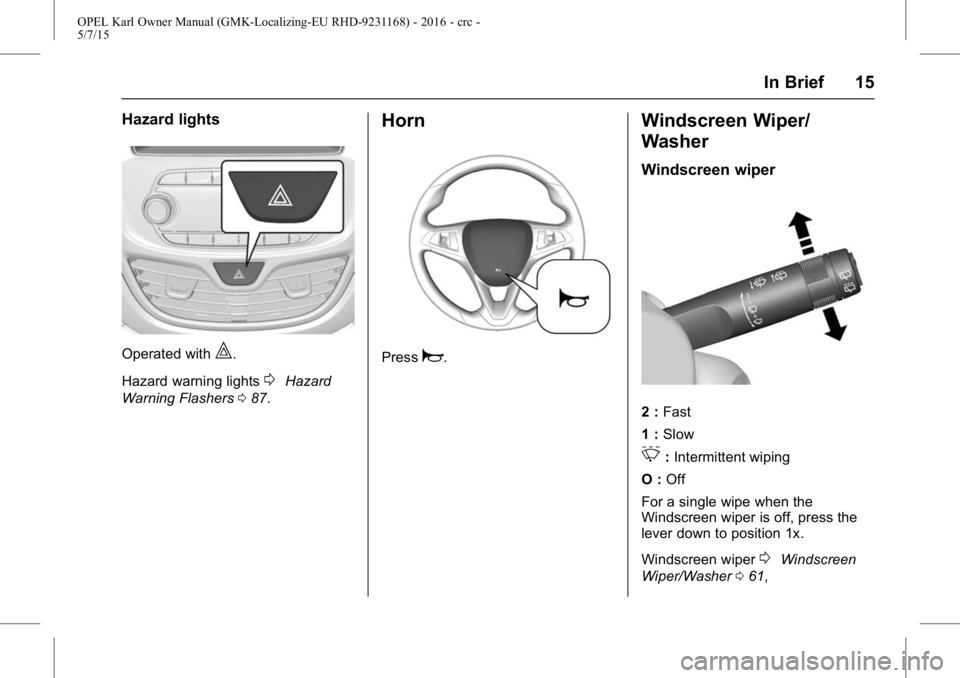

Hazard lights
Operated with|.
Hazard warning lights
0Hazard
Warning Flashers 087.
Horn
Pressa.
Windscreen Wiper/
Washer
Windscreen wiper
2 : Fast
1 : Slow
3:Intermittent wiping
O : Off
For a single wipe when the
Windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper
0Windscreen
Wiper/Washer 061,

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
16 In Brief

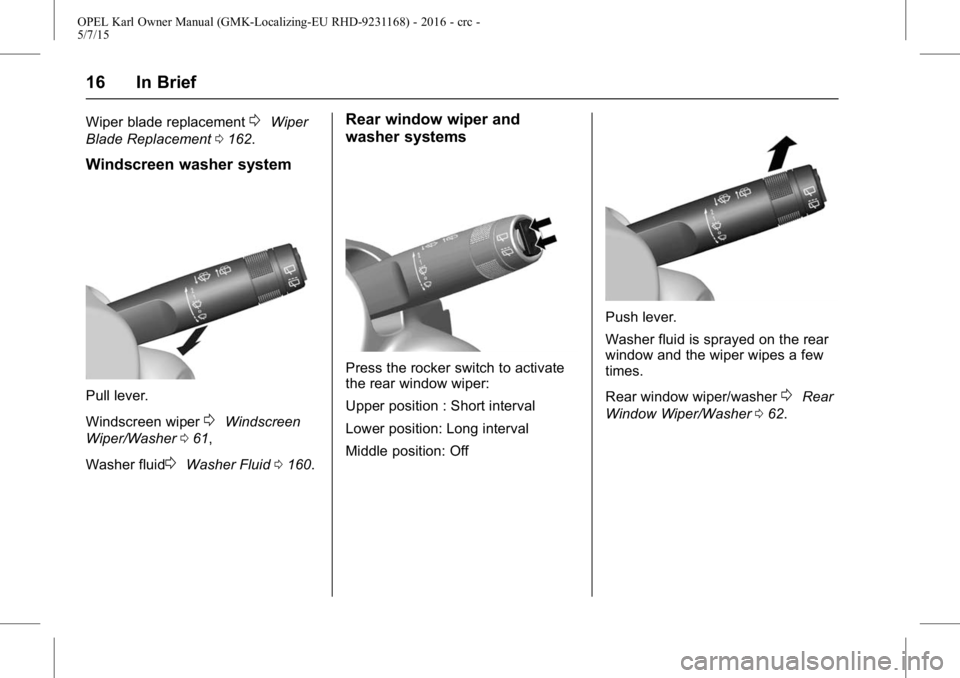

Wiper blade replacement0Wiper
Blade Replacement 0162.
Windscreen washer system
Pull lever.
Windscreen wiper
0Windscreen
Wiper/Washer 061,
Washer fluid
0Washer Fluid 0160.
Rear window wiper and
washer systems
Press the rocker switch to activate
the rear window wiper:
Upper position : Short interval
Lower position: Long interval
Middle position: Off
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer
0Rear
Window Wiper/Washer 062.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
In Brief 17
Climate Controls
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
the
=.
Heated rear window
0Heated
Rear Window 030.
Demisting and defrosting the
windows
Press5.
Set the temperature control to the
highest level.
Heated rear window
=on.
Climate control system
0Heating
and Ventilation System 0125.
Transmission
Manual gearbox
Reverse: with the vehicle stationary,
depress clutch pedal and engage
the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then
repeat gear selection.
Manual gearbox
0Manual
Gearbox 0141.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
18 In Brief
Starting the Engine
Check before starting off
.Tyre pressure and condition0
Tyre Pressure 0175.
. Engine oil level and fluid levels
0Engine Oil 0158.
. All windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational.
. Proper position of mirrors, seats,
and seat belts
0Convex
Mirrors 027, Seat Position 033,
Three-Point Seat belt 037.
. Brake function at low speed,
particularly if the brakes are wet.
Starting the engine
.
Turn key to position 1.
. Move the steering wheel slightly
to release the steering
wheel lock.
. Operate clutch and brake.
. Automatic transmission in P
or N.
. Do not operate accelerator
pedal.
. Turn key to position 3 and
release Starting the engine.
0
Starting the Engine 0136.
Stop-start system
If the vehicle is at a low speed or at
a standstill and certain conditions
are fulfilled, activate an Autostop as
follows:
.
depress the clutch pedal
. set the lever in neutral
. release the clutch pedal
An Autostop is indicated by the
needle at the AUTOSTOP position
in the tachometer.
To restart the engine, depress the
clutch pedal again.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
In Brief 19
Stop-start system0Automatic
Engine Start/Stop Feature 0137.
Parking
{Warning
.
Do not park the vehicle on
an easily ignitable surface.
The high temperature of the
exhaust system could ignite
the surface.
. Always apply handbrake.
Pull switch
Yfor approx.
one second.
. Switch off the engine.
. surface or uphill slope,
engage first gear or set the
selector lever to position P
before removing the ignition
key. On an uphill slope, turn
the front wheels away from
the kerb.
If the vehicle is on a
downhill slope, engage
reverse gear or set the
(Continued)
Warning (Continued)
selector lever to position P
before removing the ignition
key. Turn the front wheels
towards the kerb.
. Remove the ignition key.
Turn the steering wheel until
the steering wheel lock is
felt to engage.
For vehicles with automatic
transmission, the key can
only be removed when the
selector lever is in
position P.
. Close the windows.
. Lock the vehicle with
Qon the
radio remote control.
. Activate the anti-theft alarm
system
0Anti-theft Alarm
System 026.
. The engine cooling fans may run
after the engine has been
switched off
0End-of-Life
Vehicle Recovery 0157. .
After running at high engine
speeds or with high engine
loads, operate the engine briefly
at a low load or run in neutral for
approx.
30 seconds before switching off,
in order to protect the
turbocharger.
Keys, locks
0Keys 020,
Laying the vehicle up for a long
period of time
0Vehicle
Storage 0156.
