30 Keys, Doors, and Windows
Overload
If the windows are repeatedly
operated at short intervals, the
window operation is disabled for
some time.
Initialising the power windows
If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery),
activate the window electronics as
follows:1. Close doors.
2. Switch on ignition.
3. Close the window completely and keep the switch pulled for
additional 2 seconds.
4. Repeat for each window.
Child safety system for rear
windows
Press switchvto deactivate rear
power windows.
To activate press
vagain.
Heated Rear Window
Operated by pressing+.
Heating works with the engine
running and is switched off
automatically after a short time.
Sun Visors
The sun visors can be folded down
or swivelled to the side to prevent
dazzling.
If the sun visors have integral
mirrors, the mirror covers should be
closed when driving.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Keys, Doors, and Windows 31
Roof
Sunroof
{Warning
Take care when operating the
sunroof. Risk of injury, particularly
to children.
Keep a close eye on the movable
parts when operating them.
Ensure that nothing becomes
trapped in them as they move.
Sunroof can be operated with
ignition on.
Raise
Hold switch 1 depressed until the
sunroof is raised at the rear.
Open
From raised position press and
release switch 1: the sunroof is
opened automatically up to end
position. To stop movement before
endposition, operate switch
once more.
Close
Hold switch 2 depressed from any
position until sunroof is closed
completely. Releasing the switch
stops movement in any position. Note
If the top of the roof is wet, tilt
sunroof, allow water to run off and
then open sunroof.
Do not affix any stickers to sunroof.
Sunblind
The sunblind is manually operated.
Close or open the sunblind by
sliding.
When the sunroof is open, the
sunblind is always open.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
32 Seats and Restraints
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 32
Front Seats
Seat Position . . . . . . . . . . . . . . . . . . 33
Seat Adjustment . . . . . . . . . . . . . . . 34
Heated Front Seats . . . . . . . . . . . . 35
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . . . 36
Three-Point Safety Belt . . . . . . . . 37
Airbag System
Airbag System . . . . . . . . . . . . . . . . . 38
Front Airbag System . . . . . . . . . . . 42
Side Airbag System . . . . . . . . . . . . 42
Curtain Airbag System . . . . . . . . . 43
Airbag On-Off Switch . . . . . . . . . . 43
Child Restraints
Child Restraint Systems . . . . . . . 45
Child Restraint InstallationLocations . . . . . . . . . . . . . . . . . . . . . 46
ISOFIX Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . 50
Top Tether Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . 51
Head Restraints
Position
{Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head
restraint should be at upper head
level. If this is not possible for
extremely tall people, set to highest
position, and set to lowest position
for small people.
Head restraints on front seats
Height adjustment
Pull the head restraint upwards and
let engage. To move downwards,
press the catch to release and push
the head restraint downwards.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
Seats and Restraints 33
Head restraints on rear seats
Height adjustment
Pull the head restraint upwards or
press the catch to release and push
the head restraint downwards.
Removal
Press both catches, pull the head
restraint upwards and remove.
Front Seats
Seat Position
{Warning
Only drive with the seat correctly
adjusted.
. Sit with buttocks as far back
against the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
34 Seats and Restraints
pressing the pedals. Slide the
front passenger seat as far back
as possible.
. Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest
when turning the steering wheel.
Do not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
. Adjust the steering wheel
0
Steering Wheel Adjustment 060.
. Set the seat high enough to
have a clear field of vision on all
sides and on all display
instruments. There should be at
least one hand of clearance
between your head and the
headlining. Your thighs should
rest lightly on the seat without
pressing into it.
. Adjust the head restraint
0
Head Restraints 032. .
Adjust the height of the seat belt
0Three-Point Seat belt 037.
Seat Adjustment
{Danger
Do not sit nearer than 25 cm to
the steering wheel, to permit safe
airbag deployment.
{Warning
Never adjust seats while driving
as they could move
uncontrollably.
{Warning
Never store any objects under the
seats.
Seat positioning
Pull handle, slide seat, release
handle.
Try to move the seat back and forth
to ensure that the seat is locked in
place.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
Seats and Restraints 35
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly.
Seat height
Lever pumping motion
Up : Seat higher
Down : Seat lower
Heated Front Seats
Activate seat heating by pressingL
for the respective front seat.
Activation is indicated by the LED in
the button.
Pressing
Lonce more deactivates
seat heating.
The passenger seat may take
longer to heat up.
Seat heating is operational when
engine is running and during an
Autostop.
Stop-start system
0Automatic
Engine Start/Stop Feature 0137.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
36 Seats and Restraints
Safety Belts
The seat belts are locked during
heavy acceleration or deceleration
of the vehicle holding the occupants
in the sitting position. Therefore the
risk of injury is considerably
reduced.
{Warning
Fasten safety belt before
each trip.(Continued)
Warning (Continued)
In the event of an accident,
people not wearing safety belts
endanger their fellow occupants
and themselves.
Seat belts are designed to be used
by only one person at a time.
0
Child Restraint Systems 045.
Periodically check all parts of the
belt system for damage, pollution
and proper functionality.
Have damaged components
replaced. After an accident, have
the belts and triggered belt
pretensioners replaced by a
workshop.
Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.
Seat belt reminder
> 0Safety
Belt Reminders 069.
Seat belt reminder
Front seats are equipped with a
seat belt reminder, indicated for
driver seat by control indicator
>in
the tachometer and for passenger
seat by the control indicators in the
Driver Information Centre
0Safety
Belt Reminders 069.
Belt force limiters
Stress on the body is reduced by
the gradual release of the belt
during a collision.
Belt pretensioners
In the event of a head-on or
rear-end collision of a certain
severity, the seat belts are
tightened.
{Warning
Incorrect handling (e.g. removal
or fitting of belts) can trigger the
belt tensioners with risk of injury.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
Seats and Restraints 37
Deployment of the belt
pretensioners is indicated by
illumination of control indicator
90
Safety Belt Reminders 069.
Triggered belt pretensioners must
be replaced by a workshop. Belt
pretensioners can only be
triggered once.
Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.
Three-Point Safety Belt
Fastening seat belt
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
whilst driving by pulling the
shoulder belt
Seat belt reminder
0Safety Belt
Reminders 069.
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and
your body.
{Warning
The belt must not rest against
hard or fragile objects in the
pockets of your clothing.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
38 Seats and Restraints
Removing seat belt
To release belt, press red button on
belt buckle.
Using the seat belt while
pregnant
{Warning
The lap belt must be positioned
as low as possible across the
pelvis to prevent pressure on the
abdomen.
Airbag System
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered the airbags inflate
within milliseconds. They also
deflate so quickly that it is often
unnoticeable during the collision.
{Warning
If handled improperly the airbag
systems can be triggered in an
explosive manner.
Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not stick anything on the airbag
covers and do not cover them with
other materials.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
Seats and Restraints 39

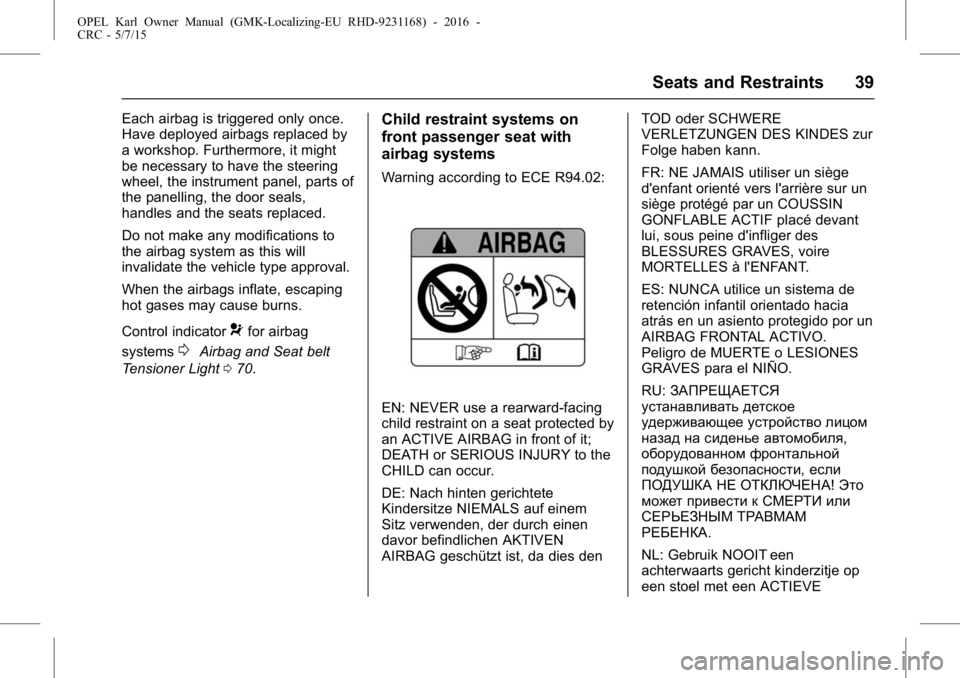

Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it might
be necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
When the airbags inflate, escaping
hot gases may cause burns.
Control indicator
9for airbag
systems
0Airbag and Seat belt
Tensioner Light 070.
Child restraint systems on
front passenger seat with
airbag systems
Warning according to ECE R94.02:
EN: NEVER use a rearward-facing
child restraint on a seat protected by
an ACTIVE AIRBAG in front of it;
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem
Sitz verwenden, der durch einen
davor befindlichen AKTIVEN
AIRBAG geschützt ist, da dies den TOD oder SCHWERE
VERLETZUNGEN DES KINDES zur
Folge haben kann.
FR: NE JAMAIS utiliser un siège
d'enfant orienté vers l'arrière sur un
siège protégé par un COUSSIN
GONFLABLE ACTIF placé devant
lui, sous peine d'infliger des
BLESSURES GRAVES, voire
MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de
retención infantil orientado hacia
atrás en un asiento protegido por un
AIRBAG FRONTAL ACTIVO.
Peligro de MUERTE o LESIONES
GRAVES para el NIÑO.
RU:
ЗАПРЕЩАЕТСЯ
устанавливать детское
удерживающее устройство лицом
назад на сиденье автомобиля,
оборудованном фронтальной
подушкой безопасности, если
ПОДУШКА НЕ ОТКЛЮЧЕНА! Это
может привести к СМЕРТИ или
СЕРЬЕЗНЫМ ТРАВМАМ
РЕБЕНКА.
NL: Gebruik NOOIT een
achterwaarts gericht kinderzitje op
een stoel met een ACTIEVE
