Page 71 of 107

Front ashtray:
To empty:
-
press tab 1, pulling on the housing
- detach the assembly upwards.
To r e fit:
- engage the lower part,
- press tab 1,
- push downwards and close the
assembly. Rear ashtray*: On 5-door: -T
o empty: pull the ashtray pres-
sing downwards.
-T o reÞt: push the ashtray while
pressing downwards.
On 3-door: - to empty, pull the assembly upwards.
YOUR 106 IN DETAIL69
1
Rear parcel shelf
To remove:
Ð Unhook the two cords 1.
Ð Lift the shelf and remove it.
Fixing a warning triangle The two restraining straps* located inside the boot enable a warning tri-angle to be Þxed. * According to speciÞcation.
11
06-05-2002
Page 72 of 107

YOUR 106 IN DETAIL70
Handbrake Application: When you have completed your parking manoeuvre, pull up thehandbrake to apply it.
To make application and release of
the handbrake easier, press the brake pedal and pull the handbrakewith the engine running. Release: Press the button before releasing the handbrake. Anti-lock brake system(ABS)* In conjunction with approved tyres in good condition, the anti-lockbrake system improves the stabilityand handling of your 106, particu-larly on poor or slippery surfaces. The anti-lock brake system ope- rates automatically if there is a riskof wheel locking. Lighting of the ABS warning lamp may be due to the turning of awheel during an operation on thevehicle (changing a wheel, forexample) with the ignition on (posi-tion
M).
Note: In certain conditions, normal
operation of the system can berecognised by a light vibration ofthe brake pedal. Should an emergency stop be
necessary, press the brake pedal
Þrmly and continuously. Power steering*
This is a driving aid which offers the best compromise when parking andwhen driving at high speeds. Manual gearbox The gear positions are indicated on the gear lever knob.
1- R
everse gear can only be
engaged with the vehicle stationary and the engineidling.
* According to speciÞcation.
1
06-05-2002
Page 73 of 107

YOUR 106 IN DETAIL71
AIR BAGS* The airbag system has been desi- gned to maximise the safety of theoccupants in the event of seriouscollisions. It works in conjunctionwith the seat belts. The electronic detectors register and analyse any abrupt deceleration ofthe vehicle; if the triggering thresholdis reached the airbags inßate instant-ly and come between the occupantsand the vehicle. Immediately after the impact, the air-
bags deßate rapidly, so that they donot hinder the visibility of the occu-pants and their exit if necessary fromthe vehicle. The airbags are not deployed in the case of collisions which are notserious, for which the seat belt is suf-Þcient to ensure maximum protec-tion. The seriousness of a collisiondepends on the nature of the obs-tacle and the speed of the vehicle atthe moment of the collision. Airbags only operate when the ignition is switched on. Note: the gas escaping from the
cushion can be a minor irritant. FRONT AIR BAGS* These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.They are deployed simultaneously(except in cases where the airbag isdisarmed), for frontal impacts wherethere is a risk of injury to the head orchest.
-
Remove the ignition key, insert itinto the passenger airbag switch 1
and turn it to the “OFF”position.
- One of these two warning lights* on the instrumentpanel is lit throughout thedisarming process.
In the “OFF” position, the passenger
airbag will not be triggered in theevent of an impact. As soon as you remove the rearwards-facing child seat from thefront passenger seat, turn the airbagswitch to the ÒONÓ position, to armthe airbag and thus ensure thesafety of your passenger in animpact. * According to speciÞcation.
Disarming the passenger airbag*
To ensure the safety of your child,
it is essential to disarm the pas- senger airbag when you install arearwards-facing child seat on thefront passenger seat.
1
AIR
BAG
06-05-2002
Page 74 of 107

YOUR 106 IN DETAIL72
Passenger airbag precautions Vehicle fitted with a passenger
airbag disarming switch:
- disarm the airbag if you install arearwards-facingchild seat on thefront passengerseat,
-arm the airbagwhen you trans-port an adult onthe front pas-senger seat.
V ehicle not fitted with a passenger
airbag disarming switch:
-do not install a rear-wards-facing child seaton the front passengerseat.
Never place your feet or any objecton the fascia.
Front* and side* airbag operational check Operation of the airbags is indicated by the warning light on the instrument panel. If the passenger airbag is armed (passenger airbag switch in the "ON"
position), the warning light will come on for six seconds when the ignition is switched on. If the warning light:- does not come on when the ignition is switched on or,
- does not switch off after six seconds or,
-ß ashes for Þve minutes then remains on.
Consult your PEUGEOT dealer.
SIDE AIR BAGS* The side airbags are incorporated in the backrest frames of the front seat, on the
side nearest the door. They are triggered independently of each other depending on the side on which the collision occurs, in the case of side impacts which could cause injury to the thorax,the abdomen and the head. * According to speciÞcation
06-05-2002
Page 75 of 107

YOUR 106 IN DETAIL73
WARNING
For the front and side airbags to be fully effective, observe the following safety rules:
¥W ear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave an accessory, or any other object between the occupants of the front seats and the airbags. It could hamper the operation of the airbags or injure the occupants.
¥ All work on the airbag system is strictly forbidden unless it is carried out by qualiÞed personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.
¥ The airbag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Havethem replaced by a PEUGEOT dealer after this period.
¥F ront airbags*
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
¥ Side airbags*
¥ Never put covers on the front seats.
¥ Do not Þx or glue anything to the front seat backrests. This could cause injury to the chest or arms when the side airbaginßates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to speciÞcation06-05-2002
Page 76 of 107

YOUR 106 IN DETAIL72
Passenger airbag precautions Vehicle fitted with a passenger
airbag disarming switch:
- disarm the airbag if you install arearwards-facingchild seat on thefront passengerseat,
-arm the airbagwhen you trans-port an adult onthe front pas-senger seat.
V ehicle not fitted with a passenger
airbag disarming switch:
-do not install a rear-wards-facing child seaton the front passengerseat.
Never place your feet or any objecton the fascia.
Front* and side* airbag operational check Operation of the airbags is indicated by the warning light on the instrument panel. If the passenger airbag is armed (passenger airbag switch in the "ON"
position), the warning light will come on for six seconds when the ignition is switched on. If the warning light:- does not come on when the ignition is switched on or,
- does not switch off after six seconds or,
-ß ashes for Þve minutes then remains on.
Consult your PEUGEOT dealer.
SIDE AIR BAGS* The side airbags are incorporated in the backrest frames of the front seat, on the
side nearest the door. They are triggered independently of each other depending on the side on which the collision occurs, in the case of side impacts which could cause injury to the thorax,the abdomen and the head. * According to speciÞcation
06-05-2002
Page 77 of 107

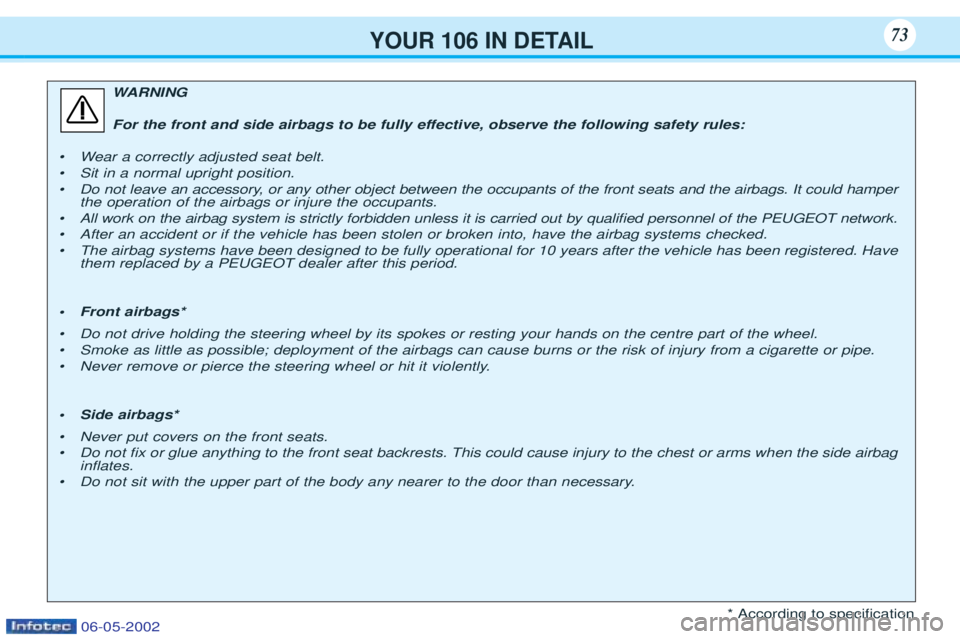

YOUR 106 IN DETAIL73
WARNING
For the front and side airbags to be fully effective, observe the following safety rules:
¥W ear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave an accessory, or any other object between the occupants of the front seats and the airbags. It could hamper the operation of the airbags or injure the occupants.
¥ All work on the airbag system is strictly forbidden unless it is carried out by qualiÞed personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.
¥ The airbag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Havethem replaced by a PEUGEOT dealer after this period.
¥F ront airbags*
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
¥ Side airbags*
¥ Never put covers on the front seats.
¥ Do not Þx or glue anything to the front seat backrests. This could cause injury to the chest or arms when the side airbaginßates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
* According to speciÞcation06-05-2002
Page 78 of 107

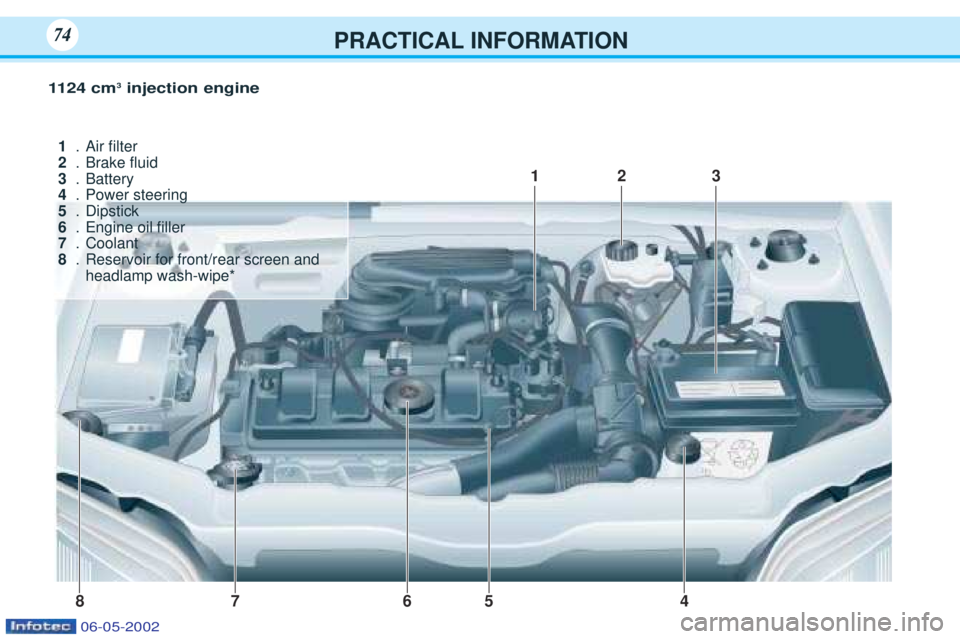

PRACTICAL INFORMATION7474
1124 cm 3
injection engine
4
1
3
5
6
87 2
1
.Air Þlter
2 .Brake ßuid
3 .Battery
4 .Power steering
5 .Dipstick
6 .Engine oil Þller
7 .Coolant
8 .Reservoir for front/rear screen and headlamp wash-wipe*
06-05-2002
Page 79 of 107

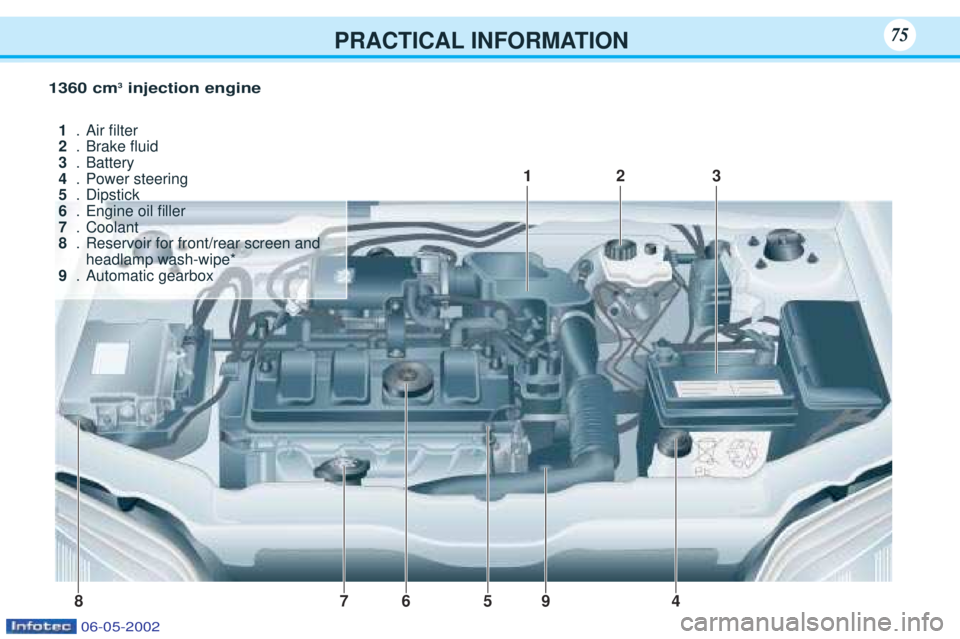

PRACTICAL INFORMATION75
1360 cm3
injection engine
4
1
3
5
6
87 2
9
1
.Air Þlter
2 .Brake ßuid
3 .Battery
4 .Power steering
5 .Dipstick
6 .Engine oil Þller
7 .Coolant
8 .Reservoir for front/rear screen and headlamp wash-wipe*
9 .Automatic gearbox
75
06-05-2002
Page 80 of 107

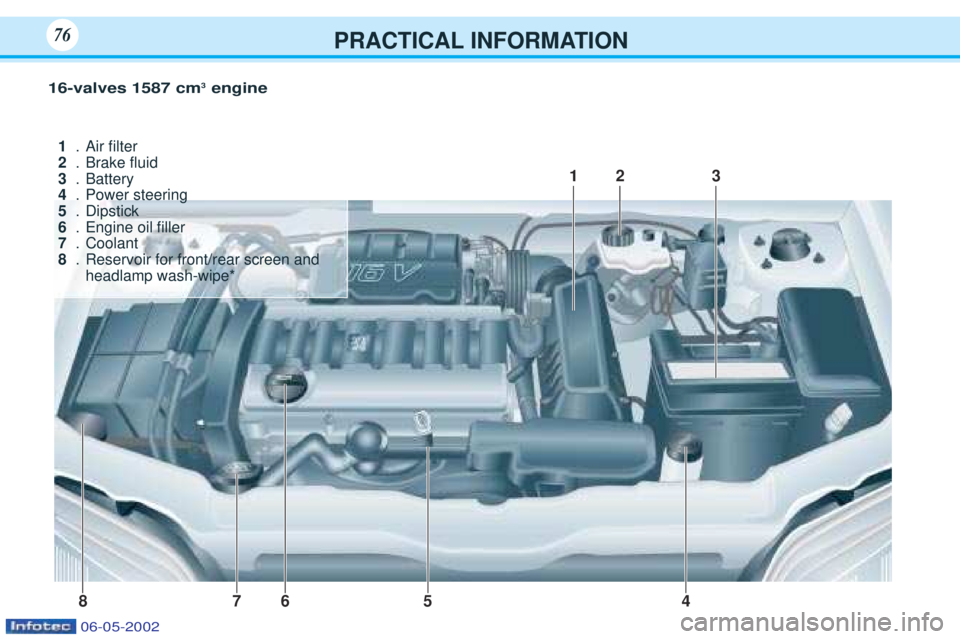

PRACTICAL INFORMATION7676
16-valves 1587 cm3
engine
4
1
3
6
87 2
5
1
.Air Þlter
2 .Brake ßuid
3 .Battery
4 .Power steering
5 .Dipstick
6 .Engine oil Þller
7 .Coolant
8 .Reservoir for front/rear screen and headlamp wash-wipe*
06-05-2002
