PEUGEOT 2008 2014 Owners Manual

159
7
Practical information

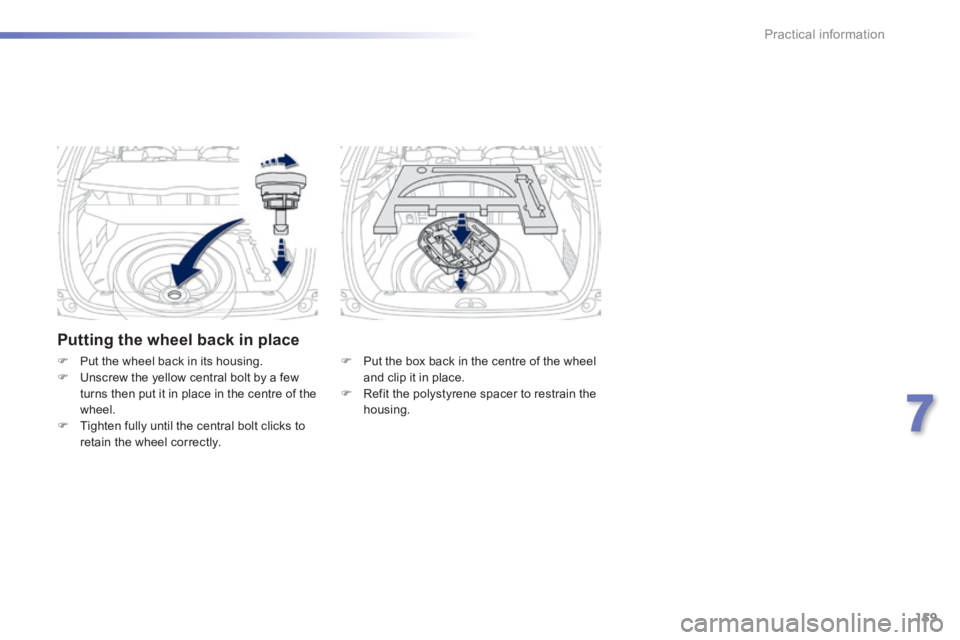

Putting the wheel back in place
 Put the box back in the centre of the wheel and clip it in place.  Refit the polystyrene spacer to restrain the housing.
 Put the wheel back in its housing.  Unscrew the yellow central bolt by a few turns then put it in place in the centre of the wheel.  Tighten fully until the central bolt clicks to retain the wheel correctly.

160
Practical information

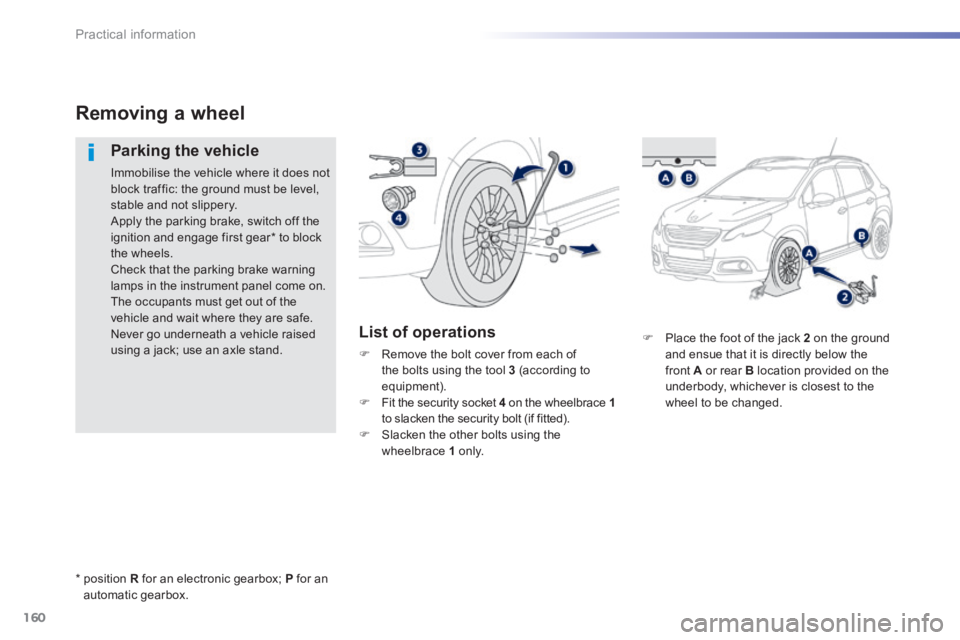

 Place the foot of the jack 2 on the ground and ensue that it is directly below the front A or rear B location provided on the underbody, whichever is closest to the wheel to be changed.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not block traffic: the ground must be level, stable and not slippery. Apply the parking brake, switch off the ignition and engage first gear * to block the wheels. Check that the parking brake warning lamps in the instrument panel come on. The occupants must get out of the vehicle and wait where they are safe. Never go underneath a vehicle raised using a jack; use an axle stand.
List of operations
 Remove the bolt cover from each of the bolts using the tool 3 (according to equipment).  Fit the security socket 4 on the wheelbrace 1 to slacken the security bolt (if fitted).  Slacken the other bolts using the wheelbrace 1 o n l y.
* position R for an electronic gearbox; P for an automatic gearbox.

161
7
Practical information

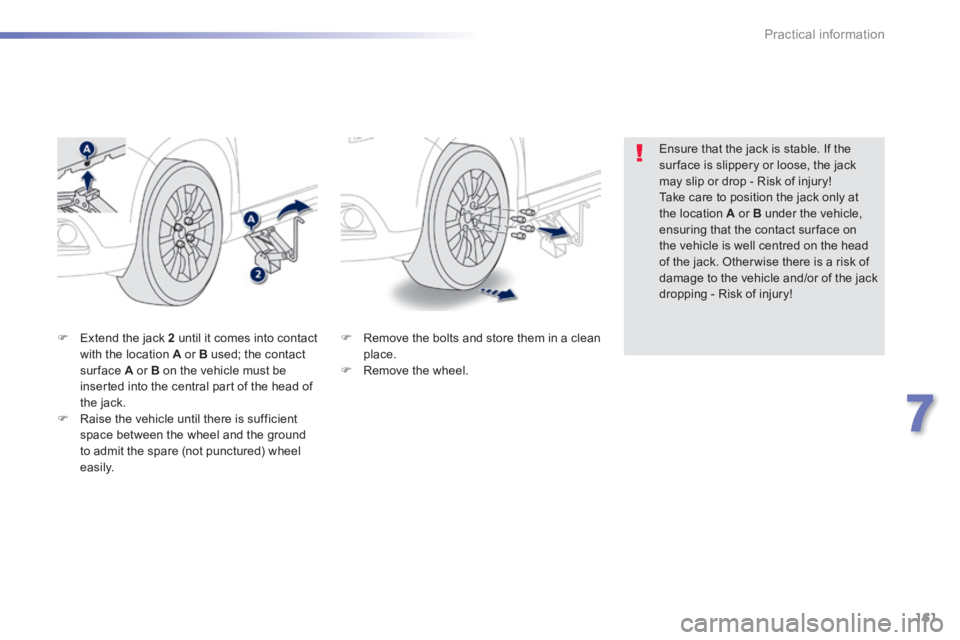

 Remove the bolts and store them in a clean place.  Remove the wheel.
 Extend the jack 2 until it comes into contact with the location A or B used; the contact sur face A or B on the vehicle must be inserted into the central part of the head of the jack.  Raise the vehicle until there is sufficient
space between the wheel and the ground to admit the spare (not punctured) wheel easily.
Ensure that the jack is stable. If the sur face is slippery or loose, the jack may slip or drop - Risk of injury! Take care to position the jack only at the location A or B under the vehicle,
ensuring that the contact sur face on the vehicle is well centred on the head of the jack. Otherwise there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury!

162
Practical information

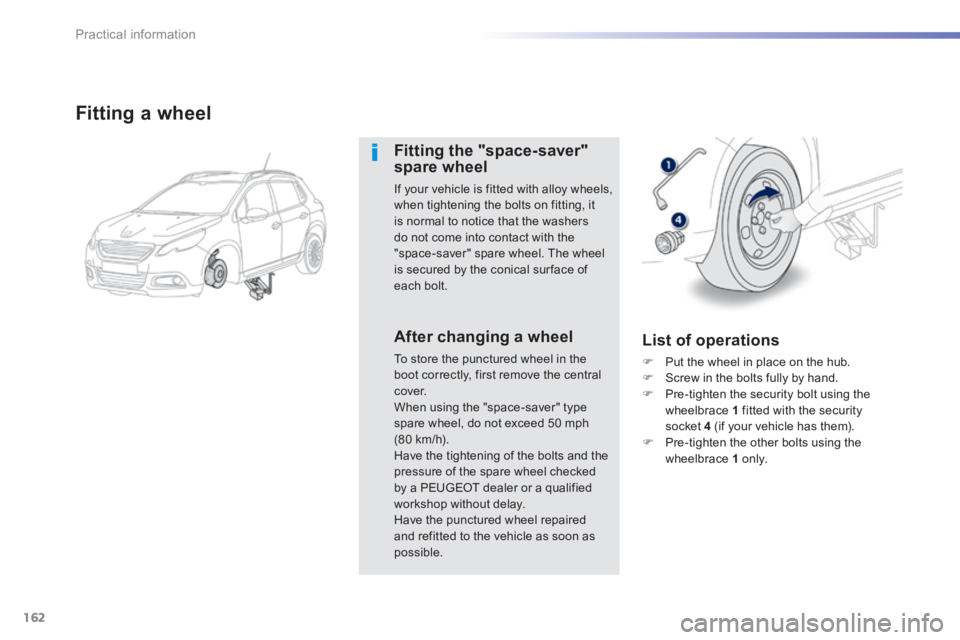

Fitting a wheel
Fitting the "space-saver" spare wheel
If your vehicle is fitted with alloy wheels, when tightening the bolts on fitting, it is normal to notice that the washers do not come into contact with the "space-saver" spare wheel. The wheel is secured by the conical sur face of each bolt.
After changing a wheel
To store the punctured wheel in the boot correctly, first remove the central cover. When using the "space-saver" type spare wheel, do not exceed 50 mph (80 km/h). Have the tightening of the bolts and the pressure of the spare wheel checked by a PEUGEOT dealer or a qualified workshop without delay. Have the punctured wheel repaired and refitted to the vehicle as soon as possible.
List of operations
 Put the wheel in place on the hub.  Screw in the bolts fully by hand.  Pre-tighten the security bolt using the wheelbrace 1 fitted with the security socket 4 (if your vehicle has them).  Pre-tighten the other bolts using the wheelbrace 1 o n l y.

163
7
Practical information

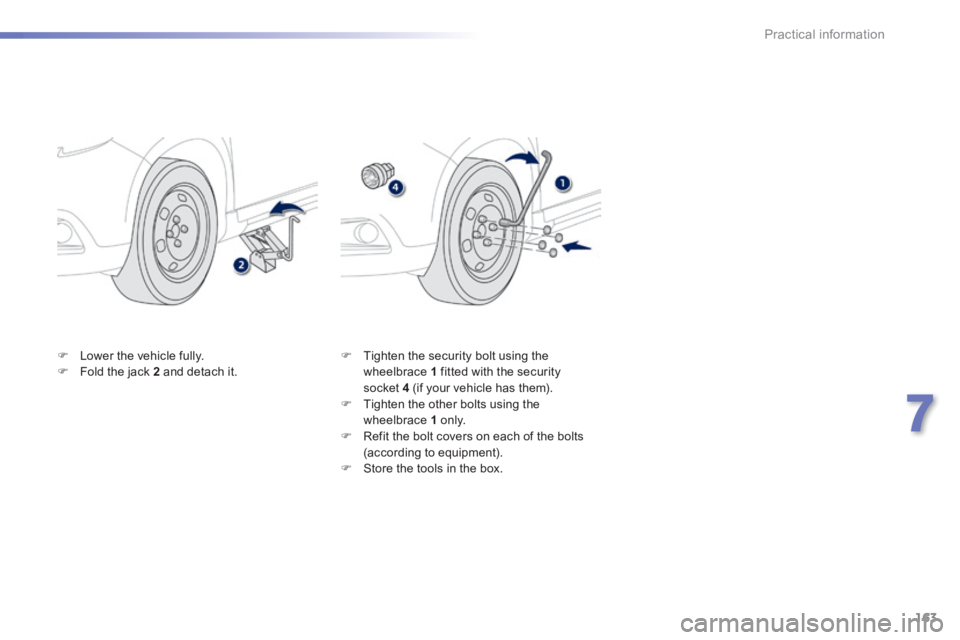

 Lower the vehicle fully.  Fold the jack 2 and detach it.  Tighten the security bolt using the wheelbrace 1 fitted with the security socket 4 (if your vehicle has them).  Tighten the other bolts using the wheelbrace 1 o n l y.  Refit the bolt covers on each of the bolts (according to equipment).  Store the tools in the box.

164
Practical information

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.
The snow chains must be fitted only to the front wheels. They must never be fitted to "space-saver" type spare wheels.
Take account of the legislation in force in your country on the use of snow chains and the maximum running speed authorised.
Use only the chains designed to be fitted to the type of wheel fitted to your vehicle:
For more information on snow chains, contact a
PEUGEOT dealer or a qualified workshop.
Advice on installation
 If you have to fit the chains during a journey, stop the vehicle on a flat sur face on the side of the road.  Apply the parking brake and position any wheel chocks to prevent movement of your vehicle.  Fit the chains following the instructions provided by the manufacturer.  Move off gently and drive for a few moments, without exceeding 30 mph (50 km/h).  Stop your vehicle and check that the snow chains are correctly tightened.
Avoid driving on roads that have been cleared of snow, to avoid damaging your
vehicle's tyres and the road sur face. It is recommended that before you leave, you practise fitting the snow chains on a level and dry sur face. If your vehicle is fitted with alloy wheels, check that no part of the chain or its fixings is in contact with the wheel rim.
Original tyre size Maximum link size.
195/65 R15
9 mm
195/60 R16
205/55 R16
205/50 R17

165
7
Practical information

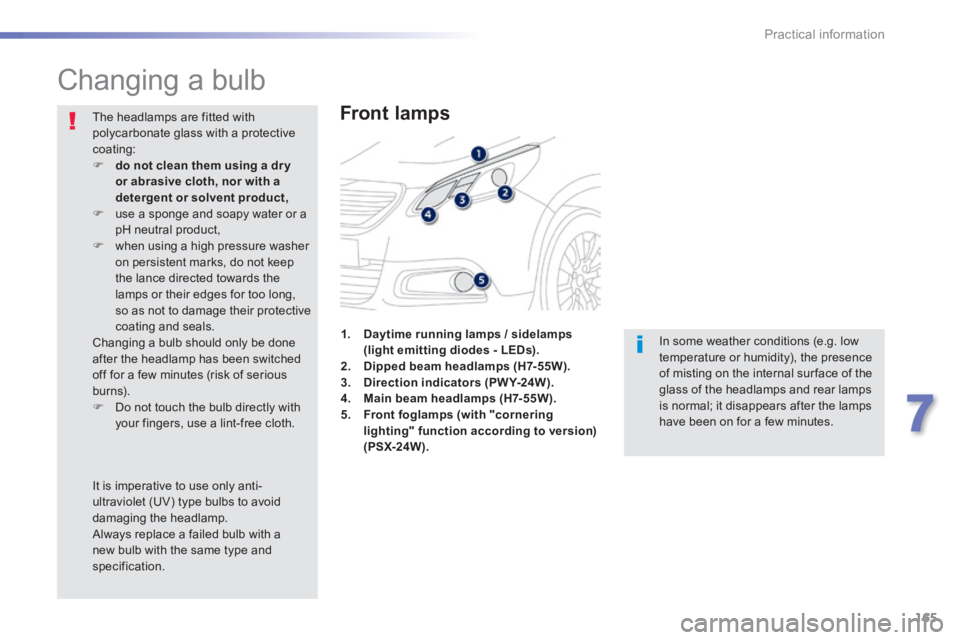

Changing a bulb
Front lamps
In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of the glass of the headlamps and rear lamps is normal; it disappears after the lamps have been on for a few minutes.
The headlamps are fitted with polycarbonate glass with a protective coating:  do not clean them using a dr y or abrasive cloth, nor with a detergent or solvent product, use a sponge and soapy water or a pH neutral product,  when using a high pressure washer on persistent marks, do not keep the lance directed towards the lamps or their edges for too long, so as not to damage their protective coating and seals. Changing a bulb should only be done after the headlamp has been switched off for a few minutes (risk of serious burns).  Do not touch the bulb directly with your fingers, use a lint-free cloth.
1. Daytime running lamps / sidelamps (light emitting diodes - LEDs).2. Dipped beam headlamps (H7-55W).3. Direction indicators (PWY-24W).4. Main beam headlamps (H7-55W).5. Front foglamps (with "cornering lighting" function according to version) (PSX-24W).
It is imperative to use only anti-ultraviolet (UV) type bulbs to avoid damaging the headlamp.
Always replace a failed bulb with a new bulb with the same type and specification.

166
Practical information

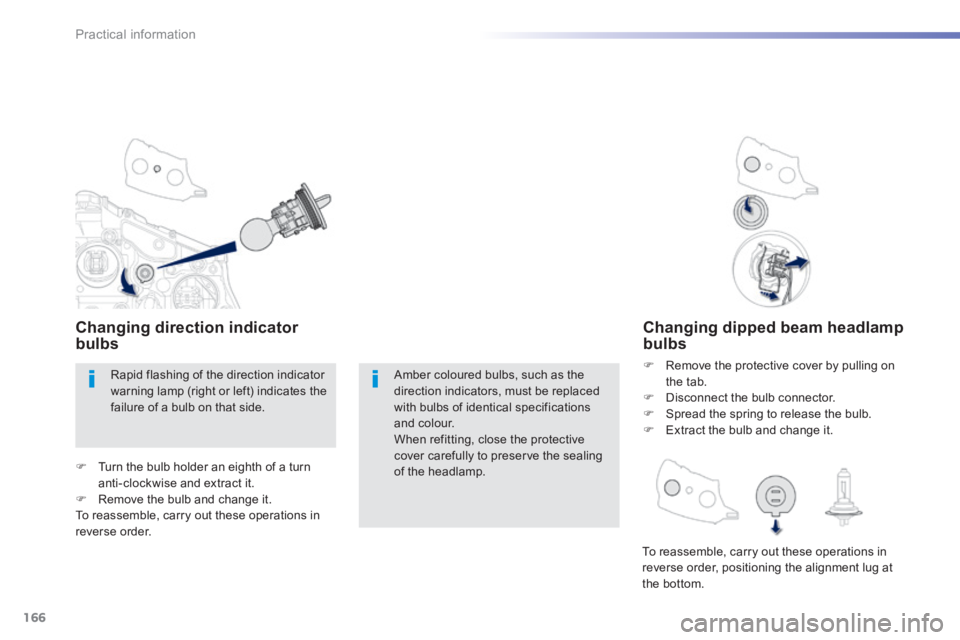

Changing dipped beam headlamp bulbs
 Remove the protective cover by pulling on the tab.  Disconnect the bulb connector.  Spread the spring to release the bulb.  Extract the bulb and change it.
Amber coloured bulbs, such as the direction indicators, must be replaced with bulbs of identical specifications and colour. When refitting, close the protective cover carefully to preserve the sealing of the headlamp.
Rapid flashing of the direction indicator warning lamp (right or left) indicates the failure of a bulb on that side.
Changing direction indicator bulbs
To reassemble, carry out these operations in reverse order, positioning the alignment lug at the bottom.
 Turn the bulb holder an eighth of a turn anti-clockwise and extract it.  Remove the bulb and change it. To reassemble, carry out these operations in reverse order.

167
7
Practical information

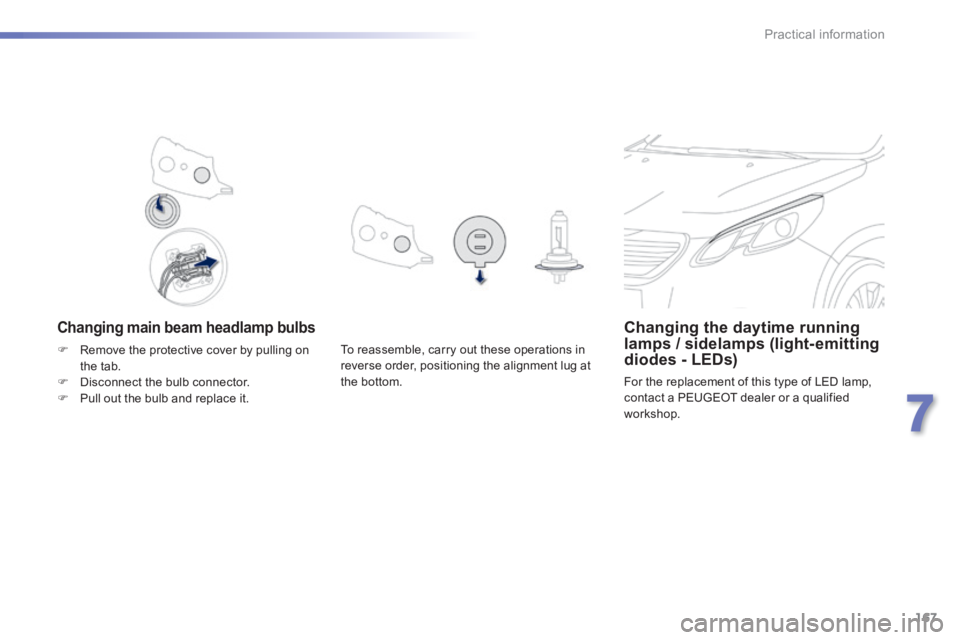

Changing main beam headlamp bulbs Changing the daytime running lamps / sidelamps (light- emitting diodes - LEDs)
For the replacement of this type of LED lamp, contact a PEUGEOT dealer or a qualified workshop.
To reassemble, carry out these operations in reverse order, positioning the alignment lug at the bottom.
 Remove the protective cover by pulling on the tab.  Disconnect the bulb connector.  Pull out the bulb and replace it.

168
Practical information

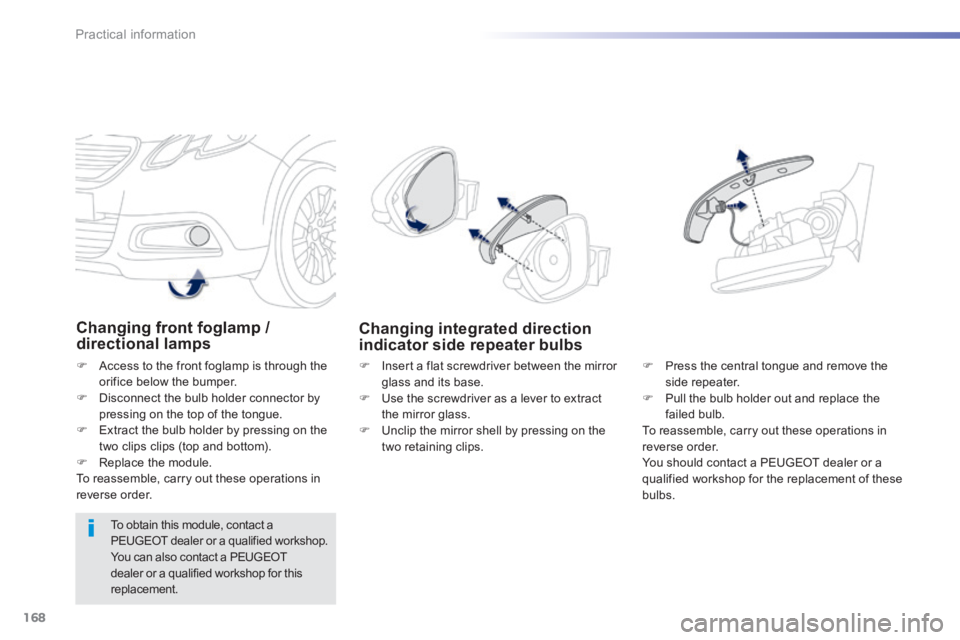

Changing front foglamp / directional lamps
 Access to the front foglamp is through the orifice below the bumper.  Disconnect the bulb holder connector by pressing on the top of the tongue.  Extract the bulb holder by pressing on the two clips clips (top and bottom).  Replace the module. To reassemble, carry out these operations in reverse order.
Changing integrated direction indicator side repeater bulbs
 Press the central tongue and remove the side repeater.  Pull the bulb holder out and replace the failed bulb. To reassemble, carry out these operations in reverse order. You should contact a PEUGEOT dealer or a qualified workshop for the replacement of these bulbs.
 Insert a flat screwdriver between the mirror glass and its base.  Use the screwdriver as a lever to extract the mirror glass.  Unclip the mirror shell by pressing on the two retaining clips.
To obtain this module, contact a
PEUGEOT dealer or a qualified workshop. You can also contact a PEUGEOT dealer or a qualified workshop for this replacement.
