engine PEUGEOT 206 2002 User Guide

INSTRUMENTS AND CONTROLS
28
INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. ABS: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Diesel pre-heat warning light
8. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 10.
Right hand direction indicator
11 . Engine diagnostics warning light
12. Main beam headlamps indicatorlight
13. Handbrake, low brake fluid leveland electronic brake force distribution warning light
14. Dipped beam headlamps indicator light
15. Battery charge warning light
16. Engine oil pressure and temperature warning light
17. Water in diesel filter warning light
18. Coolant temperature and lowlevel warning light 19.
Engine oil temperature indicator
20. Total distance recorder button
21. Central (STOP) warning light
22. Speedometer
23. Coolant temperature indicator
24. Rev counter
25. Lighting rheostat button
26. Fuel level indicator
27. Low fuel level warning light
* According to destination
17-06-2002

INSTRUMENTS AND CONTROLS29
INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX
1.
Seat belt not fastened warning light*
2. Passenger air bag disarmingwarning light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. ABS: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right hand direction indicator
10. Engine diagnostics warning light
11 . Main beam headlamps indicatorlight
12. Handbrake, low brake fluid leveland electronic brake force distribution warning light
13. Dipped beam headlamps indica-tor light
14. Battery charge warning light
15. Engine oil pressure and temperature warning light
16. Coolant temperature and lowlevel warning light 17.
Operating programmes
18. Gear indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel level indicator
26. Low fuel level warning light
* According to destination
17-06-2002

INSTRUMENTS AND CONTROLS
30
Handbrake, low brake fluid and ElectronicBrake Force Distributionsystem fault warninglight
Linked to the central (STOP) warninglight. This indicates one of the following:
Ð that the handbrake is applied or not fully released,
Ð an excessive drop in brake fluid level (if the warning light remains on even when the handbrake isreleased).
Ð a fault in the Electronic Brake Force Distribution system, if lit at
the same time as the ABS warninglight.
You must stop.
Consult a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
A permanently lit warning light or one flashing, with the engine run-ning, indicates an operating faultof the unit concerned. The illumi-nation of certain warning lightsmay be accompanied by anaudible signal and a message on
the multi-function display. Do notignore this warning: consult aPEUGEOT dealer as soon as pos-sible.
If the central (STOP) warning light comes on when you are driving,
stop your vehicle immediately,where it is safe to do so.
Anti-lock Braking System (ABS) warninglight
If this warning light is permanentlyon, it indicates a malfunction of theABS.
However, the vehicle retains conventional servo-assisted bra-king.
Consult a PEUGEOT dealer.
Coolant temperature and low coolant level warninglight
Linked to the central (STOP) warninglight.You must stop.
Wait for the engine to cool before top-ping up the level. The cooling circuit is pressurised.In the event of breakdown and to prevent any risk of burns , unscrew
the cap by two turns to allow thepressure to drop. When the pressure has dropped, remove the cap and top up the level.
Consult a PEUGEOT dealer.
Central (STOP) warning light Linked to the "engine
oil pressure", "coolant temperature and low coolant level", "handbrake","low brake fluid level" and "electronicbrake force distribution system fault"warning lights.You must stop if the light flasheswith the engine running.
Consult a PEUGEOT dealer.
Engine oil pressure and temperaturewarning light
Linked to the central (STOP) warninglight.
You must stop.
This warning light indicates one ofthe following:
Ð insufficient oil pressure,
Ð a lack of oil in the lubrication cir- cuit. Top up the level.
Ð an oil temperature which is too high. The warning light is acompa-
nied by an audible signal. To lowerthe oil temperature, reduce yourspeed.
Consult a PEUGEOT dealer.
17-06-2002

INSTRUMENTS AND CONTROLS31

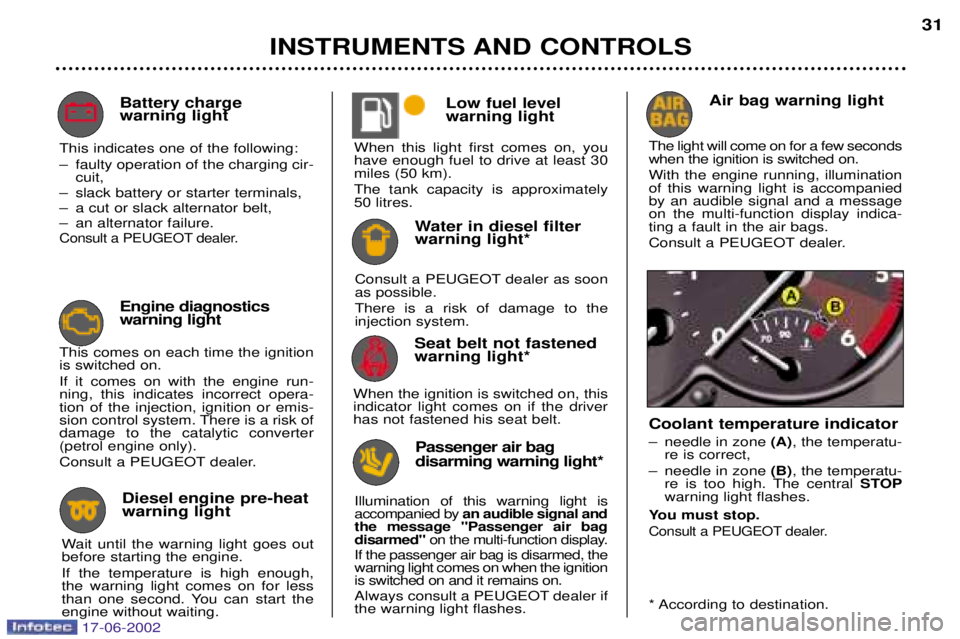

Seat belt not fastened warning light*
When the ignition is switched on, thisindicator light comes on if the driverhas not fastened his seat belt. Air bag warning light
The light will come on for a few secondswhen the ignition is switched on. With the engine running, illumination of this warning light is accompaniedby an audible signal and a messageon the multi-function display indica-ting a fault in the air bags.
Consult a PEUGEOT dealer.
Battery charge warning light
This indicates one of the following:
Ð faulty operation of the charging cir- cuit,
Ð slack battery or starter terminals,
Ð a cut or slack alternator belt,
Ð an alternator failure.
Consult a PEUGEOT dealer.
Engine diagnostics warning light
This comes on each time the ignitionis switched on. If it comes on with the engine run- ning, this indicates incorrect opera-tion of the injection, ignition or emis-
sion control system. There is a risk ofdamage to the catalytic converter(petrol engine only).
Consult a PEUGEOT dealer.
* According to destination.
Water in diesel filter warning light*
Consult a PEUGEOT dealer as soonas possible. There is a risk of damage to the injection system.
Passenger air bag disarming warning light*
Illumination of this warning light is accompanied by an audible signal and
the message "Passenger air bagdisarmed" on the multi-function display.
If the passenger air bag is disarmed, thewarning light comes on when the ignitionis switched on and it remains on.
Always consult a PEUGEOT dealer if the warning light flashes. Low fuel level warning light
When this light first comes on, youhave enough fuel to drive at least 30miles (50 km). The tank capacity is approximately 50 litres.
Diesel engine pre-heatwarning light
Wait until the warning light goes outbefore starting the engine. If the temperature is high enough, the warning light comes on for less
than one second. You can start theengine without waiting.
Coolant temperature indicator
Ð needle in zone (A), the temperatu-
re is correct,
Ð needle in zone (B), the temperatu-
re is too high. The central STOP
warning light flashes.
You must stop.
Consult a PEUGEOT dealer.
17-06-2002

INSTRUMENTS AND CONTROLS31
Seat belt not fastened warning light*
When the ignition is switched on, thisindicator light comes on if the driverhas not fastened his seat belt. Air bag warning light
The light will come on for a few secondswhen the ignition is switched on. With the engine running, illumination of this warning light is accompaniedby an audible signal and a messageon the multi-function display indica-ting a fault in the air bags.
Consult a PEUGEOT dealer.
Battery charge warning light
This indicates one of the following:
Ð faulty operation of the charging cir- cuit,
Ð slack battery or starter terminals,
Ð a cut or slack alternator belt,
Ð an alternator failure.
Consult a PEUGEOT dealer.
Engine diagnostics warning light
This comes on each time the ignitionis switched on. If it comes on with the engine run- ning, this indicates incorrect opera-tion of the injection, ignition or emis-
sion control system. There is a risk ofdamage to the catalytic converter(petrol engine only).
Consult a PEUGEOT dealer.
* According to destination.
Water in diesel filter warning light*
Consult a PEUGEOT dealer as soonas possible. There is a risk of damage to the injection system.
Passenger air bag disarming warning light*
Illumination of this warning light is accompanied by an audible signal and
the message "Passenger air bagdisarmed" on the multi-function display.
If the passenger air bag is disarmed, thewarning light comes on when the ignitionis switched on and it remains on.
Always consult a PEUGEOT dealer if the warning light flashes. Low fuel level warning light
When this light first comes on, youhave enough fuel to drive at least 30miles (50 km). The tank capacity is approximately 50 litres.
Diesel engine pre-heatwarning light
Wait until the warning light goes outbefore starting the engine. If the temperature is high enough, the warning light comes on for less
than one second. You can start theengine without waiting.
Coolant temperature indicator
Ð needle in zone (A), the temperatu-
re is correct,
Ð needle in zone (B), the temperatu-
re is too high. The central STOP
warning light flashes.
You must stop.
Consult a PEUGEOT dealer.
17-06-2002

INSTRUMENTS AND CONTROLS
32

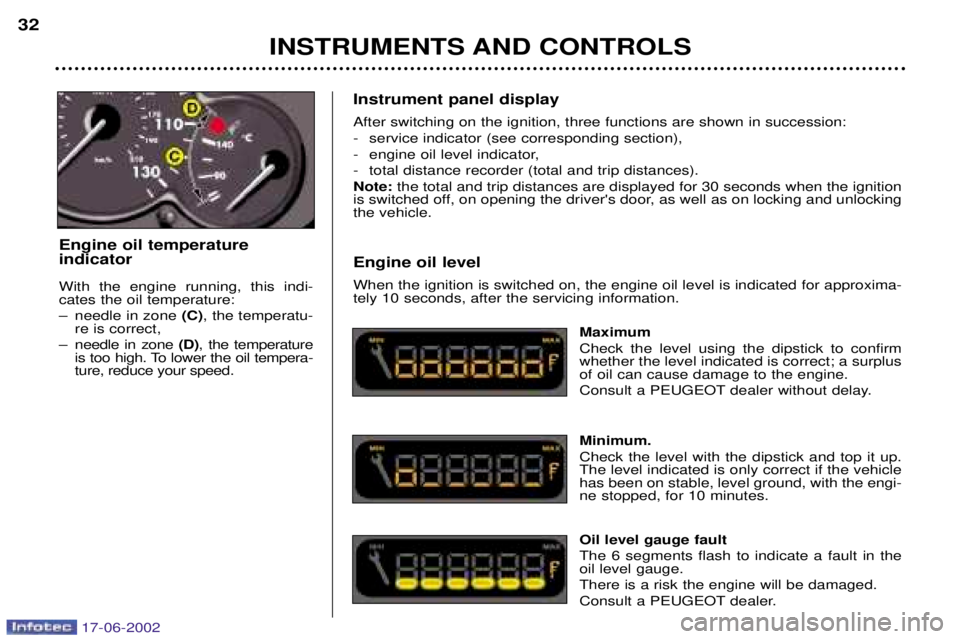

Instrument panel display After switching on the ignition, three functions are shown in succession:
- service indicator (see corresponding section),
- engine oil level indicator,
- total distance recorder (total and trip distances).Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approxima- tely 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whether the level indicated is correct; a surplusof oil can cause damage to the engine.
Consult a PEUGEOT dealer without delay. Minimum. Check the level with the dipstick and top it up. The level indicated is only correct if the vehiclehas been on stable, level ground, with the engi-ne stopped, for 10 minutes. Oil level gauge fault The 6 segments flash to indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Engine oil temperature indicator With the engine running, this indi- cates the oil temperature:
Ð needle in zone
(C), the temperatu-
re is correct,
Ð needle in zone (D), the temperature
is too high. To lower the oil tempera- ture, reduce your speed.
17-06-2002

INSTRUMENTS AND CONTROLS
32
Instrument panel display After switching on the ignition, three functions are shown in succession:
- service indicator (see corresponding section),
- engine oil level indicator,
- total distance recorder (total and trip distances).Note:the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approxima- tely 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whether the level indicated is correct; a surplusof oil can cause damage to the engine.
Consult a PEUGEOT dealer without delay. Minimum. Check the level with the dipstick and top it up. The level indicated is only correct if the vehiclehas been on stable, level ground, with the engi-ne stopped, for 10 minutes. Oil level gauge fault The 6 segments flash to indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Engine oil temperature indicator With the engine running, this indi- cates the oil temperature:
Ð needle in zone
(C), the temperatu-
re is correct,
Ð needle in zone (D), the temperature
is too high. To lower the oil tempera- ture, reduce your speed.
17-06-2002

YOUR 206 IN DETAIL67
Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended for hotclimates.
3. Air flow adjustment Turn the control from posi- tion 1to position 4to obtain
an air flow sufficient toensure your comfort. 4. Air intake control
Intake of exterior air.
This is the normal operating posi-tion. Recirculation of interior air.
This position prevents exteriorodours and smoke entering the pas-senger compartment and speeds upthe rate at which the passengercompartment can be heated. As soon as possible, position thecontrol in the exterior air intakeposition to prevent misting of thewindows.
5. Demisting the rear screen With the engine running, press once to demist therear screen and the mir-rors.
It switches off automatically afterapproximately twelve minutes. Press again to switch it back on for twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes.
17-06-2002

YOUR 206 IN DETAIL69
3. Air distribution adjustment
Windscreen and side win- dows (de-icing/demisting).
To quickly de-ice or demist the wind-screen and side windows:
Ð turn the temperature and air flow controls to maximum,
Ð close the centre vents,
Ð position the air intake control to the left; the "Outside Air" position,
Ð start the air conditioning.
Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended for hotclimates. 5. Air intake control
Intake of exterior air.
This is the normal operating posi-tion.
Recirculation of interior air.
This position prevents exteriorodours and smoke entering the pas-senger compartment. Used simultaneously with the air conditioning, recirculation enablesboth heating and cooling performan-ce to be improved. Used without the air conditioning, recirculation may result in misting ofthe windows. As soon as possible, position the control in the exterior air intake posi-tion. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact a
PEUGEOT dealer. Note:
to optimise the operation of
the air conditioning, leave the vents open.4. Air flow adjustment
Turn the control from posi- tion 1to position 4to obtain
an air flow sufficient toensure your comfort.6. Demisting the rear screen
With the engine running, press once to demist therear screen and the mir-rors.
It switches off automatically afterapproximately twelve minutes. Press again to switch it back on for twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes.
17-06-2002

YOUR 206 IN DETAIL79

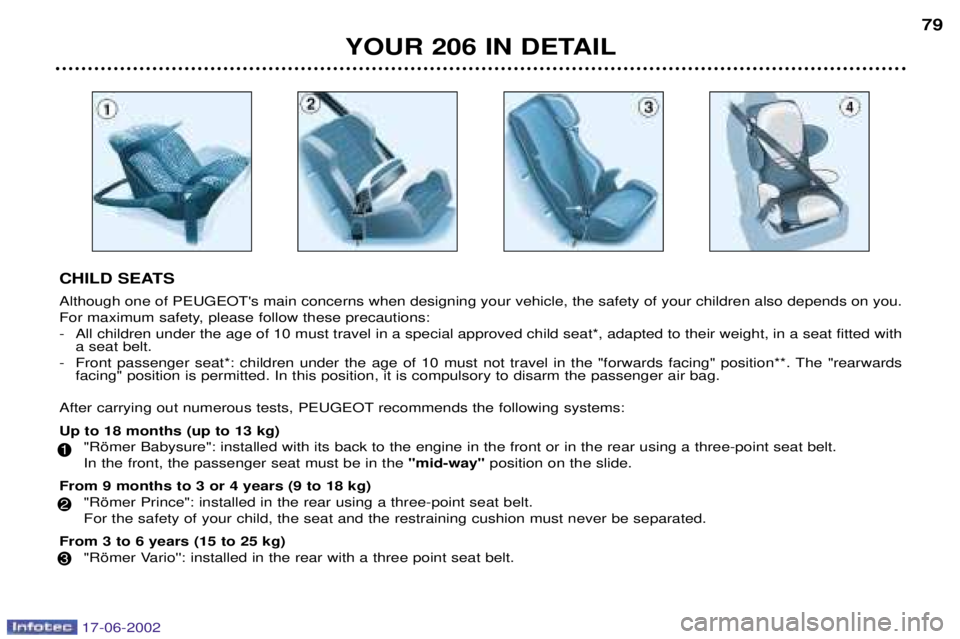

CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:
- All children under the age of 10 must travel in a special approved child seat*, adapted to their weight, in a seat fitted with a seat belt.
- Front passenger seat*: children under the age of 10 must not travel in the "forwards facing" position**. The "rearwards facing" position is permitted. In this position, it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (up to 13 kg) "Ršmer Babysure": installed with its back to the engine in the front or in the rear using a three-point seat belt. In the front, the passenger seat must be in the "mid-way"position on the slide.
From 9 months to 3 or 4 years (9 to 18 kg) "Ršmer Prince": installed in the rear using a three-point seat belt.For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (15 to 25 kg) "Ršmer Vario'': installed in the rear with a three point seat belt.
1
2
3
