YOUR AT A GLANCE
2
07-10-2002
Page 2 of 128
1Side windows demisting vents
2 Adjustable side vent
3 Passenger air bag
4 Windscreen demisting vents
5 Multifunction display
6 Central locking control*
7 Hazard warning lights switch
8 Instrument panel lightingrheostat
9 Lights and direction indica-tors stalk
10 Steering wheel height adjust-ment control
11 Steering lock 12
Windscreen wash/wipe / trip computer stalk
13 Driver's air bag
Horn
14 Radio steering column stalk
15 Headlamp height adjustment
16 Passenger air bag disarmingswitch*
17 Alarm button*
18 Dynamic stability control(ESP/ASR) button
19 Storage compartment
20 Fuse box
21 Gear lever
22 Lighter
23 Electric retractable roof control 24
Electric window switches
25 Electric mirror switches
26 Handbrake
27 Front ashtray
28 Heating / ventilation / air con- ditioning controls Rear screen and mirrors demisting
29 Audio RD3
30 Adjustable central vents
31 Glove box
32 Bonnet opening control
* According to destination. 3
YOUR AT
A GLANCE
07-10-2002
Page 3 of 128
THE ELECTRIC
RETRACTABLE ROOF Opening the roof Park the vehicle on level ground. Ensure that the screen 1is
hooked on (nothing must be placed on the screen; if thereis luggage in the boot, it mustnot cause the screen to lift up).
Check that there are noobjects on the rear shelf. When stationary , with the
handbrake applied, turn the ignition key to position M.
Completely release the two
hooks 2; this operation is vali-
dated by an audible signal.
Press on button 3until you
hear a signal to indicate thatthe roof opening operation iscomplete.
Note: during this operation, the
windows open. Closing the roof
When stationary , with the
handbrake applied, turn the ignition key to position M.
Press button 3until you hear a
signal to indicate that the roofopening operation is complete.
Lock the two hooks 2.
Note: the window control switches
become operational again after theroof manoeuvre.
YOUR AT A GLANCE
The roof must not beoperated when a load-ed luggage carrier isfitted on the boot lid.
During roof opening or closingoperations, to avoid risk ofinjury, ensure that no-one is inthe proximity of the movingparts.
If there is any danger,release the control switch;the operation will stopinstantly
Never release button 3 forany length of time, norswitch off the ignition, whenthe roof is in an intermedi-ate position (neither com-pletely open nor completelyclosed).
07-10-200273
Page 4 of 128

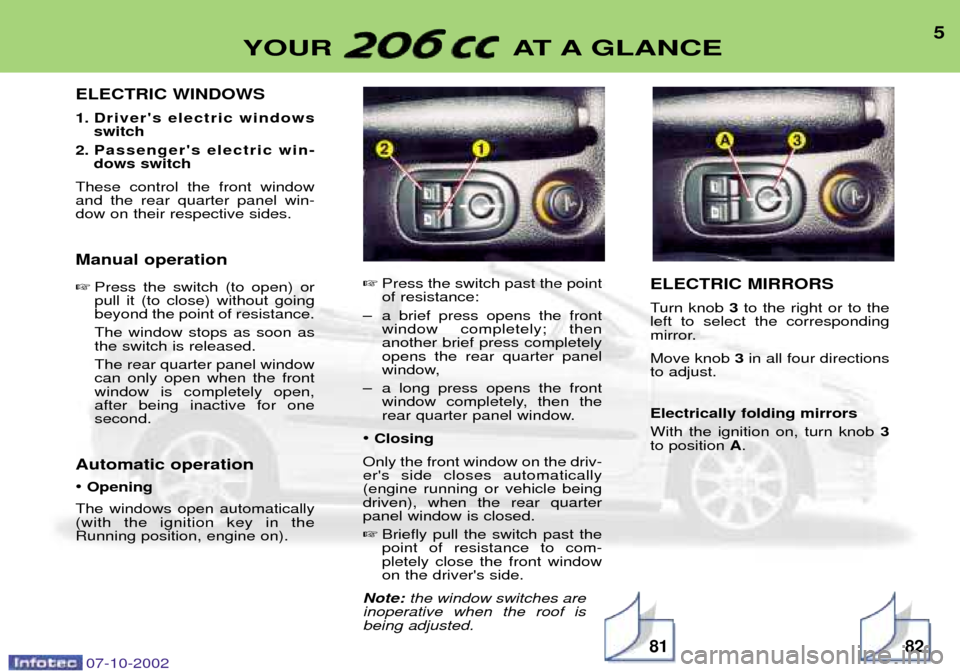

ELECTRIC WINDOWS
1. Driver's electric windowsswitch
2. Passenger's electric win- dows switch
These control the front window and the rear quarter panel win-dow on their respective sides. Manual operation Press the switch (to open) or pull it (to close) without goingbeyond the point of resistance. The window stops as soon as the switch is released. The rear quarter panel window can only open when the frontwindow is completely open,after being inactive for onesecond.
Automatic operation ¥ Opening
The windows open automatically (with the ignition key in theRunning position, engine on).
Press the switch past the pointof resistance:
Ð a brief press opens the front window completely; thenanother brief press completelyopens the rear quarter panel
window,
Ð a long press opens the front window completely, then the
rear quarter panel window.
¥ Closing
Only the front window on the driv-er's side closes automatically(engine running or vehicle beingdriven), when the rear quarterpanel window is closed. Briefly pull the switch past the point of resistance to com-pletely close the front windowon the driver's side.
Note: the window switches are
inoperative when the roof isbeing adjusted. ELECTRIC MIRRORS
Turn knob
3to the right or to the
left to select the corresponding
mirror. Move knob 3in all four directions
to adjust. Electrically folding mirrors With the ignition on, turn knob 3
to position A. 5
YOUR AT
A GLANCE
07-10-20028281
Page 5 of 128
ELECTRONIC IMMOBILISER This locks the engine control sys- tem a few moments after the igni-tion has been switched off andtherefore prevents starting of thevehicle by anyone who does not
have the key. Operation Each key has an electronic chip, which has a special code. When the ignition is switched on, the key code is recognised andstarting is possible. If the key does not have a code
or has a different code from that
stored in the system memory, thevehicle will not start.Additional key
You can store up to 5 keys in the
memory. If you require an additional key or
wish to change a faulty key, you
must visit a PEUGEOT dealerwith the confidential card and allthe keys in your possession. Key in ignition If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door.
Confidential card This contains the identification combination, which is required ifany work is carried out on the sys-
tem by a PEUGEOT dealer. Thiscombination is concealed by afilm, which must not be removedunless required. Keep your card in a safe place, never in your vehicle.
6
YOUR AT
A GLANCE
When buying a second-hand car: ¥ensure that you are given the confidential card;
¥ it is advisable to have the key codes memorised by a PEUGEOT dealer to ensure that the keys in your possessionare the only ones which can start the vehicle.
Do not make any modifications to the PEUGEOT electronic immobilsersystem.
07-10-2002
70
Page 6 of 128
7
YOUR AT A GLANCE
STARTING The four positions of the key in the ignition:
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently turning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier. Starting the engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns
THE KEYS The keys operate independently the locks for the doors, the boot(opening), the fuel filler flap, thesteering lock and the glove boxas well as operating the passen-ger air bag disarming switch. Central locking
From the driver's door, the keys allow you to:
Ð simultaneously lock the doors
and the boot,
Ð simultaneously unlock the doors alone.
You can only unlock the boot by using the boot lock. The remote control Pressing button A
allows you to lock the doors and bootby remote control. This is confirmed by the fixed lighting ofthe direction indica-tors for approxi-mately two sec-onds. Pressing button Ballows you to
unlock the doors alone. This is confirmed by the rapid flashing of the direc-tion indicators for approxi-mately two seconds.
Never
raceacoldengine.
Never run the engine in anenclosed space.
Do not make any modica-tions to the steering lock.
07-10-200269
Page 7 of 128
8
YOUR AT A GLANCE
STEERING WHEEL CONTROLS Lighting stalk Front and rear lights(ring A)
Lights off Side lights Dipped / main beam headlamps Automatic lighting of headlamps Automatic lighting of headlamps
To activate or deactivate the func-tion, place the key in the acces-sories position, the lights stalk inposition
0and press the end of the
stalk for more than four seconds.
Front/rear fog lamps (ring B)
Front fog lamps (1strotation of the ring for-wards)
Front and rear foglamps (2nd rotationof the ring forwards) Windscreen wipers
2 Fast wipe
1 Normal wipe
I Intermittent wipe
or AUTO Automatic wipe
0 Off
Single wipe
Automatic wipe In the AUTO position, the wiper
operates automatically and adjusts its speed to the inten-sity of the rainfall .
Windscreen wash Pull the windscreen wiper stalk towards you.
07-10-20027577
Page 8 of 128
9
YOUR AT A GLANCE
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the lever to release the steering wheel. Adjust to the required height and raise the lever to lock the steer-ing wheel. OPENING THE BONNET Inside the vehicle:
pull the handle. Outside the vehicle:
lift the catch
and lift the bonnet. Secure the strut to hold the bon- net open.
07-10-20028372
Page 9 of 128
10
YOUR AT A GLANCE
FRONT SEATS
1 - F orwards/backwards adjust-
ment.
2 - Access to the rear seats
3 - Head restraint height and
angle adjustment
Never drive with the head restraints removed.
4 - Seat back angle adjustment
5 - Driver's seat height adjustment
07-10-200262
Page 10 of 128
11
YOUR AT A GLANCE
FRONT AIR BAGS Disarming the passenger air bag* Insert the ignition key in the switch 1and turn it to:
Ð the ONposition; the passenger
air bag is armed,
Ð the OFFposition; the passen-
ger air bag is disarmed.
Operating check
With the ignition on (2nd notch),illumination of this warning light,accompanied by an audible signaland the message "Passenger air
bag disarmed" on the multifunc-
tion display, indicates that thepassenger air bag is disarmed(switch in the "OFF"position).
The warning light remains onthroughout the dis-arming process. Precautions regarding the pas-senger air bag
Vehicle fitted with a passenger air bag disarming switch:
Ð disarm the air
bag if you install a rearwards-fac-ing child seat,
Ð arm the air bag for an adult pas-
senger.
Vehicle not fitted with a passen-ger air bag disarmingswitch:
Ð do not install a rear- wards-facing child seat on the frontpassenger seat.
Never place your feet or anyobject on the fascia panel.
* According to destination. "ISOFIX" MOUNTINGS
Available on the front passenger seat, Isofix mountings allow fit-ting of a
special child seat sold
by PEUGEOT dealers. The locks incorporated in the child seat fit onto the ''Isofix''mountings, ensuring reliable,
safe and fast assembly. The childseat must be fitted in the rear-wardsÐfacing position for chil-dren less than 13kg (in this
event it is essential to disarmthe passenger air bag) .
Follow the instructions for fit-ting the child seat in the instal-lation brochure.
07-10-20029064
