STEERING WHEEL CONTROLS Lighting stalk Front and rear lights(ring A)
Lights off Side lights Dipped / main beam headlamps Automatic lighting of headlamps Automatic lighting of headlamps
To activate or deactivate the func-tion, place the key in the acces-sories position, the lights stalk inposition
0and press the end of the
stalk for more than four seconds.
Front/rear fog lamps (ring B)
Front fog lamps (1strotation of the ring for-wards)
Front and rear foglamps (2nd rotationof the ring forwards) Windscreen wipers
2 Fast wipe
1 Normal wipe
I Intermittent wipe
or AUTO Automatic wipe
0 Off


Single wipe
Automatic wipe In the AUTO position, the wiper
operates automatically and adjusts its speed to the inten-sity of the rainfall .
Windscreen wash Pull the windscreen wiper stalk towards you.
07-10-20027577

INSTRUMENTS AND CONTROLS
26
1.Seat belt not fastened warning light*
2. Passenger air bag disarming indi- cator light*
3. Front and side air bags warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and low levelwarning light
17. Engine oil temperature indicator 18.
Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat button
24. Fuel gauge
25. Low fuel level warning light
26. Dynamic stability control(ESP/ASR) warning light
* According to destination.
INSTRUMENT DIALS: MANUAL GEARBOX
07-10-2002

INSTRUMENTS AND CONTROLS27
1. Seat belt not fastened warning light*
2. Passenger air bag disarming indi- cator light*
3. Front and side air bags warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure and tempera-ture warning light
16. Coolant temperature and low levelwarning light
17. Operating programmes 18.
Gear lever position indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel gauge
26. Low fuel level warning light
27. Dynamic stability control (ESP/ASR) warning light
* According to destination.

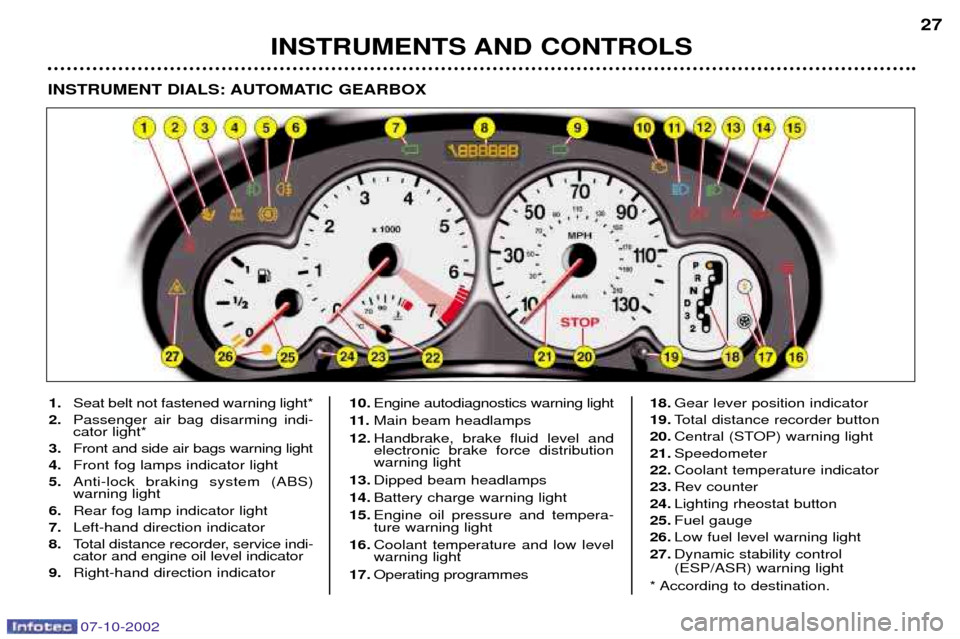

INSTRUMENT DIALS: AUTOMATIC GEARBOX
07-10-2002

07-10-2002
YOUR 206 CC IN DETAIL75
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights on Dipped/main beam headlamps
Automatic switching onof lights Direction indicators (flashers)
Left:downwards.
Right: upwards.
Dipped/Main beam change Pull the stalk towards you. Note:
with the ignition off, if the dri-
ver's door is open, a buzzer sounds if you have left your lights on. Front fog lamps and rear fog lamp Rotate the ring Bforwards to switch
on and backwards to switch off. The status is confirmed by the light on theinstrument panel.
Front fog lamps (1st forwardsturn of the ring)
Front fog lamps and rear fog lamp (2nd forwardsturn of the ring)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring twice backwards. In good or rainy weather,both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.

YOUR 206 CC IN DETAIL
76
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the windscreen
wipers operate continuously.
They switch off when the light becomes bright enough or the wind-screen wipers stop. Note:
In foggy weather or in snow, the
brightness sensor can detect sufficient
light. As a consequence, the lights will
not come on automatically. This function is active when the vehi-
cle is supplied to the customer. To dis-arm or activate the function:
Ð Start with the key in the accessories
position (1st notch),
Ð Press the end of the stalk for more than four seconds.
Note: after the ignition is switched off
and depending on the brightness, the lights remain on for 45 seconds or untilthe vehicle is locked.
The brightness sensor, coupled with
the rain sensor, is located in the centre
of the windscreen, behind the interior
mirror. It is used for automatic switch-ing on of the lights. Operating check Activation Acivation of this function is accompanied by an audible signal and the message"Automatic lighting active''
on the mul-
tifunction display. Disarming Disarming of the function is accompa- nied by an audible signal. Note: the function is temporarily dis-
armed when the driver uses the manual lighting controls. If the brightness sensor does not
function correctly, the system acti-
vates the function (the lights come
on). The driver is alerted by an audiblesignal, accompanied by the message"Automatic switching on of lightsfaulty" .
Contact a PEUGEOT dealer to have thesystem checked.
07-10-2002

07-10-2002
PRACTICAL INFORMATION103
Rear lights Release the top of the boot side trim. Unscrew the wing bolt inside the boot
using the wheelbrace if necessary. Disconnect the connector
A.
Release the light unit.Release spanner B from the bulb holder.
Unscrew nut Cusing spanner B and
removet the bulb holder.Change the faulty bulb.When refitting, stow spanner B on
support D and refit the light.
1. Amber direction indicators
PY 21 W.
2. Reversing lights P 21 W.
3. Brake lights/side lights P 21/5 W.Front fog lamps H1 55 W Press underneath the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Pinch both ends of the securing clip to release the bulb.
The "amber" bulbs must bereplaced by bulbs of identi-
cal specification and colour.

07-10-2002
PRACTICAL INFORMATION
104
Rear fog lamp P 21 W Unclip the lamp and release the
assembly.
Turn the pin connector a quarter turn and remove it. Change the bulb. Number plate lights W 5 W Insert a thin screwdriver into one of the exterior holes of the transparent
cover. Push it outwards to unclip it.
Remove the transparent cover.Change the faulty bulb.

07-10-2002
PRACTICAL INFORMATION
108
Fuse no. Rating
Functions
1 10A Reversing lights switch - Speed sensor
2 15A Canister solenoid valve - Fuel pump
3 10A ABS/ESP engine control unit - ESP brake switch
4 10A Automatic gearbox control unit - Engine control unit
5 Ð Not used
6 15A Front fog lamps
7 20A Not used
8 20A Fan unit relay - Engine control unit - Engine management solenoid valve
9 15A Left dipped headlamps
10 15A Right dipped headlamps
11 10A Left main beam headlamps
12 15A Right main beam headlamps
13 15A Horns
14 10A Front windscreen wash pump
15 30A Throttle housing heater - Oxygen sensor - Engine control unit - Ignition coil - Engine
management solenoid valve - Injectors
16 30A Air pump relay
17 30A Fast and slow-speed wiper
18 40A Air conditioning fan
