YOUR 206 IN DETAIL

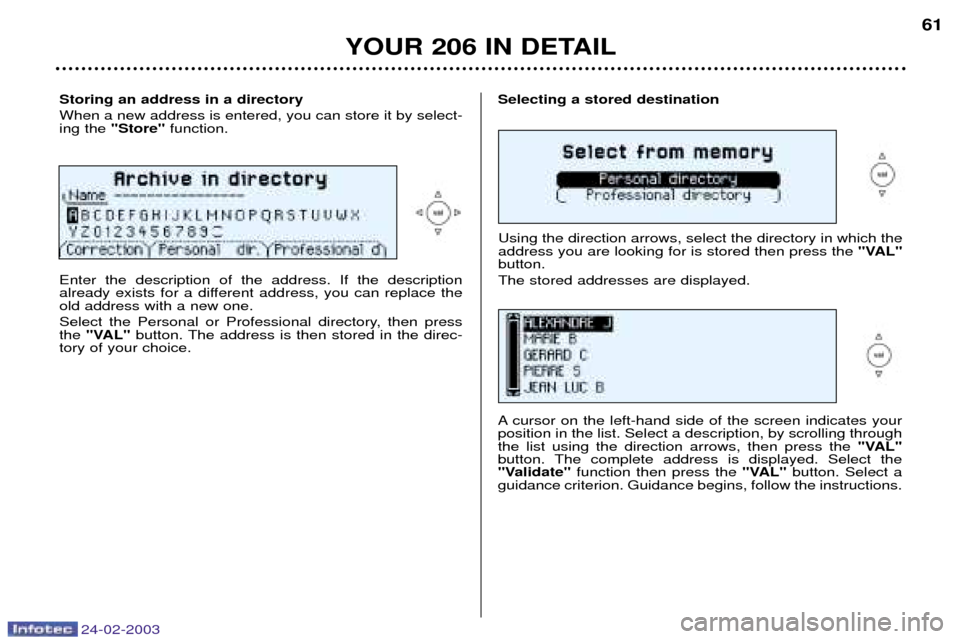

Storing an address in a directory When a new address is entered, you can store it by select- ing the "Store" function.Selecting a stored destination
Enter the description of the address. If the description
already exists for a different address, you can replace theold address with a new one.
Select the Personal or Professional directory, then press the "VAL" button. The address is then stored in the direc-
tory of your choice. Using the direction arrows, select the directory in which theaddress you are looking for is stored then press the
"VAL"
button. The stored addresses are displayed.
A cursor on the left-hand side of the screen indicates your position in the list. Select a description, by scrolling throughthe list using the direction arrows, then press the "VAL"
button. The complete address is displayed. Select the
"Validate" function then press the "VAL"button. Select a
guidance criterion. Guidance begins, follow the instructions.
61

24-02-2003
YOUR 206 IN DETAIL
62

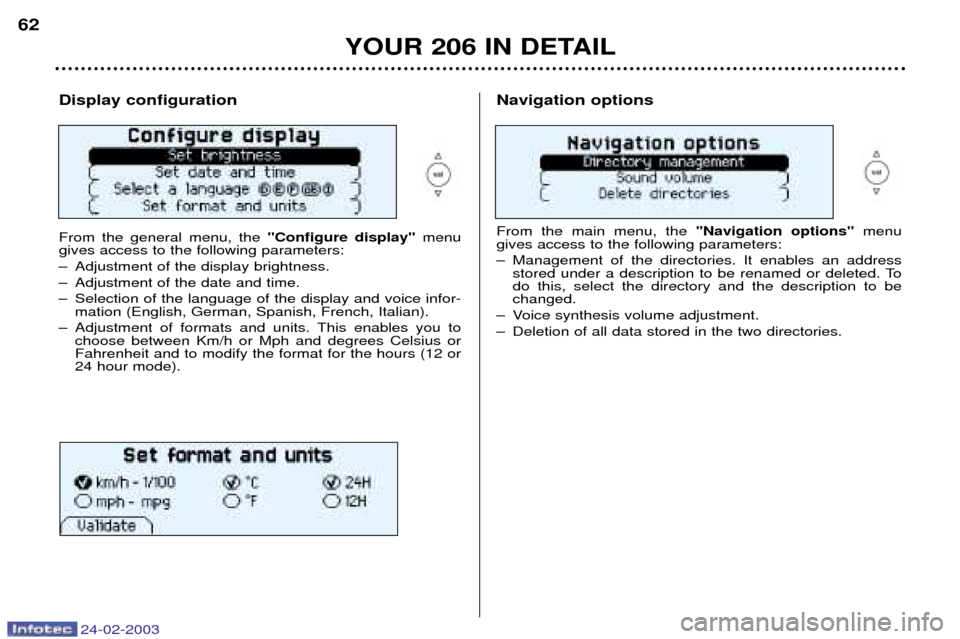

Display configuration From the general menu, the
"Configure display"menu
gives access to the following parameters:
Ð Adjustment of the display brightness.
Ð Adjustment of the date and time.
Ð Selection of the language of the display and voice infor- mation (English, German, Spanish, French, Italian).
Ð Adjustment of formats and units. This enables you to choose between Km/h or Mph and degrees Celsius or Fahrenheit and to modify the format for the hours (12 or24 hour mode).Navigation options From the main menu, the "Navigation options"menu
gives access to the following parameters:
Ð Management of the directories. It enables an address stored under a description to be renamed or deleted. To do this, select the directory and the description to bechanged.
Ð Voice synthesis volume adjustment.
Ð Deletion of all data stored in the two directories.

24-02-2003
YOUR 206 IN DETAIL63

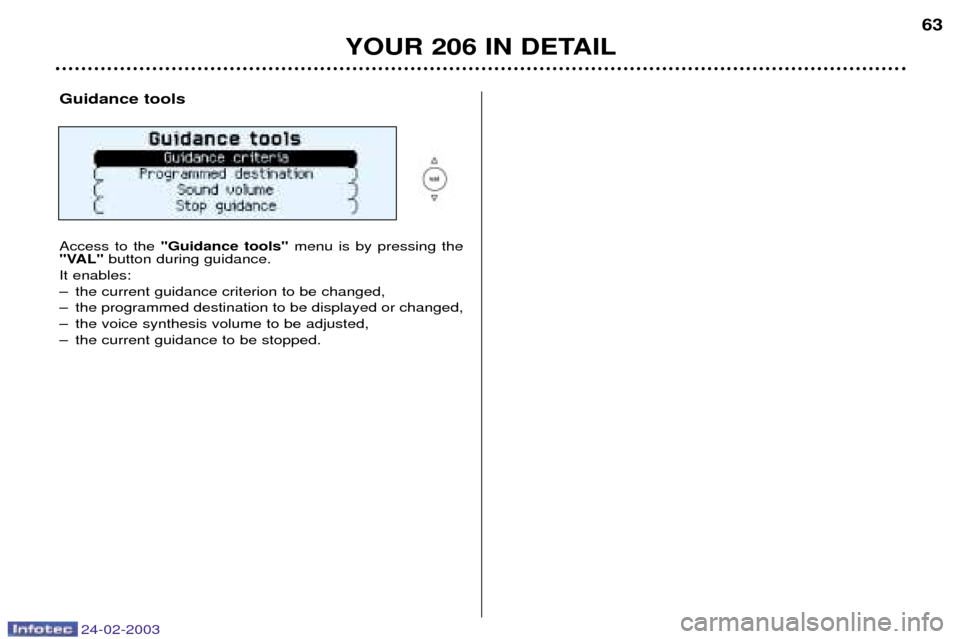

Guidance tools Access to the
"Guidance tools" menu is by pressing the
"VAL" button during guidance.
It enables:
Ð the current guidance criterion to be changed,
Ð the programmed destination to be displayed or changed,
Ð the voice synthesis volume to be adjusted,
Ð the current guidance to be stopped.

24-02-2003
YOUR 206 IN DETAIL
64

24-02-2003

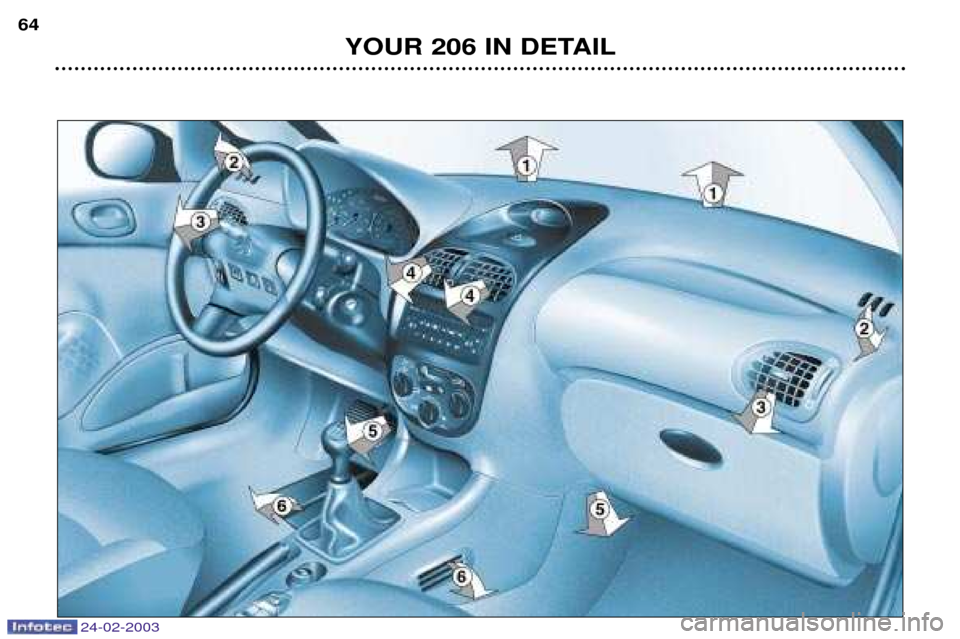

VENTILATION 1. Windscreen de-icing or demisting vents.
2 . Front window de-icing or demisting vents.
3 . Side vents.
4 . Centre vents.
5 . Air outlet to front footwells.
6 . Air outlet to rear footwells.
Advice on operation
Ð Place the air flow control at a level sufficient to ensure correct renewal of air in the passenger compartment. The ''OFF''
position cuts off all the air circulation in the passenger compartment. Note: only use the ''OFF''position occasionally (risk of condensation).
Ð Select the air distribution most suited to your requirements and the climatic conditions.
Ð Gradually adjust the temperature setting for your comfort.
Ð Position the outside air control to the left; the "Outside Air" position.
Ð For perfectly even air distribution, take care not to obstruct the exterior air intake grille on the bonnet, the vents and the air ducts under the front seats. Check that the pollen filter is in good condition.
YOUR 206 IN DETAIL 65

24-02-2003
YOUR 206 IN DETAIL
66

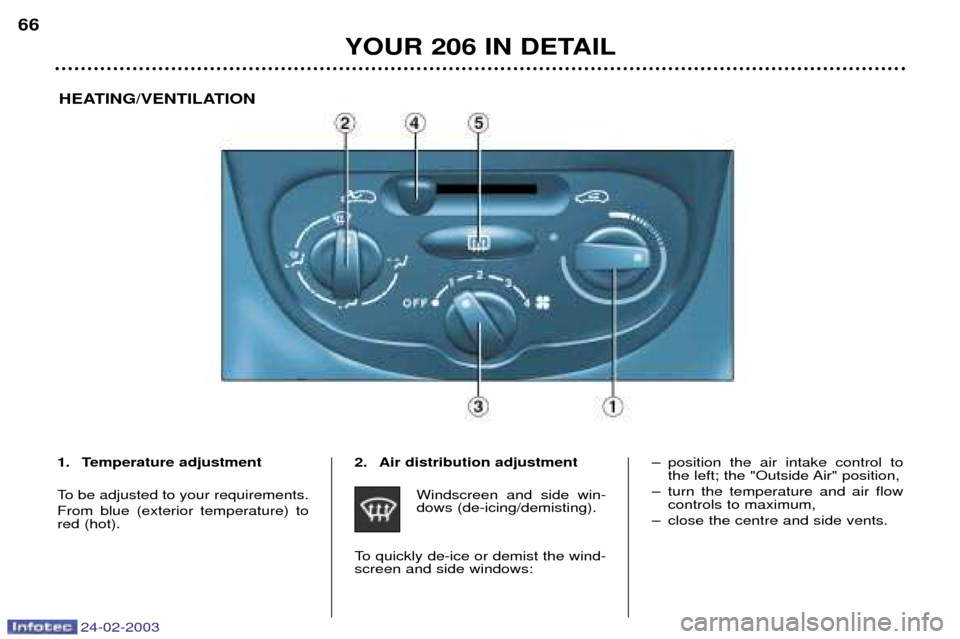

1. Temperature adjustment
To be adjusted to your requirements. From blue (exterior temperature) to red (hot). 2. Air distribution adjustment
Windscreen and side win-dows (de-icing/demisting).
To quickly de-ice or demist the wind-screen and side windows: Ð position the air intake control to
the left; the "Outside Air" position,
Ð turn the temperature and air flow controls to maximum,
Ð close the centre and side vents.
HEATING/VENTILATION

24-02-2003
YOUR 206 IN DETAIL67
Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended for hotclimates.
3. Air flow adjustment Turn the control from posi- tion 1to position 4to obtain
an air flow sufficient toensure your comfort. 4. Air intake control
Intake of exterior air.
This is the normal operating position.
Recirculation of interior air.
This position prevents exteriorodours and smoke entering the pas-senger compartment and speeds upthe rate at which the passengercompartment can be heated. As soon as possible, position thecontrol in the exterior air intakeposition to prevent misting of thewindows.
5. Demisting the rear screen and the mirrors
With the engine running, press once to demist therear screen and the mirrors.
It switches off automatically afterapproximately twelve minutes. Press again to switch it back on for twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes.

24-02-2003
YOUR 206 IN DETAIL
68
AIR CONDITIONING
1. Air conditioning The air conditioning is designed to
operate in all seasons. In summer, itenables the temperature to be low-
ered and in winter, above 0 ¡C, it
increases the effectiveness of thedemisting. Press the switch to activate
the air conditioning. The indi-cator light comes on. The air conditioning does not oper-ate while the air flow adjustmentcontrol is in the "OFF" position. Note: It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements. From blue (cold when the air condi- tioning is on) to red (hot).

24-02-2003
YOUR 206 IN DETAIL69
3. Air distribution adjustment
Windscreen and side win- dows (de-icing/demisting).
To quickly de-ice or demist the wind-screen and side windows:
Ð turn the temperature and air flow controls to maximum,
Ð close the centre vents,
Ð position the air intake control to the left; the "Outside Air" position,
Ð start the air conditioning.
Windscreen, side windows and footwells. Footwells.
These settings are recommended for cold climates.
Centre and side vents.
This setting is recommended for hotclimates. 5. Air intake control
Intake of exterior air.
This is the normal operating posi-tion.
Recirculation of interior air.
This position prevents exteriorodours and smoke entering the pas-senger compartment. Used simultaneously with the air con- ditioning, recirculation enables bothheating and cooling performance tobe improved. Used without the air conditioning, recirculation may result in misting ofthe windows. As soon as possible, position the
control in the exterior air intakeposition. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce
cold air, do not use it and contact a
PEUGEOT dealer.
4. Air flow adjustment
Turn the control from posi-tion 1to position 4to obtain
an air flow sufficient toensure your comfort. 6. Demisting the rear screen and
the mirrors
With the engine running,
press once to demist the rear screen and themirrors.
It switches off automatically afterapproximately twelve minutes. Press again to switch it back on for twelve minutes. It is possible to stop demisting by pressing the button again before theend of the twelve minutes.

24-02-2003
YOUR 206 IN DETAIL
70
AUTOMATIC AIR CONDITIONING
Automatic operation
1. Temperature adjustment The chosen temperature is displayed. Press the up anddown arrows to change it.
A setting around 21 ¡Cenables a comfortable tem-perature to be obtained. 2. Automatic comfort programme
Press the "AUTO" button.The system automaticallyadjusts the atmosphereinside the vehicle in accor-
dance with the temperature that you
have chosen. To do this, it controls
the temperature, the flow, the distri-bution and the intake of air as well asthe air conditioning. 3. Automatic visibility programme
In some cases, the auto-matic comfort programme
may not be sufficient for de-icing or demisting of the
windows (humidity, several passen-gers, ice etc.). In this case, select theautomatic visibility programme to
clear the windows quickly.
