Peugeot 206 S Dag 2008 User Guide
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 206 S Dag, Model: Peugeot 206 S Dag 2008Pages: 103, PDF Size: 2.13 MB
Page 11 of 103
FAMILIARISATION14 -
HEATING/AIR CONDITIONING
N° Symbol Function 1
Setting the air
distribution.
2
Air intake control.
3
Temperature
adjustment.
4
Demisting the rear
screen and mirrors.
5
A i r fl o w a d j u s t m e n t .
6
Air conditioning
control.
36
40
Page 12 of 103
15FAMILIARISATION-
42
AUTOMATIC AIR CONDITIONING
N° Symbol Function
1
A i r fl o w a d j u s t m e n t .
2
Setting the air
distribution.
3
Air intake control.
4
Air conditioning
control.
5
Demisting the rear
screen and mirrors.
6
Switching off.
7
Temperature
adjustment.
8
Automatic comfort
programme.
9
Automatic visibility
programme.
Page 13 of 103
–
FAMILIARISATION16 -

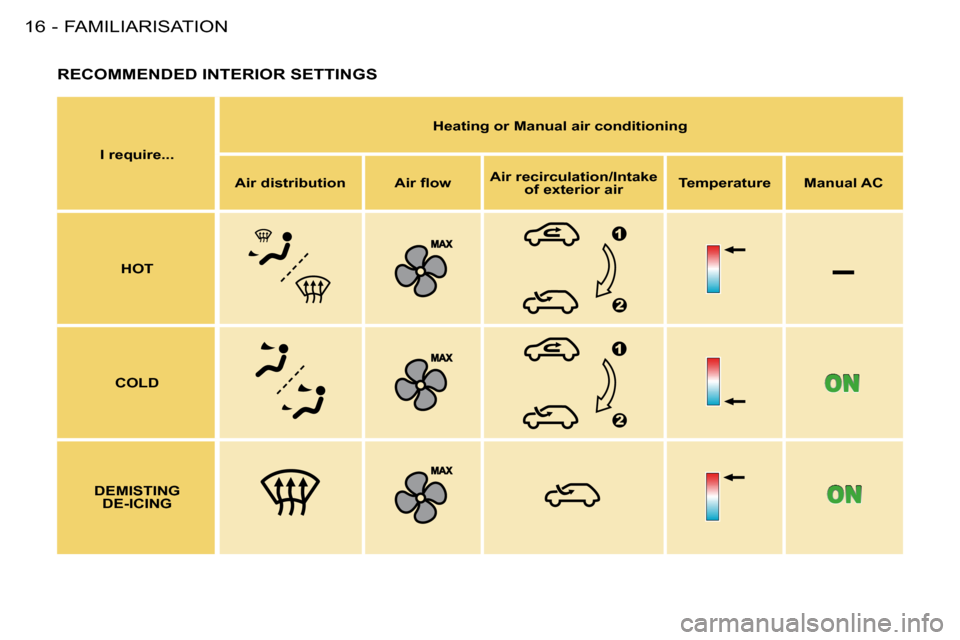

RECOMMENDED INTERIOR SETTINGS
I require...
Heating or Manual air conditioning
Air distribution A i r fl o w
Air recirculation/Intake
of exterior air
Temperature Manual AC
HOT
COLD
DEMISTING
DE-ICING
Page 14 of 103

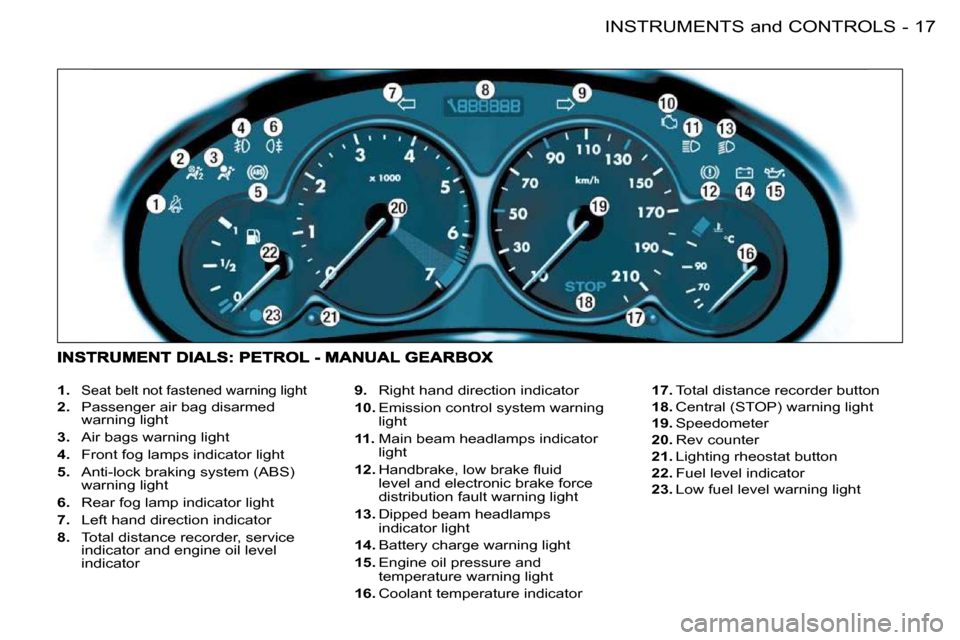

17INSTRUMENTS and CONTROLS-
1.
Seat belt not fastened warning light
2. Passenger air bag disarmed
warning light
3. Air bags warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)
warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, service
indicator and engine oil level
indicator
9. Right hand direction indicator
10. Emission control system warning
light
11. Main beam headlamps indicator
light
12. H a n d b r a k e , l o w b r a k e fl u i d
level and electronic brake force
d i s t r i b u t i o n f a u l t w a r n i n g l i g h t
13. Dipped beam headlamps
indicator light
14. Battery charge warning light
15. E n g i n e o i l p r e s s u r e a n d
t e m p e r a t u r e w a r n i n g l i g h t
16. C o o l a n t t e m p e r a t u r e i n d i c a t o r
17. T o t a l d i s t a n c e r e c o r d e r b u t t o n
18. Central (STOP) warning light
19. Speedometer
20. R e v c o u n t e r
21. L i g h t i n g r h e o s t a t b u t t o n
22. F u e l l e v e l i n d i c a t o r
23. L o w f u e l l e v e l w a r n i n g l i g h t
Page 15 of 103
INSTRUMENTS and CONTROLS18 -
1.
Seat belt not fastened warning light
2. Passenger air bag disarmed
warning light
3. Air bags warning light
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)
warning light
6. Rear fog lamp indicator light
7. Left hand direction indicator
8. Total distance recorder, service
indicator and engine oil level
indicator
9. Right hand direction indicator
10. Emission control system warning
light
11. Main beam headlamps indicator
light
12. H a n d b r a k e , l o w b r a k e fl u i d
level and electronic brake force
d i s t r i b u t i o n f a u l t w a r n i n g l i g h t
13. Dipped beam headlamps
indicator light
14. Battery charge warning light
15. E n g i n e o i l p r e s s u r e a n d
t e m p e r a t u r e w a r n i n g l i g h t
16. Operating programmes
17. Gear indicator
18. T o t a l d i s t a n c e r e c o r d e r b u t t o n
19. Central (STOP) warning light
20. Speedometer
21. C o o l a n t t e m p e r a t u r e i n d i c a t o r
22. R e v c o u n t e r
23. L i g h t i n g r h e o s t a t b u t t o n
24. F u e l l e v e l i n d i c a t o r
25. L o w f u e l l e v e l w a r n i n g l i g h t
INSTRUMENT DIALS: PETROL - AUTOMATI C GEARBOX
Page 16 of 103
19INSTRUMENTS and CONTROLS-
Central (STOP)
warning light
Linked to the warning lights:
- e n g i n e o i l p r e s s u r e a n d t e m p e r a t u r e ,
- low coolant level,
- handbrake,
- l o w b r a k e fl u i d l e v e l ,
- e l e c t r o n i c b r a k e f o r c e d i s t r i b u t i o n s y s t e m f a u l t .
L i n k e d t o t h e c o o l a n t t e m p e r a t u r e
i n d i c a t o r .
Y o u m u s t s t o p i f t h e l i g h t fl a s h e s
with the engine running.
C o n s u l t a P E U G E O T d e a l e r .
Engine oil pressure
and temperature
warning light
Linked to the central (STOP) warning
l i g h t .
You must stop.
This warning light indicates one of
the following:
- i n s u f fi c i e n t o i l p r e s s u r e ,
- a l a c k o f o i l i n t h e l u b r i c a t i o n c i r c u i t . T o p u p t h e l e v e l .
- a n o i l t e m p e r a t u r e w h i c h i s t o o h i g h . T h e w a r n i n g
light is accompanied by an
a u d i b l e s i g n a l . T o l o w e r t h e o i l
t e m p e r a t u r e , r e d u c e y o u r s p e e d .
C o n s u l t a P E U G E O T d e a l e r . Anti-lock braking
system (ABS) warning
light
This comes on for a few seconds
each time the ignition is switched
o n .
If the warning light remains on or
comes on above 8 mph (12 km/h),
t h i s i n d i c a t e s a n A B S m a l f u n c t i o n .
However, the vehicle retains
c o n v e n t i o n a l s e r v o - a s s i s t e d b r a k i n g .
I l l u m i n a t i o n o f t h i s w a r n i n g l i g h t ,
a c c o m p a n i e d b y a n a u d i b l e s i g n a l
a n d a m e s s a g e o n t h e m u l t i f u n c t i o n
d i s p l a y , i n d i c a t e s a f a u l t i n t h e A B S .
C o n s u l t a P E U G E O T d e a l e r . Handbrake, low
brake fluid level and
Electronic Brake Force
Distribution fault
warning light
Linked to the central (STOP) warning
l i g h t .
This indicates one of the following:
- that the handbrake is still applied o r i s n o t f u l l y r e l e a s e d ( v e h i c l e
moving),
- a n e x c e s s i v e d r o p i n b r a k e fl u i d level (if the warning light remains
on even when the handbrake is
r e l e a s e d ) .
-
a f a u l t i n t h e E l e c t r o n i c B r a k e
F o r c e D i s t r i b u t i o n , i f l i t a t t h e s a m e
t i m e a s t h e A B S w a r n i n g l i g h t .
You must stop.
C o n s u l t a P E U G E O T d e a l e r .
WARNING LIGHTS
A permanently lit warning light
o r o n e fl a s h i n g , w i t h t h e e n g i n e
running, indicates an operating
fault of the unit concerned.
The illumination of certain warning
lights may be accompanied by an
audible signal. Do not ignore this
warning: consult a PEUGEOT
dealer as soon as possible.
If the central STOP warning light
comes on when you are driving,
stop your vehicle immediately,
where it is safe to do so.
Page 17 of 103
INSTRUMENTS and CONTROLS20 - Battery charge warning
light
This indicates one of the following:
- f a u l t y o p e r a t i o n o f t h e c h a r g i n g c i r c u i t ,
- slack battery or starter terminals,
- a c u t o r s l a c k a l t e r n a t o r b e l t ,
- a n a l t e r n a t o r f a i l u r e .
C o n s u l t a P E U G E O T d e a l e r .
Emission control
system warning light
(according to model)
This comes on for a few seconds
each time the ignition is switched
o n .
I f i t c o m e s o n w i t h t h e e n g i n e r u n n i n g ,
this indicates incorrect operation of
the injection, ignition or emission
c o n t r o l s y s t e m .
I f t h e w a r n i n g l i g h t fl a s h e s , t h e r e
is a risk of damage to the catalytic
c o n v e r t e r o n p e t r o l e n g i n e s .
C o n s u l t a P E U G E O T d e a l e r .
Low fuel level
warning light
W h e n t h i s l i g h t fi r s t
c o m e s o n , y o u h a v e e n o u g h f u e l t o
d r i v e a t l e a s t 3 0 m i l e s ( 5 0 k m ) . T h e t a n k
c a p a c i t y i s a p p r o x i m a t e l y 5 0 l i t r e s .
Seat belt not fastened
warning light *
When the ignition is switched
on, this indicator light comes on if the
d r i v e r h a s n o t f a s t e n e d h i s s e a t b e l t .
Above 12 mph (20 km/h), the warning
l i g h t fl a s h e s f o r a b o u t t w o m i n u t e s
accompanied by an increasingly
a u d i b l e s i g n a l a n d a m e s s a g e o n t h e
m u l t i f u n c t i o n d i s p l a y . T h i s w a r n i n g
l i g h t r e m a i n s l i t u n t i l t h e d r i v e r " s s e a t
b e l t i s f a s t e n e d .
T h e d r i v e r m u s t e n s u r e t h a t a l l
passengers fasten their seat belt
c o r r e c t l y .
Passenger air bag
disarmed warning light
I l l u m i n a t i o n o f t h i s w a r n i n g
light accompanied by a message on
t h e m u l t i f u n c t i o n d i s p l a y , i n d i c a t e s
that the passenger air bag is
d i s a r m e d .
The warning light remains lit as
long as the passenger air bag is
d i s a r m e d .
A l w a y s c o n s u l t a P E U G E O T d e a l e r i f
t h e w a r n i n g l i g h t fl a s h e s . Air bags warning light
The light will come on for
a few seconds when the
i g n i t i o n i s s w i t c h e d o n .
W i t h t h e e n g i n e r u n n i n g , i l l u m i n a t i o n
of this warning light, accompanied by
a n a u d i b l e s i g n a l a n d a m e s s a g e o n
t h e m u l t i f u n c t i o n d i s p l a y , i n d i c a t e s a
f a u l t i n t h e a i r b a g s .
C o n s u l t a P E U G E O T d e a l e r .
Coolant temperature indicator
- needle in zone (A) , the
t e m p e r a t u r e i s c o r r e c t ,
- needle in zone (B) , the
t e m p e r a t u r e i s t o o h i g h . T h e
central STOP warning light
fl a s h e s .
You must stop.
C o n s u l t a P E U G E O T d e a l e r .
* A c c o r d i n g t o c o u n t r y .
Page 18 of 103
21INSTRUMENTS and CONTROLS-
Display screen showing the
positions of the automatic
gearbox selector lever Automatic gearbox indicator
lights
Park
Reverse
Neutral
Drive
Manual mode:
1st gear engaged
2nd gear engaged
3rd gear engaged
4th gear engaged "SPORT" Indicator light
This comes on when the
"SPORT"
p r o g r a m m e i s s e l e c t e d .
"SNOW" Indicator light
This comes on when the
"SNOW" programme is
s e l e c t e d .
Operating abnormality
If the Sport and Snow indicator
l i g h t s fl a s h , a c c o m p a n i e d b y a n
a u d i b l e s i g n a l a n d a m e s s a g e o n
t h e m u l t i f u n c t i o n d i s p l a y , c o n s u l t a
P E U G E O T d e a l e r .
Page 19 of 103
INSTRUMENTS and CONTROLS20 - Battery charge warning
light
This indicates one of the following:
- f a u l t y o p e r a t i o n o f t h e c h a r g i n g c i r c u i t ,
- slack battery or starter terminals,
- a c u t o r s l a c k a l t e r n a t o r b e l t ,
- a n a l t e r n a t o r f a i l u r e .
C o n s u l t a P E U G E O T d e a l e r .
Emission control
system warning light
(according to model)
This comes on for a few seconds
each time the ignition is switched
o n .
I f i t c o m e s o n w i t h t h e e n g i n e r u n n i n g ,
this indicates incorrect operation of
the injection, ignition or emission
c o n t r o l s y s t e m .
I f t h e w a r n i n g l i g h t fl a s h e s , t h e r e
is a risk of damage to the catalytic
c o n v e r t e r o n p e t r o l e n g i n e s .
C o n s u l t a P E U G E O T d e a l e r .
Low fuel level
warning light
W h e n t h i s l i g h t fi r s t
c o m e s o n , y o u h a v e e n o u g h f u e l t o
d r i v e a t l e a s t 3 0 m i l e s ( 5 0 k m ) . T h e t a n k
c a p a c i t y i s a p p r o x i m a t e l y 5 0 l i t r e s .
Seat belt not fastened
warning light *
When the ignition is switched
on, this indicator light comes on if the
d r i v e r h a s n o t f a s t e n e d h i s s e a t b e l t .
Above 12 mph (20 km/h), the warning
l i g h t fl a s h e s f o r a b o u t t w o m i n u t e s
accompanied by an increasingly
a u d i b l e s i g n a l a n d a m e s s a g e o n t h e
m u l t i f u n c t i o n d i s p l a y . T h i s w a r n i n g
l i g h t r e m a i n s l i t u n t i l t h e d r i v e r " s s e a t
b e l t i s f a s t e n e d .
T h e d r i v e r m u s t e n s u r e t h a t a l l
passengers fasten their seat belt
c o r r e c t l y .
Passenger air bag
disarmed warning light
I l l u m i n a t i o n o f t h i s w a r n i n g
light accompanied by a message on
t h e m u l t i f u n c t i o n d i s p l a y , i n d i c a t e s
that the passenger air bag is
d i s a r m e d .
The warning light remains lit as
long as the passenger air bag is
d i s a r m e d .
A l w a y s c o n s u l t a P E U G E O T d e a l e r i f
t h e w a r n i n g l i g h t fl a s h e s . Air bags warning light
The light will come on for
a few seconds when the
i g n i t i o n i s s w i t c h e d o n .
W i t h t h e e n g i n e r u n n i n g , i l l u m i n a t i o n
of this warning light, accompanied by
a n a u d i b l e s i g n a l a n d a m e s s a g e o n
t h e m u l t i f u n c t i o n d i s p l a y , i n d i c a t e s a
f a u l t i n t h e a i r b a g s .
C o n s u l t a P E U G E O T d e a l e r .
Coolant temperature indicator
- needle in zone (A) , the
t e m p e r a t u r e i s c o r r e c t ,
- needle in zone (B) , the
t e m p e r a t u r e i s t o o h i g h . T h e
central STOP warning light
fl a s h e s .
You must stop.
C o n s u l t a P E U G E O T d e a l e r .
* A c c o r d i n g t o c o u n t r y .
Page 20 of 103

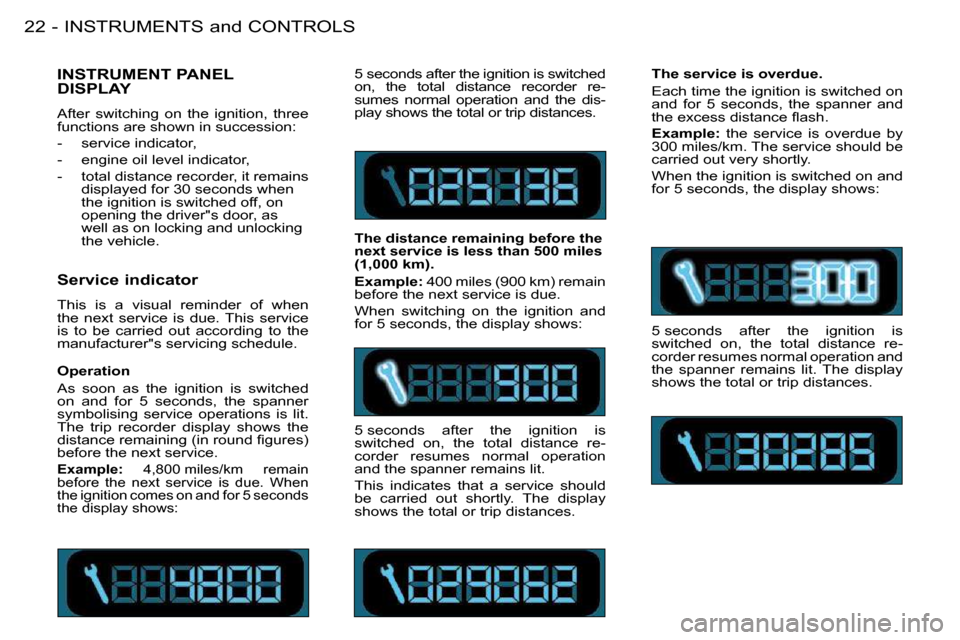

INSTRUMENTS and CONTROLS22 - Service indicator
T h i s i s a v i s u a l r e m i n d e r o f w h e n
t h e n e x t s e r v i c e i s d u e . T h i s s e r v i c e
i s t o b e c a r r i e d o u t a c c o r d i n g t o t h e
m a n u f a c t u r e r " s s e r v i c i n g s c h e d u l e . 5 seconds after the ignition is switched
on, the total distance recorder re-
s u m e s n o r m a l o p e r a t i o n a n d t h e d i s -
p l a y s h o w s t h e t o t a l o r t r i p d i s t a n c e s .
The distance remaining before the
next service is less than 500 miles
(1,000 km).
Example: 400 miles (900 km) remain
b e f o r e t h e n e x t s e r v i c e i s d u e .
When switching on the ignition and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
c o r d e r r e s u m e s n o r m a l o p e r a t i o n
a n d t h e s p a n n e r r e m a i n s l i t .
T h i s i n d i c a t e s t h a t a s e r v i c e s h o u l d
b e c a r r i e d o u t s h o r t l y . T h e d i s p l a y
s h o w s t h e t o t a l o r t r i p d i s t a n c e s .
INSTRUMENT PANEL DISPLAY
After switching on the ignition, three
f u n c t i o n s a r e s h o w n i n s u c c e s s i o n :
- service indicator,
- engine oil level indicator,
- total distance recorder, it remains displayed for 30 seconds when
the ignition is switched off, on
o p e n i n g t h e d r i v e r " s d o o r , a s
w e l l a s o n l o c k i n g a n d u n l o c k i n g
t h e v e h i c l e .
Operation
As soon as the ignition is switched
on and for 5 seconds, the spanner
s y m b o l i s i n g s e r v i c e o p e r a t i o n s i s l i t .
The trip recorder display shows the
d i s t a n c e r e m a i n i n g ( i n r o u n d fi g u r e s )
b e f o r e t h e n e x t s e r v i c e .
Example: 4,800 miles/km remain
b e f o r e t h e n e x t s e r v i c e i s d u e . W h e n
the ignition comes on and for 5 seconds
the display shows:
The service is overdue.
Each time the ignition is switched on
and for 5 seconds, the spanner and
t h e e x c e s s d i s t a n c e fl a s h .
Example: t h e s e r v i c e i s o v e r d u e b y
3 0 0 m i l e s / k m . T h e s e r v i c e s h o u l d b e
c a r r i e d o u t v e r y s h o r t l y .
When the ignition is switched on and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
c o r d e r r e s u m e s n o r m a l o p e r a t i o n a n d
t h e s p a n n e r r e m a i n s l i t . T h e d i s p l a y
s h o w s t h e t o t a l o r t r i p d i s t a n c e s .
