COMFORT42 -
AUTOMATIC AIR CONDITIONING
The air conditioning can only operate when the engine is running.
Automatic operation 2. Control by the AUTO programme
Press the "AUTO" b u t t o n .
We recommend that you use
this mode: it provides opti-
mised automatic control of
all of the functions, passenger com-
p a r t m e n t t e m p e r a t u r e , a i r fl o w , a i r
d i s t r i b u t i o n a n d a i r r e c i r c u l a t i o n , i n
accordance with the comfort value
that you have chosen. This system is
designed to operate effectively in all
seasons, with the windows closed.
Note: for your comfort, the values set
when the engine is switched off are re-
tained on re-starting if the temperature
in the passenger compartment has not
c h a n g e d s i g n i fi c a n t l y ; o t h e r w i s e , o p e -
ration resumes in automatic mode.
Manual operation
If you wish, you can make a different
c h o i c e f r o m t h a t o f f e r e d b y t h e s y s -
t e m b y c h a n g i n g a s e t t i n g . T h e o t h e r
f u n c t i o n s w i l l s t i l l b e c o n t r o l l e d a u t o -
matically.
Pressing the AUTO b u t t o n r e t u r n s
the system to completely automatic
operation.
1. Temperature adjustment
The value indicated on the
display corresponds to a
level of comfort and not to
a temperature in degrees
Celsius or Fahrenheit.
Press the arrows 1 (up and down) to
change this value. A setting around
2 1 e n a b l e s a c o m f o r t a b l e t e m p e r a -
t u r e t o b e o b t a i n e d . When the engine is cold, to
prevent too great a distri-
b u t i o n o f c o l d a i r , t h e v e n -
tilation will only reach its
optimum level gradually.
On entering the vehicle, if the interior
temperature is much colder or warmer
t h a n i s c o m f o r t a b l e , t h e r e i s n o n e e d
to change the value displayed in
o r d e r t o r e a c h t h e r e q u i r e d l e v e l o f
comfort. The system eliminates the
temperature difference automatically
a n d a s q u i c k l y a s p o s s i b l e .
Page 42 of 103
43COMFORT-
3. Air conditioning On/Off P r e s s t h i s b u t t o n t o s t o p a i r
cooling.
4. Air distribution P r e s s i n g t h i s b u t t o n s e v e r a l
t i m e s i n s u c c e s s i o n e n a b l e s
t h e a i r fl o w t o b e d i r e c t e d i n
turn towards:
- the windscreen (de-icing or demisting),
- the windscreen and the footwells,
- the footwells,
- the centre and side vents and the footwells,
- the centre and side vents. 5 . A i r fl o w
P r e s s b u t t o n s "+" and
"-" respectively to in-
crease or decrease
t h e a i r fl o w .
6. Air intake/Air recirculation 7 . S w i t c h i n g t h e s y s t e m o f f
The OFF b u t t o n s w i t c h e s o f f
all the functions of the sys-
tem.
Temperature-related comfort
and demisting are no longer guaran-
t e e d b u t a s l i g h t fl o w o f a i r i s m a i n -
tained.
Pressing the OFF , AUTO , or "visi-
bility" b u t t o n a g a i n r e a c t i v a t e s t h e
s y s t e m w i t h t h e v a l u e s s e t b e f o r e i t
was switched off.
Note: i f y o u w i s h t o c u t o f f t h e fl o w
of air completely, press the air intake
b u t t o n 7 .
P r e s s t h i s b u t t o n f o r r e c i r -
culation of the interior air.
Recirculation, shown on the
d i s p l a y , e n a b l e s t h e p a s -
s e n g e r c o m p a r t m e n t t o b e i n s u l a t e d
from exterior odours and smoke.
Avoid prolonged recirculation of inte-
rior air (risk of condensation and de-
t e r i o r a t i o n o f t h e a i r q u a l i t y ) .
P r e s s t h e b u t t o n a g a i n t o r e s u m e a u -
tomatic management of the intake of
air.
Notes
To prevent condensation on the in-
side of the vehicle in cold or wet
weather, you are advised to avoid
using the ECO mode.
To guarantee correct operation of
your air conditioning system, we also
recommend that you have it checked
regularly.
T h e s y m b o l
ECO is displayed.
Automatic operation of the air condi-
t i o n i n g i s r e s u m e d w h e n t h e b u t t o n
i s p r e s s e d a g a i n . T h e s y m b o l A/C is
displayed.
Page 43 of 103
COMFORT44 -
Page 44 of 103
45COMFORT-
FRONT SEATS
3 - Driver's seat height adjustment
Pull the handle upwards.
Remove your weight from the seat to
raise, or press on the seat to lower.

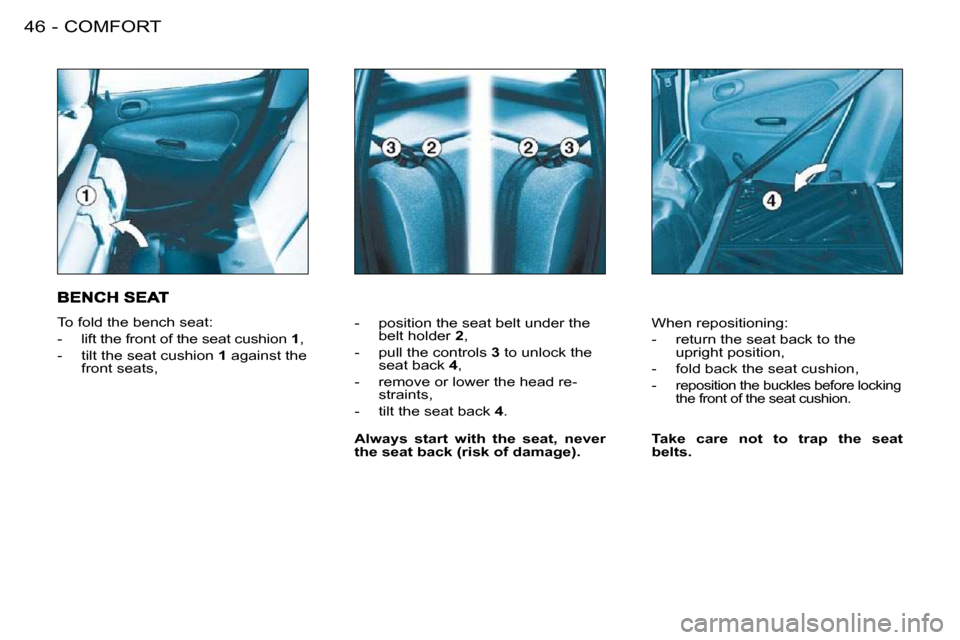

Rear head restraints
These have a high position for when
they are in use and a low position for
when they are stored. They are re-
m o v a b l e .
To lower the head restraints, press
the lug.
To remove them, pull upwards as far
as the stop, then press the release
control.
Never drive with the head
r e s t r a i n t s r e m o v e d ; t h e y
m u s t b e i n p l a c e a n d c o r -
rectly adjusted.
1 - F o r w a r d s - b a c k w a r d s
adjustment
Lift the control and slide the seat to-
wards the front or the rear.
2 - Head restraint height and angle adjustment
To raise the restraint, pull it up-
wards.
T h e a d j u s t m e n t i s c o r r e c t w h e n t h e
upper edge of the head restraint is
l e v e l w i t h t h e t o p o f t h e h e a d .
The head restraint has a frame with
notches, which prevent the head re-
straint dropping down (this is a safety
device in the event of an impact).
To lower the head restraint, it is neces-
sary to push simultaneously:
- t h e b u t t o n l o c a t e d o n t h e l e f t g u i d e a t t h e b a s e o f t h e h e a d
restraint,
- the head restraint downwards.
To remove the head restraint, press
the lug.
The angle of the head restraint can
a l s o b e a d j u s t e d . 4 - Seat back angle adjustment
Push one of the two handles towards
the rear.
Page 45 of 103
COMFORT46 - - p o s i t i o n t h e s e a t b e l t u n d e r t h e b e l t h o l d e r 2 ,
- pull the controls 3 to unlock the
s e a t b a c k 4 ,
- remove or lower the head re- straints,
- t i l t t h e s e a t b a c k 4 .
T o f o l d t h e b e n c h s e a t :
- lift the front of the seat cushion 1 ,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- r e t u r n t h e s e a t b a c k t o t h e
upright position,
- f o l d b a c k t h e s e a t c u s h i o n ,
-
r e p o s i t i o n t h e b u c k l e s b e f o r e l o c k i n g
the front of the seat cushion.
A l w a y s s t a r t w i t h t h e s e a t , n e v e r
the seat back (risk of damage).
Take care not to trap the seat
belts.
Page 46 of 103
47COMFORT-

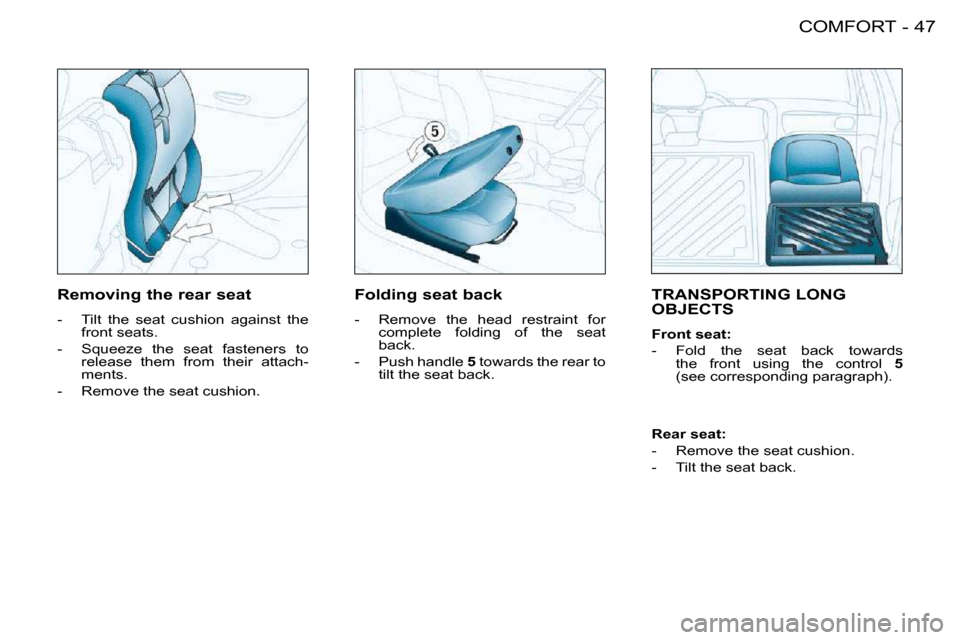

TRANSPORTING LONG OBJECTS
Front seat:
- F o l d t h e s e a t b a c k t o w a r d s the front using the control 5
(see corresponding paragraph).
Removing the rear seat
- Tilt the seat cushion against the
front seats.
- S q u e e z e t h e s e a t f a s t e n e r s t o release them from their attach-
ments.
- Remove the seat cushion. Folding seat back
- Remove the head restraint for
complete folding of the seat
b a c k .
- Push handle 5 towards the rear to
t i l t t h e s e a t b a c k .
Rear seat:
- Remove the seat cushion.
- T i l t t h e s e a t b a c k .
Page 47 of 103
COMFORT48 - " F o r w a r d s - f a c i n g "
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
w i t h t h e s e a t b a c k u p r i g h t a n d l e a v e
t h e p a s s e n g e r a i r b a g a r m e d .
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
GENERAL POINTS RELATING TO CHILD SEATS
* The rules for transporting children
a r e s p e c i fi c t o e a c h c o u n t r y . C o n -
sult the current legislation in your
country. Intermediate longitudinal
position
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.
For maximum safety, please follow
these precautions:
- in accordance with Directive
2003/20, all children under the
age of 12 or less than one metre
fi f t y t a l l m u s t t r a v e l i n a p p r o v e d
c h i l d s e a t s s u i t e d t o t h e i r w e i g h t ,
o n s e a t s fi t t e d w i t h a s e a t b e l t o r
ISOFIX * mountings ,
- statistically, the safest seats in
your vehicle for the transpor-
tation of children are the rear
seats,
- a c h i l d w e i g h i n g l e s s t h a n 9 k g
m u s t t r a v e l i n t h e " r e a r w a r d s -
facing" position both in the
front and in the rear.
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- " r e a r w a r d s - f a c i n g " up to the
age of 2,
- " f o r w a r d s - f a c i n g " over the age
of 2. " R e a r w a r d s - f a c i n g "
When a "rearwards-facing" child seat
is installed on the
front passenger
seat , it is essential that the passen-
g e r a i r b a g i s d i s a r m e d . O t h e r w i s e ,
t h e c h i l d w o u l d r i s k b e i n g s e r i -
ously injured or killed if the air bag
w e r e t o i n fl a t e .
Page 48 of 103
49COMFORT-

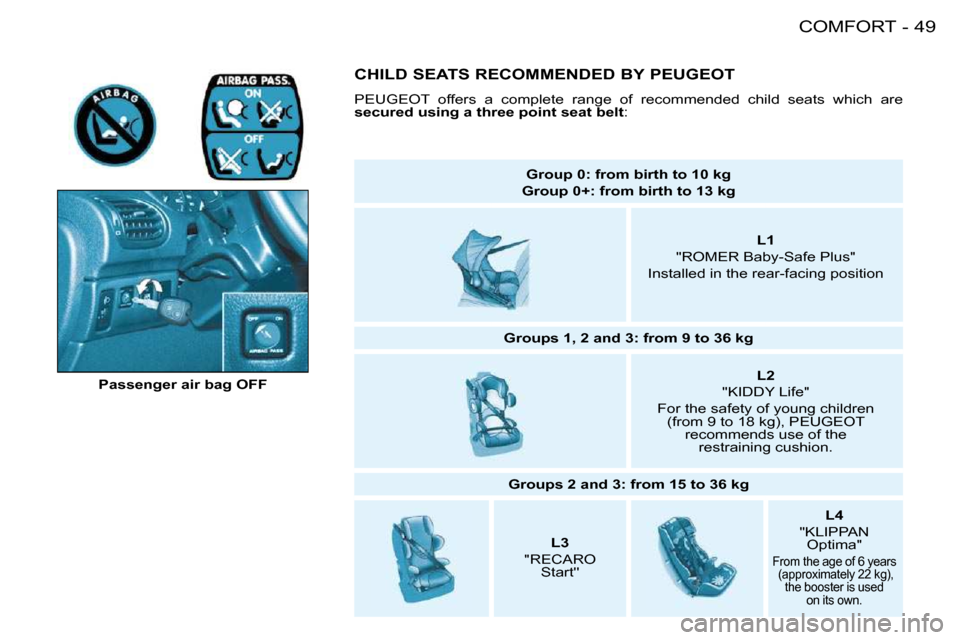

Passenger air bag OFF CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
" R O M E R B a b y - S a f e P l u s "
Installed in the rear-facing position
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years (approximately 22 kg), t h e b o o s t e r i s u s e d on its own.
Page 49 of 103
COMFORT54 -
ADVICE ON CHILD SEATS
The incorrect installation
of a child seat in a vehicle
compromises the child's protection in
the event of an accident.
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
the child seat harnesses keeping the
slack i n r e l a t i o n t o t h e c h i l d ' s b o d y t o
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
t h e b a c k o f t h e c h i l d s e a t i s i n c o n t a c t
w i t h t h e b a c k o f t h e v e h i c l e ' s s e a t
and that the head restraint does not
cause any discomfort.
I f t h e h e a d r e s t r a i n t h a s t o b e r e -
moved, ensure that it is stored or
attached securely to prevent it from
b e i n g t h r o w n a r o u n d t h e v e h i c l e i n
t h e e v e n t o f s h a r p b r a k i n g . Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
b y o t h e r c h i l d r e n , c a n n o t b e u s e d o r
a r e a b s e n t .
D i s a r m t h e p a s s e n g e r a i r b a g w h e n
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
w o u l d r i s k b e i n g s e r i o u s l y i n j u r e d o r
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
Installing a booster seat
T h e c h e s t p a r t o f t h e s e a t b e l t m u s t
b e p o s i t i o n e d o n t h e c h i l d ' s s h o u l d e r
without touching the neck.
Ensure that the lap part of the seat
b e l t p a s s e s c o r r e c t l y o v e r t h e c h i l d ' s
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
t e d w i t h a s e a t b e l t g u i d e a t s h o u l d e r
level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
d o w s b y m o r e t h a n o n e t h i r d .
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
Page 50 of 103
49COMFORT-
Passenger air bag OFF CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which
are
secured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
" R O M E R B a b y - S a f e P l u s "
Installed in the rear-facing position
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years (approximately 22 kg), t h e b o o s t e r i s u s e d on its own.
