Peugeot 206 S Dag 2008 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 206 S Dag, Model: Peugeot 206 S Dag 2008Pages: 103, PDF Size: 2.13 MB
Page 31 of 103
AUDIO EQUIPMENT
32 -
EON system
This connects stations which are part
of the same network. It enables the
b r o a d c a s t o f t r a f fi c i n f o r m a t i o n o r a
PTY programme, by a station that is
part of the same network as the sta-
tion to which you are listening.
This service is available when you
have selected the TA t r a f fi c i n f o r m a -
tion programme or the PTY function.
PTY function
This allows you to listen to stations broad-
c a s t i n g a s p e c i fi c t y p e o f p r o g r a m m e
(news, culture, sport, rock, etc.).
To search for a
PTY programme:
With FM selected,
press the "TA" but-
ton for two seconds to
switch this function on
or off. - select the
PTY function,
- b r i e fl y p r e s s b u t t o n L or N to
scroll down the list of the various
types of programmes offered.
- when the programme of your choice is displayed, keep button
L or N pressed for two seconds
to carry out an automatic search
(after an automatic search the
PTY function is switched off).
In PTY mode the different types of
programmes can be stored in the
memory. To do this, press the prese-
lection buttons "1" to "6" for two
s e c o n d s . B r i e fl y p r e s s t h e c o r r e -
sponding button to recall the type of
programme stored in the memory.
Page 32 of 103
33AUDIO EQUIPMENT-
Ejection of a disc Selecting a track
S h u f fl e ( R D M )
When the CD player is selected,
press and hold button Q for two sec-
onds. The tracks will be played in
random sequence. Pressing the but-
ton again for two seconds returns
you to normal play.
S h u f fl e m o d e i s d e - a c t i v a t e d e a c h
time the set is switched off.
After insertion of a
disc, printed face
upwards, the player
starts automatically.
If a disc is already inserted, press
button Q .
COMPACT DISC
Press button L to select the next
track.
Press button N to return to the start
of the current track or to select the
previous track.
The use of copied com-
pact discs may cause
faults.
Insert circular compact
discs only.
Press button
S to
eject the disc from the
player. Accelerated play
Press and hold button
L or N for
forwards or backwards accelerated
play.
Accelerated play stops as soon as
the button is released.
Selecting CD mode
Page 33 of 103
AUDIO EQUIPMENT
34 -
Selecting a track S h u f fl e ( R D M )
When the CD changer is selected,
press and hold button P for two sec-
onds.
The tracks will be played in random
sequence. Pressing the button again
for two seconds returns you to nor-
mal play.
CD CHANGER
Press button P . Selecting a disc
Press buttons
"1" to "5" on the radio
to select the corresponding disc. Accelerated play
Press and hold button
L or N for
forwards or backwards accelerated
play.
Accelerated play stops as soon as
the button is released.
Press button L to select the next
track.
Press button N to return to the start
of the current track or to select the
previous track.
The use of copied com-
pact discs may cause
faults.
Insert circular compact
discs only.
Selecting CD changer mode
Page 34 of 103
35AUDIO EQUIPMENT-
RADIO RECEPTION (AERIAL ADJUSTMENT)
Your radio will be subject to phenom-
ena which do not affect domestic
radio sets. Both MW/LW and FM re-
ception are subject to various forms
o f i n t e r f e r e n c e , w h i c h a r e n o r e fl e c -
tion on the quality of your equipment
but are due to the nature of the sig-
nals and the way in which they are
transmitted. On MW/LW, interference may be no-
ticed when passing underneath high
voltage power lines, under bridges or
in tunnels.
On FM, interference may be the re-
sult of increasing distance from the
t r a n s m i t t e r , d e fl e c t i o n o f t h e s i g n a l
by obstacles (mountains, hills, build-
ings, etc.), or of being in an area not
covered by a transmitter.
Recommended position for the front
aerial for best reception.
Page 35 of 103
COMFORT36 -
Page 36 of 103
37COMFORT-

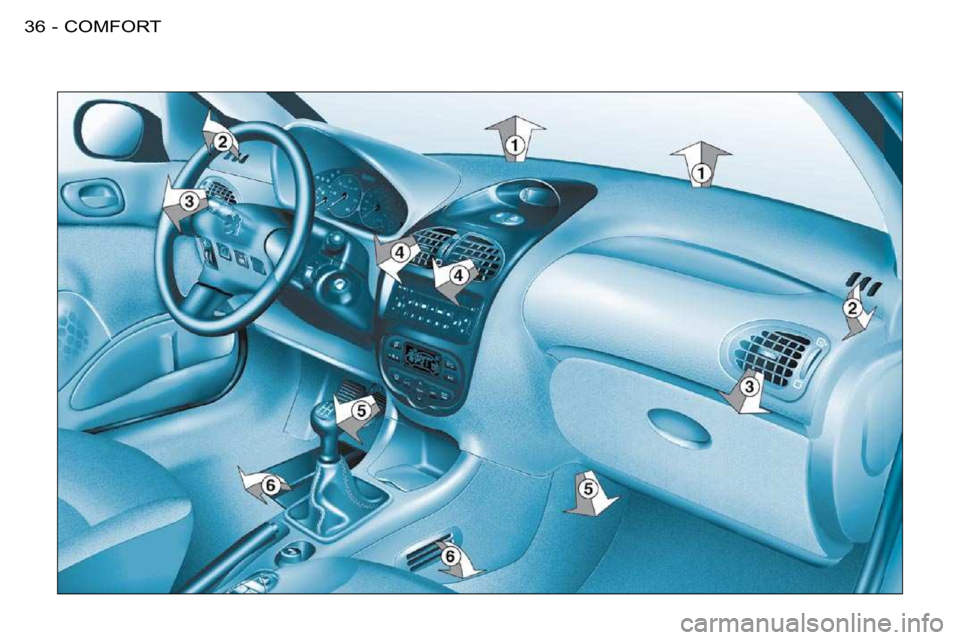

VENTILATION
1. Windscreen de-icing or
demisting vents.
2. Front door windows de-icing or
demisting vents.
3. Side vents.
4. Centre vents.
5. Air outlet to front footwells.
6. Air outlet to rear footwells (with
automatic air conditioning only). Advice on operation
and notes
In certain cases of particularly ardu-
ous use (towing the maximum load
on a steep gradient in a high tempera-
ture), cutting off the air conditioning
permits recovery of the engine pow-
er and, therefore improvement of the
towing capacity.
Ensure that the passenger com-
p a r t m e n t fi l t e r , l o c a t e d b y t h e w i n d -
s c r e e n , u n d e r t h e b o n n e t , i s i n g o o d
c o n d i t i o n . H a v e t h e fi l t e r e l e m e n t s
replaced regularly. If you drive in a
dusty environment, change them
twice as often.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month to keep it in perfect working
order.
T h e w a t e r f o r m e d b y t h e c o n d e n s a -
tion of the air conditioning system is
discharged via an opening provided
for this purpose. Therefore, a pud-
dle may form underneath the vehicle
when stationary.
If the system does not produce cold air,
do not use it and contact a PEUGEOT
dealer.
P l a c e t h e a i r fl o w c o n t r o l a t a l e v e l
s u f fi c i e n t t o e n s u r e a n a d e q u a t e r e -
newal of air in the passenger com-
partment.
W h e n t h e a i r fl o w c o n t r o l i s i n t h e
OFF position (system switched off),
temperature-related comfort is no
longer guaranteed. However, a slight
fl o w o f a i r , d u e t o t h e m o v e m e n t o f
t h e v e h i c l e , c a n s t i l l b e f e l t .
S e l e c t t h e a i r d i s t r i b u t i o n w h i c h i s
m o s t s u i t e d t o y o u r r e q u i r e m e n t s a n d
the weather conditions.
Change the temperature setting pro-
gressively for greater comfort.
Place the air intake control in the
"Exterior air" position, this facilitates
demisting.
If the interior temperature remains
very high following a long period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.
T o o b t a i n a p e r f e c t l y u n i f o r m d i s t r i b u -
tion of air, do not cover the exterior
air intake grille, the vents, the air pas-
sages and the air outlets in the foot-
wells.
Page 37 of 103
COMFORT38 -
DE-ICING AND DEMISTING
When the engine is running,
p r e s s i n g t h i s b u t t o n d e - i c e s
the rear screen and exterior
mirrors.
It switches off automati-
cally, after approximately twelve
minutes * , to prevent an excessive
consumption of current. Pressing the
b u t t o n a g a i n r e s t a r t s o p e r a t i o n f o r
twelve minutes.
I t i s p o s s i b l e t o s t o p t h e o p e r a t i o n o f
t h e d e - i c i n g b e f o r e i t i s s w i t c h e d o f f
a u t o m a t i c a l l y b y p r e s s i n g t h e b u t t o n
again. Manual demisting *
T o q u i c k l y d e m i s t t h e w i n d s c r e e n a n d
side windows:
- switch on the air conditioning,
- place the temperature and air
fl o w c o n t r o l s i n t h e m a x i m u m
position,
- close the central vents,
- place the exterior air intake con- trol on the left, in the "Exterior
Air" position. Automatic demisting,
visibility programme *
In some cases, the AUTO programme
m a y n o t b e s u f fi c i e n t t o d e m i s t t h e
windscreen and side windows (hu-
midity, several passengers, ice...).
* According to version or country. Select the
"visibility" de-
m i s t i n g p r o g r a m m e b y p r e s s -
i n g t h i s b u t t o n t o c l e a r t h e
w i n d o w s q u i c k l y .
To exit from this programme
and return to the AUTO programme,
press the AUTO b u t t o n .
Switch off the de-icing as
soon as you consider this
necessary as low current
consumption reduces fuel
consumption.
De-icing the rear screen and
mirrors
Page 38 of 103
39COMFORT-

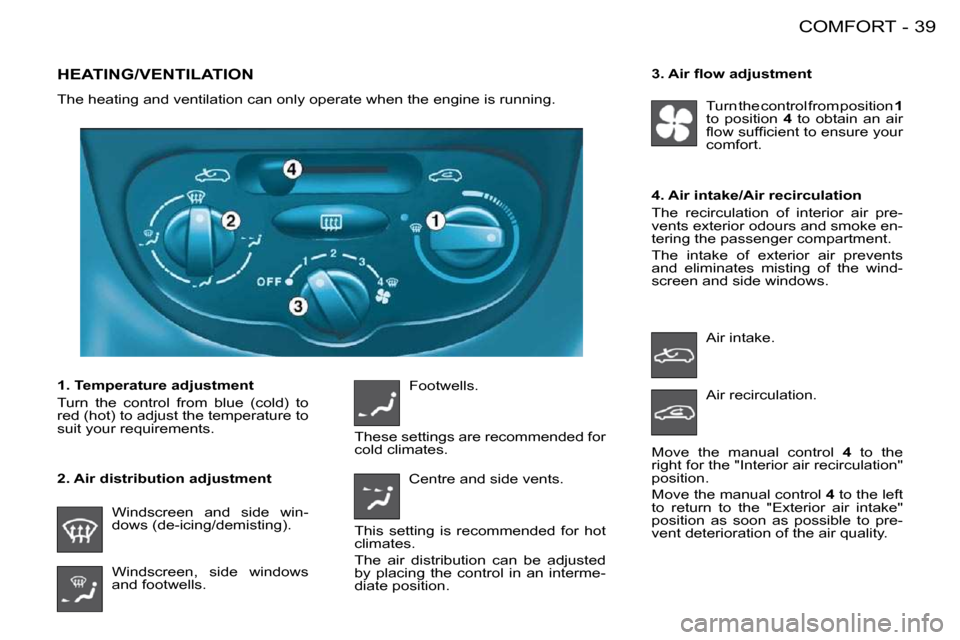

HEATING/VENTILATION
The heating and ventilation can only operate when the engine is running.
2. Air distribution adjustment
1. Temperature adjustment
T u r n t h e c o n t r o l f r o m b l u e ( c o l d ) t o
red (hot) to adjust the temperature to
s u i t y o u r r e q u i r e m e n t s .
Windscreen and side win-
dows (de-icing/demisting).
Windscreen, side windows
and footwells. Footwells.
Centre and side vents.
These settings are recommended for
cold climates.
This setting is recommended for hot
climates.
T h e a i r d i s t r i b u t i o n c a n b e a d j u s t e d
b y p l a c i n g t h e c o n t r o l i n a n i n t e r m e -
diate position. 3 . A i r fl o w a d j u s t m e n t
Turn the control from position 1
to position 4 t o o b t a i n a n a i r
fl o w s u f fi c i e n t t o e n s u r e y o u r
comfort.
4. Air intake/Air recirculation
The recirculation of interior air pre-
vents exterior odours and smoke en-
tering the passenger compartment.
The intake of exterior air prevents
and eliminates misting of the wind-
screen and side windows.
Air intake.
Air recirculation.
Move the manual control 4 to the
right for the "Interior air recirculation"
position.
Move the manual control 4 to the left
to return to the "Exterior air intake"
p o s i t i o n a s s o o n a s p o s s i b l e t o p r e -
v e n t d e t e r i o r a t i o n o f t h e a i r q u a l i t y .
Page 39 of 103
COMFORT40 -

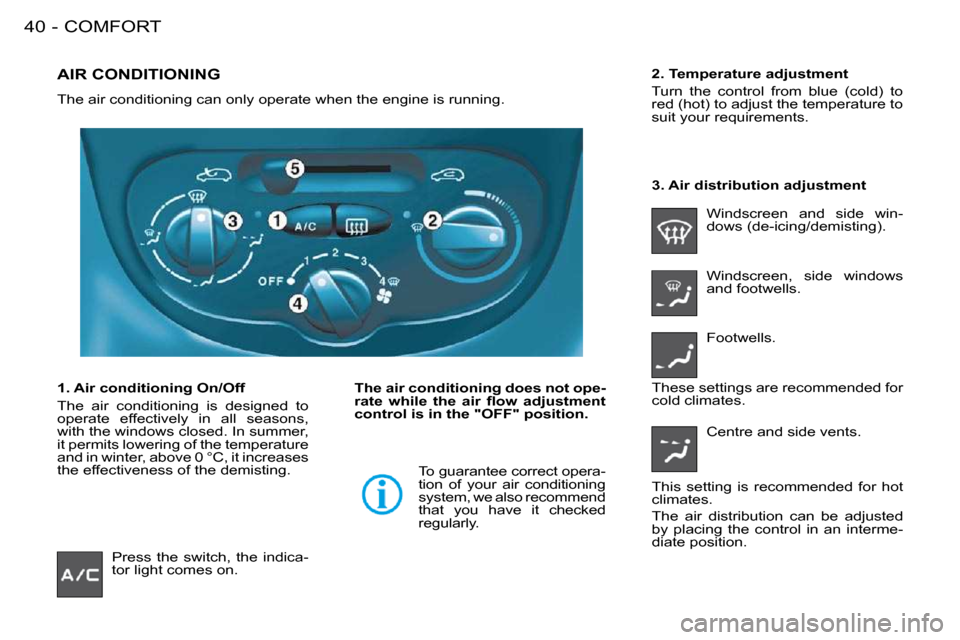

AIR CONDITIONING
The air conditioning can only operate when the engine is running.
The air conditioning does not ope-
r a t e w h i l e t h e a i r fl o w a d j u s t m e n t
control is in the "OFF" position.
1. Air conditioning On/Off
The air conditioning is designed to
operate effectively in all seasons,
with the windows closed. In summer,
it permits lowering of the temperature
a n d i n w i n t e r , a b o v e 0 ° C , i t i n c r e a s e s
the effectiveness of the demisting. 2. Temperature adjustment
T u r n t h e c o n t r o l f r o m b l u e ( c o l d ) t o
red (hot) to adjust the temperature to
s u i t y o u r r e q u i r e m e n t s .
Windscreen and side win-
dows (de-icing/demisting).
Windscreen, side windows
and footwells.
Press the switch, the indica-
tor light comes on. Footwells.
3. Air distribution adjustment
Centre and side vents.
These settings are recommended for
cold climates.
This setting is recommended for hot
climates.
T h e a i r d i s t r i b u t i o n c a n b e a d j u s t e d
b y p l a c i n g t h e c o n t r o l i n a n i n t e r m e -
diate position.
To guarantee correct opera-
tion of your air conditioning
system, we also recommend
that you have it checked
regularly.
Page 40 of 103
41COMFORT-
4 . A i r fl o w a d j u s t m e n t Turn the control from posi-
tion 1 to position 4 t o o b t a i n
a n a i r fl o w s u f fi c i e n t t o e n -
sure your comfort.
Intake of exterior air.
Air recirculation.
The recirculation of interior air pre-
vents exterior odours and smoke en-
tering the passenger compartment.
The intake of exterior air prevents
and eliminates misting of the wind-
screen and side windows.
Used simultaneously with the air con-
ditioning, air recirculation improves
air conditioning performance.
Used in a damp climate, air recircula-
tion may result in misting of the win-
dows.
5. Air intake/Air recirculation
Move the manual control
5 to the
right to the "Interior air recirculation"
position.
Move the manual control 5 to the left
to the "Exterior air intake" position as
s o o n a s p o s s i b l e t o p r e v e n t d e t e r i o -
r a t i o n o f t h e a i r q u a l i t y .
