23INSTRUMENTS and CONTROLS-
Resetting the service indicator
Y o u r P E U G E O T d e a l e r c a r r i e s o u t
t h i s o p e r a t i o n a f t e r e a c h s e r v i c e .
T h e r e s e t p r o c e d u r e i s a s f o l l o w s :
- S w i t c h o f f t h e i g n i t i o n .
- P r e s s a n d h o l d b u t t o n 1 .
- S w i t c h o n t h e i g n i t i o n .
The display begins a 10 second
c o u n t d o w n .
- K e e p b u t t o n 1 pressed for
1 0 s e c o n d s .
The display shows [=0] and the
s p a n n e r d i s a p p e a r s .
Engine oil level indicator
When the ignition is switched on,
the engine oil level is indicated for
approximately 10 seconds, after the
s e r v i c e i n f o r m a t i o n .
Oil level gauge fault
Flashing of the six segments indicates
a m a l f u n c t i o n o f t h e o i l l e v e l g a u g e .
There is a risk of damage to the
e n g i n e .
C o n s u l t a P E U G E O T d e a l e r .
Surplus of oil
F l a s h i n g o f t h e s i x s q u a r e s a n d
d i s p l a y i n g o f " m a x " i n d i c a t e a
s u r p l u s o f o i l w h i c h c o u l d d a m a g e
t h e e n g i n e .
I f t h e s u r p l u s o f o i l i s c o n fi r m e d b y
a c h e c k u s i n g t h e d i p s t i c k , c o n t a c t a
P E U G E O T d e a l e r w i t h o u t d e l a y .
Lack of oil
Flashing of the six segments and
d i s p l a y i n g o f " m i n " i n d i c a t e a l a c k o f
o i l w h i c h c o u l d d a m a g e t h e e n g i n e .
I f t h e l a c k o f o i l i s c o n fi r m e d b y a
c h e c k u s i n g t h e d i p s t i c k , i t i s e s s e n t i a l
t h a t t h e l e v e l i s t o p p e d u p .
The level read on the
gauge will only be correct
if the vehicle is on level
ground and the engine
has been off for more
than 15 minutes.
Page 22 of 103
INSTRUMENTS and CONTROLS24 - Total distance recorder
B r i e fl y p r e s s i n g b u t t o n 1 alternates
between the total and trip distance
d i s p l a y s .
LIGHTING RHEOSTAT
W i t h t h e l i g h t s o n , p r e s s t h e b u t t o n
to vary the intensity of the lighting of
t h e i n s t r u m e n t s a n d c o n t r o l s . W h e n
t h e l i g h t i n g r e a c h e s t h e m i n i m u m ( o r
m a x i m u m ) s e t t i n g , r e l e a s e t h e b u t t o n
then press it again to increase (or
r e d u c e ) t h e b r i g h t n e s s .
As soon as the lighting is of the
r e q u i r e d b r i g h t n e s s , r e l e a s e t h e
b u t t o n .
HAZARD WARNING LIGHTS
Automatic lighting of hazard
warning lights
E q u i p m e n t c o n d i t i o n e d a c c o r d i n g t o
c o u n t r y : w h e n b r a k i n g i n a n e m e r g e n -
cy, depending on the deceleration, the
h a z a r d w a r n i n g l i g h t s c o m e o n a u t o -
m a t i c a l l y . T h e y s w i t c h o f f a u t o m a t i c a l l y
t h e fi r s t t i m e y o u a c c e l e r a t e .
It is also possible to switch them off
b y p r e s s i n g t h e b u t t o n .
Trip recorder
To reset the trip recorder to zero,
w h e n i t i s d i s p l a y e d p r e s s b u t t o n
1
u n t i l z e r o s a p p e a r . P r e s s t h e b u t t o n , t h e d i r e c t i o n
i n d i c a t o r s fl a s h .
They can operate with the ignition
o f f .
Page 23 of 103
25INSTRUMENTS and CONTROLS-
Adjusting the parameters
P r e s s a n d h o l d b u t t o n 1 for two
seconds to access the settings; the
d a t a fl a s h e s , i n d i c a t i n g i t i s r e a d y t o
b e m o d i fi e d .
T h e n , e a c h p r e s s o f b u t t o n 1 scrolls
t h r o u g h t h e v a r i o u s d a t a i n t h e
following order:
- l a n g u a g e o f i n f o r m a t i o n displayed,
- h o u r s ( 1 2 t h e n 2 4 h o u r m o d e ) ,
- m i n u t e s ,
- year,
- month,
- day,
- u n i t o f t e m p e r a t u r e ( d e g r e e s C e l s i u s o r F a h r e n h e i t ) .
P r e s s i n g b u t t o n 2 a l l o w s m o d i fi c a t i o n
o f t h e d a t a s e l e c t e d . P r e s s a n d h o l d
f o r r a p i d a d v a n c e ( r e t u r n t o s t a r t a f t e r
t h e l a s t p o s s i b l e v a l u e ) .
After 7 seconds with no action, the
m a i n d i s p l a y r e t u r n s ; t h e m o d i fi e d
d a t a a r e n o w r e c o r d e d .
Note: P r e s s i n g b u t t o n 2 b r i e fl y
d i s p l a y s t h e o u t s i d e t e m p e r a t u r e f o r
a f e w s e c o n d s .
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- t h e a u d i o s y s t e m d i s p l a y s ,
- a d o o r c h e c k ( e . g . : ‘ " l e f t f r o n t d o o r o p e n " ) ,
- w a r n i n g m e s s a g e s ( e . g . ‘ " r e m o t e c o n t r o l b a t t e r y fl a t " ) o r i n f o r m a t i o n
m e s s a g e s ( e . g . " e c o n o m y m o d e
a c t i v e " ) , d i s p l a y e d t e m p o r a r i l y .
Page 24 of 103
AUDIO EQUIPMENT
26 -

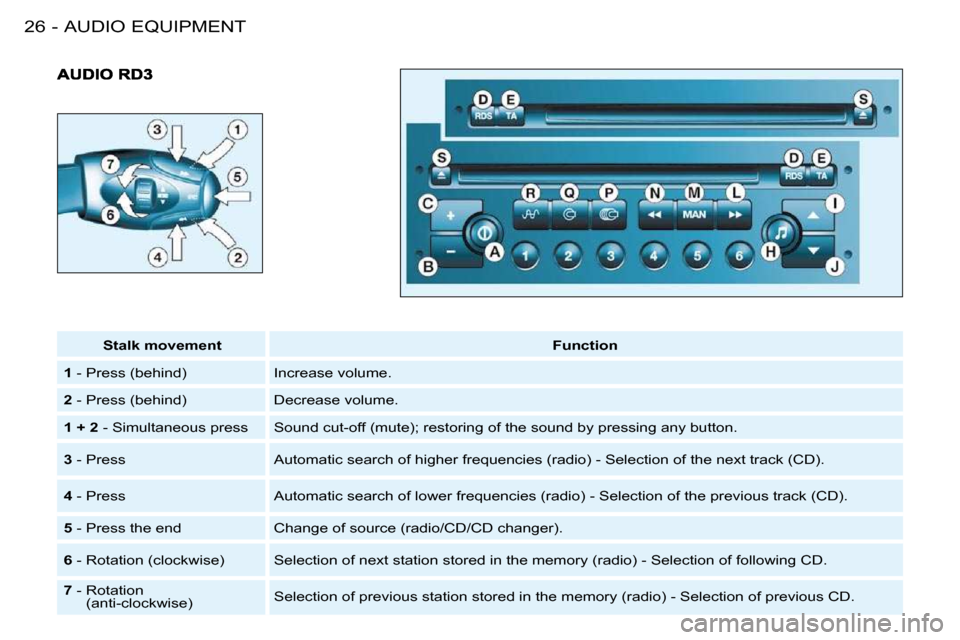

Stalk movement
Function
1 - Press (behind) Increase volume.
2 - Press (behind) Decrease volume.
1 + 2 - Simultaneous press Sound cut-off (mute); restoring of the sound by pressing any button.
3 - Press Automatic search of higher frequencies (radio) - Selection of the next track (CD).
4 - Press Automatic search of lower frequencies (radio) - Selection of the previous track (CD).
5 - Press the end Change of source (radio/CD/CD changer).
6 - Rotation (clockwise) Selection of next station stored in th e memory (radio) - Selection of following CD.
7 - Rotation
(anti-clockwise) Selection of previous station stored in the memory (radio) - Select
ion of previous CD.
Page 25 of 103
27AUDIO EQUIPMENT-

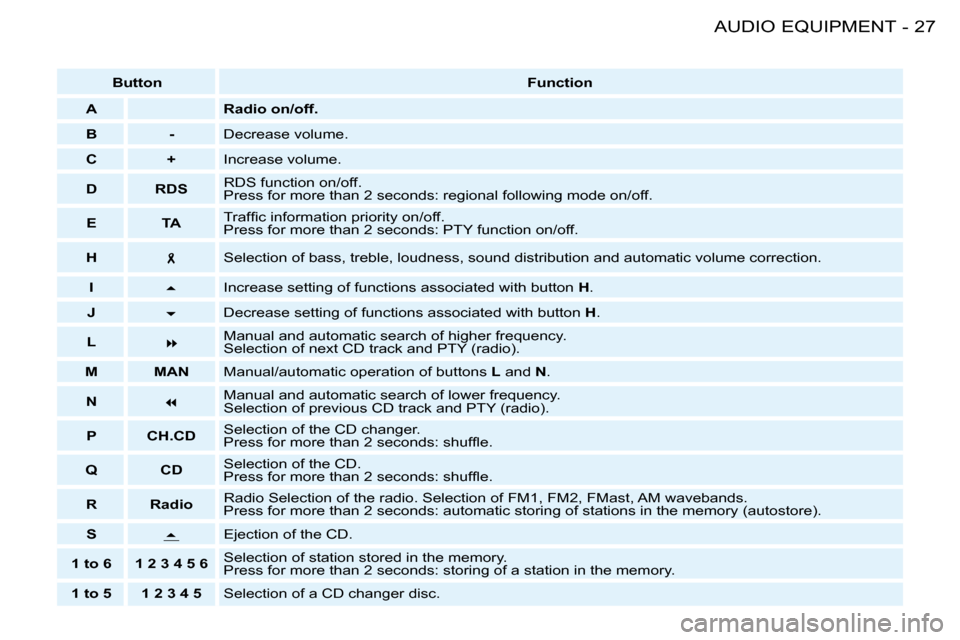

Button
Function
A Radio on/off.
B - Decrease volume.
C + Increase volume.
D RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
E TA T r a f fi c i n f o r m a t i o n p r i o r i t y o n / o f f .
Press for more than 2 seconds: PTY function on/off.
H
Selection of bass, treble, loudness, sound distribution and
automatic volume correction.
I
Increase setting of functions associated with button
H .
J
Decrease setting of functions associated with button
H .
L
Manual and automatic search of higher frequency.
Selection of next CD track and PTY (radio).
M MAN Manual/automatic operation of buttons L and N .
N
Manual and automatic search of lower frequency.
Selection of previous CD track and PTY (radio).
P CH.CD Selection of the CD changer.
P r e s s f o r m o r e t h a n 2 s e c o n d s : s h u f fl e .
Q CD Selection of the CD.
P r e s s f o r m o r e t h a n 2 s e c o n d s : s h u f fl e .
R Radio Radio Selection of the radio. Selection of FM1, FM2, FMast,
AM wavebands.
Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
S
Ejection of the CD.
1 to 6 1 2 3 4 5 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
1 to 5 1 2 3 4 5 Selection of a CD changer disc.
Page 26 of 103
AUDIO EQUIPMENT
28 -
GENERAL FUNCTIONS AUDIO SETTINGS
Adjusting the loudness
This function automatically empha-
sises bass and treble tones. Press
button I or J to switch the function on
or off.
On/off
With the ignition key
in the accessories or
ignition position, press
button
A to switch the
set on or off.
The set can oper-
ate for 30 minutes
without the vehicle ignition being
switched on.
Anti-theft system
The audio system is coded in such a
way that it can operate only on your
v e h i c l e . I t w o u l d n o t f u n c t i o n i f fi t t e d
to another vehicle.
The anti-theft system is automatic
and requires no action on your
part. ADJUSTING THE VOLUME
Press button C to increase the vol-
ume, or button B to decrease it.
Continuous pressure on buttons C
and B allows a gradual adjustment of
the volume. Adjusting the bass
Adjusting the treble
When
"TREB" is displayed, press
button I or J to vary the setting.
- "TREB -9" for a minimum treble
setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum
treble setting.
Press button
H sev-
eral times in succes-
sion to access the
bass (BASS) , treble
(TREB) , loudness
(LOUD) , fader (FAD) ,
balance (BAL) and
automatic volume cor-
rection settings.
Exit from audio mode is automatic
after a few seconds without pressing
any button, or by pressing button H
a f t e r c o n fi g u r a t i o n o f t h e a u t o m a t i c
volume correction.
Note: bass, treble and loudness set-
t i n g s a r e s p e c i fi c t o e a c h s o u r c e . I t
is possible to set them differently for
radio, cassette (RB3) , CD (RD3) and
CD changer. When
"BASS" is dis-
played, press button
I or J to vary the set-
ting.
- "BASS -9" for a
minimum bass
setting,
- "BASS 0" for a
normal setting,
- "BASS +9" for a maximum bass
setting.
Page 27 of 103
29AUDIO EQUIPMENT-
RADIO Selecting radio mode
Selecting a waveband
Adjusting the front/rear sound
distribution (Fader)
When
"FAD" is displayed, press but-
ton I or J .
Button I increases the volume in the
front.
Button J increases the volume in the
rear.
Adjusting the right/left sound
distribution (Balance)
When "BAL" is displayed, press but-
ton I or J .
Button I increases the volume on the
right-hand side.
Button J increases the volume on the
left-hand side.
Automatic volume correction
This function enables the volume to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press buttons I or J to switch the
function on or off. Press button
R .
Press button R brief-
ly to select the FM1,
FM2 FMast and AM
wavebands.
Notes on radio reception
Your car radio is subject to phenome-
na which do not affect domestic radio
sets. Both AM (MW/LW) and FM re-
ception are subject to various forms
o f i n t e r f e r e n c e . T h i s i s n o r e fl e c t i o n
on the quality of the equipment, but
is due to the nature of the signals and
the way in which they are transmit-
ted.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the result
of increasing distance from the trans-
m i t t e r , d e fl e c t i o n o f t h e s i g n a l s b y o b -
stacles (mountains, hills, buildings,
etc.), or of being in an area which is
not covered by a transmitter.
Page 28 of 103
29AUDIO EQUIPMENT-
RADIO Selecting radio mode
Selecting a waveband
Adjusting the front/rear sound
distribution (Fader)
When
"FAD" is displayed, press but-
ton I or J .
Button I increases the volume in the
front.
Button J increases the volume in the
rear.
Adjusting the right/left sound
distribution (Balance)
When "BAL" is displayed, press but-
ton I or J .
Button I increases the volume on the
right-hand side.
Button J increases the volume on the
left-hand side.
Automatic volume correction
This function enables the volume to
be automatically adjusted depending
on the level of noise produced by the
speed of the vehicle.
Press buttons I or J to switch the
function on or off. Press button
R .
Press button R brief-
ly to select the FM1,
FM2 FMast and AM
wavebands.
Notes on radio reception
Your car radio is subject to phenome-
na which do not affect domestic radio
sets. Both AM (MW/LW) and FM re-
ception are subject to various forms
o f i n t e r f e r e n c e . T h i s i s n o r e fl e c t i o n
on the quality of the equipment, but
is due to the nature of the signals and
the way in which they are transmit-
ted.
On MW/LW, interference may be
noticed when passing under high
voltage power lines or bridges, or in
tunnels.
On FM, interference may be the result
of increasing distance from the trans-
m i t t e r , d e fl e c t i o n o f t h e s i g n a l s b y o b -
stacles (mountains, hills, buildings,
etc.), or of being in an area which is
not covered by a transmitter.
Page 29 of 103
AUDIO EQUIPMENT
30 -
Manual station search
Press the "MAN" button.
B r i e fl y p r e s s b u t t o n L or N to in-
crease or decrease the frequency
displayed.
By continuing to press the button in
the direction selected, you will obtain
continuous scrolling of the frequency.
The scrolling stops as soon as the
button is released.
Pressing the "MAN" button again
returns you to automatic station
search. Automatic storing of FM stations
in the memory (autostore)
Your radio automatically stores the 6
stations with the strongest signal in
FM . These stations are stored in the
FMast waveband.
I f i t i s n o t p o s s i b l e t o fi n d 6 s t a t i o n s ,
the remaining memories are empty.
Automatic station search
Manual storing of stations in the
memory
Select the station required.
Press one of the buttons "1" to "6"
for more than two seconds.
The sound stops then becomes audi-
b l e a g a i n , c o n fi r m i n g t h a t t h e s t a t i o n
has been stored in the memory. Recalling stations stored in the
memory
F o r e a c h w a v e b a n d , b r i e fl y p r e s s
buttons
"1" to "6" to recall the cor-
responding station.
B r i e fl y p r e s s b u t t o n
L or N to search
for the station immediately above or
below. By continuing to press the
button in the direction selected, you
will obtain continuous scrolling of the
frequency.
T h e s c r o l l i n g s t o p s a t t h e fi r s t s t a -
tion found as soon as the button is
released.
If the TA t r a f fi c p r o g r a m m e i s s e l e c t -
ed, only stations broadcasting this
type of programme are selected.
S e a r c h i n g f o r a s t a t i o n o c c u r s fi r s t i n
"LO" sensitivity (selection of the most
powerful transmitters) during scan-
ning of the waveband, then in "DX"
sensitivity (selection of the weakest
and most distant transmitters).
To make a direct search in "DX" sen-
sitivity, press button L or N twice. Press and hold button
R for more than two
seconds.
Page 30 of 103
31AUDIO EQUIPMENT-
RDS T r a f fi c i n f o r m a t i o n p r o g r a m m e Regional following mode
When they are part of a network, cer-
tain stations broadcast regional pro-
grammes in the various areas they
serve. With regional following mode
you can keep listening to the same
programme.
Press the "RDS" button for more
than two seconds to switch the func-
tion on or off.
RDS station following
The display indicates the name of the
station selected. The radio is contin-
ually searching for the station which
has the best reception and which is
transmitting the same programme. Press the
"TA" button
to switch the function
on or off.
B r i e fl y p r e s s t h e "RDS"
button to switch the
function on or off.
The multifunction display will show:
- "RDS" if the function is selected.
- "(RDS)" if the function is
selected but not available.
Using the RDS (Radio Data
System) function on FM
Radio Data System allows you to
continue listening to the same sta-
tion, whatever frequency it is using
for the region you are going through.
The multifunction display will show:
-
"TA" if the function is selected,
- "(TA)" if the function is selected
but not available.
A n y t r a f fi c i n f o r m a t i o n fl a s h w i l l b e
given priority, whatever source you
are listening to (radio, cassette or CD
changer).
If you wish to interrupt a message,
press the "TA" button; this switches
the function off.
N o t e : t h e v o l u m e o f t r a f fi c i n f o r m a -
tion announcements is independ-
ent of the volume of normal radio
listening. You can adjust it using
the volume button. The setting will
be stored and will be used when
the next messages are broadcast.
