COMFORT50 -

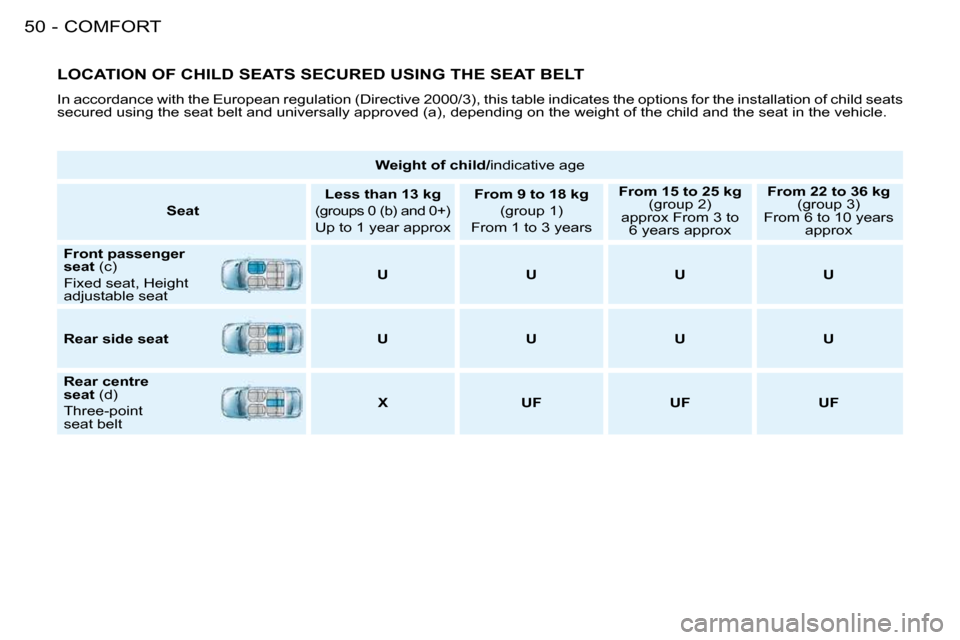

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
I n a c c o r d a n c e w i t h t h e E u r o p e a n r e g u l a t i o n ( D i r e c t i v e 2 0 0 0 / 3 ) , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r t h e i n s t a l l a t i o n o f c h i l d s e a t s
s e c u r e d u s i n g t h e s e a t b e l t a n d u n i v e r s a l l y a p p r o v e d ( a ) , d e p e n d i n g o n t h e w e i g h t o f t h e c h i l d a n d t h e s e a t i n t h e v e h i c l e .
Weight of child/ indicative age
Seat
Less than 13 kg
( g r o u p s 0 ( b ) a n d 0 + )
Up to 1 year approx
F r o m 9 t o 1 8 k g
(group 1)
From 1 to 3 years
From 15 to 25 kg
(group 2)
approx From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger
seat (c)
Fixed seat, Height
a d j u s t a b l e s e a t
U U U U
Rear side seat U U U U
Rear centre
seat (d)
Three-point
s e a t b e l t
X UF UF UF
Page 52 of 103
51COMFORT-
( a ) U n i v e r s a l c h i l d s e a t : c h i l d s e a t w h i c h c a n b e i n s t a l l e d i n a l l v e h i c l e s u s i n g t h e s e a t b e l t .
( b ) G r o u p 0 : f r o m b i r t h t o 1 0 k g .
( c ) C o n s u l t t h e c u r r e n t l e g i s l a t i o n i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
( d ) I t i s n o t p o s s i b l e t o i n s t a l l t h e " B R I T A X B a b y s u r e " ( L 1 ) c h i l d s e a t o n t h e r e a r c e n t r e s e a t .
U : S e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t , a t t a c h e d w i t h t h e s e a t b e l t a n d h o m o l o g a t e d a s " u n i v e r s a l " .
"Rear facing" and "Forward facing" child seats.
U F : S e a t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t , a t t a c h e d w i t h t h e s e a t b e l t a n d h o m o l o g a t e d a s " u n i v e r s a l " .
"Forward facing" child seats only.
X : S e a t n o t s u i t a b l e f o r t h e i n s t a l l a t i o n o f a c h i l d s e a t f r o m t h e g r o u p o f w e i g h t s i n d i c a t e d .
Page 53 of 103
COMFORT52 - T h e s e a r e t w o r i n g s l o c a t e d b e t w e e n
t h e s e a t b a c k a n d t h e s e a t c u s h i o n .
"ISOFIX" MOUNTINGS
T h i s s e a t i s fi t t e d w i t h I S O F I X m o u n t -
ings. The
ISOFIX child seats a r e fi t t e d
with two locks which are secured
easily on these rings.
This ISOFIX mounting system gua-
r a n t e e s r e l i a b l e , s a f e a n d f a s t fi t t i n g
of the child seat in your vehicle.
If a child is not installed in a vehicle
correctly, the child's protection in the
e v e n t o f a c o l l i s i o n w i l l b e c o m p r o -
mised.
Page 54 of 103
53COMFORT-
ISOFIX CHILD SEATS RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
ISOFIX KIDDY
ISOFIX RÖMER Duo
Group 0+: from birth to 13 kg G r o u p 1 : f r o m 9 t o 1 8 k g G r o u p 1 : f r o m 9 t o 1 8 k g
Installed in the rear facing position. Installed in the forwards facing position. Installed in the forwards facing position only.
T h e b o d y o f t h e c h i l d s e a t m u s t b e i n
c o n t a c t w i t h t h e b a c k o f t h e v e h i c l e ' s
front seat. It is essential that the vehicle's front
seat is adjusted to the intermediate lon-
gitudinal position. Secured without the top strap.
T h r e e c h i l d s e a t b o d y a n g l e s : s i t t i n g ,
reclining and lying positions.
Adjust the vehicle's front seat so that
the child's feet do not touch the seat
b a c k .
T h e s e c h i l d s e a t s c a n a l s o b e u s e d o n
s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X
mountings. In this case, it is essential that they are
s e c u r e d t o t h e v e h i c l e ' s s e a t b y m e a n s
o f t h e t h r e e p o i n t s e a t b e l t .
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e
child seat indicated in the seat manu-
facturer's installation guide.
Page 55 of 103
55ACCESS-
THE KEYS
The keys allow you to independ-
ently operate the lock on the driver’s
d o o r , t h e f u e l fi l l e r c a p , t h e c h i l d l o c k ,
the steering lock and to switch on the
ignition. Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f
t h e d i r e c t i o n i n d i c a t o r s f o r a p p r o x i -
m a t e l y t w o s e c o n d s . Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press button A , the courtesy lights
c o m e o n a n d t h e d i r e c t i o n i n d i c a -
t o r s fl a s h f o r a f e w s e c o n d s .
Changing the remote control
battery
Battery ref.: CR 2016/3 volts.
W a r n i n g t h a t t h e b a t t e r y i s fl a t i s g i v -
en by an audible signal.
T o r e p l a c e t h e b a t t e r y , r e m o v e t h e
screw then unclip the casing using a
coin at the ring.
I f t h e r e m o t e c o n t r o l d o e s n o t w o r k
after the battery has been changed,
r e p r o g r a m m e t h e r e m o t e c o n t r o l .
D o n o t d i s c a r d t h e r e m o t e c o n t r o l
b a t t e r i e s , t h e y c o n t a i n m e t a l s w h i c h
a r e h a r m f u l t o t h e e n v i r o n m e n t .
T a k e t h e m t o a P E U G E O T d e a l e r ,
or to any other approved collection
point.
Key in ignition
A buzzer sounds on opening the driv-
er’s door, if the key has been left in
the ignition. Programming the remote
control
Switch off the ignition.
Switch the ignition on again.
Press button A i m m e d i a t e l y f o r a
few seconds.
S w i t c h o f f t h e i g n i t i o n a n d r e m o v e
t h e r e m o t e c o n t r o l k e y f r o m t h e
i g n i t i o n l o c k . T h e r e m o t e c o n t r o l
is now working again.
Central locking and unlocking
The keys allow you to lock or unlock
t h e d o o r s a n d b o o t , f r o m t h e d r i v e r ’ s
door.
If one of the doors or the boot is open,
the central locking does not work. The remote control
T h i s p e r f o r m s t h e s a m e f u n c t i o n s a s
the key, at a distance.
Unlocking
Press button
B to unlock the vehicle.
T h i s i s c o n fi r m e d b y t h e r a p i d fl a s h -
ing of the direction indicators.
Avoid pressing the buttons
o f y o u r r e m o t e c o n t r o l o u t
of range of your vehicle.
You risk causing it not to
w o r k a n d t h e r e m o t e c o n t r o l
w o u l d t h e n h a v e t o b e r e p r o g r a m m e d
(see corresponding section).
Page 56 of 103
ACCESS56 -
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control sys-
t e m a s s o o n a s t h e i g n i t i o n h a s b e e n
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
m u s t b e r e c o g n i s e d f o r s t a r t i n g t o b e
possible.
If the system does not function
correctly, the central locking button
indicator light, situated in the centre
o f t h e f a s c i a , fl a s h e s r a p i d l y w h e n t h e
ignition is switched on (2nd notch).
In this case your vehicle will not
start.
C o n t a c t a P E U G E O T d e a l e r a s s o o n
as possible. Make a careful note of the
n u m b e r o f e a c h k e y . T h i s
n u m b e r i s c o d e d o n t h e l a -
bel attached to the key.
T h e h i g h f r e q u e n c y r e m o t e c o n t r o l i s
a s e n s i t i v e s y s t e m ; d o n o t o p e r a t e i t
while it is in your pocket as there is a
p o s s i b i l i t y t h a t i t m a y u n l o c k t h e v e -
hicle, without you being aware of it.
T h e r e m o t e c o n t r o l d o e s n o t o p e r a t e
when the key is in the ignition, even
w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x -
c e p t f o r r e p r o g r a m m i n g .
D r i v i n g w i t h t h e d o o r s l o c k e d m a y
m a k e a c c e s s t o t h e p a s s e n g e r c o m -
p a r t m e n t b y t h e e m e r g e n c y s e r v i c e s
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
o n b o a r d ) , r e m o v e t h e k e y f r o m t h e
ignition when you leave the vehicle,
e v e n f o r a s h o r t t i m e . Do not repeatedly press the buttons
o f y o u r r e m o t e c o n t r o l o u t o f r a n g e
of your vehicle.
Y o u r u n t h e r i s k o f s t o p p i n g i t f r o m
w o r k i n g a n d t h e r e m o t e c o n t r o l
w o u l d h a v e t o b e r e p r o g r a m m e d .
When purchasing a second-hand
v e h i c l e , h a v e t h e k e y c o d e s m e m -
o r i s e d b y a P E U G E O T d e a l e r , t o
ensure that the keys in your pos-
session are the only ones which
can start the vehicle.
D o n o t m a k e a n y m o d i fi c a t i o n s t o
t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r
s y s t e m .
If the keys are lost
V i s i t a P E U G E O T d e a l e r w i t h t h e
v e h i c l e ’ s V 5 r e g i s t r a t i o n c e r t i fi c a t e
a n d y o u r p e r s o n a l i d e n t i fi c a t i o n
d o c u m e n t s .
T h e P E U G E O T n e t w o r k w i l l b e
able to retrieve the key code and
the transponder code to order a re-
p l a c e m e n t k e y .
Page 57 of 103
57ACCESS-
DOORS
Opening the doors from outside
Opening the doors from inside "Door open" warning
With the engine running, you are
warned if a door is not shut properly
by an audible signal.
When the vehicle is moving, if the
courtesy light button is in the "light-
ing on opening a door" position, the
c o u r t e s y l i g h t fl a s h e s .
Locking from inside
With central locking
To lock, press button
A .
Locking one of the front doors locks
the front and rear doors and the tail-
gate.
O n t h e r e a r d o o r s , t h e b u t t o n o n l y
locks the door in question. Unlocking from inside
To unlock, pull button
A or operate
the handle.
Without central locking
To lock, press button
A . The button
locks the door in question.
The button on the driver’s door locks
the door and the boot.
Page 58 of 103
ACCESS58 -
CHILD SAFETY LOCK
O n e a c h r e a r d o o r t h i s p r e v e n t s
o p e n i n g o f t h e d o o r f r o m t h e i n s i d e .
Turn switch 1 a quarter turn using the
ignition key.
Check the status of this function be-
fore each journey.
T h i s s y s t e m i s i n d e p e n d e n t o f t h e
central locking.
A l w a y s r e m o v e t h e i g n i t i o n k e y w h e n
leaving the vehicle.
Locking/Unlocking from the
inside
Pressing button
A p e r m i t s To switch on
Press and hold button
A .
A c t i v a t i o n o f t h e f u n c t i o n i s a c c o m -
panied by an audible signal.
To switch off
Press and hold button A .
Notes: if one of the doors is open,
l o c k i n g f r o m t h e i n s i d e a n d a u t o m a t i c
central locking are not possible.
I f t h e b o o t i s o p e n , a u t o m a t i c c e n t r a l
locking of the doors is active.
locking/unlocking of the doors.
A u t o m a t i c c e n t r a l l o c k i n g o f t h e
doors
T h e d o o r s c a n l o c k a u t o m a t i c a l l y
when you are driving (at a speed of
m o r e t h a n 6 m p h ( 1 0 k m / h ) ) . A b o v e
6 m p h ( 1 0 k m / h ) , p r e s s b u t t o n A brief-
l y t o u n l o c k t h e d o o r s t e m p o r a r i l y .
You can activate or deactivate this
function.
Page 59 of 103
ACCESS58 -
CHILD SAFETY LOCK
O n e a c h r e a r d o o r t h i s p r e v e n t s
o p e n i n g o f t h e d o o r f r o m t h e i n s i d e .
Turn switch 1 a quarter turn using the
ignition key.
Check the status of this function be-
fore each journey.
T h i s s y s t e m i s i n d e p e n d e n t o f t h e
central locking.
A l w a y s r e m o v e t h e i g n i t i o n k e y w h e n
leaving the vehicle.
Locking/Unlocking from the
inside
Pressing button
A p e r m i t s To switch on
Press and hold button
A .
A c t i v a t i o n o f t h e f u n c t i o n i s a c c o m -
panied by an audible signal.
To switch off
Press and hold button A .
Notes: if one of the doors is open,
l o c k i n g f r o m t h e i n s i d e a n d a u t o m a t i c
central locking are not possible.
I f t h e b o o t i s o p e n , a u t o m a t i c c e n t r a l
locking of the doors is active.
locking/unlocking of the doors.
A u t o m a t i c c e n t r a l l o c k i n g o f t h e
doors
T h e d o o r s c a n l o c k a u t o m a t i c a l l y
when you are driving (at a speed of
m o r e t h a n 6 m p h ( 1 0 k m / h ) ) . A b o v e
6 m p h ( 1 0 k m / h ) , p r e s s b u t t o n A brief-
l y t o u n l o c k t h e d o o r s t e m p o r a r i l y .
You can activate or deactivate this
function.
Page 60 of 103
59ACCESS-
LOCKING/UNLOCKING OF THE BOOT
"Boot open" warning
When the engine is running , if the
boot is not closed correctly you are
warned by an audible signal.
When the vehicle is moving , if the
boot is not closed correctly the cour-
t e s y l i g h t fl a s h e s i f i t s b u t t o n i s i n t h i s
position.
OPENING THE BOOT
To open the boot, press the lock.
The lighting is activated on open-
ing the boot.
With the key
Lock the boot by turning the key in
t h e l o c k ( f r o m A to C ).
U n l o c k t h e b o o t b y t u r n i n g t h e k e y i n
t h e l o c k ( f r o m A to B ).
With the central locking
Locking and unlocking of the boot is
s i m u l t a n e o u s w i t h t h e d o o r s .
