Page 39 of 171
26-05-2003
YOUR 206 IN DETAIL39
DISPLAY C This enables the following informa- tion to be displayed:
Ð the time,
Ð the date,
Ð the outside temperature (this flashes when there is a risk of ice),
Ð the radio displays,
Ð the status of the doors. The dis- play shows you, by means of a graphic, whether a door is open, Ð the warning messages (e.g. "fuel level low''), displayed temporarily. These can
be cleared using the remote control,
Ð the trip computer (see corresponding section),
Ð the satellite navigation system (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section ''Satellite Navigation System''.
Page 57 of 171
26-05-2003
YOUR 206 IN DETAIL
56
Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the up and down arrows enable the brightness of the screen to beadjusted. The right and left arrows enable the complete
name of the road to be displayed temporarily,during guidance, if the name exceeds the capacityof the screen.
menu : this button allows access to the main menu. It canbe used at any time.
esc : escape button"Short press": cancels the current operation andreturns to the previous screen. "Press for more than 2 seconds": returns to the wel- come screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button"Short press": changes between date, navigation,radio and permanent locating.
val : Validation buttonConfirms the function selected.
Reference of the 2 batteries: 1.5 volts type LR03.
THE SATELLITE
NAVIGATION SYSTEM Introduction The satellite navigation system guides you to the destination of yourchoice by means of vocal and visualinstructions. The heart of the system lies in the use of a map database and a GPS
system. The latter enables yourposition to be located by means ofseveral satellites. The satellite navigation system con- sists of the following components:
Ð the remote control,
Ð the display,
Ð the control unit,
Ð the last voice message recall control,
Ð the CD ROM,
Ð the multifunction aerial. The remote control Pointing this at the screen enables the information contained in the various menus to be selected.
A special compartment in the glove box permits storage of the remote control.
Some functions or services described may vary depending onthe CD-ROM version or the countrywhere the vehicle is sold.
Page 59 of 171
26-05-2003
The control unit This is located in the glove box. 1.CD-ROM eject button.
2. CD-ROM compartment.
3. ON indicator light indicates that the control unit is sup-
plied with power.
4. CD indicator light shows that there is a CD-ROM in theunit.
5. Remote control storage compartment. The last voice message recall control
Pressing the button on the endof the lights stalk allows thelast voice message to be
repeated, or, if appropriate, avoice message to be heard
and a more detailed display of the approaching landscape to bedisplayed. The CD-ROM
This contains all the map- ping data. It must be inserted with the printed face upwards.
Use only CD-ROMs approved by PEUGEOT. The satellite navigation system is active when the globe is lit with a full outline.
YOUR 206 IN DETAIL
58
The use of copied compact discs may cause faults.
Page 60 of 171
26-05-2003
YOUR 206 IN DETAIL59
Main menu Switch on the ignition. Press the
"Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button).
Following selection of the "Navigation/guidance"menu, a
screen warns you about the use of the navigation system. Follow the regulations in force and do not use the remotecontrol while driving. Press the "VAL"button to access the next screen.
The "Navigation/guidance" menu offers the following
options:
Ð entering of the address of a new destination;
Ð selection of a service (hotel, station, airport...) available in a town;
Ð selection of an address stored in one of the two directories;
Ð access to the "Navigation options" menu.
Ð Radio functions are suspended when the system is in guidance mode.
Navigation/Guidance
Page 162 of 171
26-05-2003
PRACTICAL INFORMATION
146

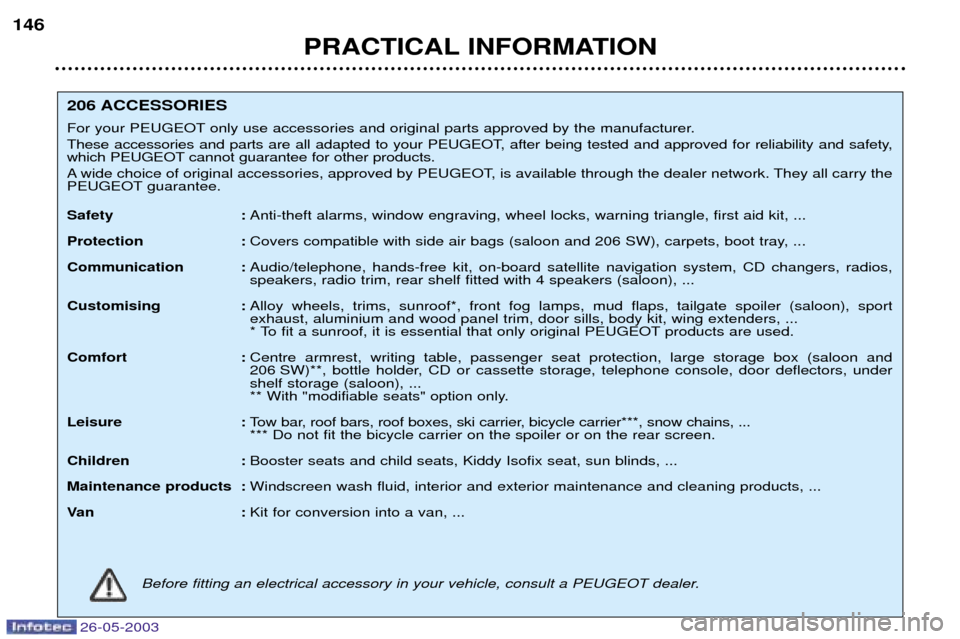

206 ACCESSORIES
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety,
which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee.
Safety : Anti-theft alarms, window engraving, wheel locks, warning triangle, first aid kit, ...
Protection : Covers compatible with side air bags (saloon and 206 SW), carpets, boot tray, ...
Communication : Audio/telephone, hands-free kit, on-board satellite navigation system, CD changers, radios, speakers, radio trim, rear shelf fitted with 4 speakers (saloon), ...
Customising : Alloy wheels, trims, sunroof*, front fog lamps, mud flaps, tailgate spoiler (saloon), sportexhaust, aluminium and wood panel trim, door sills, body kit, wing extenders, ...
* To fit a sunroof, it is essential that only original PEUGEOT products are used.
Comfort : Centre armrest, writing table, passenger seat protection, large storage box (saloon and
206 SW)**, bottle holder, CD or cassette storage, telephone console, door deflectors, undershelf storage (saloon), ...
** With "modifiable seats" option only.
Leisure : Tow bar, roof bars, roof boxes, ski carrier, bicycle carrier***, snow chains, ...
*** Do not fit the bicycle carrier on the spoiler or on the rear screen.
Children : Booster seats and child seats, Kiddy Isofix seat, sun blinds, ...
Maintenance products : Windscreen wash fluid, interior and exterior maintenance and cleaning products, ...
Va n : Kit for conversion into a van, ...
Before fitting an electrical accessory in your vehicle, consult a PEUGEOT dealer.
