PEUGEOT 207 2010 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 207, Model: PEUGEOT 207 2010Pages: 218, PDF Size: 10.37 MB
Page 91 of 218
i
CHILD SAFETY
95

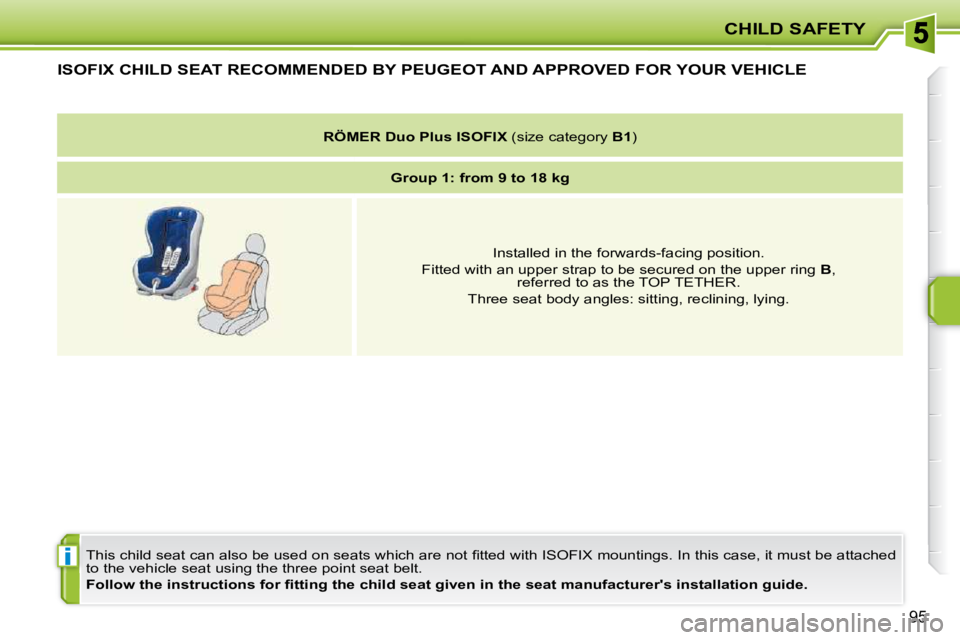

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t m u s t b e a t t a c h e d
to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B ,
r e f e r r e d t o a s t h e T O P T E T H E R .
Three seat body angles: sitting, reclining, lying.
Page 92 of 218
CHILD SAFETY
96

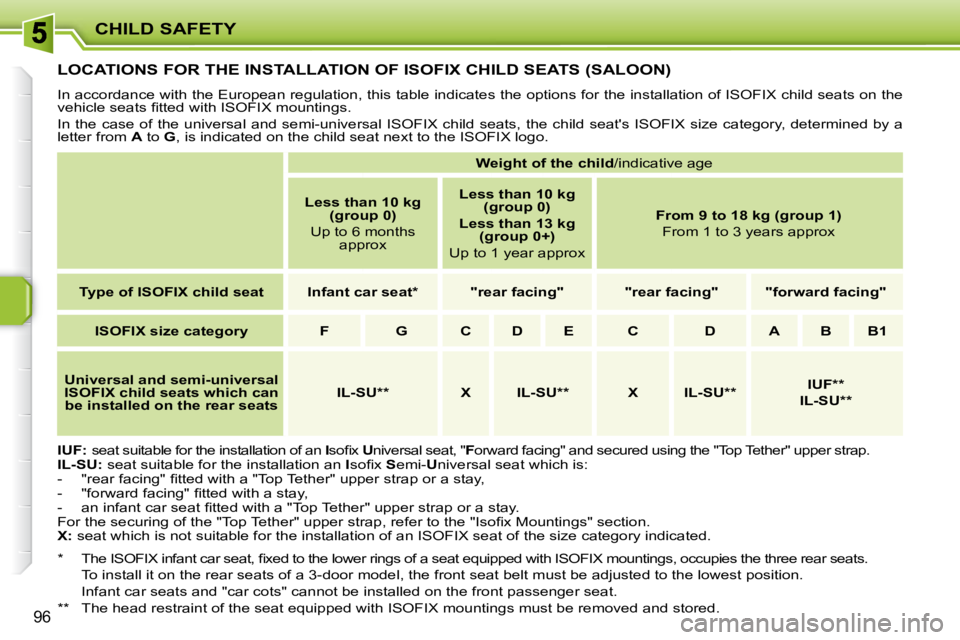

LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SALOON)
In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an I s o fi x S emi- U niversal seat which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s " s e c t i o n .
X: seat which is not suitable for the installation of an ISO FIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
IL-SU ** X IL-SU ** X IL-SU **
IUF **
IL-SU **
*
T h e I S O F I X i n f a n t c a r s e a t , fi x e d t o t h e l o w e r r i n g s o f a s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s , o c c u p i e s t h e t h r e e r e a r s e a t s .
To install it on the rear seats of a 3-door model, the front seat belt must be adjusted to the lowest position.
Infant car seats and "car cots" cannot be installed on the front passenger seat.
**
T h e h e a d r e s t r a i n t o f t h e s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s m u s t b e r e m o v e d a n d s t o r e d .
Page 93 of 218
CHILD SAFETY
97

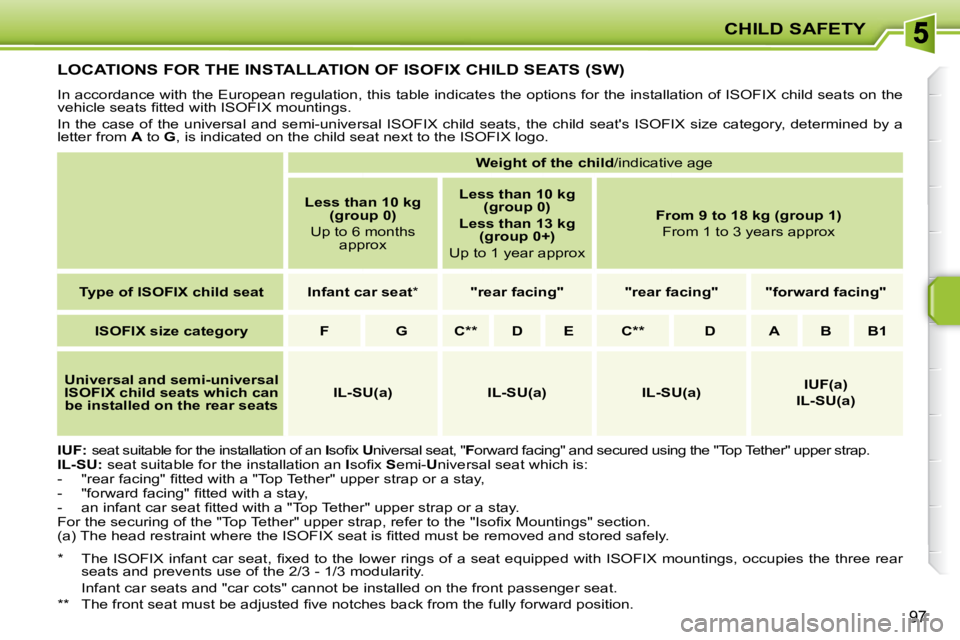

LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SW)
In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an I s o fi x S emi- U niversal seat which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s " s e c t i o n .
( a ) T h e h e a d r e s t r a i n t w h e r e t h e I S O F I X s e a t i s fi t t e d m u s t b e r e m o v e d a n d s t o r e d s a f e l y .
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C ** D E C ** D A B B1
Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
IL-SU(a) IL-SU(a) IL-SU(a)
IUF(a)
IL-SU(a)
*
T h e I S O F I X i n f a n t c a r s e a t , fi x e d t o t h e l o w e r r i n g s o f a s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s , o c c u p i e s t h e t h r e e r e a r
seats and prevents use of the 2/3 - 1/3 modularity.
Infant car seats and "car cots" cannot be installed on the front passenger seat.
* * T h e f r o n t s e a t m u s t b e a d j u s t e d fi v e n o t c h e s b a c k f r o m t h e f u l l y f o r w a r d p o s i t i o n .
Page 94 of 218
!
CHILD SAFETY
This system is independent and in
no circumstances does it take the
place of the central locking control.
C h e c k t h e s t a t u s o f t h e c h i l d l o c k
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to allow the rear pas-
sengers to exit the vehicle.

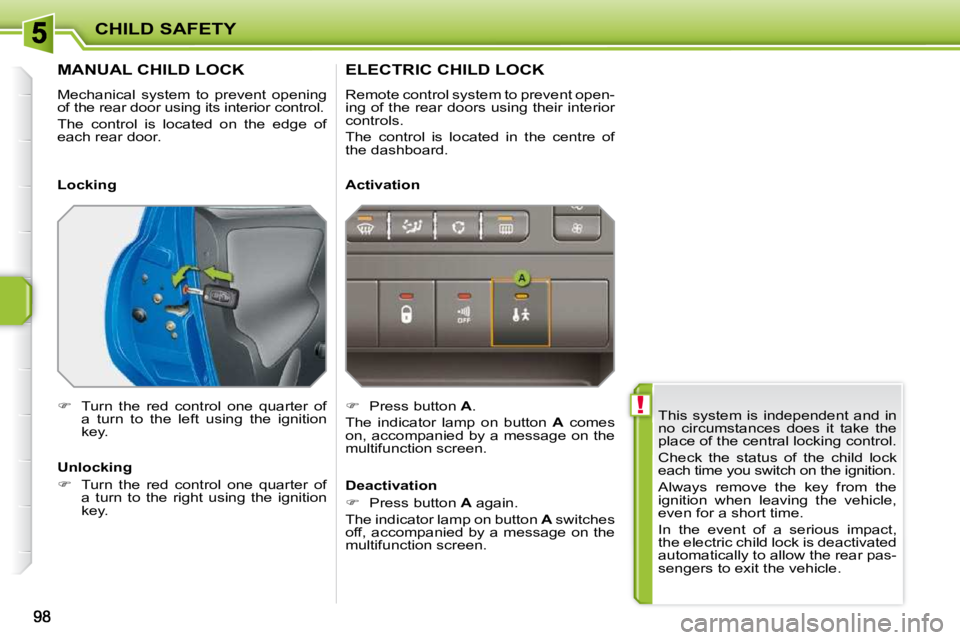

MANUAL CHILD LOCK
M e c h a n i c a l s y s t e m t o p r e v e n t o p e n i n g
of the rear door using its interior control.
The control is located on the edge of
each rear door.
T u r n t h e r e d c o n t r o l o n e q u a r t e r o f
a turn to the left using the ignition
key.
ELECTRIC CHILD LOCK
R e m o t e c o n t r o l s y s t e m t o p r e v e n t o p e n -
ing of the rear doors using their interior
controls.
The control is located in the centre of
the dashboard.
Press button A .
The indicator lamp on button A comes
on, accompanied by a message on the
multifunction screen.
Locking
Unlocking
T u r n t h e r e d c o n t r o l o n e q u a r t e r o f
a turn to the right using the ignition
key. Activation
Deactivation
Press button A again.
The indicator lamp on button A switches
off, accompanied by a message on the
multifunction screen.
Page 95 of 218
i
SAFETY
99

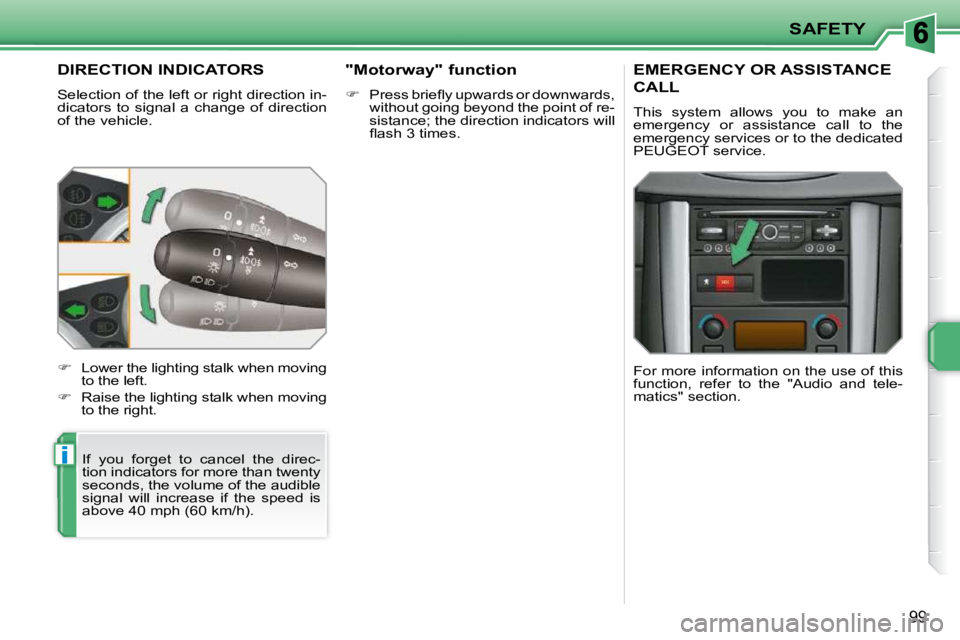

DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle. If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
Lower the lighting stalk when moving
to the left.
Raise the lighting stalk when moving
to the right. "Motorway" function
P r e s s b r i e fl y u p w a r d s o r d o w n w a r d s ,
without going beyond the point of re-
sistance; the direction indicators will
fl a s h 3 t i m e s .
EMERGENCY OR ASSISTANCE
CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and tele-
matics" section.
Page 96 of 218
i
SAFETY
100

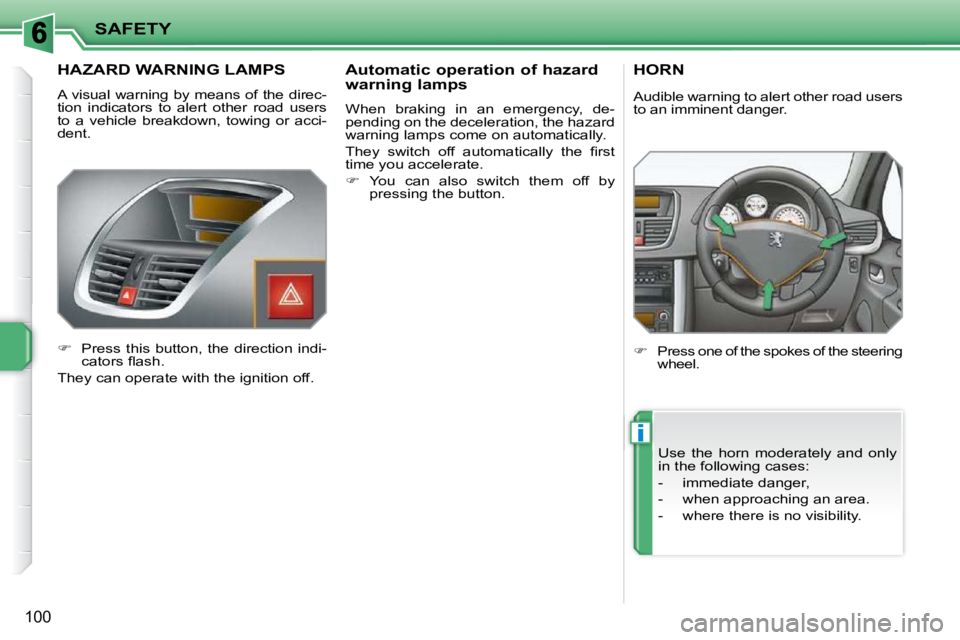

HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or acci-
dent.
Press this button, the direction indi-
c a t o r s fl a s h .
They can operate with the ignition off. Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
T h e y s w i t c h o f f a u t o m a t i c a l l y t h e fi r s t
time you accelerate.
You can also switch them off by
pressing the button.
HORN
Press one of the spokes of the steering
wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when approaching an area.
- where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
Page 97 of 218
!
!
i
i
SAFETY
101

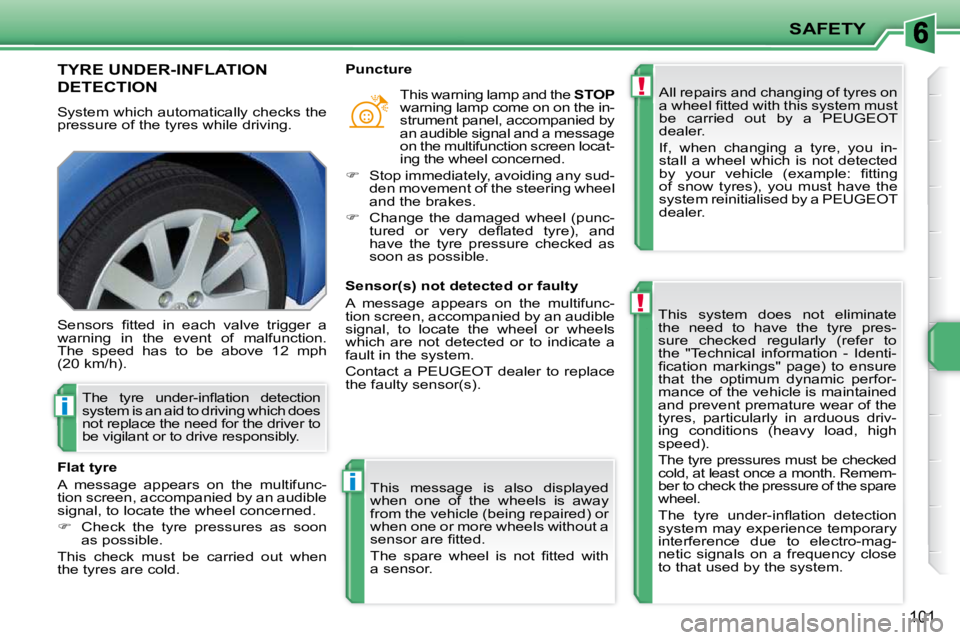

TYRE UNDER-INFLATION
DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of tyres on
a w h e e l fi t t e d w i t h t h i s s y s t e m m u s t
be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to
the "Technical information - Identi-
fi c a t i o n m a r k i n g s " p a g e ) t o e n s u r e
that the optimum dynamic perfor-
mance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be checked
cold, at least once a month. Remem-
ber to check the pressure of the spare
wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to electro-mag-
netic signals on a frequency close
to that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of malfunction.
The speed has to be above 12 mph
(20 km/h).
Flat tyre
A message appears on the multifunc-
tion screen, accompanied by an audible
signal, to locate the wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold. This warning lamp and the
STOP
warning lamp come on on the in-
strument panel, accompanied by
an audible signal and a message
on the multifunction screen locat-
ing the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e fl a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
A message appears on the multifunc-
tion screen, accompanied by an audible
signal, to locate the wheel or wheels
which are not detected or to indicate a
fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor.
Page 98 of 218
!
i
!
SAFETY
102

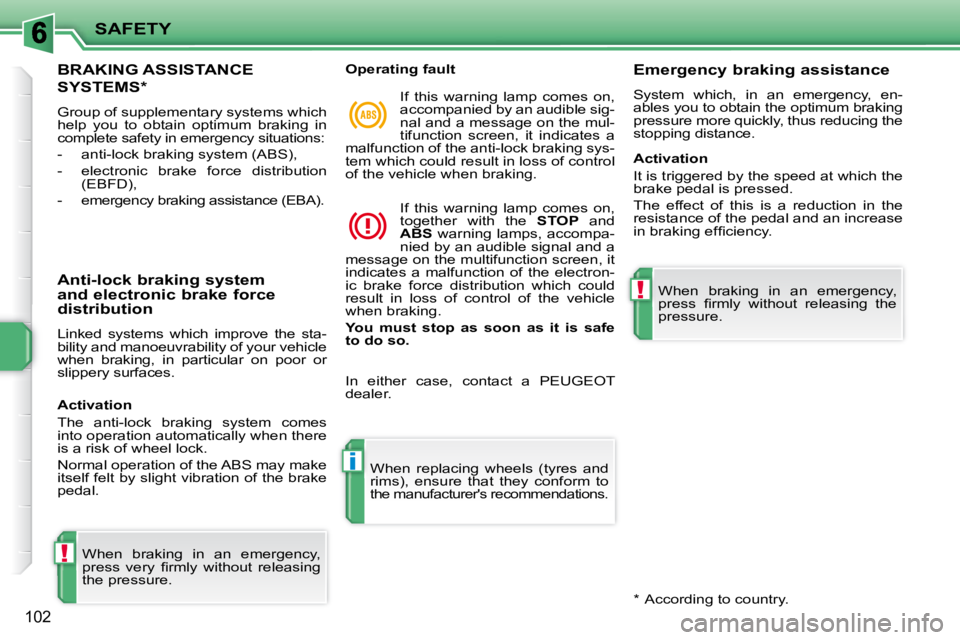

BRAKING ASSISTANCE
SYSTEMS *
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehicle
when braking, in particular on poor or
slippery surfaces.
When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure. When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommendations.
Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning lamp comes on,
together with the STOP and
ABS warning lamps, accompa-
nied by an audible signal and a
message on the multifunction screen, it
indicates a malfunction of the electron-
ic brake force distribution which could
result in loss of control of the vehicle
when braking.
You
must
stop as soon as it is safe
to do so. Emergency braking assistance
System which, in an emergency, en-
ables you to obtain the optimum braking
pressure more quickly, thus reducing the
stopping distance.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
i n b r a k i n g e f fi c i e n c y .
* According to country.
In either case, contact a PEUGEOT
dealer.
When braking in an emergency,
p r e s s fi r m l y w i t h o u t r e l e a s i n g t h e
pressure.
Page 99 of 218
!
SAFETY
1 0 3
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and opera-
tion procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Deactivation
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, locat-
ed in the centre of the dashboard.
If this warning lamp comes on on
the instrument panel and the indi-
cator lamp on the button comes
on, this indicates that the ASR and
ESP systems are deactivated.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
b a c k o n o r f r o m 3 0 m p h ( 5 0 k m / h ) .
Press the "ESP OFF" button again
to reactivate them manually.
Operating fault
If this warning lamp comes on, ac-
companied by an audible signal
and a message on the multifunction
screen, this indicates a malfunction
of these systems.
Have them checked by a PEUGEOT dealer.

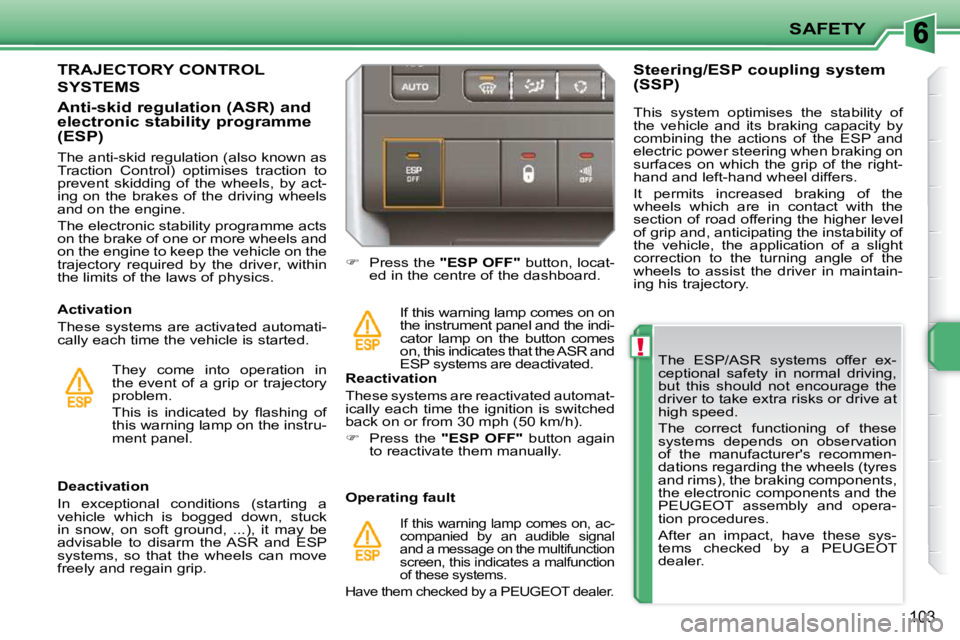

TRAJECTORY CONTROL
SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
They come into operation in
the event of a grip or trajectory
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp on the instru-
ment panel. Steering/ESP coupling system
(SSP)
The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics. This system optimises the stability of
the vehicle and its braking capacity by
combining the actions of the ESP and
electric power steering when braking on
surfaces on which the grip of the right-
hand and left-hand wheel differs.
It permits increased braking of the
wheels which are in contact with the
section of road offering the higher level
of grip and, anticipating the instability of
the vehicle, the application of a slight
correction to the turning angle of the
wheels to assist the driver in maintain-
ing his trajectory.
Page 100 of 218
SAFETY

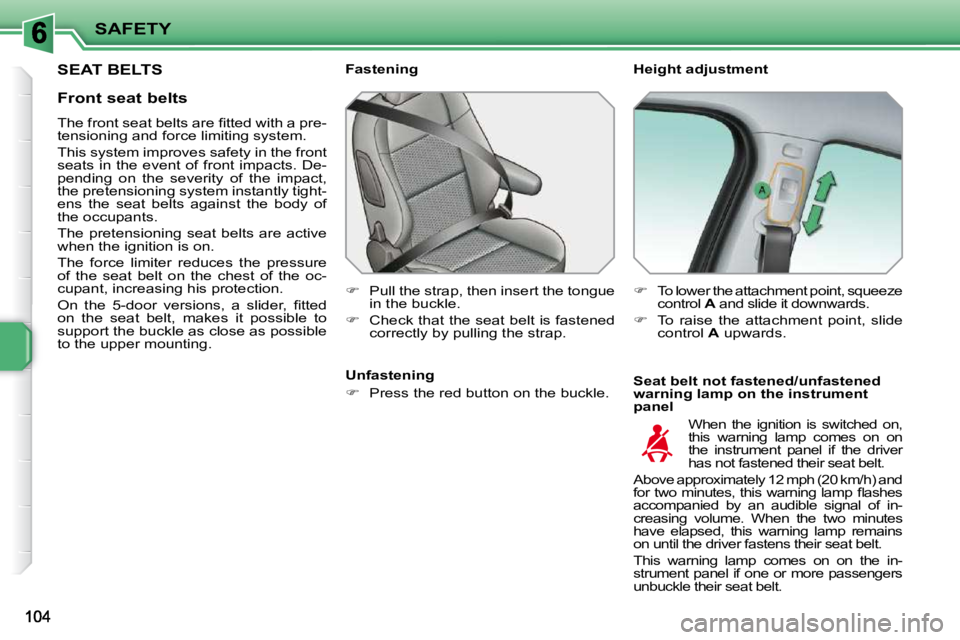

SEAT BELTS Height adjustment
Seat belt not fastened/unfastened
warning lamp on the instrument
panel
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
To lower the attachment point, squeeze
control A and slide it downwards.
To raise the attachment point, slide
control A upwards.
When the ignition is switched on,
this warning lamp comes on on
the instrument panel if the driver
has not fastened their seat belt.
Above approximately 12 mph (20 km/h) and
f o r t w o m i n u t e s , t h i s w a r n i n g l a m p fl a s h e s
accompanied by an audible signal of in-
creasing volume. When the two minutes
have elapsed, this warning lamp remains
on until the driver fastens their seat belt.
This warning lamp comes on on the in-
strument panel if one or more passengers
unbuckle their seat belt.
Unfastening
Press the red button on the buckle.
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of front impacts. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the oc-
cupant, increasing his protection.
O n t h e 5 - d o o r v e r s i o n s , a s l i d e r , fi t t e d
on the seat belt, makes it possible to
support the buckle as close as possible
to the upper mounting.
