10TECHNICAL DATA
149
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed weight.

*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.6 litre VTi 120 hp



1.6 litre THP 156 hp



Gearboxes


Manual



Auto.



Manual


- Kerb weight
1 417
1 455
1 484
- Payload
292
312
290
- Gross vehicle weight (GVW)
1 709
1 767
1 774
- Gross train weight (GVW)





on a 12% gradient
2 559
2 647
2 664
- Braked trailer (within GTW limit)





on a 10% or 12% gradient
-
-
-
- Braked trailer * (with load transfer within
GTW limit)
1 040
1 060
1 060
- Unbraked trailer
600
600
600
- Recommended nose weight
42
43
43

10
150
TECHNICAL DATA


ENGINES AND GEARBOXES



DIESEL ENGINE


1.6 litre HDi 112 hp



GEARBOX

Manual (6-speed)
Cubic capacity (cc)
1 560
Bore x stroke (mm)
75 x 88.3
Max power: EU standard (kW)
80
Max power engine speed (rpm)
4 000
Max torque: EU standard (Nm)
240
Max torque engine speed (rpm)
1 750
Fuel

Diesel
Catalytic converter
Yes
Particle emission fi lter
Yes

OIL CAPACITIES (in litres)





Engine (with fi lter replacement)
3.75

10TECHNICAL DATA
151
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed weight.

*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

WEIGHTS AND TOWED LOADS (in kg)



Diesel engine


1.6 litre HDi 112 hp



Gearbox


Manual


- Kerb weight
1 475
- Payload
308
- Gross vehicle weight (GVW)
1 783
- Gross train weight (GTW)





on a 12% gradient
2 673
- Braked trailer (within GTW limit)





on a 10% or 12% gradient
-
- Braked trailer * (with load transfer within
GTW limit)
1 070
- Unbraked trailer
600
- Recommended nose weight
43

10
152
TECHNICAL DATA
DIMENSIONS (IN MM)

10
!
i
153
IDENTIFICATION MARKINGS
Various visible markings for the identifi cation of your vehicle.
Wheels which are fi tted with 205/45
R17 tyres cannot be fi tted with
snow chains. For more information,
contact a PEUGEOT dealer.
If the infl ation pressures are too low,
this increases fuel consumption. The infl ation pressures must be
checked when the tyres are cold,
at least once a month.

A. Vehicle identifi cation (VIN) number
under the bonnet.
This number is etched on the bodywork
near the passenger compartment fi lter.
B. Visible VIN on the dashboard.

This number is indicated on a self-
adhesive label which is visible through
the windscreen.
C. VIN on the chassis.

This number is indicated on a self-de-
stroying label affi xed to the centre pillar,
near the driver’s door striker.

D. Manufacturer’s label.

This label is affi xed to the edge of the
door on the driver’s side.
It bears the following information:


- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the associated infl ation pressures,

- the paint colour code.

10
154
TECHNICAL DATA

155

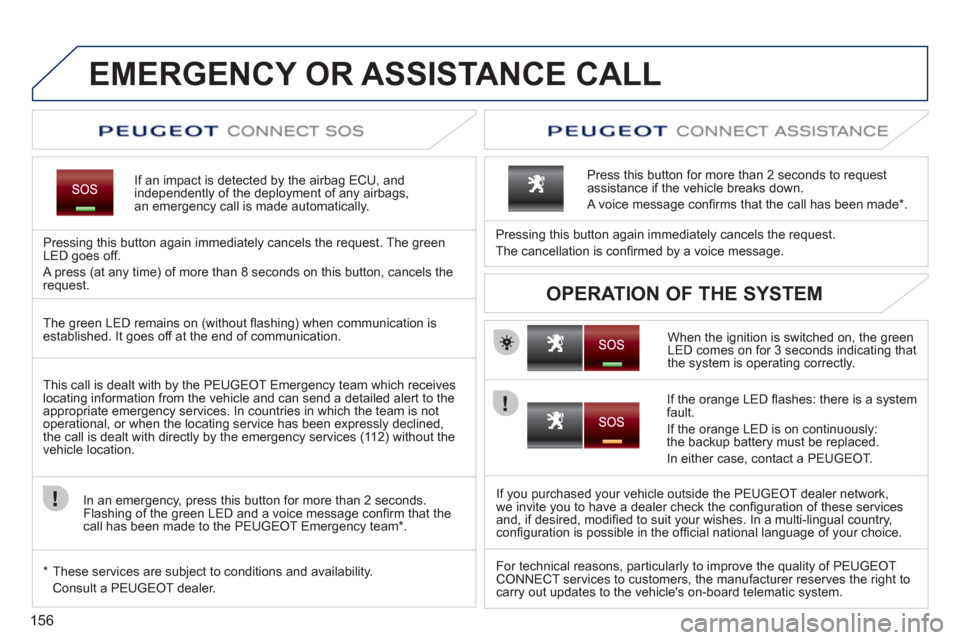

EMERGENCY OR ASSISTANCE CALL

156
EMERGENCY OR ASSISTANCE CALL
If an impact is detected by the airbag ECU, andindependently of the deployment of any airbags,an emergency call is made automatically.
Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the PEUGEOT Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (11 2) without the
vehicle location.

In an emergency, press this button
for more than 2 seconds.
Flashing of the green LED and a voice message confi rm that the call has been made to the PEUGEOT Emergency team * .
*
These services are sub
ject to conditions and availability.

Consult a PEUGEOT dealer.
If the oran
ge LED fl ashes: there is a system
fault.
If the oran
ge LED is on continuously:
the backup battery must be replaced.
In either case, contact a PEU
GEOT.

I
f you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularl
y to improve the quality of PEUGEOTCONNECT services to customers, the manufacturer reserves the right tocarry out updates to the vehicle's on-board telematic system.

157

The Peugeot Connect Navigation (RNEG) is protected in such a way that it will only operate in your vehicle.
If it is to be installed in another vehicle, contact aPEUGEOT dealer for confi guration of the system.
Certain functions described in this handbook will
become available during the year.
PEUGEOT CONNECT
Navigation(RNEG)


For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the Peugeot Connect
Navigation (RNEG) switches off following the activation of the Energy Economy mode.

MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p. 158
159
160
163
171
173
174
177
180
181
185

158
01
Engine not running:
-
Short press: on/off.
- Long press: pause with
CD play, mute for radio.
Engine running:
- Short
press: pause with CD play, mute for radio.
-
Long press: reinitialise thesystem.
Access to theRadio Menu.Display the list of stations.
Access to theMusic Menu. Display tracks. Lon
g press: audio settings: front/rear fader, left/right balance, bass/treble,
musical ambience, loudness, automatic
volume, reinitialise settings.
Selection dial for the
screen display and according to the menu.
Short press: contextual
menu or confi rm.
Long press: contextual
menu specifi c to the list
displayed.
A
ccess to the"SETUP" menu.
Lon
g press: GPS coverage anddemonstration
mode.
Access to the PhoneMenu. Display the list of calls.

E
ject CD.

Select previous/next radio station.
Select previous CD or MP3
track.
Select previous/next line in a list.

Select
previous/next radio station in the list.
Select previous/next MP3
folder.
Select previous/next page in a list.

E
SC: abandon current operation.
Access to theTraffi c Menu. Display the current
traffi c alerts. R
eader for navigation SDcard only.
A
ccess to theNavigation Menu. Displayrecent destinations.
A
ccess to the "MODE" menu.
Select successive display of:
Radio, Map, NAV (if navigation in progress),
Telephone (if conversation in progress),Trip computer.
Long press: Black screen (DARK). Buttons 1 to
6:
Select a pre-set radiostation.
Long press: pre-set the current station.
Ad
just volume (each source
is independent, including
