Page 72 of 224
3
!
ACCESS
70
Triggering of the alarm
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, protection is
again operational.
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
Failure of the remote control
)
Unlock the vehicle using the key in
the driver's door lock.
)
Open the door; the alarm is trig-
gered.
)
Switch on the ignition; the alarm
stops.
*
According to country.
Malfunction
When the ignition is switched on, light-
ing of the indicator lamp on button A
for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is locked
using the remote control, the alarm is
activated, regardless of the status of
the doors and boot.
- 2 minutes after the last door or the
boot is closed, the alarm is activated.
)
To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
Reactivation of the interior
protection
)
Unlock the vehicle using the unlock-
ing button on the remote control.
)
Lock the vehicle again using the re-
mote control.
The alarm is activate again with both
types of protection; the indicator lamp
on button A
fl ashes once per second.
Page 74 of 224
3
!
i
i
ACCESS
72
Switch for all four windows
This switch opens or closes all of the
windows.
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
)
release the switch and pull it again
until it closes completely,
)
hold the switch for approximately
one second after closing,
)
press the switch to lower the win-
dow automatically,
)
when the window has reached the
low position, press the switch again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when opera-
ting the windows.
)
Press switch 3
and release it. The
windows open completely.
)
Pressing the switch again stops the
movement of the windows.
or
)
Pull switch 3
and hold it in this posi-
tion. The windows close completely.
)
If you release the switch before the
windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver. This procedure reinitialises the
operation of the electric windows
and the automatic partial opening
of the door windows
Page 75 of 224
3
!i
i
!
ACCESS
73
DOORS
)
After unlocking the vehicle using the
remote control or the key, pull the
door handle.
The window lowers automatically by
a few millimetres when the door is
opened.
From inside
)
Pull the door control to open the
door; this unlocks the doors only.
The window lowers automatically by
a few millimetres when the door is
opened.
The interior door controls do not
operate when the vehicle is dead-
locked.
Closing
The window rises automatically after a
few seconds and adjusts to ensure per-
fect sealing on closing.
If a door is not closed correctly:
- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system. The boot does not unlock at the
same time as the doors (refer to
the "Boot" section).
When washing your vehicle, avoid
spraying the upper part of the windows.
Opening
From outside
Page 76 of 224
3
i
i
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red
indicator lamp fl ashes and button A
is inactive.
)
In this case, use the remote
control or the key to unlock the
vehicle.
Manual centralised control
System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.
Locking
)
Press button A
to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking
)
With the key in the ignition, press
button A
again to unlock the vehicle.
The red indicator lamp on the button
switches off.
Page 77 of 224
3
!
ACCESS
Emergency control
System which locks or unlocks the doors
mechanically in the event of a malfunc-
tion of the central locking.
)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn
.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the passenger door
Unlocking the passenger door
)
Pull the interior door opening control.
If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is active.
Anti-intrusion security
System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this
function.
Activation
)
Press this button for more than
two seconds.
A confi rmation message appears in the
multifunction screen.
Unlocking
)
Above 6 mph (10 km/h), press this
button to unlock the doors and boot
temporarily.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock au-
tomatically.
Deactivation
)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen.
Page 78 of 224
3
i
i
ACCESS
76
BOOT
Opening
)
After unlocking the boot or the vehi-
cle using the remote control or the
key, pull the handle and raise the
boot lid.
Unlocking and partially opening
the boot
)
Press the boot unlocking
button on the remote control
for more than two seconds.
The boot opens slightly.
If a battery failure occurs, the boot
is locked. Contact a PEUGEOT
dealer or a qualifi ed workshop.
Boot anti-theft protection
The boot is designed to remain secure,
even in the "cabriolet" confi guration.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door opening
control, when the key is not in the
ignition switch,
- by pressing the manual centralised
control A
, when the key is not in the
ignition switch.
- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Closing
)
Lower the boot lid using the interior
grab handle.
If the boot lid is not closed correctly:
Automatic locking of the boot
In the "cabriolet" confi guration, with
the vehicle locked, if you unlock the
boot by pressing the boot unlock-
ing button on the remote control,
it will lock automatically when you
close it again.
In this case, if you inadvertently
leave the key in the boot, press the
manual centralised control A
im-
mediately to unlock the boot and
retrieve the key.
Page 79 of 224
3
i
ACCESS
77
The key cannot be removed from
the lock until the cap is refi tted.
FUEL TANK
Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).
Opening the fi ller cap may create a
noise caused by an inrush of air. This
vacuum is entirely normal, resulting
from the sealing of the fuel system.
To fi ll the tank safely:
)
the engine must be switched off,
)
open the fuel fi ller fl ap,
)
insert the key in the cap, then turn it
to the left,
When you have fi lled the tank:
)
put the cap back in place,
)
turn the key to the right, then remove
it from the cap,
)
close the fl ap.
)
remove the cap and hook it onto
the clip located on the inside of the
fl ap,
)
fi ll the tank, but do not continue
after the 3rd cut-off of the pump
;
this could cause malfunctions.
Low fuel level
When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
ment panel. When it fi rst comes
on there remains approximate-
ly 5 litres
of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least
5 litres, in order to be taken into account
by the fuel gauge.
Page 87 of 224
4
i
85
VISIBILITY
Special position of the windscreen
wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
COURTESY LAMP
A.
Courtesy lamp
B.
Map reading lamps
In this position, the courtesy
lamp comes on gradually:
Map reading lamps
)
With the ignition on, press the cor-
responding switch.
With the "permanent lighting" mode,
the duration of lighting varies, de-
pending on the circumstances:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
-
30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
Courtesy lamp
Page 91 of 224
5
!
CHILD SAFETY
89

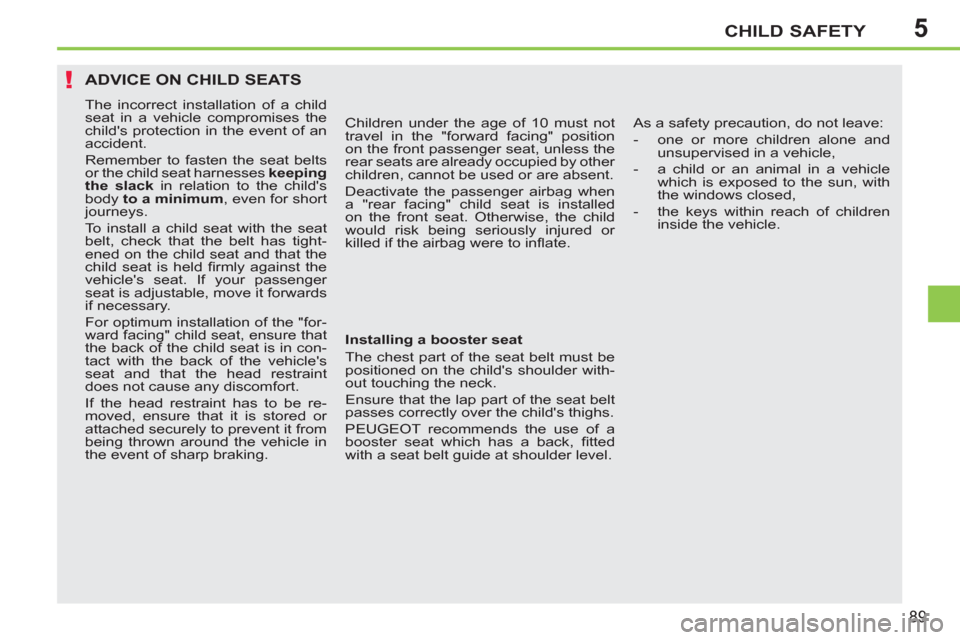

ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts
or the child seat harnesses keeping
the slack
in relation to the child's
body to a minimum
, even for short
journeys.
To install a child seat with the seat
belt, check that the belt has tight-
ened on the child seat and that the
child seat is held fi rmly against the
vehicle's seat. If your passenger
seat is adjustable, move it forwards
if necessary.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in con-
tact with the back of the vehicle's
seat and that the head restraint
does not cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder with-
out touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends the use of a
booster seat which has a back, fi tted
with a seat belt guide at shoulder level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
- the keys within reach of children
inside the vehicle.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless the
rear seats are already occupied by other
children, cannot be used or are absent.
Deactivate the passenger airbag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate.
Page 104 of 224
6
!
!
SAFETY
102

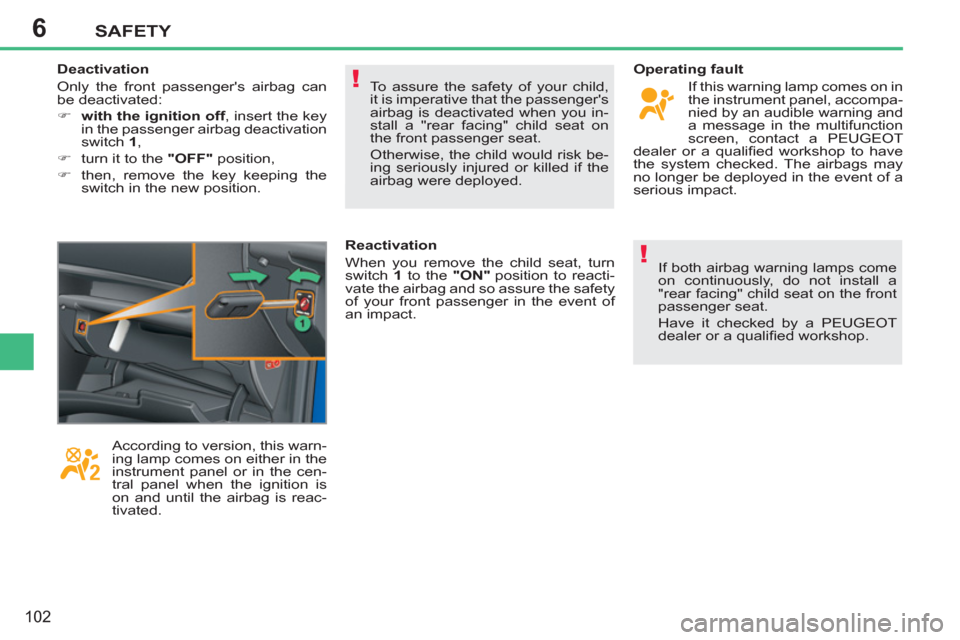

To assure the safety of your child,
it is imperative that the passenger's
airbag is deactivated when you in-
stall a "rear facing" child seat on
the front passenger seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were deployed.
If both airbag warning lamps come
on continuously, do not install a
"rear facing" child seat on the front
passenger seat.
Have it checked by a PEUGEOT
dealer or a qualifi ed workshop.
Deactivation
Only the front passenger's airbag can
be deactivated:
)
with the ignition off
, insert the key
in the passenger airbag deactivation
switch 1
,
)
turn it to the "OFF"
position,
)
then, remove the key keeping the
switch in the new position.
According to version, this warn-
ing lamp comes on either in the
instrument panel or in the cen-
tral panel when the ignition is
on and until the airbag is reac-
tivated.
Reactivation
When you remove the child seat, turn
switch 1
to the "ON"
position to reacti-
vate the airbag and so assure the safety
of your front passenger in the event of
an impact.
Operating fault
If this warning lamp comes on in
the instrument panel, accompa-
nied by an audible warning and
a message in the multifunction
screen, contact a PEUGEOT
dealer or a qualifi ed workshop to have
the system checked. The airbags may
no longer be deployed in the event of a
serious impact.
