Peugeot 207 Dag 2008 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 207 Dag, Model: Peugeot 207 Dag 2008Pages: 255, PDF Size: 13.03 MB
Page 161 of 255
!
!
i
148
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a " 2 T r o n i c "
gearbox.
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.

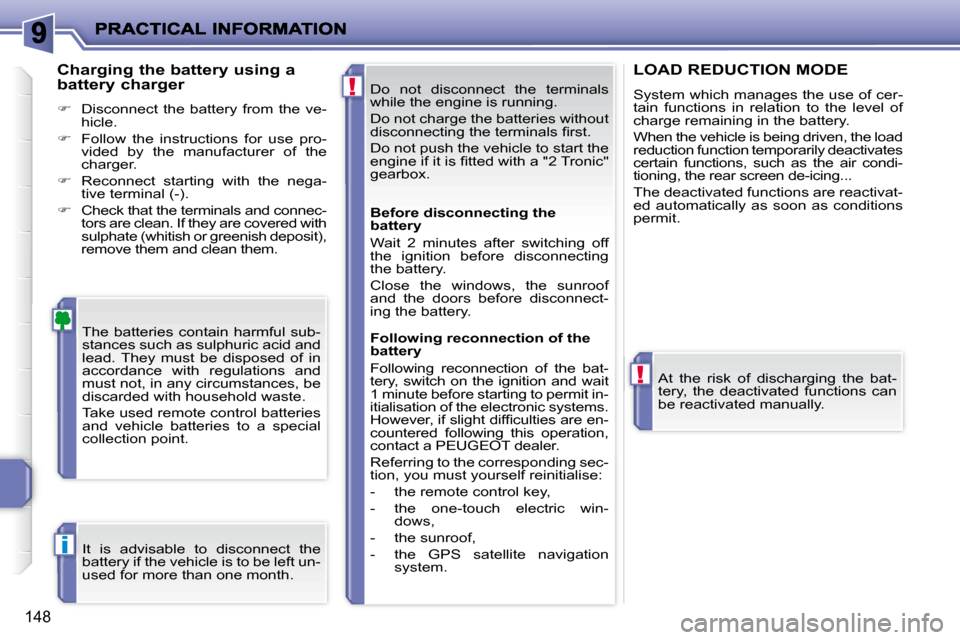

Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
At the risk of discharging the bat-
tery, the deactivated functions can
be reactivated manually.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the rear screen de-icing...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows, the sunroof
and the doors before disconnect-
ing the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the one-touch electric win-
dows,
- the sunroof,
- the GPS satellite navigation system.
Page 162 of 255
!
i
149
A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
sponding paragraph).
If the telephone is being used at
this time:
- it will be maintained for 5 minutes with the RD4 audio equipment
hands-free kit,
- i t w i l l s t i l l b e p o s s i b l e t o fi n - ish the call with the RT4 GPS
audio/telephone.

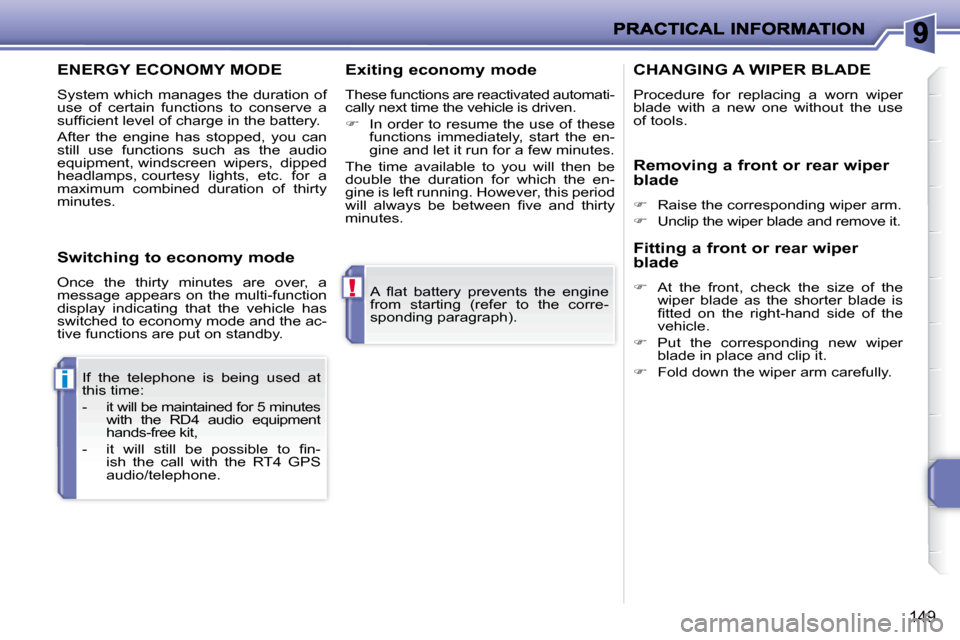

ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lights, etc. for a
maximum combined duration of thirty
minutes. Exiting economy mode
These functions are reactivated automati-
cally next time the vehicle is driven.
In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be
double the duration for which the en-
gine is left running. However, this period
w i l l a l w a y s b e b e t w e e n fi v e a n d t h i r t y
minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.
Removing a front or rear wiper
blade
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting a front or rear wiper
blade
At the front, check the size of the
wiper blade as the shorter blade is
fi t t e d o n t h e r i g h t - h a n d s i d e o f t h e
vehicle.
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Page 163 of 255
!i
150

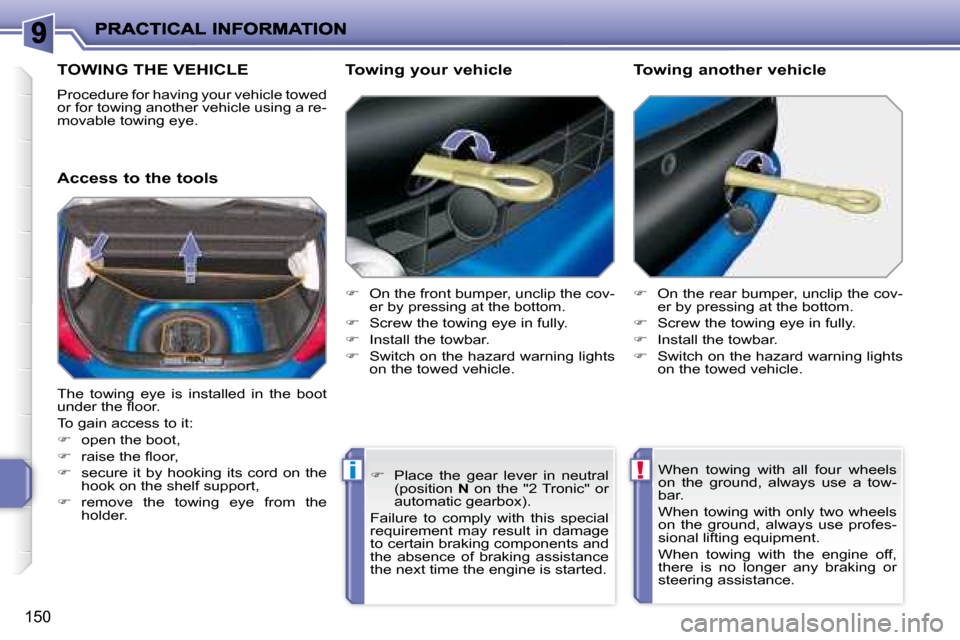

TOWING THE VEHICLE
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the cov-
er by pressing at the bottom.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
On the rear bumper, unclip the cov-
er by pressing at the bottom.
Screw the towing eye in fully.
Install the towbar.
Switch on the hazard warning lights
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot
u n d e r t h e fl o o r .
To gain access to it:
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the shelf support,
remove the towing eye from the
holder. When towing with all four wheels
on the ground, always use a tow-
bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the "2 Tronic" or
automatic gearbox).
Failure to comply with this special
requirement may result in damage
to certain braking components and
the absence of braking assistance
the next time the engine is started.
Page 164 of 255
i
i
151

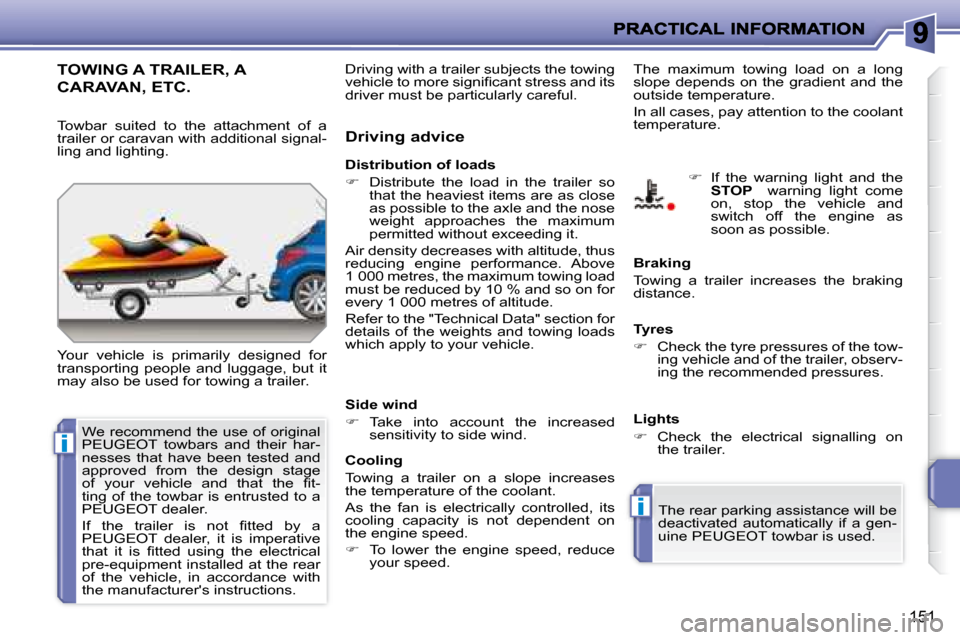

TOWING A TRAILER, A
CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
The maximum towing load on a long
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Side wind
Take into account the increased
sensitivity to side wind. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.
Lights
Check the electrical signalling on
the trailer.
The rear parking assistance will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.
If the warning light and the
STOP warning light come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suited to the attachment of a
trailer or caravan with additional signal-
ling and lighting.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed.
We recommend the use of original
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
o f y o u r v e h i c l e a n d t h a t t h e fi t -
ting of the towbar is entrusted to a
PEUGEOT dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions. Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
Page 165 of 255
i
i
!
152

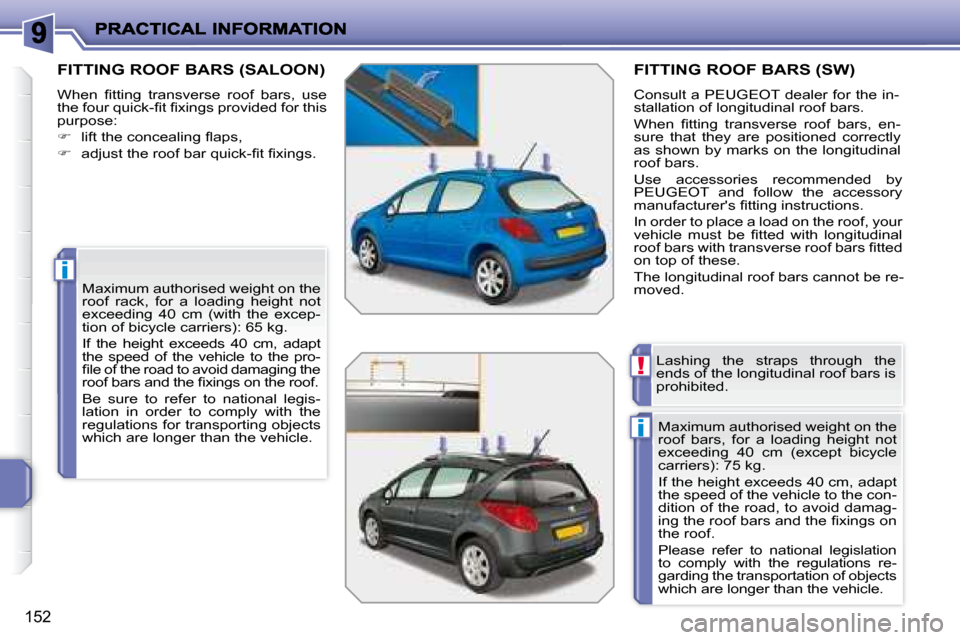

FITTING ROOF BARS (SALOON)
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
purpose:
l i f t t h e c o n c e a l i n g fl a p s ,
a d j u s t t h e r o o f b a r q u i c k - fi t fi x i n g s .
Maximum authorised weight on the
roof rack, for a loading height not
exceeding 40 cm (with the excep-
tion of bicycle carriers): 65 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g t h e
r o o f b a r s a n d t h e fi x i n g s o n t h e r o o f .
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS (SW)
Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , e n -
sure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
m a n u f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
In order to place a load on the roof, your
v e h i c l e m u s t b e fi t t e d w i t h l o n g i t u d i n a l
r o o f b a r s w i t h t r a n s v e r s e r o o f b a r s fi t t e d
on top of these.
The longitudinal roof bars cannot be re-
moved.
Maximum authorised weight on the
roof bars, for a loading height not
exceeding 40 cm (except bicycle
carriers): 75 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the con-
dition of the road, to avoid damag-
i n g t h e r o o f b a r s a n d t h e fi x i n g s o n
the roof.
Please refer to national legislation
to comply with the regulations re-
garding the transportation of objects
which are longer than the vehicle.
Lashing the straps through the
ends of the longitudinal roof bars is
prohibited.
Page 166 of 255
!
i
153
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommended
equipment and accessories.

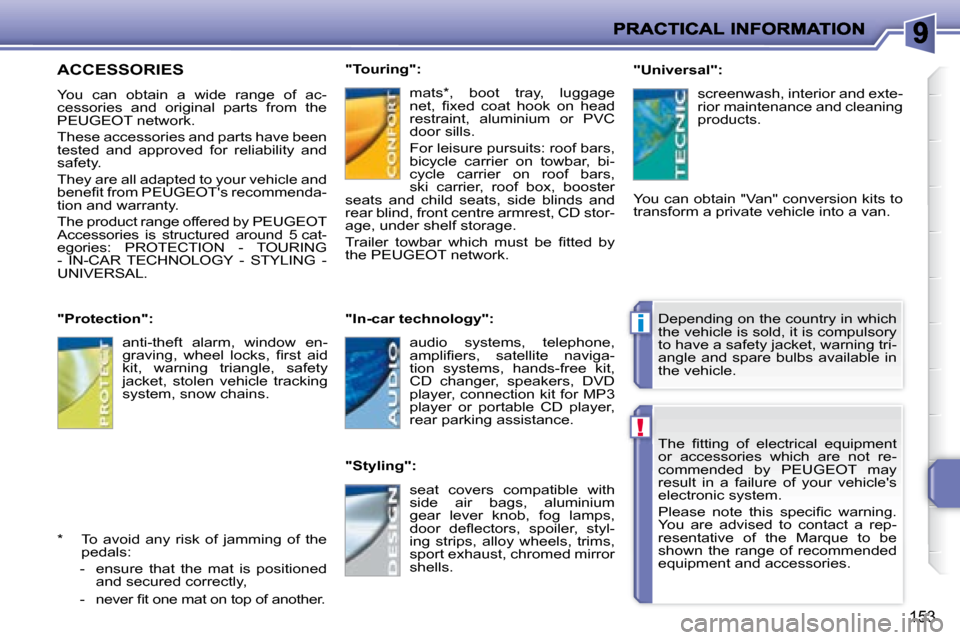

ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 cat-
egories: PROTECTION - TOURING
- IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.
"Protection":
"Touring":
"In-car technology":
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in which
the vehicle is sold, it is compulsory
to have a safety jacket, warning tri-
angle and spare bulbs available in
the vehicle.
anti-theft alarm, window en-
g r a v i n g , w h e e l l o c k s , fi r s t a i d
kit, warning triangle, safety
jacket, stolen vehicle tracking
system, snow chains. mats * , boot tray, luggage
n e t , fi x e d c o a t h o o k o n h e a d
restraint, aluminium or PVC
door sills.
For leisure pursuits: roof bars,
bicycle carrier on towbar, bi-
cycle carrier on roof bars,
ski carrier, roof box, booster
seats and child seats, side blinds and
rear blind, front centre armrest, CD stor-
age, under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
audio systems, telephone,
a m p l i fi e r s , s a t e l l i t e n a v i g a -
tion systems, hands-free kit,
CD changer, speakers, DVD
player, connection kit for MP3
player or portable CD player,
rear parking assistance.
seat covers compatible with
side air bags, aluminium
gear lever knob, fog lamps,
d o o r d e fl e c t o r s , s p o i l e r , s t y l -
ing strips, alloy wheels, trims,
sport exhaust, chromed mirror
shells. screenwash, interior and exte-
rior maintenance and cleaning
products.
Page 167 of 255
10
154

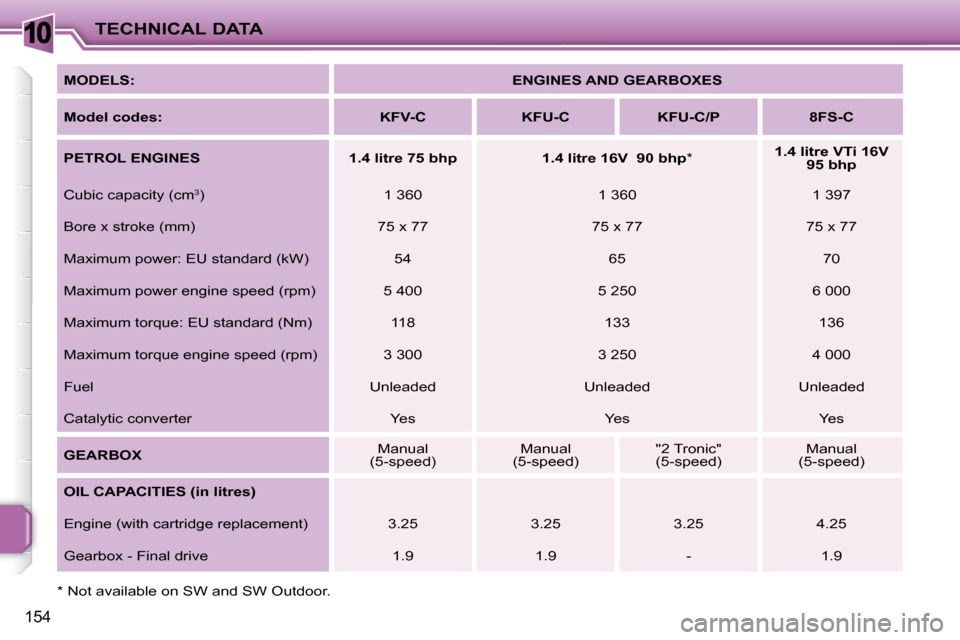

TECHNICAL DATA
* Not available on SW and SW Outdoor.
MODELS:
ENGINES AND GEARBOXES
Model codes: KFV-C KFU-C KFU-C/P 8FS-C
PETROL ENGINES 1.4 litre 75 bhp 1.4 litre 16V 90 bhp *
1.4 litre VTi 16V
95 bhp
Cubic capacity (cm 3
) 1 360 1 360 1 397
Bore x stroke (mm) 75 x 77 75 x 77 75 x 77
Maximum power: EU standard (kW) 54 65 70
Maximum power engine speed (rpm) 5 400 5 250 6 000
Maximum torque: EU standard (Nm) 118 133 136
Maximum torque engine speed (rpm) 3 300 3 250 4 000
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
GEARBOX Manual
(5-speed) Manual
(5-speed) "2 Tronic"
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.25 3.25 3.25 4.25
Gearbox - Final drive 1.9 1.9 - 1.9
Page 168 of 255
10
155

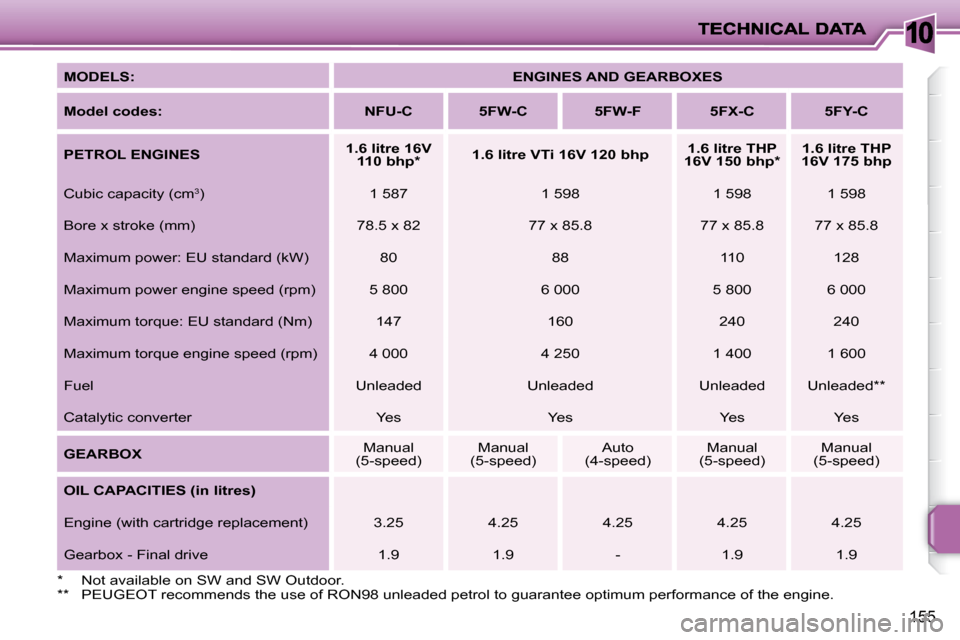

MODELS:
ENGINES AND GEARBOXES
Model codes: NFU-C 5FW-C 5FW-F 5FX-C 5FY-C
PETROL ENGINES
1.6 litre 16V
110 bhp *
1.6 litre VTi 16V 120 bhp
1.6 litre THP
16V 150 bhp *
1.6 litre THP
16V 175 bhp
Cubic capacity (cm 3
) 1 587 1 598 1 598 1 598
Bore x stroke (mm) 78.5 x 82 77 x 85.8 77 x 85.8 77 x 85.8
Maximum power: EU standard (kW) 80 88 110 128
Maximum power engine speed (rpm) 5 800 6 000 5 800 6 000
Maximum torque: EU standard (Nm) 147 160 240 240
Maximum torque engine speed (rpm) 4 000 4 250 1 400 1 600
Fuel Unleaded Unleaded Unleaded Unleaded **
Catalytic converter Yes Yes Yes Yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Auto
(4-speed) Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.25 4.25 4.25 4.25 4.25
Gearbox - Final drive 1.9 1.9 - 1.9 1.9
** PEUGEOT recommends the use of RON98 unleaded petrol to guarantee optimum performance of the engine.
* Not available on SW and SW Outdoor.
Page 169 of 255
10
164

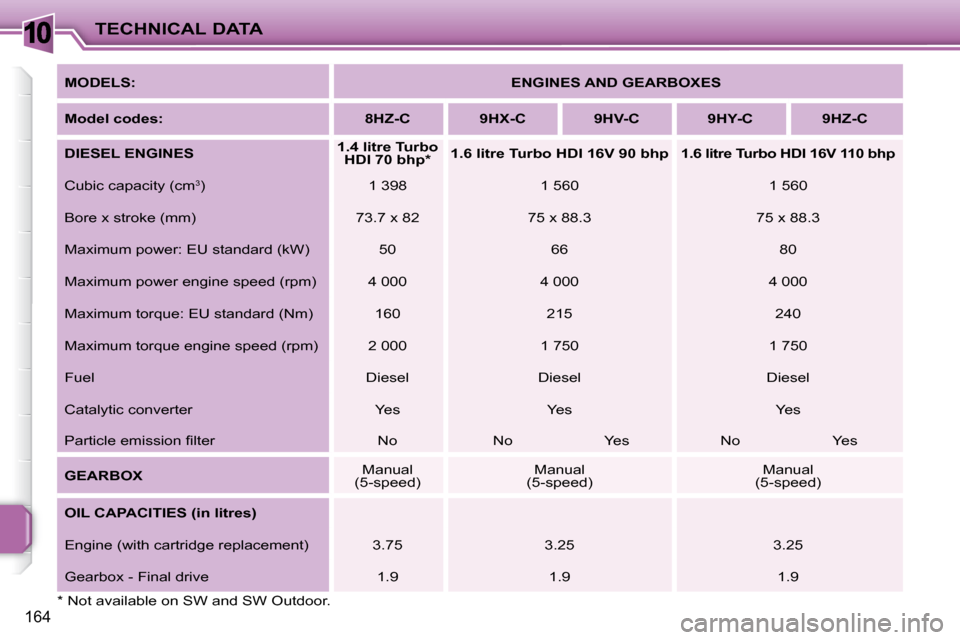

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes: 8HZ-C 9HX-C 9HV-C 9HY-C 9HZ-C
DIESEL ENGINES
1.4 litre Turbo
HDI 70 bhp *
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp
Cubic capacity (cm 3
) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3 75 x 88.3
Maximum power: EU standard (kW) 50 66 80
Maximum power engine speed (rpm) 4 000 4 000 4 000
Maximum torque: EU standard (Nm) 160 215 240
Maximum torque engine speed (rpm) 2 000 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
P a r t i c l e e m i s s i o n fi l t e r No No Yes No Yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.75 3.25 3.25
Gearbox - Final drive 1.9 1.9 1.9
* Not available on SW and SW Outdoor.
Page 170 of 255
10
156

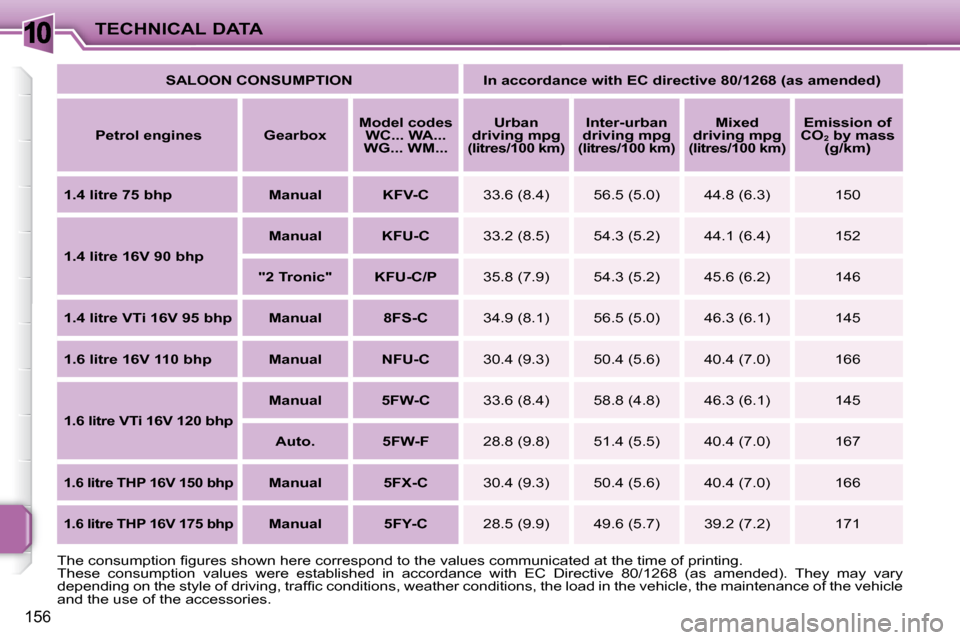

TECHNICAL DATA
SALOON CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearbox
Model codes
WC... WA...
WG... WM...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre 75 bhp Manual KFV-C 33.6 (8.4) 56.5 (5.0) 44.8 (6.3) 150
1.4 litre 16V 90 bhp
Manual KFU-C 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 152
"2 Tronic" KFU-C/P 35.8 (7.9) 54.3 (5.2) 45.6 (6.2) 146
1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.9 (8.1) 56.5 (5.0) 46.3 (6.1) 145
1.6 litre 16V 110 bhp Manual NFU-C 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 166
1.6 litre VTi 16V 120 bhp
Manual 5FW-C 33.6 (8.4) 58.8 (4.8) 46.3 (6.1) 145
Auto. 5FW-F 28.8 (9.8) 51.4 (5.5) 40.4 (7.0) 167
1.6 litre THP 16V 150 bhp
Manual 5FX-C 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 166
1.6 litre THP 16V 175 bhp
Manual 5FY-C 28.5 (9.9) 49.6 (5.7) 39.2 (7.2) 171
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.
