Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warn-
ing light, accompanied by an audible
signal and a message on the multifunc-
tion display.
Used products
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (re-
fer to the "Engines" paragraph).
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission fi lter is carried out
by a PEUGEOT dealer.
Oil filter
Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance of the vehicle or on
the environment.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer with-
out delay.

!

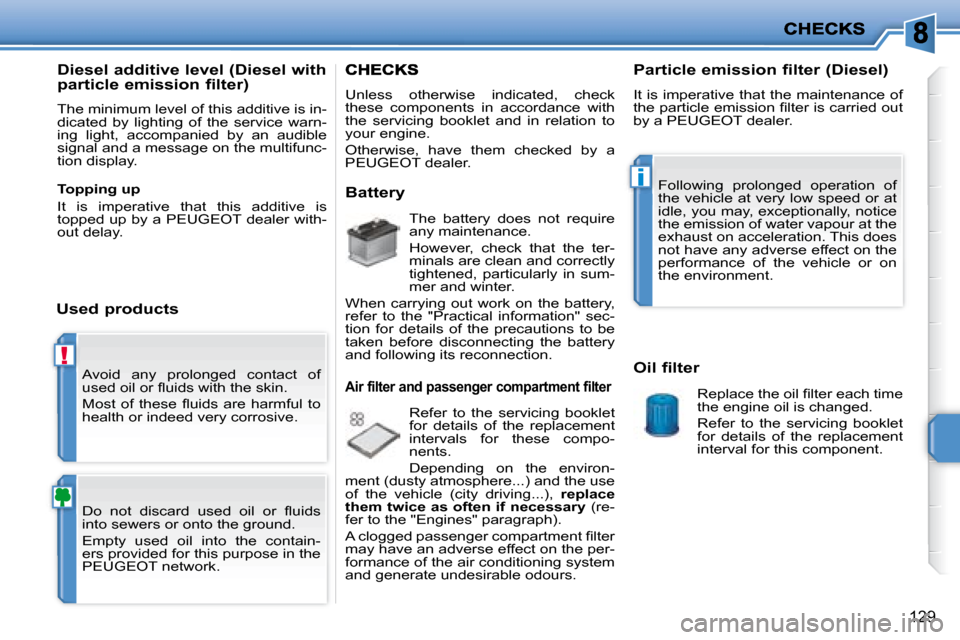

CHECKS
130
Only use products recommended
by PEUGEOT or products of equiv-
alent quality and specifi cations.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
fers very specifi c products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited.

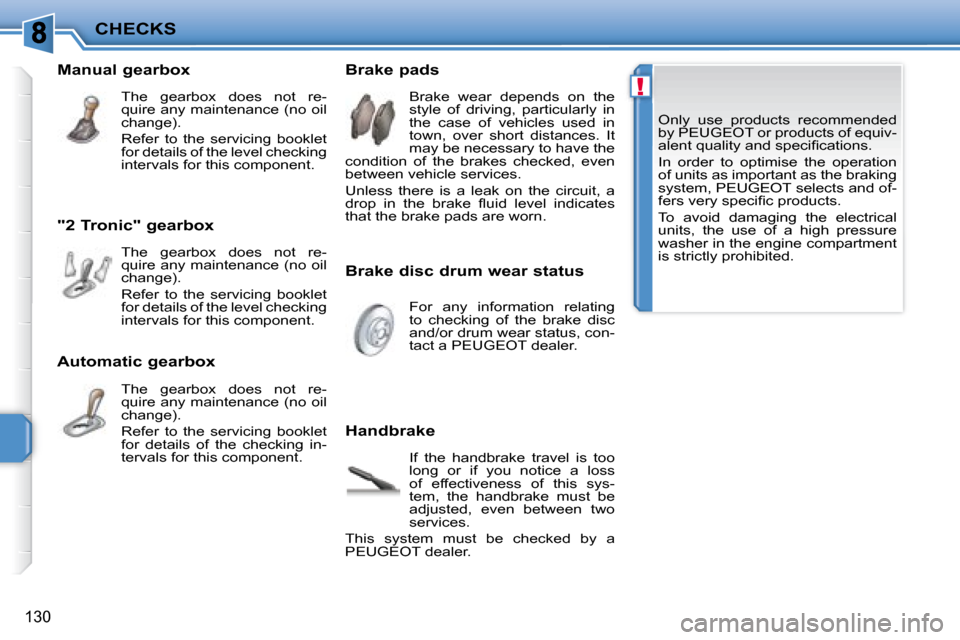

"2 Tronic" gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
intervals for this component. Brake disc drum wear status
For any information relating
to checking of the brake disc
and/or drum wear status, con-
tact a PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
intervals for this component. Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
Handbrake
If the handbrake travel is too
long or if you notice a loss
of effectiveness of this sys-
tem, the handbrake must be
adjusted, even between two
services.
This system must be checked by a
PEUGEOT dealer.
Automatic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the checking in-
tervals for this component.

i
131

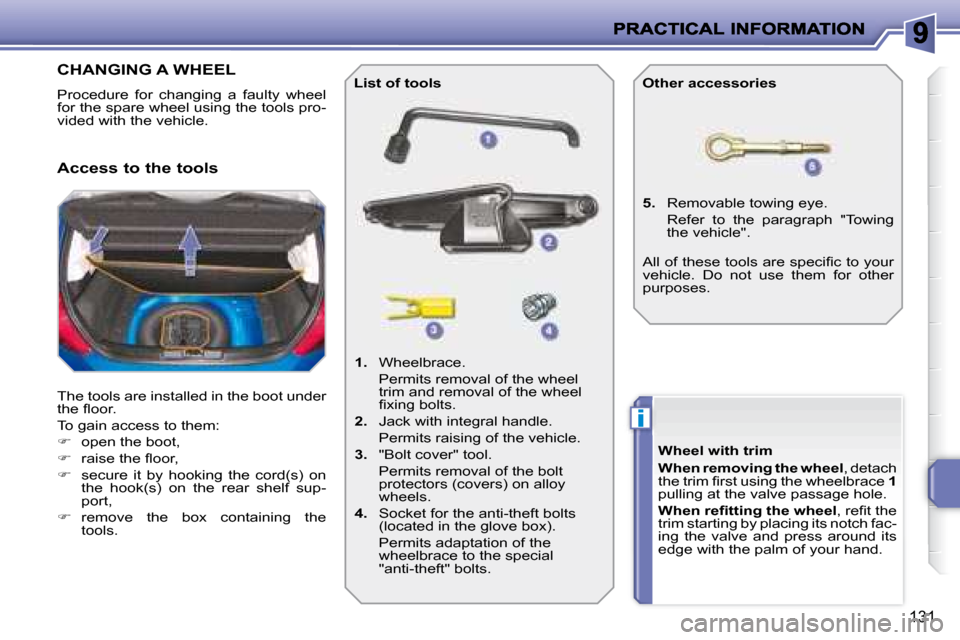

CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
the fl oor.
To gain access to them:

 open the boot,

 raise the fl oor,

 secure it by hooking the cord(s) on
the hook(s) on the rear shelf sup-
port,

 remove the box containing the
tools.
1. Wheelbrace.
Permits removal of the wheel trim and removal of the wheel
fi xing bolts.

2. Jack with integral handle.
Permits raising of the vehicle.

3. "Bolt cover" tool.
Permits removal of the bolt protectors (covers) on alloy
wheels.

4. Socket for the anti-theft bolts
(located in the glove box).
Permits adaptation of the wheelbrace to the special
"anti-theft" bolts.
List of tools Other accessories

5. Removable towing eye.
Refer to the paragraph "Towing the vehicle".
Access to the tools
Wheel with trim

When removing the wheel , detach
the trim fi rst using the wheelbrace 1
pulling at the valve passage hole.

When refi tting the wheel , refi t the
trim starting by placing its notch fac-
ing the valve and press around its
edge with the palm of your hand.
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.

i
i
132
Fixing the steel or "space-
saving" type spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice, when
tightening the bolts on fi tting, that
the washers do not come into con-
tact with the steel or "space-sav-
ing" type spare wheel. The wheel
is secured by the conical contact of
each bolt.
Access to the spare wheel
(Saloon)
The spare wheel is installed in the boot
under the fl oor.
According to model, the spare wheel may
be steel or of the "space saving" type.
To gain access to it, refer to the para-
graph "Access to the tools" on the pre-
vious page.
Taking out the wheel

 Unscrew the yellow central bolt.

 Raise the spare wheel towards you
from the rear.

 Take the wheel out of the boot.
Putting the wheel back in place

 Put the wheel back in its housing.

 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

 Tighten fully until the central bolt
clicks to retain the wheel correctly.

 Put the box back in place in the cen-
tre of the wheel.

 Put the boot fl oor back in place.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.

i
i
133
Fixing the steel or
"space-saving" type spare wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice, when
tightening the bolts on fi tting, that
the washers do not come into con-
tact with the steel or "space-sav-
ing" type spare wheel. The wheel
is secured by the conical contact of
each bolt.
Access to the spare wheel (SW)
The spare wheel is installed in the boot
under the fl oor.
According to model, the spare wheel
may be steel or of the "space saving"
type.
To gain access to it, refer to the para-
graph "Access to the tools".
Taking out the wheel

 Unscrew the yellow central bolt.

 Raise the spare wheel towards you
from the rear.

 Take the wheel out of the boot.
Putting the wheel back in place

 Put the wheel back in its housing.

 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

 Tighten fully until the central bolt
clicks to retain the wheel correctly.

 Put the box back in place in the cen-
tre of the wheel.

 Put the boot fl oor back in place.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.

i
134
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-slip-
pery.
Apply the handbrake, switch off the
ignition and engage fi rst gear * to
lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.

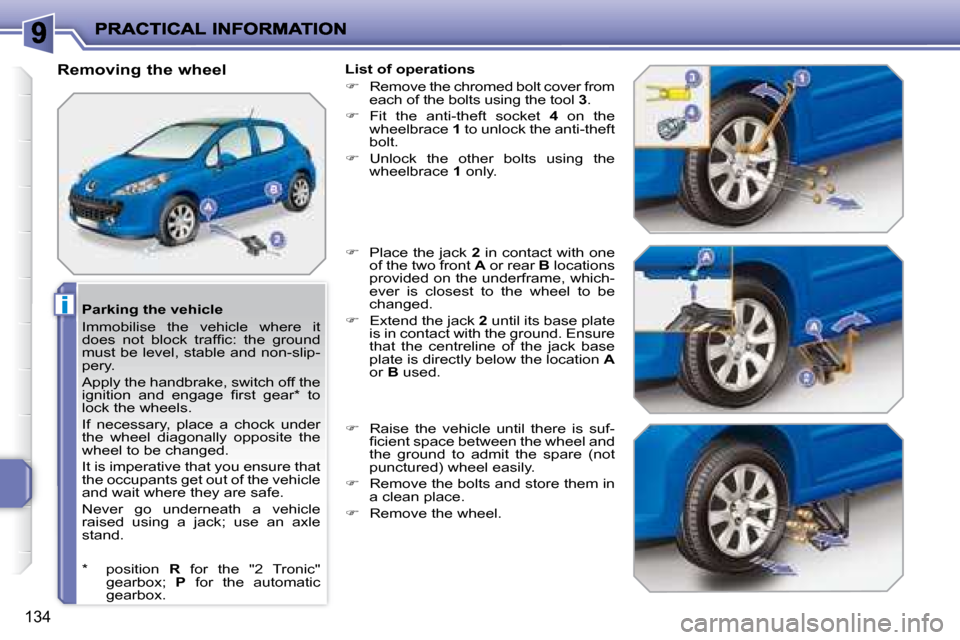

Removing the wheel
List of operations

 Remove the chromed bolt cover from
each of the bolts using the tool 3 .

 Fit the anti-theft socket 4 on the
wheelbrace 1 to unlock the anti-theft
bolt.

 Unlock the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.
* position R for the "2 Tronic"
gearbox; P for the automatic
gearbox.

i
135
After changing a wheel
To store the punctured wheel in the
boot correctly, fi rst remove the cen-
tral cover.
When using the "space-saving"
type spare wheel, do not exceed
50 mph (80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting the wheel
List of operations

 Put the wheel in place on the hub.

 Screw in the bolts by hand to the
stop.

 Pre-tighten the anti-theft bolt using
the wheelbrace 1 fi tted with the anti-
theft socket 4 .

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Lock the anti-theft bolt using the
wheelbrace 1 fi tted with the anti-
theft socket 4 .

 Lock the other bolts using the wheel-
brace 1 only.

 Refi t the chromed bolt covers on
each of the bolts.

 Store the tools in the box.

!
i
i
136

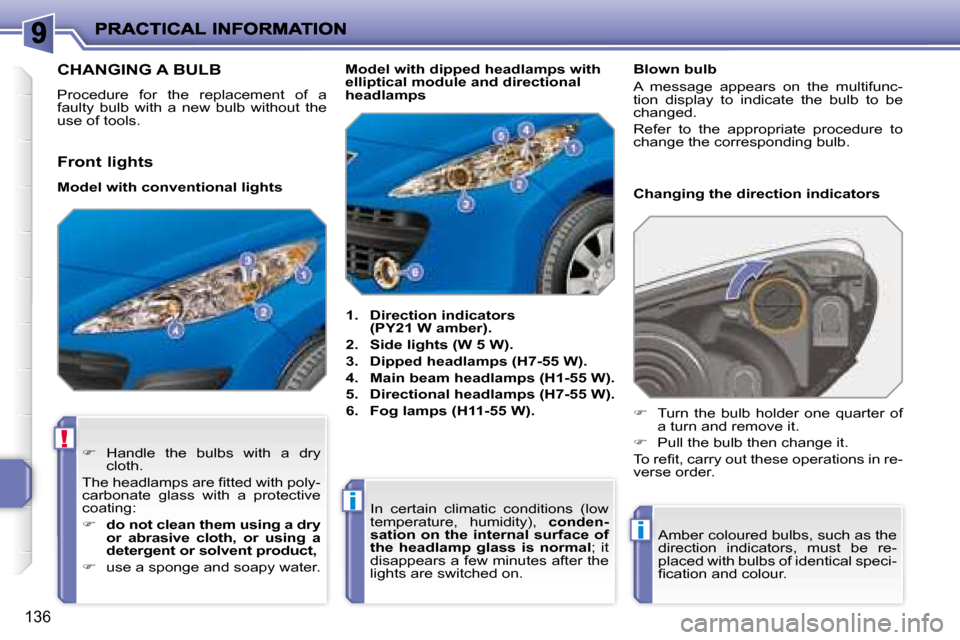

CHANGING A BULB
Procedure for the replacement of a
faulty bulb with a new bulb without the
use of tools.
1. Direction indicators
(PY21 W amber).

2. Side lights (W 5 W).

3. Dipped headlamps (H7-55 W).

4. Main beam headlamps (H1-55 W).

5. Directional headlamps (H7-55 W).

6. Fog lamps (H11-55 W). Changing the direction indicators

 Handle the bulbs with a dry
cloth.
The headlamps are fi tted with poly-
carbonate glass with a protective
coating:

 do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,

 use a sponge and soapy water. In certain climatic conditions (low
temperature, humidity),
conden-
sation on the internal surface of
the headlamp glass is normal ; it
disappears a few minutes after the
lights are switched on .
Model with dipped headlamps with
elliptical module and directional
headlamps
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi cation and colour.

 Turn the bulb holder one quarter of
a turn and remove it.

 Pull the bulb then change it.
To refi t, carry out these operations in re-
verse order.
Front lights
Blown bulb
A message appears on the multifunc-
tion display to indicate the bulb to be
changed.
Refer to the appropriate procedure to
change the corresponding bulb.
Model with conventional lights

137

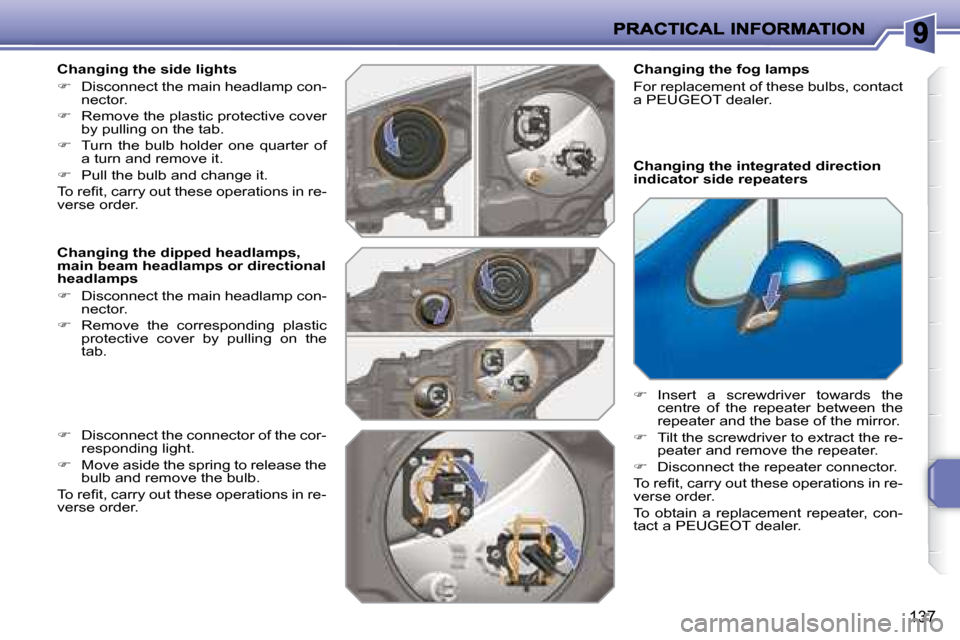

Changing the side lights

 Disconnect the main headlamp con-
nector.

 Remove the plastic protective cover
by pulling on the tab.

 Turn the bulb holder one quarter of
a turn and remove it.

 Pull the bulb and change it.
To refi t, carry out these operations in re-
verse order.
Changing the dipped headlamps,
main beam headlamps or directional
headlamps

 Disconnect the main headlamp con-
nector.

 Remove the corresponding plastic
protective cover by pulling on the
tab. Changing the integrated direction
indicator side repeaters

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the re-
peater and remove the repeater.

 Disconnect the repeater connector.
To refi t, carry out these operations in re-
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.

 Disconnect the connector of the cor-
responding light.

 Move aside the spring to release the
bulb and remove the bulb.
To refi t, carry out these operations in re-
verse order. Changing the fog lamps
For replacement of these bulbs, contact
a PEUGEOT dealer.

ii
138

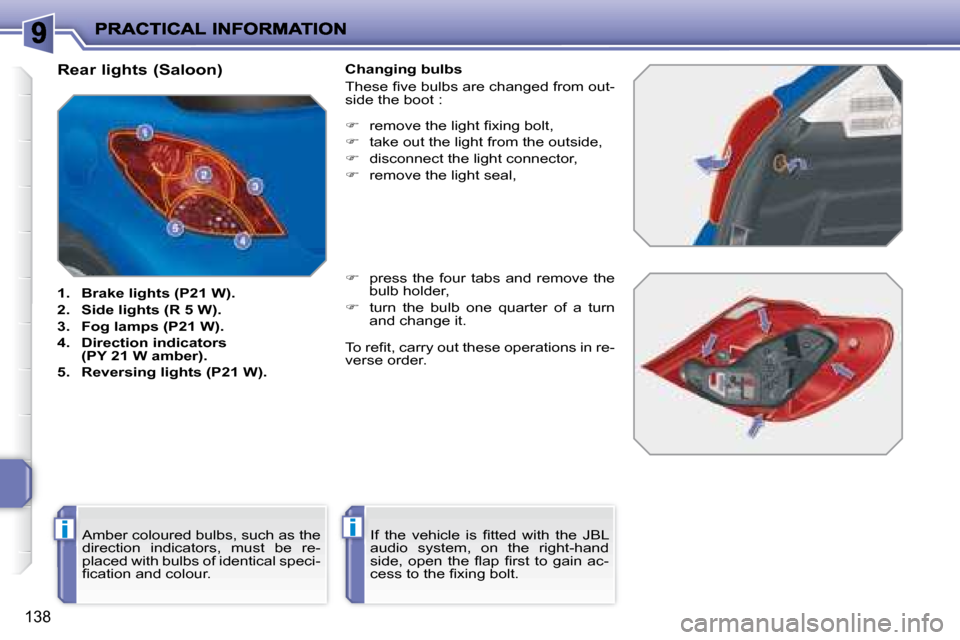

Rear lights (Saloon)
1. Brake lights (P21 W).
2. Side lights (R 5 W).
3. Fog lamps (P21 W).
4. Direction indicators(PY 21 W amber).
5. Reversing lights (P21 W). Changing bulbs
These fi ve bulbs are changed from out-
side the boot :

 remove the light fi xing bolt,

 take out the light from the outside,

 disconnect the light connector,

 remove the light seal,

 press the four tabs and remove the
bulb holder,

 turn the bulb one quarter of a turn
and change it.
If the vehicle is fi tted with the JBL
audio system, on the right-hand
side, open the fl ap fi rst to gain ac-
cess to the fi xing bolt.
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi cation and colour. To refi t, carry out these operations in re-
verse order.
