Changing the third brake light bulbs
(4 bulbs W 5 W)
P r e s s o n t h e fi x i n g p i n s o n e a c h s i d e
of the light.
Take out the light from the outside.
Turn the bulb holder which corre-
sponds to the faulty bulb one quar-
ter of a turn and remove it.
Pull the bulb and change it. Changing the number plate light
bulbs (W 5 W)
Insert a thin screwdriver in one of
the exterior holes of the lens.
Push it towards the outside to unclip it.
Remove the lens.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.
Page 152 of 255
i
140

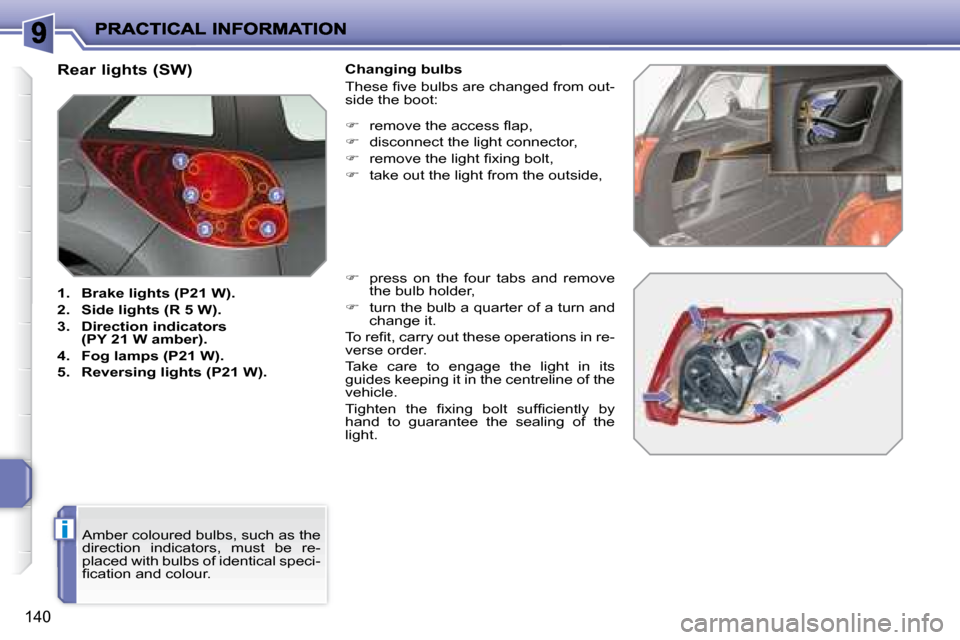

Rear lights (SW)
1. Brake lights (P21 W).
2. Side lights (R 5 W).
3. Direction indicators
(PY 21 W amber).
4. Fog lamps (P21 W).
5. Reversing lights (P21 W). Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
side the boot:
r e m o v e t h e a c c e s s fl a p ,
disconnect the light connector,
r e m o v e t h e l i g h t fi x i n g b o l t ,
take out the light from the outside,
press on the four tabs and remove
the bulb holder,
turn the bulb a quarter of a turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the light in its
guides keeping it in the centreline of the
vehicle.
T i g h t e n t h e fi x i n g b o l t s u f fi c i e n t l y b y
hand to guarantee the sealing of the
light.
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi c a t i o n a n d c o l o u r .
Page 153 of 255
!
141

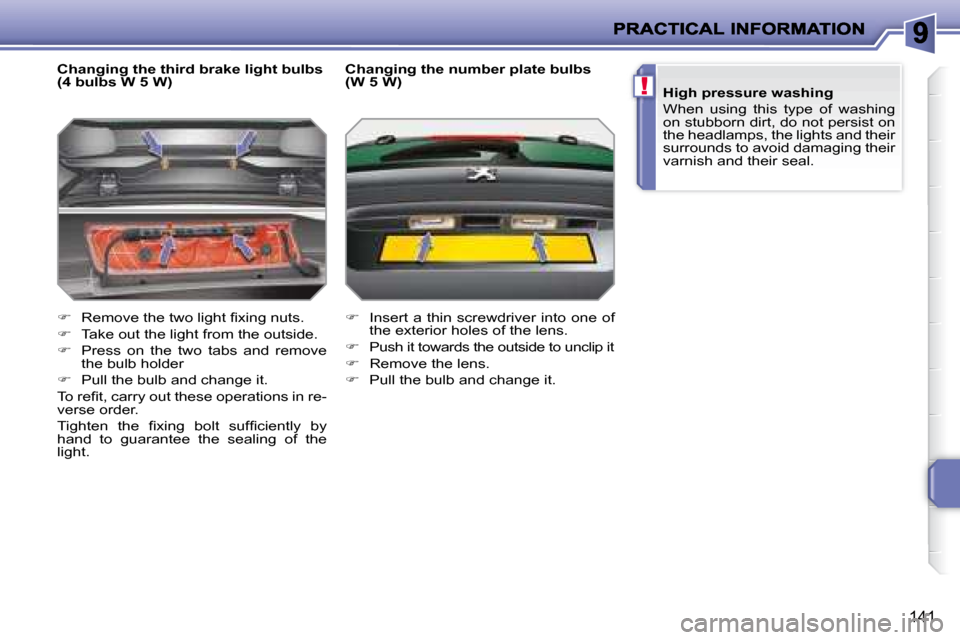

Changing the third brake light bulbs
(4 bulbs W 5 W)
R e m o v e t h e t w o l i g h t fi x i n g n u t s .
Take out the light from the outside.
Press on the two tabs and remove
the bulb holder
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
T i g h t e n t h e fi x i n g b o l t s u f fi c i e n t l y b y
hand to guarantee the sealing of the
light. Changing the number plate bulbs
(W 5 W)
Insert a thin screwdriver into one of
the exterior holes of the lens.
Push it towards the outside to unclip it
Remove the lens.
Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.
Page 154 of 255
!
i
142
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all
additional equipment connected
exceeds 10 milliamperes.
Installation of electrical
accessories
Your vehicle's electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your ve-
hicle, contact a PEUGEOT dealer.

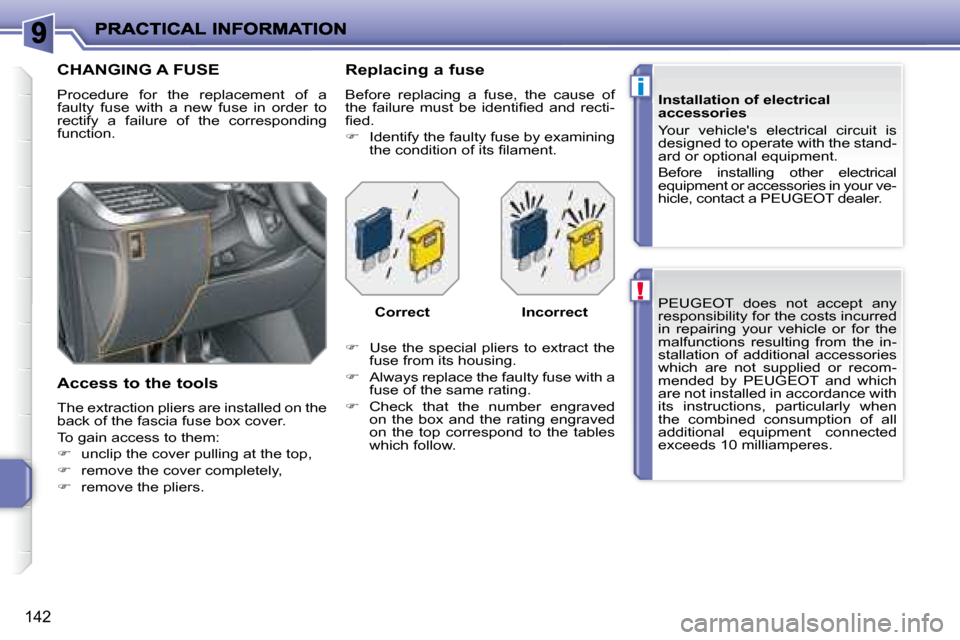

CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction pliers are installed on the
back of the fascia fuse box cover.
To gain access to them:
unclip the cover pulling at the top,
remove the cover completely,
remove the pliers. Replacing a fuse
Before replacing a fuse, the cause of
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by examining
t h e c o n d i t i o n o f i t s fi l a m e n t .
Use the special pliers to extract the
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check that the number engraved
on the box and the rating engraved
on the top correspond to the tables
which follow.
Correct
Incorrect
Page 155 of 255
143

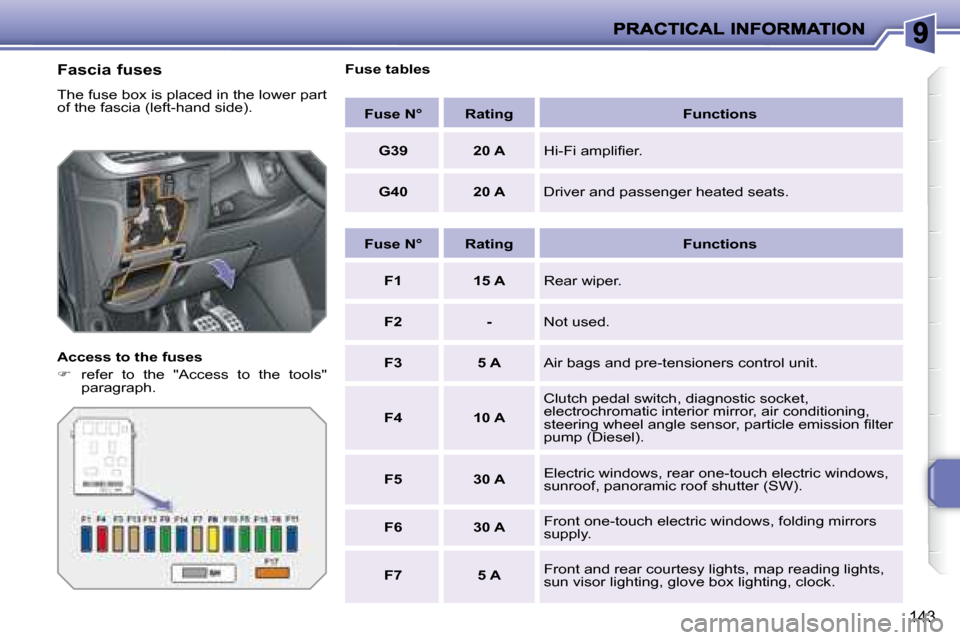

Fascia fuses
The fuse box is placed in the lower part
of the fascia (left-hand side).
Access to the fuses
refer to the "Access to the tools"
paragraph. Fuse tables
Fuse N° Rating Functions
G39 20 A H i - F i a m p l i fi e r .
G40 20 A Driver and passenger heated seats.
Fuse N° Rating Functions
F1 15 A Rear wiper.
F2 - Not used.
F3 5 A Air bags and pre-tensioners control unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic interior mirror, air conditioning,
s t e e r i n g w h e e l a n g l e s e n s o r , p a r t i c l e e m i s s i o n fi l t e r
pump (Diesel).
F5 30 A Electric windows, rear one-touch electric windows,
sunroof, panoramic roof shutter (SW).
F6 30 A Front one-touch electric windows, folding mirrors
supply.
F7 5 A Front and rear courtesy lights, map reading lights,
sun visor lighting, glove box lighting, clock.
Page 156 of 255
144
Fuse N° Rating Functions

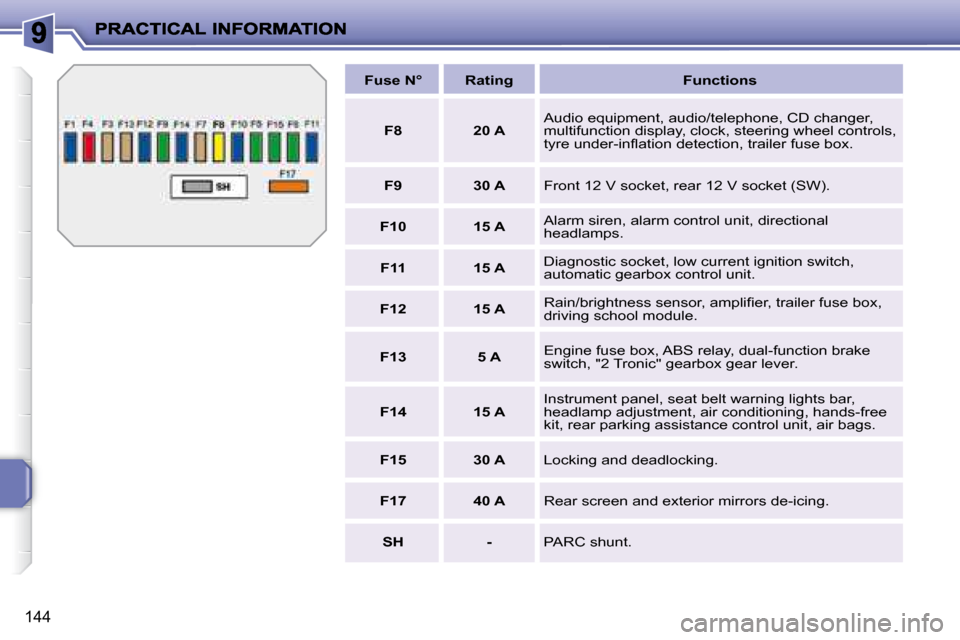

F8 20 A Audio equipment, audio/telephone, CD changer,
multifunction display, clock, steering wheel controls,
t y r e u n d e r - i n fl a t i o n d e t e c t i o n , t r a i l e r f u s e b o x .
F9 30 A Front 12 V socket, rear 12 V socket (SW).
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F11 15 A Diagnostic socket, low current ignition switch,
automatic gearbox control unit.
F12 15 A R a i n / b r i g h t n e s s s e n s o r , a m p l i fi e r , t r a i l e r f u s e b o x ,
driving school module.
F13 5 A Engine fuse box, ABS relay, dual-function brake
switch, "2 Tronic" gearbox gear lever.
F14 15 A Instrument panel, seat belt warning lights bar,
headlamp adjustment, air conditioning, hands-free
kit, rear parking assistance control unit, air bags.
F15 30 A Locking and deadlocking.
F17 40 A Rear screen and exterior mirrors de-icing.
SH - PARC shunt.
Page 157 of 255
145

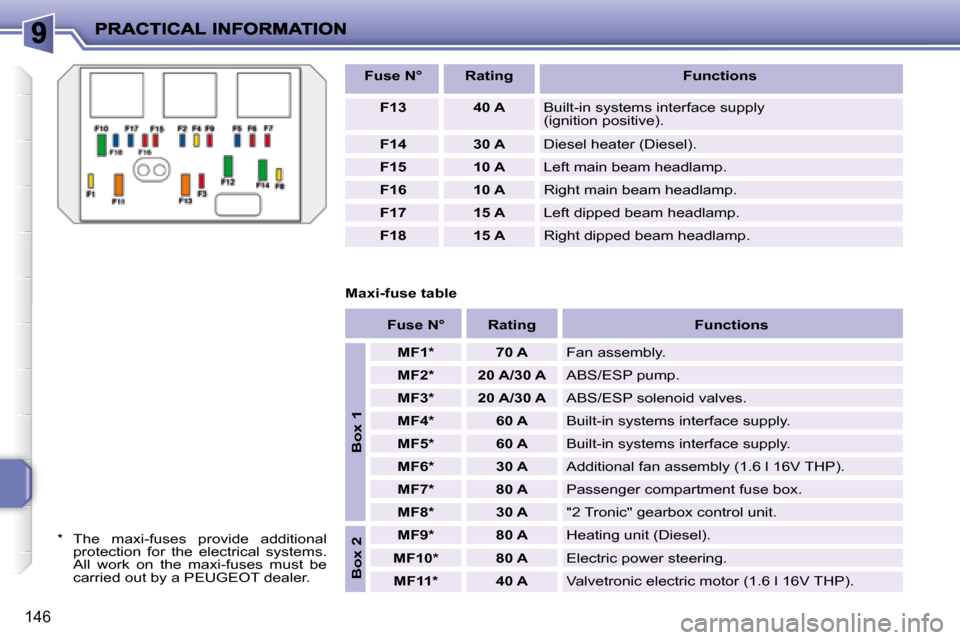

Engine compartment fuses
The fuse box is placed in the en-
gine compartment, near the battery
(left-hand side).
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-
responding paragraph).
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to guarantee the
sealing of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister solenoid valves
( 1 . 6 l 1 6 V T H P ) , a i r fl o w s e n s o r ( D i e s e l ) , i n j e c t i o n
pump (Diesel), water in diesel sensor (Diesel),
EGR solenoid valves, air heating (Diesel).
F2 15 A Horn.
F3 10 A Front and rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol), Turbo solenoid valves
(1.6 l 16V THP).
F6 10 A Vehicle speed sensor, automatic gearbox.
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
protection unit (Diesel).
F8 25 A Starter control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition
coils, solenoid valves, oxygen sensors, injectors,
heaters, controlled thermostat) (Diesel: solenoid
valves, heaters).
F11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
Page 158 of 255
146
Fuse N° Rating Functions
F13 40 A Built-in systems interface supply
(ignition positive).
F14 30 A Diesel heater (Diesel).
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
* The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer.
Maxi-fuse table
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP solenoid valves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A Additional fan assembly (1.6 l 16V THP).
MF7 * 80 A Passenger compartment fuse box.
MF8 * 30 A "2 Tronic" gearbox control unit.
Box 2
MF9 * 80 A Heating unit (Diesel).
MF10 * 80 A Electric power steering.
MF11 * 40 A Valvetronic electric motor (1.6 l 16V THP).
Page 159 of 255
147
BATTERY

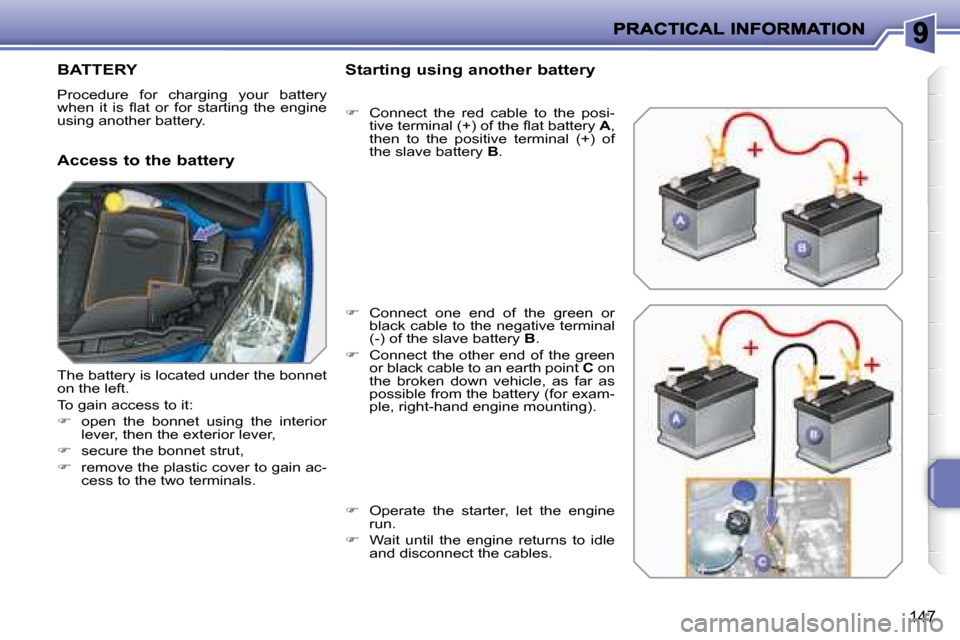

Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Access to the battery Starting using another battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
possible from the battery (for exam-
ple, right-hand engine mounting).
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
The battery is located under the bonnet
on the left.
To gain access to it:
open the bonnet using the interior
lever, then the exterior lever,
secure the bonnet strut,
remove the plastic cover to gain ac-
cess to the two terminals.
Page 160 of 255
!
!
i
148
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a " 2 T r o n i c "
gearbox.
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.

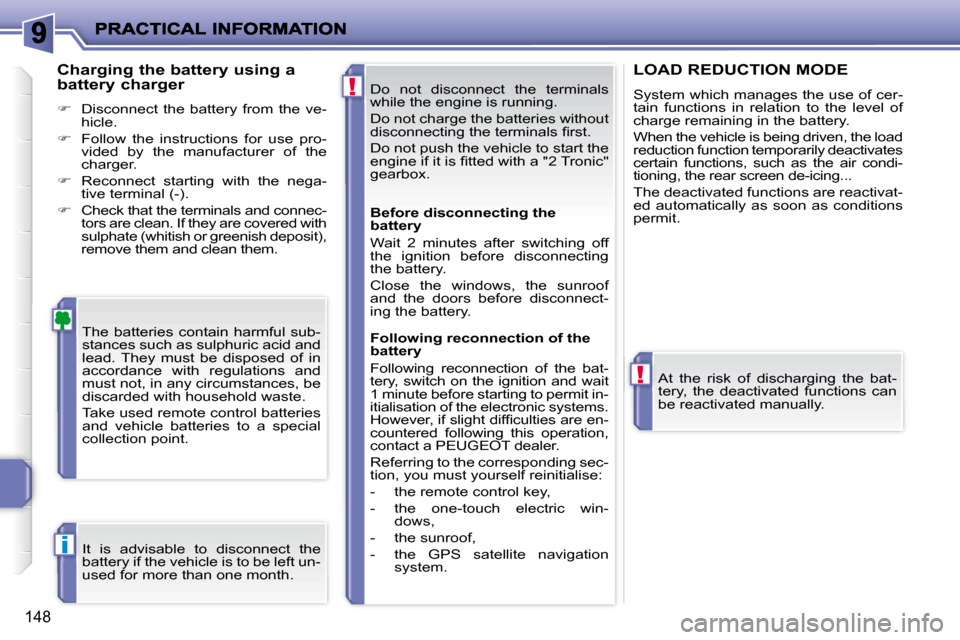

Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
tive terminal (-).
Check that the terminals and connec-
tors are clean. If they are covered with
sulphate (whitish or greenish deposit),
remove them and clean them.
At the risk of discharging the bat-
tery, the deactivated functions can
be reactivated manually.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condi-
tioning, the rear screen de-icing...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows, the sunroof
and the doors before disconnect-
ing the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the one-touch electric win-
dows,
- the sunroof,
- the GPS satellite navigation system.
