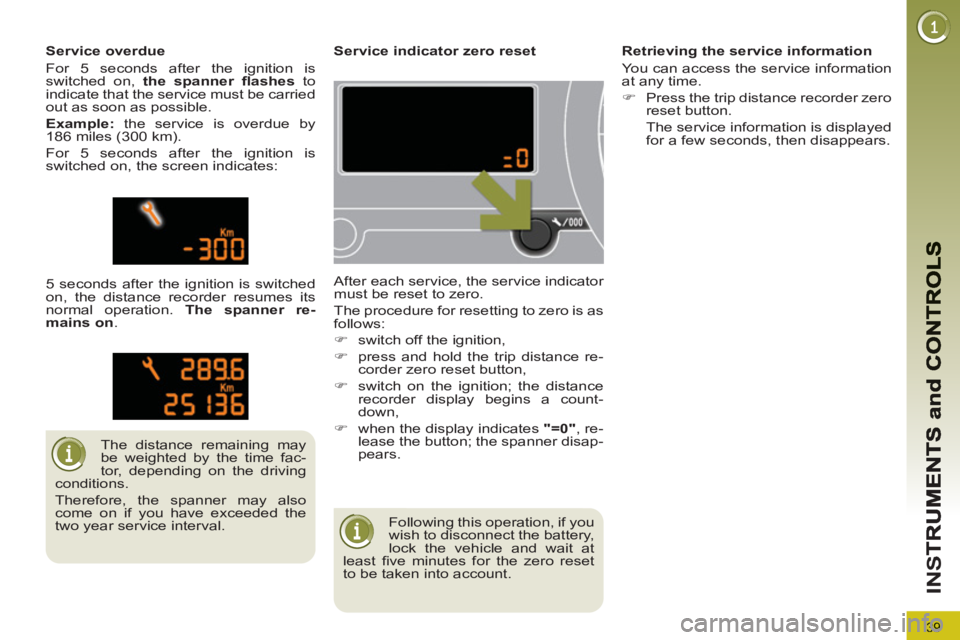

Page 41 of 352
39
IN
S
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
)
switch off the ignition,
)
press and hold the trip distance re-
corder zero reset button,
)
switch on the ignition; the distance
recorder display begins a count-
down,
)
when the display indicates "=0"
, re-
lease the button; the spanner disap-
pears.
The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.
Example:
the service is overdue by
186 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
.
Retrieving the service information
You can access the service information
at any time.
)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

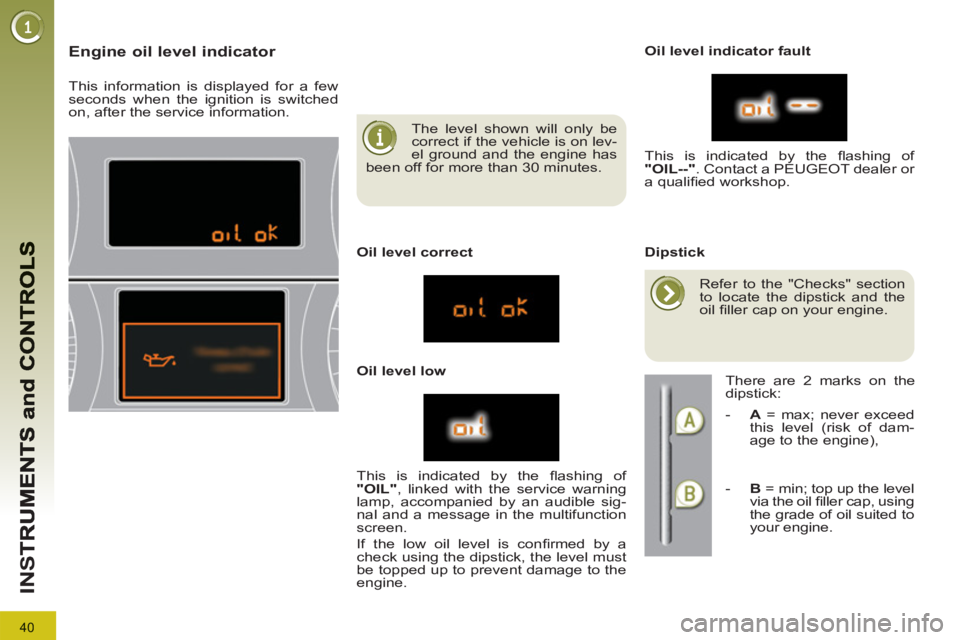

Page 42 of 352
40
IN
S
The level shown will only be
correct if the vehicle is on lev-
el ground and the engine has
been off for more than 30 minutes.
Engine oil level indicator
Oil level correct
Oil level low
Oil level indicator fault
Dipstick
This is indicated by the fl ashing of
"OIL"
, linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL--"
. Contact a PEUGEOT dealer or
a qualifi ed workshop.
Refer to the "Checks" section
to locate the dipstick and the
oil fi ller cap on your engine.
There are 2 marks on the
dipstick:
- A
= max; never exceed
this level (risk of dam-
age to the engine),
- B
= min; top up the level
via the oil fi ller cap, using
the grade of oil suited to
your engine.
This information is displayed for a few
seconds when the ignition is switched
on, after the service information.

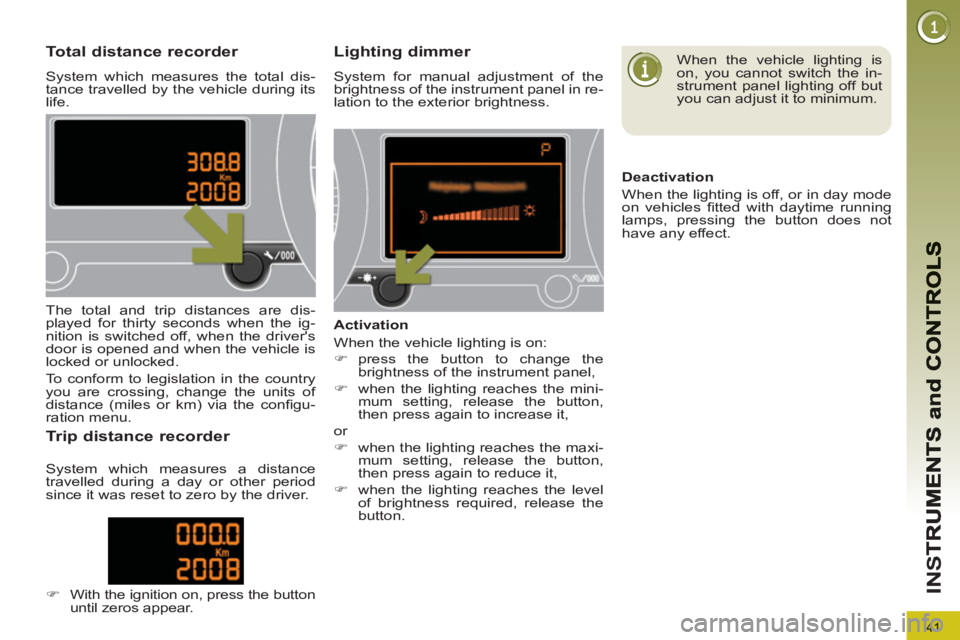

Page 43 of 352
41
IN
S
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life.
Lighting dimmer
System for manual adjustment of the
brightness of the instrument panel in re-
lation to the exterior brightness.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
To conform to legislation in the country
you are crossing, change the units of
distance (miles or km) via the confi gu-
ration menu.
Tr ip distance recorder
Activation
When the vehicle lighting is on:
)
press the button to change the
brightness of the instrument panel,
)
when the lighting reaches the mini-
mum setting, release the button,
then press again to increase it,
or
)
when the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it,
)
when the lighting reaches the level
of brightness required, release the
button.
When the vehicle lighting is
on, you cannot switch the in-
strument panel lighting off but
you can adjust it to minimum.
Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.
)
With the ignition on, press the button
until zeros appear.

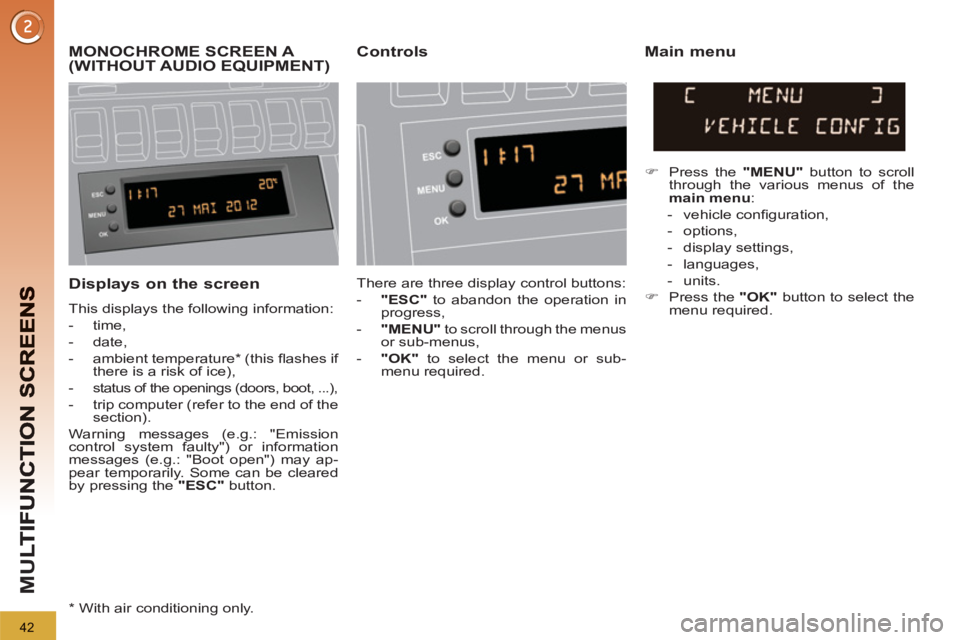

Page 44 of 352
42
M
U
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if
there is a risk of ice),
-
status of the openings (doors, boot, ...),
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. Some can be cleared
by pressing the "ESC"
button.
MONOCHROME SCREEN A (WITHOUT AUDIO EQUIPMENT) Controls Main menu
There are three display control buttons:
- "ESC"
to abandon the operation in
progress,
- "MENU"
to scroll through the menus
or sub-menus,
- "OK"
to select the menu or sub-
menu required.
)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.
)
Press the "OK"
button to select the
menu required.
*
With air conditioning only.

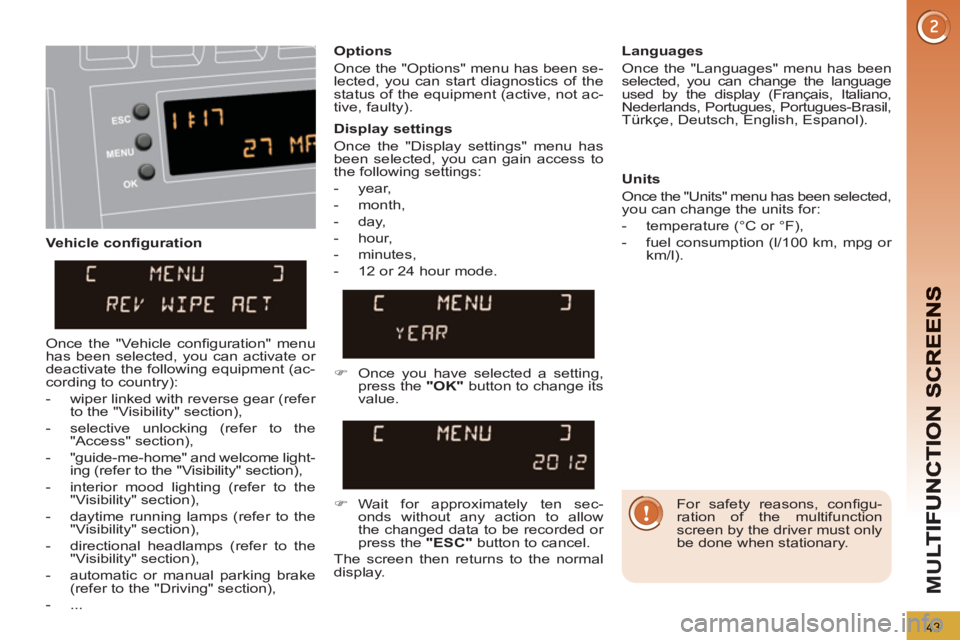

Page 45 of 352
43
M
U
Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-Brasil,
Türkçe, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been selected,
you can change the units for:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
)
Once you have selected a setting,
press the "OK"
button to change its
value.
)
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display.
Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment (ac-
cording to country):
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the
"Access" section),
- "guide-me-home" and welcome light-
ing (refer to the "Visibility" section),
- interior mood lighting (refer to the
"Visibility" section),
- daytime running lamps (refer to the
"Visibility" section),
- directional headlamps (refer to the
"Visibility" section),
- automatic or manual parking brake
(refer to the "Driving" section),
- ...
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.

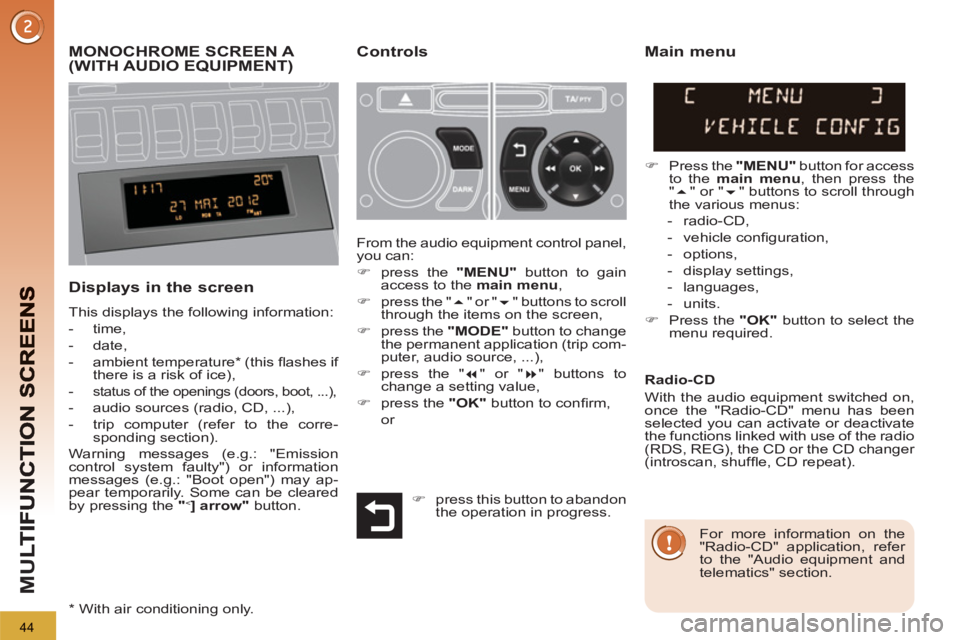

Page 46 of 352
44
M
U
MONOCHROME SCREEN A (WITH AUDIO EQUIPMENT) Controls
Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if
there is a risk of ice),
-
status of the openings (doors, boot, ...),
- audio sources (radio, CD, ...),
- trip computer (refer to the corre-
sponding section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. Some can be cleared
by pressing the "
<
] arrow"
button.
Main menu
)
Press the "MENU"
button for access
to the main menu
, then press the
"
" or "
" buttons to scroll through
the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- languages,
- units.
)
Press the "OK"
button to select the
menu required. From the audio equipment control panel,
you can:
)
press the "MENU"
button to gain
access to the main menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source, ...),
)
press the "
" or "
" buttons to
change a setting value,
)
press the "OK"
button to confi rm,
or
Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG), the CD or the CD changer
(introscan, shuffl e, CD repeat).
For more information on the
"Radio-CD" application, refer
to the "Audio equipment and
telematics" section.
*
With air conditioning only.
)
press this button to abandon
the operation in progress.

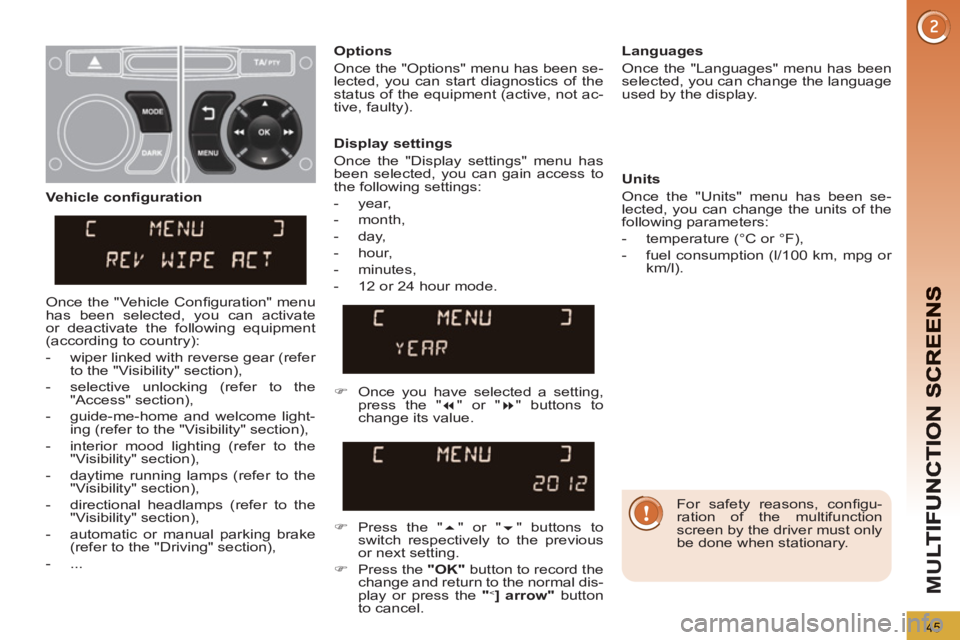

Page 47 of 352
45
M
U
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been
selected, you can change the language
used by the display.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.
)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.
)
Press the "OK"
button to record the
change and return to the normal dis-
play or press the "
<
] arrow"
button
to cancel.
Vehicle confi guration
Once the "Vehicle Confi guration" menu
has been selected, you can activate
or deactivate the following equipment
(according to country):
- wiper linked with reverse gear (refer
to the "Visibility" section),
- selective unlocking (refer to the
"Access" section),
- guide-me-home and welcome light-
ing (refer to the "Visibility" section),
- interior mood lighting (refer to the
"Visibility" section),
- daytime running lamps (refer to the
"Visibility" section),
- directional headlamps (refer to the
"Visibility" section),
- automatic or manual parking brake
(refer to the "Driving" section),
- ...
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).

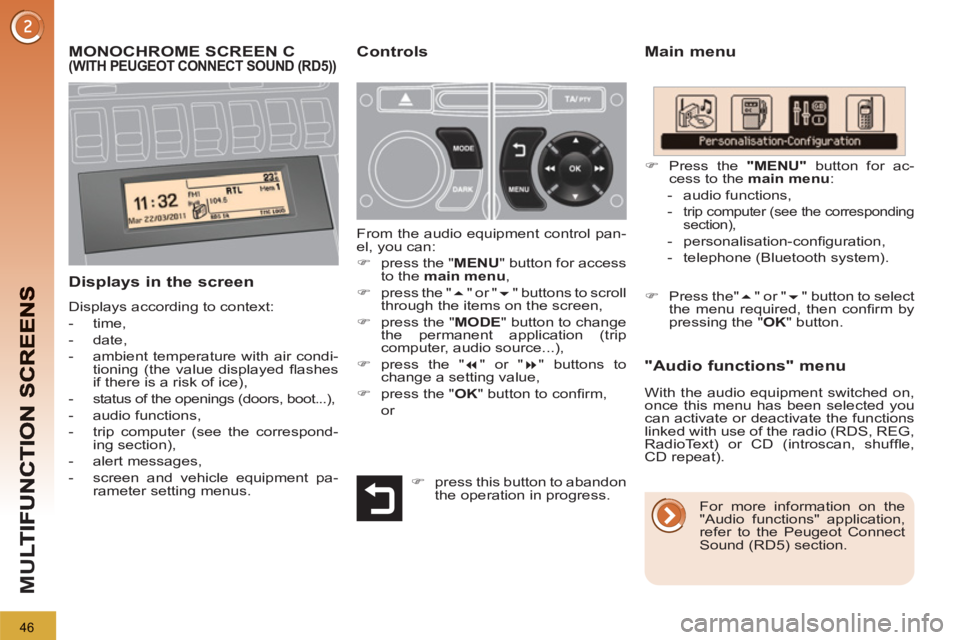

Page 48 of 352
46
M
U
MONOCHROME SCREEN C (WITH PEUGEOT CONNECT SOUND (RD5))
Main menu
Displays in the screen
Displays according to context:
- time,
- date,
- ambient temperature with air condi-
tioning (the value displayed fl ashes
if there is a risk of ice),
- status of the openings (doors, boot...),
- audio functions,
- trip computer (see the correspond-
ing section),
- alert messages,
- screen and vehicle equipment pa-
rameter setting menus.
"Audio functions" menu Controls
From the audio equipment control pan-
el, you can:
)
press the " MENU
" button for access
to the main menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the " MODE
" button to change
the permanent application (trip
computer, audio source...),
)
press the "
" or "
" buttons to
change a setting value,
)
press the " OK
" button to confi rm,
or
)
Press the "MENU"
button for ac-
cess to the main menu
:
- audio functions,
-
trip computer (see the corresponding
section),
- personalisation-confi guration,
- telephone (Bluetooth system).
For more information on the
"Audio functions" application,
refer to the Peugeot Connect
Sound (RD5) section.
)
Press the"
" or "
" button to select
the menu required, then confi rm by
pressing the " OK
" button.
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or CD (introscan, shuffl e,
CD repeat).
)
press this button to abandon
the operation in progress.
Page 49 of 352
47
M
U

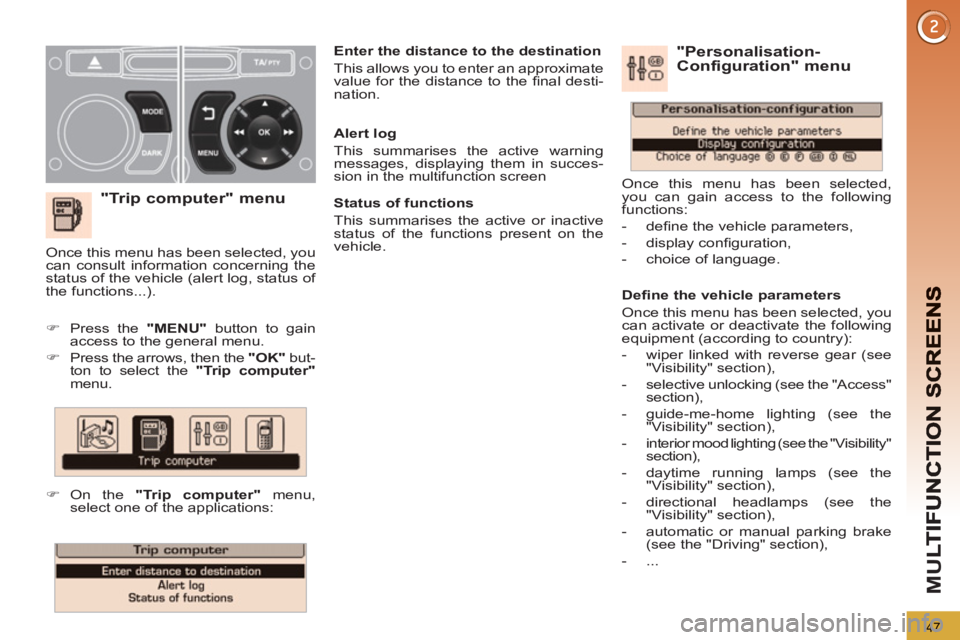

"Trip computer" menu
)
Press the "MENU"
button to gain
access to the general menu.
)
Press the arrows, then the "OK"
but-
ton to select the "Trip computer"
menu.
)
On the "Trip computer"
menu,
select one of the applications:
Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal desti-
nation.
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):
- wiper linked with reverse gear (see
"Visibility" section),
- selective unlocking (see the "Access"
section),
- guide-me-home lighting (see the
"Visibility" section),
- interior mood lighting (see the "Visibility"
section),
- daytime running lamps (see the
"Visibility" section),
- directional headlamps (see the
"Visibility" section),
- automatic or manual parking brake
(see the "Driving" section),
- ...
"Personalisation-
Configuration" menu
Once this menu has been selected,
you can gain access to the following
functions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen
Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Page 50 of 352
48
M
U

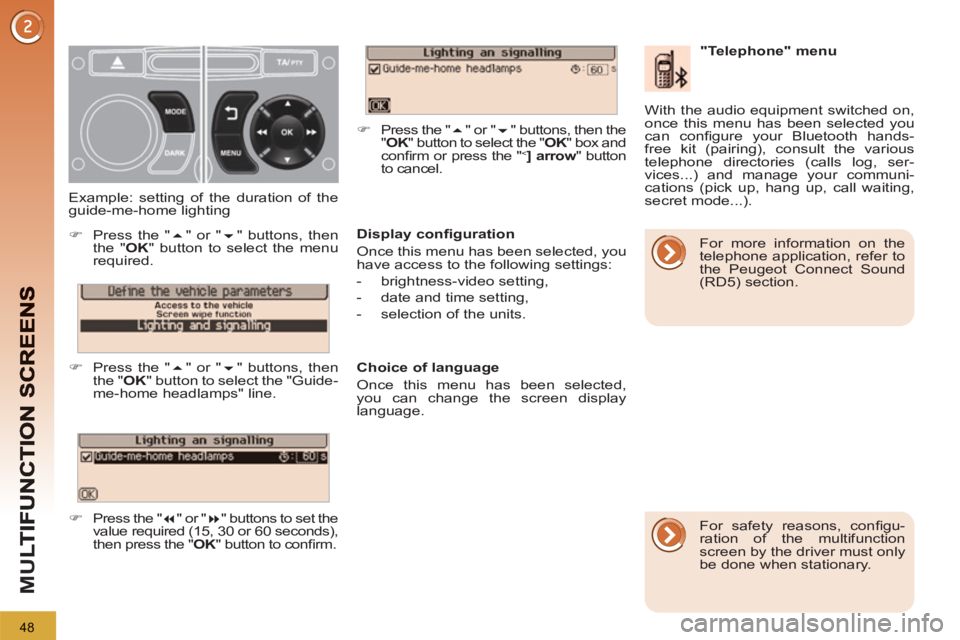

Display confi guration
Once this menu has been selected, you
have access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Choice of language
Once this menu has been selected,
you can change the screen display
language.
Example: setting of the duration of the
guide-me-home lighting
)
Press the "
" or "
" buttons, then
the " OK
" button to select the menu
required.
)
Press the "
" or "
" buttons, then
the " OK
" button to select the "Guide-
me-home headlamps" line.
)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds),
then press the " OK
" button to confi rm.
)
Press the "
" or "
" buttons, then the
" OK
" button to select the " OK
" box and
confi rm or press the "
<
] arrow
" button
to cancel.
"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
can confi gure your Bluetooth hands-
free kit (pairing), consult the various
telephone directories (calls log, ser-
vices...) and manage your communi-
cations (pick up, hang up, call waiting,
secret mode...).
For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.
For more information on the
telephone application, refer to
the Peugeot Connect Sound
(RD5) section.
