11
Practical information229

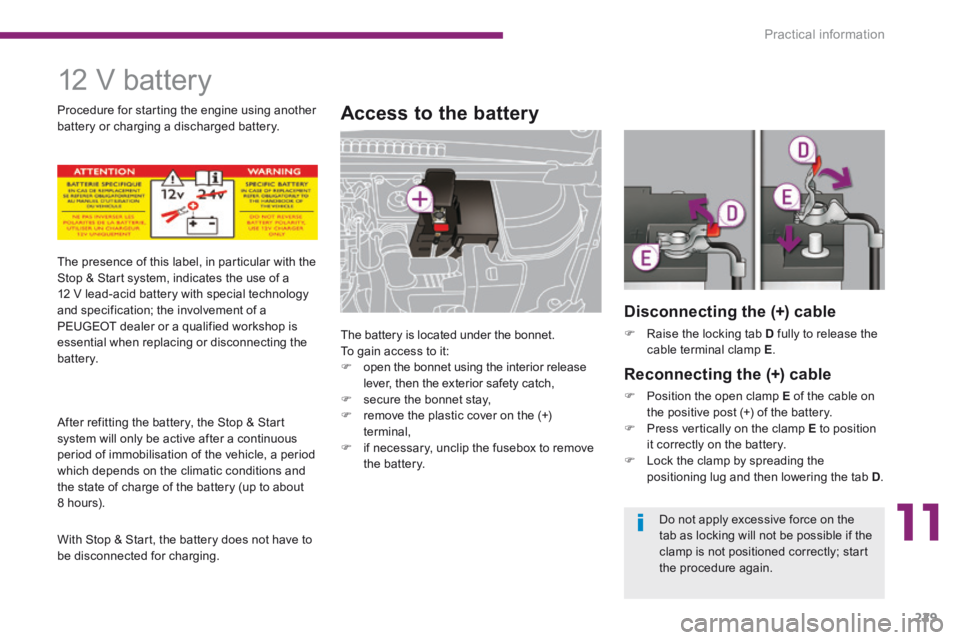

12 V battery
Access to the battery
The battery is located under the bonnet. To gain access to it:  open the bonnet using the interior release lever, then the exterior safety catch,  secure the bonnet stay,  remove the plastic cover on the (+) terminal,  if necessary, unclip the fusebox to remove the battery.
The presence of this label, in particular with the Stop & Start system, indicates the use of a 12 V lead-acid battery with special technology and specification; the involvement of a PEUGEOT dealer or a qualified workshop is essential when replacing or disconnecting the battery.
After refitting the battery, the Stop & Start
system will only be active after a continuous period of immobilisation of the vehicle, a period which depends on the climatic conditions and the state of charge of the battery (up to about 8 hours).
With Stop & Start, the battery does not have to be disconnected for charging.
Procedure for starting the engine using another battery or charging a discharged battery.
Disconnecting the (+) cable
 Raise the locking tab D fully to release the cable terminal clamp E .
Reconnecting the (+) cable
 Position the open clamp E of the cable on the positive post (+) of the battery.  Press vertically on the clamp E to position it correctly on the battery.  Lock the clamp by spreading the positioning lug and then lowering the tab D .
Do not apply excessive force on the
tab as locking will not be possible if the clamp is not positioned correctly; start the procedure again.

Practical information
230

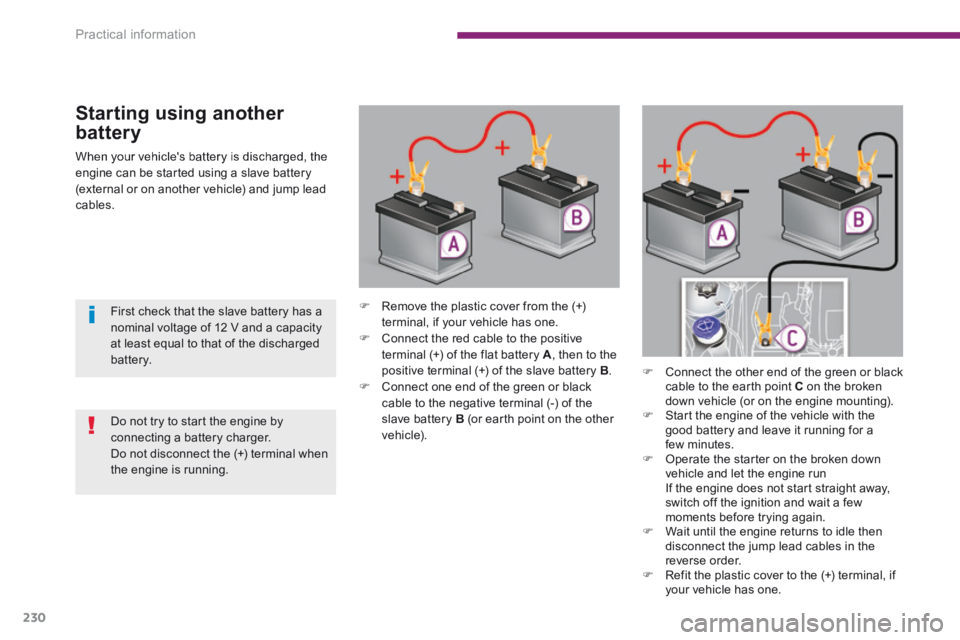

When your vehicle's battery is discharged, the engine can be started using a slave battery (external or on another vehicle) and jump lead cables.
Starting using another
battery
 Remove the plastic cover from the (+) terminal, if your vehicle has one.  Connect the red cable to the positive terminal (+) of the flat battery A , then to the positive terminal (+) of the slave battery B .  Connect one end of the green or black cable to the negative terminal (-) of the slave battery B (or earth point on the other
vehicle).
 Connect the other end of the green or black cable to the earth point C on the broken down vehicle (or on the engine mounting).  Start the engine of the vehicle with the good battery and leave it running for a few minutes.  Operate the starter on the broken down vehicle and let the engine run If the engine does not start straight away, switch off the ignition and wait a few moments before trying again.  Wait until the engine returns to idle then disconnect the jump lead cables in the reverse order.  Refit the plastic cover to the (+) terminal, if your vehicle has one.
First check that the slave battery has a nominal voltage of 12 V and a capacity at least equal to that of the discharged battery.
Do not try to start the engine by connecting a battery charger. Do not disconnect the (+) terminal when the engine is running.

11
Practical information231

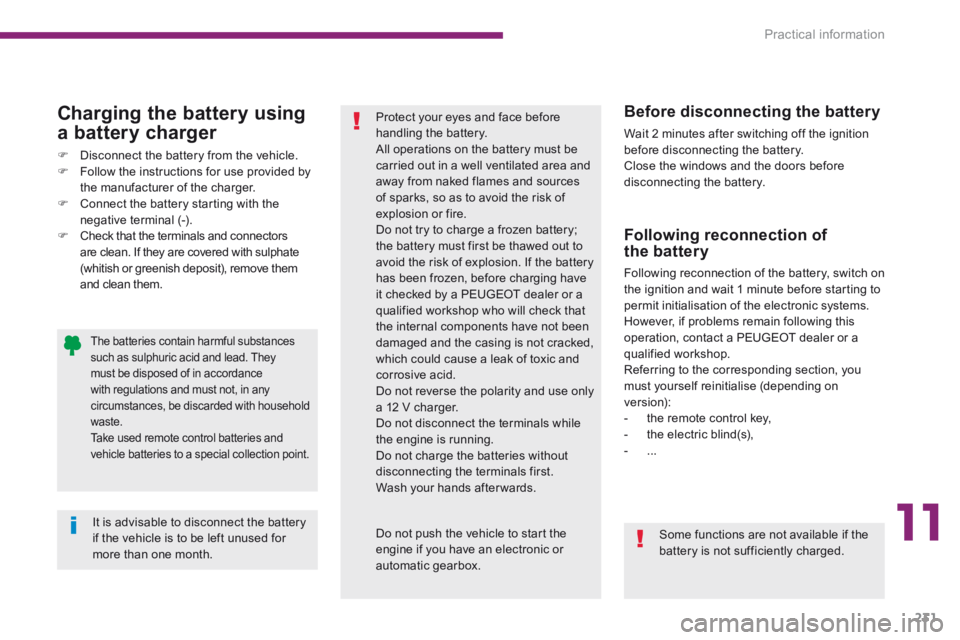

Following reconnection of the battery
Following reconnection of the battery, switch on the ignition and wait 1 minute before starting to permit initialisation of the electronic systems. However, if problems remain following this operation, contact a PEUGEOT dealer or a qualified workshop. Referring to the corresponding section, you must yourself reinitialise (depending on version): - the remote control key, - the electric blind(s), - ...
Before disconnecting the battery
Wait 2 minutes after switching off the ignition before disconnecting the battery. Close the windows and the doors before disconnecting the battery.
Charging the battery using
a battery charger
 Disconnect the battery from the vehicle.  Follow the instructions for use provided by the manufacturer of the charger.  Connect the battery starting with the negative terminal (-).
 Check that the terminals and connectors are clean. If they are covered with sulphate (whitish or greenish deposit), remove them and clean them.
The batteries contain harmful substances such as sulphuric acid and lead. They must be disposed of in accordance with regulations and must not, in any circumstances, be discarded with household waste.
Take used remote control batteries and vehicle batteries to a special collection point.
It is advisable to disconnect the battery
if the vehicle is to be left unused for more than one month.
Protect your eyes and face before handling the battery. All operations on the battery must be carried out in a well ventilated area and away from naked flames and sources of sparks, so as to avoid the risk of explosion or fire. Do not try to charge a frozen battery; the battery must first be thawed out to avoid the risk of explosion. If the battery has been frozen, before charging have it checked by a PEUGEOT dealer or a qualified workshop who will check that the internal components have not been damaged and the casing is not cracked, which could cause a leak of toxic and corrosive acid. Do not reverse the polarity and use only a 12 V charger. Do not disconnect the terminals while the engine is running. Do not charge the batteries without disconnecting the terminals first. Wash your hands after wards.
Do not push the vehicle to start the engine if you have an electronic or automatic gearbox.
Some functions are not available if the battery is not sufficiently charged.

Practical information
232

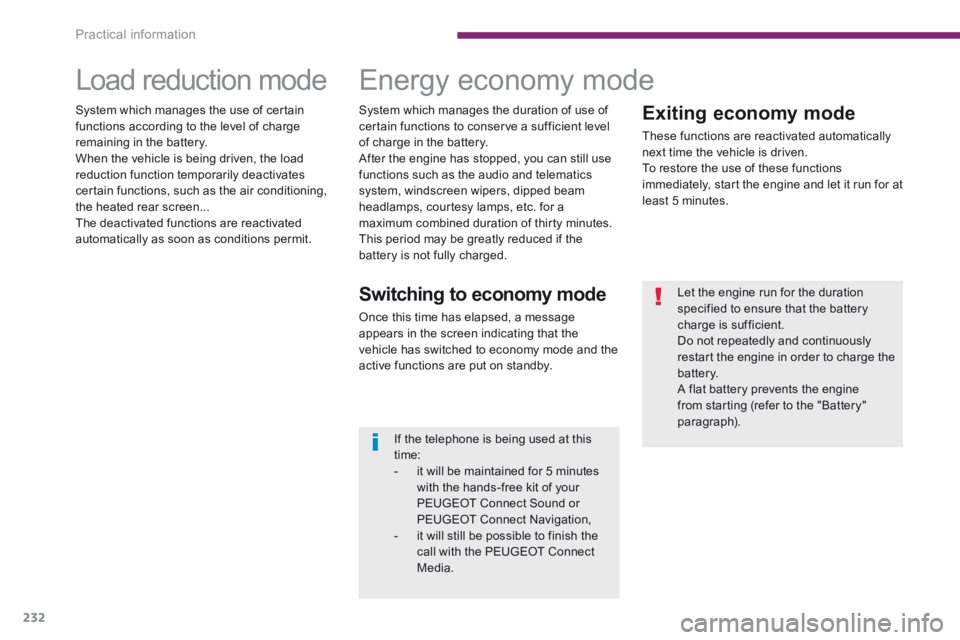

Exiting economy mode
These functions are reactivated automatically next time the vehicle is driven. To restore the use of these functions immediately, start the engine and let it run for at least 5 minutes.
Load reduction mode Energy economy mode
Switching to economy mode
Once this time has elapsed, a message appears in the screen indicating that the vehicle has switched to economy mode and the active functions are put on standby.
Let the engine run for the duration specified to ensure that the battery charge is sufficient. Do not repeatedly and continuously restart the engine in order to charge the battery. A flat battery prevents the engine from starting (refer to the "Battery" paragraph).
If the telephone is being used at this time: - it will be maintained for 5 minutes with the hands-free kit of your PEUGEOT Connect Sound or PEUGEOT Connect Navigation, - it will still be possible to finish the call with the PEUGEOT Connect Media.
System which manages the duration of use of certain functions to conserve a sufficient level of charge in the battery. After the engine has stopped, you can still use functions such as the audio and telematics system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined duration of thirty minutes. This period may be greatly reduced if the battery is not fully charged.
System which manages the use of certain functions according to the level of charge remaining in the battery. When the vehicle is being driven, the load reduction function temporarily deactivates certain functions, such as the air conditioning, the heated rear screen... The deactivated functions are reactivated automatically as soon as conditions permit.

11
Practical information233

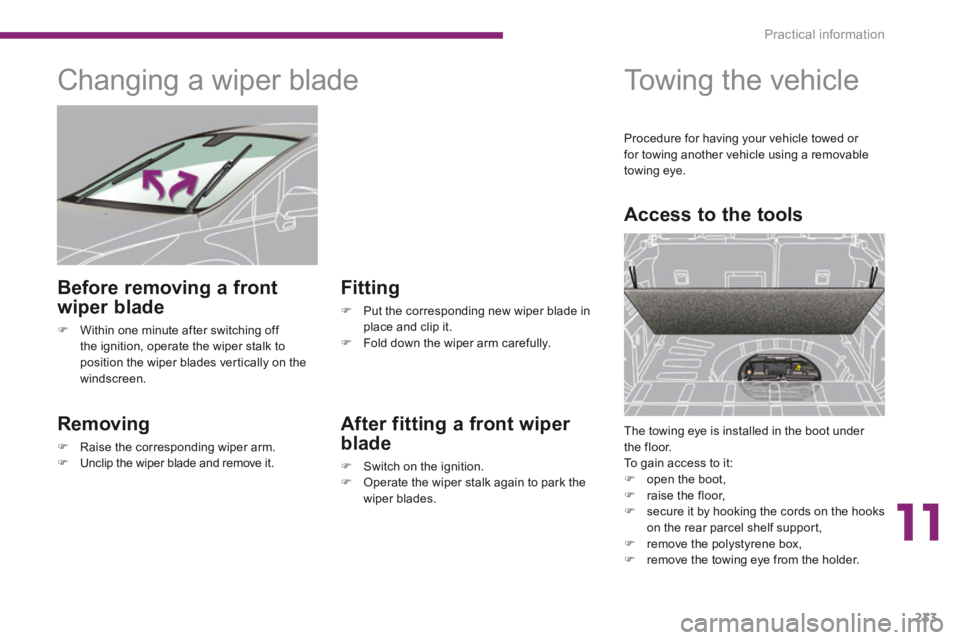

Changing a wiper blade
Removing
 Raise the corresponding wiper arm.  Unclip the wiper blade and remove it.
Fitting
 Put the corresponding new wiper blade in place and clip it.  Fold down the wiper arm carefully.
Before removing a front
wiper blade
 Within one minute after switching off the ignition, operate the wiper stalk to position the wiper blades vertically on the windscreen.
After fitting a front wiper
blade
 Switch on the ignition.  Operate the wiper stalk again to park the wiper blades.
Towing the vehicle
Access to the tools
The towing eye is installed in the boot under the floor. To gain access to it:  open the boot,  raise the floor,  secure it by hooking the cords on the hooks on the rear parcel shelf support,  remove the polystyrene box,  remove the towing eye from the holder.
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

Practical information
234
Towing your vehicle
 On the front bumper, unclip the cover by pressing at the bottom.  Screw the towing eye in fully.  Install the towing bar.  Switch on the hazard warning lamps on the towed vehicle.
 On the rear bumper, unclip the cover by pressing at the bottom.  Screw the towing eye in fully.  Install the towing bar.  Switch on the hazard warning lamps on the
towed vehicle.
Towing another vehicle
Put the gear lever into neutral (position N for an electronic or automatic gearbox). Failure to follow this instruction could lead to damage to certain components (brakes, transmission, ...) and the absence of braking assistance on
restarting the engine.
General recommendations
Observe the legislation in force in your c o unt r y. Ensure that the weight of the towing vehicle is higher than that of the towed vehicle. The driver must remain at the wheel of the towed vehicle and must have a valid driving licence. When towing a vehicle with all four wheels on the ground, always use an approved towing bar; rope and straps are prohibited. When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering.
In the following cases, you must always call on a professional recovery service: - vehicle broken down on a motor way or fast road, - 4 wheel drive vehicle, - when it is not possible to put the gearbox into neutral, unlock the steering, or release the parking brake, - towing with only two wheels on the
ground, - where there is no approved towing bar available...

11
Practical information235
Towing a trailer
Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
Driving advice
Towbar suitable for the attachment of a trailer or installation of a bicycle carrier, with additional lighting and signalling.
Distribution of loads
 Distribute the load in the trailer so that the heaviest items are as close as possible to the axle and the nose weight approaches the maximum permitted without exceeding it. Air density decreases with altitude, thus reducing engine performance. Above 1 000 metres, the maximum towed load must be reduced by 10 % for every 1 000 metres of altitude.
We recommend the use of genuine PEUGEOT towbars and their harnesses that have been tested and approved from the design stage of your vehicle, and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a qualified workshop. If the towbar is not fitted by a PEUGEOT dealer, it is imperative that it is fitted in accordance with the vehicle manufacturer's instructions.
Refer to the "Technical data" section for details of the weights and towed loads which apply to your vehicle.
Driving with a trailer places greater demands on the towing vehicle and the driver must take particular care.

Practical information
236
Side wind
 Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.  To lower the engine speed, reduce your speed. The maximum towed load on a long incline depends on the gradient and the ambient temperature. In all cases, keep a check on the coolant temperature.
Braking
Towing a trailer increases the braking distance. To avoid overheating of the brakes on a long
mountain type of descent, the use of engine braking is recommended.
Ty r e s
 Check the tyre pressures of the towing vehicle and of the trailer, observing the recommended pressures.
Lighting
 Check the electrical lighting and signalling on the trailer.
 If the warning lamp and the STOP warning lamp come on, stop the vehicle and switch off the engine as soon as possible.
The rear parking sensors will be deactivated automatically if a genuine PEUGEOT towbar is used.

11
Practical information237

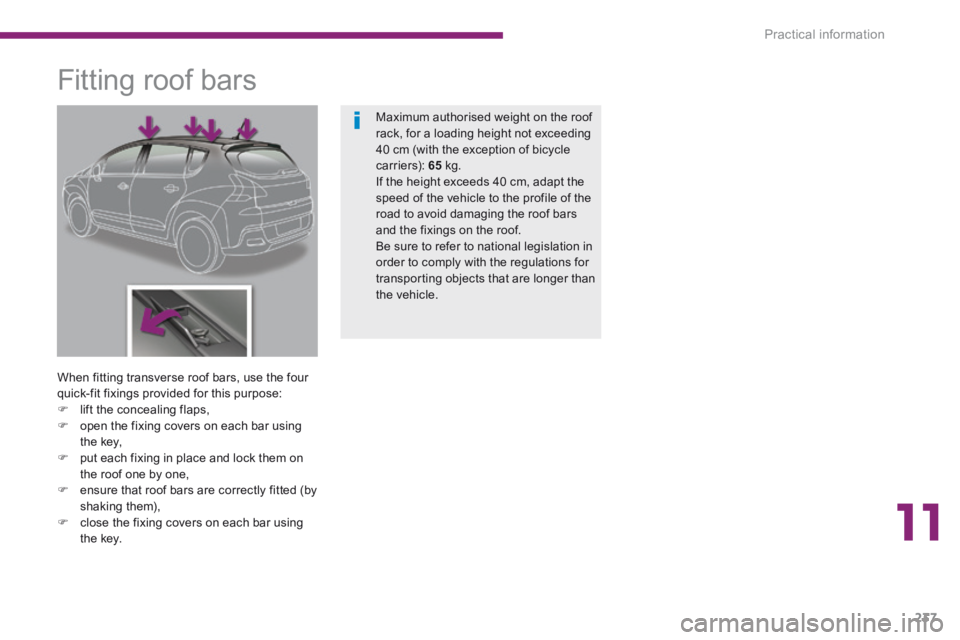

Fitting roof bars
When fitting transverse roof bars, use the four quick-fit fixings provided for this purpose:  lift the concealing flaps,  open the fixing covers on each bar using the key,  put each fixing in place and lock them on the roof one by one,  ensure that roof bars are correctly fitted (by shaking them),  close the fixing covers on each bar using
the key.
Maximum authorised weight on the roof rack, for a loading height not exceeding 40 cm (with the exception of bicycle c a r r i e r s): 65 kg. If the height exceeds 40 cm, adapt the speed of the vehicle to the profile of the road to avoid damaging the roof bars and the fixings on the roof. Be sure to refer to national legislation in order to comply with the regulations for transporting objects that are longer than the vehicle.

Practical information
238

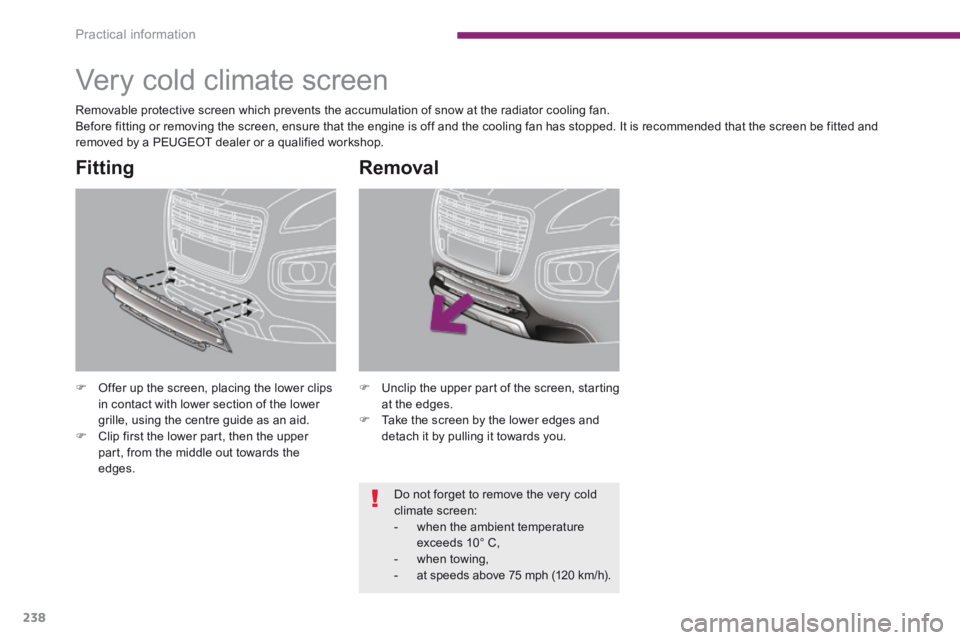

Very cold climate screen
 Offer up the screen, placing the lower clips in contact with lower section of the lower grille, using the centre guide as an aid.  Clip first the lower part, then the upper part, from the middle out towards the edges.
Fitting
 Unclip the upper part of the screen, starting at the edges.  Take the screen by the lower edges and
detach it by pulling it towards you.
Removal
Removable protective screen which prevents the accumulation of snow at the radiator cooling fan. Before fitting or removing the screen, ensure that the engine is off and the cooling fan has stopped. It is recommended that the screen be fitted and removed by a PEUGEOT dealer or a qualified workshop.
Do not forget to remove the very cold climate screen: - when the ambient temperature exceeds 10° C, - when towing, - at speeds above 75 mph (120 km/h).
