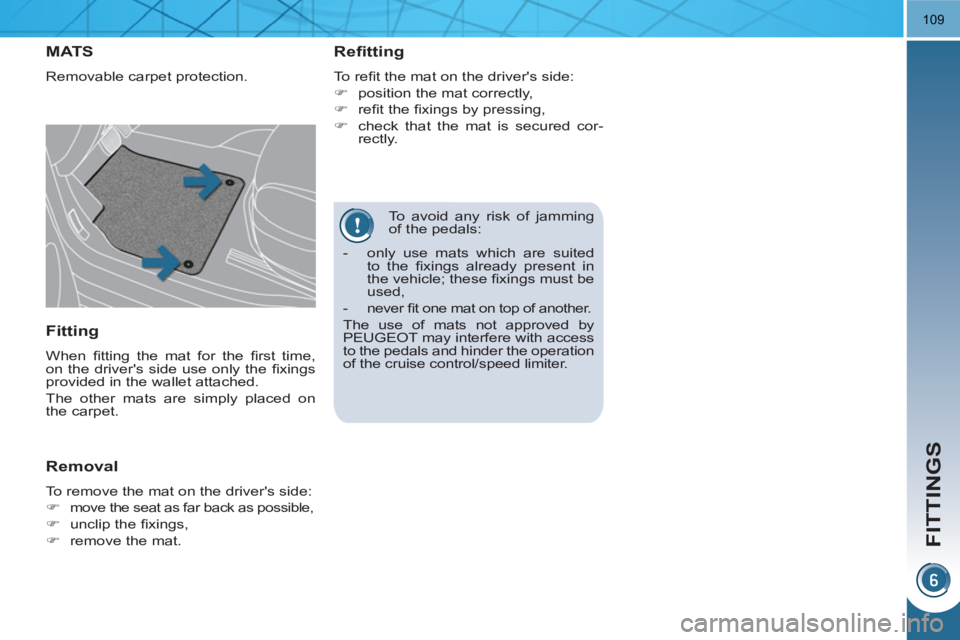

FITTINGS
109
To avoid any risk of jamming
of the pedals:
MAT S
Removable carpet protection.
Refitting
To refi t the mat on the driver's side:
)
position the mat correctly,
)
refi t the fi xings by pressing,
)
check that the mat is secured cor-
rectly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
)
move the seat as far back as possible,
)
unclip the fi xings,
)
remove the mat.
- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must be
used,
- never fi t one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control/speed limiter.
Page 112 of 280
FITTINGS
110

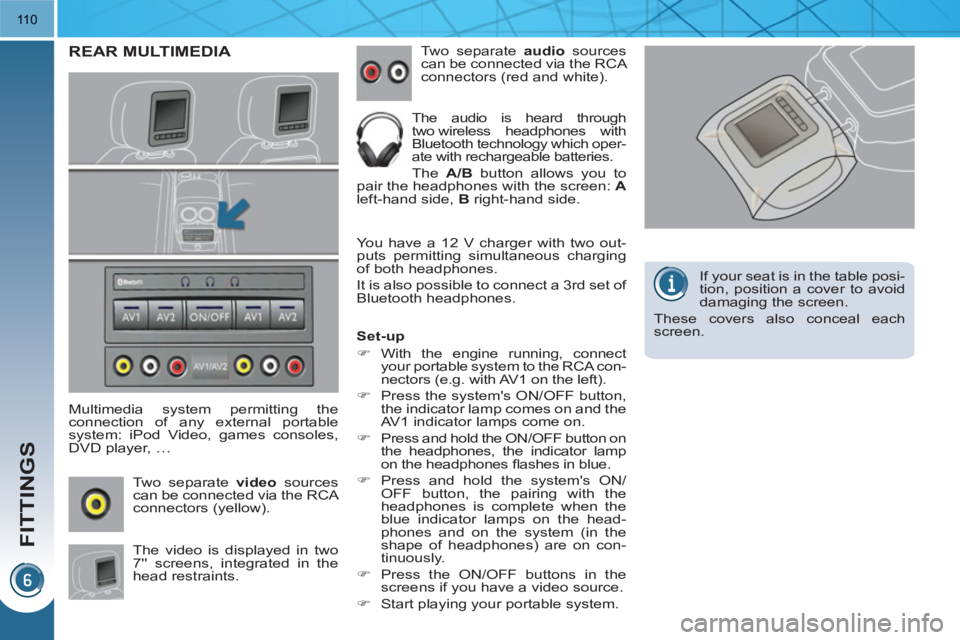

REAR MULTIMEDIA
Multimedia system permitting the
connection of any external portable
system: iPod Video, games consoles,
DVD player, …
Two separate video
sources
can be connected via the RCA
connectors (yellow).
The video is displayed in two
7'' screens, integrated in the
head restraints. Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which oper-
ate with rechargeable batteries.
The A/B
button allows you to
pair the headphones with the screen: A
left-hand side, B
right-hand side.
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.
Set-up
)
With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).
)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.
)
Press and hold the ON/OFF button on
the headphones, the indicator lamp
on the headphones fl ashes in blue.
)
Press and hold the system's ON/
OFF button, the pairing with the
headphones is complete when the
blue indicator lamps on the head-
phones and on the system (in the
shape of headphones) are on con-
tinuously.
)
Press the ON/OFF buttons in the
screens if you have a video source.
)
Start playing your portable system.
If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.
Page 113 of 280
FITTINGS
111

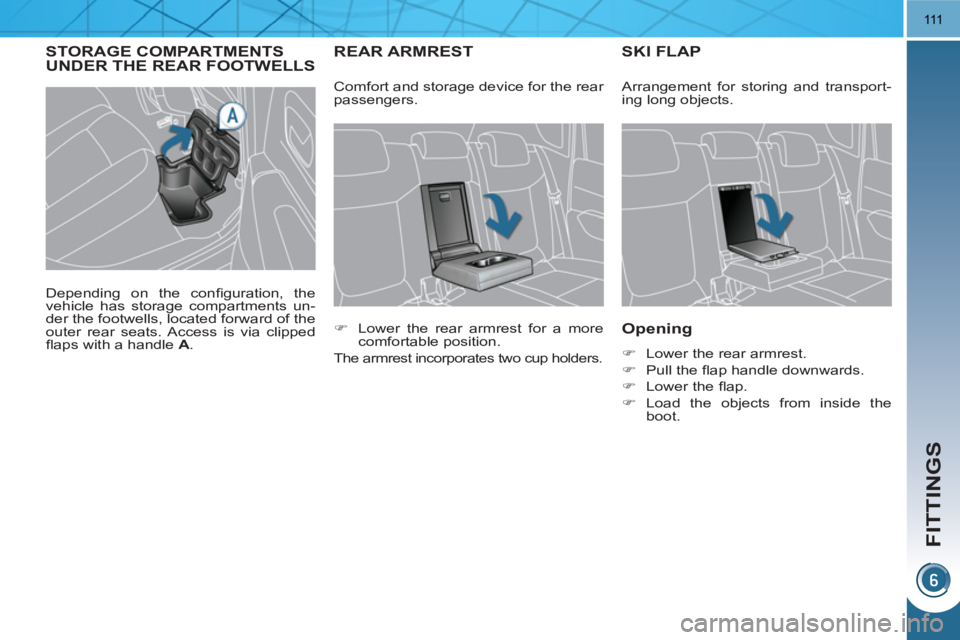

REAR ARMREST SKI FLAP
Opening
)
Lower the rear armrest.
)
Pull the fl ap handle downwards.
)
Lower the fl ap.
)
Load the objects from inside the
boot.
)
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.
Comfort and storage device for the rear
passengers. Arrangement for storing and transport-
ing long objects.
STORAGE COMPARTMENTSUNDER THE REAR FOOTWELLS
Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.
Page 114 of 280
FITTINGS
112

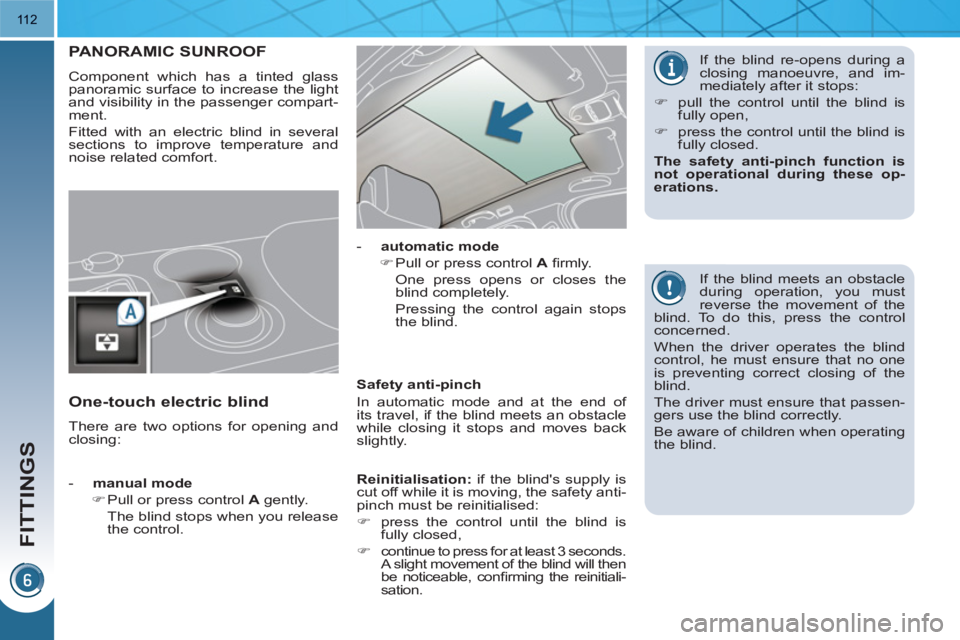

PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.
- manual mode
)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode
)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing:
If the blind re-opens during a
closing manoeuvre, and im-
mediately after it stops:
)
pull the control until the blind is
fully open,
)
press the control until the blind is
fully closed.
The safety anti-pinch function is
not operational during these op-
erations.
Reinitialisation:
if the blind's supply is
cut off while it is moving, the safety anti-
pinch must be reinitialised:
)
press the control until the blind is
fully closed,
)
continue to press for at least 3 seconds.
A slight movement of the blind will then
be noticeable, confi rming the reinitiali-
sation.
Page 115 of 280
FITTINGS
113

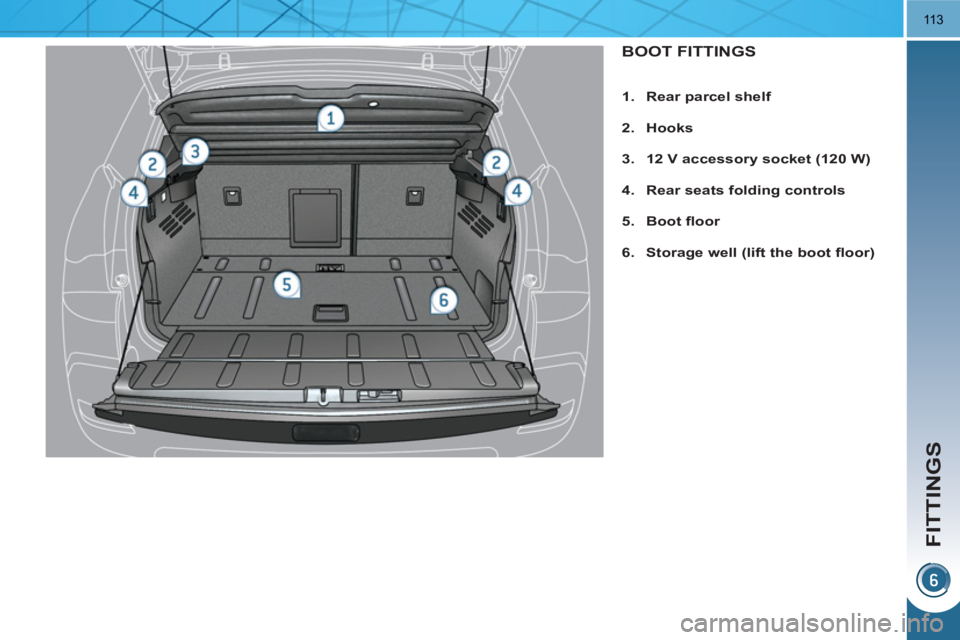

BOOT FITTINGS
1.
Rear parcel shelf
2.
Hooks
3.
12 V accessory socket (120 W)
4.
Rear seats folding controls
5.
Boot
fl oor
6.
Storage well (lift the boot fl oor)
Page 116 of 280
FITTINGS
11 4

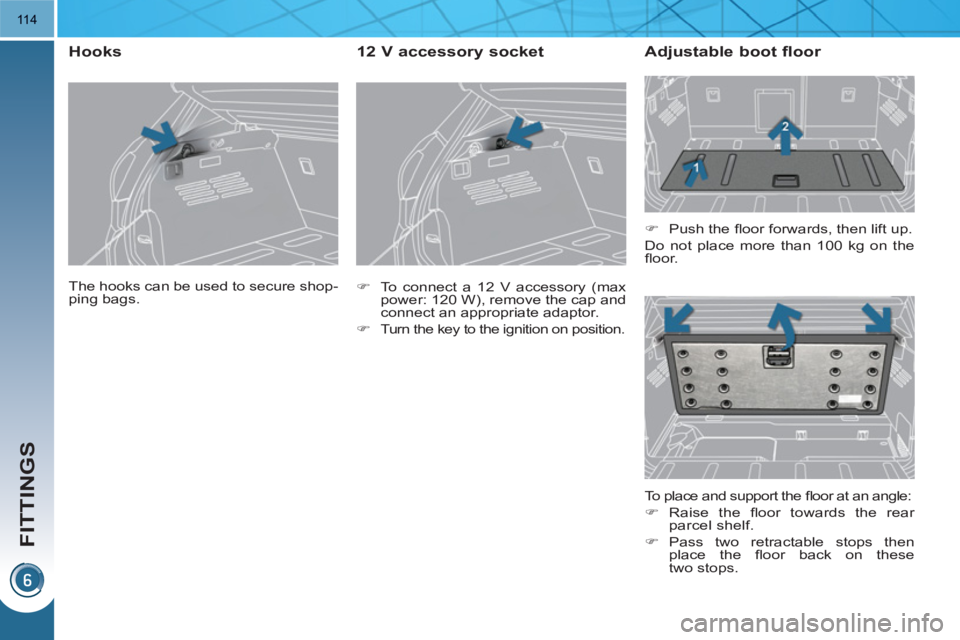

The hooks can be used to secure shop-
ping bags.
Hooks
)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.
)
Turn the key to the ignition on position.
12 V accessory socket
Adjustable boot floor
)
Push the fl oor forwards, then lift up.
Do not place more than 100 kg on the
fl oor.
To place and support the fl oor at an angle:
)
Raise the fl oor towards the rear
parcel shelf.
)
Pass two retractable stops then
place the fl oor back on these
two stops.
Page 117 of 280
FITTINGS
115

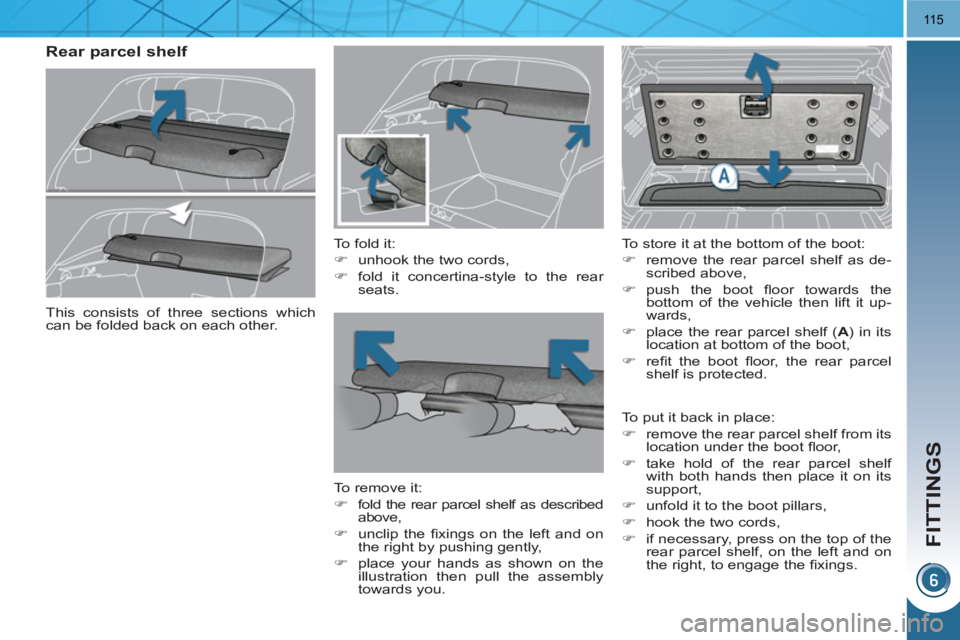

Rear parcel shelf
To fold it:
)
unhook the two cords,
)
fold it concertina-style to the rear
seats.
To remove it:
)
fold the rear parcel shelf as described
above,
)
unclip the fi xings on the left and on
the right by pushing gently,
)
place your hands as shown on the
illustration then pull the assembly
towards you.
To store it at the bottom of the boot:
)
remove the rear parcel shelf as de-
scribed above,
)
push the boot fl oor towards the
bottom of the vehicle then lift it up-
wards,
)
place the rear parcel shelf ( A
) in its
location at bottom of the boot,
)
refi t the boot fl oor, the rear parcel
shelf is protected.
This consists of three sections which
can be folded back on each other.
To put it back in place:
)
remove the rear parcel shelf from its
location under the boot fl oor,
)
take hold of the rear parcel shelf
with both hands then place it on its
support,
)
unfold it to the boot pillars,
)
hook the two cords,
)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.
Page 118 of 280
FITTINGS
116
)

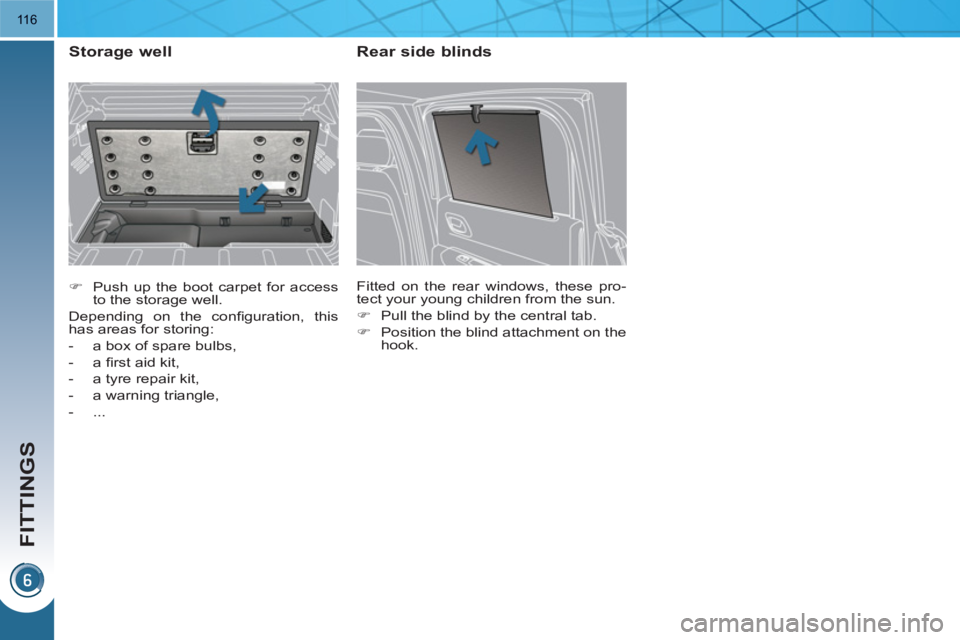

Push up the boot carpet for access
to the storage well.
Depending on the confi guration, this
has areas for storing:
- a box of spare bulbs,
- a fi rst aid kit,
- a tyre repair kit,
- a warning triangle,
- ...
Storage well
Rear side blinds
Fitted on the rear windows, these pro-
tect your young children from the sun.
)
Pull the blind by the central tab.
)
Position the blind attachment on the
hook.
Page 119 of 280
CHILD SAFETY
11 7
PEUGEOT recommends
that
children should travel in the
rear seats
of your vehicle:
- "rearwards-facing"
up to the
age of 2,
- "forwards-facing"
over the age
of 2.

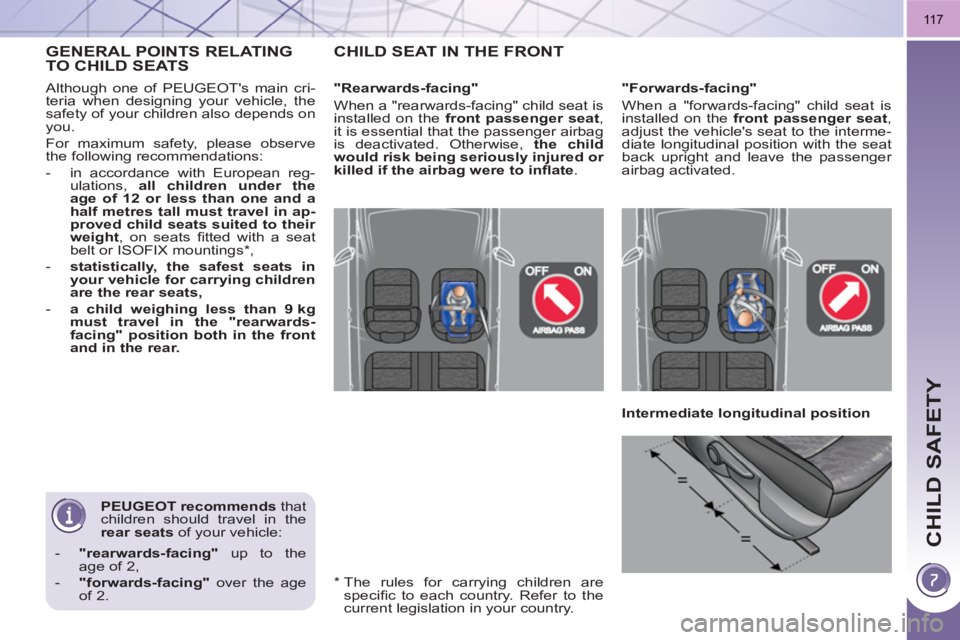

GENERAL POINTS RELATING TO CHILD SEATS
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
Intermediate longitudinal position
*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
CHILD SEAT IN THE FRONT
Page 120 of 280
CHILD SAFETY
Passenger airbag OFF

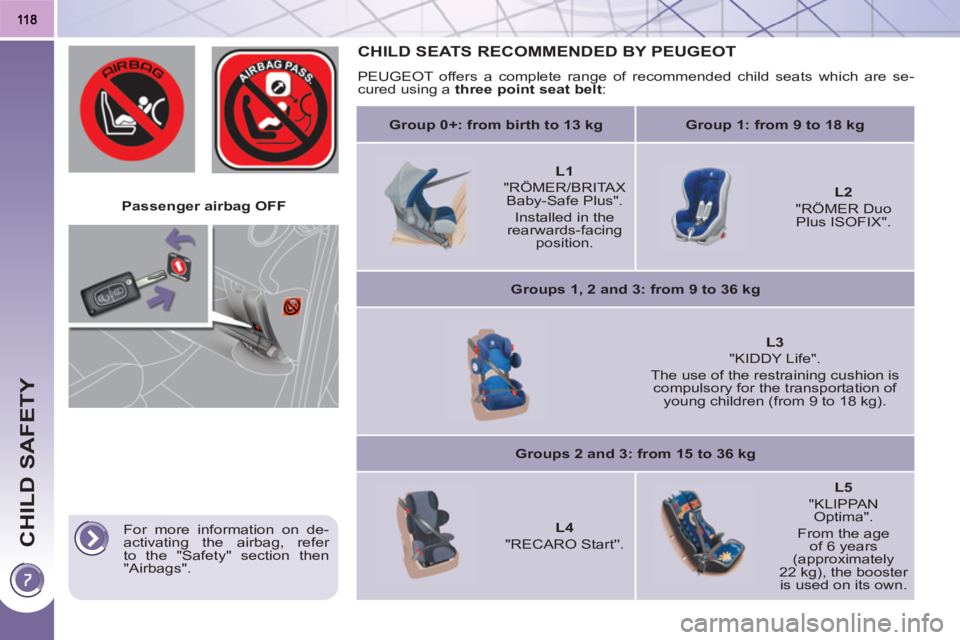

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:
Group 0+: from birth to 13 kg
Group 1: from 9 to 18 kg
L1
"RÖMER/BRITAX
Baby-Safe Plus".
Installed in the
rearwards-facing
position.
L2
"RÖMER Duo
Plus ISOFIX".
Groups 1, 2 and 3: from 9 to 36 kg
L3
"KIDDY Life".
The use of the restraining cushion is
compulsory for the transportation of
young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
"RECARO Start''.
L5
"KLIPPAN
Optima".
From the age
of 6 years
(approximately
22 kg), the booster
is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
