Peugeot 3008 Hybrid 4 2014 Owner's Manual - RHD (UK. Australia)

5
Visibility109
Model without AUTO lighting
Model with AUTO lighting
Automatic illumination of headlamps.

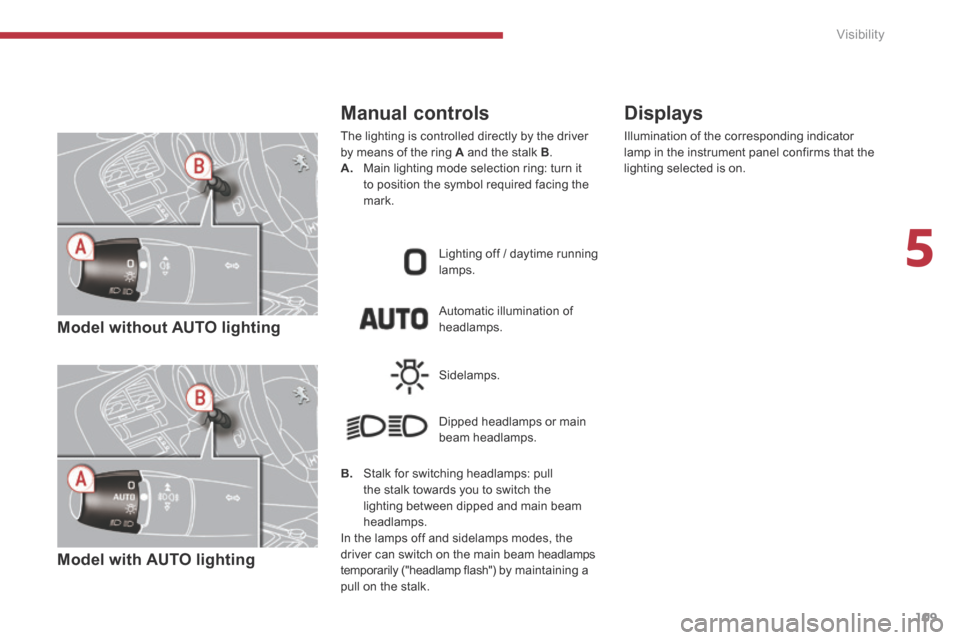

Manual controls
The lighting is controlled directly by the driver by means of the ring A and the stalk B . A. Main lighting mode selection ring: turn it to position the symbol required facing the mark.
Lighting off / daytime running lamps.
Sidelamps.
B. Stalk for switching headlamps: pull the stalk towards you to switch the lighting between dipped and main beam headlamps. In the lamps off and sidelamps modes, the driver can switch on the main beam headlamps temporarily ("headlamp flash") by maintaining a pull on the stalk.
Dipped headlamps or main beam headlamps.
Displays
Illumination of the corresponding indicator lamp in the instrument panel confirms that the lighting selected is on.

Visibility
110

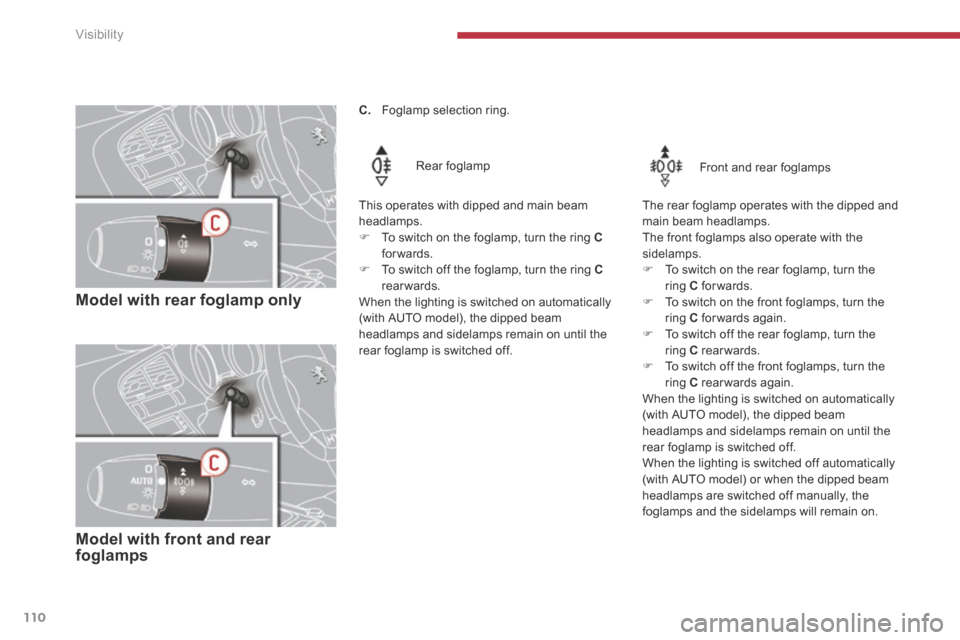

Model with rear foglamp only
Rear foglamp
This operates with dipped and main beam headlamps.
 To switch on the foglamp, turn the ring Cforwards.  To switch off the foglamp, turn the ring Crearwards. When the lighting is switched on automatically (with AUTO model), the dipped beam headlamps and sidelamps remain on until the rear foglamp is switched off.
Model with front and rear foglamps
Front and rear foglamps
The rear foglamp operates with the dipped and main beam headlamps.
The front foglamps also operate with the sidelamps.  To switch on the rear foglamp, turn the ring C forwards.  To switch on the front foglamps, turn the ring C forwards again.  To switch off the rear foglamp, turn the ring C rearwards.  To switch off the front foglamps, turn the ring C rearwards again. When the lighting is switched on automatically (with AUTO model), the dipped beam headlamps and sidelamps remain on until the rear foglamp is switched off. When the lighting is switched off automatically (with AUTO model) or when the dipped beam headlamps are switched off manually, the foglamps and the sidelamps will remain on.
C. Foglamp selection ring.

5
Visibility111

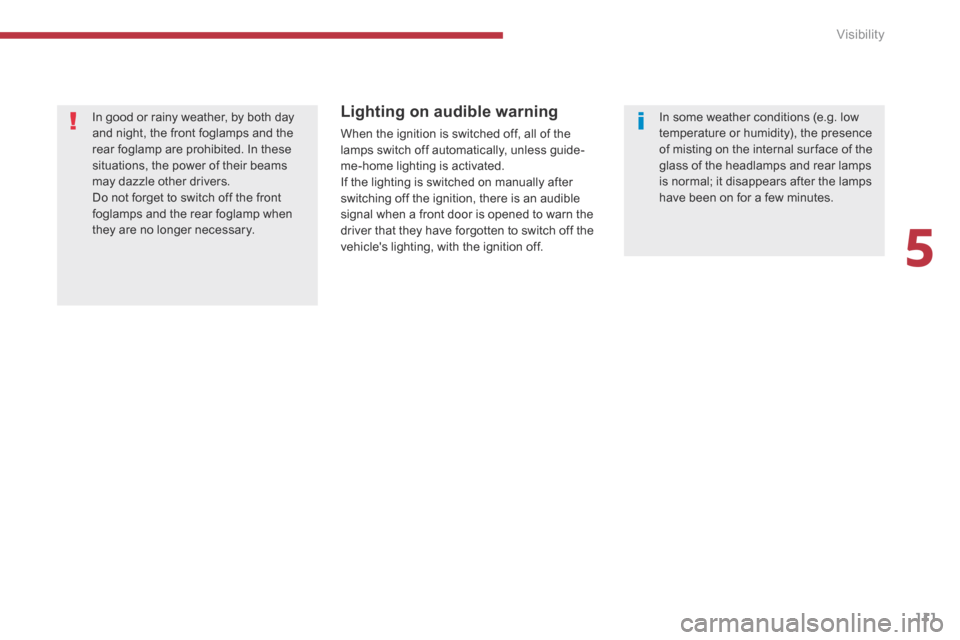

Lighting on audible warning
When the ignition is switched off, all of the lamps switch off automatically, unless guide-me-home lighting is activated. If the lighting is switched on manually after switching off the ignition, there is an audible signal when a front door is opened to warn the driver that they have forgotten to switch off the vehicle's lighting, with the ignition off.
In good or rainy weather, by both day and night, the front foglamps and the rear foglamp are prohibited. In these situations, the power of their beams may dazzle other drivers. Do not forget to switch off the front foglamps and the rear foglamp when they are no longer necessary.
In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of the glass of the headlamps and rear lamps is normal; it disappears after the lamps have been on for a few minutes.

Visibility
112

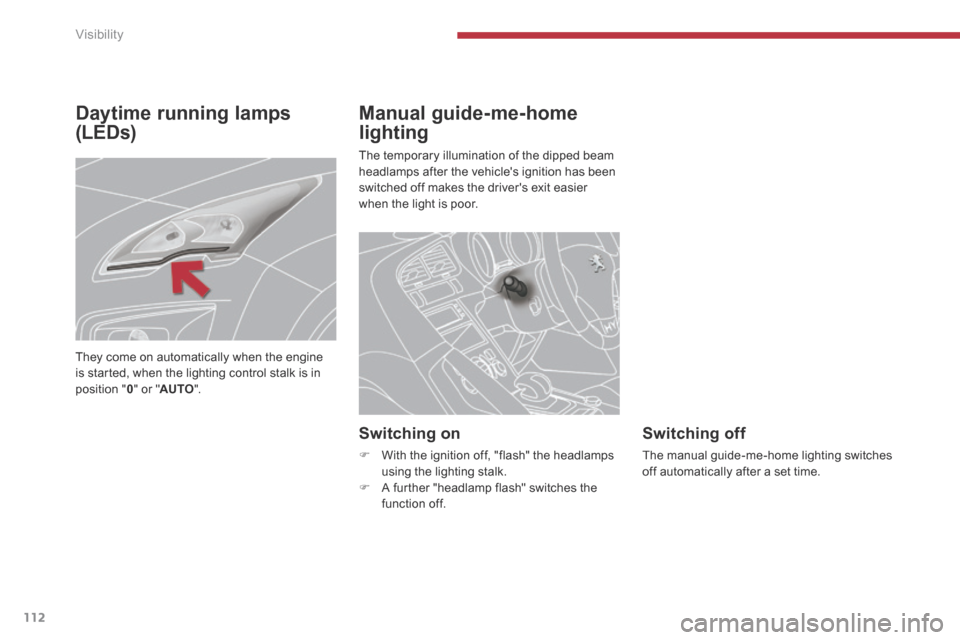

Daytime running lamps
(LEDs)
Manual guide-me-home
lighting
The temporary illumination of the dipped beam headlamps after the vehicle's ignition has been switched off makes the driver's exit easier when the light is poor.
Switching on
 With the ignition off, "flash" the headlamps using the lighting stalk.  A further "headlamp flash" switches the function off.
Switching off
The manual guide-me-home lighting switches off automatically after a set time.
They come on automatically when the engine is started, when the lighting control stalk is in position " 0 " or " AUTO ".

5
Visibility113
Manual guide-me-home
lighting
The temporary illumination of the dipped beam headlamps after the vehicle's ignition has been switched off makes the driver's exit easier when the light is poor.
Switching on
 With the ignition off, "flash" the headlamps using the lighting stalk.  A further "headlamp flash" switches the function off.
Switching off
The manual guide-me-home lighting switches off automatically after a set time.
Programming
The lighting duration is selected via the vehicle configuration
menu.

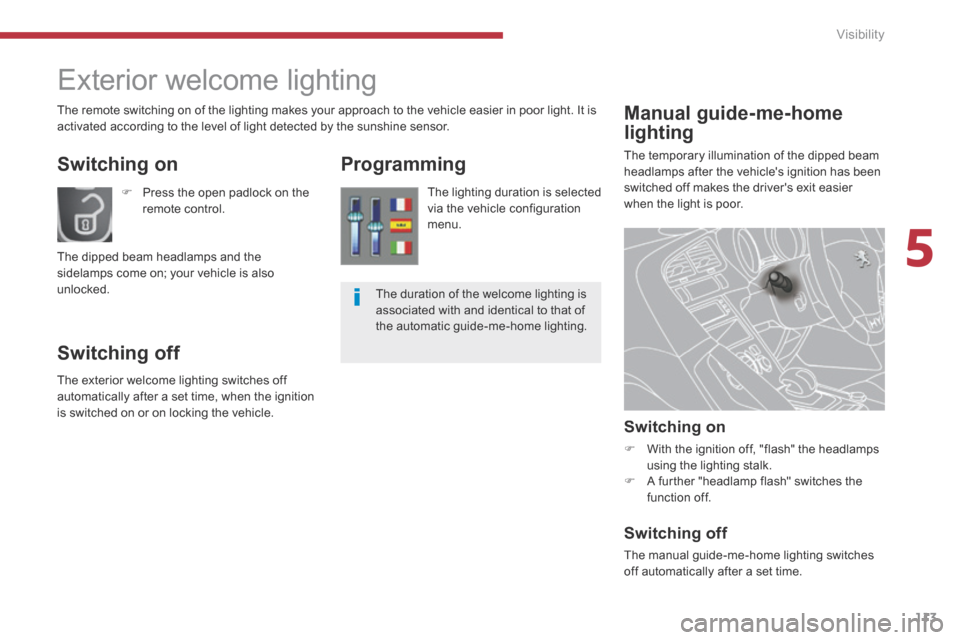

Exterior welcome lighting
The remote switching on of the lighting makes your approach to the vehicle easier in poor light. It is activated according to the level of light detected by the sunshine sensor.
Switching on
 Press the open padlock on the remote control.
Switching off
The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.
The exterior welcome lighting switches off automatically after a set time, when the ignition is switched on or on locking the vehicle.
The duration of the welcome lighting is associated with and identical to that of the automatic guide-me-home lighting.

Visibility
114

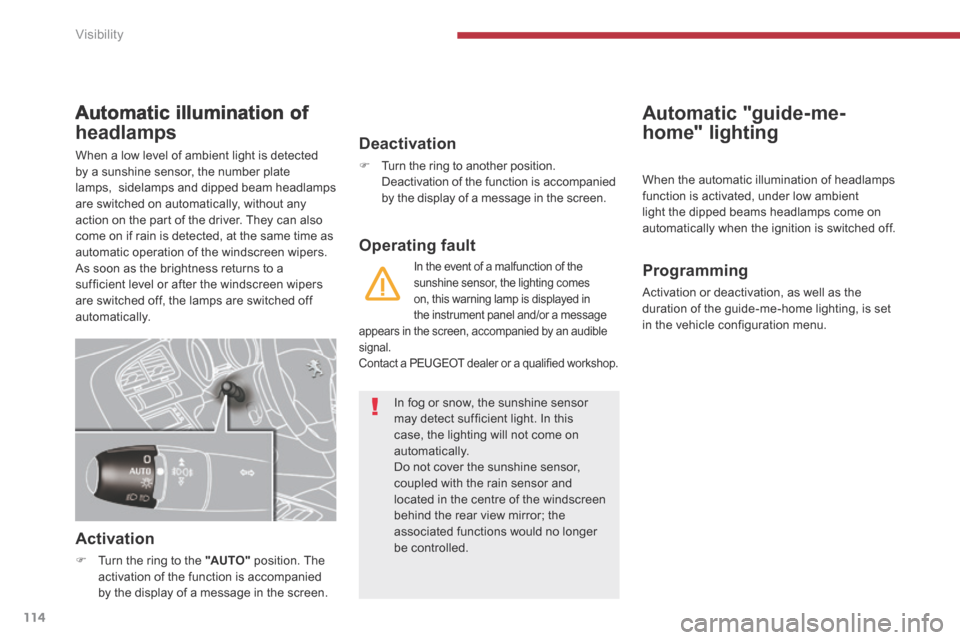

Automatic illumination of
headlamps
When a low level of ambient light is detected by a sunshine sensor, the number plate lamps, sidelamps and dipped beam headlamps are switched on automatically, without any action on the part of the driver. They can also come on if rain is detected, at the same time as automatic operation of the windscreen wipers. As soon as the brightness returns to a sufficient level or after the windscreen wipers are switched off, the lamps are switched off automatically.
Activation
 Turn the ring to the "AUTO" position. The activation of the function is accompanied by the display of a message in the screen.
Deactivation
 Turn the ring to another position. Deactivation of the function is accompanied by the display of a message in the screen.
When the automatic illumination of headlamps function is activated, under low ambient light the dipped beams headlamps come on automatically when the ignition is switched off.
Operating fault
In the event of a malfunction of the sunshine sensor, the lighting comes on, this warning lamp is displayed in the instrument panel and/or a message appears in the screen, accompanied by an audible signal. Contact a PEUGEOT dealer or a qualified workshop.
Automatic "guide-me-
home" lighting
Programming
Activation or deactivation, as well as the duration of the guide-me-home lighting, is set in the vehicle configuration menu.
In fog or snow, the sunshine sensor may detect sufficient light. In this
case, the lighting will not come on automatically. Do not cover the sunshine sensor, coupled with the rain sensor and located in the centre of the windscreen behind the rear view mirror; the associated functions would no longer be controlled.

5
Visibility115

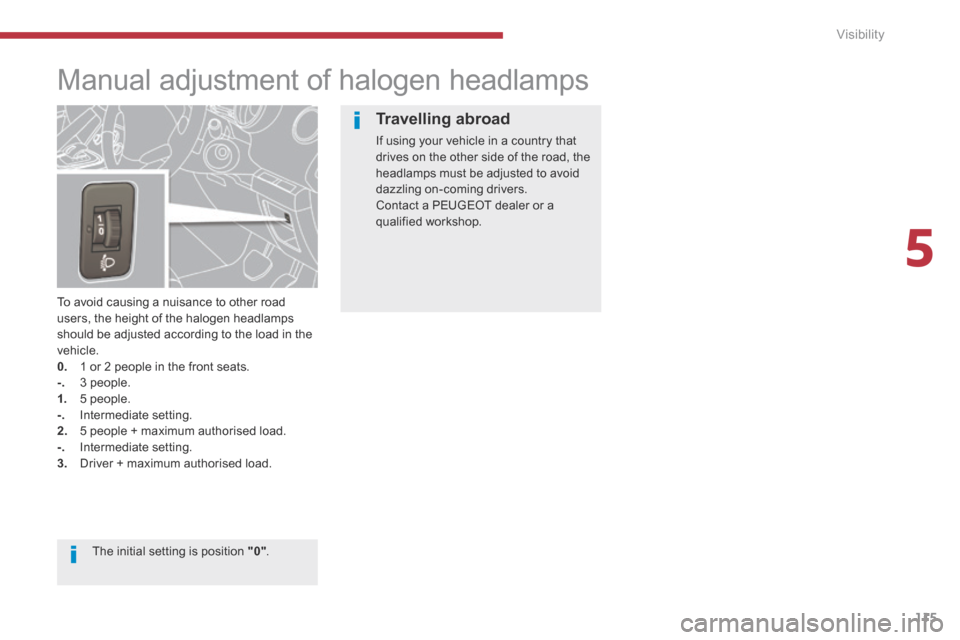

Manual adjustment of halogen headlamps
To avoid causing a nuisance to other road users, the height of the halogen headlamps should be adjusted according to the load in the vehicle. 0. 1 or 2 people in the front seats. -. 3 people. 1. 5 people. -. Intermediate setting.
2. 5 people + maximum authorised load. -. Intermediate setting. 3. Driver + maximum authorised load.
The initial setting is position "0" .
Travelling abroad
If using your vehicle in a country that drives on the other side of the road, the headlamps must be adjusted to avoid dazzling on-coming drivers. Contact a PEUGEOT dealer or a qualified workshop.

Visibility
116

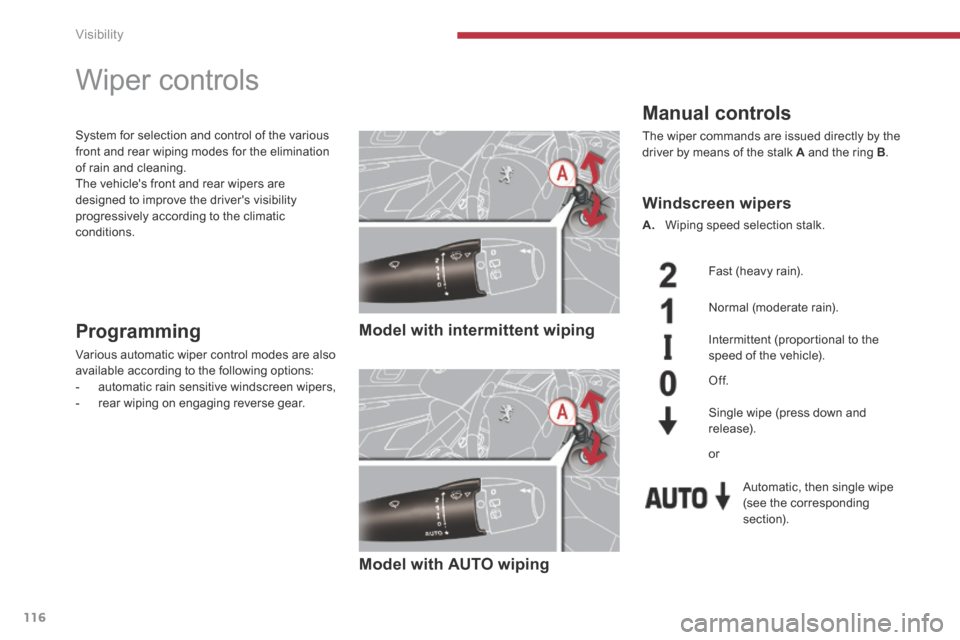

Wiper controls
Manual controls
The wiper commands are issued directly by the driver by means of the stalk A and the ring B .
Model with intermittent wiping
Model with AUTO wiping
Fast (heavy rain).
Normal (moderate rain).
Intermittent (proportional to the speed of the vehicle).
Automatic, then single wipe (see the corresponding section).
Of f.
Single wipe (press down and release).
Windscreen wipers
A. Wiping speed selection stalk.
or
Programming
Various automatic wiper control modes are also available according to the following options: - automatic rain sensitive windscreen wipers, - rear wiping on engaging reverse gear.
System for selection and control of the various front and rear wiping modes for the elimination of rain and cleaning. The vehicle's front and rear wipers are designed to improve the driver's visibility progressively according to the climatic conditions.

5
Visibility117

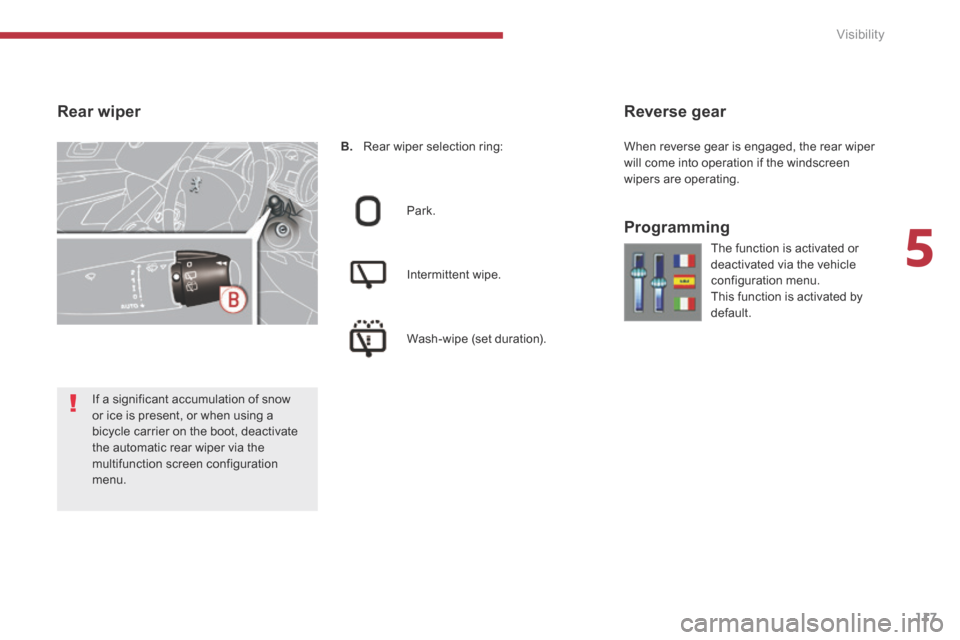

B. Rear wiper selection ring:
Park.
Intermittent wipe.
Wash-wipe (set duration).
Reverse gear
Programming
Rear wiper
The function is activated or deactivated via the vehicle configuration menu. This function is activated by default.
If a significant accumulation of snow or ice is present, or when using a bicycle carrier on the boot, deactivate the automatic rear wiper via the multifunction screen configuration menu.
When reverse gear is engaged, the rear wiper will come into operation if the windscreen wipers are operating.

Visibility
118

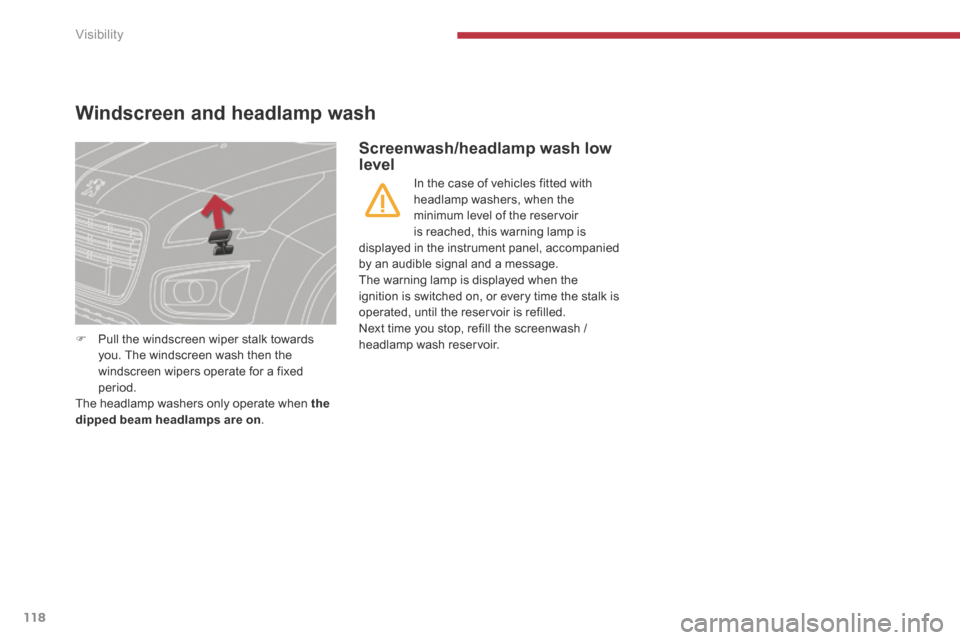

Windscreen and headlamp wash
 Pull the windscreen wiper stalk towards you. The windscreen wash then the windscreen wipers operate for a fixed period. The headlamp washers only operate when the dipped beam headlamps are on .
Screenwash/headlamp wash low level
In the case of vehicles fitted with headlamp washers, when the minimum level of the reservoir is reached, this warning lamp is displayed in the instrument panel, accompanied by an audible signal and a message. The warning lamp is displayed when the ignition is switched on, or every time the stalk is operated, until the reservoir is refilled. Next time you stop, refill the screenwash / headlamp wash reservoir.
