Peugeot 306 Break 2002 Repair Manual

55
4 - Adjusting the air flow
In the AUTO position the flow is con- trolled automatically in accordancewith the temperature selected.
You can, however, adjust the flow manually by turning the knob 4
according to the desired flow.
In AUTO mode, this automatically adjusts the temperature inside thevehicle according to your wishes (pre-
set temperature). To do this, the elec-tronic control unit adjusts the temper-ature and the flow of air at the ventsand operates the air conditioning
system if necessary. 5 - Recirculation of interior air Press the switch 5, the indicator light
comes on.The air conditioning comes into oper-
ation automatically. This position must only be used in exceptional circumstances to:
- improve the performance of the air conditioning,
- prevent the entry of external air (dust, unpleasant odours),
- speed up heating inside the vehicle with a risk of misting of the windows. Special features If the air distribution control is in the windscreen de-icing position, the airconditioning system will start operat-ing automatically when the engine isswitched on.
If the air flow control is in the AUTO position, and air recirculation isselected, air conditioning will startautomatically in order to prevent con-densation on the windows. When you switch on the ignition, the air conditioning will automaticallyreturn to the operating mode it was inwhen it was last used. If the inside
temperature is greatly different fromthe required temperature displayedand the outside temperature is above5 ¡C the air conditioning will switch onautomatically regardless of the posi-tion of the air flow control. When the ignition is switched on, if the system had been in air recircula-tion mode, the system will automati-cally allow entry of outside air unlessthe temperature inside the vehicle isover 30 ¡C.
Important precautions Operate the air conditioning system for 5 to 10 minutes once or twice amonth to keep it in good working
order. It is advisable to change the air con- ditioning system fluid every 2 years.
If the system is not producing cold air, stop using it and contact a
PEUGEOT dealer.
Y
OUR 306 IN DETAIL

YOUR 306 IN DETAIL 83
SEATS
1 - Forward-backwards adjustment Lift the lever and slide the seat forwards or backwards.
2 - Adjusting the driverÕs seat height Pull the telescopic handle forwards andpivot it up or down.
3 - Adjusting the seat back angle Turrn the knob to obtain the best angle(4/5-door and estate). Lift the handle to obtain the best angle (3-door).
4 - Lumbar adjustment* Turn the knob.
5 - Access to the rear seats (3-door) Lift the handle, tilt the seat-back andslide the seat forwards. When it slidesback, the seat will return to its originalposition.
6 - Head restraint Height adjustment: slide the headrestraint. Adjustment is correct when the top of the head restraint is level with the top of thehead. The angle of the head restraint can also be adjusted.
To remove the head restraint, press the tab and pull the head restraint upwards.
* According to specification.
6
5
4
2
1
3

84
YOUR 306 IN DETAIL
Heated seat controls* Press the switch.The temperature is controlled auto-
matically. Pressing a second time stops opera- tion.Isofix mounting** The Isofix mountings available on the two rear seats allow for the ins-tallation of
special child seats** ,
approved by UTAC for Peugeotvehicles and marketed within the
network. The fixings are available asan accessory and must be fitted by
an approved PEUGEOT dealer. The locks incorporated in the child seat fit onto the mounting and ensu-re quick, reliable and safe installation
of the seats. The combined use ofthe seat belt is compulsoryfor a for-
ward-facing child seat. In the front, it is compulsoryto fit
the child seat in the rear-facing posi- tion*** (in this instance it is imperati-ve to disarm the passenger airbag if
your vehicle is fitted with one). Theforward-facing position is permitted
in the rear.
* According to specification.
** During the model year.
*** According to current legislation.
For maximum safety, it is essential
to adjust the corresponding front seat to the intermediate longitudinalposition, seat back upright. Follow the instructions for fitting the child seat in the leaflet provi-ded when the child seat is purcha-sed.

85
YOUR 306 IN DETAIL

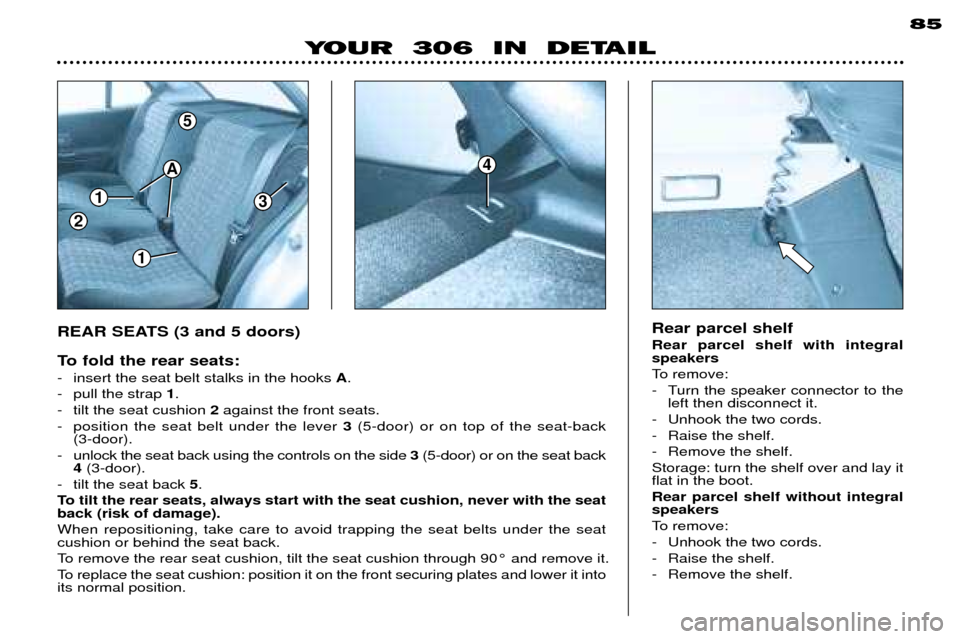

REAR SEATS (3 and 5 doors)
To fold the rear seats:
- insert the seat belt stalks in the hooks A.
- pull the strap 1.
- tilt the seat cushion 2against the front seats.
- position the seat belt under the lever 3(5-door) or on top of the seat-back
(3-door).
- unlock the seat back using the controls on the side 3(5-door) or on the seat back
4 (3-door).
- tilt the seat back 5.
To tilt the rear seats, always start with the seat cushion, never with the seat back (risk of damage). When repositioning, take care to avoid trapping the seat belts under the seat cushion or behind the seat back.
To remove the rear seat cushion, tilt the seat cushion through 90¡ and remove it.
To replace the seat cushion: position it on the front securing plates and lower it into its normal position. Rear parcel shelf Rear parcel shelf with integral speakers
To remove:
- Turn the speaker connector to the
left then disconnect it.
- Unhook the two cords.
- Raise the shelf.
- Remove the shelf.Storage: turn the shelf over and lay it flat in the boot. Rear parcel shelf without integral speakers
To remove:
- Unhook the two cords.
- Raise the shelf.
- Remove the shelf.
1
1
3
5
2
A4

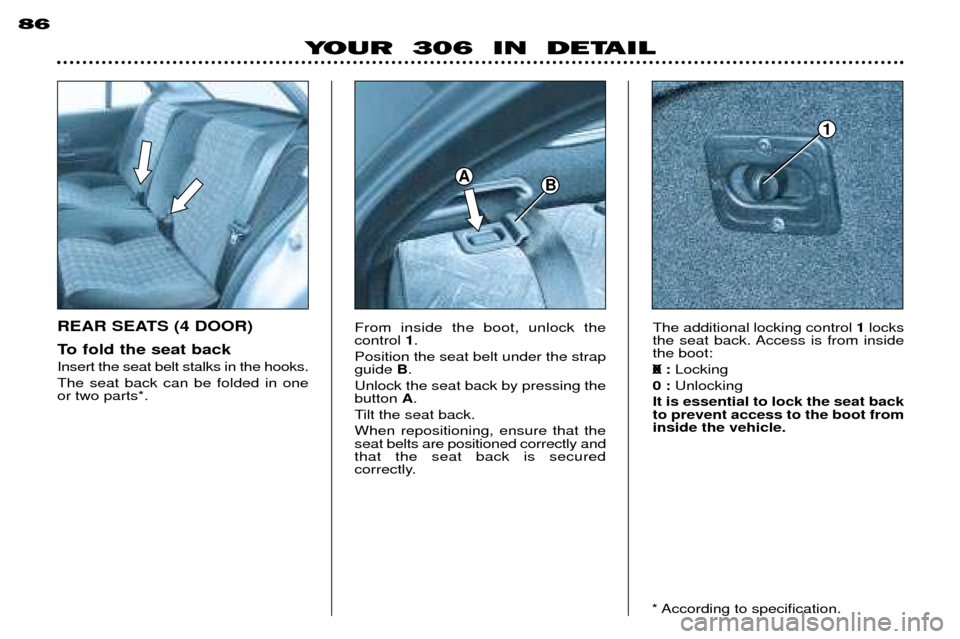

86The additional locking control 1locks
the seat back. Access is from inside the boot: 0 : Locking
0 : Unlocking
It is essential to lock the seat back to prevent access to the boot frominside the vehicle.
X
From inside the boot, unlock the control
1.
Position the seat belt under the strapguide B.
Unlock the seat back by pressing thebutton A.
Tilt the seat back. When repositioning, ensure that the seat belts are positioned correctly andthat the seat back is secured
correctly.
* According to specification.
AB
1
YOUR 306 IN DETAIL
REAR SEATS (4 DOOR)
To fold the seat back Insert the seat belt stalks in the hooks. The seat back can be folded in one or two parts*.

87
Luggage cover Access to the boot: -from the rear: fold the components
like an accordion.
- from the front (from the rear seats): raise the part behind the
seat back.
Retaining nets* The lashing points permit the use of a
luggage retaining net. A full heightload net is also available as an acces-
sory.
* According to specification.
1
4
3
A
2
YOUR 306 IN DETAIL
REAR SEATS (estate)
To fold the rear seats: - Insert the seat belt stalks in the hooks A.
- Pull the strap 1.
- Tilt the seat cushion 2against the front seats.
- Position the seat belt under the lever 3.
- Unlock the seat back using the controls on the side 3.
- Tilt the seat back 4.
To tilt the rear seats, always start with the seat cushion, never with the seat back (risk of damage). When repositioning, take care to avoid trapping the seat belts under the seat cushion or behind the seat back.
To remove the rear seat cushion, tilt the seat cushion through 90 degrees and remove it.
To replace the seat cushion: position it on the front securing plates and lower it into its normal position.

84
YOUR 306 IN DETAIL
Heated seat controls* Press the switch.The temperature is controlled auto-
matically. Pressing a second time stops opera- tion.Isofix mounting** The Isofix mountings available on the two rear seats allow for the ins-tallation of
special child seats** ,
approved by UTAC for Peugeotvehicles and marketed within the
network. The fixings are available asan accessory and must be fitted by
an approved PEUGEOT dealer. The locks incorporated in the child seat fit onto the mounting and ensu-re quick, reliable and safe installation
of the seats. The combined use ofthe seat belt is compulsoryfor a for-
ward-facing child seat. In the front, it is compulsoryto fit
the child seat in the rear-facing posi- tion*** (in this instance it is imperati-ve to disarm the passenger airbag if
your vehicle is fitted with one). Theforward-facing position is permitted
in the rear.
* According to specification.
** During the model year.
*** According to current legislation.
For maximum safety, it is essential
to adjust the corresponding front seat to the intermediate longitudinalposition, seat back upright. Follow the instructions for fitting the child seat in the leaflet provi-ded when the child seat is purcha-sed.

CHILD SEATS All children under the age of 10 are required to travel in approved child safety seats*, fitted with seat belts.
After carrying out numerous tests, PEUGEOT recommend the following systems :Up to 9 months (up to 22 lbs. or 10 kg) ÇBaby SafeÈ, a seat secured with its back to the engine and secured with a three-point seat belt, on either the front or rear seat.
From 9 months to 3 or 4 years (20 to 40 lbs. or 9 to 18 kg)
ÇRšmer PeggyÈ is fitted to the rear seat with a two-point (lap-belt) or three-pointbelt.
Over 3 or 4 years old (33 to 80 lbs or 15 to 36 kg) ÒKlippan OptimaÓ : is fitted in the rear with a three point belt (removable seatback). from 33 to 55 lbs. [15 to 25 kg] : booster + seatback.from 55 to 80 lbs. [25 to 36 kg] : use the booster on its own.
For maximum safety, fasten the three-point seat belts or the child seat straps keeping
the slack in relation to the childÕs body to a minimum, even for short journeys.
To prevent the doors from opening accidentally: use the child-proof lock.Also, do not open the rear windows more than a third.
88
YOUR 306 IN DETAIL
Never leave a child in a vehicle which is exposedto the sun and has thewindows closed.
To protect young children
from the sun, fit sunblinds to the rear windows. Never leave the keys in the reach
of children inside the car. Strap children into their child seats even on short journeys. Observe the precautions concern- ing the passenger airbag.
This was one of PEUGEOTÕs main criteria when designing your vehicle, however the safety of your children also depends on you. For maximum peace of mind,please follow these simple precautions: *According to current legislation
1
2
3
123

89
YOUR 306 IN DETAIL
To adjust the height of the front seat belts Pull the knob 1and slide it.
To lock the seat beltsPull the strap, then insert the end into the buckle. Pre-tensioning and force-limiting front seat belts* Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning and force-limit-ing front seat belts. Depending on theseriousness of the impact, the pre-tensioning system instantly tightensthe seat belts firmly against the bodyof the occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt against the
occupantÕs body in the event of anaccident. Rear seat belts 4-door:
the rear seats are fitted with
3 three-point inertia reel seat belts.
3/5-door, estate: The rear seats are
fitted with 2 three-point inertia reel seat belts and one lap belt. Use the buckle retaining hooks when the rear seats are not occupied.
* According to specification. To be effective, a seat belt must be tensioned asclose to the body as pos-sible.
Depending on the nature and seri-ousness of the impact the pre-ten-sioning system may be triggeredbefore and independently of theairbags. In all cases, the airbag warning light comes on. Following an impact, have the system checked by a PEUGEOT
dealer. The system has been designed to be fully operational for ten years. Have it replaced at the end of this period.
1
SAFETY: SEAT BELTS

THE REMOTE CONTROL
A single press on button Alocks the
doors and boot or tailgate, this is dis- played by the direction indicatorsstaying on for about 2 seconds.
A single press on button Bunlocks
the vehicle, this is displayed by the
direction indicators flashing rapidly.
YOUR 306 IN DETAIL
78
KEYS
Without central locking The key individually Iocks and unlocks the doors and boot or tailgate.
With central locking
Turning the key in the driverÕs door lock will lock or unlock the doors andboot or tailgate. If either of the frontdoors is not closed, the central lockingwill not work.
CHANGING THE REMOTE
CONTROL BATTERIES
To gain access to the battery, unclip the key casing with a coin where youcan see the ring (CR1620/3 volt battery). If the remote control does not work after the battery has been changed,re-programme the remote control. PROGRAMMING THE REMOTE CONTROL Manual synchronisation
- Switch off the ignition,
- Switch on the ignition,
- Immediately after switching on the
ignition press button A.
The remote control is now working again. Automatic synchronisation
- Switch on the ignition (position M),
- Switch off the ignition and, during the next four minutes, lock the vehicle using the remote control(button A).
The remote control is now workingagain.
Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You riskcausing it not to work and the remotecontrol would have to be repro-grammed.
