boot Peugeot 306 Break 2002 Owner's Manual

YOUR 306 AT A GLANCE
6
FRONT AIRBAGS Disarming the passenger airbag Insert the ignition key in switch 1
and turn it:
Ð to the ÒONÓposition, the pas-
senger airbag is armed,
Ð to the ÒOFFÓposition, the pas-
senger airbag is not armed.
THE REMOTE CONTROL
A single press on button Alocks
the doors and boot or tailgate.
A single press on button Bunlocks
the vehicle.
KEYS
Using the key in the driverÕs door lock will lock or unlock the doorsand boot or tailgate.
Passenger airbag precautions
For a vehicle fitted with a disarm- ing switch:
Ð disarm theairbag if youinstall arearwards-facing childseat.
Ð arm the airbag whenan adult is inthe seat.
For a vehicle not fitted with a dis-arming switch:
Ð do not install rear-wards-facing childseats on the frontpassenger seat.
Never place your feet or anyobject on the fascia.
A
B
Operational Check This is by means of the warning light on the instrument panel. If the passenger airbag is armed or if your vehicle is not fitted with apassenger airbag, the warninglight comes on for 6 seconds whenthe ignition is switched on. If the passenger airbag is notarmed, one of the warning lightsremains on. Always contact your PEUGEOT dealer if the warning light flashes.
108
**** According to model.

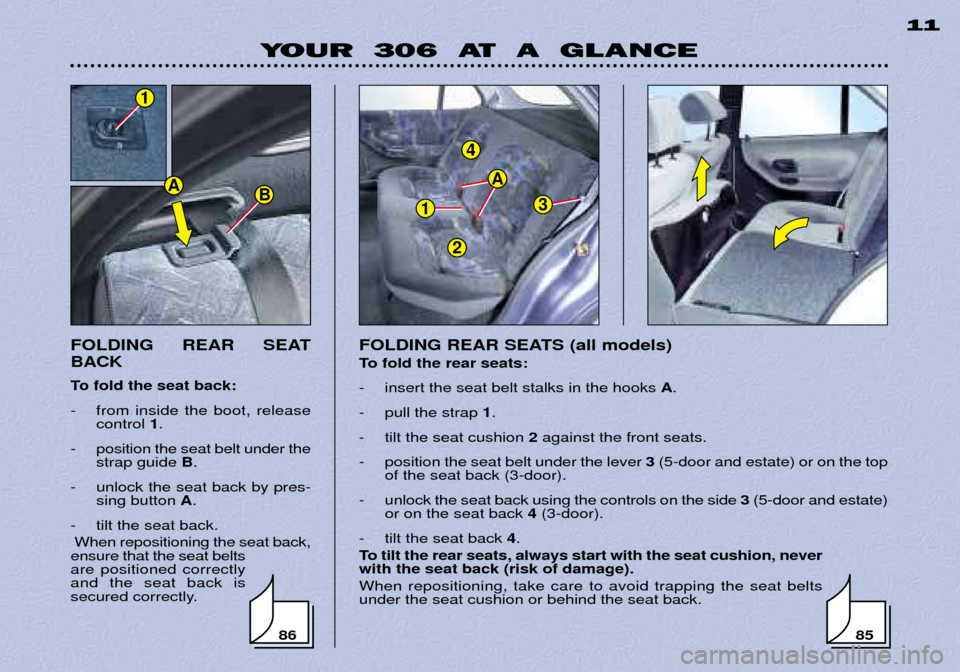

YOUR 306 AT A GLANCE11
FOLDING REAR SEAT BACK
To fold the seat back:
- from inside the boot, release control 1.
- position the seat belt under the strap guide B.
- unlock the seat back by pres- sing button A.
- tilt the seat back. When repositioning the seat back,
ensure that the seat belts are positioned correctlyand the seat back is
secured correctly.
FOLDING REAR SEATS (all models)
To fold the rear seats:
- insert the seat belt stalks in the hooks A.
- pull the strap 1.
- tilt the seat cushion 2against the front seats.
- position the seat belt under the lever 3(5-door and estate) or on the top
of the seat back (3-door).
- unlock the seat back using the controls on the side 3(5-door and estate)
or on the seat back 4 (3-door).
- tilt the seat back 4.
To tilt the rear seats, always start with the seat cushion, never with the seat back (risk of damage). When repositioning, take care to avoid trapping the seat belts under the seat cushion or behind the seat back.
8586
1
4
3
A
2
AB
1

MAINTENANCE OF YOUR 30623
PEUGEOT SERVICING LEVELS A AND C
First Level
Operations Description of operations
serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel).- Oil filter.- Fuel filter (Petrol).REPLACEMENT- Fuel filter element (Diesel).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Smoke opacity (Diesel).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
: All driving conditions : Arduous conditions

85
YOUR 306 IN DETAIL
REAR SEATS (3 and 5 doors)
To fold the rear seats:
- insert the seat belt stalks in the hooks A.
- pull the strap 1.
- tilt the seat cushion 2against the front seats.
- position the seat belt under the lever 3(5-door) or on top of the seat-back
(3-door).
- unlock the seat back using the controls on the side 3(5-door) or on the seat back
4 (3-door).
- tilt the seat back 5.
To tilt the rear seats, always start with the seat cushion, never with the seat back (risk of damage). When repositioning, take care to avoid trapping the seat belts under the seat cushion or behind the seat back.
To remove the rear seat cushion, tilt the seat cushion through 90¡ and remove it.
To replace the seat cushion: position it on the front securing plates and lower it into its normal position. Rear parcel shelf Rear parcel shelf with integral speakers
To remove:
- Turn the speaker connector to the
left then disconnect it.
- Unhook the two cords.
- Raise the shelf.
- Remove the shelf.Storage: turn the shelf over and lay it flat in the boot. Rear parcel shelf without integral speakers
To remove:
- Unhook the two cords.
- Raise the shelf.
- Remove the shelf.
1
1
3
5
2
A4

86The additional locking control 1locks
the seat back. Access is from inside the boot: 0 : Locking
0 : Unlocking
It is essential to lock the seat back to prevent access to the boot frominside the vehicle.
X
From inside the boot, unlock the control
1.
Position the seat belt under the strapguide B.
Unlock the seat back by pressing thebutton A.
Tilt the seat back. When repositioning, ensure that the seat belts are positioned correctly andthat the seat back is secured
correctly.
* According to specification.
AB
1
YOUR 306 IN DETAIL
REAR SEATS (4 DOOR)
To fold the seat back Insert the seat belt stalks in the hooks. The seat back can be folded in one or two parts*.

87
Luggage cover Access to the boot: -from the rear: fold the components
like an accordion.
- from the front (from the rear seats): raise the part behind the
seat back.
Retaining nets* The lashing points permit the use of a
luggage retaining net. A full heightload net is also available as an acces-
sory.
* According to specification.
1
4
3
A
2
YOUR 306 IN DETAIL
REAR SEATS (estate)
To fold the rear seats: - Insert the seat belt stalks in the hooks A.
- Pull the strap 1.
- Tilt the seat cushion 2against the front seats.
- Position the seat belt under the lever 3.
- Unlock the seat back using the controls on the side 3.
- Tilt the seat back 4.
To tilt the rear seats, always start with the seat cushion, never with the seat back (risk of damage). When repositioning, take care to avoid trapping the seat belts under the seat cushion or behind the seat back.
To remove the rear seat cushion, tilt the seat cushion through 90 degrees and remove it.
To replace the seat cushion: position it on the front securing plates and lower it into its normal position.

THE REMOTE CONTROL
A single press on button Alocks the
doors and boot or tailgate, this is dis- played by the direction indicatorsstaying on for about 2 seconds.
A single press on button Bunlocks
the vehicle, this is displayed by the
direction indicators flashing rapidly.
YOUR 306 IN DETAIL
78
KEYS
Without central locking The key individually Iocks and unlocks the doors and boot or tailgate.
With central locking
Turning the key in the driverÕs door lock will lock or unlock the doors andboot or tailgate. If either of the frontdoors is not closed, the central lockingwill not work.
CHANGING THE REMOTE
CONTROL BATTERIES
To gain access to the battery, unclip the key casing with a coin where youcan see the ring (CR1620/3 volt battery). If the remote control does not work after the battery has been changed,re-programme the remote control. PROGRAMMING THE REMOTE CONTROL Manual synchronisation
- Switch off the ignition,
- Switch on the ignition,
- Immediately after switching on the
ignition press button A.
The remote control is now working again. Automatic synchronisation
- Switch on the ignition (position M),
- Switch off the ignition and, during the next four minutes, lock the vehicle using the remote control(button A).
The remote control is now workingagain.
Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You riskcausing it not to work and the remotecontrol would have to be repro-grammed.
A
B

SPECIAL FEATURES
124
DEADLOCKING* Deadlocking is an additional security device which means that the interior and exterior door controls cannot open the doors, when deadlocked. Deadlocking can be carried out in two ways:
- With the remote control.
- With the ignition key.
To operate deadlocking After locking the doors you have five seconds in which to operate the dead- locking. If using the remote control:
- press button
1once to lock your vehicle, the direction indicators stay on for
2 seconds.
- press button 1for a second time within the five seconds to deadlock your vehi-
cle, the direction indicators flash once.
- press button 2to unlock your vehicle, the direction indicators flash several times.
If using the ignition key, keep the key in the lock of one of the front doors, with the key turned towards the rear of the vehicle (turn the key towards the front to unlock).
To unlock the doors and boot or tailgate Place the ignition key in the lock of one of the front doors and turn ittowards the front of the vehicle.
Alternatively, press button 2on the
remote control.
* According to specification. Important After deadlocking, anybody inside
the car, and without the remotecontrol, will not be able to get out
by themselves. The doors canonly be unlocked by using theremote control, or the ignition keyin the door lock. If the battery is disconnected deadlocking remains activated. Itis still possible to open one of the
front doors using the ignition key,but the key will only open that par-
ticular door.
1
2

SPECIAL FEATURES125
To programme the remote control(s)
To programme the deadlocking remote controls key(s) (on first use):
- the doors must be unlocked.
- use the key with remote control to
turn on the ignition (to position A
ÒaccessoriesÓ).
- immediately press the large button on the key.
- turn off the ignition. To check that programming has been correctly carried out:
- press button
1on the remote con-
trol key (or one of the remote con- trol keys*).
- the doors and boot or tailgate will lock.
- if this is not the case: repeat the programming.Do not operate the dead- locking if there is some-one inside the vehicle. Keep your key reference
number in a safe place. This will enable you to order a new key if the key is lost or stolen. Check that the batteries are in good condition. If the red indicator light comes on this indicates correct operation ofthe transmitter but not that thedoors have been opened orlocked; wait at least one secondbetween each attempt.
* According to specification.

SPECIAL FEATURES
126
ALARM SYSTEM* Setting and disarming the alarm Switching off the siren The alarm completes the security equipment of your vehicle. It com-prises two types of protection: -exterior protection: when this is
set, the alarm sounds if a door,
the bonnet, the boot or the tail- gate are opened.
- interior sensor protection: when
it is set, the alarm sounds if thesensors detect a variation in the
air movement inside the vehicle(breaking of a window) or amovement inside the vehicle.
It is also equipped with an anti-
tamper function. If an attempt is made to neutralise the leads to the siren, the centralcontrol or the battery:
- the alarm is triggered,- the siren sounds, the headlights come on*. To set the alarm (exterior and interior protection) The ignition must be switched off.
You must be outside the vehiclePress the locking button of the remote control key (if your vehiclehas deadlocking, you then need topress this button again). The doors will lock.The direction indicators come on continuously for two seconds. The red lamp on the switch flashes once a second. Five seconds afterwards : the exteri- or protection is set. Fifty seconds afterwards : the interi- or protection is set. Note :
when the alarm is triggered,
the siren sounds for thirty seconds. It then stops, but the alarm remains set.
Warning
If, on setting the alarm, a door, the boot, tailgate or the bonnet are notproperly closed, the siren will be trig-
gered briefly. If the vehicle is proper-ly closed within forty five secondsafter this, the alarm is set, the direc-tion indicators come on continuouslyfor two seconds. In all cases the alarm is set forty five seconds afterwards. To disarm the alarm (exteriorand interior protection) Press the unlocking button on the remote control. The doors unlock.The direction indicators flash for two seconds. The red lamp on the switch goes out.Note :
if the lamp continues to flash
after disarming the alarm, it is
because it has been triggered. Thisflashing will stop on switching on theignition.
* According to specification.
