Peugeot 308 2014 Owners Manual

89
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

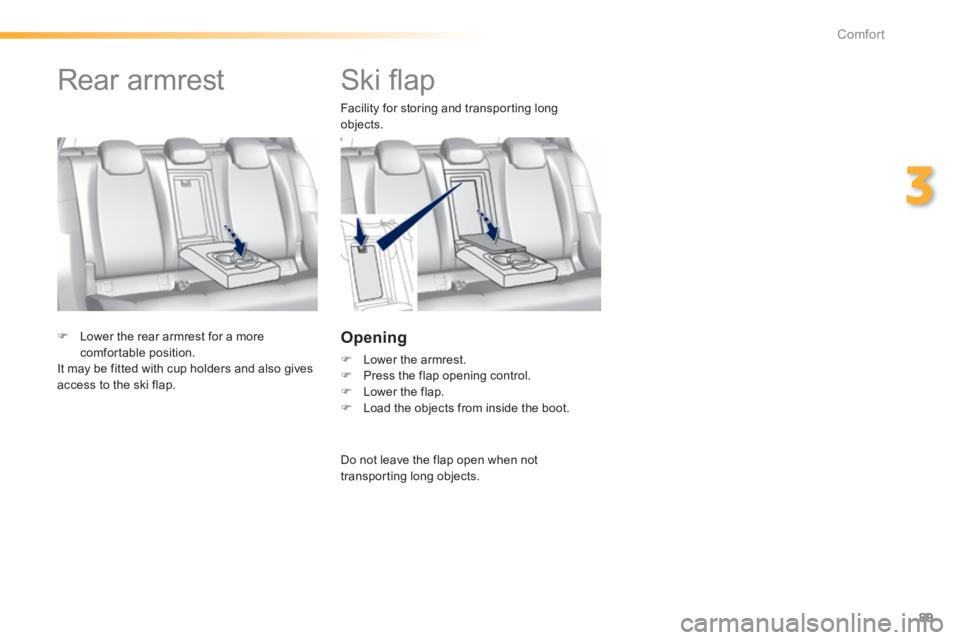

Ski fl ap
Facility for storing and transporting long objects.
Opening
 Lower the armrest.  Press the flap opening control.  Lower the flap.  Load the objects from inside the boot.
 Lower the rear armrest for a more comfortable position. It may be fitted with cup holders and also gives access to the ski flap.
Rear armrest
Do not leave the flap open when not transporting long objects.

90
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

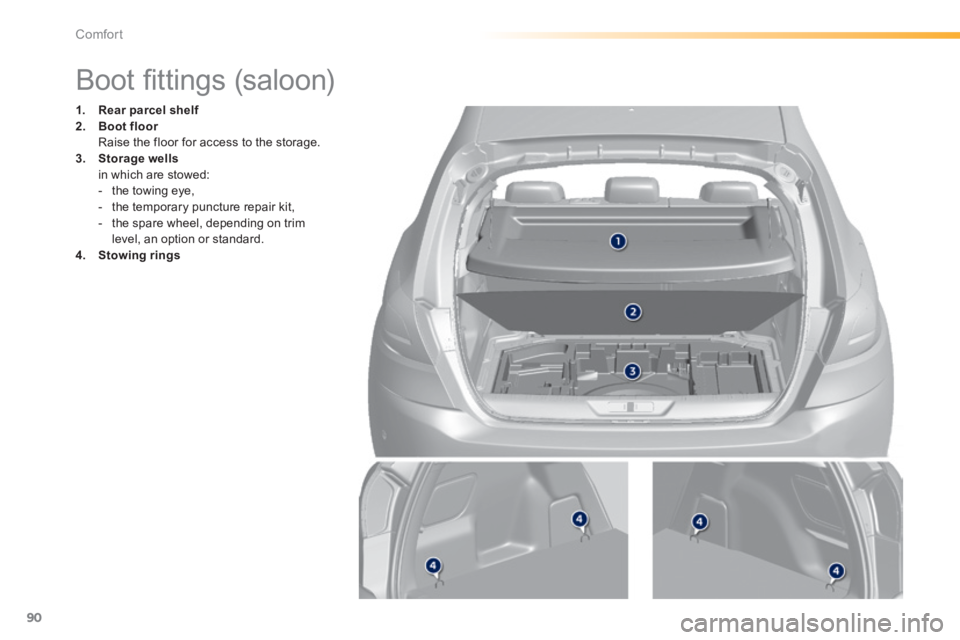

Boot fi ttings (saloon)
1. Rear parcel shelf2. Boot floor Boot floor Boot floor Raise the floor for access to the storage. 3. Storage wells in which are stowed: - the towing eye, - the temporary puncture repair kit, - the spare wheel, depending on trim level, an option or standard. 4. Stowing rings

91
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

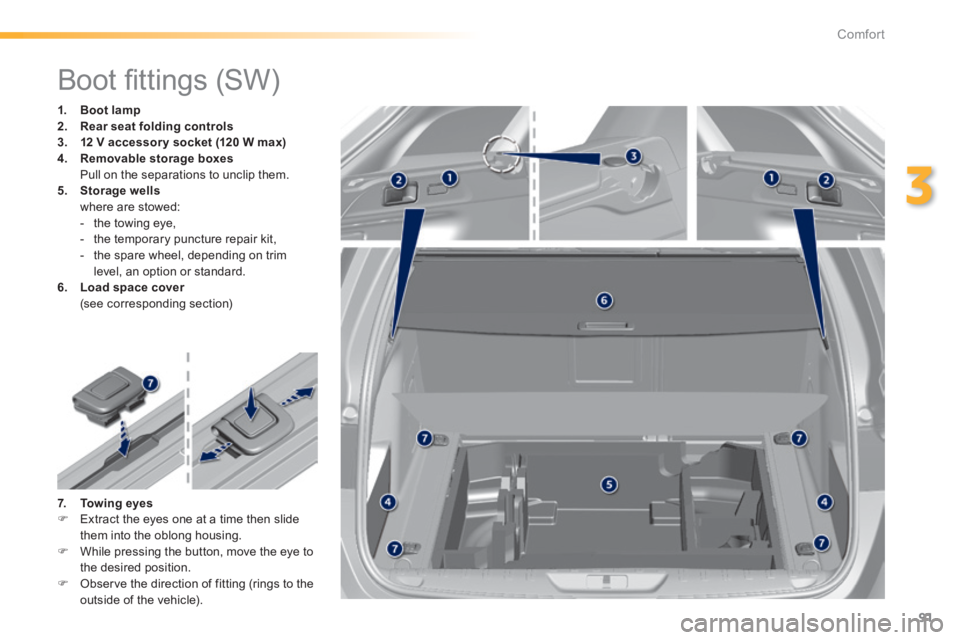

Boot fi ttings (SW)
1. Boot lamp2. Rear Rear Rearseat folding controls3. 12 V accessor y socket (120 W max)4. Removable storage boxes Pull on the separations to unclip them. 5. Storage wells where are stowed: - the towing eye, - the temporary puncture repair kit, - the spare wheel, depending on trim level, an option or standard. 6. Load space cover Load space cover Load space cover (see corresponding section)
7. Towing eyes Extract the eyes one at a time then slide them into the oblong housing.  While pressing the button, move the eye to the desired position.  Observe the direction of fitting (rings to the
outside of the vehicle).

92
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

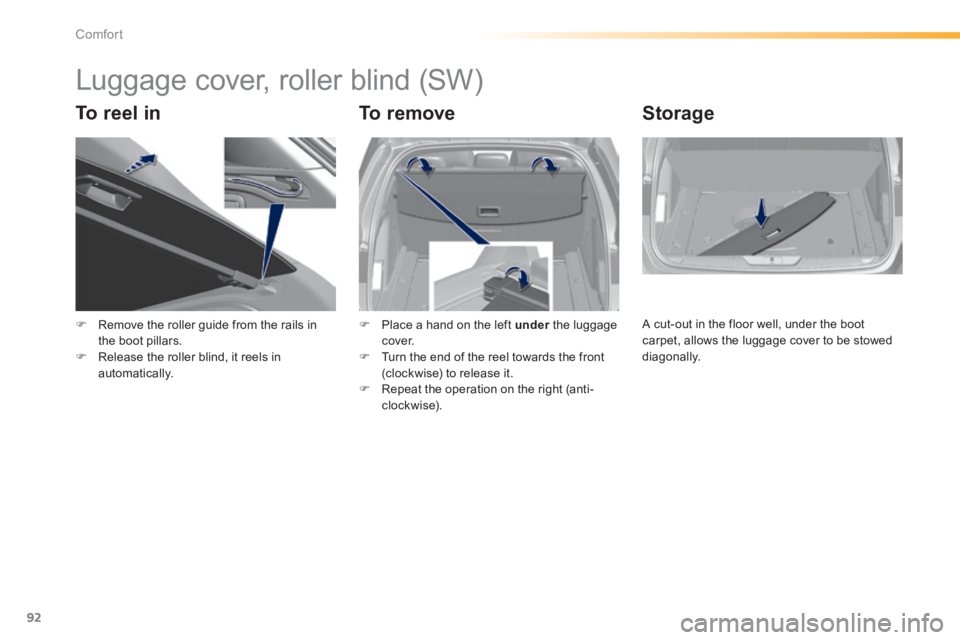

Luggage cover, roller blind (SW)
To reel in To remove Storage
 Remove the roller guide from the rails in the boot pillars.  Release the roller blind, it reels in automatically.
 Place a hand on the left under the luggage under the luggage undercover.  Turn the end of the reel towards the front (clockwise) to release it.  Repeat the operation on the right (anti-clockwise).
A cut-out in the floor well, under the boot carpet, allows the luggage cover to be stowed diagonally.

93
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

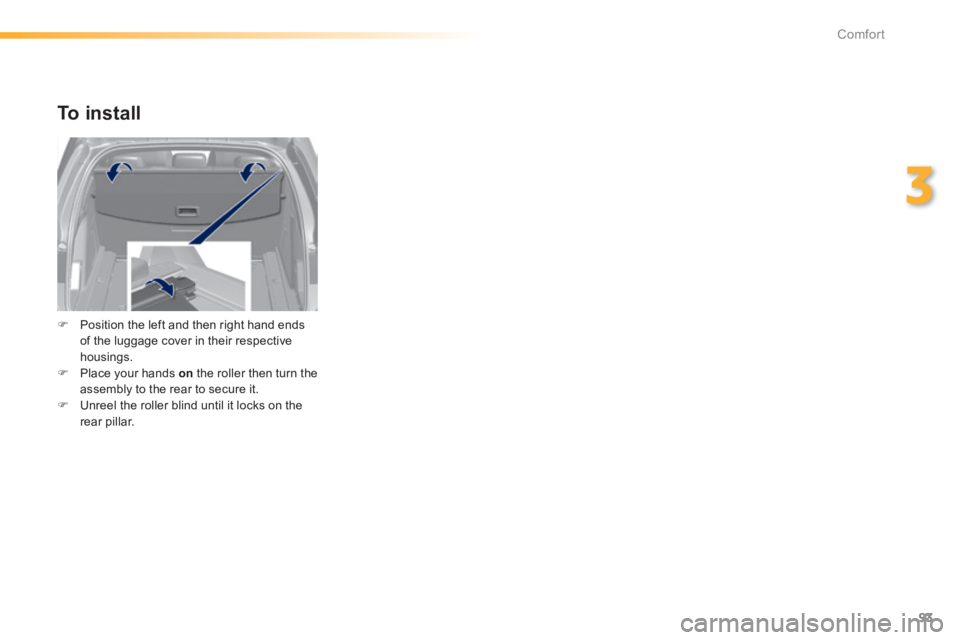

To install
 Position the left and then right hand ends of the luggage cover in their respective housings.  Place your hands on the roller then turn the assembly to the rear to secure it.  Unreel the roller blind until it locks on the rear pillar.

94
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

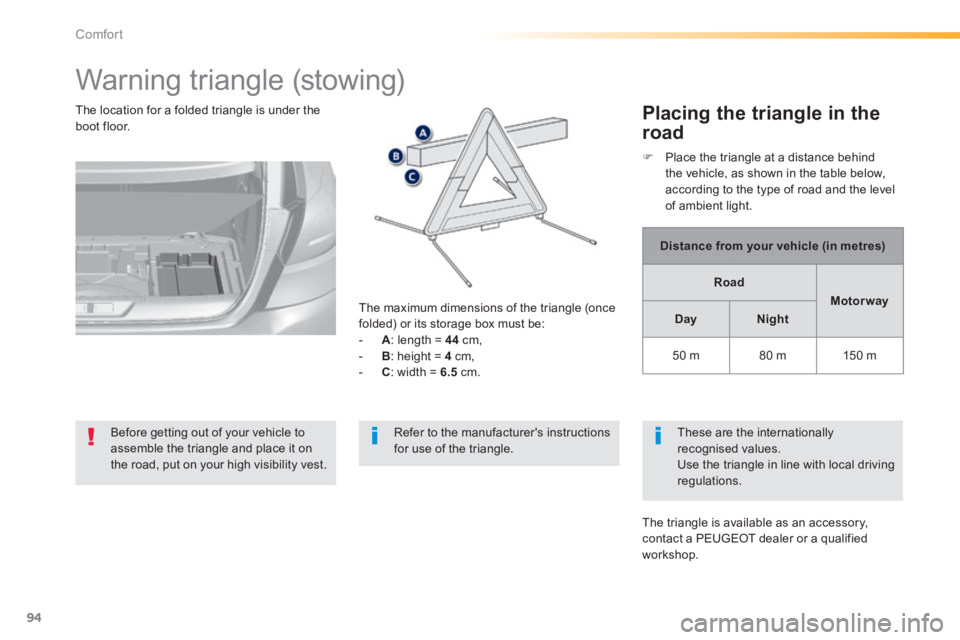

Warning triangle (stowing)
Before getting out of your vehicle to assemble the triangle and place it on the road, put on your high visibility vest.
The maximum dimensions of the triangle (once folded) or its storage box must be: - A : length = 44 cm, - B : height = 4 cm, - C : width = 6.5 cm.
The location for a folded triangle is under the boot floor. Placing the triangle in the
road
Distance from your vehicle (in metres)
Road
Motor way
DayNight
50 m 80 m 150 m
These are the internationally recognised values. Use the triangle in line with local driving regulations.
The triangle is available as an accessory, contact a PEUGEOT dealer or a qualified workshop.
 Place the triangle at a distance behind the vehicle, as shown in the table below, according to the type of road and the level of ambient light.
Refer to the manufacturer's instructions for use of the triangle.

95
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

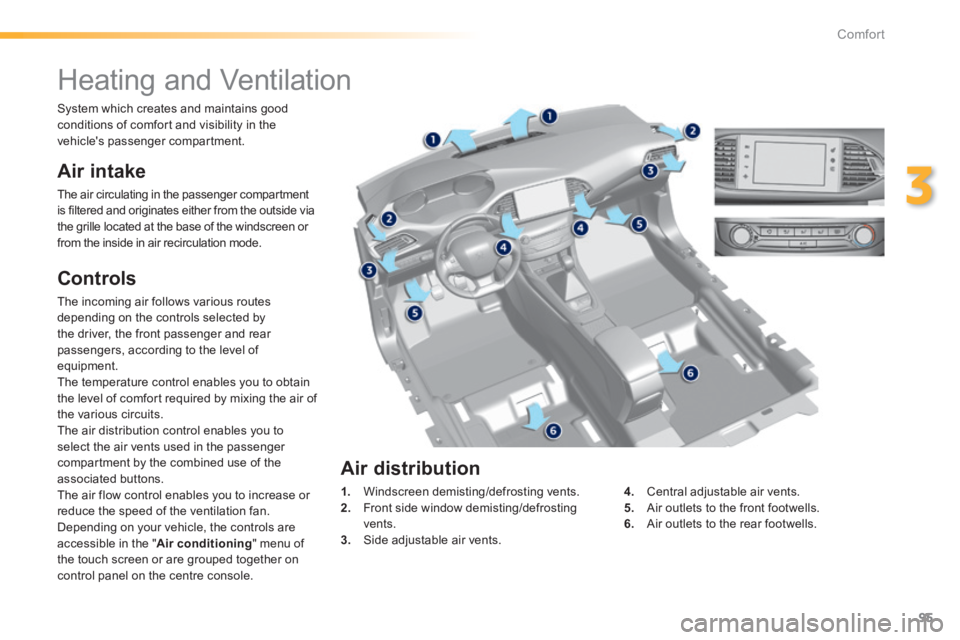

Heating and Ventilation
Air intake
The air circulating in the passenger compartment is filtered and originates either from the outside via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Controls
The incoming air follows various routes depending on the controls selected by the driver, the front passenger and rear passengers, according to the level of equipment. The temperature control enables you to obtain the level of comfort required by mixing the air of the various circuits. The air distribution control enables you to select the air vents used in the passenger compartment by the combined use of the associated buttons. The air flow control enables you to increase or reduce the speed of the ventilation fan. Depending on your vehicle, the controls are accessible in the " Air conditioning " menu of the touch screen or are grouped together on control panel on the centre console.
1. Windscreen demisting/defrosting vents. 2. Front side window demisting/defrosting vents. 3. Side adjustable air vents.
4. Central adjustable air vents. 5. Air outlets to the front footwells. 6. Air outlets to the rear footwells.
Air distribution
System which creates and maintains good conditions of comfort and visibility in the vehicle's passenger compartment.

96
Comfort
308_EN_CHAP03_CONFORT_ED02-2013
In order for these systems to be fully effective, follow the operation and maintenance guidelines below:  To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as well as the air extractor located in the boot.  Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the air conditioning system.  Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month to keep it in per fect working order.  Ensure that the passenger compartment filter is in good condition and have the filter elements replaced regularly. We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by the occupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).  To ensure correct operation of the air conditioning system, you are also advised to have it checked regularly as recommended in the warranty and maintenance record.  If the system does not produce cold air, switch it off and contact a PEUGEOT dealer or a qualified workshop.

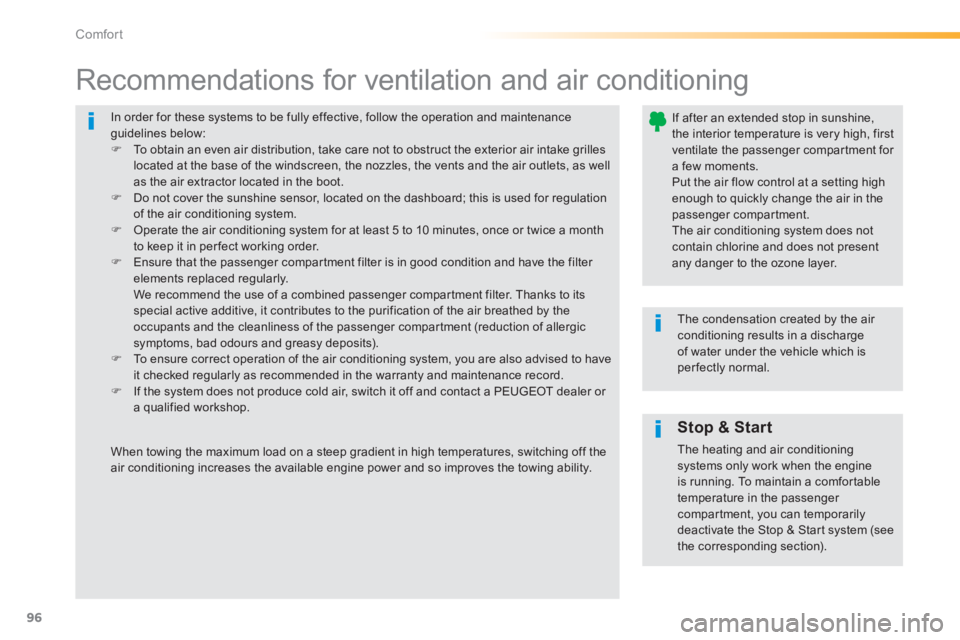

Recommendations for ventilation and air conditioning
If after an extended stop in sunshine, the interior temperature is very high, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does not contain chlorine and does not present any danger to the ozone layer.
The condensation created by the air conditioning results in a discharge of water under the vehicle which is per fectly normal.
When towing the maximum load on a steep gradient in high temperatures, switching off the air conditioning increases the available engine power and so improves the towing ability.
Stop & Start
The heating and air conditioning systems only work when the engine
is running. To maintain a comfortable temperature in the passenger compartment, you can temporarily deactivate the Stop & Start system (see the corresponding section).

97
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

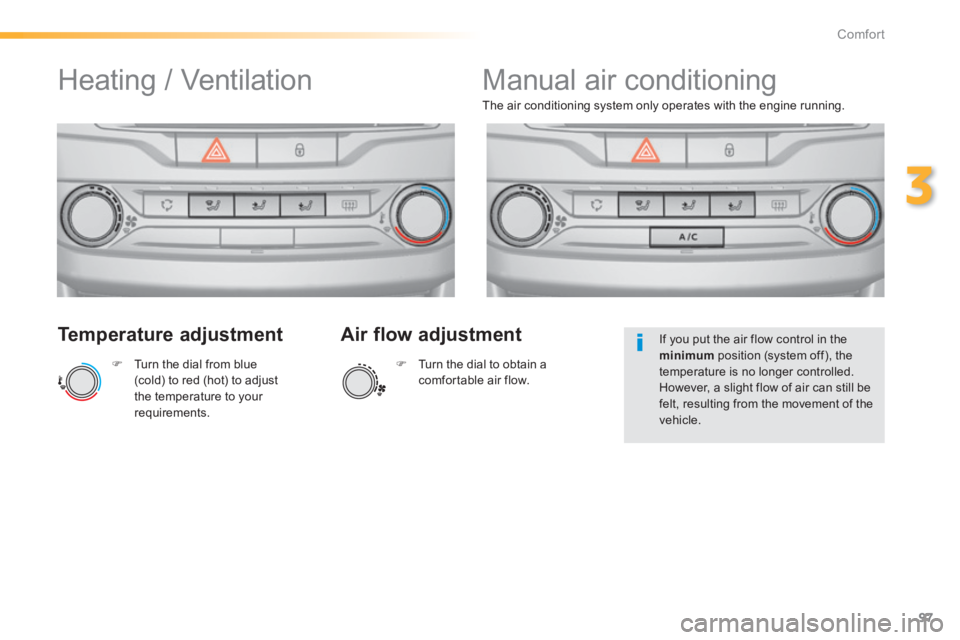

Temperature adjustment
 Turn the dial from blue (cold) to red (hot) to adjust the temperature to your requirements.
The air conditioning system only operates with the engine running.
Air flow adjustment
 Turn the dial to obtain a comfortable air flow.
If you put the air flow control in the minimum position (system off), the temperature is no longer controlled. However, a slight flow of air can still be felt, resulting from the movement of the vehicle.
Manual air conditioning
Heating / Ventilation

98
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

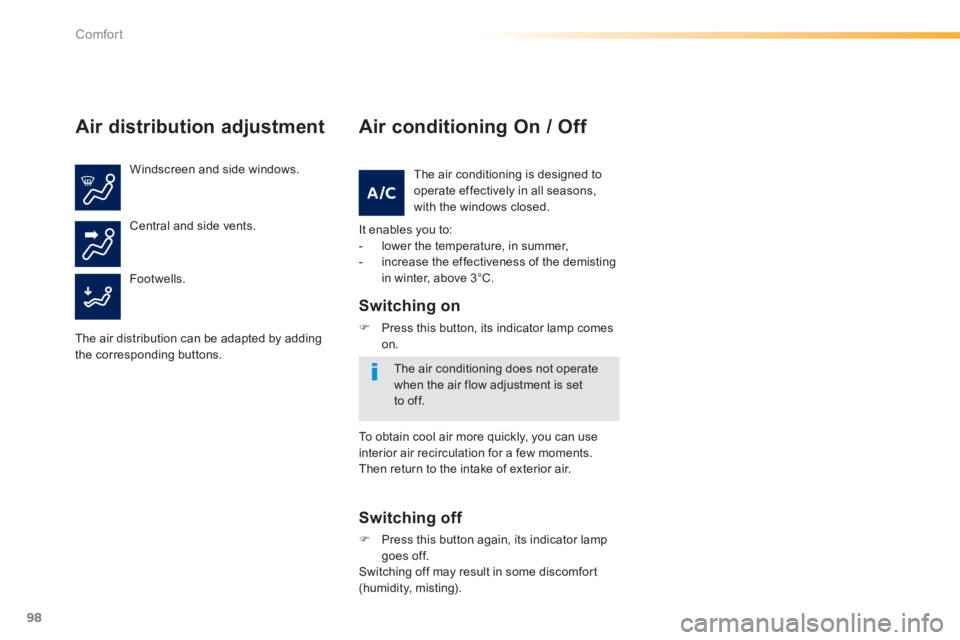

Air distribution adjustment
Windscreen and side windows.
Footwells.
Central and side vents.
The air distribution can be adapted by adding the corresponding buttons.
Air conditioning On / Off
It enables you to: - lower the temperature, in summer, - increase the effectiveness of the demisting in winter, above 3°C.
Switching on
 Press this button, its indicator lamp comes on.
Switching off
 Press this button again, its indicator lamp goes off. Switching off may result in some discomfort (humidity, misting).
The air conditioning is designed to operate effectively in all seasons, with the windows closed.
The air conditioning does not operate when the air flow adjustment is set to off.
To obtain cool air more quickly, you can use interior air recirculation for a few moments. Then return to the intake of exterior air.
