Peugeot 308 2014 Owner's Manual

109
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

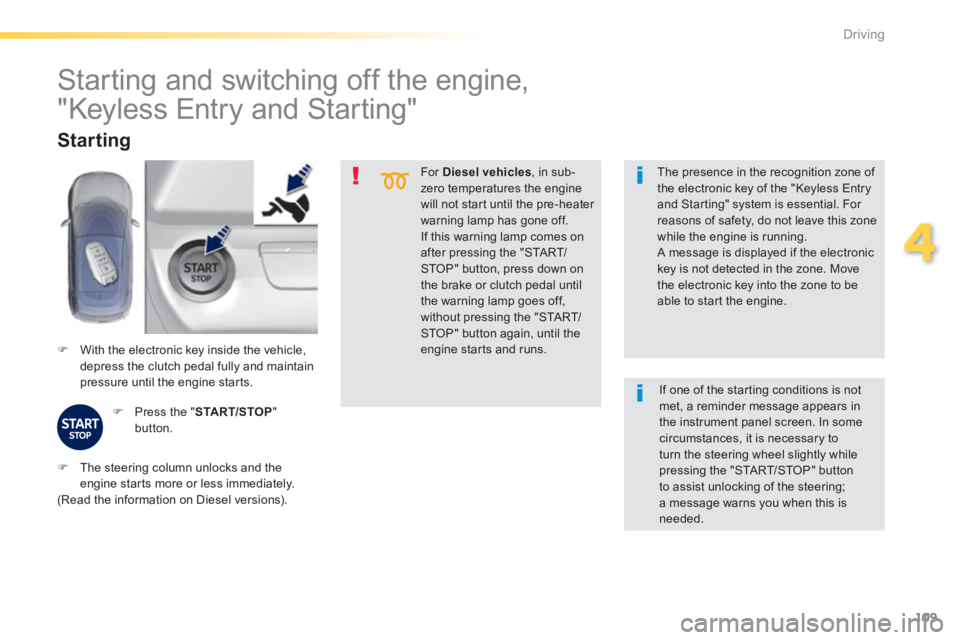

For Diesel vehicles , in sub-zero temperatures the engine will not start until the pre-heater warning lamp has gone off.
If this warning lamp comes on after pressing the "START/STOP" button, press down on the brake or clutch pedal until the warning lamp goes off, without pressing the "START/STOP" button again, until the engine starts and runs.  With the electronic key inside the vehicle, depress the clutch pedal fully and maintain pressure until the engine starts.
Starting
 Press the " START/STOP " button.
The presence in the recognition zone of the electronic key of the "Keyless Entry and Starting" system is essential. For reasons of safety, do not leave this zone
while the engine is running. A message is displayed if the electronic key is not detected in the zone. Move the electronic key into the zone to be able to start the engine.
Starting and switching off the engine,
"Keyless Entry and Starting"
 The steering column unlocks and the engine starts more or less immediately. (Read the information on Diesel versions).
If one of the starting conditions is not met, a reminder message appears in the instrument panel screen. In some circumstances, it is necessary to turn the steering wheel slightly while pressing the "START/STOP" button to assist unlocking of the steering; a message warns you when this is needed.

110
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

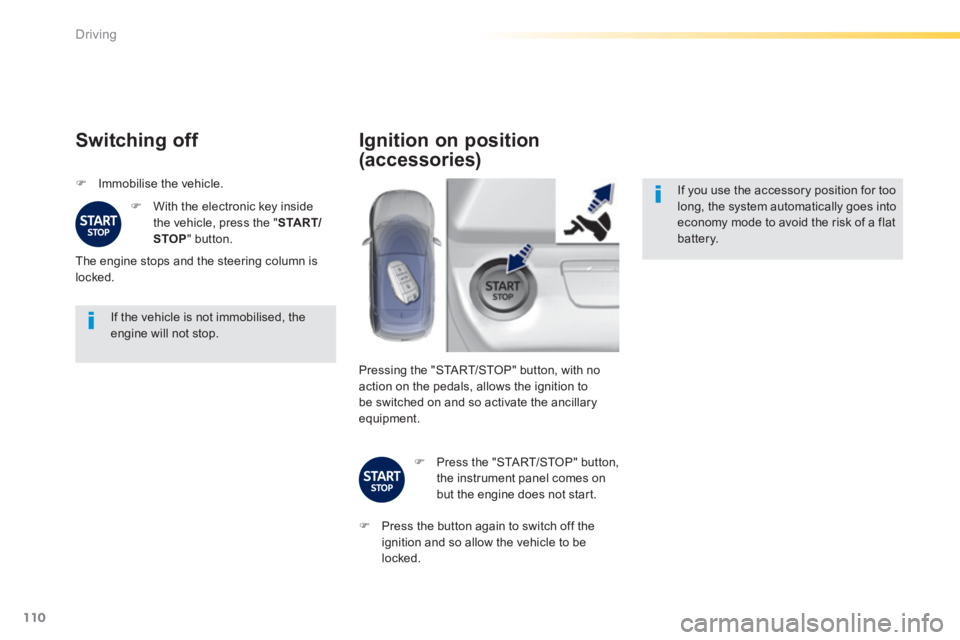

If the vehicle is not immobilised, the engine will not stop.
Switching off
 Immobilise the vehicle.
 With the electronic key inside the vehicle, press the " S TA R T/STOP " button.
The engine stops and the steering column is locked.
Ignition on position
(accessories)
If you use the accessory position for too long, the system automatically goes into economy mode to avoid the risk of a flat battery.
Pressing the "START/STOP" button, with no action on the pedals, allows the ignition to be switched on and so activate the ancillary equipment.
 Press the "START/STOP" button, the instrument panel comes on but the engine does not start.
 Press the button again to switch off the ignition and so allow the vehicle to be locked.

111
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

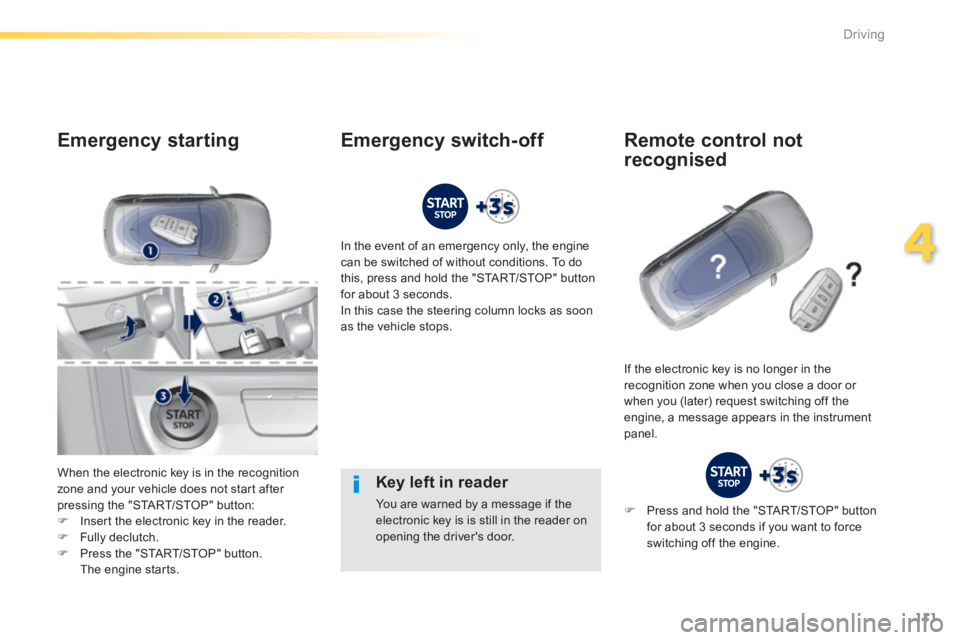

Key left in reader
You are warned by a message if the electronic key is is still in the reader on opening the driver's door.
Emergency starting
When the electronic key is in the recognition zone and your vehicle does not start after pressing the "START/STOP" button:  Insert the electronic key in the reader.
 Fully declutch.  Press the "START/STOP" button. The engine starts.
In the event of an emergency only, the engine can be switched of without conditions. To do this, press and hold the "START/STOP" button for about 3 seconds. In this case the steering column locks as soon as the vehicle stops.
If the electronic key is no longer in the recognition zone when you close a door or when you (later) request switching off the engine, a message appears in the instrument panel.
Emergency switch-off Remote control not
recognised
 Press and hold the "START/STOP" button for about 3 seconds if you want to force switching off the engine.

112
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

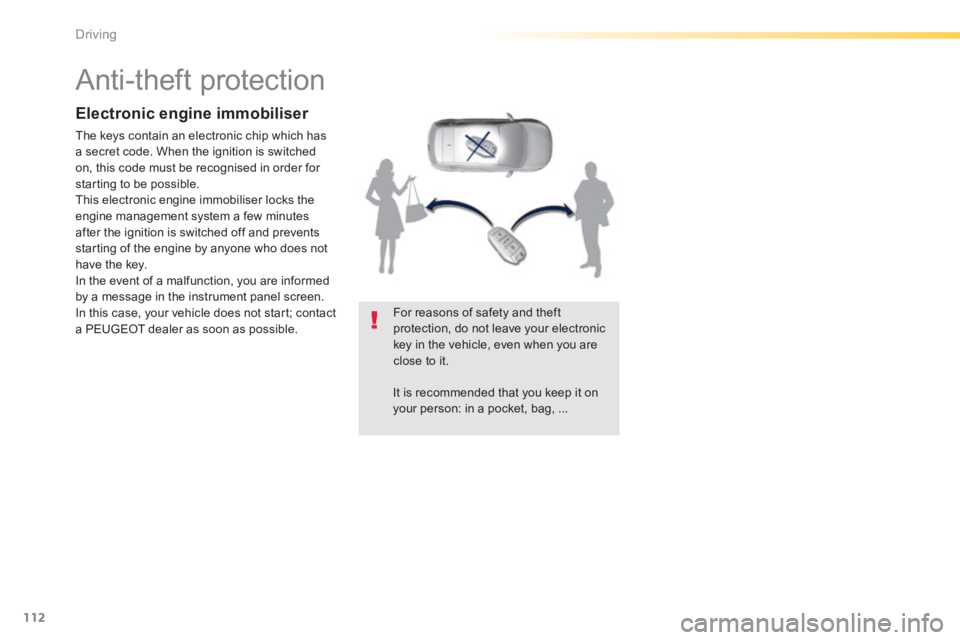

Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has a secret code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the engine management system a few minutes
after the ignition is switched off and prevents starting of the engine by anyone who does not have the key. In the event of a malfunction, you are informed by a message in the instrument panel screen. In this case, your vehicle does not start; contact a PEUGEOT dealer as soon as possible.
For reasons of safety and theft protection, do not leave your electronic key in the vehicle, even when you are close to it.
It is recommended that you keep it on your person: in a pocket, bag, ...

113
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

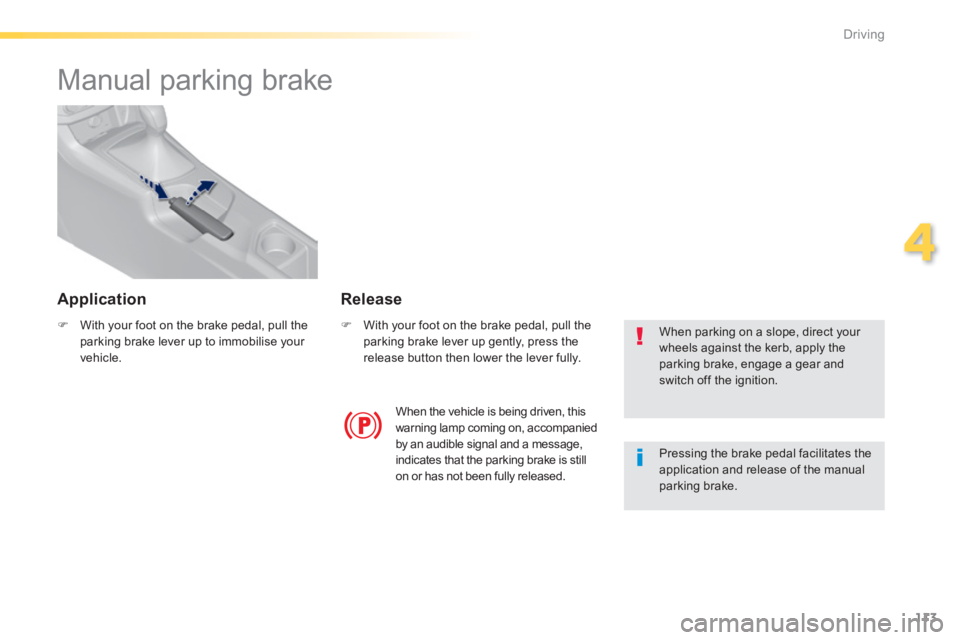

Manual parking brake
 With your foot on the brake pedal, pull the parking brake lever up to immobilise your vehicle.
 With your foot on the brake pedal, pull the parking brake lever up gently, press the release button then lower the lever fully.
When parking on a slope, direct your wheels against the kerb, apply the parking brake, engage a gear and switch off the ignition.
When the vehicle is being driven, this warning lamp coming on, accompanied by an audible signal and a message, indicates that the parking brake is still on or has not been fully released.
Pressing the brake pedal facilitates the application and release of the manual parking brake.
Release Application

114
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

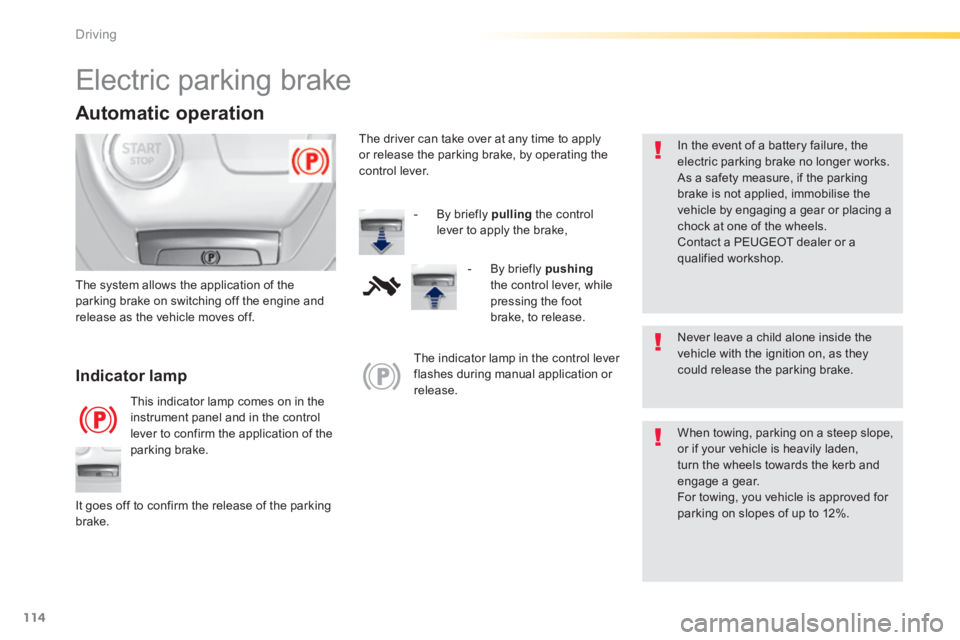

Electric parking brake
Never leave a child alone inside the vehicle with the ignition on, as they could release the parking brake. Indicator lamp
This indicator lamp comes on in the instrument panel and in the control lever to confirm the application of the parking brake.
The system allows the application of the parking brake on switching off the engine and release as the vehicle moves off.
When towing, parking on a steep slope, or if your vehicle is heavily laden, turn the wheels towards the kerb and engage a gear. For towing, you vehicle is approved for parking on slopes of up to 12%. It goes off to confirm the release of the parking brake.
The indicator lamp in the control lever flashes during manual application or release.
In the event of a battery failure, the electric parking brake no longer works. As a safety measure, if the parking brake is not applied, immobilise the vehicle by engaging a gear or placing a chock at one of the wheels. Contact a PEUGEOT dealer or a qualified workshop.
Automatic operation
The driver can take over at any time to apply or release the parking brake, by operating the control lever.
- By briefly pulling the control
lever to apply the brake,
- By briefly pushingthe control lever, while pressing the foot brake, to release.

115
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013
The area in front of the electric parking brake control is not intended for the storage of objects.

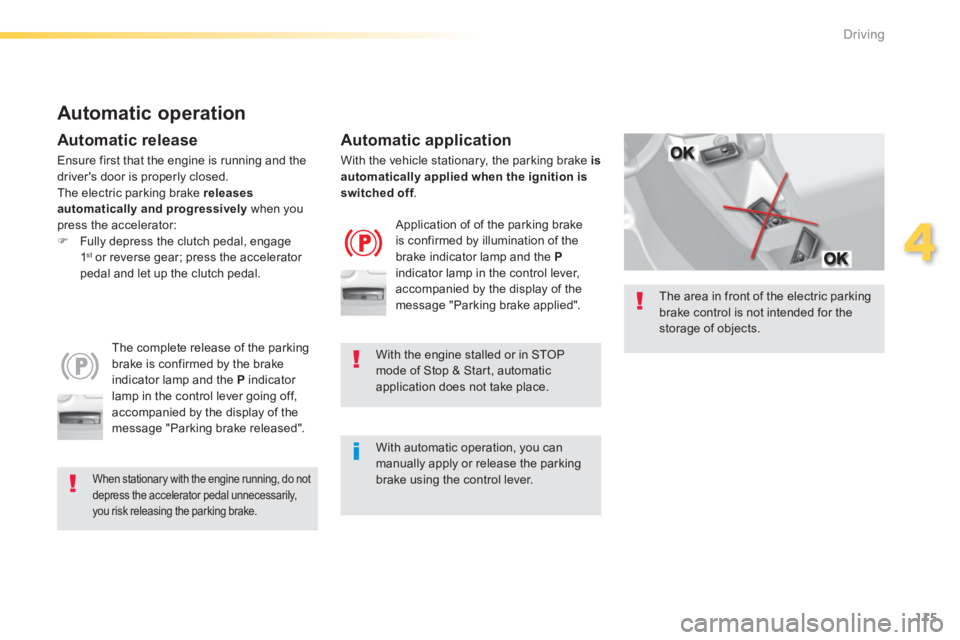

Automatic operation
Automatic release
The complete release of the parking brake is confirmed by the brake indicator lamp and the P indicator lamp in the control lever going off, accompanied by the display of the message "Parking brake released".
When stationary with the engine running, do not depress the accelerator pedal unnecessarily, you risk releasing the parking brake.
Automatic application
Application of of the parking brake is confirmed by illumination of the brake indicator lamp and the Pindicator lamp in the control lever, accompanied by the display of the message "Parking brake applied".
With the engine stalled or in STOP mode of Stop & Start, automatic application does not take place.
With automatic operation, you can manually apply or release the parking brake using the control lever.
Ensure first that the engine is running and the driver's door is properly closed. The electric parking brake releases automatically and progressively when you
press the accelerator:  Fully depress the clutch pedal, engage 1 st or reverse gear; press the accelerator pedal and let up the clutch pedal.
With the vehicle stationary, the parking brake is automatically applied when the ignition is switched off . switched off . switched off

116
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

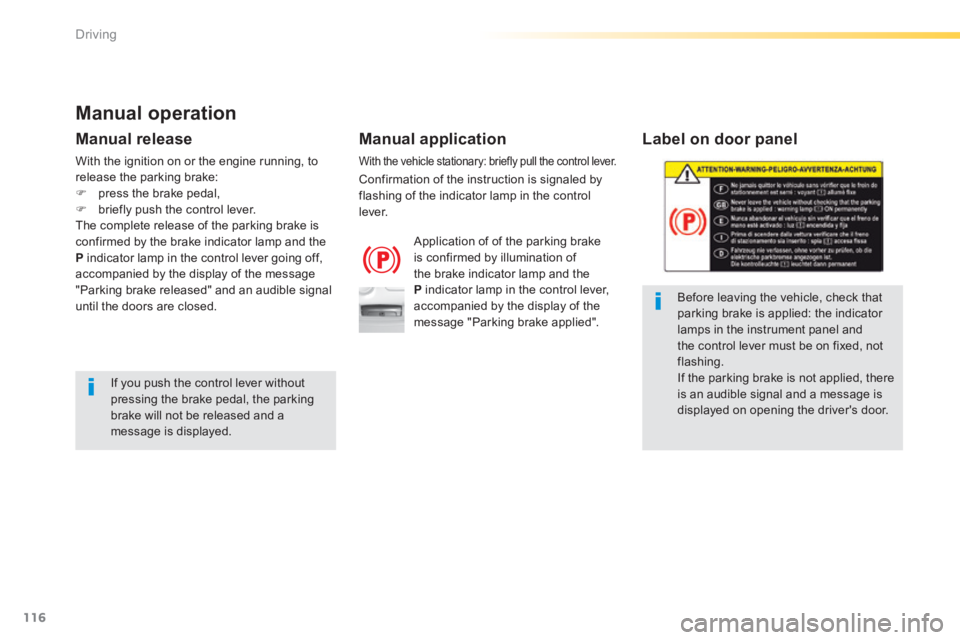

Label on door panel
Before leaving the vehicle, check that parking brake is applied: the indicator lamps in the instrument panel and the control lever must be on fixed, not flashing. If the parking brake is not applied, there is an audible signal and a message is displayed on opening the driver's door.
Manual operation
Application of of the parking brake is confirmed by illumination of the brake indicator lamp and the P indicator lamp in the control lever, accompanied by the display of the message "Parking brake applied".
Manual release
If you push the control lever without pressing the brake pedal, the parking brake will not be released and a
message is displayed.
With the vehicle stationary: briefly pull the control lever.
Confirmation of the instruction is signaled by flashing of the indicator lamp in the control l eve r.
With the ignition on or the engine running, to release the parking brake:  press the brake pedal,  briefly push the control lever. The complete release of the parking brake is confirmed by the brake indicator lamp and the P indicator lamp in the control lever going off, accompanied by the display of the message "Parking brake released" and an audible signal until the doors are closed.
Manual application

117
4
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

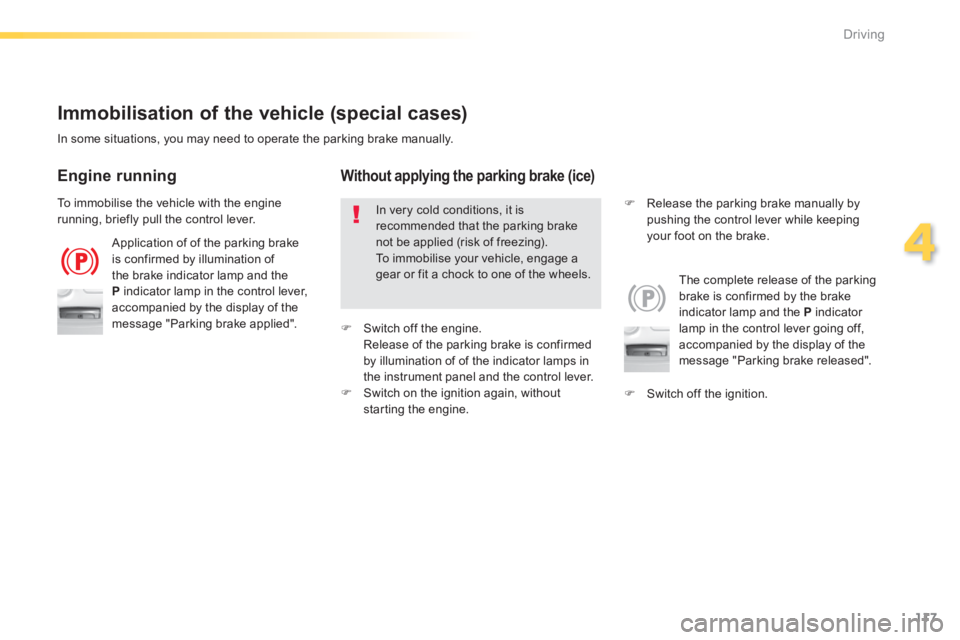

Immobilisation of the vehicle (special cases)
Application of of the parking brake is confirmed by illumination of the brake indicator lamp and the P indicator lamp in the control lever, accompanied by the display of the message "Parking brake applied".
The complete release of the parking brake is confirmed by the brake indicator lamp and the P indicator lamp in the control lever going off, accompanied by the display of the message "Parking brake released".
In some situations, you may need to operate the parking brake manually.
Engine running
In very cold conditions, it is
recommended that the parking brake not be applied (risk of freezing). To immobilise your vehicle, engage a gear or fit a chock to one of the wheels.
Without applying the parking brake (ice)
 Switch off the ignition.
 Release the parking brake manually by pushing the control lever while keeping your foot on the brake.
To immobilise the vehicle with the engine running, briefly pull the control lever.
 Switch off the engine. Release of the parking brake is confirmed by illumination of of the indicator lamps in the instrument panel and the control lever.  Switch on the ignition again, without starting the engine.

118
Driving
308_EN_CHAP04_CONDUITE_ED02-2013

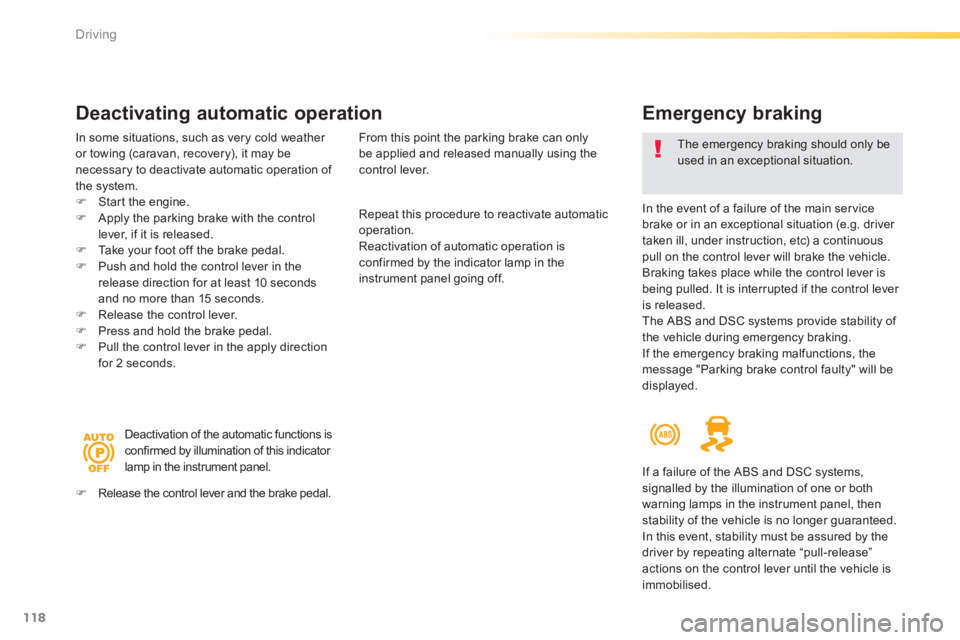

Emergency braking
In the event of a failure of the main service brake or in an exceptional situation (e.g. driver taken ill, under instruction, etc) a continuous pull on the control lever will brake the vehicle. Braking takes place while the control lever is being pulled. It is interrupted if the control lever is released. The ABS and DSC systems provide stability of the vehicle during emergency braking. If the emergency braking malfunctions, the message "Parking brake control faulty" will be displayed.
The emergency braking should only be used in an exceptional situation.
Repeat this procedure to reactivate automatic operation. Reactivation of automatic operation is confirmed by the indicator lamp in the instrument panel going off.
Deactivating automatic operation
In some situations, such as very cold weather or towing (caravan, recovery), it may be necessary to deactivate automatic operation of the system.  Start the engine.  Apply the parking brake with the control
lever, if it is released.  Take your foot off the brake pedal.  Push and hold the control lever in the release direction for at least 10 seconds and no more than 15 seconds.  Release the control lever.  Press and hold the brake pedal.  Pull the control lever in the apply direction for 2 seconds.
Deactivation of the automatic functions is confirmed by illumination of this indicator lamp in the instrument panel.
 Release the control lever and the brake pedal.
From this point the parking brake can only be applied and released manually using the control lever.
If a failure of the ABS and DSC systems, signalled by the illumination of one or both warning lamps in the instrument panel, then stability of the vehicle is no longer guaranteed. In this event, stability must be assured by the driver by repeating alternate “pull-release” actions on the control lever until the vehicle is
immobilised.
