Peugeot 308 2014 Manual PDF

69
2
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

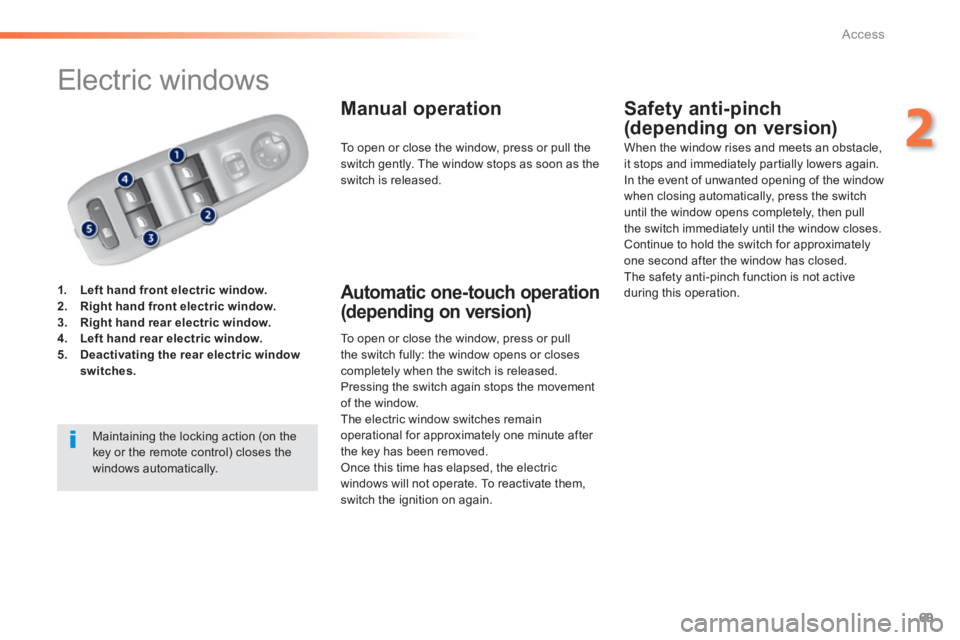

Electric windows
1. Left hand front electric window.2. Right hand front electric window.3. Right hand rear electric window.4. Left hand rear electric window.5. Deactivating the rear electric window switches.
Manual operation
To open or close the window, press or pull the switch fully: the window opens or closes completely when the switch is released. Pressing the switch again stops the movement of the window. The electric window switches remain operational for approximately one minute after the key has been removed. Once this time has elapsed, the electric windows will not operate. To reactivate them, switch the ignition on again.
Safety anti-pinch
(depending on version)
Automatic one-touch operation
(depending on version)
To open or close the window, press or pull the switch gently. The window stops as soon as the switch is released.
When the window rises and meets an obstacle, it stops and immediately partially lowers again. In the event of unwanted opening of the window when closing automatically, press the switch until the window opens completely, then pull the switch immediately until the window closes. Continue to hold the switch for approximately one second after the window has closed. The safety anti-pinch function is not active during this operation.
Maintaining the locking action (on the key or the remote control) closes the windows automatically.

70
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

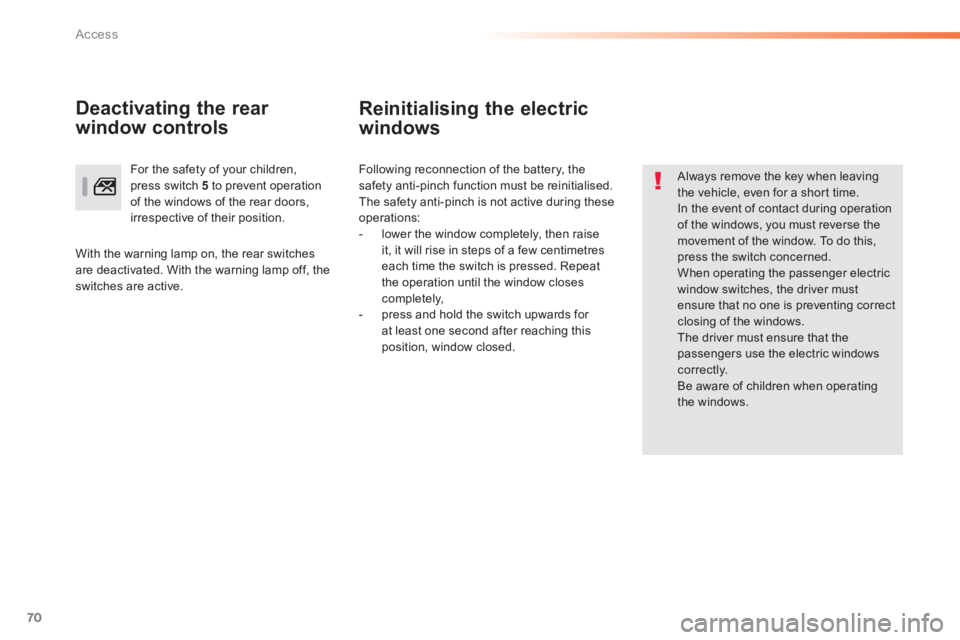

Reinitialising the electric
windows
Always remove the key when leaving the vehicle, even for a short time. In the event of contact during operation of the windows, you must reverse the movement of the window. To do this, press the switch concerned. When operating the passenger electric window switches, the driver must ensure that no one is preventing correct closing of the windows. The driver must ensure that the passengers use the electric windows c o r r e c t l y. Be aware of children when operating the windows.
Following reconnection of the battery, the safety anti-pinch function must be reinitialised. The safety anti-pinch is not active during these operations:
- lower the window completely, then raise it, it will rise in steps of a few centimetres each time the switch is pressed. Repeat the operation until the window closes completely, - press and hold the switch upwards for at least one second after reaching this position, window closed.
For the safety of your children, press switch 5 to prevent operation of the windows of the rear doors, irrespective of their position.
Deactivating the rear
window controls
With the warning lamp on, the rear switches are deactivated. With the warning lamp off, the switches are active.

71
2
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

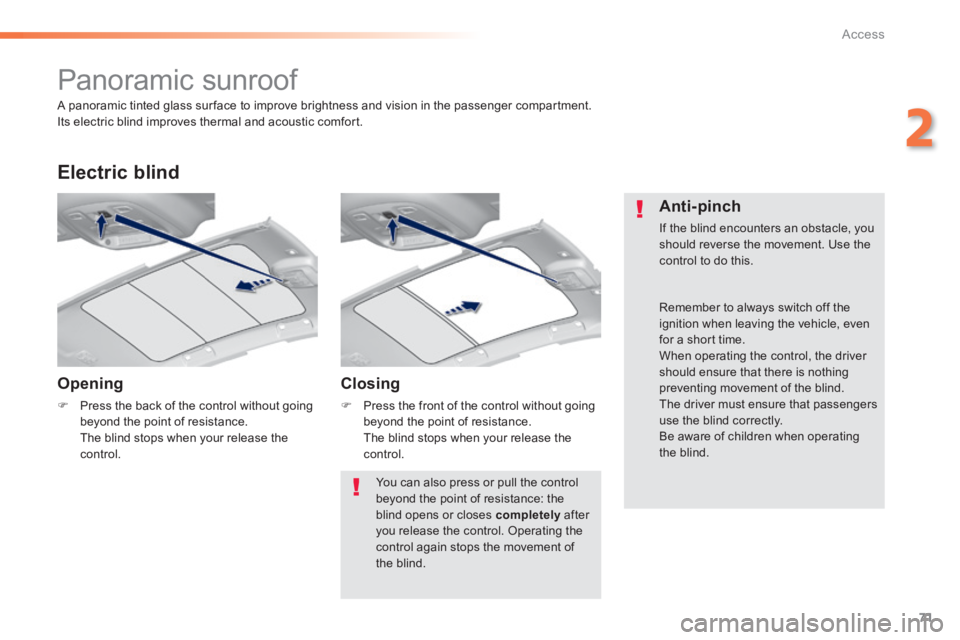

Panoramic sunroof
Opening
 Press the back of the control without going beyond the point of resistance. The blind stops when your release the control.
Electric blind
Closing
 Press the front of the control without going beyond the point of resistance. The blind stops when your release the control.
Anti-pinch
If the blind encounters an obstacle, you should reverse the movement. Use the control to do this.
A panoramic tinted glass sur face to improve brightness and vision in the passenger compartment. Its electric blind improves thermal and acoustic comfort.
You can also press or pull the control beyond the point of resistance: the blind opens or closes completely after you release the control. Operating the
control again stops the movement of the blind.
Remember to always switch off the ignition when leaving the vehicle, even for a short time. When operating the control, the driver should ensure that there is nothing preventing movement of the blind. The driver must ensure that passengers use the blind correctly. Be aware of children when operating the blind.

72
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

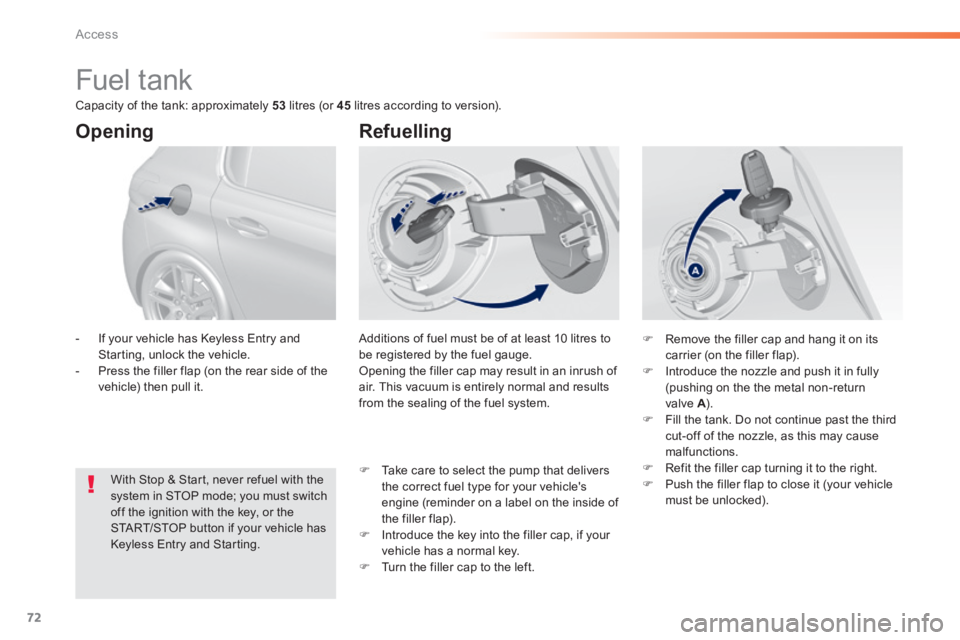

Fuel tank
Additions of fuel must be of at least 10 litres to be registered by the fuel gauge. Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.
Opening
With Stop & Start, never refuel with the system in STOP mode; you must switch off the ignition with the key, or the START/STOP button if your vehicle has
Keyless Entry and Starting.
- If your vehicle has Keyless Entry and Starting, unlock the vehicle. - Press the filler flap (on the rear side of the vehicle) then pull it.
Refuelling
 Remove the filler cap and hang it on its carrier (on the filler flap).  Introduce the nozzle and push it in fully (pushing on the the metal non-return valve A ). A ). A Fill the tank. Do not continue past the third cut-off of the nozzle, as this may cause malfunctions.  Refit the filler cap turning it to the right.  Push the filler flap to close it (your vehicle must be unlocked).
 Take care to select the pump that delivers the correct fuel type for your vehicle's engine (reminder on a label on the inside of the filler flap).  Introduce the key into the filler cap, if your vehicle has a normal key.  Turn the filler cap to the left.
Capacity of the tank: approximately 53 litres (or 45 litres according to version).

73
2
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

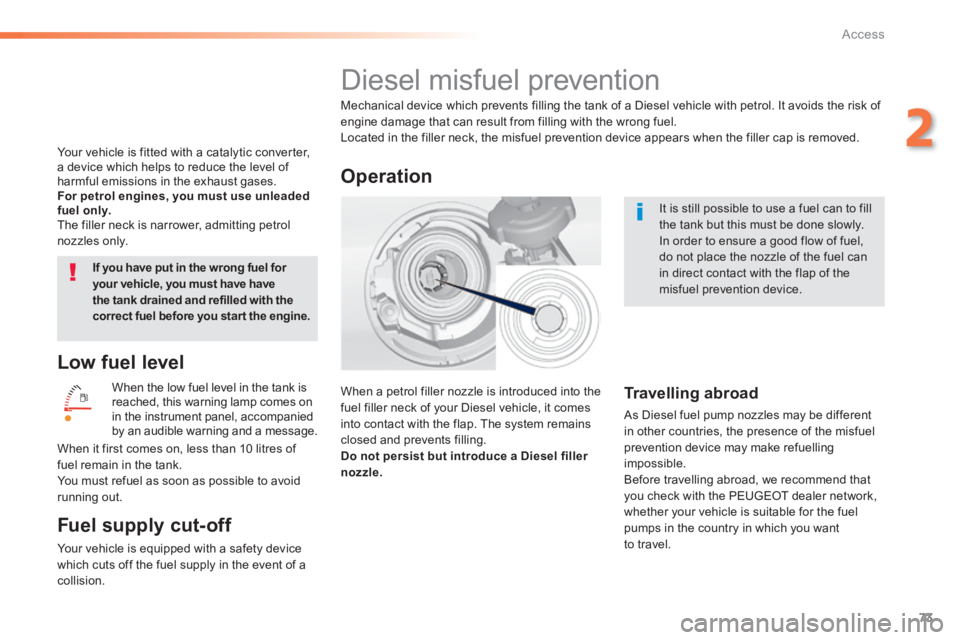

Low fuel level
When the low fuel level in the tank is reached, this warning lamp comes on in the instrument panel, accompanied by an audible warning and a message.
Fuel supply cut-off
Your vehicle is equipped with a safety device which cuts off the fuel supply in the event of a collision.
It is still possible to use a fuel can to fill the tank but this must be done slowly. In order to ensure a good flow of fuel, do not place the nozzle of the fuel can in direct contact with the flap of the misfuel prevention device.
Diesel misfuel prevention
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the wrong fuel. Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a petrol filler nozzle is introduced into the fuel filler neck of your Diesel vehicle, it comes into contact with the flap. The system remains
closed and prevents filling. Do not persist but introduce a Diesel filler nozzle.
Operation
Travelling abroad
As Diesel fuel pump nozzles may be different in other countries, the presence of the misfuel prevention device may make refuelling impossible. Before travelling abroad, we recommend that you check with the PEUGEOT dealer network, whether your vehicle is suitable for the fuel pumps in the country in which you want to travel.
When it first comes on, less than 10 litres of fuel remain in the tank. You must refuel as soon as possible to avoid running out.
If you have put in the wrong fuel for your vehicle, you must have have the tank drained and refilled with the correct fuel before you star t the engine.
Your vehicle is fitted with a catalytic converter, a device which helps to reduce the level of harmful emissions in the exhaust gases. For petrol engines, you must use unleaded fuel only. The filler neck is narrower, admitting petrol nozzles only.

74
Access
308_EN_CHAP02_OUVERTURES_ED02-2013

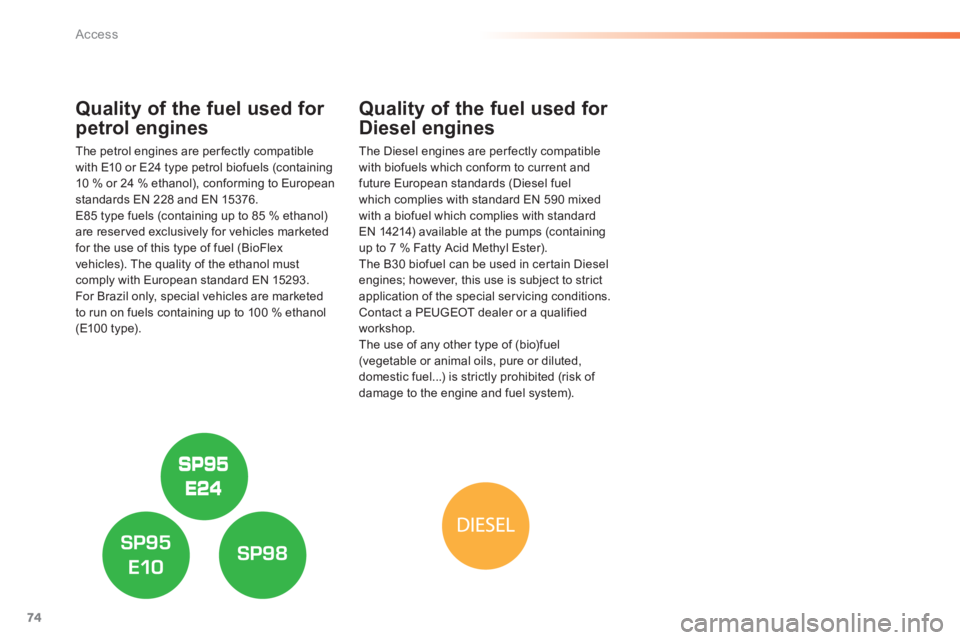

Quality of the fuel used for
petrol engines
The petrol engines are per fectly compatible with E10 or E24 type petrol biofuels (containing 10 % or 24 % ethanol), conforming to European standards EN 228 and EN 15376. E85 type fuels (containing up to 85 % ethanol) are reserved exclusively for vehicles marketed for the use of this type of fuel (BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15293. For Brazil only, special vehicles are marketed to run on fuels containing up to 100 % ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are per fectly compatible with biofuels which conform to current and future European standards (Diesel fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 % Fatty Acid Methyl Ester). The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions. Contact a PEUGEOT dealer or a qualified workshop. The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the engine and fuel system).

75
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

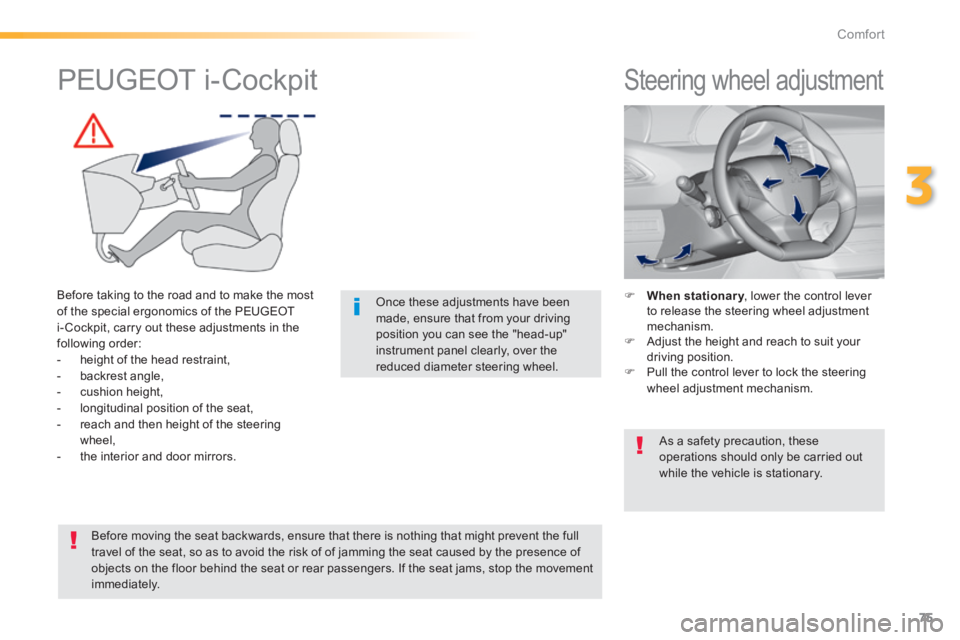

Steering wheel adjustment
 When stationary , lower the control lever hen stationary , lower the control lever hen stationaryto release the steering wheel adjustment mechanism.  Adjust the height and reach to suit your driving position.  Pull the control lever to lock the steering wheel adjustment mechanism.
As a safety precaution, these operations should only be carried out while the vehicle is stationary.
PEUGEOT i-Cockpit
Before taking to the road and to make the most of the special ergonomics of the PEUGEOT i- Cockpit, carry out these adjustments in the following order: - height of the head restraint, - backrest angle, - cushion height, - longitudinal position of the seat, - reach and then height of the steering wheel, - the interior and door mirrors.
Once these adjustments have been made, ensure that from your driving position you can see the "head-up" instrument panel clearly, over the reduced diameter steering wheel.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

76
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

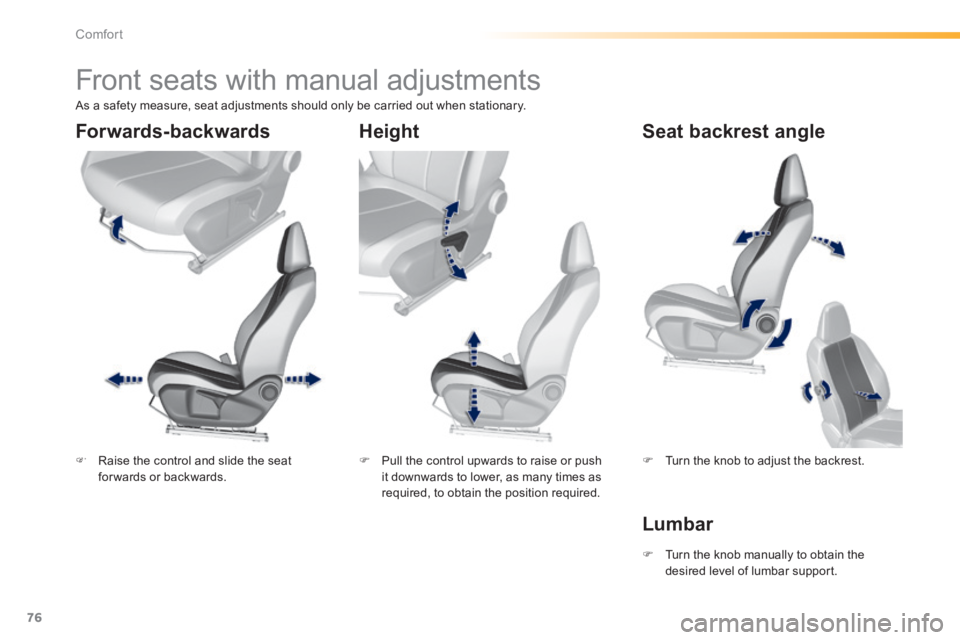

Front seats with manual adjustments
 Raise the control and slide the seat for wards or backwards.  Pull the control upwards to raise or push it downwards to lower, as many times as required, to obtain the position required.
 Turn the knob to adjust the backrest.
Forwards-backwards Height Seat backrest angle
As a safety measure, seat adjustments should only be carried out when stationary.
 Turn the knob manually to obtain the desired level of lumbar support.
Lumbar

77
3
Comfort
308_EN_CHAP03_CONFORT_ED02-2013

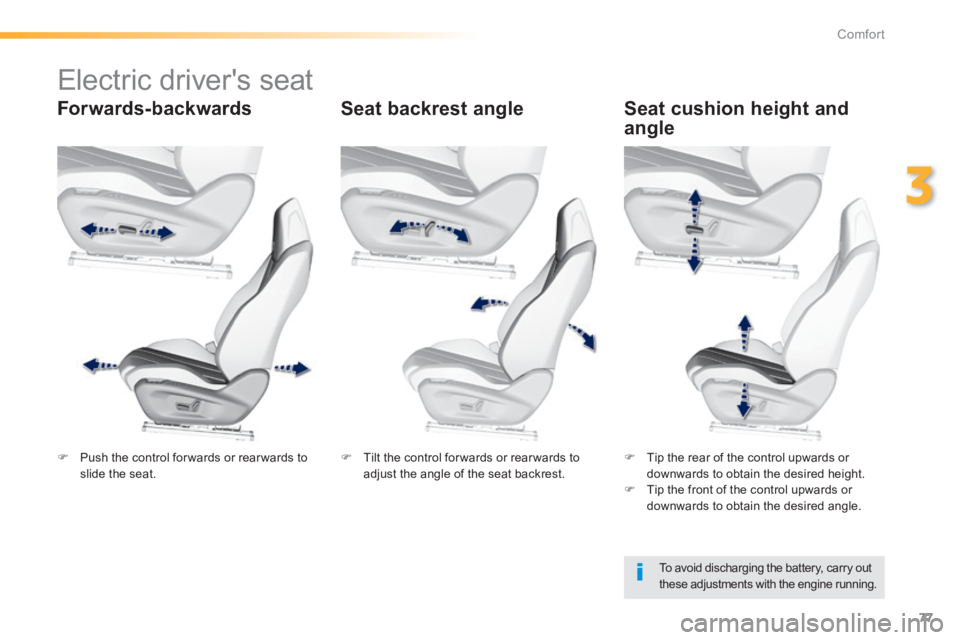

Electric driver's seat
Forwards-backwards Seat backrest angle Seat cushion height and
angle
To avoid discharging the battery, carry out these adjustments with the engine running.
 Push the control for wards or rear wards to slide the seat.  Tilt the control for wards or rear wards to adjust the angle of the seat backrest.  Tip the rear of the control upwards or downwards to obtain the desired height.  Tip the front of the control upwards or downwards to obtain the desired angle.

78
Comfort
308_EN_CHAP03_CONFORT_ED02-2013
System which registers the electrical settings of the driver's seat and door mirrors. It enables you to store and recall two positions using the buttons on the side of the driver's seat.

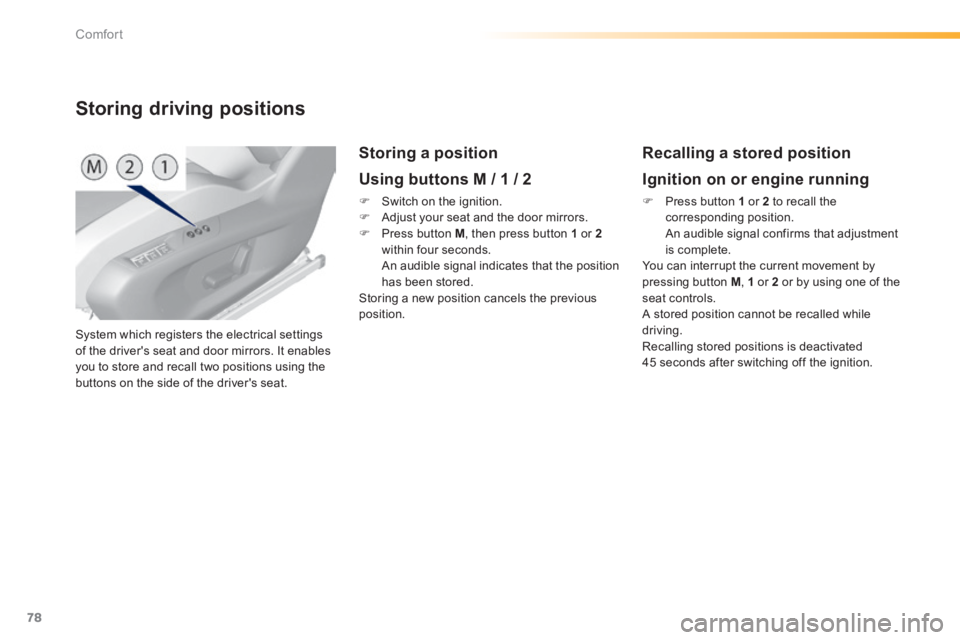

Storing driving positions
Storing a position
Using buttons M / 1 / 2
 Switch on the ignition.  Adjust your seat and the door mirrors.  Press button M , then press button 1 or 2within four seconds. An audible signal indicates that the position has been stored. Storing a new position cancels the previous position.
Recalling a stored position
Ignition on or engine running
 Press button 1 or 2 to recall the corresponding position. An audible signal confirms that adjustment is complete. You can interrupt the current movement by pressing button M , 1 or 2 or by using one of the seat controls. A stored position cannot be recalled while driving. Recalling stored positions is deactivated 45 seconds after switching off the ignition.
