On a steep descent or in the event
of sharp acceleration, the speed
limiter will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
T o a v o i d a n y r i s k o f j a m m i n g o f t h e
pedals:
- ensure that the mat is positioned correctly,
- d o n o t fi t o n e m a t o n t o p o f another.

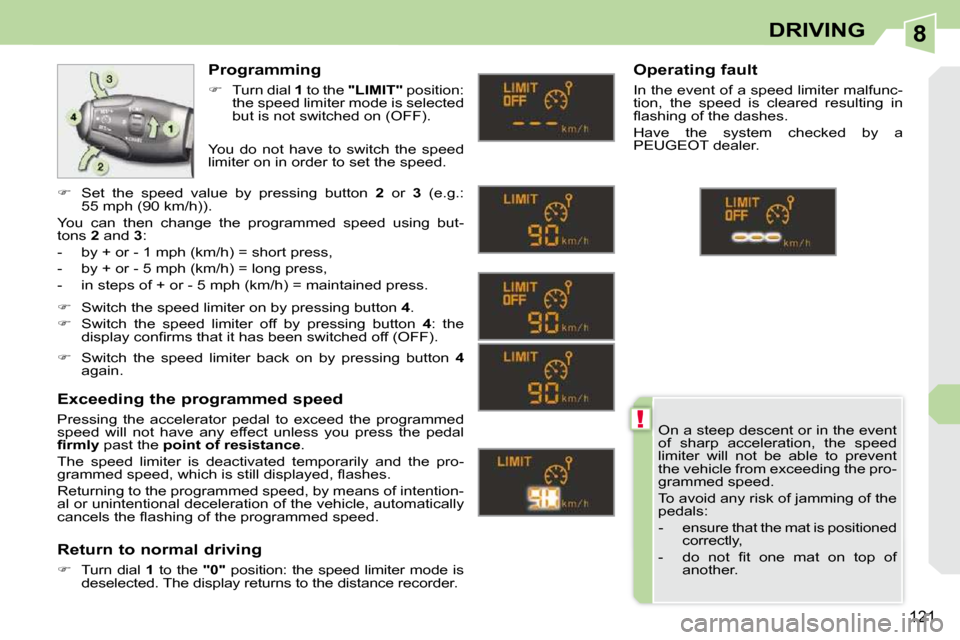

Programming
Turn dial 1 to the "LIMIT" position:
the speed limiter mode is selected
but is not switched on (OFF).
Exceeding the programmed speed
Pressing the accelerator pedal to exceed the programmed
speed will not have any effect unless you press the pedal
fi r m l y past the point of resistance .
The speed limiter is deactivated temporarily and the pro-
g r a m m e d s p e e d , w h i c h i s s t i l l d i s p l a y e d , fl a s h e s .
Returning to the programmed speed, by means of intention-
al or unintentional deceleration of the vehicle, automati cally
c a n c e l s t h e fl a s h i n g o f t h e p r o g r a m m e d s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the speed limiter mode is
deselected. The display returns to the distance rec order. Operating fault
In the event of a speed limiter malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have the system checked by a
PEUGEOT dealer.
You do not have to switch the speed
limiter on in order to set the speed.
Switch the speed limiter on by pressing button 4 .
Switch the speed limiter off by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the speed limiter back on by pressing button 4
again.
Set the speed value by pressing button 2 or 3 (e.g.:
55 mph (90 km/h)).
You can then change the programmed speed using but-
tons 2 and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Page 122 of 256
8
i
122
DRIVING

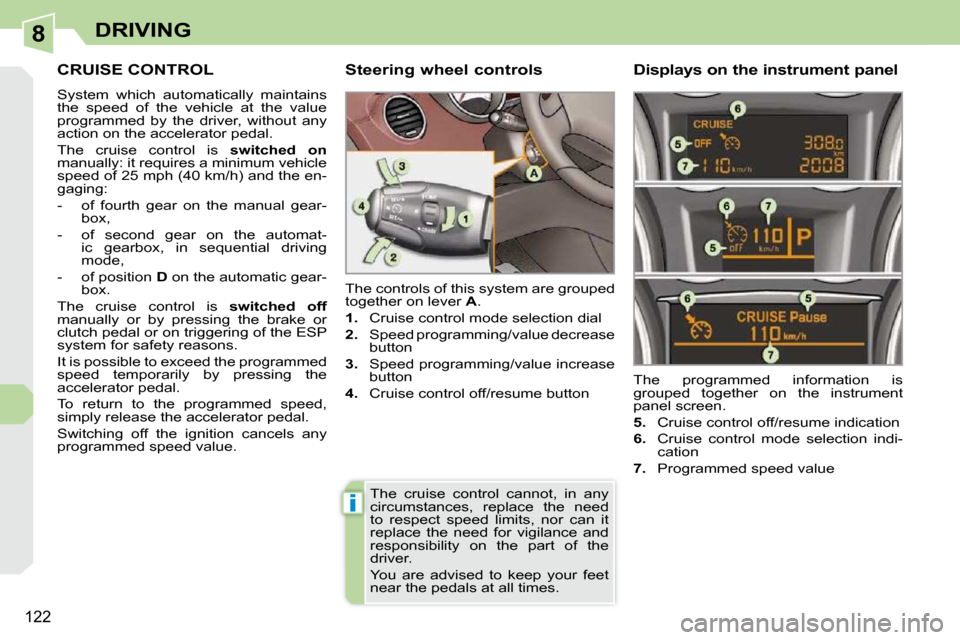

CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging:
- of fourth gear on the manual gear- box,
- of second gear on the automat- ic gearbox, in sequential driving
mode,
- of position D on the automatic gear-
box.
The cruise control is switched off
manually or by pressing the brake or
clutch pedal or on triggering of the ESP
system for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the
accelerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. The controls of this system are grouped
together on lever
A .
1. Cruise control mode selection dial
2. Speed programming/value decrease
button
3. Speed programming/value increase
button
4. Cruise control off/resume button The programmed information is
grouped together on the instrument
panel screen.
5. Cruise control off/resume indication
6. Cruise control mode selection indi-
cation
7. Programmed speed value
Steering wheel controls Displays on the instrument
panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
You are advised to keep your feet
near the pedals at all times.
Page 123 of 256
8
!
123
DRIVING
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
s l i p p e r y r o a d s o r i n h e a v y t r a f fi c .
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
T o a v o i d a n y r i s k o f j a m m i n g o f t h e
pedals:
- ensure that the mat is posi- tioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n - other.

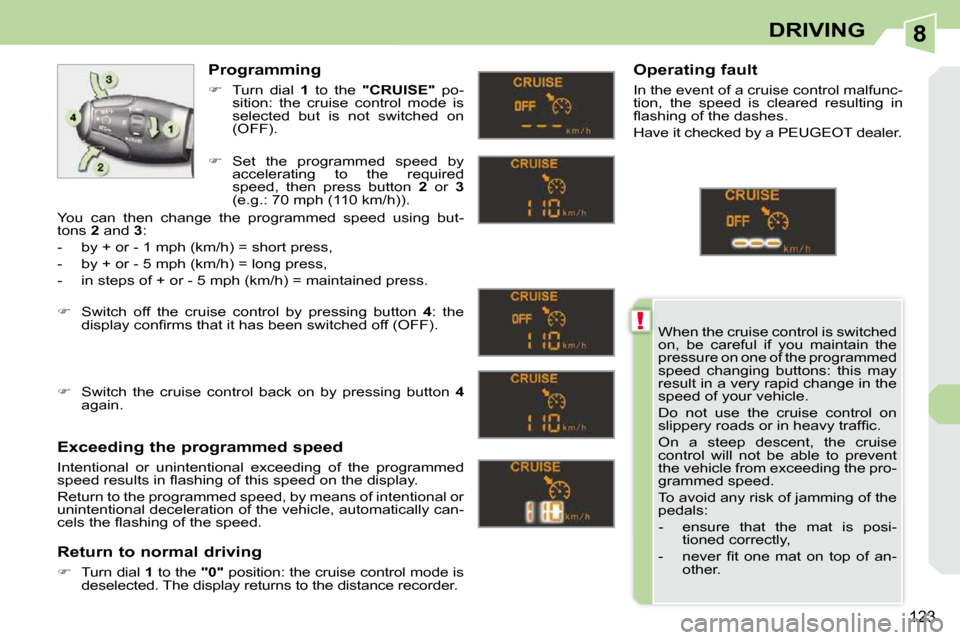

Programming
Turn dial 1 to the "CRUISE" po-
sition: the cruise control mode is
selected but is not switched on
(OFF).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed
s p e e d r e s u l t s i n fl a s h i n g o f t h i s s p e e d o n t h e d i s p l a y .
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically ca n-
c e l s t h e fl a s h i n g o f t h e s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the cruise control mode is
deselected. The display returns to the distance rec order. Operating fault
In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have it checked by a PEUGEOT dealer.
Set the programmed speed by
accelerating to the required
speed, then press button 2 or 3
(e.g.: 70 mph (110 km/h)).
Switch off the cruise control by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using but-
tons
2 and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Page 124 of 256
8
i
!
DRIVING

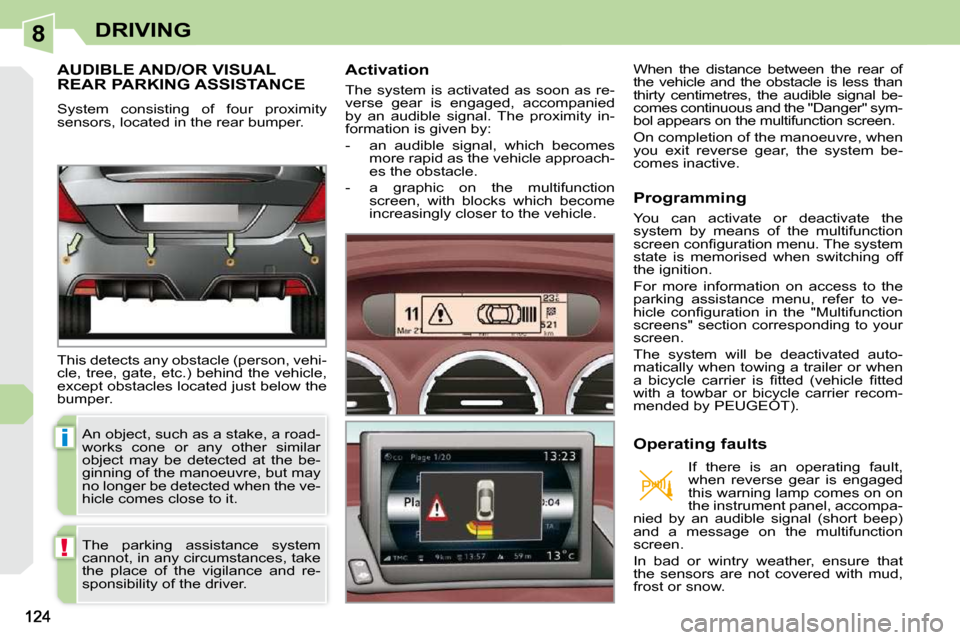

AUDIBLE AND/OR VISUAL REAR PARKING ASSISTANCE
System consisting of four proximity
sensors, located in the rear bumper.
This detects any obstacle (person, vehi-
cle, tree, gate, etc.) behind the vehicle,
e x c e p t o b s t a c l e s l o c a t e d j u s t b e l o w t h e
bumper. A n o b j e c t , s u c h a s a s t a k e , a r o a d -
works cone or any other similar
o b j e c t m a y b e d e t e c t e d a t t h e b e -
ginning of the manoeuvre, but may
no longer be detected when the ve-
hicle comes close to it.
The parking assistance system
cannot, in any circumstances, take
the place of the vigilance and re-
sponsibility of the driver. Activation
The system is activated as soon as re-
verse gear is engaged, accompanied
by an audible signal. The proximity in-
formation is given by:
- an audible signal, which becomes
more rapid as the vehicle approach-
es the obstacle.
- a graphic on the multifunction screen, with blocks which become
increasingly closer to the vehicle. Programming
You can activate or deactivate the
system by means of the multifunction
s c r e e n c o n fi g u r a t i o n m e n u . T h e s y s t e m
state is memorised when switching off
the ignition.
For more information on access to the
parking assistance menu, refer to ve-
h i c l e c o n fi g u r a t i o n i n t h e " M u l t i f u n c t i o n
screens" section corresponding to your
screen.
The system will be deactivated auto-
matically when towing a trailer or when
a b i c y c l e c a r r i e r i s fi t t e d ( v e h i c l e fi t t e d
with a towbar or bicycle carrier recom-
mended by PEUGEOT).
Operating faults
When the distance between the rear of
the vehicle and the obstacle is less than
thirty centimetres, the audible signal be-
comes continuous and the "Danger" sym-
bol appears on the multifunction screen.
On completion of the manoeuvre, when
you exit reverse gear, the system be-
comes inactive.
If there is an operating fault,
when reverse gear is engaged
this warning lamp comes on on
the instrument panel, accompa-
nied by an audible signal (short beep)
and a message on the multifunction
screen.
In bad or wintry weather, ensure that
the sensors are not covered with mud,
frost or snow.
Page 125 of 256
8
i
!
125
DRIVING

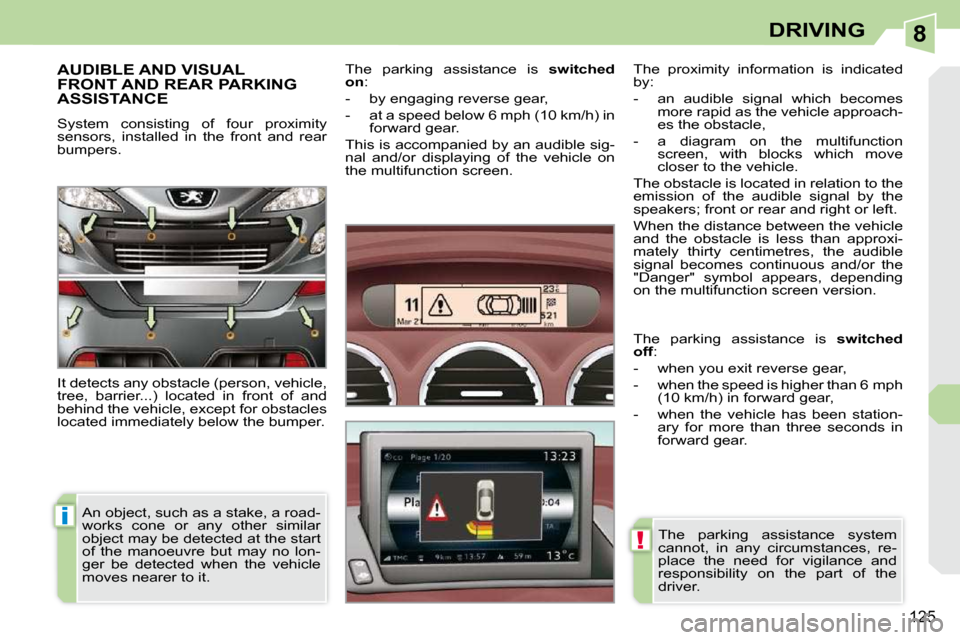

AUDIBLE AND VISUAL FRONT AND REAR PARKING ASSISTANCE
System consisting of four proximity
sensors, installed in the front and rear
bumpers.
It detects any obstacle (person, vehicle,
tree, barrier...) located in front of and
behind the vehicle, except for obstacles
located immediately below the bumper. The parking assistance is
switched
on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible sig-
nal and/or displaying of the vehicle on
the multifunction screen.
A n o b j e c t , s u c h a s a s t a k e , a r o a d -
works cone or any other similar
o b j e c t m a y b e d e t e c t e d a t t h e s t a r t
of the manoeuvre but may no lon-
ger be detected when the vehicle
moves nearer to it. The proximity information is indicated
by:
- an audible signal which becomes
more rapid as the vehicle approach-
es the obstacle,
- a diagram on the multifunction screen, with blocks which move
closer to the vehicle.
The obstacle is located in relation to the
emission of the audible signal by the
speakers; front or rear and right or left.
When the distance between the vehicle
and the obstacle is less than approxi-
mately thirty centimetres, the audible
signal becomes continuous and/or the
"Danger" symbol appears, depending
on the multifunction screen version.
The parking assistance system
cannot, in any circumstances, re-
place the need for vigilance and
responsibility on the part of the
driver.
The parking assistance is
switched
off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been station- ary for more than three seconds in
forward gear.
Page 126 of 256
8
i
i
126
DRIVING

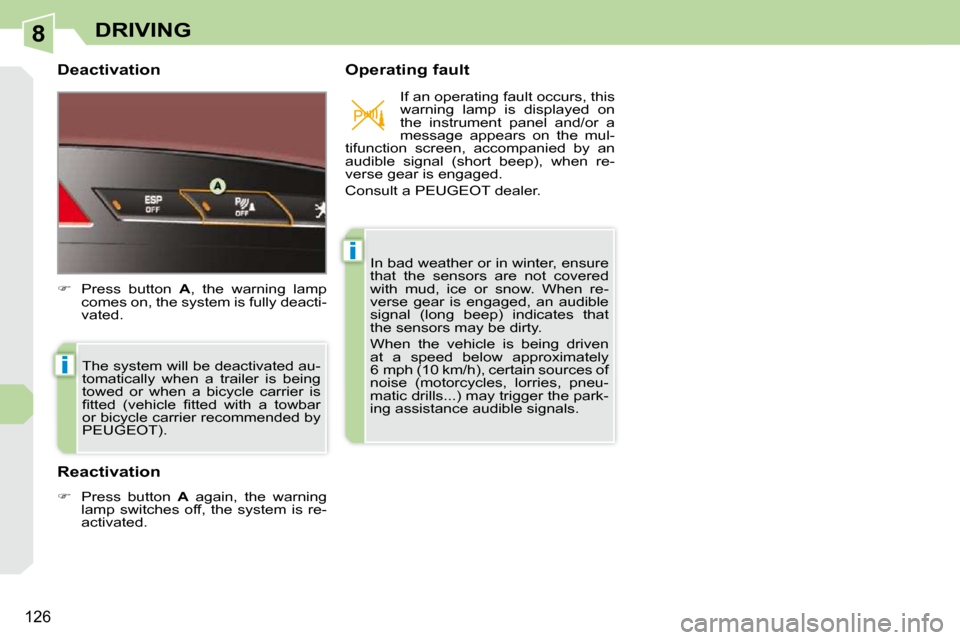

Deactivation Operating fault
The system will be deactivated au-
tomatically when a trailer is being
towed or when a bicycle carrier is
fi t t e d ( v e h i c l e fi t t e d w i t h a t o w b a r
or bicycle carrier recommended by
PEUGEOT).
Reactivation
Press button A , the warning lamp
comes on, the system is fully deacti-
vated. In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty.
When the vehicle is being driven
at a speed below approximately
6 mph (10 km/h), certain sources of
noise (motorcycles, lorries, pneu-
matic drills...) may trigger the park-
ing assistance audible signals. If an operating fault occurs, this
warning lamp is displayed on
the instrument panel and/or a
message appears on the mul-
tifunction screen, accompanied by an
audible signal (short beep), when re-
verse gear is engaged.
Consult a PEUGEOT dealer.
Press button A again, the warning
lamp switches off, the system is re-
activated.
Page 127 of 256
9
i
!
128
CHECKS

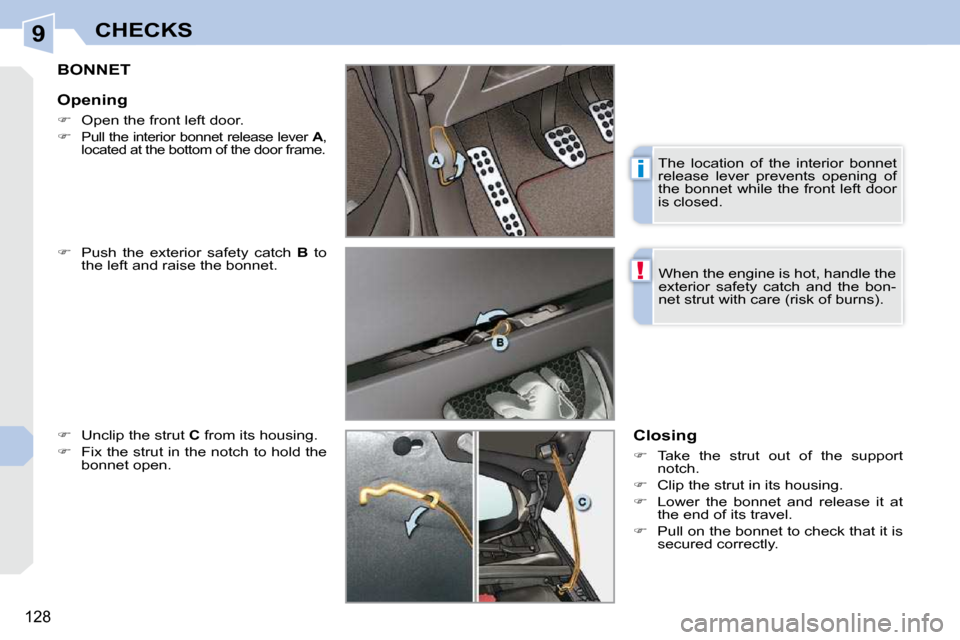

BONNET
Push the exterior safety catch B to
the left and raise the bonnet.
Unclip the strut C from its housing.
Fix the strut in the notch to hold the
bonnet open. Closing
Take the strut out of the support
notch.
Clip the strut in its housing.
Lower the bonnet and release it at
the end of its travel.
Pull on the bonnet to check that it is
secured correctly.
Opening
Open the front left door.
Pull the interior bonnet release lever A ,
located at the bottom of the door frame.
The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.
When the engine is hot, handle the
exterior safety catch and the bon-
net strut with care (risk of burns).
Page 128 of 256
9
ii
129
CHECKS

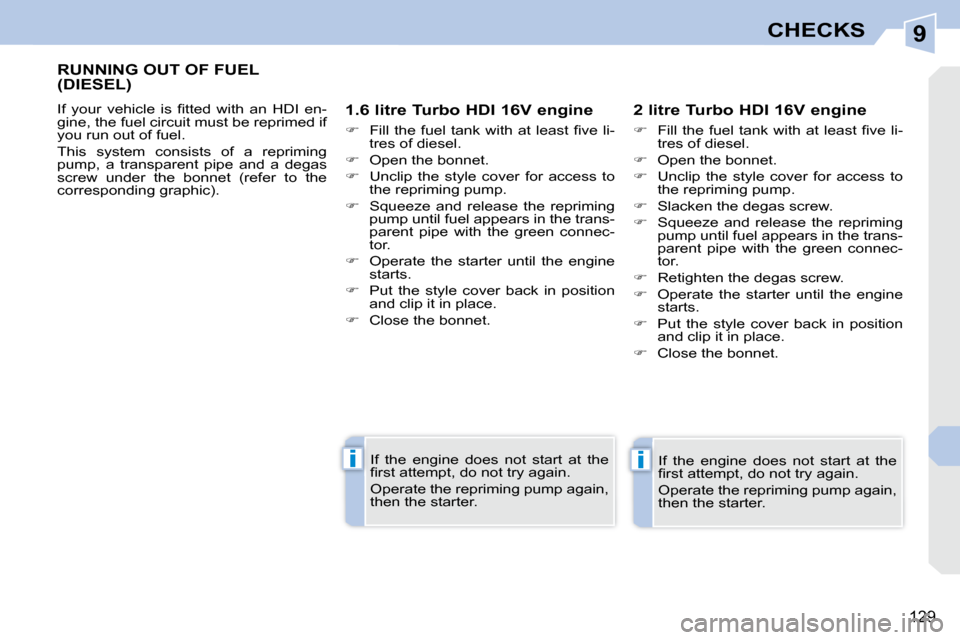

RUNNING OUT OF FUEL (DIESEL)
I f y o u r v e h i c l e i s fi t t e d w i t h a n H D I e n -
gine, the fuel circuit must be reprimed if
you run out of fuel.
This system consists of a repriming
pump, a transparent pipe and a degas
screw under the bonnet (refer to the
corresponding graphic). 1.6 litre Turbo HDI 16V engine
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i -
tres of diesel.
Open the bonnet.
Unclip the style cover for access to
the repriming pump.
Squeeze and release the repriming
pump until fuel appears in the trans-
parent pipe with the green connec-
tor.
Operate the starter until the engine
starts.
Put the style cover back in position
and clip it in place.
Close the bonnet.
If the engine does not start at the
fi r s t a t t e m p t , d o n o t t r y a g a i n .
Operate the repriming pump again,
then the starter. 2 litre Turbo HDI 16V engine
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i -
tres of diesel.
Open the bonnet.
Unclip the style cover for access to
the repriming pump.
Slacken the degas screw.
Squeeze and release the repriming
pump until fuel appears in the trans-
parent pipe with the green connec-
tor.
Retighten the degas screw.
Operate the starter until the engine
starts.
Put the style cover back in position
and clip it in place.
Close the bonnet.
If the engine does not start at the
fi r s t a t t e m p t , d o n o t t r y a g a i n .
Operate the repriming pump again,
then the starter.
Page 129 of 256
9
130
CHECKS

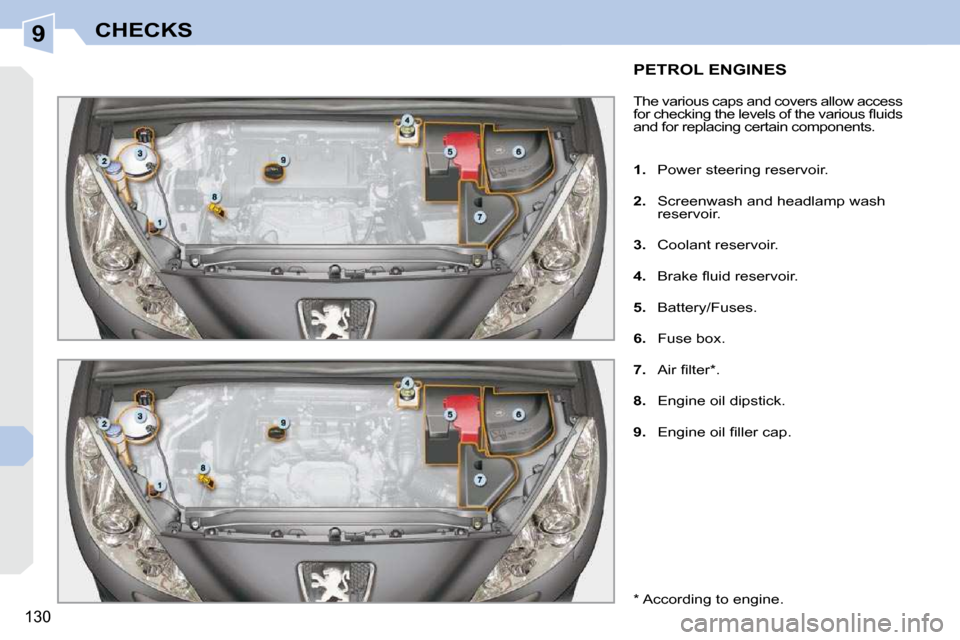

PETROL ENGINES
The various caps and covers allow access
f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s
and for replacing certain components.
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fuse box.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
* A c c o r d i n g t o e n g i n e .
Page 130 of 256
9
131
CHECKS

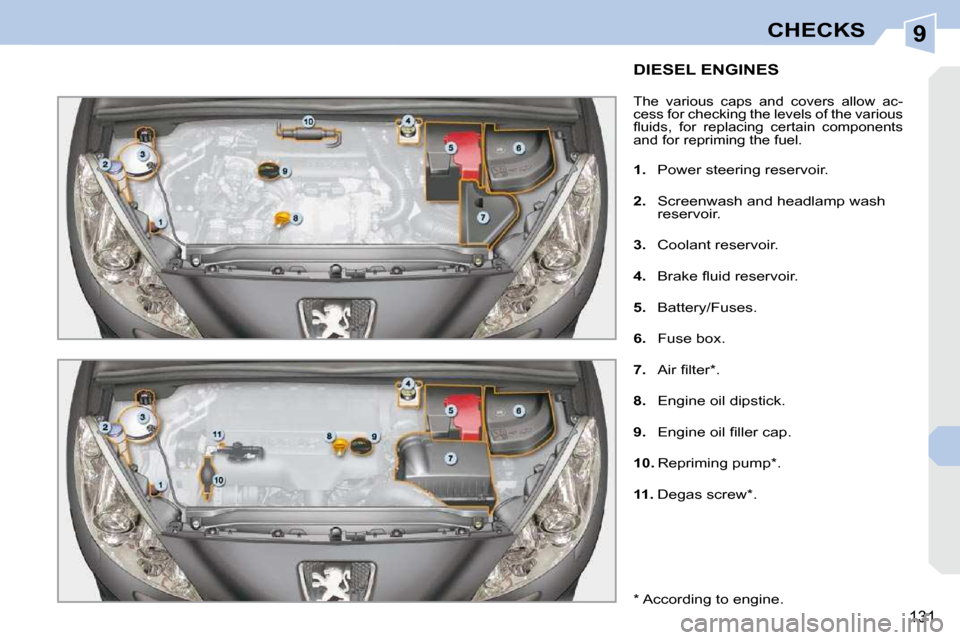

DIESEL ENGINES
The various caps and covers allow ac-
cess for checking the levels of the various
fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s
and for repriming the fuel.
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fuse box.
7. A i r fi l t e r * .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. R e p r i m i n g p u m p * .
11. D e g a s s c r e w * .
* A c c o r d i n g t o e n g i n e .
