Peugeot 308 CC Dag 2009.5 Owner's Manual

7
!
111
SAFETY

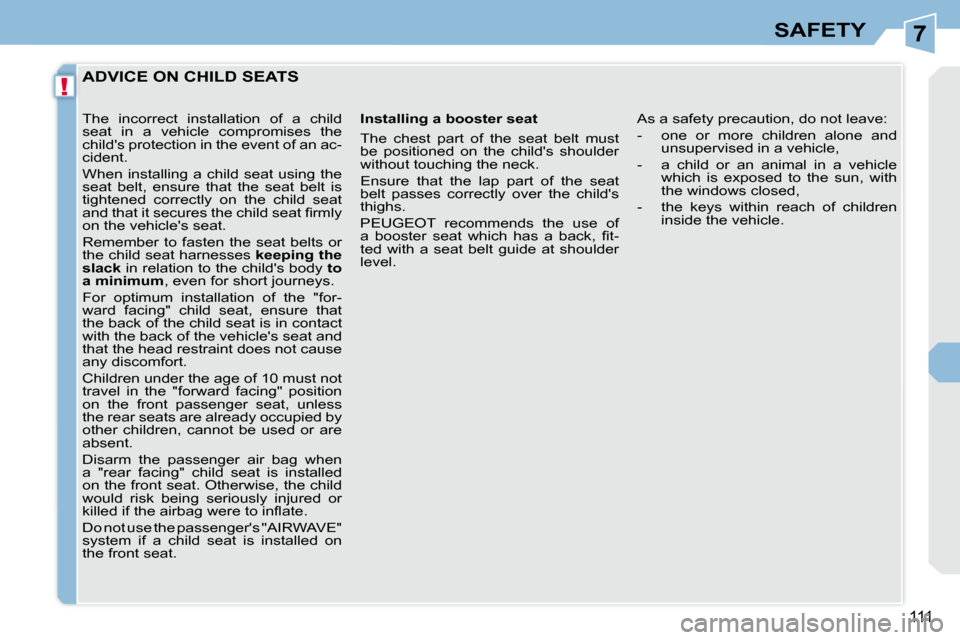

ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rmly
on the vehicle's seat.
Remember to fasten the seat belts or
the child seat harnesses
keeping
the
slack in relation to the child's body to
a minimum , even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied by
other children, cannot be used or are
absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate.
Do not use the passenger's "AIRWAVE"
system if a child seat is installed on
the front seat.

7
!
i
112
SAFETY
The incorrect installation of a child
seat in a vehicle compromises the
protection of the child in the event
of a collision.
To fi nd out the options for installing
ISOFIX child seats in your vehicle,
consult the summary table for the
location of the ISOFIX child seats. "ISOFIX" MOUNTINGS
This ISOFIX mounting system guaran-
tees reliable, safe and fast fi tting of the
child seat in your vehicle.
Your vehicle is approved with regulation
ISOFIX mountings.
The diagram below indicates the seats
which are fi tted with these mountings:
These are two rings
A for each seat, lo-
cated between the seat back and seat
cushion of the vehicle's seat, indicated
by a label.

The ISOFIX child seats are fi tted with
two locks which are secured easily on
these rings A .

7
i
113
SAFETY

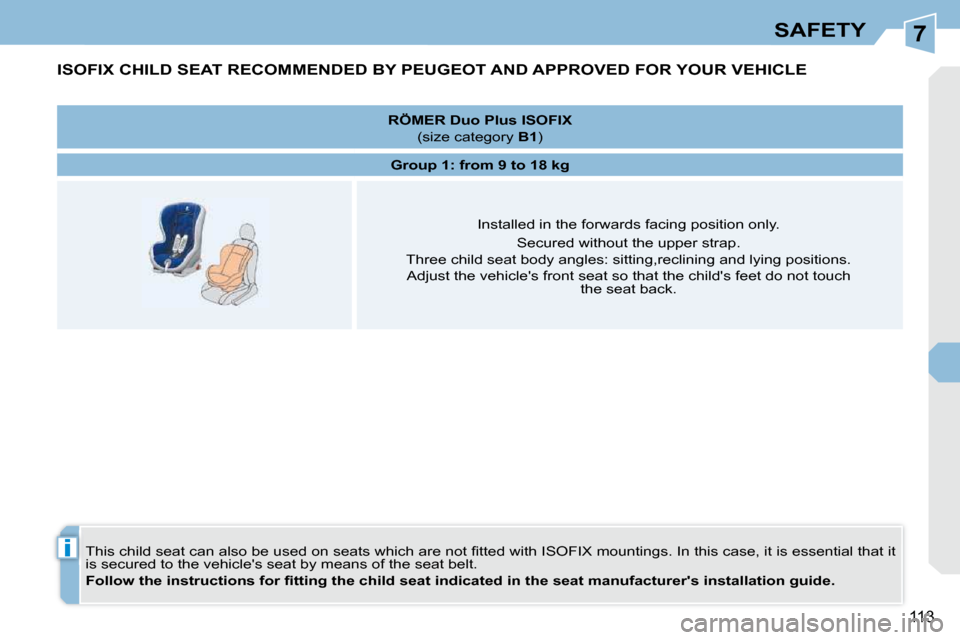

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it is essential that it
is secured to the vehicle's seat by means of the seat belt.

Follow the instructions for fi tting the child seat indicated in the seat manufacturer's installation guide.

RÖMER Duo Plus ISOFIX
(size category B1 )

Group 1: from 9 to 18 kg
Installed in the forwards facing position only. Secured without the upper strap.
Three child seat body angles: sitting,reclining and lying p ositions.
Adjust the vehicle's front seat so that the child's feet do n ot touch
the seat back.

7SAFETY

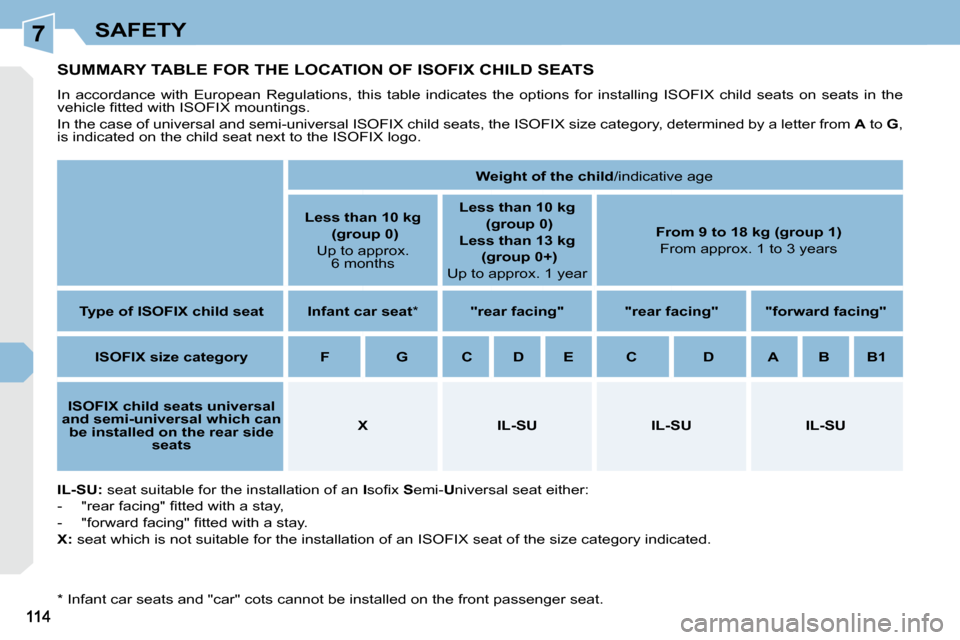

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in t he
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, th e ISOFIX size category, determined by a letter from A to G ,
is indicated on the child seat next to the ISOFIX logo.

IL-SU: seat suitable for the installation of an I sofi x S emi- U niversal seat either:
- "rear facing" fi tted with a stay,
- "forward facing" fi tted with a stay.

X: seat which is not suitable for the installation of an I SOFIX seat of the size category indicated.


Weight of the child /indicative age

Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg (group 1)
From approx. 1 to 3 years

Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"

ISOFIX size category F G C D E C D A B B1

ISOFIX child seats universal
and semi-universal which can be installed on the rear side
seats
X IL-SU IL-SU IL-SU
* Infant car seats and "car" cots cannot be installed on th e front passenger seat.

8
!
i
!
115
DRIVING
When parking on a slope, direct
your wheels against the pavement,
pull the parking brake on and en-
gage a gear.

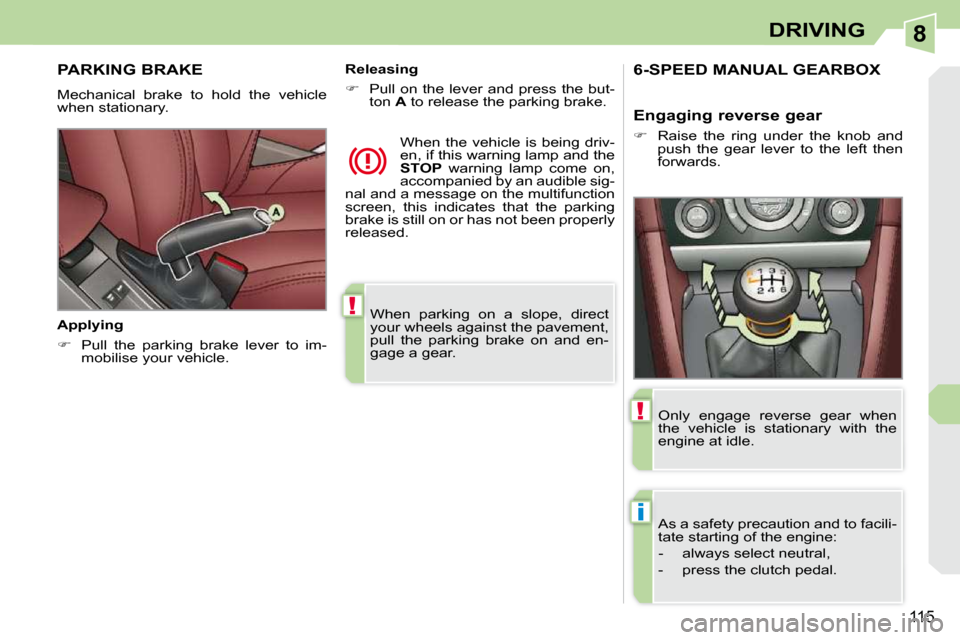

PARKING BRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying

 Pull the parking brake lever to im-
mobilise your vehicle. When the vehicle is being driv-
en, if this warning lamp and the

STOP warning lamp come on,
accompanied by an audible sig-
nal and a message on the multifunction
screen, this indicates that the parking
brake is still on or has not been properly
released.
Releasing

 Pull on the lever and press the but-
ton A to release the parking brake.
6-SPEED MANUAL GEARBOX
As a safety precaution and to facili-
tate starting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when
the vehicle is stationary with the
engine at idle.
Engaging reverse gear

 Raise the ring under the knob and
push the gear lever to the left then
forwards.

8
i
116
DRIVING

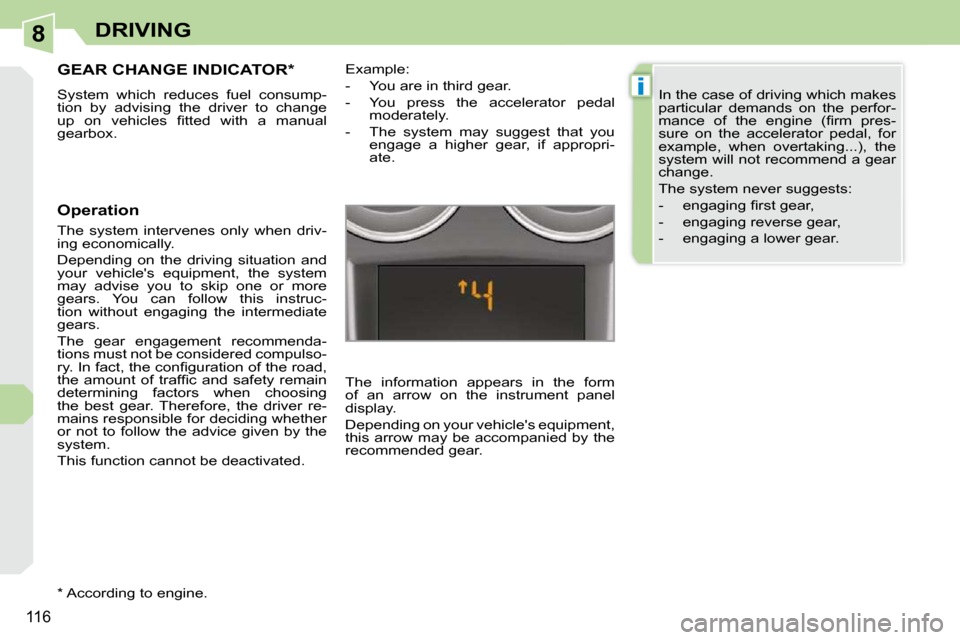

GEAR CHANGE INDICATOR *
System which reduces fuel consump-
tion by advising the driver to change
up on vehicles fi tted with a manual
gearbox.
Operation
The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear engagement recommenda-
tions must not be considered compulso-
ry. In fact, the confi guration of the road,
the amount of traffi c and safety remain
determining factors when choosing
the best gear. Therefore, the driver re-
mains responsible for deciding whether
or not to follow the advice given by the
system.
This function cannot be deactivated. The information appears in the form
of an arrow on the instrument panel
display.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear. In the case of driving which makes
particular demands on the perfor-
mance of the engine (fi rm pres-
sure on the accelerator pedal, for
example, when overtaking...), the
system will not recommend a gear
change.
The system never suggests:
- engaging fi rst gear,
- engaging reverse gear,
- engaging a lower gear.
* According to engine. Example:
- You are in third gear.
- You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropri-
ate.

8
117
DRIVING

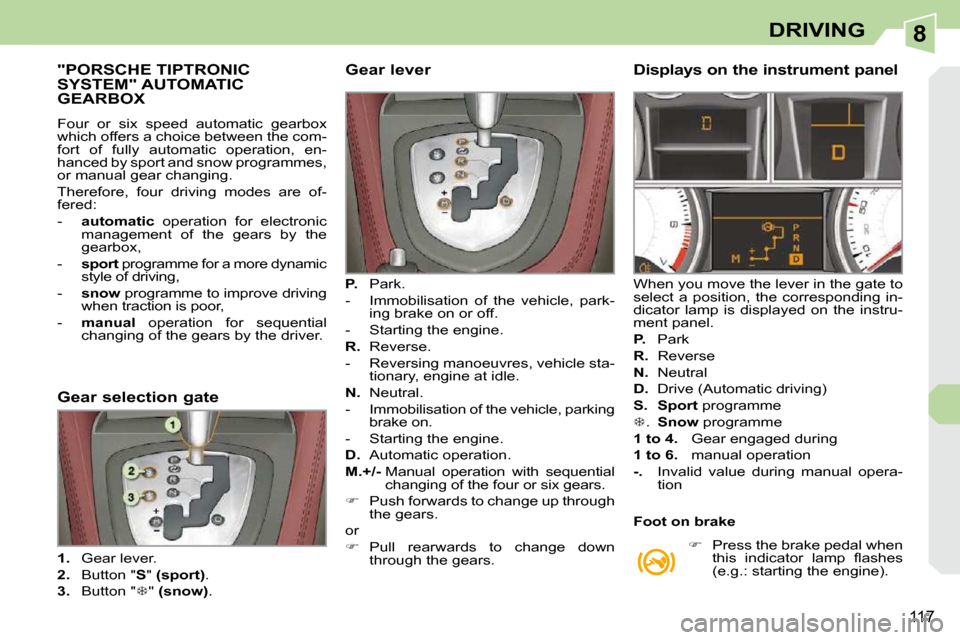

"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
Four or six speed automatic gearbox
which offers a choice between the com-
fort of fully automatic operation, en-
hanced by sport and snow programmes,
or manual gear changing.
Therefore, four driving modes are of-
fered:
- automatic operation for electronic
management of the gears by the
gearbox,
- sport programme for a more dynamic
style of driving,
- snow programme to improve driving
when traction is poor,
- manual operation for sequential
changing of the gears by the driver. Gear lever

P. Park.
- Immobilisation of the vehicle, park- ing brake on or off.
- Starting the engine.

R. Reverse.
- Reversing manoeuvres, vehicle sta- tionary, engine at idle.

N. Neutral.
- Immobilisation of the vehicle, parking brake on.
- Starting the engine.

D. Automatic operation.

M.+/- Manual operation with sequential
changing of the four or six gears.

 Push forwards to change up through
the gears.
or

 Pull rearwards to change down
through the gears. Displays on the instrument panel
When you move the lever in the gate to
select a position, the corresponding in-
dicator lamp is displayed on the instru-
ment panel.

P. Park

R. Reverse

N. Neutral

D. Drive (Automatic driving)

S. Sport programme

 . Snow programme

1 to 4. Gear engaged during

1 to 6. manual operation

-. Invalid value during manual opera-
tion
Gear selection gate

1. Gear lever.

2. Button " S " (sport) .

3. Button "  " (snow) .
 Press the brake pedal when
this indicator lamp fl ashes
(e.g.: starting the engine).
Foot on brake

8
!
!
i
118
DRIVING

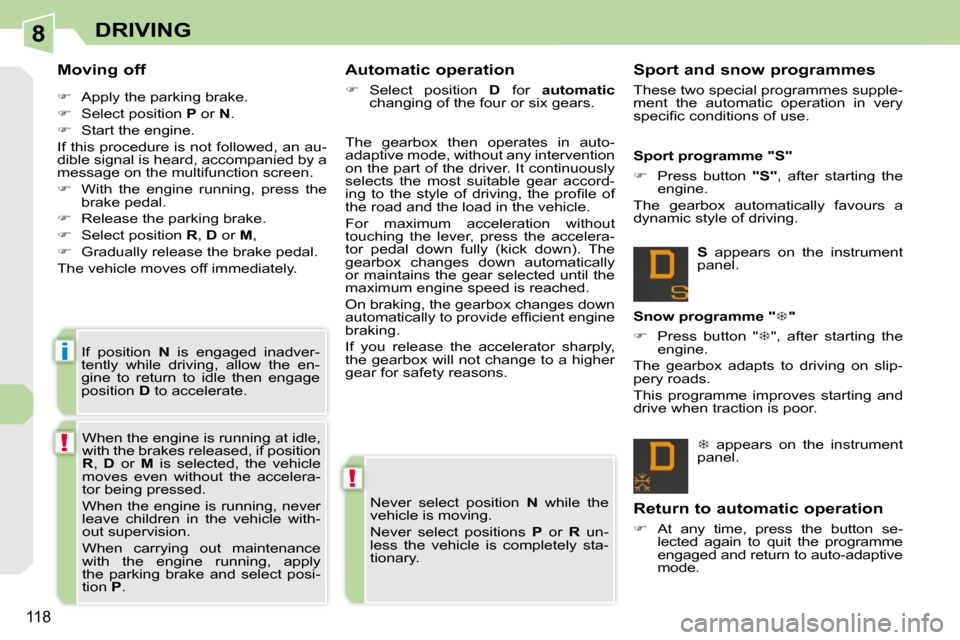

Moving off

 Apply the parking brake.

 Select position P or N .

 Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction screen.

 With the engine running, press the
brake pedal.

 Release the parking brake.

 Select position R , D or M ,

 Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadver-
tently while driving, allow the en-
gine to return to idle then engage
position D to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Automatic operation

 Select position D for automatic
changing of the four or six gears.

 appears on the instrument
panel.
Snow programme "
 "

 Press button "  ", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"

 Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R un-
less the vehicle is completely sta-
tionary.
When the engine is running at idle,
with the brakes released, if position

R , D or M is selected, the vehicle
moves even without the accelera-
tor being pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance
with the engine running, apply
the parking brake and select posi-
tion P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.
Return to automatic operation

 At any time, press the button se-
lected again to quit the programme
engaged and return to auto-adaptive
mode.

8
PRND
!
i
119
DRIVING
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, indicates a gearbox
malfunction.
In this case, the gearbox switches to
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
the gearbox.
Do not exceed a speed of 60 mph
(100 km/h), local speed restrictions per-
mitting.
Have it checked by a PEUGEOT dealer.
This warning lamp may also come on if
a door is opened.
There is a risk of damage to the
gearbox:
- if you press the accelerator and brake pedals at the same time,
- if you force the lever from posi- tion P to another position when
the battery is fl at.
Manual operation

 Select position M for sequential
changing of the four or six gears.

 Push the lever towards the + sign to
change up a gear.

 Pull the lever towards the - sign to
change down a gear.

D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
lected fl ashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode. If the lever is not in position
P ,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, an audible
signal is heard and a message ap-
pears.

 Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).
To limit fuel consumption when sta-
tionary for long periods with the en-
gine running (traffi c jam...), place
the gear lever in position N and
apply the parking brake.

8
i
120

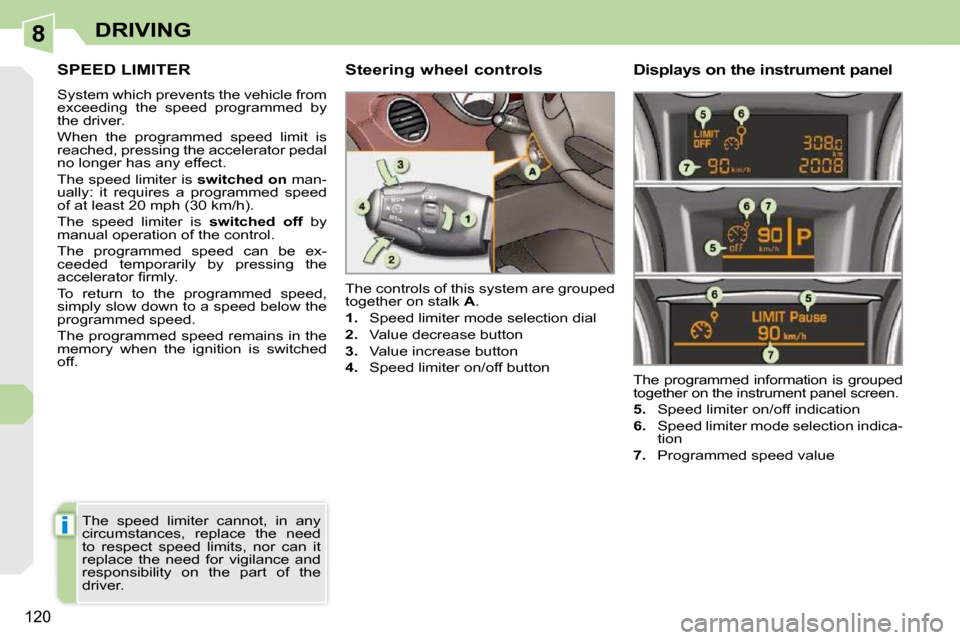

DRIVING
SPEED LIMITER
System which prevents the vehicle from
exceeding the speed programmed by
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect.
The speed limiter is switched on man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off by
manual operation of the control.
The programmed speed can be ex-
ceeded temporarily by pressing the
accelerator fi rmly.
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched
off. The controls of this system are grouped
together on stalk
A .

1. Speed limiter mode selection dial

2. Value decrease button

3. Value increase button

4. Speed limiter on/off button
The programmed information is grouped
together on the instrument panel screen.

5. Speed limiter on/off indication

6. Speed limiter mode selection indica-
tion

7. Programmed speed value
Steering wheel controls Displays on the instrument
panel
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
