7
i
102
SAFETY

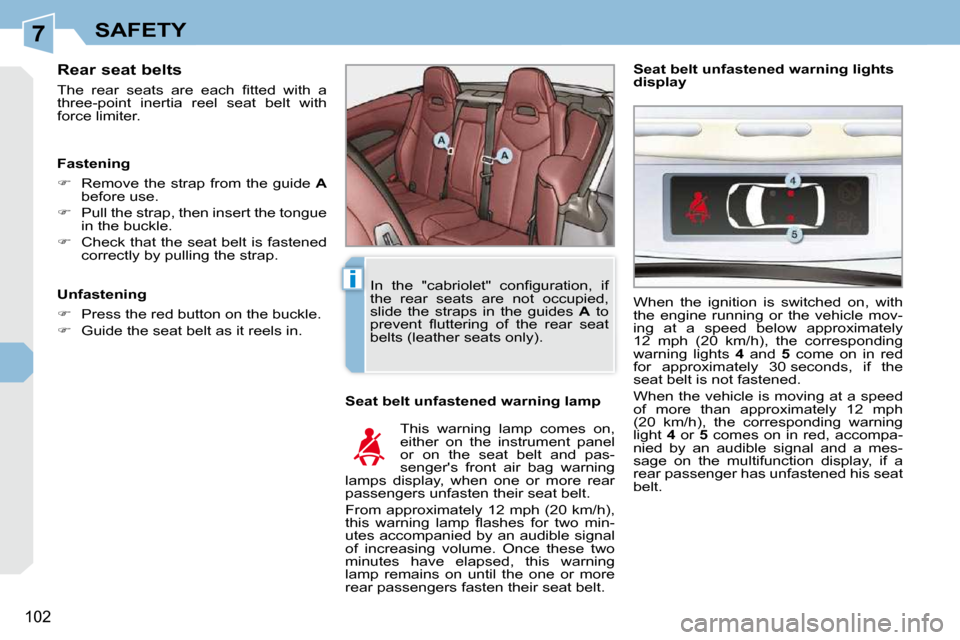

Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt with
force limiter. Seat belt unfastened warning lamp This warning lamp comes on,
either on the instrument panel
or on the seat belt and pas-
senger's front air bag warning
lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible signal
of increasing volume. Once these two
minutes have elapsed, this warning
lamp remains on until the one or more
rear passengers fasten their seat belt.
Fastening
Remove the strap from the guide A
before use.
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in. I n t h e " c a b r i o l e t " c o n fi g u r a t i o n , i f
the rear seats are not occupied,
slide the straps in the guides
A to
p r e v e n t fl u t t e r i n g o f t h e r e a r s e a t
belts (leather seats only). Seat belt unfastened warning lights display
When the ignition is switched on, with the engine running or the vehicle mov-ing at a speed below approximately12 mph (20 km/h), the corresponding warning lights 4 and 5 come on in red for approximately 30 seconds, if the seat belt is not fastened.
When the vehicle is moving at a speed of more than approximately 12 mph(20 km/h), the corresponding warning light 4 or 5 comes on in red, accompa-nied by an audible signal and a mes-sage on the multifunction display, if a rear passenger has unfastened his seat belt.
Page 102 of 256

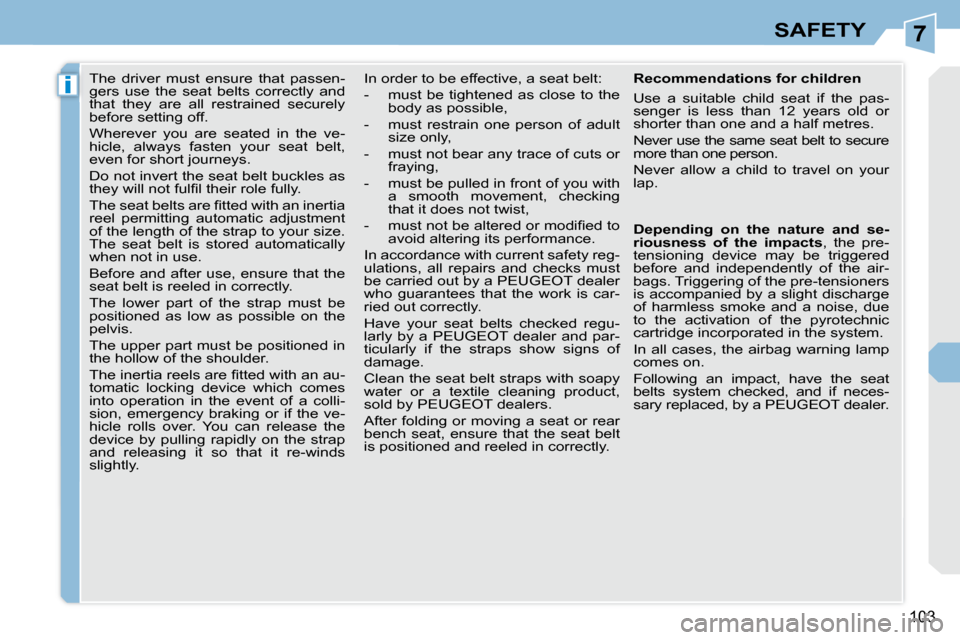

7
i
103
SAFETY
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it so that it re-winds
slightly. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to secure
more than one person.
Never allow a child to travel on your
lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 103 of 256
7
i
!
104
SAFETY
AIRBAGS
The airbags have been designed to
maximise the safety of the occupants in
the event of violent collisions. They sup-
plement the action of the force-limiting
seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detection
zones:
- in the event of a serious impact, the airbags are deployed instantane-
ously and protect the occupants of
the vehicle; immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder the visibil-
ity of the occupants or their possible
exit from the vehicle,
- in the event of a minor impact or rear impact and in certain roll-over
conditions, the airbags will not be
deployed; the seat belt alone is suf-
fi c i e n t t o p r o v i d e m a x i m u m p r o t e c -
tion in these situations.
The deployment of one or more
airbags is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
some irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time. Front airbags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and chest.
The driver's airbag is incorporated in
the centre of the steering wheel; the
front passenger's airbag is incorporated
in the dashboard above the glove box.
Activation
The airbags are triggered simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact to all or part of the
front impact zone
A , in the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the front to the
rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
dashboard to cushion his forward
movement.

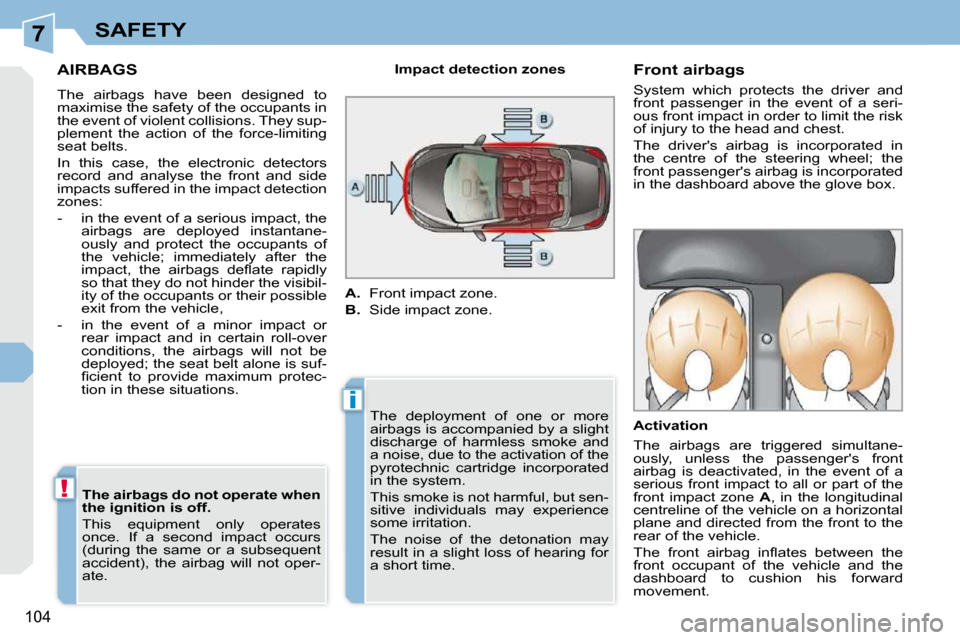

Impact detection zones
A. Front impact zone.
B. Side impact zone.
The airbags do not operate when
the ignition is off.
This equipment only operates
once. If a second impact occurs
(during the same or a subsequent
accident), the airbag will not oper-
ate.
Page 104 of 256
7
!
!
105
SAFETY
If at least one of the two airbag
warning lamps come on continu-
ously, do not install a child seat on
the front passenger seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault
If this warning lamp comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
screen, contact a PEUGEOT dealer to
have the system checked. The airbags
may no longer be triggered in the event
of a serious impact.
Reactivation
When you remove the child seat, turn
switch 1 to the "ON" position to re-arm
the airbag and so guarantee the safety
of your front passenger in the event of
an impact.
With the ignition on, this warn-
ing lamp comes on on the seat
belt and passenger's front air-
bag warning lamps display for
approximately one minute, if the pas-
senger's front airbag is activated. To guarantee the safety of your
child, it is imperative that the pas-
senger's front airbag is deactivated
when you install a "rear facing"
child seat on the front passenger
seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were triggered.
According to version, this warn-
ing lamp comes on either on
the instrument panel or on the
seat belt and passenger's front
airbag warning lamps display when the
ignition is on and until the airbag is re-
activated. I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a PEUGEOT dealer.
The passenger's front airbag
may no longer be triggered in
the event of a serious impact.
Deactivation
Only the passenger's front airbag can
be deactivated:
with the ignition off , insert the key
in the passenger airbag deactivation
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in this position.
Page 105 of 256
7
i
106
SAFETY

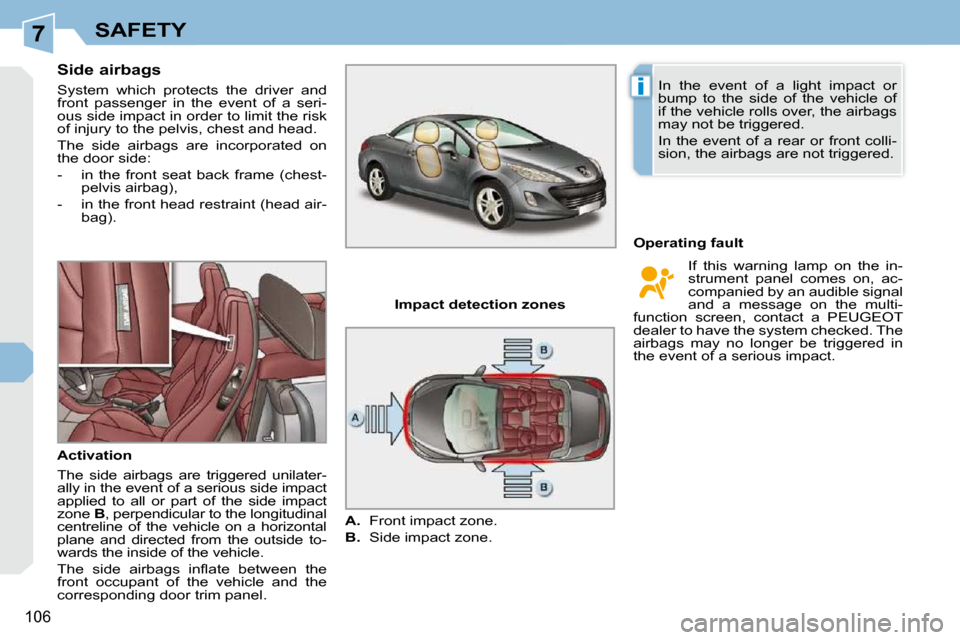

Side airbags
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the pelvis, chest and head.
The side airbags are incorporated on
the door side:
- in the front seat back frame (chest-pelvis airbag),
- in the front head restraint (head air- bag).
Activation
The side airbags are triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B , perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
T h e s i d e a i r b a g s i n fl a t e b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim panel. Operating fault
Impact detection zones
A. Front impact zone.
B. Side impact zone. If this warning lamp on the in-
strument panel comes on, ac-
companied by an audible signal
and a message on the multi-
function screen, contact a PEUGEOT
dealer to have the system checked. The
airbags may no longer be triggered in
the event of a serious impact. In the event of a light impact or
bump to the side of the vehicle of
if the vehicle rolls over, the airbags
may not be triggered.
In the event of a rear or front colli-
sion, the airbags are not triggered.
Page 106 of 256
7
!
107
SAFETY
For the airbags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few millisec-
o n d s ) t h e n d e fl a t e s w i t h i n t h e s a m e
time discharging the hot gas via open-
ings provided for this purpose. Front airbags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the dashboard.
If possible, do not smoke as deployment of the airbags can cau se burns or the
risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Side airbags
F i t o n l y a p p r o v e d c o v e r s o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e s i d e

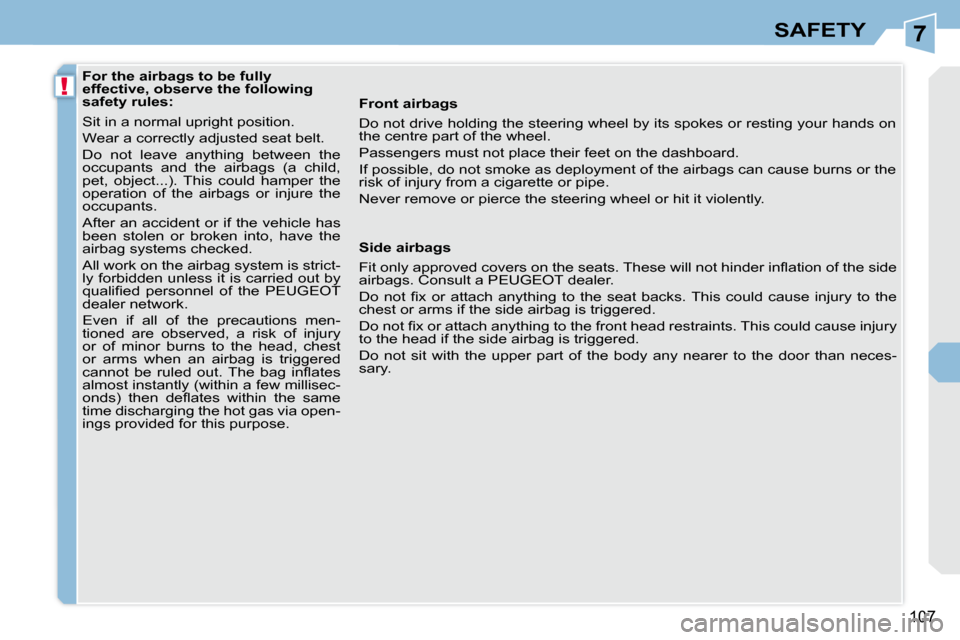

airbags. Consult a PEUGEOT dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
chest or arms if the side airbag is triggered.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e f r o n t h e a d r e s t r a i n t s . T h i s c o u l d c a u s e i n j u r y
to the head if the side airbag is triggered.
Do not sit with the upper part of the body any nearer to the door than neces-
sary.
Page 107 of 256
7
i
108
SAFETY
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.

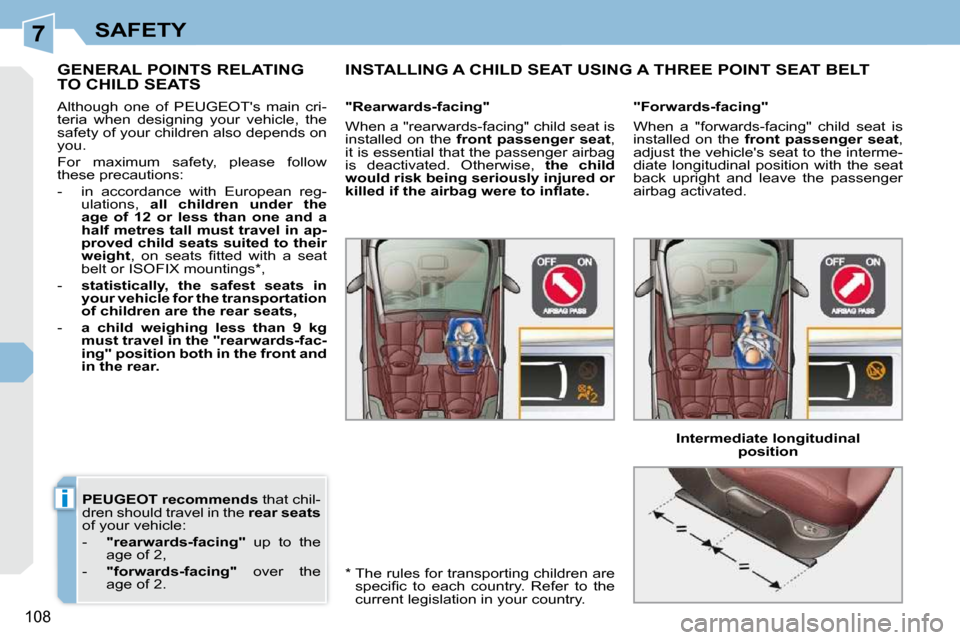

GENERAL POINTS RELATING TO CHILD SEATS INSTALLING A CHILD SEAT USING A THREE POINT SEAT BELT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
* The rules for transporting children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight , o n s e a t s fi t t e d w i t h a s e a t
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-fac-
ing" position both in the front and
in the rear.
Intermediate longitudinal position
Page 108 of 256
7
109
SAFETY
Passenger air bag OFF

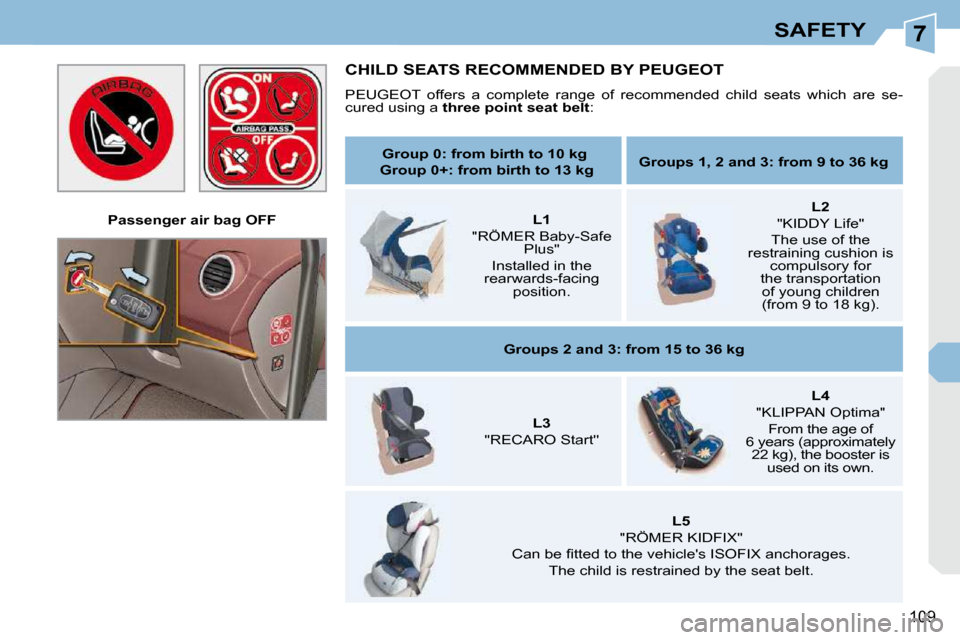

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for
the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima" From the age of
6 years (approximately 22 kg), the booster is used on its own.
L5
"RÖMER KIDFIX"
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X a n c h o r a g e s . The child is restrained by the seat belt.
Page 109 of 256
7
109
SAFETY
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
"RÖMER Baby-Safe Plus"
Installed in the
rearwards-facing position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for
the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima" From the age of
6 years (approximately 22 kg), the booster is used on its own.
L5
"RÖMER KIDFIX"
C a n b e fi t t e d t o t h e v e h i c l e ' s I S O F I X a n c h o r a g e s . The child is restrained by the seat belt.
Page 110 of 256
7
110
SAFETY

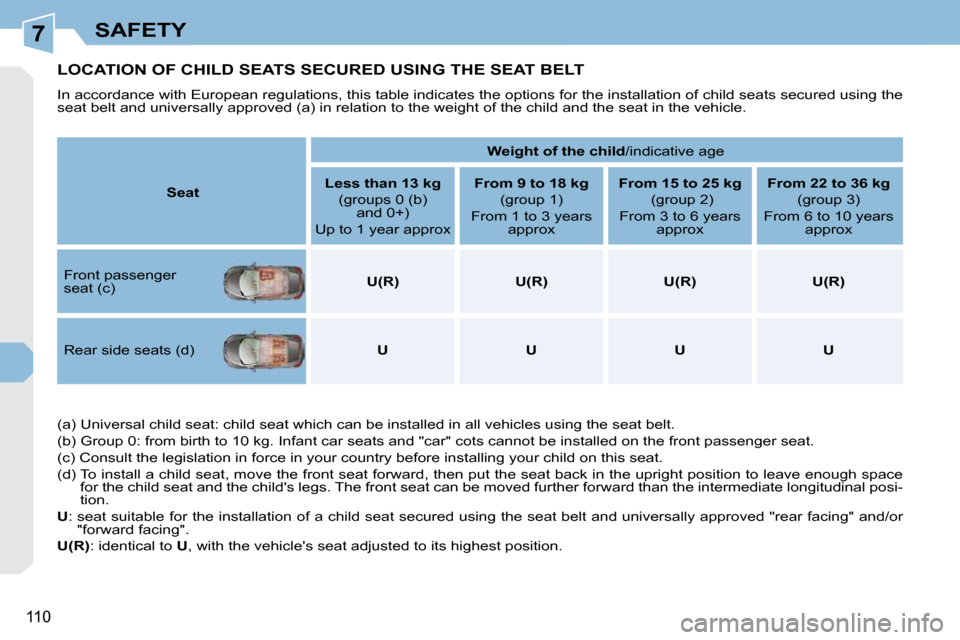

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a) in relation to the wei ght of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car" cots ca nnot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before inst alling your child on this seat.
(d) To install a child seat, move the front seat forward, th en put the seat back in the upright position to leave enough space
for the child seat and the child's legs. The front seat can be moved further forward than the intermediate longitudinal posi-
tion.
U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".
U(R) : identical to U , with the vehicle's seat adjusted to its highest position .
Seat
Weight of the child /indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger
seat (c)
U(R) U(R) U(R) U(R)
Rear side seats (d) U U U U
