5
i
i
87
VISIBILITY
Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching off of
the ignition, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen,
- replace them at the fi rst signs of wear. COURTESY LAMPS

1. Front courtesy lamp

2. Map reading lamp

3. Rear courtesy lamp
Front and rear courtesy lamps In this position, the courtesy
lamp comes on gradually: In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlim- ited.
- when the vehicle is unlocked,
-
when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.
Map reading lamps

 With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.

5
!
i
86
VISIBILITY

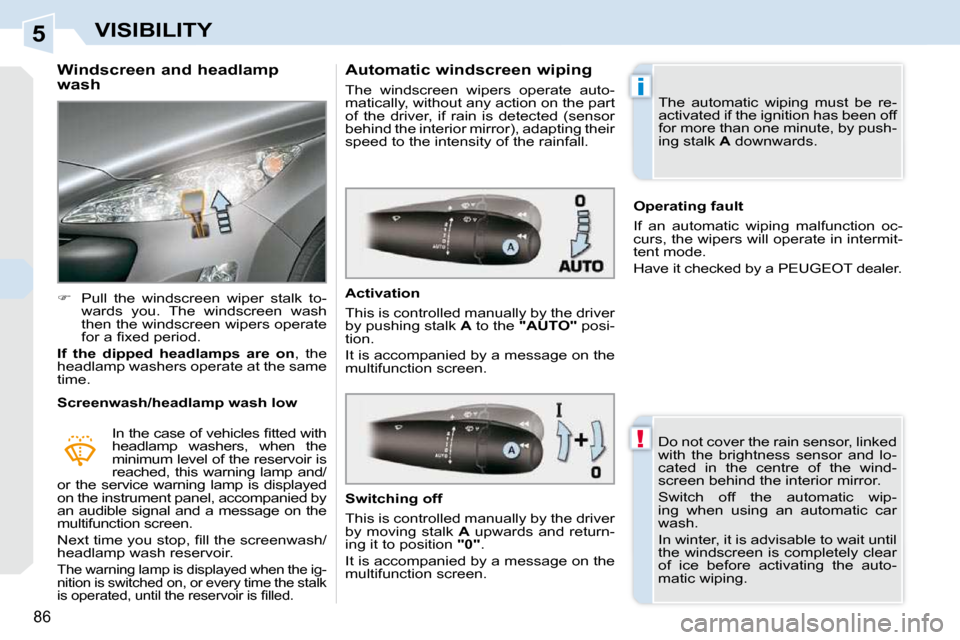

Windscreen and headlamp
wash

 Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.

If the dipped headlamps are on , the
headlamp washers operate at the same
time.
Screenwash/headlamp wash low
In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/
or the service warning lamp is displayed
on the instrument panel, accompanied by
an audible signal and a message on the
multifunction screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when the ig-
nition is switched on, or every time the stalk
is operated, until the reservoir is fi lled.
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the interior mirror), adapting their
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing stalk A to the "AUTO" posi-
tion.
It is accompanied by a message on the
multifunction screen.
Do not cover the rain sensor, linked
with the brightness sensor and lo-
cated in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing stalk
A downwards.
Switching off
This is controlled manually by the driver
by moving stalk A upwards and return-
ing it to position "0" .
It is accompanied by a message on the
multifunction screen. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.

5
i
i
87
VISIBILITY

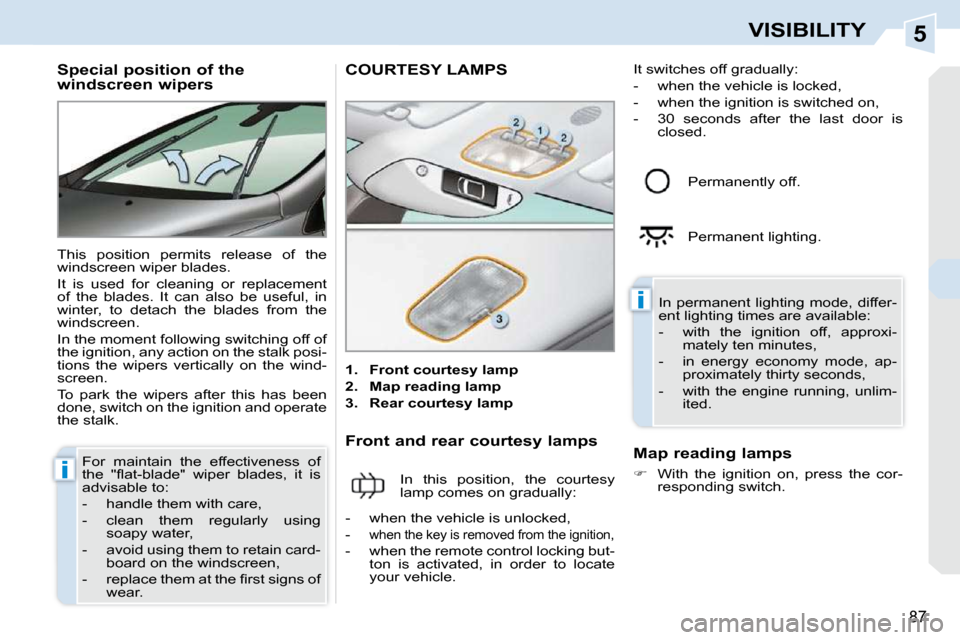

Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching off of
the ignition, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen,
- replace them at the fi rst signs of wear. COURTESY LAMPS

1. Front courtesy lamp

2. Map reading lamp

3. Rear courtesy lamp
Front and rear courtesy lamps In this position, the courtesy
lamp comes on gradually: In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- with the engine running, unlim- ited.
- when the vehicle is unlocked,
-
when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.
Map reading lamps

 With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.

5
i
i
88
VISIBILITY

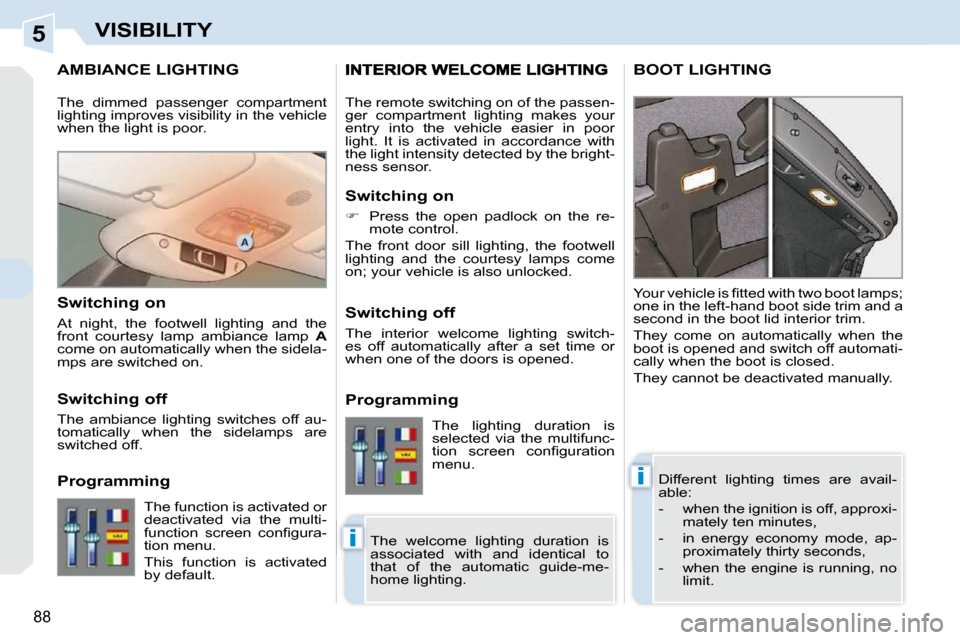

AMBIANCE LIGHTING
Different lighting times are avail-
able:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
Your vehicle is fi tted with two boot lamps;
one in the left-hand boot side trim and a
second in the boot lid interior trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.
BOOT LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on

 Press the open padlock on the re-
mote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Programming
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the footwell lighting and the
front courtesy lamp ambiance lamp
A
come on automatically when the sidela-
mps are switched on.
Switching off
The ambiance lighting switches off au-
tomatically when the sidelamps are
switched off.
Programming
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default. The lighting duration is
selected via the multifunc-
tion screen confi guration
menu.

6
89
FITTINGS

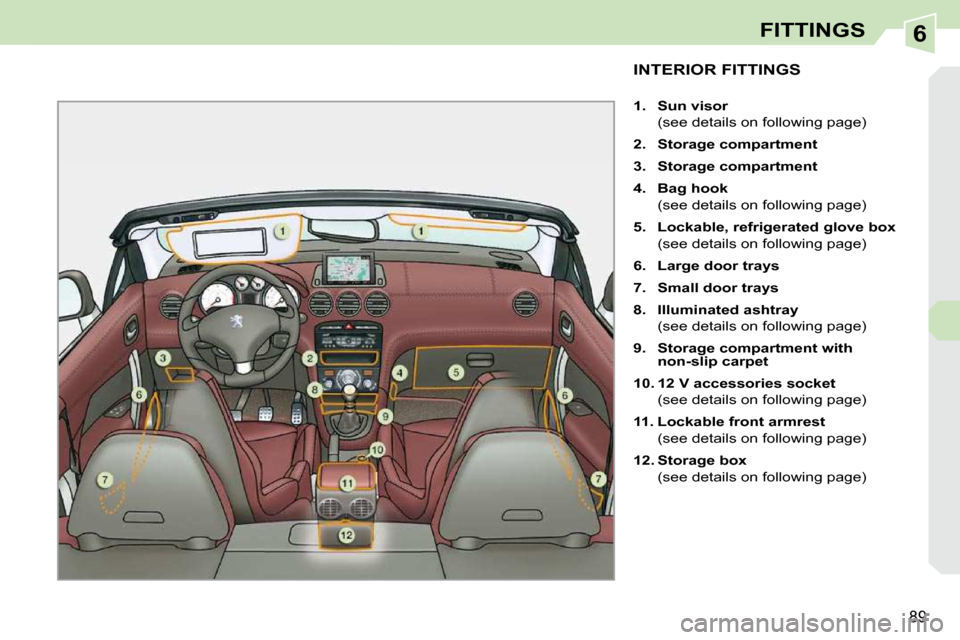

INTERIOR FITTINGS

1. Sun visor
(see details on following page)

2. Storage compartment

3. Storage compartment

4. Bag hook
(see details on following page)

5. Lockable, refrigerated glove
box
(see details on following page)

6. Large door trays

7. Small door trays

8. Illuminated ashtray
(see details on following page)

9. Storage compartment with
non-slip carpet

10. 12 V accessories socket
(see details on following page)

11. Lockable front
armrest
(see details on following page)

12. Storage box
(see details on following page)

6
90
FITTINGS

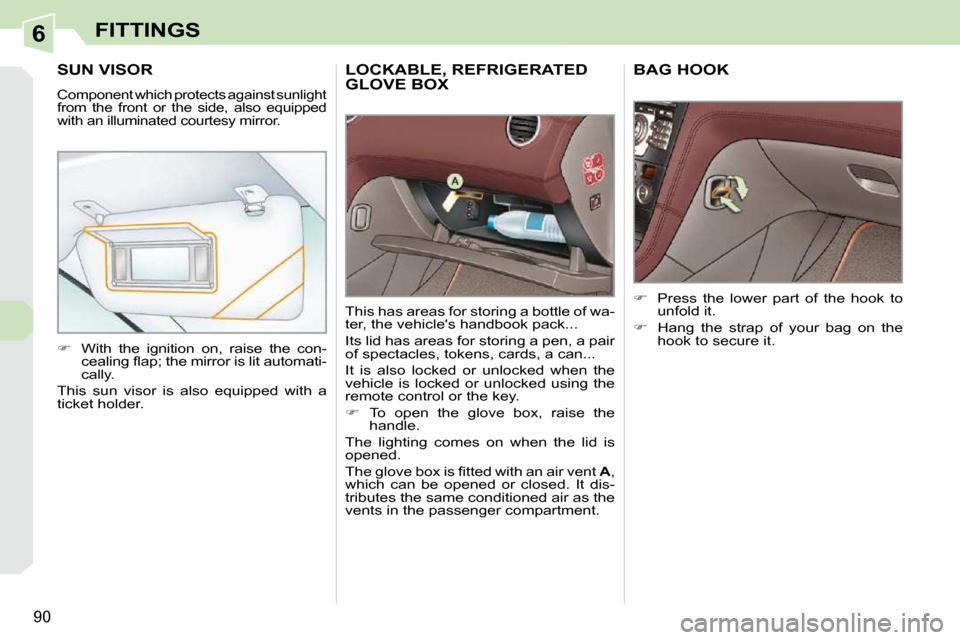

LOCKABLE, REFRIGERATED GLOVE BOX
This has areas for storing a bottle of wa-
ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.

 To open the glove box, raise the
handle.
The lighting comes on when the lid is
opened.
The glove box is fi tted with an air vent A ,
which can be opened or closed. It dis-
tributes the same conditioned air as the
vents in the passenger compartment.
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.


 With the ignition on, raise the con-
cealing fl ap; the mirror is lit automati-
cally.
This sun visor is also equipped with a
ticket holder.
BAG HOOK

 Press the lower part of the hook to
unfold it.

 Hang the strap of your bag on the
hook to secure it.

6
91
FITTINGS

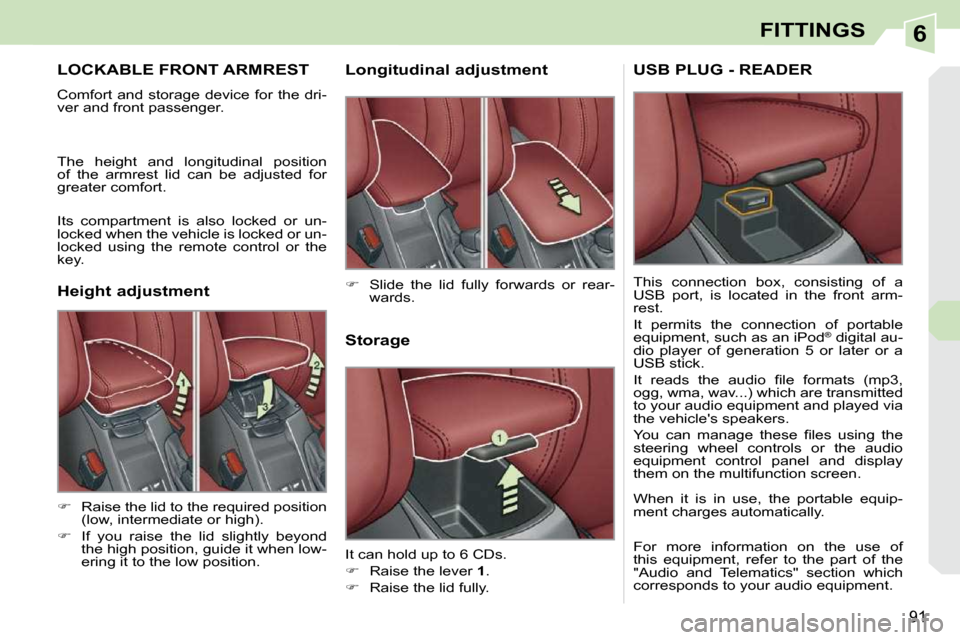

LOCKABLE FRONT ARMREST
Comfort and storage device for the dri-
ver and front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or un-
locked when the vehicle is locked or un-
locked using the remote control or the
key. Storage
It can hold up to 6 CDs.

 Raise the lever 1 .

 Raise the lid fully.

 Slide the lid fully forwards or rear-
wards.

 Raise the lid to the required position
(low, intermediate or high).

 If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position. Longitudinal adjustment
Height adjustment
USB PLUG - READER
This connection box, consisting of a
USB port, is located in the front arm-
rest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of
this equipment, refer to the part of the
"Audio and Telematics" section which
corresponds to your audio equipment.

6
!
92
FITTINGS

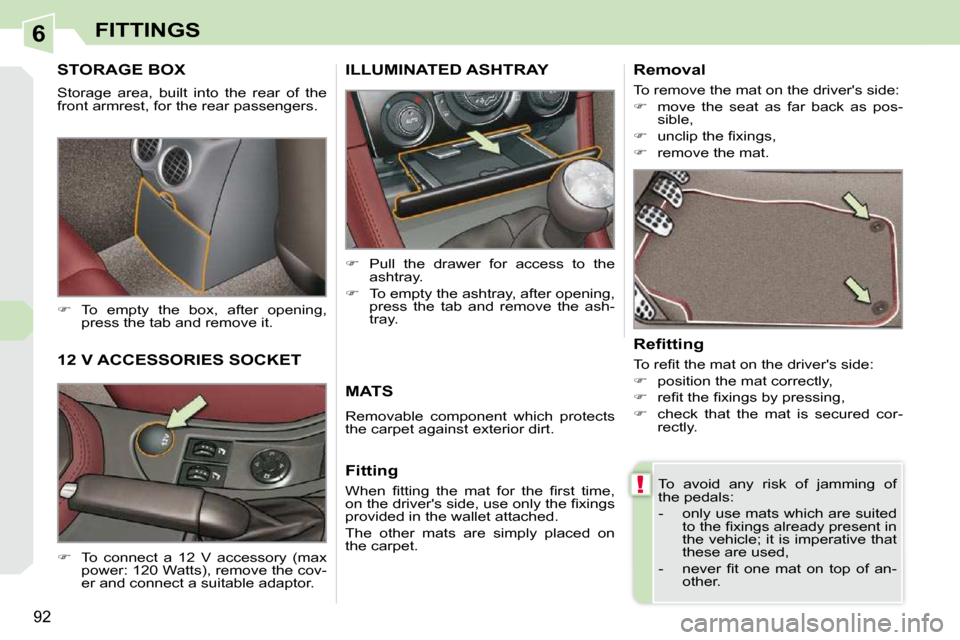

STORAGE BOX
Storage area, built into the rear of the
front armrest, for the rear passengers.

 To empty the box, after opening,
press the tab and remove it.
To avoid any risk of jamming of
the pedals:
- only use mats which are suited to the fi xings already present in
the vehicle; it is imperative that
these are used,
- never fi t one mat on top of an- other.
MATS
Removable component which protects
the carpet against exterior dirt. Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,

 check that the mat is secured cor-
rectly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side, use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet. Removal
To remove the mat on the driver's side:

 move the seat as far back as pos-
sible,

 unclip the fi xings,

 remove the mat.
12 V ACCESSORIES SOCKET

 To connect a 12 V accessory (max
power: 120 Watts), remove the cov-
er and connect a suitable adaptor.
ILLUMINATED ASHTRAY

 Pull the drawer for access to the
ashtray.

 To empty the ashtray, after opening,
press the tab and remove the ash-
tray.

6
90
FITTINGS
LOCKABLE, REFRIGERATED GLOVE BOX
This has areas for storing a bottle of wa-
ter, the vehicle's handbook pack...
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.

 To open the glove box, raise the
handle.
The lighting comes on when the lid is
opened.
The glove box is fi tted with an air vent A ,
which can be opened or closed. It dis-
tributes the same conditioned air as the
vents in the passenger compartment.
SUN VISOR
Component which protects against sunlight
from the front or the side, also equipped
with an illuminated courtesy mirror.


 With the ignition on, raise the con-
cealing fl ap; the mirror is lit automati-
cally.
This sun visor is also equipped with a
ticket holder.
BAG HOOK

 Press the lower part of the hook to
unfold it.

 Hang the strap of your bag on the
hook to secure it.

6
91
FITTINGS
LOCKABLE FRONT ARMREST
Comfort and storage device for the dri-
ver and front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or un-
locked when the vehicle is locked or un-
locked using the remote control or the
key. Storage
It can hold up to 6 CDs.

 Raise the lever 1 .

 Raise the lid fully.

 Slide the lid fully forwards or rear-
wards.

 Raise the lid to the required position
(low, intermediate or high).

 If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position. Longitudinal adjustment
Height adjustment
USB PLUG - READER
This connection box, consisting of a
USB port, is located in the front arm-
rest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of
this equipment, refer to the part of the
"Audio and Telematics" section which
corresponds to your audio equipment.
