Peugeot 308 SW BL Dag 2009.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2009.5, Model line: 308 SW BL Dag, Model: Peugeot 308 SW BL Dag 2009.5Pages: 313, PDF Size: 24.58 MB
Page 171 of 313
11
ii
175

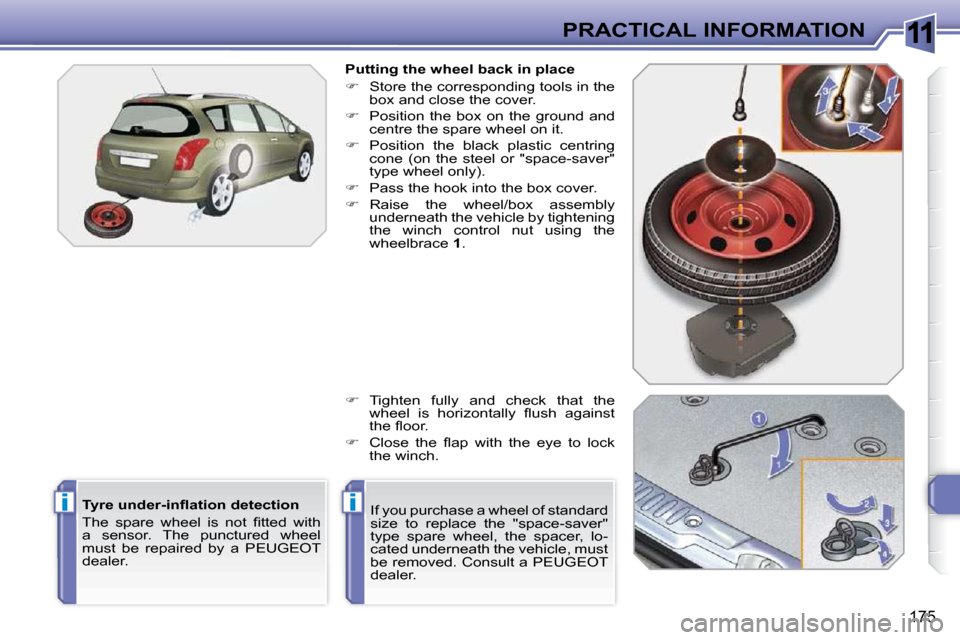

PRACTICAL INFORMATION
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer. Putting the wheel back in place
Store the corresponding tools in the
b o x a n d c l o s e t h e c o v e r .
P o s i t i o n t h e b o x o n t h e g r o u n d a n d
centre the spare wheel on it.
Position the black plastic centring
cone (on the steel or "space-saver"
t y p e w h e e l o n l y ) .
P a s s t h e h o o k i n t o t h e b o x c o v e r .
R a i s e t h e w h e e l / b o x a s s e m b l y
underneath the vehicle by tightening
the winch control nut using the
wheelbrace 1 .
Tighten fully and check that the
w h e e l i s h o r i z o n t a l l y fl u s h a g a i n s t
t h e fl o o r .
C l o s e t h e fl a p w i t h t h e e y e t o l o c k
the winch.
If you purchase a wheel of standard
size to replace the "space-saver"
type spare wheel, the spacer, lo-
cated underneath the vehicle, must
be removed. Consult a PEUGEOT
dealer.
Page 172 of 313
11
i
176

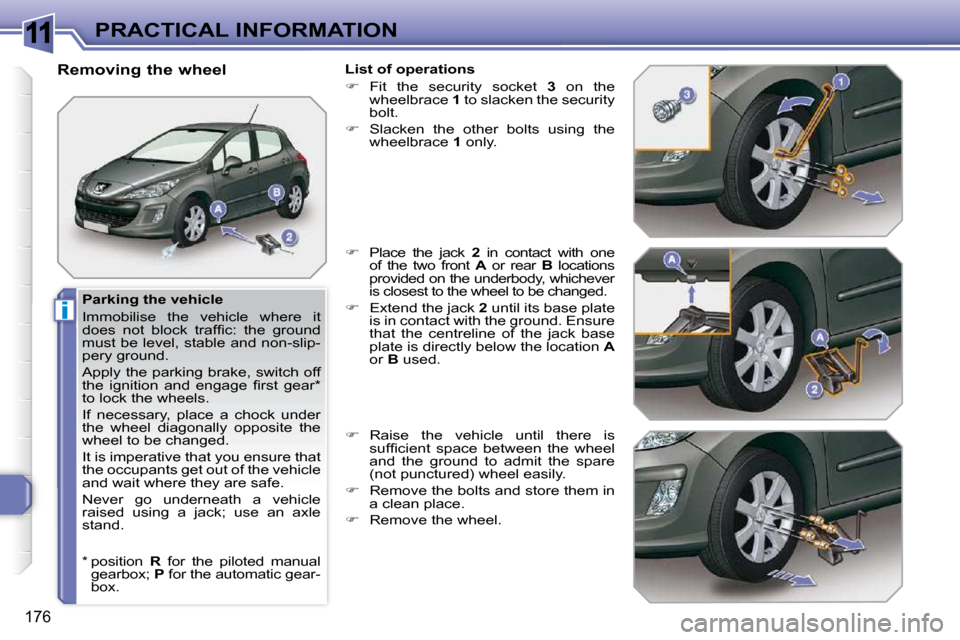

PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where it
d o e s n o t b l o c k t r a f fi c : t h e g r o u n d
must be level, stable and non-slip-
pery ground.
Apply the parking brake, switch off
t h e i g n i t i o n a n d e n g a g e fi r s t g e a r *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait where they are safe.
Never go underneath a vehicle
r a i s e d u s i n g a j a c k ; u s e a n a x l e
stand.
Removing the wheel
List of operations
Fit the security socket 3 on the
wheelbrace 1 to slacken the security
bolt.
Slacken the other bolts using the
wheelbrace 1 only.
Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underbody, whichever
is closest to the wheel to be changed.
E x t e n d t h e j a c k 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
Raise the vehicle until there is
s u f fi c i e n t s p a c e b e t w e e n t h e w h e e l
and the ground to admit the spare
( n o t p u n c t u r e d ) w h e e l e a s i l y .
Remove the bolts and store them in
a clean place.
Remove the wheel.
* position R for the piloted manual
g e a r b o x ; P for the automatic gear-
b o x .
Page 173 of 313
11
i
177

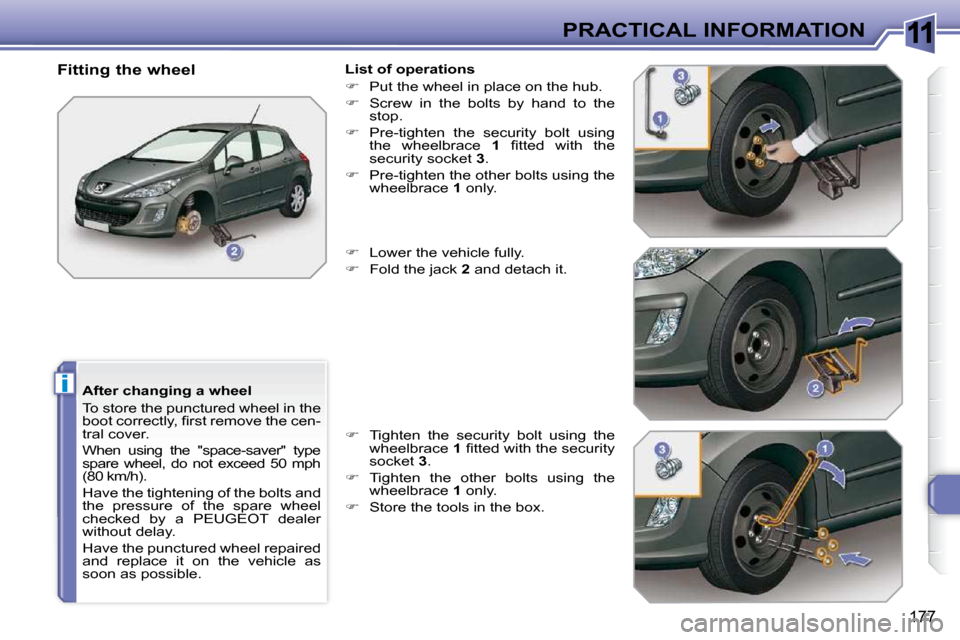

PRACTICAL INFORMATION
After changing a wheel
To store the punctured wheel in the
b o o t c o r r e c t l y , fi r s t r e m o v e t h e c e n -
tral cover.
When using the "space-saver" type
s p a r e w h e e l , d o n o t e x c e e d 5 0 m p h
( 8 0 k m / h ) .
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting the wheel
List of operations
Put the wheel in place on the hub.
Screw in the bolts by hand to the
stop.
Pre-tighten the security bolt using
the wheelbrace 1 fi t t e d w i t h t h e
security socket 3 .
Pre-tighten the other bolts using the
wheelbrace 1 only.
Lower the vehicle fully.
Fold the jack 2 and detach it.
Tighten the security bolt using the
wheelbrace 1 fi t t e d w i t h t h e s e c u r i t y
socket 3 .
Tighten the other bolts using the
wheelbrace 1 only.
S t o r e t h e t o o l s i n t h e b o x .
Page 174 of 313
11
!
!
!
178

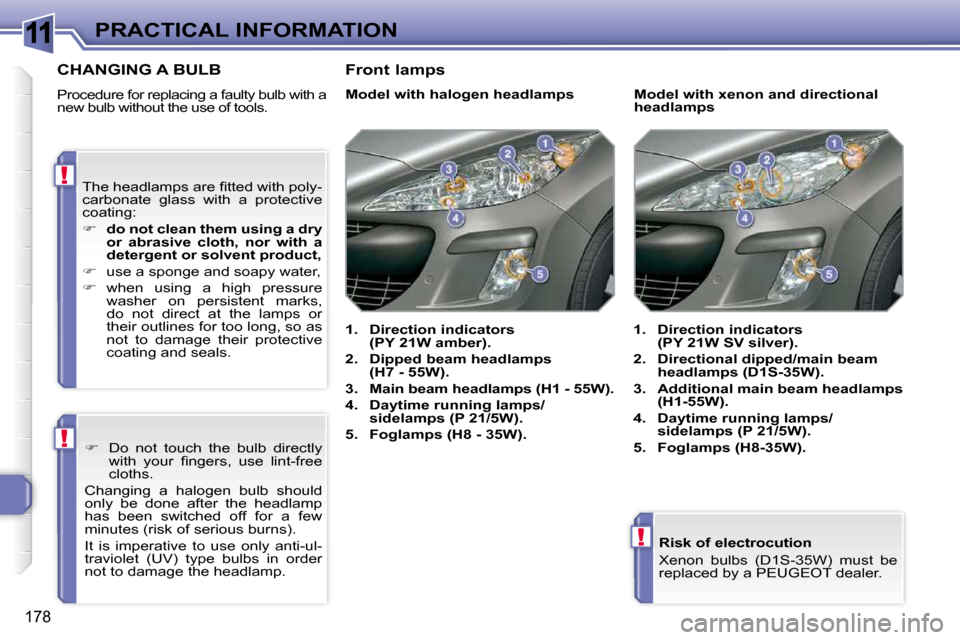

PRACTICAL INFORMATION Risk of electrocution
X e n o n b u l b s ( D 1 S - 3 5 W ) m u s t b e
replaced by a PEUGEOT dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb with a
new bulb without the use of tools. Model with halogen headlamps
1. Direction indicators
(PY
21W
amber).
2. Dipped
beam
headlamps
(H7
-
55W).
3. Main beam headlamps (H1
-
55W).
4. Daytime
running lamps/
sidelamps
(P 21/
5W
).
5. Foglamps
(H8
-
35W).
1. Direction indicators
(PY 21W SV silver).
2. Directional dipped/main beam
headlamps (D1S-35W).
3. Additional main beam headlamps
(H1-55W).
4. Daytime running lamps/
sidelamps (P 21/5W).
5. Foglamps (H8-35W).
Model with xenon and dir
ectional
headlamps
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate glass with a protective
c o a t i n g :
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
use a sponge and soapy water,
when using a high pressure
washer on persistent marks,
do not direct at the lamps or
their outlines for too long, so as
not to damage their protective
coating and seals.
Do not touch the bulb directly
w i t h y o u r fi n g e r s , u s e l i n t - f r e e
cloths.
Changing a halogen bulb should
only be done after the headlamp
has been switched off for a few
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
It is imperative to use only anti-ul-
t r a v i o l e t ( U V ) t y p e b u l b s i n o r d e r
not to damage the headlamp. Front lamps
Page 175 of 313
11
i
!
179

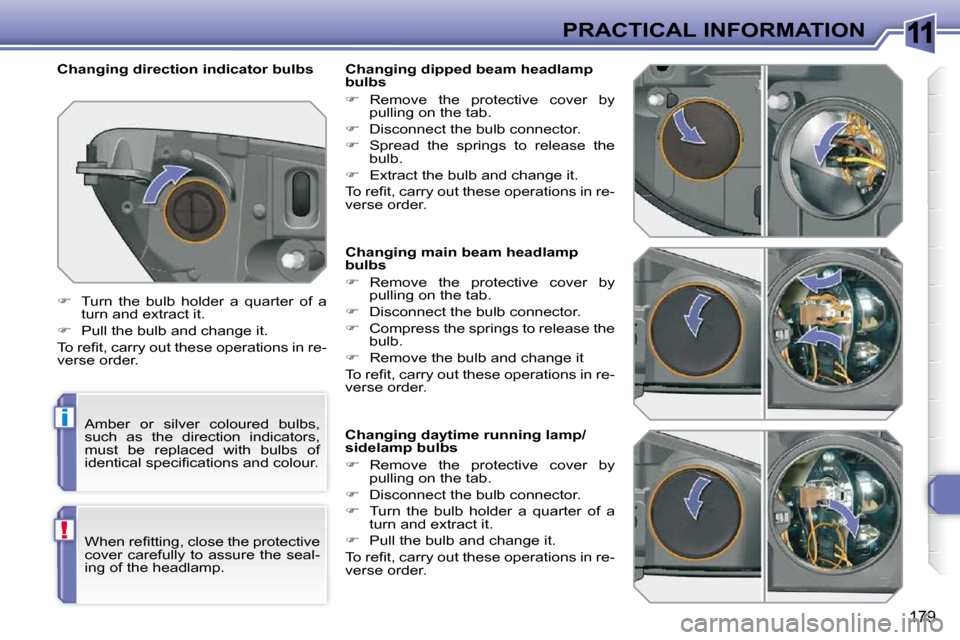

PRACTICAL INFORMATION
Changing main beam headlamp
bulbs
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Compress the springs to release the
bulb.
Remove the bulb and change it
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing daytime running lamp/
sidelamp bulbs
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing dipped beam headlamp
bulbs
Remove the protective cover by
pulling on the tab.
Disconnect the bulb connector.
Spread the springs to release the
bulb.
E x t r a c t t h e b u l b a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing direction indicator bulbs
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
i d e n t i c a l s p e c i fi c a t i o n s a n d c o l o u r .
W h e n r e fi t t i n g , c l o s e t h e p r o t e c t i v e
cover carefully to assure the seal-
ing of the headlamp.

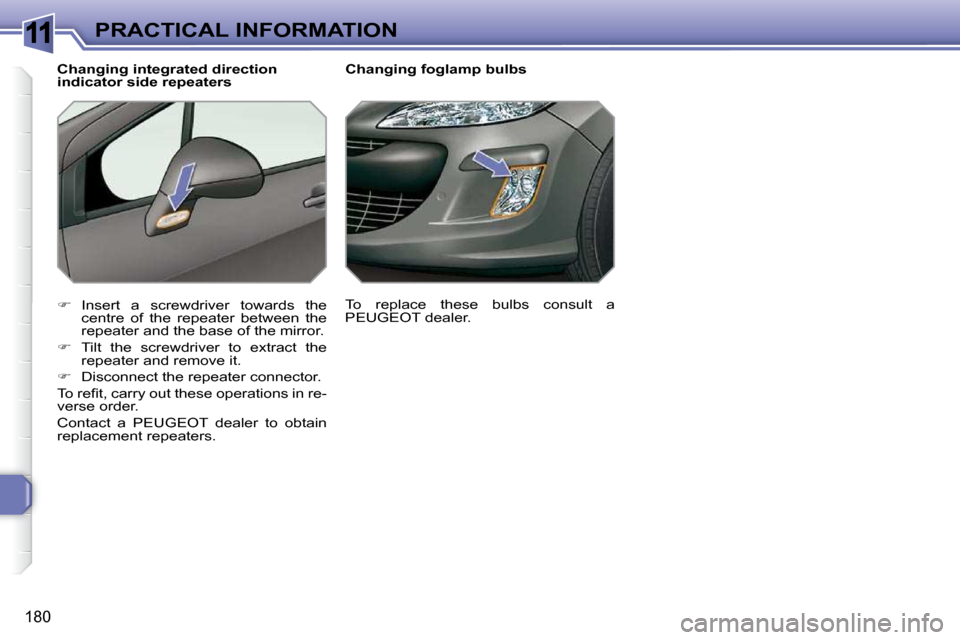

Page 176 of 313
11
180
PRACTICAL INFORMATION Changing foglamp bulbs
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e
repeater and remove it.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
To replace these bulbs consult a
PEUGEOT dealer.
Page 177 of 313
11
i
181
PRACTICAL INFORMATION
Rear lamps
1. Brake
lamps/
sidelamps
(
P21
/
5W
).
2. Sidelamps
(
P21
/
5W
).
3. Foglamp,
left-hand side (
P21W
).
Reversing
lamp,
right-hand side
(
P21W
).
4. Direction indicators (
P21W
). Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
s i d e t h e b o o t :
r e m o v e t h e t w o l a m p fi x i n g n u t s ,
e x t r a c t t h e l a m p c a r e f u l l y f r o m t h e
outside,
disconnect the lamp connector,
press the four tabs and remove the
bulb holder,
turn the bulb a quarter of a turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
I f t h e v e h i c l e i s fi t t e d w i t h t h e J B L
audio system, on the right-hand
s i d e , fi r s t r e m o v e t h e t h r e e fi x i n g
b o l t s , t h e n m o v e t h e b o x .
on the right-hand side; remove the
a c c e s s fl a p ,
o n t h e l e f t - h a n d s i d e ; t u r n t h e fi x i n g
bolt a quarter of a turn and remove
t h e s t o r a g e b o x c o v e r ,
u n c l i p t h e s t o r a g e b o x ,
Page 178 of 313
11
182

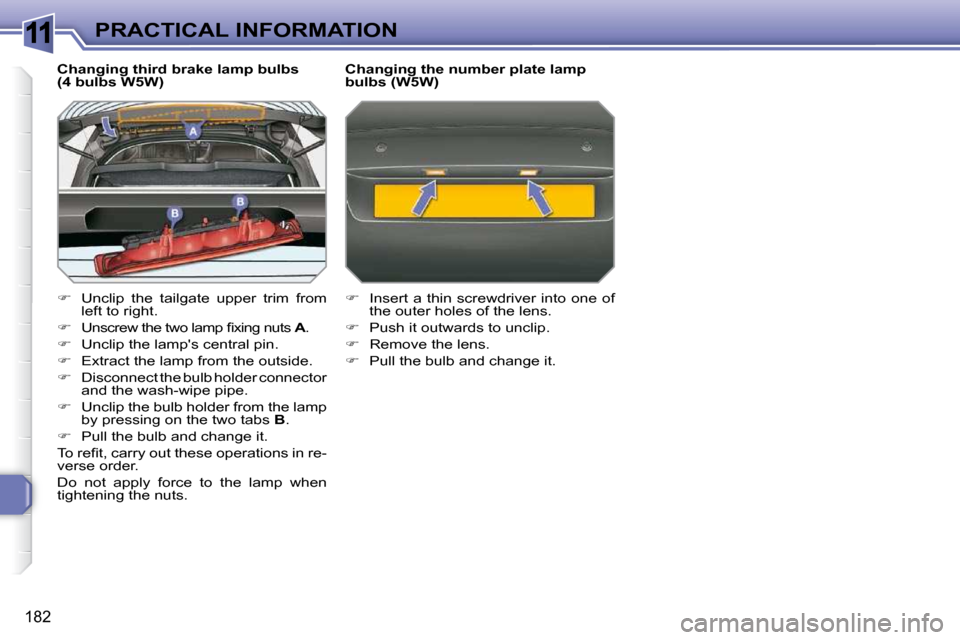

PRACTICAL INFORMATION
Changing third brake lamp bulbs
(4 bulbs W5W)
Unclip the tailgate upper trim from
left to right.
U n s c r e w t h e t w o l a m p fi x i n g n u t s A .
Unclip the lamp's central pin.
E x t r a c t t h e l a m p f r o m t h e o u t s i d e .
Disconnect the bulb holder connector
and the wash-wipe pipe.
Unclip the bulb holder from the lamp
by pressing on the two tabs B .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Do not apply force to the lamp when
tightening the nuts. Changing the number plate lamp
bulbs (W5W)
Insert a thin screwdriver into one of
the outer holes of the lens.
Push it outwards to unclip.
Remove the lens.
Pull the bulb and change it.
Page 179 of 313
11
183

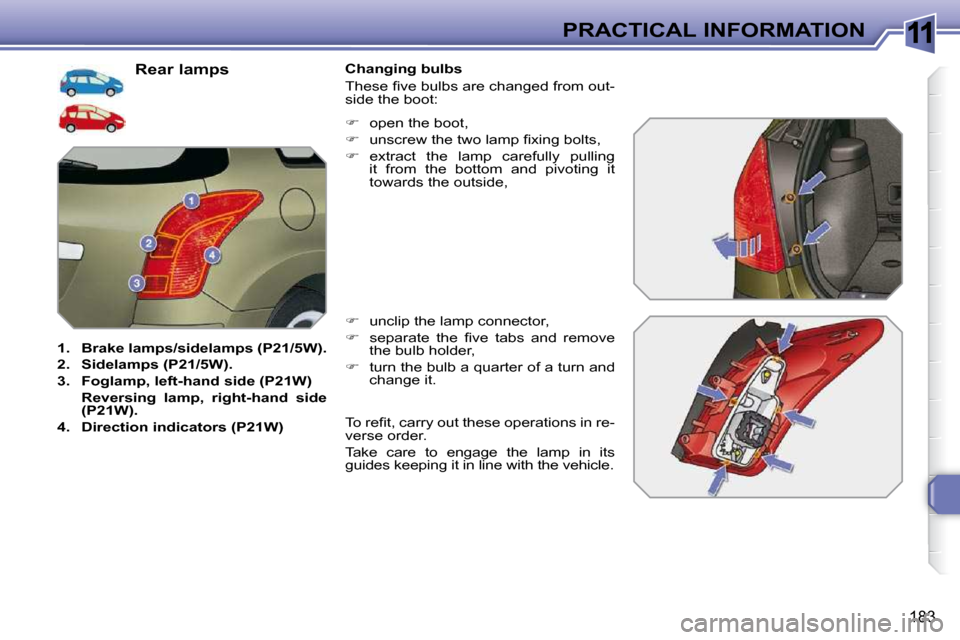

PRACTICAL INFORMATION
Rear lamps
1. Brake
lamps/
sidelamps
(
P21
/
5W
).
2. Sidelamps
(
P21
/
5W
).
3. Foglamp,
left-hand side (
P21W
)
Reversing
lamp,
right-hand side
(
P21W
).
4. Direction indicators (
P21W
) Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
s i d e t h e b o o t :
unclip the lamp connector,
s e p a r a t e t h e fi v e t a b s a n d r e m o v e
the bulb holder,
turn the bulb a quarter of a turn and
change it.
open the boot,
u n s c r e w t h e t w o l a m p fi x i n g b o l t s ,
e x t r a c t t h e l a m p c a r e f u l l y p u l l i n g
it from the bottom and pivoting it
towards the outside,
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the lamp in its
guides keeping it in line with the vehicle.
Page 180 of 313
11
184

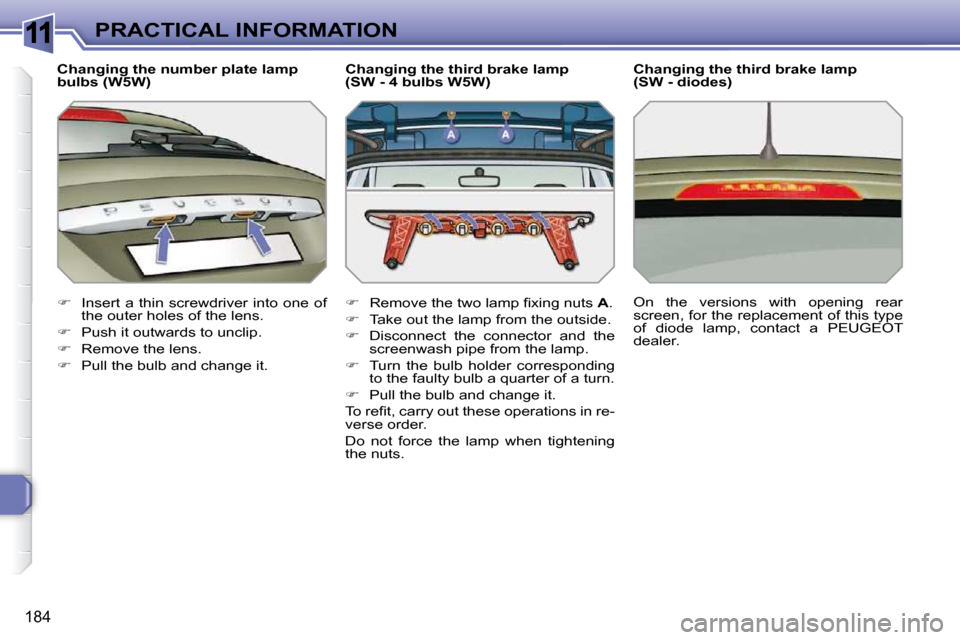

PRACTICAL INFORMATION
Changing the number plate lamp
bulbs (W5W)
Insert a thin screwdriver into one of
the outer holes of the lens.
Push it outwards to unclip.
Remove the lens.
Pull the bulb and change it. Changing the third brake lamp
(SW - diodes)
On the versions with opening rear
screen, for the replacement of this type
of diode lamp, contact a PEUGEOT
dealer.
Changing the third brake lamp
(SW - 4 bulbs W5W)
R e m o v e t h e t w o l a m p fi x i n g n u t s A .
Take out the lamp from the outside.
Disconnect the connector and the
screenwash pipe from the lamp.
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Do not force the lamp when tightening
the nuts.
