PEUGEOT 4008 2017 Owners Manual

02
249
4008_EN_CHAP10B_MITSU6_ED01-2016

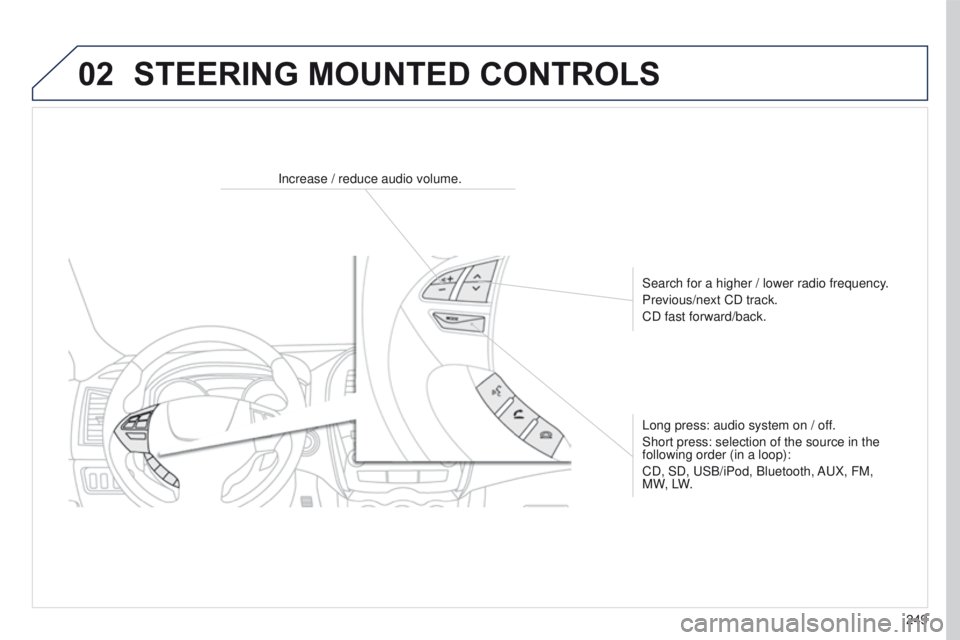

Increase / reduce audio volume.Search for a higher / lower radio frequency.
Previous/next CD track.
CD fast forward/back.
Long press: audio system on / off.
Short press: selection of the source in the
following order (in a loop):
CD, SD,
u SB/iPod, Bluetooth, A u X, FM,
M W, LW.
STEERING MOUNTED CONTROLS

250
4008_EN_CHAP10B_MITSU6_ED01-2016

03
251
4008_EN_CHAP10B_MITSU6_ED01-2016

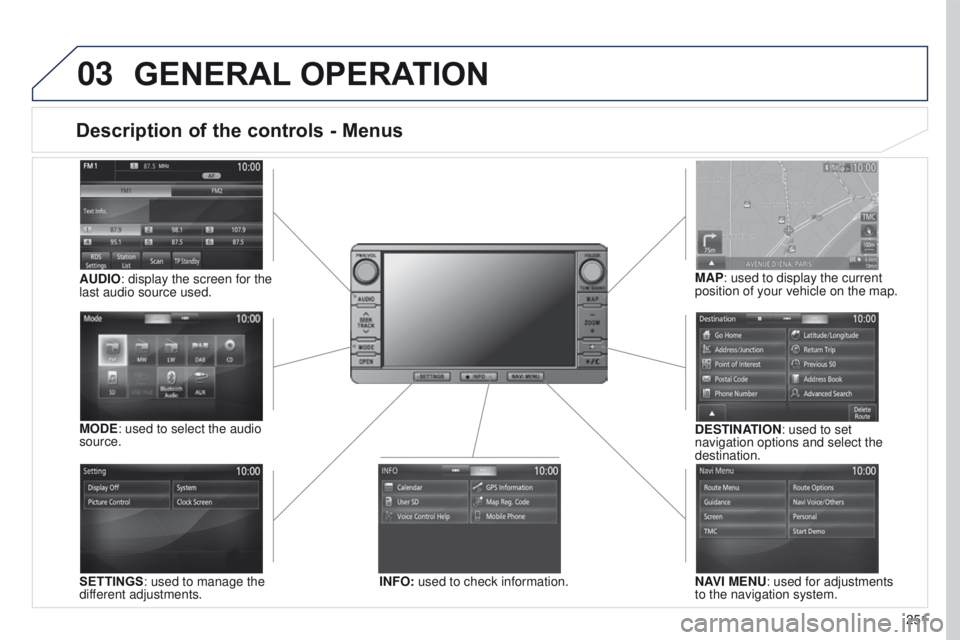

Description of the controls - Menus
SETTINGS: used to manage the
different adjustments. DESTINATION: used to set
navigation options and select the
destination.
NAVI MENU: used for adjustments
to the navigation system.
MODE: used to select the audio
source.
INFO: used to check information.
AUDIO: display the screen for the
last audio source used.
MAP: used to display the current
position of your vehicle on the map.
GENERAL
OPERATION

04
252
4008_EN_CHAP10B_MITSU6_ED01-2016

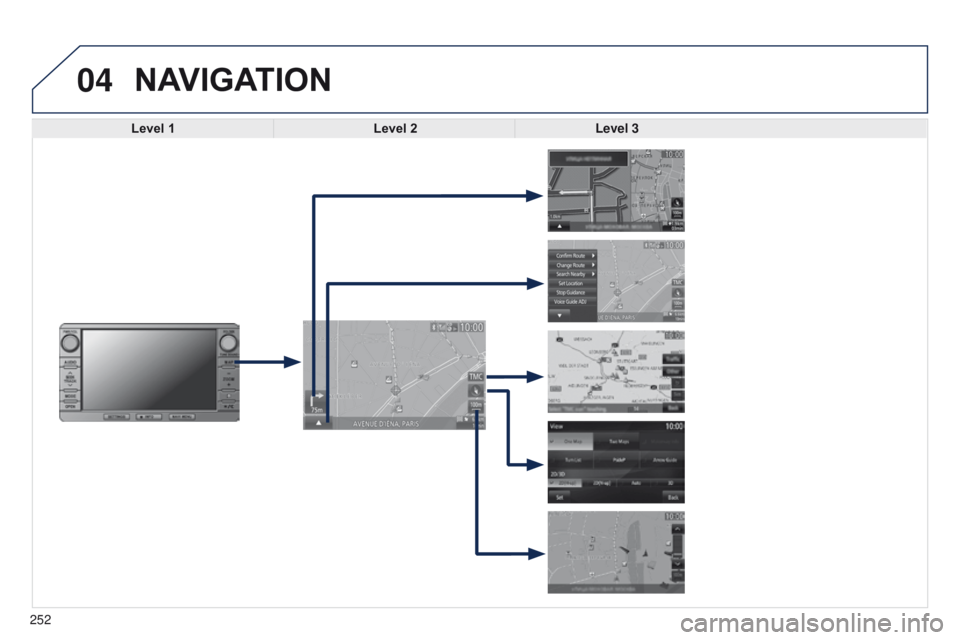

NAVIGATION
Level 1Level 2Level 3

253
4008_EN_CHAP10B_MITSU6_ED01-2016
Level 1Level 2 Level 3 Comments
g

uidance Indicates that a turn should be made to the left or right at the next
junction and the distance to this junction.
Press on it to to display a navigation zoom to the left of the map.
Navigation
sub-menu Confirm Route
Press on it to modify the current navigation criteria.
Change Route
Search Nearby
Set Location
Stop
g uidance
Voice
g

uide ADJ
TMC (Traffic Message
Channel) Press on it to display traffic information transmitted in real time.
type of display and map
orientation "V

iew"
"2D/3D" Indicates North.
Press on it to select the type of screen display and the map orientation\

(2D with vehicle direction, 2D with North at the top, auto 2D according\

to scale or 3D perspective).
Map scale Indicates the scale of the map displayed.
Press on it to zoom in or out.
Information on
the destination /
intermediate destination Indicates the distance and time to the destination or the intermediate
destination.

04
254
4008_EN_CHAP10B_MITSU6_ED01-2016
NAVIGATION

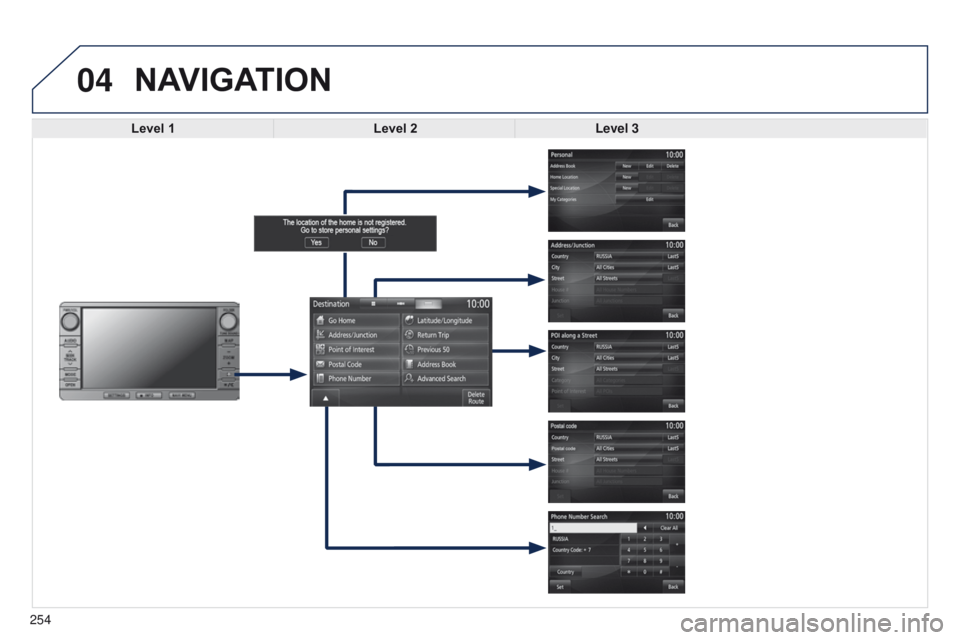

Level 1Level 2Level 3

255
4008_EN_CHAP10B_MITSU6_ED01-2016
Level 1Level 2 Level 3 Comments
g

o Home Address Book
Select a direct return home.
Press Yes to save your home location (the first time).
g

o Home
Special Location
My Categories
Address/Junction Country
Select a location using the address or name of the street of the
destination.
City
Street
House #
Junction
Set
Save the settings.
Point of Interest Country
Select a location using the name of a point of interest (POI).
City
Point of Interest
Category
Set
Save the settings.
Postal Code Country
Select a location using the post code, address or name of the street of \
the destination.
Postal Code
Street
House #
Junction
Set
Save the settings.
Phone Number Country Code:
Enter the information, the telephone number and confirm.
Country
Set Save the settings.

04
256
4008_EN_CHAP10B_MITSU6_ED01-2016

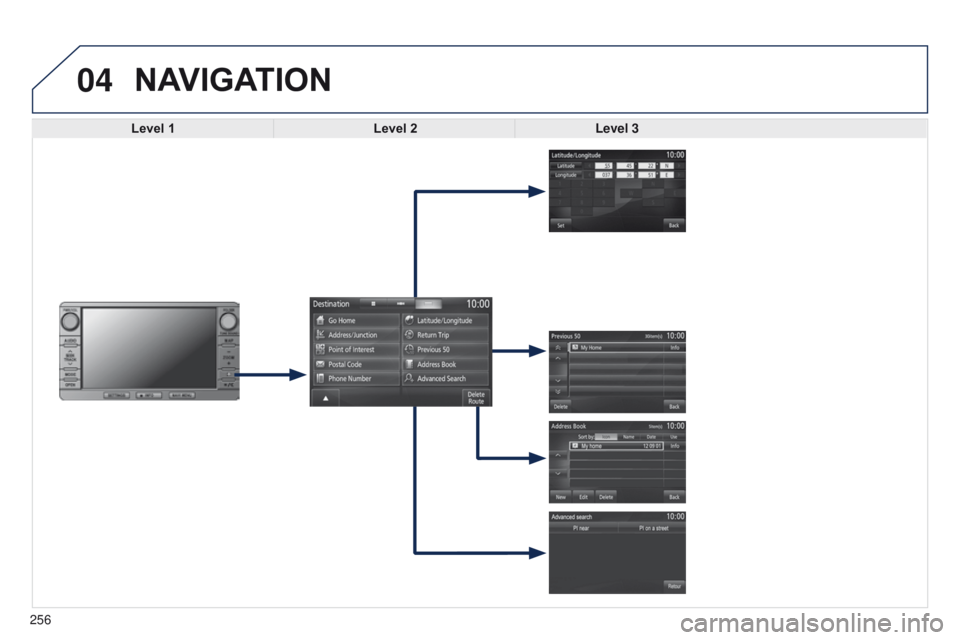

NAVIGATION
Level 1Level 2Level 3

257
4008_EN_CHAP10B_MITSU6_ED01-2016
Level 1Level 2 Level 3 Comments
Latitude/Longitude Latitude
Select a location using the latitude and longitude.
Longitude
Set Save the settings.
Return
t
rip Select the point of departure as a new destination.
Previous 50 Country
Select a location using one of the 50 recent

destinations.
City
Point of Interest
Category
Delete
Delete a destination from the list.
Address Book Icon
Select a location using an address saved in the address book.
Name
Date
u

se
New Create an address.
e

ditDisplay an address from the list.
Delete Delete an address from list.
Advanced Search POI nearby
Select a location using an advanced search based on a POI.
POI along a Street

04
258
4008_EN_CHAP10B_MITSU6_ED01-2016

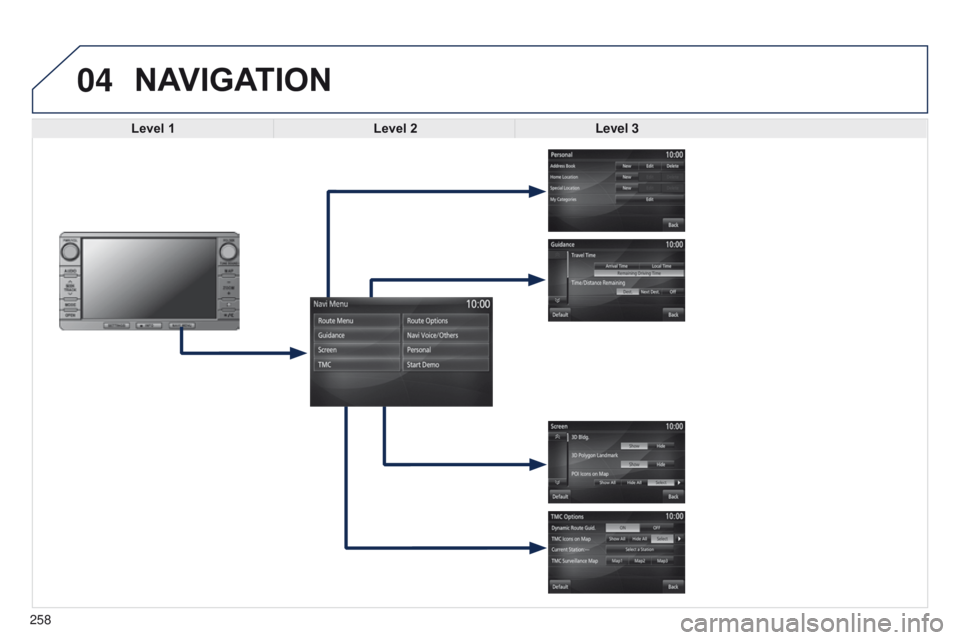

NAVIGATION
Level 1Level 2Level 3
