Third brake light - saloon (5 W5W bulbs) Lower the two metal clips on either side of the light and slide the cover
towards the rear.

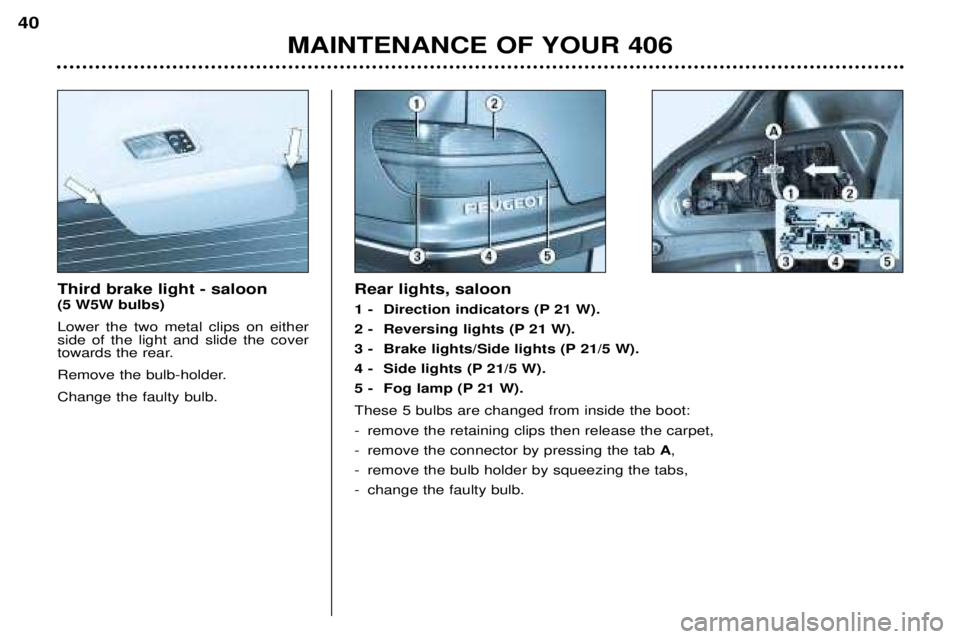

Remove the bulb-holder.Change the faulty bulb. Rear lights, saloon
1 - Direction indicators (P 21 W).
2 - Reversing lights (P 21 W).
3 - Brake lights/Side lights (P 21/5 W).
4 - Side lights (P 21/5 W).
5 - Fog lamp (P 21 W). These 5 bulbs are changed from inside the boot:
- remove the retaining clips then release the carpet,
- remove the connector by pressing the tab
A,
- remove the bulb holder by squeezing the tabs,
- change the faulty bulb.
MAINTENANCE OF YOUR 406
40
Page 142 of 166

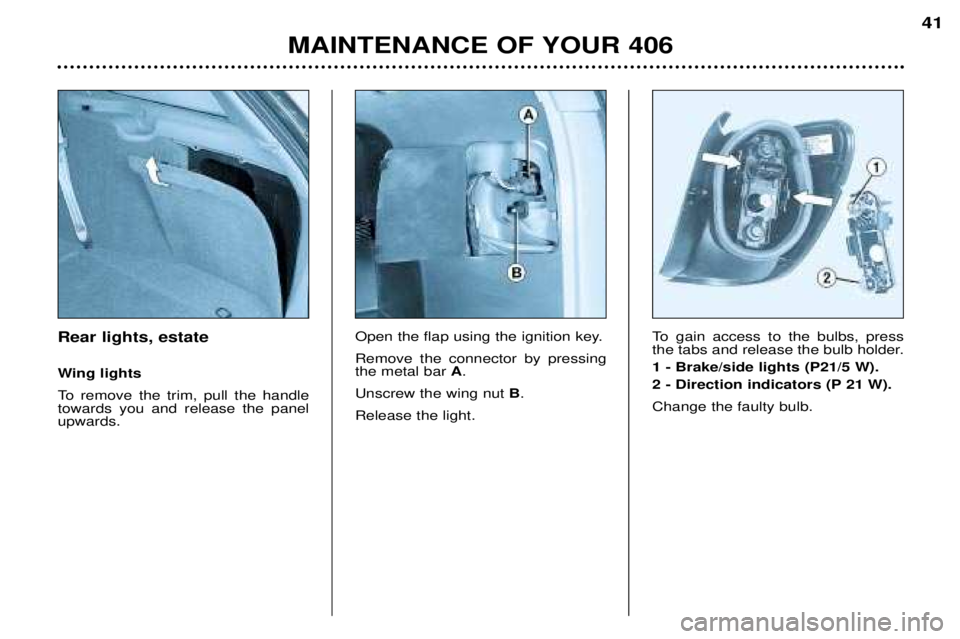

Rear lights, estate
Wing lights
To remove the trim, pull the handle towards you and release the panelupwards.Open the flap using the ignition key. Remove the connector by pressing the metal bar
A.
Unscrew the wing nut B.
Release the light. To gain access to the bulbs, press
the tabs and release the bulb holder. 1 - Brake/side lights (P21/5 W).
2 - Direction indicators (P 21 W). Change the faulty bulb.
MAINTENANCE OF YOUR 406
41
Page 143 of 166

Tailgate lights Open the flap using the cut-out provided. Disconnect the connector by relea- sing tab A.
Unscrew the two nuts. Remove the light by squeezing the two tabs B. Extract the bulb holder by pressingthe tabs
C.
Change the faulty bulb.
1 - Side lights (P 21/5 W).
2 - Reversing lights (P 21 W).
3 - Fog lamp (P 21 W). Number plate lights (W 5 W)
Remove the translucent protector.Change the faulty bulb.
MAINTENANCE OF YOUR 406
42
Page 144 of 166

CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box
Turn the three screws a quarter turn with a coin.Pull at Aand tilt the cover to access
the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers A
Remove the fascia panel lower trim to access the built-in systems interface. Fuse no. Rating Functions
A 20 A Locking/Unlocking.
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D 15 A Rear screen wiper.
E 30 A Electric windows.
F 15 A Supply to instrument panel
- Display - Audio equipment- Satellite navigation system
- Air conditioning
MAINTENANCE OF YOUR 406 43
Page 145 of 166

Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (beside the battery),
unclip the cover. Carefully close the cover when you have finished.The electrical system ofyour vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. Some electrical accessories or the way in which they are fittedcan have damaging effects on theoperation of your vehicle; theelectronic control circuits, theaudio circuit and the battery char-ging circuit. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying the malfunctions resultingfrom the installation of accesso-ries not supplied and not recom-mended by PEUGEOT and notinstalled in accordance with itsinstructions, in particular wherethe equipment in questionconsumes more than 10 milliam-peres. * The maxi-fuses provide additio- nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
Fuse N° Rating Functions
1* 10 A Reversing lights– Double injection relay - Engine oil temperature– Oil level -
Air conditioning compressor.
2* 15 A Fuel pump, canister solenoid valve.
3* 10 AControl unit.
4* 10 AEngine control unit and automatic gearbox.
5 10 A Particulate Emission Filter control unit –
Rear windscreen relay.
6 15 AFront fog lamps.
7 20 AHeadlamp wash.
8* 20 A Direct petrol injection engine control unit - Clutch pedal.
9* 15 A Left–hand dipped beam lights.
10* 15 A Right–hand dipped beam lights.
MAINTENANCE OF YOUR 406
46
Page 146 of 166

Fuse N° RatingFunctions
11* 10ALeft hand main beam.
12* 10 A Right hand main beam.
13* 15 AHorn.
14 10 AFront and rear screen wash pump.
15* 30 A Ignition coil –Windscreen wiper - Oxygen sensor - Oil pressure – Injection system.
16 * 30AAir pump and oil temperature - Oil level - Brake lights function - Alternator – Water in diesel
detector – Injection relay control.
17 * 30APassenger's electric seat.
18 40A Heater blower- Starter – Windscreen wiper slow speed.
MAINTENANCE OF YOUR 406 47
Page 147 of 166

Fuse N° RatingFunctions
1 shuntCentral air bag.
25 AVentilation controls.
3 10 A Instrument panel.
45 AIgnition +ve signal for Built-in Systems Interface.
5– Not used.
6 10 ASteering wheel controls.
7 15 AAlarm siren.
8 10 ASatellite navigation system.
95 ABattery +ve signal for Built-in Systems Interface.
10 15 A Audio equipment.
11 10 AThird brake light.
12 10 A Right-hand brake light.
13 20 ADriver's electric window.
14 30 ARear window power.
15 –Battery +ve towing socket.
16 20 AMemorisation of seats.
17 20 APassenger's electric seat.
18 10 A
Lighter lighting - Display- Lighting for switches and ash tray, automatic gearbox selector lever.
Fascia fuse box
MAINTENANCE OF YOUR 406
44
Page 148 of 166

Fuse N° RatingFunctions
19 10 ARear fog lamps.
20 10ARear right and front left side light.
21 10ARear left and front right side light.
22 10 A Glove box lighting –Map reading light –Courtesy mirror light -Front and rear courtesy lights -
Lighting for electric windows pad and Electrochrome rear view mirror.
23 20 ALighter.
24 –Not used.
25 20 AAudio equipment.
26 –Not used.
27 5 ARear window relay.
28 15 AHeated seats.
R5AReplacement fuse.
R2 10 A Replacement fuse.
R3 30AReplacement fuse.
R4 20 AReplacement fuse.
R5 15A Replacement fuse.
MAINTENANCE OF YOUR 406 45
Page 149 of 166

BATTERY
To charge the battery using a battery charger:
- Disconnect the battery,
- Follow the instructions for use given by the battery charger manufacturer,
- Reconnect starting with the negative (–) terminal,
- Check that the terminals and connectors are clean. If they are covered with sul-phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery:
- Connect the red cable to the positive (+) terminals of the two batteries,
- Connect one end of the green or black cable to the negative (-) terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle, as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables.
- Never disconnect a terminal when the engine is running. - Never charge a battery without first disconnecting the terminals.
- Close the sunroof before disconnecting the battery. If it does not ope-rate normally following re-connection of the battery, you must re-ini- tialise it by turning the control to the maximum tilt position and pres-sing it for an extended period.
- After every reconnection of the battery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initialised. Ifslight difficulties are experienced after this, please contact a PEUGEOT
dealer.
It is advisable to disconnect the battery if the vehicle is not to be used
for a period of more than one month.Economy mode
With the engine switched off and the ignition key in the "running" or"accessories" position for about half
an hour, certain electrical equipment(displays, instrument panel, warninglights, courtesy lights, electric win-
dows, wipers etc.) will switch offautomatically to avoid draining the
battery. Once the electrical equipment goes into economy mode, it is necessaryto start the engine to enable theequipment to work again.
MAINTENANCE OF YOUR 406
48
Page 150 of 166

FITTING THE SPEAKERS The factory-fitted equipment allows you to fit:
-165 mm diameter speakers to the front doors,
-55 mm diameter tweeters to the fascia,
-special elliptical–shaped speakers at the rear of the saloon,
-100 mm diameter speakers at the rear of the estate.

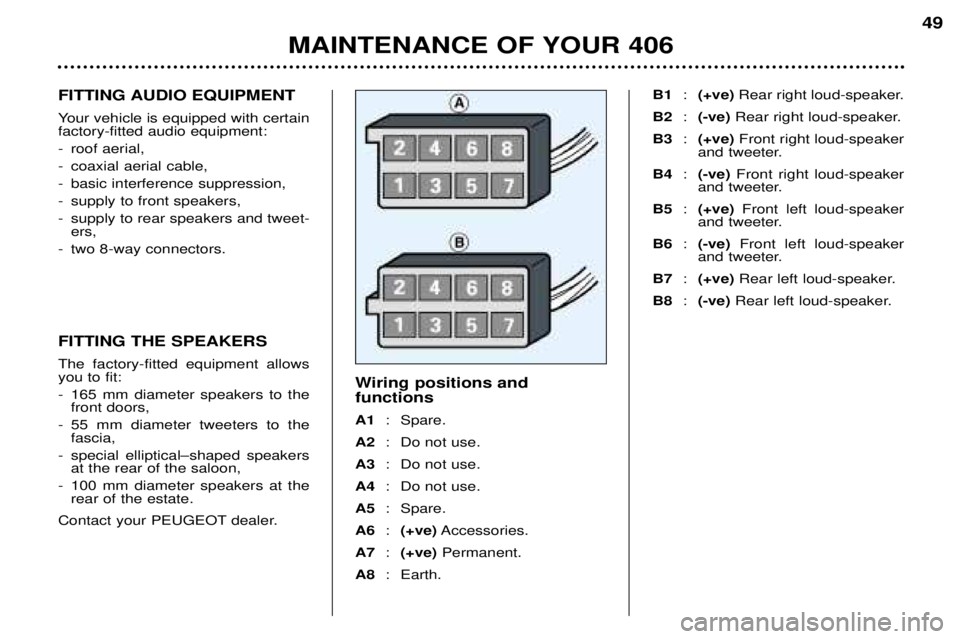

Contact your PEUGEOT dealer. Wiring positions and functions A1
: Spare.
A2 : Do not use.
A3 : Do not use.
A4 : Do not use.
A5 : Spare.
A6 :(+ve) Accessories.
A7 :(+ve) Permanent.
A8 : Earth. B1
:(+ve) Rear right loud-speaker.
B2 :(-ve) Rear right loud-speaker.
B3 :(+ve) Front right loud-speaker
and tweeter.
B4 :(-ve) Front right loud-speaker
and tweeter.
B5 :(+ve) Front left loud-speaker
and tweeter.
B6 :(-ve) Front left loud-speaker
and tweeter.
B7 :(+ve) Rear left loud-speaker.
B8 :(-ve) Rear left loud-speaker.
MAINTENANCE OF YOUR 406 49
FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain factory-fitted audio equipment:
-roof aerial,
-coaxial aerial cable,
-basic interference suppression,
-supply to front speakers,
-supply to rear speakers and tweet- ers,
-two 8-way connectors.
