Special features of the automatic gearbox When towing with four wheels on the ground, the following rules must beobeyed:
-gear lever in position N,
-tow the vehicle at less than 30 m.p.h. (50 km/h) over a maxi-mum distance of 30 miles (50 km).
-do not add oil to the gearbox.
MAINTENANCE OF YOUR 406
50
TOWING YOUR VEHICLE
Without lifting (4 wheels on the road)

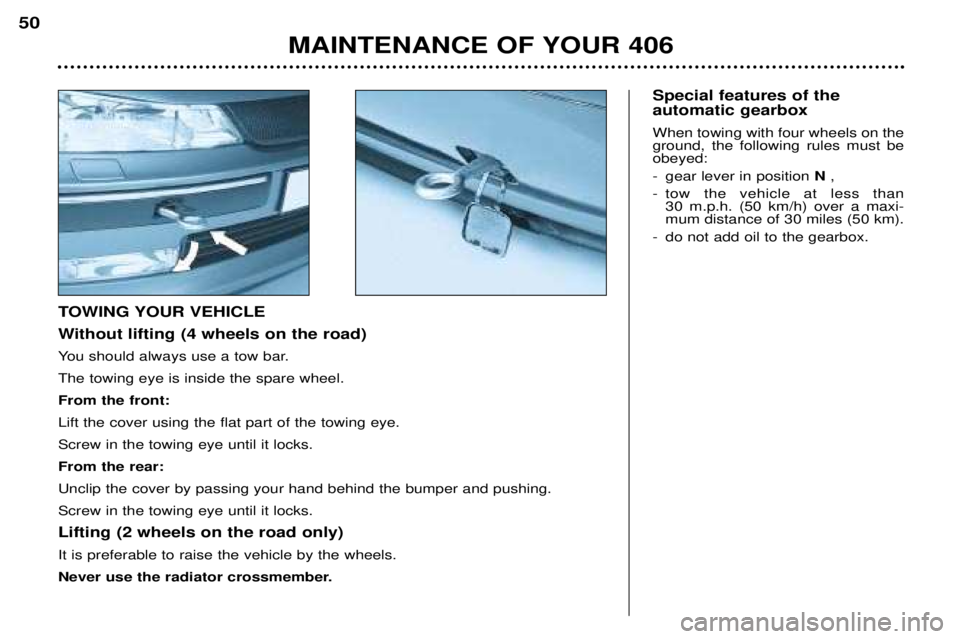

You should always use a tow bar.The towing eye is inside the spare wheel. From the front: Lift the cover using the flat part of the towing eye.Screw in the towing eye until it locks.From the rear:Unclip the cover by passing your hand behind the bumper and pushing.Screw in the towing eye until it locks. Lifting (2 wheels on the road only) It is preferable to raise the vehicle by the wheels.
Never use the radiator crossmember.

TOWING A TRAILER,
CARAVAN, BOAT ETC.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage ofyour vehicle. The tow bar must be fitted by a
PEUGEOT dealer.
Your vehicle is basically designed for transporting people and luggage but it
may also be used for towing a trailer. Driving with a trailer subjects the towing vehicle to more significantstress and its driver must be particu-larly careful. Air density decreases with altitude, thus reducing engine performance.The maximum towing load mustbe reduced by 10% for every 1000 metres of altitude. Driving advice Distribution of loads: Distribute
the load in the trailer so that the heaviest items are as close as possi-ble to the axle and the nose weightapproaches the maximum permittedwithout exceeding it. Cooling:
Towing a trailer on a slope
increases the temperature of thecoolant. As the fan is electrically controlled, its cooling capacity is not dependenton the engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing speed on a long slope depends on the gradientand the outside temperature. For vehicles fitted with a direct injec- tion petrol engine, after towing or dri-ving at high speed for a long periodof time, the fan may operate forapproximately 6 minutes. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop
the vehicle and switch off the engineas soon as possible. Tyres:
Check the tyre pressures of
the towing vehicle and the trailer,observing the recommended pres-sures. Brakes: Towing increases the brak-
ing distance. Lights: Check the electrical sig-
nalling on the trailer.Side wind: Take into acount the
increased sensitivity to side wind.
MAINTENANCE OF YOUR 406 51

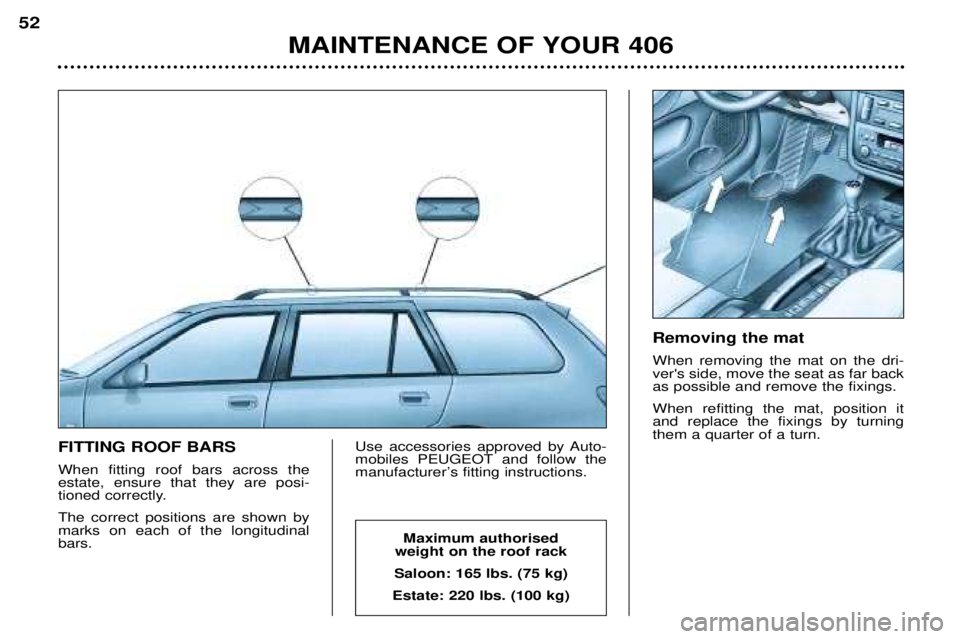

FITTING ROOF BARS When fitting roof bars across the estate, ensure that they are posi-
tioned correctly. The correct positions are shown by marks on each of the longitudinalbars.Use accessories approved by Auto-
mobiles PEUGEOT and follow the
manufacturer’s fitting instructions. Removing the mat When removing the mat on the dri- ver's side, move the seat as far backas possible and remove the fixings. When refitting the mat, position it and replace the fixings by turningthem a quarter of a turn.
MAINTENANCE OF YOUR 406
52
Maximum authorised
weight on the roof rack
Saloon: 165 lbs. (75 kg)
Estate: 220 lbs. (100 kg)

MAINTENANCE OF YOUR 40653
REAR POSITION

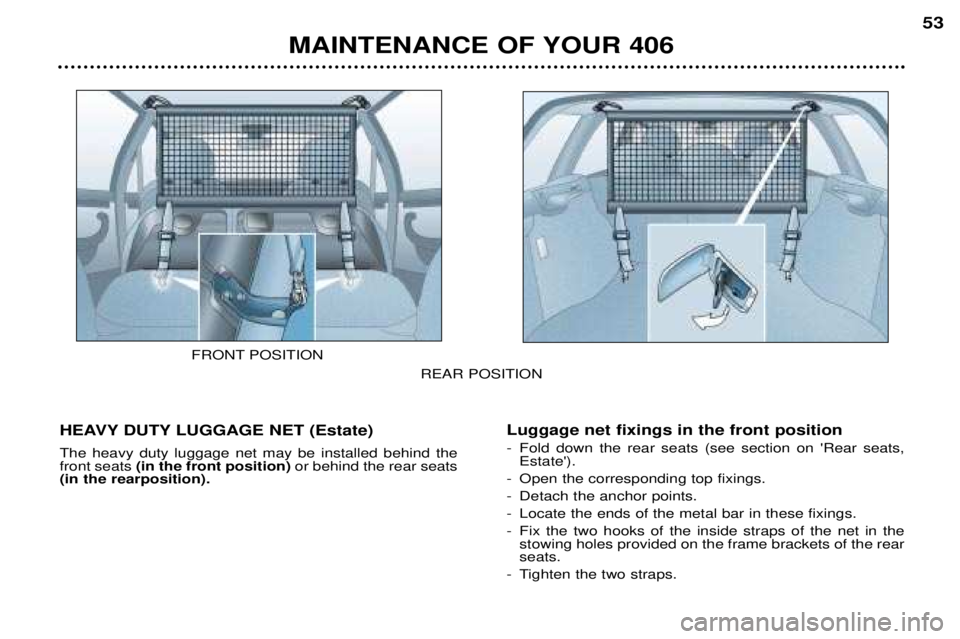

HEAVY DUTY LUGGAGE NET (Estate) The heavy duty luggage net may be installed behind the front seats (in the front position) or behind the rear seats
(in the rearposition). Luggage net fixings in the front position
-Fold down the rear seats (see section on 'Rear seats, Estate').
-Open the corresponding top fixings.
-Detach the anchor points.
-Locate the ends of the metal bar in these fixings.
-Fix the two hooks of the inside straps of the net in the stowing holes provided on the frame brackets of the rearseats.
-Tighten the two straps.
FRONT POSITION

MAINTENANCE OF YOUR 406
54

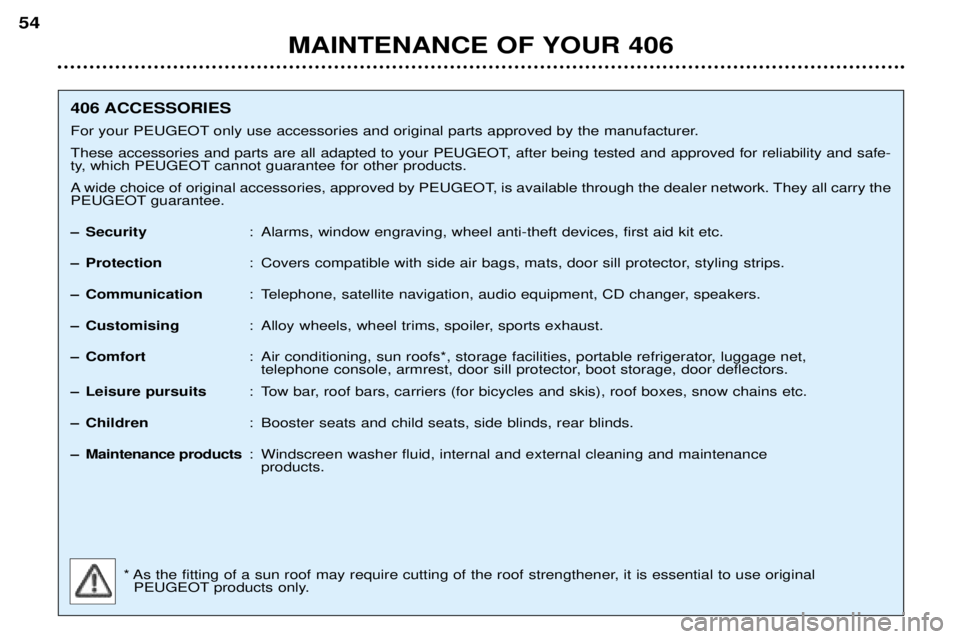

406 ACCESSORIES
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safe-
ty, which PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee.
–Security : Alarms, window engraving, wheel anti-theft devices, first aid kit etc.
–Protection: Covers compatible with side air bags, mats, door sill protector, styling strips.
–Communication: Telephone, satellite navigation, audio equipment, CD changer, speakers.
–Customising: Alloy wheels, wheel trims, spoiler, sports exhaust.
–Comfort: Air conditioning, sun roofs*, storage facilities, portable refrigerator, luggage net,
telephone console, armrest, door sill protector, boot storage, door deflectors.
–Leisure pursuits : Tow bar, roof bars, carriers (for bicycles and skis), roof boxes, snow chains etc.
–Children: Booster seats and child seats, side blinds, rear blinds.
–Maintenance products: Windscreen washer fluid, internal and external cleaning and maintenance
products.
* As the fitting of a sun roof may require cutting of the roof strengthener, it is essential to use original PEUGEOT products only.

1.8 Litre 16V 2 Litre 16V1749 1 997
82.7 x 81.4 85 x 88 16 16
85 100
5 500 6 000
160 190
4 000 4 100
Unleaded Unleaded Ye s Ye s
Ye s Ye s
Manual Automatic Manual Automatic
(5-speed) (4-speed) (5-speed) (4-speed)
4.25 4.25 4.25 4.251.9 – 1.9 –
156
TECHNICAL DATA
PETROL ENGINES
MODELS: Model codes 8B6FZ 8BRFN
8E6FZ 8ERFN 8F6FZ 8FRFN
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive

TECHNICAL DATA
157
PETROL ENGINES
MODELS: Model codes 8BR6F 8BRLZ
8ER6F 8ERLZ 8FRLZ
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2 Litre 16V 2 litre HPI 16V
1 997 1 997
85 x 88 85 x 88 16 16
100 103
6 000 6 000
190 192
4 100 4 000
Leaded Unleaded
Ye s Ye s
Ye s Ye s
Manual Manual
(5-speed) (5-speed)
4.25 4.25
1.9 1.9

TECHNICAL DATA
158
PETROL ENGINES
MODELS: Model codes 8B3FZ 8BXFX
8E3FZ 8EXFX 8F3FZ
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm) Max. torque at engine speed
(r.p.m) FuelCatalytic converterElectronic injection GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final drive 2.2 Litre 16V 24V V6 Injection
2 230 2 946
86 x 96 87 x 82.6 16 24
116 152
5 750 6 000
217 285
3 900 3 750
Unleaded Unleaded Ye s Ye s
Ye s Ye s
Manual Manual Automatic
(5-speed) (5-speed) (4-speed)
4.25 4.75 4.75
1.85 1.85 –

Diesel Turbo Diesel Turbo Diesel Turbo2 Litre HDI 2 Litre HDI 2.2 litre 16V HDI
1 997 1 997 2 179
85 x 88 85 x 88 85 x 96 88 1 6
66 80 /79 79 98
4 000 4 000 4 000
205 250 314
1 900 1 750 2 000
Diesel Diesel Diesel Ye s Ye s Ye s
Electronic Electronic Electronic
No No Yes Yes Yes
Manual Manual Automatic Manual Manual
(5-speed) (5-speed) (4-speed) (5-speed) (5-speed)
4.5 4.5 4.5 4.5 4.5
1.9 1.85 – 1.85 1.85
TECHNICAL DATA
159
MODELS: Model codes 8BRHY 8BRHZ/S 8BRHS 8B4HX
8ERHY 8ERHZ/S 8ERHS 8E4HX 8FRHY 8FRHZ/S 8FRHS 8F4HX
ENGINES Capacity (cm 3
)
Bore x stroke Number of valvesMax. power: EU standard (KW)
Max. power at engine speed (r.p.m) Max. torque: EU standard (Nm)
Max. torque at engine speed (r.p.m)FuelCatalytic converterElectronic injection Particulate emission filter (PEF) GEARBOX
CAPACITIES (in litres) Engine (with filter replacement)Gearbox - Final driveDIESEL ENGINES

TECHNICAL DATA
160
Fuel consumption values correct at time of printing.Consumption, saloon As per directive 93/116 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving driving driving of CO 2
by mass
1.8 litre 16 valve Manual 8B6FZ 26.6 (10.6) 47.1 (6.0) 36.7 (7.7) 182 g/km
1.8 litre 16 valve Automatic 8B6FZ 23.0 (12.3) 45.6 (6.2) 33.6 (8.4) 201 g/km
2 litre 16 valve Manual 8BRFN 24.6 (11.5) 43.5 (6.5) 34.0 (8.3) 197 g/km
2 litre 16 valve Automatic 8BRFN 22.9 (12.3) 43.5 (6.5) 32.8 (8.6) 206 g/km
2 litres 16 valve Manual 8BR6F - - - -
2 litre 16 valve HPI Manual 8BRLZ 27.4 (10.3) 47.1 (6.0) 37.7 (7.5) 177 g/km 2.2 litre 16V Manual 8B3FZ 23.2 (12.2) 43.5 (6.5) 32.8 (8.6) 207 g/kmV6 24 valve Manual 8BXFX 20.6 (13.7) 39.2 (7.2) 29.4 (9.6) 229 g/km
V6 24 valve Automatic 8BXFX 19.7 (14.3) 37.6 (7.5) 28.2 (10) 238 g/km 2 litre HDI Manual 8BRHY 38.2 (7.4) 60.1 (4.7) 50.4 (5.6) 154 g/km
2 litre HDI Manual 8BRHZ/S 38.7 (7.3) 62.8 (4.5) 51.4 (5.5) 173 g/km
2 litre HDI Automatic 8BRHZ 31.7 (8.9) 55.4 (5.1) 43.5 (6.5) 173 g/km
2.2 litre
HDI 16V Manual 8B4HX 32.1 (8.8) 57.6 (4.9) 44.1 (6.4) 168 gkm
