display Peugeot 406 Break 2002 Owner's Guide

YOUR 406 IN DETAIL
106
Display configuration From the general menu, the "Configure display"menu
gives access to the following parameters:
Adjustment of the brightness and the video display.Adjustment of the date and time.Selection of the language of the display and voice infor- mation (English, German, Spanish, French, Italian).
Adjustment of the mode and units. This allows selection of the display in km/h or mph, in degrees Celsius or Fahren-heit and selection of the time format (12 or 24 hour mode).
Navigation options From the main menu, the "Navigation options"menu
gives access to the following parameters:
- Management of the directories. It enables an address stored under a name to be renamed or deleted. To do this, select the directory and the name to be changed.
- Voice synthesis volume adjustment.
- Deletion of all data stored in the two directories.

YOUR 406 IN DETAIL107

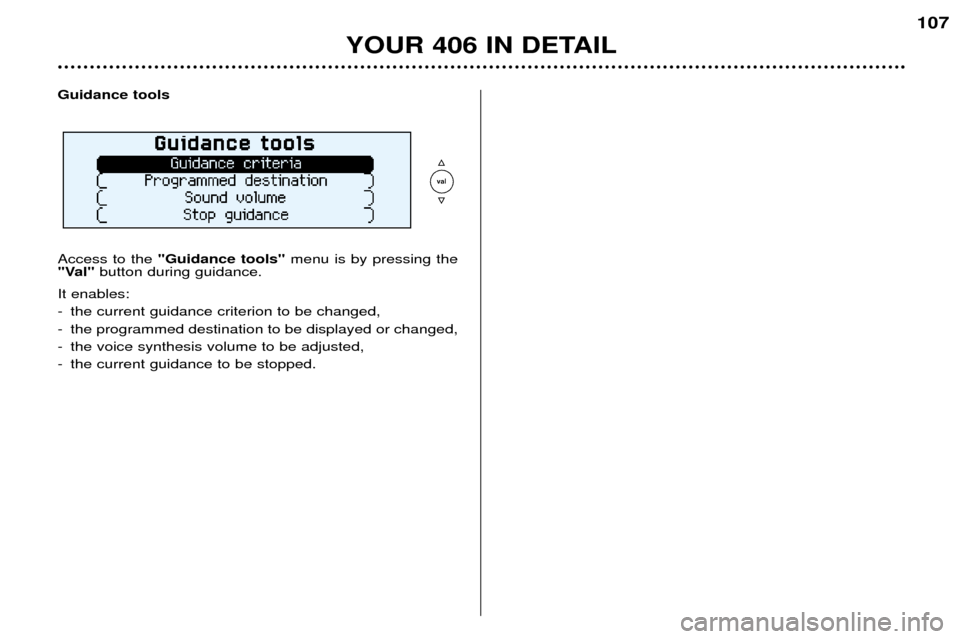

Guidance tools Access to the "Guidance tools" menu is by pressing the
"Val" button during guidance.
It enables:
- the current guidance criterion to be changed,
- the programmed destination to be displayed or changed,
- the voice synthesis volume to be adjusted,
- the current guidance to be stopped.

Automatic operation1 - Temperature adjustment The value requested is displayed (from 15 to 30: comfortable tempera- ture = 22). Press the up and down arrows to adjust. 2 - Automatic
comfort programme
Press the " AUTO" button. The sys-
tem automatically adjusts the tem-perature to that selected, by starting
the air conditioning if necessary. It also manages the air flow and
intake, to provide sufficient air circu-lation inside the vehicle. Adjusting the air distribution must be carried out manually when yourequire it.
3 - Automatic visibility programme
In certain cases, the automaticcomfort programme can prove inad-equate to de-ice or demist the win-
dows (humidity, many passengers,ice). In such cases, select the auto-
matic visibility programme to
rapidly clear the windows. The system automatically manages the air conditioning, the air flow andthe air intake, distributing the air tothe windscreen and side windows.
AUTOMATIC AIR CONDITIONING
YOUR 406 IN DETAIL
62

4 - Setting the air distribution
Successive presses on the top or bottom part of thisbutton allow the air to bedirected to:
-the windscreen (de-icing or demist- ing),
-the windscreen and footwells,
-the central and side vents,
-the central and side vents and footwells,
-the footwells.
Press the top or bottom part of the button to select the previous or nextsetting from the above list. Manual operation
You may, if you wish, make a differ-
ent choice from that offered by thesystem, by changing one of the set-tings. Press the "
AUTO" button to return to
automatic operation.
5 - Air conditioning
Pressing this button stops the air condi-
tioning. Pressing again returns theair conditioning to automatic opera-
tion. The symbol " A/C" is displayed.
6 - Air flow
The air flow may beincreased or reducedby pressing the "+'' or
" – '' button respectively. 7 - Air intake
This button ispressed for recircula-
tion of the interior air.
Recirculation, shown on the display,prevents the entry of unpleasantodours or fumes into the passengercompartment from outside.
Avoid prolonged operation of the
recirculation of interior air. A secondpress returns the system to automat-
ic intake of air. Used in humid conditions, recircula- tion risks misting up the windows.
8 - Demisting therear screen
With the engine run-ning, pressing the
switch demists the rear screen andthe mirrors.
It switches off automatically after approximately fifteen minutes. Press again to resume demisting. It is possible to stop the demisting
operation before it goes off automat-
ically, by pressing the switch again. Note: The condensation created by
air conditioning causes a normal flow of water under the vehicle when sta-
tionary.
YOUR 406 IN DETAIL 63

THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of thefront or rear doors is open, the cen-tral locking does not work. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL
108
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possible. If the system does not function
correctly,
an audible signal sounds,
accompanied by a message on the
multi–function display.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible.
Locating your car
To locate your car, if you have locked it, in a car park:
press button A.The courtesy lights
come on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

YOUR 406 IN DETAIL109
Changing the battery of the remote control The information 'battery flat'is
given by an audible signal accompa- nied by a message on the
multi–function display.
To replace the battery, unclip the casing using a coin at the ring(CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control
Switch off the ignition.
 Switch the ignition on again.
 Immediately press button A.
 Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.

THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of thefront or rear doors is open, the cen-tral locking does not work. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL
108
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possible. If the system does not function
correctly,
an audible signal sounds,
accompanied by a message on the
multi–function display.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible.
Locating your car
To locate your car, if you have locked it, in a car park:
press button A.The courtesy lights
come on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

YOUR 406 IN DETAIL109
Changing the battery of the remote control The information 'battery flat'is
given by an audible signal accompa- nied by a message on the
multi–function display.
To replace the battery, unclip the casing using a coin at the ring(CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control
Switch off the ignition.
 Switch the ignition on again.
 Immediately press button A.
 Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.

THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of thefront or rear doors is open, the cen-tral locking does not work. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL
108
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possible. If the system does not function
correctly,
an audible signal sounds,
accompanied by a message on the
multi–function display.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible.
Locating your car
To locate your car, if you have locked it, in a car park:
press button A.The courtesy lights
come on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

AUTOMATIC SWITCHING ON OF THE LIGHTS Side lights and dipped beam head- lamps switch on automatically if the
light is poor, or during continuousoperation of the windscreen wipers.
They switch off as soon as the lightbecomes bright enough or the wind-screen wipers stop. This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function: Start with the key in the acces- sories position (1st notch),
 Press the end of the stalk formore than two seconds.
Note: In foggy weather, the bright-
ness sensor can detect sufficientlight. Because of this, the lights do
not come on automatically. Do not cover the brightness sen-
sor connected to the rain sensor,located in the windscreen behind
the mirror. It is used for automaticswitching on of the lights. Operating check
Triggering of the sensor
Triggering of this function is accom- panied by an audible signal and themessage
"Automatic lighting of
the headlamps activated" on the
multi–function display. Note: Always operate the lighting
controls manually where this is pos- sible. Disarming Disarming of the function is accom- panied by an audible signal. When driving, if this function is
switched off when the headlampswould switch on in automatic mode,the lights remain on. It is however possible to disarm this
function and switch off the lights by:
- manually switching off the lights using the lights stalk,
- switching off the engine.
YOUR 406 IN DETAIL 125
If the brightness sensor does not
function correctly, the system acti-
vates the function (the lights come
on). The driver is alerted by theflashing of the 'dipped beam' warn-ing light on the instrument panel.
Contact a PEUGEOT dealer to have the system checked. Follow me Home When there is a low level of bright- ness or at night, if you leave yourvehicle, the side lights and thedipped beam lights may remain onfor approximately one minute.
To do this: place the lights stalk in the AUTO
position,
 place the key in the accessories position (first notch on key),
 press the end of the lights stalk formore than two seconds,
 place the lights stalk in the 0position,
 flash the headlamps,
 get out of the car and lock it.
