Rear screen wiper (estate)
Turn ring Ato the first notch,
for intermittent wiping. Rear screen wash (estate)
Turn ring Abeyond the first
notch; the windscreen wash then the windscreen wiperoperate for a fixed period.
WINDSCREEN WIPER STALK Front windscreen wipers2 . Rapid wipe (heavy rain)
1 . Normal wipe (moderate rain).
AUTO Automatic wipe
0 . Off.
∀ Single wipe (press downwards).
Operation In position 1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, thenresumes its initial speed when thevehicle starts again. When the ignition has been switched off for more than a
minute with the stalk in the AUTOposition, it is necesary to reacti-vate this function. To do this, move
the stalk to any position, then move itback to the AUTOposition. Automatic windscreen wiper In the
AUTO position, the wipers
operate automatically and adjust
their speed to the intensity of the rainfall. Operating check Switching on Activation of the function is accom- panied by the message 'Automatic
windscreen wiper actuated' on the
multi–function display. In the event of malfunction in the
AUTO position, the windscreen wiper
will operate in downgrade mode.
Contact a PEUGEOT dealer to have the system checked.
YOUR 406 IN DETAIL
126
Do not mask the rain detector located on thewindscreen behind the
interior mirror.
If you take the vehicle to an auto-matic car wash, switch off the igni-tion or check that the windscreenwiper stalk is not in the automaticposition.
In Winter, it is advisable to wait for complete de-icing of the wind-screen before switching on theautomatic wipe. Windscreen and headlamp wash Pull the windscreen wiper stalk towards you. The windscreen wash then the wind- screen wipers operate for a fixed
period. The windscreen wash andheadlamp wash operate simultane-ously for a few seconds,
only if the
dipped beam or main beam head-lamps are on.

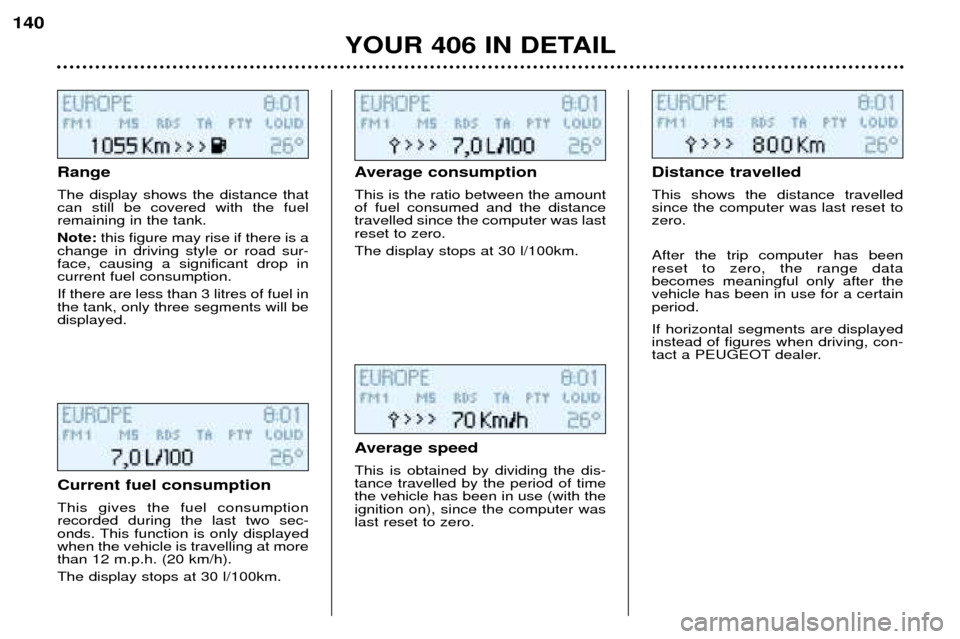

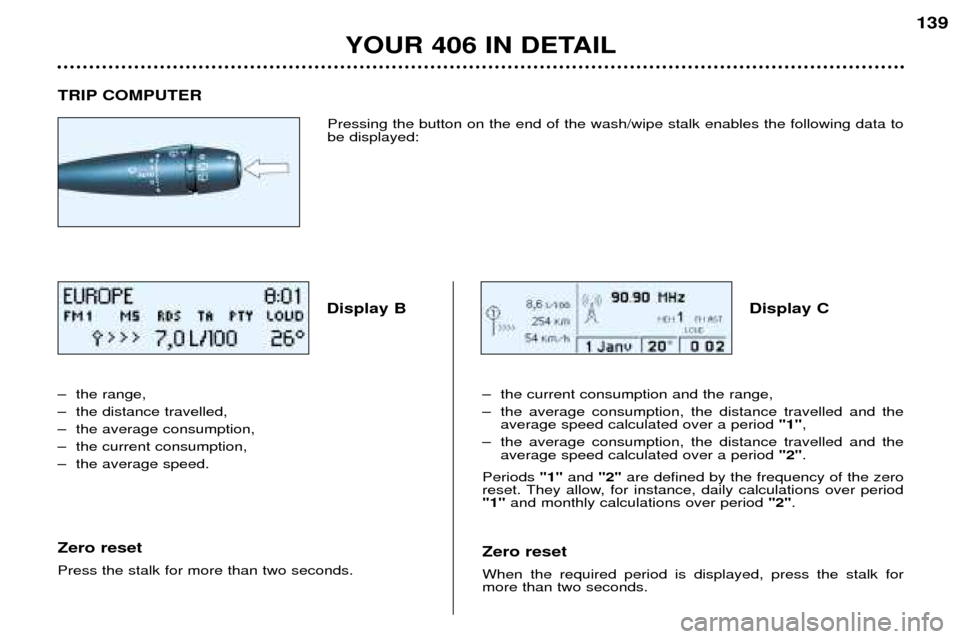

TRIP COMPUTERDisplay B Display C
– the range,
– the distance travelled,
– the average consumption,
– the current consumption,
– the average speed. Zero reset Press the stalk for more than two seconds. Pressing the button on the end of the wash/wipe stalk enables the following data to be displayed:
– the current consumption and the range,
– the average consumption, the distance travelled and theaverage speed calculated over a period "1",
– the average consumption, the distance travelled and the average speed calculated over a period "2".
Periods "1"and "2"are defined by the frequency of the zero
reset. They allow, for instance, daily calculations over period "1" and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.
YOUR 406 IN DETAIL 139

Range The display shows the distance that can still be covered with the fuelremaining in the tank. Note:this figure may rise if there is a
change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments will bedisplayed. Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer was lastreset to zero. The display stops at 30 l/100km.
Current fuel consumption This gives the fuel consumption recorded during the last two sec-
onds. This function is only displayedwhen the vehicle is travelling at morethan 12 m.p.h. (20 km/h). The display stops at 30 l/100km. Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero.Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range databecomes meaningful only after thevehicle has been in use for a certainperiod. If horizontal segments are displayed instead of figures when driving, con-
tact a PEUGEOT dealer.
YOUR 406 IN DETAIL
140

DRIVING YOUR 406
150
Sport and Snow programmes In addition to the auto-adaptive pro- gramme, you have a choice of two
specific programmes. The pro-gramme selected is displayed on theinstrument panel. Sport Programme Press button S, once the vehicle
has started and function D has
been selected.
The gearbox automatically favours dynamic driving. Snow programme This programme favours starting operations and drive to improve trac-tion.  Press button ∀, once the vehicle
has started and function Dhas
been selected.
The gearbox adapts to driving on slippery roads. Note: you can return to the auto-
adaptive programme at any time.  Press button Sor ∀again to can-
cel the programme selected. Difficulties in operationAny disruption of the system is sig- nalled by the alternate flashing of theSport and Snow lights on the instru-ment panel. In this case, the gearbox will operate in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when reverse is selected fromP
to Ror from Nto R (without any
risk of damage to the gearbox). Donot exceed 60 m.p.h. (100 km/h),speed restrictions permitting.
Contact a PEUGEOT dealer without
delay.
MANUAL GEARBOX Reverse
To change to reverse gear, lift the ring under the gear lever knob andpush the gear lever to the left then tothe front. Reverse gear can only be engaged when the vehicle is sta-tionary with the engine idling.

The ESP system offers increased safety duringnormal driving, but shouldnot incite the driver to take
risks or to drive at high speed.
The operation of the system isassured to the extent to which the recommendations of the manu-facturer regarding the wheels(tyres and wheel rims), the brakingcomponents, the electronic compo-nents and the assembly and repairprocedures within the PEUGEOTnetwork are respected.
After an accident or impact, havethe system checked by a
PEUGEOT dealer.
DRIVING YOUR 406
152
TRACTION CONTROL (ASR) AND
DYNAMIC STABILITY CONTROL(ESP) These systems are linked and com-
plement the ABS system.
The ASR system optimises drive to prevent the wheels skidding, by act-ing on the brakes of the drive wheelsand on the engine. It also allows thedirectional stability of the vehicle tobe improved on acceleration. If thereis a variation between the trajectoryfollowed by the vehicle and that
required by the driver, the ESP sys-tem automatically acts on the engineand the brake of one or morewheels,in order to put the vehicle back oncourse.
Operation of the ASR and
ESP systems
When one of these two sys-tems is operating, this lightflashes. Handbrake Applying When parking, pull the handbrake toimmobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pave- ment and pull on the handbrake. Releasing Pull the handle and press the buttonto release the handbrake.
Disarming the ESP / ASR systems In certain conditions (vehicle stuck in
mud or snow, or on loose ground...),it could prove useful to disarm theASR system to make the wheelsspin and regain grip.
Press the switch "ESP OFF", sit-
uated to the left of the steering wheel.
The switch lights up and the indicatorlights come on , accompanied by the
message '' ASR/ESP de-activated''
on the multi–function display: the
ESP and ASR systems no longer
affect the operation of the engine orthe brakes. They engage again: automatically when the ignition is
switched off,
 manually by pressing the switchagain.
Operating check When a system malfunctionoccurs, the switch lightflashes and the indicatorlight comes on.
Contact a PEUGEOT dealer tocheck the system.

AIR BAGS The air bags have been designed to maximise the safety of the occu-pants in the event of serious colli-sions; they work in conjunction withthe force limiting seat belts. In the event of a serious collision, the electronic detectors record andanalyse any abrupt deceleration ofthe vehicle: if the triggering thresholdis reached, the air bags inflateinstantly and protect the occupantsof the vehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants nor their possible exit from thevehicle. The air bags will not be deployed in collisions which are not serious, for
which the seat belt is sufficient to
provide maximum protection. Theseriousness of the collision dependson the nature of the obstacle and thespeed of the vehicle at the momentof impact. Air bags operate only when the ignition is switched on. Note:the gas escaping from the air
bags can be a minor irritant. FRONT AIR BAGSThese are folded in the centre of the steering wheel for the driver and in the
fascia for the front passenger. They
are deployed simultaneously, except incases where the air bag is disarmed. Front air bag malfunction
If this warning light comes on, accompanied by abuzzer and the message"Air bag fault" on the
multi-function display , con-
tact a PEUGEOT dealer to have thesystem checked.
DRIVING YOUR 406 153
Passenger air bag precautions For a vehicle fitted with a passenger air bag disarming switch: - disarm the airbag if you installa rear-facingchild seat on thefront passengerseat,
- arm the air bag for an adult
passenger.
For a vehicle not fitted with a pas-senger air bag disarming switch: - do not install a rear-facing child seat onthe front passengerseat.
Never place your feet or any objecton the fascia.

Operating check This is confirmed by an indicator light, accompanied
by an audible signal and a message
on the multi-function display. With the ignition on (2nd notch), illumination of this warning lightaccompanied by an audible signaland the message "Passenger air
bag disarmed" on the multi-function
display, indicates that the passengerair bag is disarmed (slot in the"OFF" position).
DRIVING YOUR 406
154
Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat. With the ignition switched off, insert the key into the passengerair bag disarming slot 1, turn it to
the "OFF" position, then remove it
keeping the slot in this position.
The air bag warning light on theinstrument panel is lit throughout thedisarming process. In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact.
As soon as the child seat is removed,turn the air bag slot to the "ON"posi-
tion to re-activate the air bag andthus ensure the safety of your pas-senger in the event of an impact.
* According to destination SIDE AIR BAGS The side air bags are incorporated into the backs of the front seats, onthe door side. They are deployed independently of each other depending on which sidethe collision occurs. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the
multi–function display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multi–function display, con-
tact a PEUGEOT dealer to have thesystem checked.

Operating check This is confirmed by an indicator light, accompanied
by an audible signal and a message
on the multi-function display. With the ignition on (2nd notch), illumination of this warning lightaccompanied by an audible signaland the message "Passenger air
bag disarmed" on the multi-function
display, indicates that the passengerair bag is disarmed (slot in the"OFF" position).
DRIVING YOUR 406
154
Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat. With the ignition switched off, insert the key into the passengerair bag disarming slot 1, turn it to
the "OFF" position, then remove it
keeping the slot in this position.
The air bag warning light on theinstrument panel is lit throughout thedisarming process. In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact.
As soon as the child seat is removed,turn the air bag slot to the "ON"posi-
tion to re-activate the air bag andthus ensure the safety of your pas-senger in the event of an impact.
* According to destination SIDE AIR BAGS The side air bags are incorporated into the backs of the front seats, onthe door side. They are deployed independently of each other depending on which sidethe collision occurs. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the
multi–function display.
If this indicator light comeson, accompanied by anaudible signal and the mes-sage "Air bag fault" on the
multi–function display, con-
tact a PEUGEOT dealer to have thesystem checked.

CHANGING A FUSE The fuse boxes are under the fascia and in the engine compartment. Fascia fuse box
Turn the three screws a quarter turn with a coin.Pull at Aand tilt the cover to access
the fuses. Removing and changing a fuse Before changing a fuse you must find out the cause of the fault and have it put
right. The fuse numbers are indicated on the fuse box. Use the special pliers
Aattached to the box.
Always change a faulty fuse for one of the same rating.
Correct Incorrect Pliers A
Remove the fascia panel lower trim to access the built-in systems interface. Fuse no. Rating Functions
A 20 A Locking/Unlocking.
B 10 A Rear fog lamps.
C 40 A Demisting the mirrors.
D 15 A Rear screen wiper.
E 30 A Electric windows.
F 15 A Supply to instrument panel
- Display - Audio equipment- Satellite navigation system
- Air conditioning
MAINTENANCE OF YOUR 406 43

Fuse N° RatingFunctions
1 shuntCentral air bag.
25 AVentilation controls.
3 10 A Instrument panel.
45 AIgnition +ve signal for Built-in Systems Interface.
5– Not used.
6 10 ASteering wheel controls.
7 15 AAlarm siren.
8 10 ASatellite navigation system.
95 ABattery +ve signal for Built-in Systems Interface.
10 15 A Audio equipment.
11 10 AThird brake light.
12 10 A Right-hand brake light.
13 20 ADriver's electric window.
14 30 ARear window power.
15 –Battery +ve towing socket.
16 20 AMemorisation of seats.
17 20 APassenger's electric seat.
18 10 A
Lighter lighting - Display- Lighting for switches and ash tray, automatic gearbox selector lever.
Fascia fuse box
