TECHNICAL DATA
160
Fuel consumption values correct at time of printing. Consumption, saloon As per directive 99/100 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving driving of CO 2
driving by mass
1.8 litre 16 valve Manual 8B6FZ 26.6 (10.6) 47.1 (6.0) 36.7 (7.7) 182 g/km
1.8 litre 16 valve Automatic 8B6FZ 22.9 (12.3) 45.6 (6.2) 33.6 (8.4) 201 g/km
2 litre 16 valve Manual 8BRFN 24.6 (11.5) 43.5 (6.5) 34.0 (8.3) 197 g/km
2 litre 16 valve Automatic 8BRF/N 22.9 (12.3) 43.5 (6.5) 32.8 (8.6) 206 g/km
2 litres 16 valve Manual 8BR6F Ð Ð Ð Ð 2 litre 16 valve HPI Manual 8BRLZ 27.4 (10.3) 47.1 (6.0) 37.6 (7.5) 177 g/km
2.2 litre 16V Manual 8B3FZ 22.0 (12.8) 43.5 (6.5) 32.1 (8.8) 210 g/km V6 24 valve Manual 8BXFX 20.6 (13.7) 39.2 (7.2) 29.4 (9.6) 229 g/km
V6 24 valve Automatic 8BXFX 19.7 (14.3) 37.6 (7.5) 28.2 (10) 238 g/km 2 litre HDI Manual 8BRHY 38.2 (7.4) 64.2 (4.4) 51.4 (5.6) 148 g/km
2 litre HDI Manual 8BRHZ/S
37.6/37.0 (7.5/7.6) 62.8/61.7 (4.5/4.6) 50.4/49.6 (5.6/5.7) 147/149 g/km
2 litre HDI Automatic 8BRHZ 31.7 (8.9) 55.4 (5.1) 43.5 (6.5) 173 g/km
2.2 litre HDI 16V Manual 8B4HX 32.1 (8.8) 57.6 (4.9) 44.1 (6.4) 168 gkm

17-02-2003
TECHNICAL DATA161
Fuel consumption values correct at time of printing.Consumption, estate As per directive 99/100 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving driving of CO 2
driving by mass
1.8 litre 16V Manual 8E6FZ 26.2 (10.8) 45.6 (6.2) 35.8 (7.9) 187 g/km 8F6FZ
1.8 litre 16V Automatic 8E6FZ 22.8 (12.4) 44.1 (6.4) 32.8 (8.6) 206 g/km 8F6FZ
2 litre 16 valve Manual 8ERFN 24.6 (11.5) 42.8 (6.6) 33.6 (8.4) 200 g/km 8FRFN
2 litre 16 valve Automatic 8ERFN 22.9 (12.3) 42.8 (6.6) 32.4 (8.7) 208 g/km 8FRFN
2.2 litre 16 valve Manual 8ER6F Ð Ð Ð Ð
2 litre HPI 16V Manual 8ERLZ 27.2 (10.4) 45.6 (6.2) 36.7 (7.7) 185 g/km 8FRLZ
2.2 litre 16 valve Manual 8E3FZ 22.0 (12.8) 40.4 (6.7) 31.8 (8.9) 212 g/km
8F3FZ
V6 24 valve Manual 8EXFX 20.3 (13.9) 38.1 (7.4) 28.8 (9.8) 234 g/km 8FXFX
V6 24 valve Automatic 8EXFX 19.4 (14.5) 36.6 (7.7) 27.6 (10.2) 243 g/km 8FXFX
2 litre HDI Manual 8ERHY 37.8 (7.5) 61.7 (4.6) 49.6 (5.7) 151 g/km 8FRHY
2 litre HDI Manual 8ERHZ/S 37.7 (7.5/-) 60.1 (4.7/-) 49.6 (5.7/-) 156/- g/km 8FRHZ/S
2 litre HDI Automatic 8ERHZ 30.4 (9.3) 54.3 (5.2) 42.2 (6.7) 178 g/km 8FRHZ
2.2 litre HDI 16V Manual 8E4HX 32.1 (8.8) 55.4 (5.1) 43.5 (6.5) 170 g/km
8F4HX

17-02-2003
TECHNICAL DATA
162
Engines Gearbox Model codes: 8B
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight
(within GTW limit)
¥ Recommended nose weight1.8 litre 1.8 litre 1.8 litre 2 litre 2 litre 2 litre 2.2 litre V6
16 valve 16 valve 16 valve 16 valve 16 valve HPI 16V 16 valve 24 valve
Manual Manual Auto Manual Auto Manual Manual Manual
LFY 6FZ 6FZ RFN RFN RLZ 3FZ XFX
1 260 1 315 1 340 1 350 1 370 1 340 1 370 1 455
1 790 1 855 1 880 1 890 1 910 1 880 1 910 1 995
2 990 3 055 2 980 3 090 3 110 3 080 3 110 3 295
1 500 1 300 1 300 1 500 1 500 1 500 1 500 1 500 80 80 80 80 80 80 80 80
Engines Gearbox Model codes: 8B
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight(within GTW limit)
¥ Recommended nose weightV6 2 litre 2 litre 2 litre 2.2 litre
24 valve HDI HDI HDI HDI 16V
Auto. Manual Manual Auto. Manual
XFX RHY RHZ RHZ 4HX
1 475 1 300 1 410 1 400 1 410
2 015 1 870 1 950 1 940 1 950
3 315 3 070 3 150 3 450 3 150
1 500 1 500 1 500 1 500 1 500 80 80 80 80 80
* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h).
Weights and towing weights (in kg), SALOON

17-02-2003
TECHNICAL DATA163
Engines Gearbox Model codes: 8E
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight1.8 litre 1.8 litre 2 litre 2 litre2 litre HPI2.2 litre V6 V6
16 valve 16 valve 16 valve 16 valve 16 valve 16 valve 16 valve 16 valve
Manual Auto. Manual Auto. Manual Manual Manual Auto.
6FZ 6FZ RFN RFN RLZ 3FZ XFX XFX
1 365 1 395 1 400 1 420 1 400 1 420 1 505 1 525
2 015 2 045 2 050 2 070 2 050 2 070 2 155 2 175
3 215 3 245 3 250 3 270 3 250 3 270 3 455 3 475
1 500 1 500 1 500 1 500 1 500 1 500 1 500 1 500 80 80 80 80 80 80 80 80
Engines Gearbox Model codes: 8E
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight(within GTW limit)
¥ Recommended nose weight 2 litre 2 litre 2 litre 2.2 litre HDIHDI HDI HDI 16
valve
Manual Manual Auto. Manual RHY RHZ RHZ 4HX
1 380 1 425 1 460 1 460
2 030 2 075 2 110 2 110
3 230 3 275 3 310 3 310
1 500 1 500 1 500 1 500 80 80 80 80
* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h).Weights and towing weights (in kg), ESTATE

17-02-2003
TECHNICAL DATA
164
Engines Gearbox Model codes: 8F
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight 1.8 litre 1.8 litre 2 litre 2 litre 2 litre 2.2 litre 2 litre 2 litre
16 valve 16 valve 16 valve 16 valve HPI 16V 16 valve HDI HDI
Manual Auto. Manual Auto. Manual Manual Manual Manual 6FZ 6FZ RFN RFN RLZ 3FZ RHY RHZ
1 405 1 425 1 420 1 440 1 405 1 440 1 400 1 445
2 035 2 050 2 050 2 070 2 035 2 070 2 030 2 125
3 235 3 255 3 250 3 270 3 235 3 270 3 230 3 325
1 500 1 500 1 500 1 500 1 500 1 500 1 500 1 500 80 80 80 80 80 80 80 80
Engines Gearbox Model codes: 8F
¥ Kerb weight
¥ Gross vehicle weight (GVW)
¥ Gross train weight (GTW)*
¥ Braked trailer weight (within GTW limit)
¥ Recommended nose weight2 litre 2 litre HDIHDI 16 valve
Auto. Manual
RHZ 4HX
1 460 1 465
2 140 2 145
3 340 3 345
1 500 1 500 80 80
* The speed of a towing vehicle is limited to 60 m.p.h. (100 km/h). Weights and towing weights (in kg), 7-SEATER ESTATE

17-02-2003
TECHNICAL DATA165
Dimensions, saloon (in mm) Dimensions, estate (in mm)

17-02-2003
TECHNICAL DATA
166

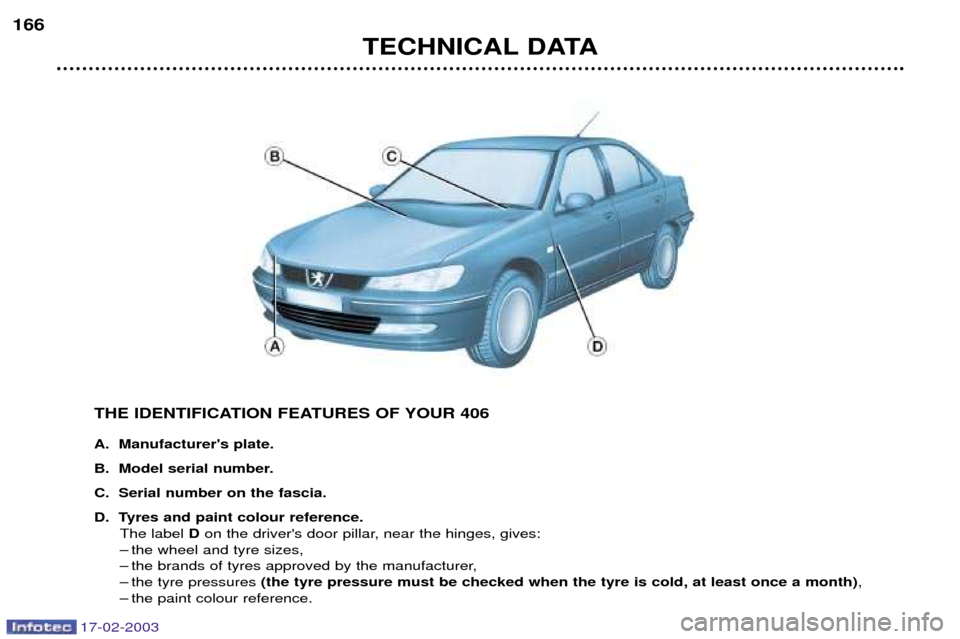

THE IDENTIFICATION FEATURES OF YOUR 406
A. Manufacturer's plate.
B. Model serial number.
C. Serial number on the fascia.
D. Tyres and paint colour reference.The label Don the driver's door pillar, near the hinges, gives:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved by the manufacturer,
Ð the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month) ,
Ð the paint colour reference.
