Page 4 of 177
![Peugeot 406 Break 2003 Owners Manual 17-02-2003
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the locks on the frontdoors, the glove box and the pas-senger air bag disarming switch.
Central locking
Fro Peugeot 406 Break 2003 Owners Manual 17-02-2003
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the locks on the frontdoors, the glove box and the pas-senger air bag disarming switch.
Central locking
Fro](/img/29/12681/w960_12681-3.png)
17-02-2003
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the locks on the frontdoors, the glove box and the pas-senger air bag disarming switch.
Central locking
From the driver's door, the keysallow you to lock and unlock thedoors and the boot. If one of the front doors is open, the central locking does not work. The remote control performs the same functions at adistance.The remote control LockingPressing button
Alocks the vehicle.
This is confirmed by the fixed lighting of the direction indicatorsfor approximately two seconds. Unlocking Pressing button Bunlocks the
vehicle.This is confirmed by the rapid flashing of the direction indicators. STARTING
STOP position:
The ignition is off.
1st notch, Accessories position:
The ignition is off but the acces- sories can be used. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter.
YOUR 406 AT A GLANCE
4
Key without
remote control Key with
remote control
103
Page 47 of 177
![Peugeot 406 Break 2003 Owners Manual 17-02-2003
YOUR 406 IN DETAIL
68
CD CHANGER Selecting CD changer mode Press the "SRC"button until the CD changer is selected.
Selecting a disc Press buttons "1"to "6" to select the corresponding disc. Peugeot 406 Break 2003 Owners Manual 17-02-2003
YOUR 406 IN DETAIL
68
CD CHANGER Selecting CD changer mode Press the "SRC"button until the CD changer is selected.
Selecting a disc Press buttons "1"to "6" to select the corresponding disc.](/img/29/12681/w960_12681-46.png)
17-02-2003
YOUR 406 IN DETAIL
68
CD CHANGER Selecting CD changer mode Press the "SRC"button until the CD changer is selected.
Selecting a disc Press buttons "1"to "6" to select the corresponding disc.
Selecting a track Press button Jto select the next track.
Press button Kto return to the start of the current track or to select the previous
track.
Accelerated playPress the "MAN"button.
Press and hold button Jor Kfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Buttons Jand Kresume the "track selection" function when the "MAN"button is pressed again.
Shuffle When the CD changer is selected, keep the "SRC"button pressed for two seconds. The tracks will be played
in random sequence. Pressing the "SRC"button again for two seconds returns you to normal play.
Page 57 of 177
![Peugeot 406 Break 2003 Owners Manual 17-02-2003
YOUR 406 IN DETAIL79
CD CHANGER Selecting CD changer mode Press button D.
Selecting a disc Press one of the buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kt Peugeot 406 Break 2003 Owners Manual 17-02-2003
YOUR 406 IN DETAIL79
CD CHANGER Selecting CD changer mode Press button D.
Selecting a disc Press one of the buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kt](/img/29/12681/w960_12681-56.png)
17-02-2003
YOUR 406 IN DETAIL79
CD CHANGER Selecting CD changer mode Press button D.
Selecting a disc Press one of the buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kto select the following track.
Press button Mto return to the start of the current track or to select the previous
track.
Accelerated playPress and hold button Kor Mfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle
When the CD changer is selected, keep button Dpressed for two seconds. The tracks will be played in
random sequence. Pressing button Dagain for two seconds returns you to normal play.
Page 66 of 177
![Peugeot 406 Break 2003 Owners Manual 17-02-2003
COMPACT DISC Selecting CD player modeAfter inserting a disc, with the printed surface upwards, the player starts automatically.If a disc is already inserted, press button C.
Ejecting a disc Peugeot 406 Break 2003 Owners Manual 17-02-2003
COMPACT DISC Selecting CD player modeAfter inserting a disc, with the printed surface upwards, the player starts automatically.If a disc is already inserted, press button C.
Ejecting a disc](/img/29/12681/w960_12681-65.png)
17-02-2003
COMPACT DISC Selecting CD player modeAfter inserting a disc, with the printed surface upwards, the player starts automatically.If a disc is already inserted, press button C.
Ejecting a disc Press button E
to eject the disc from the player.
Selecting a track Press button Kto select the next track.
Press button Lto return to the start of the current track or to select the previous
track.
Accelerated playPress the "MAN"button.
Press and hold button Kor Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Buttons Kor Lresume the "track selection" function when the "MAN"button is pressed again.
Shuffle (RDM) When the CD player is selected, keep button Cpressed for two seconds. The tracks will be played in ran-
dom sequence. Pressing button Cagain for two seconds returns you to normal play.
YOUR 406 IN DETAIL
88
The use of copied compact discs may cause malfunctions.
Page 67 of 177
![Peugeot 406 Break 2003 Owners Manual 17-02-2003
CD CHANGER Selecting CD changer modePress button D.
Selecting a disc Press buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kto select the next track.
Press b Peugeot 406 Break 2003 Owners Manual 17-02-2003
CD CHANGER Selecting CD changer modePress button D.
Selecting a disc Press buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kto select the next track.
Press b](/img/29/12681/w960_12681-66.png)
17-02-2003
CD CHANGER Selecting CD changer modePress button D.
Selecting a disc Press buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kto select the next track.
Press button Lto return to the start of the current track or to select the previous
track.
Accelerated playPress the "MAN"button.
Press and hold button Kor Lfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.Buttons Kor Lresume the "track selection" function when the "MAN"button is pressed again.
Shuffle (RDM) When the CD changer is selected, keep button Dpressed for two seconds. The tracks will be played in random
sequence. Pressing button Dagain for two seconds returns you to normal play.
YOUR 406 IN DETAIL 89
Page 101 of 177
![Peugeot 406 Break 2003 Owners Manual 17-02-2003
YOUR 406 IN DETAIL105

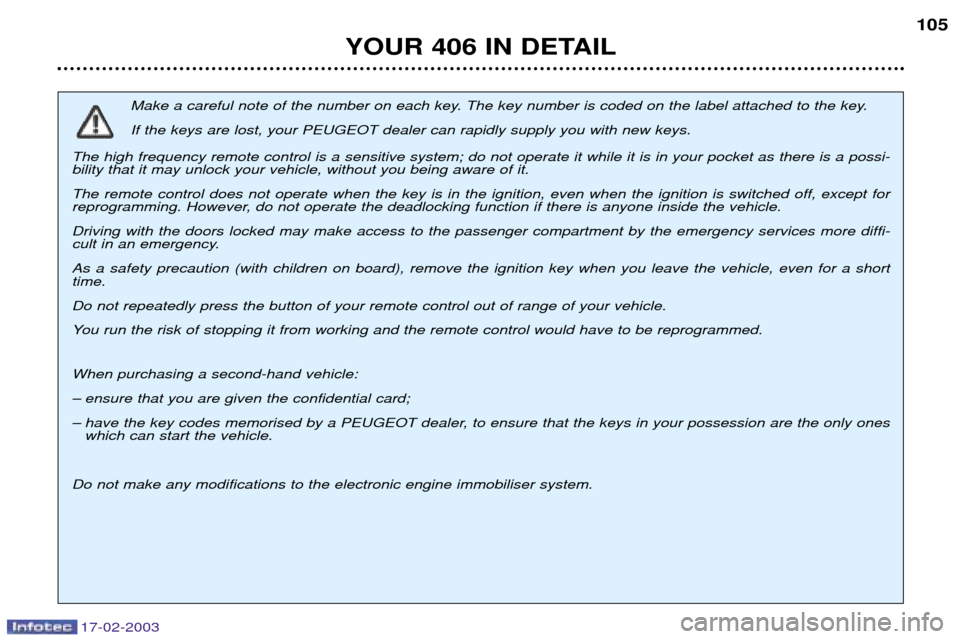

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply y Peugeot 406 Break 2003 Owners Manual 17-02-2003
YOUR 406 IN DETAIL105
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply y](/img/29/12681/w960_12681-100.png)
17-02-2003
YOUR 406 IN DETAIL105
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possi- bility that it may unlock your vehicle, without you being aware of it. The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except for
reprogramming. However, do not operate the deadlocking function if there is anyone inside the vehicle. Driving with the doors locked may make access to the passenger compartment by the emergency services more diffi-
cult in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle:
Ð ensure that you are given the confidential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Page 110 of 177
![Peugeot 406 Break 2003 Owners Manual 17-02-2003
PETROL/LPG TWIN FUEL VERSION
168
Filling the LPG tank
(Capacity, approximately 46 litres)
Ð switch off the ignition,
Ð unscrew the cap protecting thefiller opening,
Ð lock the filler n Peugeot 406 Break 2003 Owners Manual 17-02-2003
PETROL/LPG TWIN FUEL VERSION
168
Filling the LPG tank
(Capacity, approximately 46 litres)
Ð switch off the ignition,
Ð unscrew the cap protecting thefiller opening,
Ð lock the filler n](/img/29/12681/w960_12681-109.png)
17-02-2003
PETROL/LPG TWIN FUEL VERSION
168
Filling the LPG tank
(Capacity, approximately 46 litres)
Ð switch off the ignition,
Ð unscrew the cap protecting thefiller opening,
Ð lock the filler nozzle onto the opening (if necessary, screw the appropriate adapter*, located inthe insulated compartment, ontothe filler opening first),
Ð push the button on the pump,
Ð once filling has stopped automati- cally, unlock the filler nozzle,
Ð screw the protective cap back onto the filler opening.
* according to destination. Petrol gauge When the low petrol level indicator comes on, fill the tank without delayas the engine can only start usingpetrol. Furthermore, a low petrollevel may result in fuel circuit faults.
Gas gauge If the outside temperature is high, the gas level indicated by the fuelgauge may be slightly higher thanthe actual level. Safety advice The safety valve must be closed before any main-
tenance or repair work is carried
out on your vehicle. To close it,switch off the ignition. Ensure that there is no risk that the loads carried may damagethe tank.
Testing the tank Decree of 18/01/43 and applica-
tion of article 3 of the A.M. of
24/11/82. The maximum interval between successive tests is eight years.
However, the test must be repeat-ed whenever the vehicle is sold, ifthis sale takes place more than5 years following the last test. It is imperative that any work on the LPG feed system is carried
out by a PEUGEOT dealer.
Page 113 of 177
![Peugeot 406 Break 2003 Owners Manual 17-02-2003
Rear screen wiper (estate)
Turn ring Ato the first notch,
for intermittent wiping. Rear screen wash (estate)
Turn ring Abeyond the first
notch; the windscreen wash then the windscreen w Peugeot 406 Break 2003 Owners Manual 17-02-2003
Rear screen wiper (estate)
Turn ring Ato the first notch,
for intermittent wiping. Rear screen wash (estate)
Turn ring Abeyond the first
notch; the windscreen wash then the windscreen w](/img/29/12681/w960_12681-112.png)
17-02-2003
Rear screen wiper (estate)
Turn ring Ato the first notch,
for intermittent wiping. Rear screen wash (estate)
Turn ring Abeyond the first
notch; the windscreen wash then the windscreen wiperoperate for a fixed period.
WINDSCREEN WIPER STALK Front windscreen wipers2 Rapid wipe (heavy rain)
1 Normal wipe (moderate rain).
AUTO Automatic wipe
0 Off.
Single wipe (press downwards).
Operation In position 1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed, thenresumes its initial speed when thevehicle starts again. When the ignition has been switched off for more than a
minute with the stalk in the AUTOposition, it is necesary to reacti-vate this function. To do this, move
the stalk to any position, then move itback to the AUTOposition. Automatic windscreen wiper In the
AUTO position, the wipers
operate automatically and adjust
their speed to the intensity of the rainfall .
Operating check Switching on Activation of the function is accom- panied by the message "Automatic
windscreen wiper actuated" on the
multifunction display. In the event of malfunction in the
AUTO position, the windscreen
wiper will operate in downgrademode.
Contact a PEUGEOT dealer to have the system checked.
YOUR 406 IN DETAIL
126
Do not mask the rain detector located on thewindscreen behind the
interior mirror.
If you take the vehicle to anautomatic car wash, switch off theignition or check that the windscreenwiper stalk is not in the automaticposition.
In Winter, it is advisable to wait for complete de-icing of the wind-screen before switching on theautomatic wipe.
Windscreen and headlamp wash Pull the windscreen wiper stalk
towards you. The windscreen washthen the windscreen wipers operatefor a fixed period. The windscreen wash and head- lamp wash operate simultaneouslyfor two seconds, only if the head-
lamps are on .
