Peugeot 406 Break Dag 2003 Owners Manual

17-02-2003
Rear seats, estate
To fold down the rear seat:
Ð remove the head restraints bypressing the lug.
Ð tilt the seat cushion against the front seats, using the strap. Ð secure the side seat belt buckles
on the coat hooks when manoeu- vring the seat back to avoid anyrisk of the straps being damaged.
Ð unlock the seat back by pressing button 1. The red marker Aappears.
Ð fold down the seat back gently to avoid blocking the centre belt.
When returning the seat back to theupright position, ensure that it is correctly locked (red marker Ano
longer visible). When driving with rear passengerswith one third of the seat foldeddown, release the central seat beltbuckle from its catch.
YOUR 406 IN DETAIL
115
WARNING
Do not remove
the seat back of the estate's one-piece rear seat.
This seat is fitted with return springs which cancause injury.
Contact a
PEUGEOT dealer
if you wish to remove the seat back.

17-02-2003
Third row seat, 7-seater estate Do not use the third row seat when the rear seat is folded down. Positioning the seat:
Ð remove the rear parcel shelf.
Ð fold down panel Ain the boot by
using the handle.
Ð lift the seat back Bby the head
restraints. Ð push the seat back firmly, keeping
the seat angled upwards.
Ð lower the seat and check it has engaged in the notches C. Stowage: Place the seat belt buckles in their catches. Release the seat from the notches
C.
Lower the seat back by the head restraints, keeping the seat cushioninclined. Lower the whole seat into the boot housing. Lock the boot panel Aby pressing on
the edges.
YOUR 406 IN DETAIL
116
Do not install a child seat on the third row seat.

17-02-2003
YOUR 406 IN DETAIL
118
Rules for transporting children on the front passenger seat**: Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe most rearward position and armthe passenger air bag. The rearwards facing position is per- mitted from birth to 18 kg. In thisposition, it is essential to disarm thepassenger air bag.
GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions:
Ð Since 1992, all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
In order to recognise a child seat which conforms to current legislation, check
that it bears an orange label indicating the weight range for its use and its approval number .
Ð A child weighing less than 9 kg must travel in the rearwards facing posi-tion both in the front and in the rear .
Ð The safest seats in your vehicle for the transportation of children are therear seats .
Ð If a child is travelling on a booster seat, check that the lap section of the seat belt passes over the child's thighs correctly. The chest section of the seat belt must be
positioned on the child's shoulder without touching the neck. PEUGEOT recom-mends that you use a booster seat with a back, fitted with a seat belt guide.
Ð Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.

17-02-2003
YOUR 406 IN DETAIL119

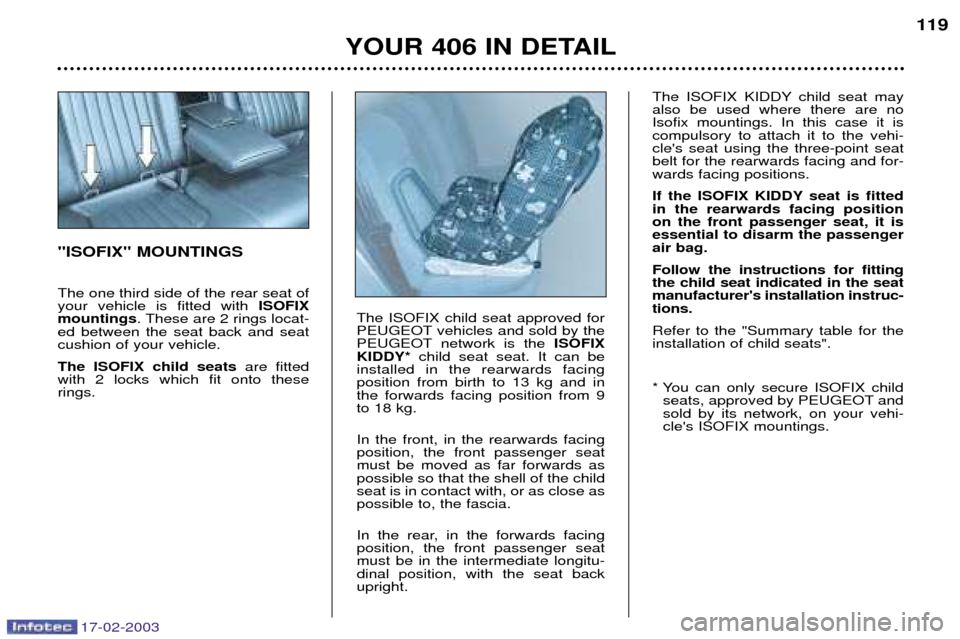

"ISOFIX" MOUNTINGS The one third side of the rear seat of your vehicle is fitted with
ISOFIX
mountings . These are 2 rings locat-
ed between the seat back and seatcushion of your vehicle. The ISOFIX child seats are fitted
with 2 locks which fit onto these rings.
The ISOFIX child seat approved for
PEUGEOT vehicles and sold by the
PEUGEOT network is the ISOFIX
KIDDY* child seat seat. It can be
installed in the rearwards facingposition from birth to 13 kg and inthe forwards facing position from 9to 18 kg. In the front, in the rearwards facing position, the front passenger seatmust be moved as far forwards aspossible so that the shell of the childseat is in contact with, or as close aspossible to, the fascia.
In the rear, in the forwards facing position, the front passenger seatmust be in the intermediate longitu-dinal position, with the seat backupright.
The ISOFIX KIDDY child seat may also be used where there are noIsofix mountings. In this case it iscompulsory to attach it to the vehi-cle's seat using the three-point seatbelt for the rearwards facing and for-wards facing positions.
If the ISOFIX KIDDY seat is fitted in the rearwards facing positionon the front passenger seat, it isessential to disarm the passengerair bag. Follow the instructions for fitting the child seat indicated in the seatmanufacturer's installation instruc-tions. Refer to the "Summary table for the installation of child seats".
* You can only secure ISOFIX child seats, approved by PEUGEOT and sold by its network, on your vehi-cle's ISOFIX mountings.

17-02-2003
YOUR 406 IN DETAIL
120
CHILD SEATS RECOMMENDED BY PEUGEOT
In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat belt: Group 0+: from birth to 13 kg)
L1 Ð "Britax Babysure": installed in the rear-facing position in the front or in the rear using a three-point seat belt.In the front, it is compulsory to disarm the passenger air bag and the passenger seat must be adjusted to the 'mid-way'
position on the runner.
Group 1: from 9 to 18 kg
L2 Ð "Ršmer Prince": installed in the rear using a two or three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
Group 2: from 15 to 25 kg
L3 Ð "Ršmer Vario'': installed in the rear with a two or three-point seat belt.

17-02-2003
YOUR 406 IN DETAIL121
Never leave one or more children alone and unsu-pervised in a vehicle. Never leave a child or an
animal in a vehicle which is exposed to the sun and has thewindows closed.
To protect your young children from the sun, fit blinds on the rear windows. Never leave the keys within reach
of children inside the car. Disarm the passenger air bag when installing a "rearwards facing" childseat on the front passenger seat.Otherwise, the child would riskbeing killed or seriously injuredwere the air bag to inflate. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in thechild seat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear win- dows more than a third*.
* According to model.
Groups 2 and 3: from 15 to 36 kg
L4 Ð ''Recaro Start'': installed in the rear with a three-point seat belt.
The height and width of the seat back and length of the seat cushion mustbe adjusted according to the age and build of your child.
L5 Ð "Klippan Optima": installed in the rear with a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on its own.
Refer to the "Summary table for the installation of child seats".

17-02-2003
YOUR 406 IN DETAIL
122
TABLE FOR THE INSTALLATION OF CHILD SEATS In accordance with European regulations (Directive 2000/3), the table below indicates the options for the installation of child seats, in relation to the weight group and the seat in the vehicle:
U : universal child seat, rearwards facing and forwards facing.
U (R) : universal child seat with a height setting greater than or equal to the height of the fixed seat (in conformity with ¤ 3.3. of appendix 2 of annex XVIII of Directive 2000/3).
According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 13 kg).
L2 : R…MER Prince E1 03301058 Universal (9 to18 kg).
L3 : R…MER Vario E1 03301120 Universal (15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing E1 03301123 and Universal (birth to 13 kg)
(c).
L7 : KIDDY Isofix Forwards facing E2 030011 Universal (9 to 18 kg)(c).
(a) Group 0: from birth to 10 kg.
(b) Consult the current legislation in your country.
(c) See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings, or failing this using the seat belt. Statutory weight range
Seat Group 0
(a)at 0+ Group 1 Group 2 Group 3
< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger seat
( b )L1, L6 L2, L7 L3, L4, L5 L4, L5
without booster
Front passenger seat U (R) U (R) U (R) U (R)
with booster (R) L1, L6 L2, L7 L3, L4, L5 L4, L5
Saloon L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger seat Side seat Estate U, L1 U, L2 U, L3, L4, L5 U, L4, L5
Saloon L1 L2 L3, L4, L5 L4, L5
Rear passenger seat
Centre seat Estate U, L1 U, L2 U, L3, L4, L5 U, L4, L5

17-02-2003
SEAT BELTS
To adjust the height of the front seat belts Pinch control 1and slide it.
To lock the seat beltsPull the strap, then insert the buckle into the stalk. Pre-tensioning and force-limitingfront seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning and force-limit-ing front seat belts. Depending onthe seriousness of the impact, thepre-tensioning system instantly tight-ens the seat belt firmly against thebody of the occupant. The pre-tensioning seat belts are active when the ignition is on. The force-limiting device reduces the pressure of the seat belt against theoccupant's body in the event of anaccident. Rear seat belts The three rear seats are all fitted with three-point inertia reel belts.
YOUR 406 IN DETAIL
123
To be effective, a seat belt must be tightened asclose to the body as pos-sible.
Depending on the nature and theseriousness of the impact, thepre-tensioners may be triggeredbefore and independently of theair bags. In all cases, the air bag warning light comes on. Following a collision, have the system checked by a PEUGEOT
dealer. The system has been designed to be fully operational for ten years. Have it replaced after this period.

17-02-2003
THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of the front or rear doors is open, the central locking does notwork. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL 103
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the code isrecognised and starting is possible. If the system does not function cor-
rectly, you are warned by an audiblesignal and a message on the multi-
function display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
press button A. The courtesy
lights come on and the direction indicators flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

17-02-2003
YOUR 406 IN DETAIL
104
Changing the battery of the remote control The information ''battery flat''is
given by an audible signal accompa- nied by a message on the multi-
function display.
To replace the battery, unclip the casing using a coin at the ring(CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film, which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control
Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately.
 Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.
