Peugeot 406 Break Dag 2003 Owner's Manual

17-02-2003
YOUR 406 IN DETAIL105

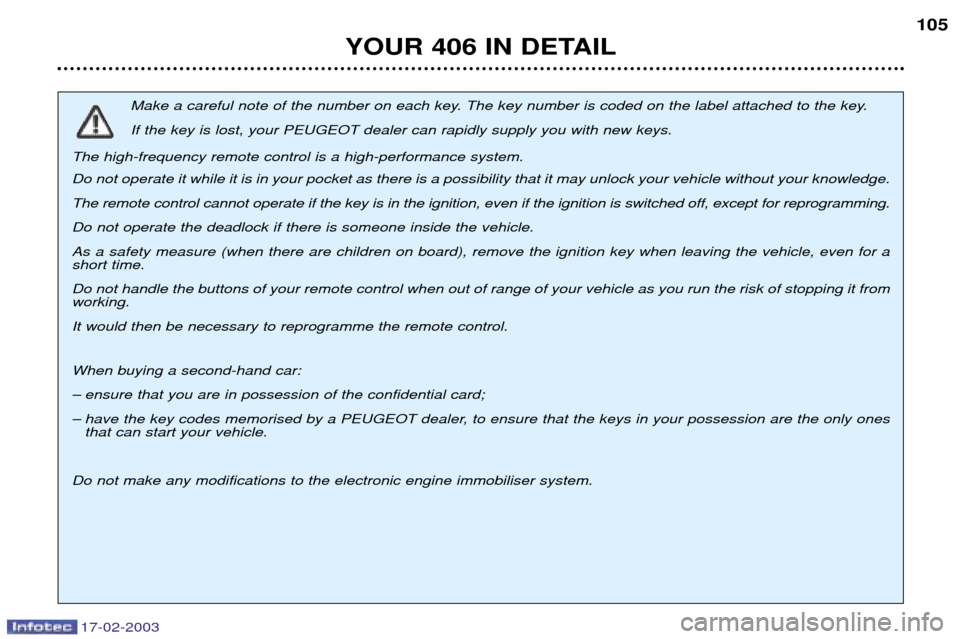

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high-frequency remote control is a high-performance system. Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge. The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogramming .
Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time. Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car:
Ð ensure that you are in possession of the confidential card;
Ð have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.

17-02-2003
THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of the front or rear doors is open, the central locking does notwork. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL 103

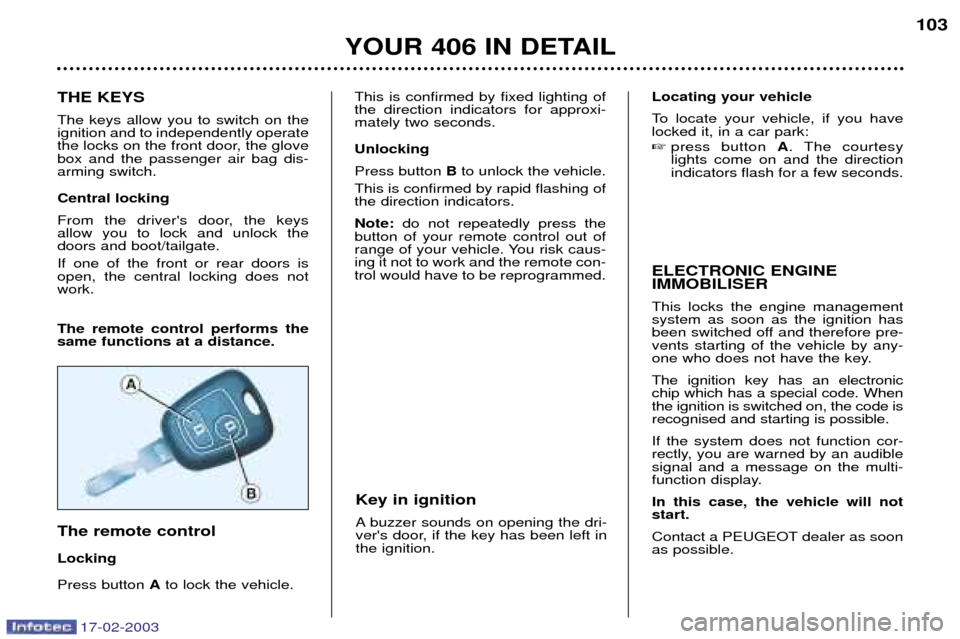

This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the code isrecognised and starting is possible. If the system does not function cor-
rectly, you are warned by an audiblesignal and a message on the multi-
function display. In this case, the vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
press button A. The courtesy
lights come on and the direction indicators flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

17-02-2003
THE ALARM SYSTEM*
This offers two types of protection: ¥external , it sounds if a door, the
bonnet or the boot is opened.
¥ internal , it sounds if there is air
movement in the passenger compartment (a broken windowor movement inside the vehicle) .
Note: it also has an anti-tamper
function; if there is an attempt to tam-per with the wires to the siren, the
control unit or the battery, the sirensounds and the direction indicatorslight. Setting
Switch the ignition off and get out of the vehicle. Set the alarm within five minutes fol- lowing your exit from the vehicle bylocking using the remote control (thered light on the switch, visible fromthe outside, flashes every secondand the direction indicators come onpermanently for two seconds).
5 seconds later, internal protection is set.
45 seconds later, external protection is set. When the alarm is triggered, the siren sounds for thirty seconds. After it has been triggered, the alarm is operational again. Note:
if you wish to lock your vehi-
cle without setting the alarm, lock it using the lock.
Warning
When the alarm is triggered, if a door, the boot or the bonnet are not closed
correctly, the siren sounds for amoment. Close the vehicle correctlyto set the alarm. Disarming Unlock the vehicle using the remote
control key. (the direction indicatorsflash for two seconds and the redlight on the switch goes out). Note:
if the red warning light flashes,
it is a sign that the alarm has been triggered during your absence.
To stop it, switch on the ignition.Note: when the alarm is set, but the
remote control no longer works:
¥ unlock the doors using the key and open the door; the alarm is trig- gered;
¥ switch the ignition on within ten seconds;

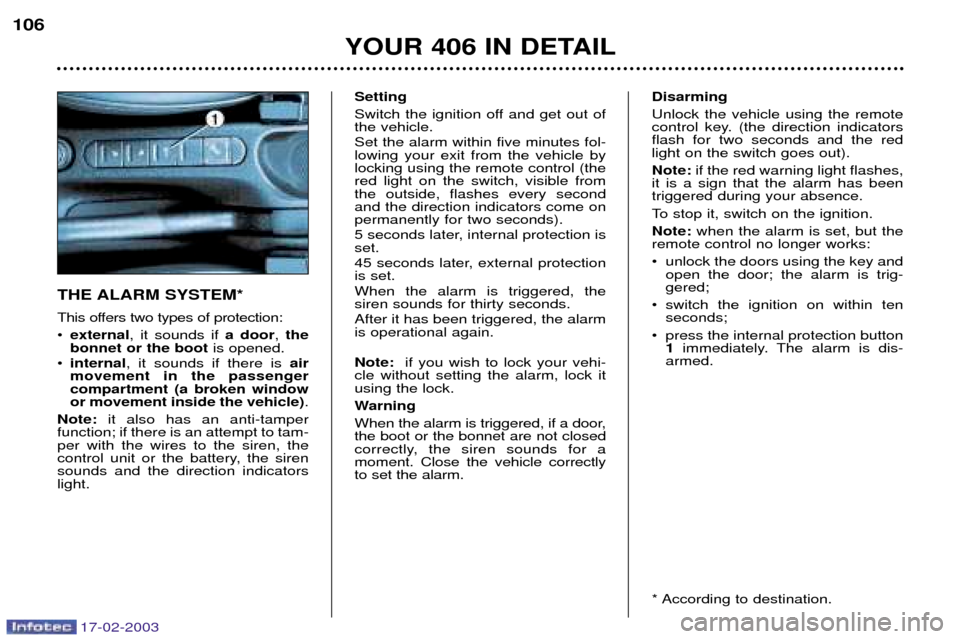

¥ press the internal protection button 1 immediately. The alarm is dis-
armed.
* According to destination.
YOUR 406 IN DETAIL
106

17-02-2003
To disarm external type protection only
¥ see "Disarming" section. Note:if you wish to charge or replace
the battery:
¥ Turn on the ignition.
¥ You have 10 seconds after turning on the ignition to press the internal protection switch 1and hold it
down for two seconds.
¥ The warning light flashes rapidly for three seconds.
¥ Disconnect the battery.
¥ After reconnecting the battery, lock, then unlock the vehicle using the remote control.
YOUR 406 IN DETAIL 107
To set the alarm to external protection only If you want to leave a window partially open, or a pet inside thevehicle, you need to select externalprotection only:
¥ Switch off the ignition.
¥ Within the next ten seconds, press the internal protection button 1.
¥ Get out of the vehicle.
¥ Press the locking button on the remote control.
¥ The doors lock.
¥ The direction indicators light for two seconds.
¥ The red light on the switch flashes once a second.

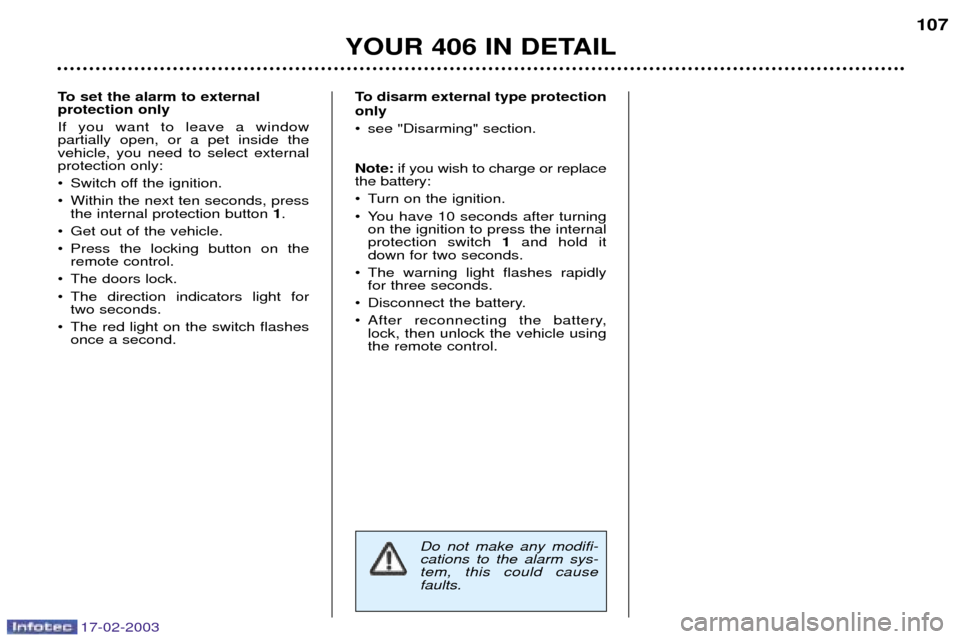

Do not make any modifi- cations to the alarm sys-tem, this could causefaults.

17-02-2003

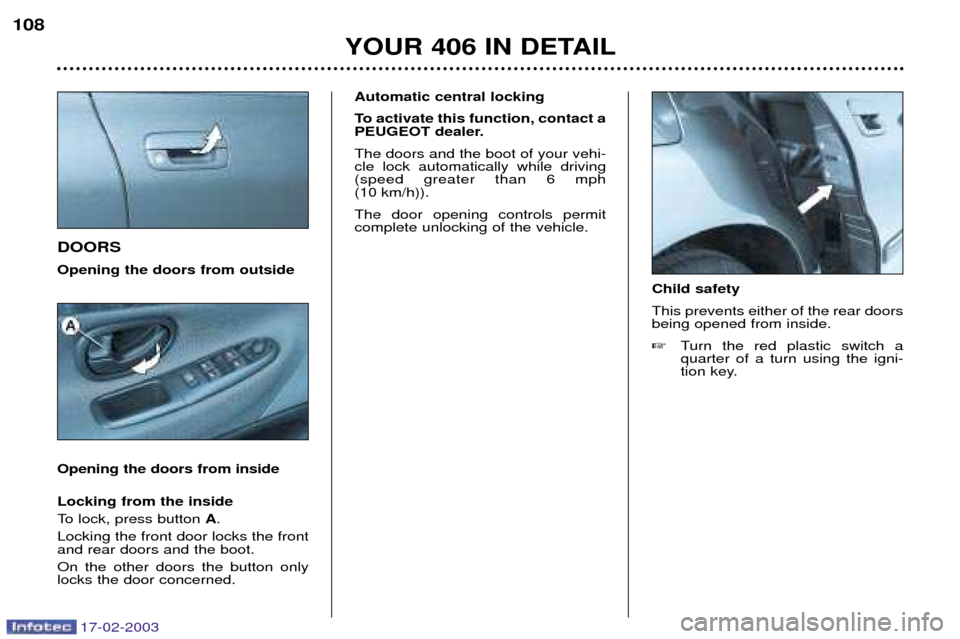

DOORS Opening the doors from outside Opening the doors from insideAutomatic central locking
To activate this function, contact a
PEUGEOT dealer. The doors and the boot of your vehi- cle lock automatically while driving(speed greater than 6 mph
(10 km/h)). The door opening controls permit complete unlocking of the vehicle.
Locking from the inside
To lock, press button A.
Locking the front door locks the front and rear doors and the boot. On the other doors the button only locks the door concerned.
YOUR 406 IN DETAIL
108
Child safety This prevents either of the rear doors being opened from inside.
Turn the red plastic switch a quarter of a turn using the igni-
tion key.

17-02-2003
BOOT Simultaneous locking or unlocking of the boot and the doors
Turn the key a quarter turn from Ato B.
The boot is then controlled by theremote control or the driver's doorlock. Locking the boot only
Turn the key a quarter of a turn from A to C. The boot is then locked,
whatever the action of the remotecontrol or the driver's door lock.
To return to simultaneous operation with the doors: turn the key fromA to B.
YOUR 406 IN DETAIL
109

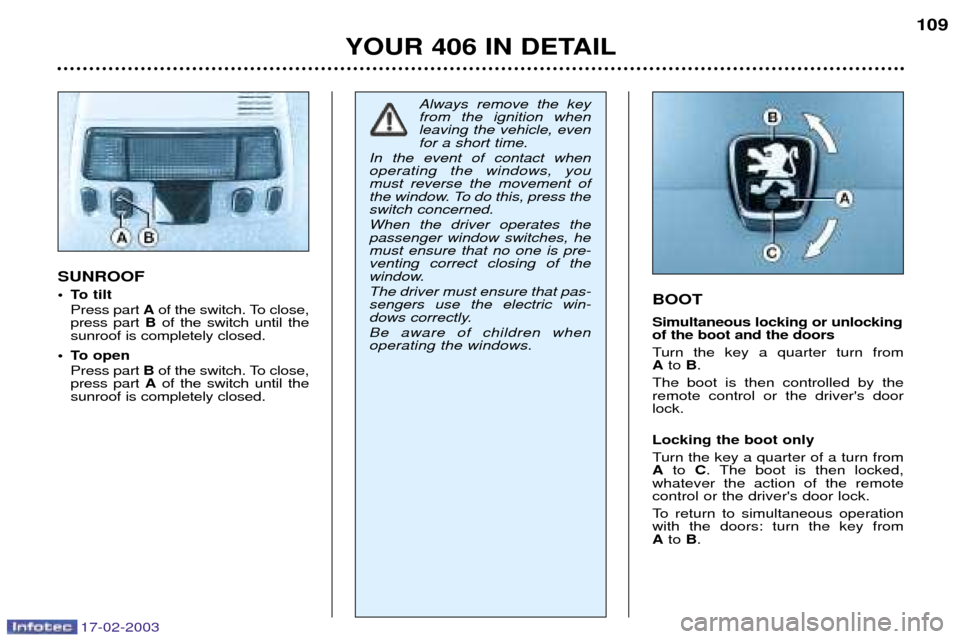

SUNROOF
¥ To tilt Press part Aof the switch. To close,
press part Bof the switch until the
sunroof is completely closed.
¥ To open Press part Bof the switch. To close,
press part Aof the switch until the
sunroof is completely closed.
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact whenoperating the windows, youmust reverse the movement of
the window. To do this, press theswitch concerned. When the driver operates the passenger window switches, hemust ensure that no one is pre-venting correct closing of the
window. The driver must ensure that pas- sengers use the electric win-
dows correctly. Be aware of children when operating the windows.

17-02-2003

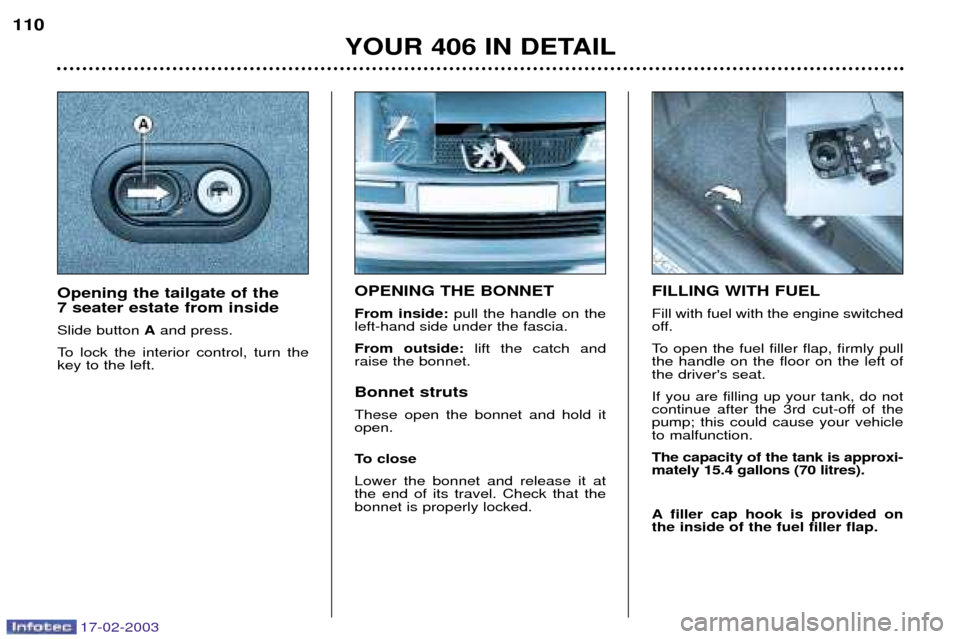

OPENING THE BONNET From inside:pull the handle on the
left-hand side under the fascia.From outside: lift the catch and
raise the bonnet. Bonnet struts These open the bonnet and hold it open.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. FILLING WITH FUEL Fill with fuel with the engine switched
off.
To open the fuel filler flap, firmly pull the handle on the floor on the left ofthe driver's seat. If you are filling up your tank, do not
continue after the 3rd cut-off of thepump; this could cause your vehicleto malfunction. The capacity of the tank is approxi- mately 15.4 gallons (70 litres).
A filler cap hook is provided on the inside of the fuel filler flap.
YOUR 406 IN DETAIL
110
Opening the tailgate of the 7 seater estate from inside Slide button
Aand press.
To lock the interior control, turn the key to the left.

17-02-2003
BOOT Simultaneous locking or unlocking of the boot and the doors
Turn the key a quarter turn from Ato B.
The boot is then controlled by theremote control or the driver's doorlock. Locking the boot only
Turn the key a quarter of a turn from A to C. The boot is then locked,
whatever the action of the remotecontrol or the driver's door lock.
To return to simultaneous operation with the doors: turn the key fromA to B.
YOUR 406 IN DETAIL
109
SUNROOF
¥ To tilt Press part Aof the switch. To close,
press part Bof the switch until the
sunroof is completely closed.
¥ To open Press part Bof the switch. To close,
press part Aof the switch until the
sunroof is completely closed.
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact whenoperating the windows, youmust reverse the movement of
the window. To do this, press theswitch concerned. When the driver operates the passenger window switches, hemust ensure that no one is pre-venting correct closing of the
window. The driver must ensure that pas- sengers use the electric win-
dows correctly. Be aware of children when operating the windows.

17-02-2003
OPENING THE BONNET From inside:pull the handle on the
left-hand side under the fascia.From outside: lift the catch and
raise the bonnet. Bonnet struts These open the bonnet and hold it open.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. FILLING WITH FUEL Fill with fuel with the engine switched
off.
To open the fuel filler flap, firmly pull the handle on the floor on the left ofthe driver's seat. If you are filling up your tank, do not
continue after the 3rd cut-off of thepump; this could cause your vehicleto malfunction. The capacity of the tank is approxi- mately 15.4 gallons (70 litres).
A filler cap hook is provided on the inside of the fuel filler flap.
YOUR 406 IN DETAIL
110
Opening the tailgate of the 7 seater estate from inside Slide button
Aand press.
To lock the interior control, turn the key to the left.

17-02-2003

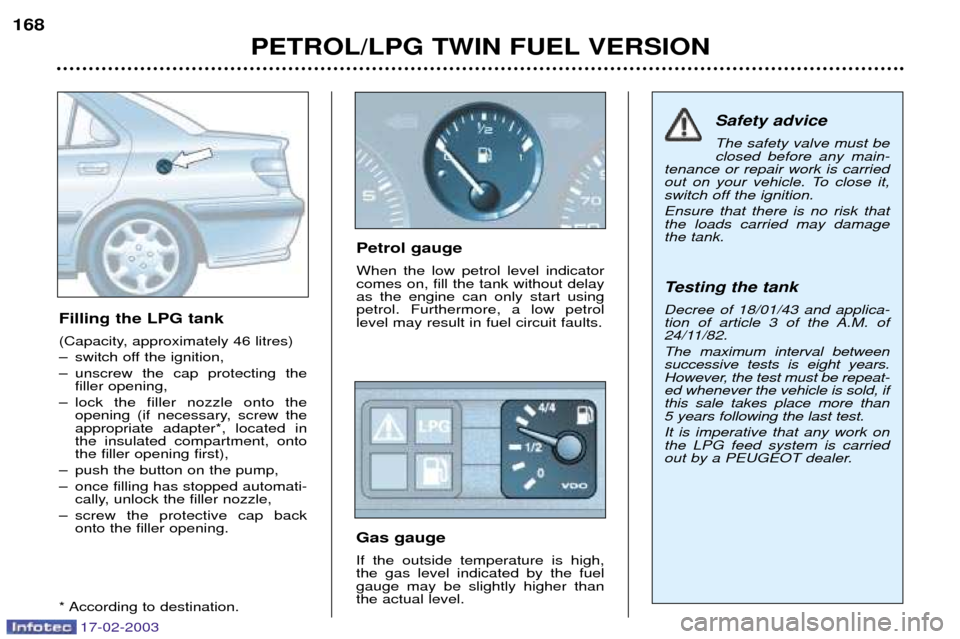

PETROL/LPG TWIN FUEL VERSION
168
Filling the LPG tank
(Capacity, approximately 46 litres)
Ð switch off the ignition,
Ð unscrew the cap protecting thefiller opening,
Ð lock the filler nozzle onto the opening (if necessary, screw the appropriate adapter*, located inthe insulated compartment, ontothe filler opening first),
Ð push the button on the pump,
Ð once filling has stopped automati- cally, unlock the filler nozzle,
Ð screw the protective cap back onto the filler opening.
* According to destination. Petrol gauge When the low petrol level indicator comes on, fill the tank without delayas the engine can only start usingpetrol. Furthermore, a low petrollevel may result in fuel circuit faults.
Gas gauge If the outside temperature is high, the gas level indicated by the fuelgauge may be slightly higher thanthe actual level. Safety advice The safety valve must be closed before any main-
tenance or repair work is carried
out on your vehicle. To close it,switch off the ignition. Ensure that there is no risk that the loads carried may damagethe tank.
Testing the tank Decree of 18/01/43 and applica-
tion of article 3 of the A.M. of
24/11/82. The maximum interval between successive tests is eight years.
However, the test must be repeat-ed whenever the vehicle is sold, ifthis sale takes place more than 5 years following the last test. It is imperative that any work on the LPG feed system is carried
out by a PEUGEOT dealer.
