YOUR 406 IN DETAIL
54
17-02-2003

17-02-2003

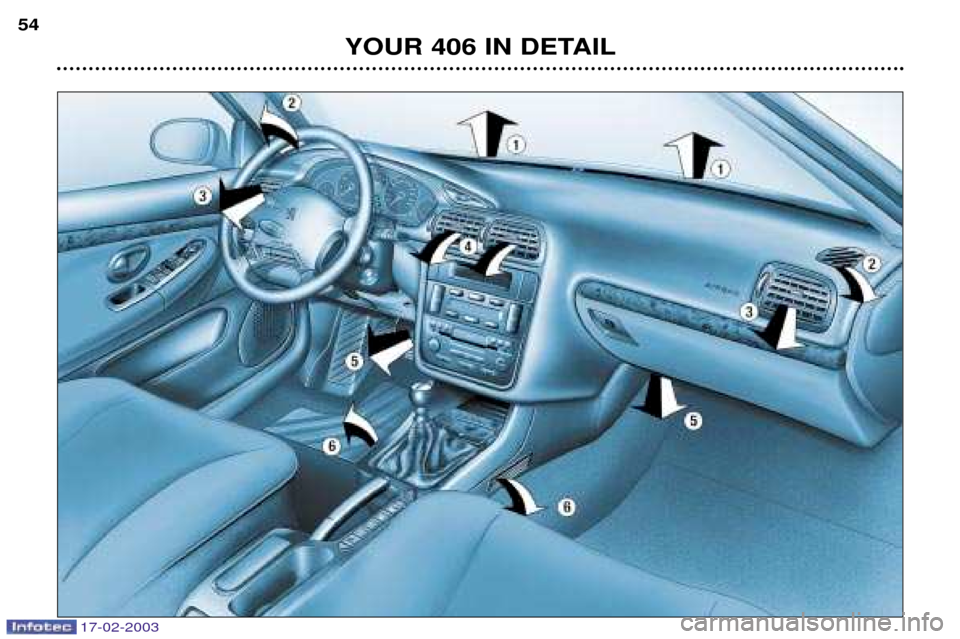

VENTILATION 1 -Windscreen de-icing or demisting vents.
2 - Front window de-icing or demisting vents.
3 - Side vents.
4 - Central vents.
5 - Air outlet to the front passengers' feet.
6 - Air outlet to the rear passengers' feet.
Recommendations for use  Position the air flow control at a level which allows adequate air circulation inside your vehicle.
 Select the air distribution which best suits your requirements and the climatic conditions.
 Select a temperature setting and only alter it gradually for your comfort.
For an even air distribution, make sure that you do not block the air inlet grille at the base of the windscreen, the vents, th e
air passages under the front seats and the air extractor in the boot.
YOUR 406 IN DETAIL 55

17-02-2003

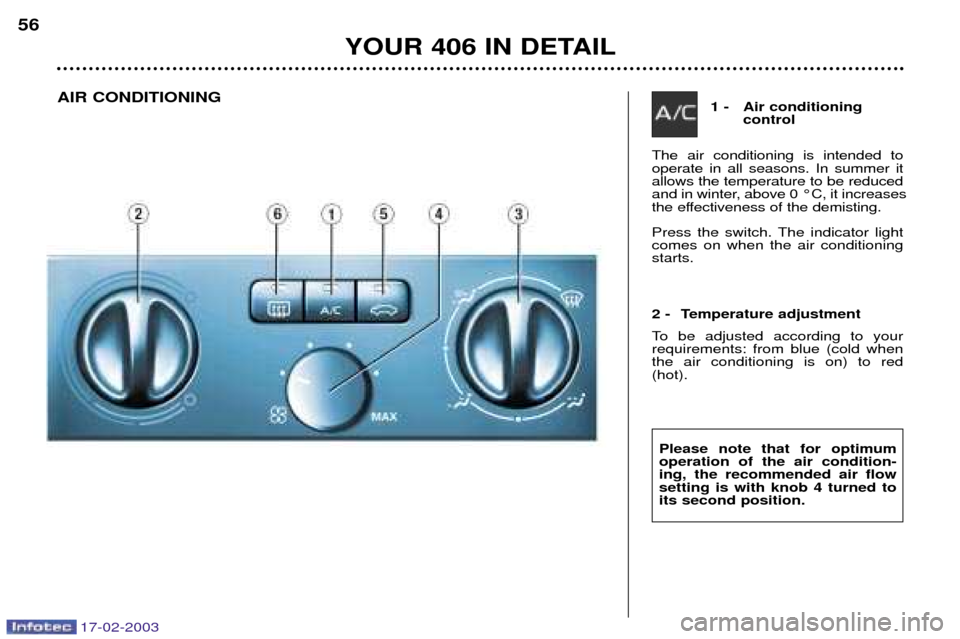

Press the switch. The indicator light comes on when the air conditioningstarts.
1 - Air conditioning control
The air conditioning is intended to operate in all seasons. In summer itallows the temperature to be reduced
and in winter, above 0 ¡C, it increases
the effectiveness of the demisting.
2 - Temperature adjustment
To be adjusted according to your requirements: from blue (cold whenthe air conditioning is on) to red(hot).
AIR CONDITIONING
YOUR 406 IN DETAIL
56
Please note that for optimum operation of the air condition-ing, the recommended air flowsetting is with knob 4 turned toits second position.

17-02-2003
3 - Setting the air distribution
Windscreen and side windows (de-icing/demisting).
To quickly de-ice or demist the wind- screen and the side windows:
Ð set the temperature and air flow controls to maximum,
Ð close the central vents,
Ð press the A/C button.
Windscreen and side win- dows, central and side ventsand footwells. Central and side vents and footwells.
These settings are recommended forcold climates.
Central and side vents. This setting is recommend-
ed for hot climates. 4 - Air flow adjustment
Turn the knob to obtain sufficient
flow.
5 - Air intake control
Recirculation of the interior air (indi-cator light on). This position prevents the entry of unpleasant odours or fumes fromoutside and increases the speed ofheating. Used simultaneously with the air conditioning, recirculation improvesthe performance of the system whenset to hot as well as to cold. Used in humid conditions, recircula- tion risks misting up the windows. As soon as possible, place the con- trol in the outside air position. 6 - Demisting the rear
screen
With the engine running, pressingthe switch demists the rear screenand the mirrors.
It switches off automatically after approximately fifteen minutes. Press again to resume demisting.It is possible to stop the demisting
operation before it goes off automat-
ically, by pressing the switch again. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month,
to keep it in good working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer. Note: The condensation created by
the air conditioning causes a normal flow of water under the vehicle when
stationary.
YOUR 406 IN DETAIL 57

17-02-2003

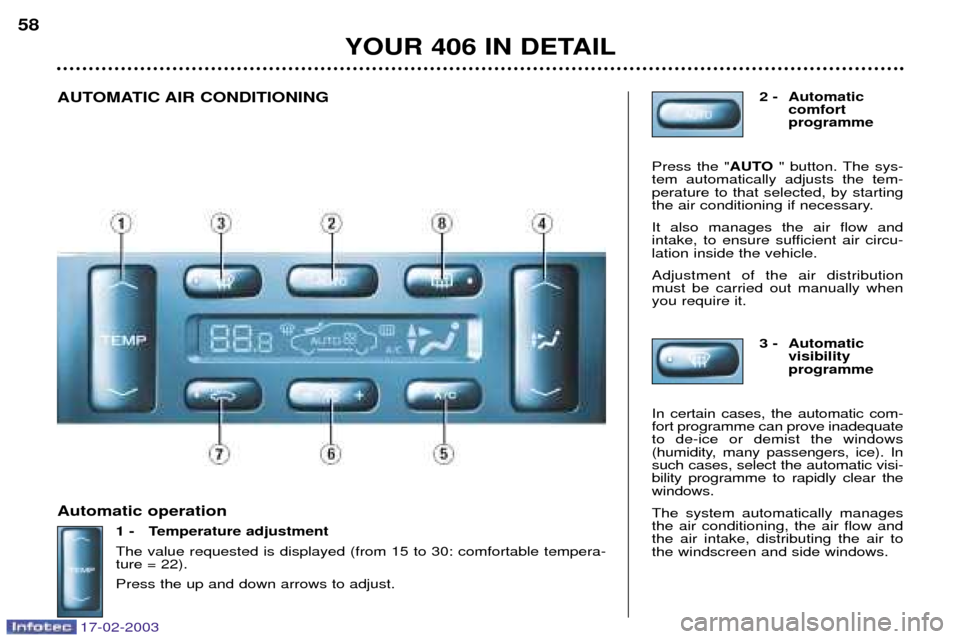

Automatic operation1 - Temperature adjustment The value requested is displayed (from 15 to 30: comfortable tempera- ture = 22). Press the up and down arrows to adjust. 2 - Automatic
comfort programme
Press the " AUTO" button. The sys-
tem automatically adjusts the tem-perature to that selected, by starting
the air conditioning if necessary. It also manages the air flow and
intake, to ensure sufficient air circu-lation inside the vehicle. Adjustment of the air distribution must be carried out manually whenyou require it.
3 - Automatic visibility programme
In certain cases, the automatic com-fort programme can prove inadequateto de-ice or demist the windows
(humidity, many passengers, ice). Insuch cases, select the automatic visi-bility programme to rapidly clear thewindows. The system automatically manages the air conditioning, the air flow andthe air intake, distributing the air tothe windscreen and side windows.
AUTOMATIC AIR CONDITIONING
YOUR 406 IN DETAIL
58

17-02-2003
4 - Setting the airdistribution
Successive presses on the top or bottom part of thisbutton allow the air to bedirected to:
Ð the windscreen (de-icing or demist- ing),
Ð the windscreen and footwells,
Ð the central and side vents,
Ð the central and side vents and footwells,
Ð the footwells. Press the top or bottom part of the button to select the previous or nextsetting from the above list. Manual operationel
You may, if you wish, make a differ-
ent choice from that offered by thesystem, by changing one of the set-tings. Press the "
AUTO" button to return to
automatic operation.
5 - Air conditioning
Pressing this button stops the air condition-ing. Pressing again
returns the air conditioning to automat-
ic operation. The symbol " A/C" is dis-
played.
6 - Air flow
The air flow may beincreased or reducedby pressing the ''+'' or
'' Ð '' button respectively. 7 - Air intake
This button ispressed for recircula-
tion of the interior air.
Recirculation, shown on the display,prevents the entry of unpleasantodours or fumes into the passengercompartment from outside.
Avoid prolonged operation of the
recirculation of interior air. A secondpress returns the system to automat-
ic intake of air. Used in humid conditions, recircula- tion risks misting up the windows.
8 - Demisting therear screen
With the engine run-ning, pressing the
switch demists the rear screen andthe mirrors.
It switches off automatically after approximately fifteen minutes. Press again to resume demisting. It is possible to stop the demisting
operation before it goes off automat-
ically, by pressing the switch again. Note: The condensation created by
air conditioning causes a normal flow of water under the vehicle when sta-
tionary.
YOUR 406 IN DETAIL 59

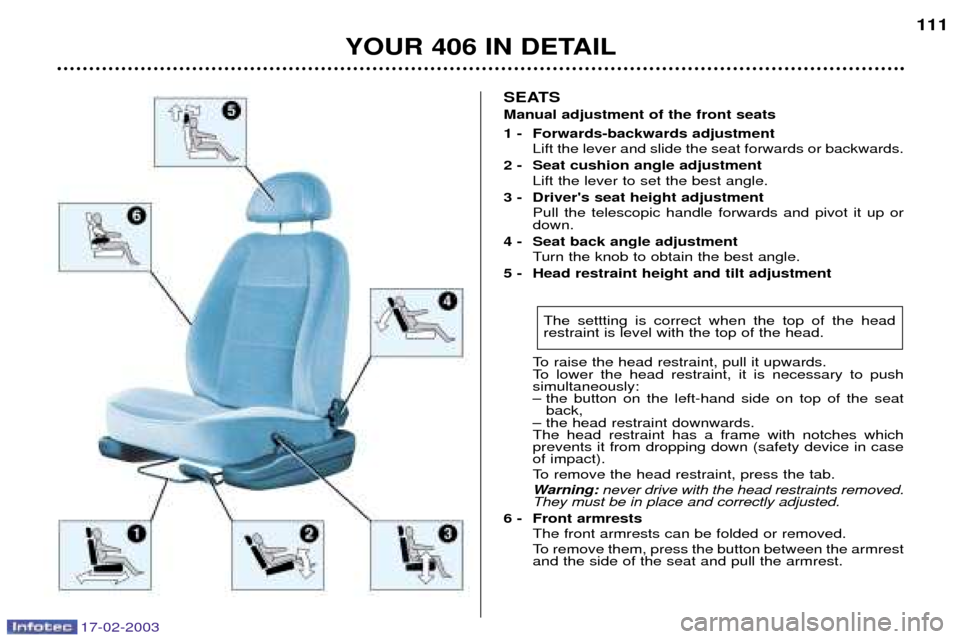

SEATS Manual adjustment of the front seats
1 - Forwards-backwards adjustmentLift the lever and slide the seat forwards or backwards.
2 - Seat cushion angle adjustment Lift the lever to set the best angle.
3 - Driver's seat height adjustment Pull the telescopic handle forwards and pivot it up or down.
4 - Seat back angle adjustment Turn the knob to obtain the best angle.
5 - Head restraint height and tilt adjustment
The settting is correct when the top of the headrestraint is level with the top of the head.
To raise the head restraint, pull it upwards.
To lower the head restraint, it is necessary to pushsimultaneously:
Ð the button on the left-hand side on top of the seat back,
Ð the head restraint downwards.The head restraint has a frame with notches whichprevents it from dropping down (safety device in caseof impact).
To remove the head restraint, press the tab.
Warning: never drive with the head restraints removed.
They must be in place and correctly adjusted.
6 - Front armrests The front armrests can be folded or removed.
To remove them, press the button between the armrest and the side of the seat and pull the armrest.
YOUR 406 IN DETAIL 111
17-02-2003

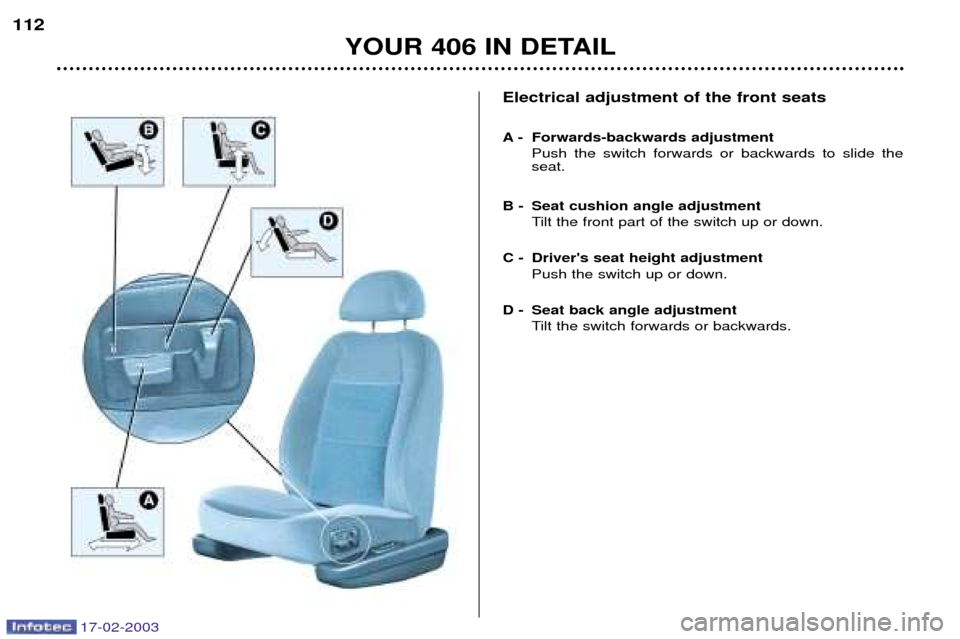

Electrical adjustment of the front seats
A - Forwards-backwards adjustmentPush the switch forwards or backwards to slide the seat.
B - Seat cushion angle adjustment Tilt the front part of the switch up or down.
C - Driver's seat height adjustment Push the switch up or down.
D - Seat back angle adjustment Tilt the switch forwards or backwards.
YOUR 406 IN DETAIL
112
17-02-2003

17-02-2003

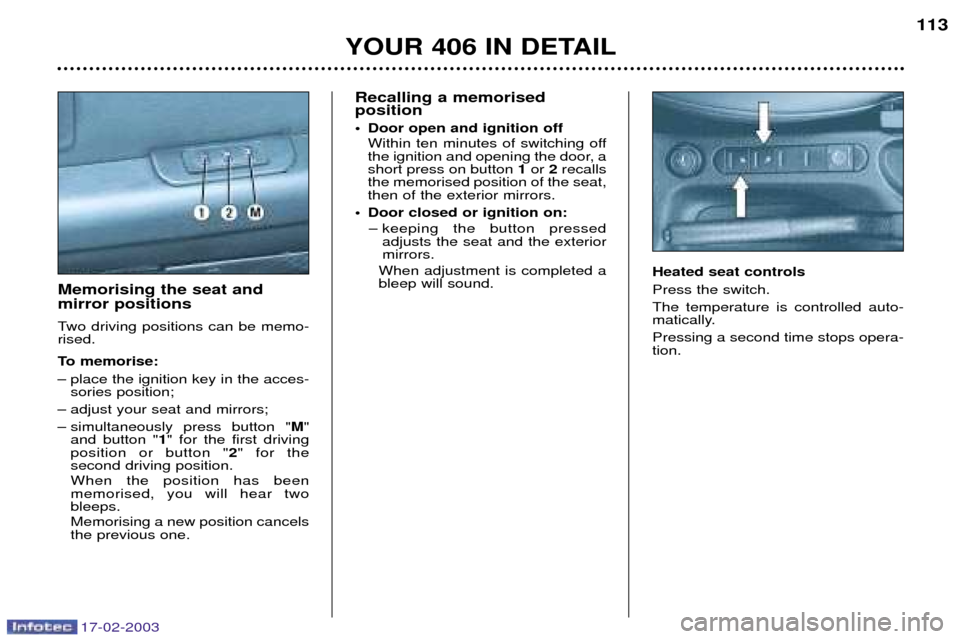

Recalling a memorised position
¥ Door open and ignition off Within ten minutes of switching off
the ignition and opening the door, ashort press on button 1or 2recalls
the memorised position of the seat,then of the exterior mirrors.
¥ Door closed or ignition on: Ð keeping the button pressedadjusts the seat and the exteriormirrors.
When adjustment is completed ableep will sound.
YOUR 406 IN DETAIL 113
Memorising the seat and mirror positions
Two driving positions can be memo- rised.
To memorise:
Ð place the ignition key in the acces-
sories position;
Ð adjust your seat and mirrors;
Ð simultaneously press button " M"
and button " 1" for the first driving
position or button " 2" for the
second driving position. When the position has been memorised, you will hear twobleeps. Memorising a new position cancels the previous one. Heated seat controls Press the switch.The temperature is controlled auto-
matically. Pressing a second time stops opera- tion.

17-02-2003

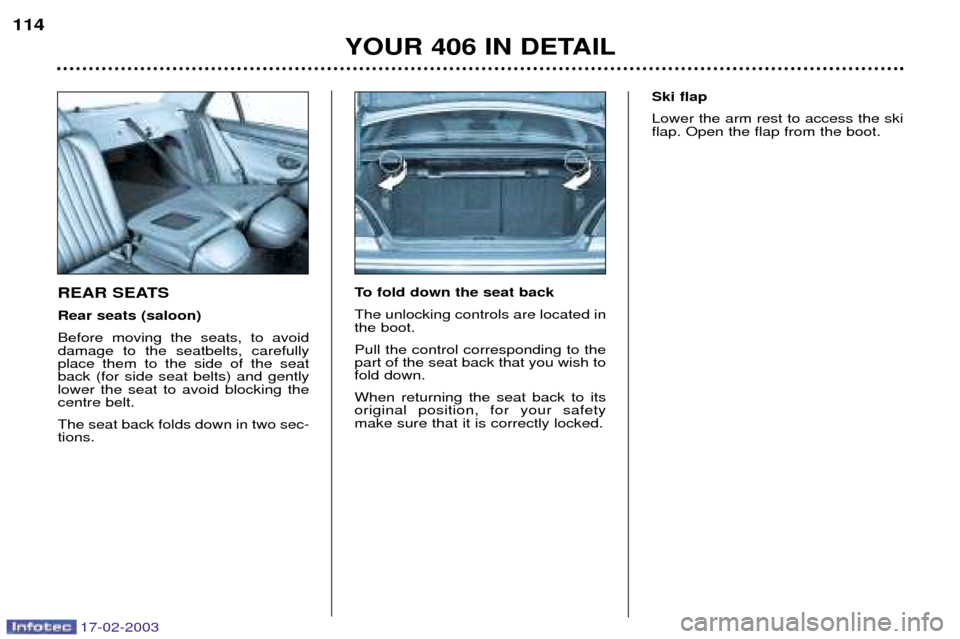

REAR SEATS Rear seats (saloon)Before moving the seats, to avoid damage to the seatbelts, carefullyplace them to the side of the seatback (for side seat belts) and gentlylower the seat to avoid blocking thecentre belt. The seat back folds down in two sec- tions.To fold down the seat back The unlocking controls are located in the boot. Pull the control corresponding to the part of the seat back that you wish tofold down. When returning the seat back to its original position, for your safetymake sure that it is correctly locked. Ski flap Lower the arm rest to access the ski flap. Open the flap from the boot.
