PEUGEOT 5008 2014 Owners Manual

6
Fittings119
Centre console
Storage
 Slide the cover for access to the 10.5 litre storage compartment. This can contain 2 half-litre bottles. A ventilation outlet distributes cooled air.
USB Player - Plug
This connection box consists of a jack auxiliary socket and/or a USB port. It permits the connection of portable equipment, such as a digital audio player of the iPod ® type or a USB memory stick. ® type or a USB memory stick. ®
It reads the audio file formats (mp3, ogg, wma, wav...) which are transmitted to your audio equipment and played via the vehicle's speakers. You can manage these files using the steering mounted controls or the audio equipment control panel and display them on the multifunction screen.
Connected to the USB port, the portable equipment charges automatically.
For more information on the use of this equipment, refer to the "Audio equipment and telematics" section.
Storage device for the driver and front passenger.

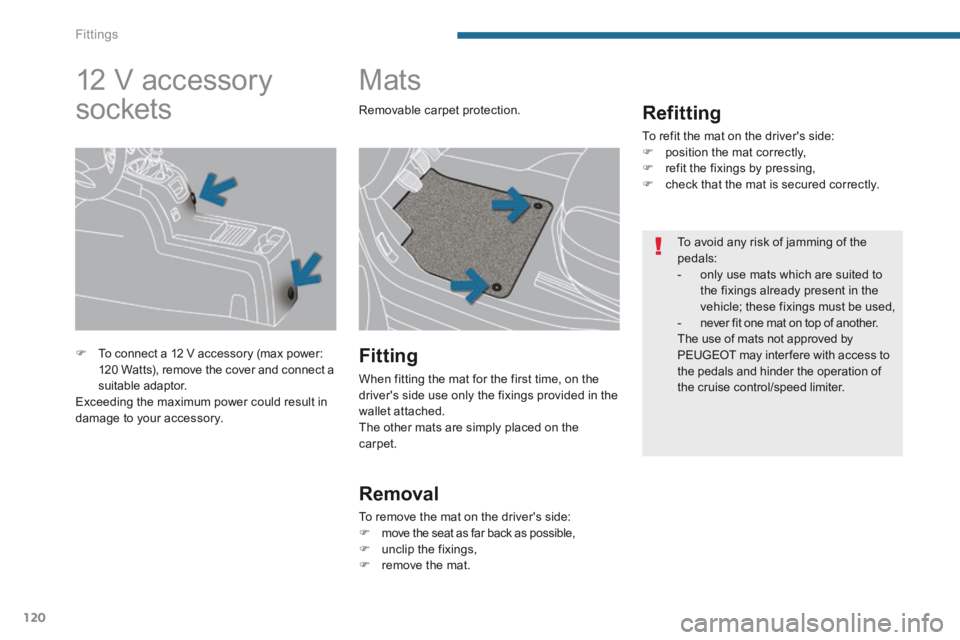

Fittings
120
Mats
Refitting
To refit the mat on the driver's side:  position the mat correctly,  refit the fixings by pressing,  check that the mat is secured correctly.
Fitting
When fitting the mat for the first time, on the driver's side use only the fixings provided in the wallet attached. The other mats are simply placed on the carpet.
Removal
To remove the mat on the driver's side:  move the seat as far back as possible,  unclip the fixings,  remove the mat.

12 V accessory
sockets
 To connect a 12 V accessory (max power: 120 Watts), remove the cover and connect a suitable adaptor. Exceeding the maximum power could result in damage to your accessory.
Removable carpet protection.
To avoid any risk of jamming of the pedals: - only use mats which are suited to the fixings already present in the vehicle; these fixings must be used, - never fit one mat on top of another. The use of mats not approved by PEUGEOT may inter fere with access to the pedals and hinder the operation of the cruise control/speed limiter.

6
Fittings121

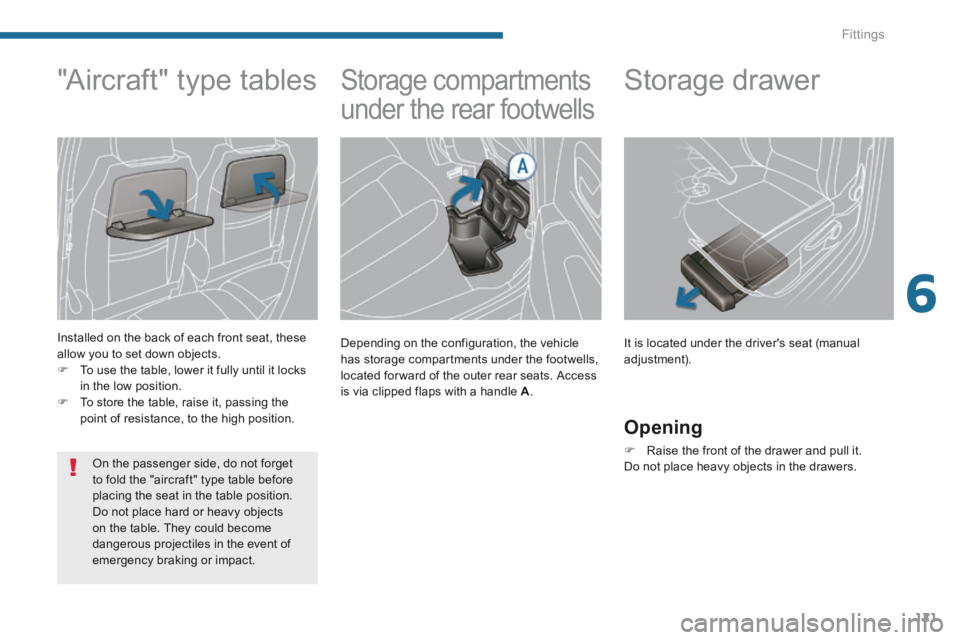

Storage compartments
under the rear footwells
Depending on the configuration, the vehicle has storage compartments under the footwells, located for ward of the outer rear seats. Access is via clipped flaps with a handle A .
"Aircraft" type tables
Installed on the back of each front seat, these allow you to set down objects.  To use the table, lower it fully until it locks in the low position.  To store the table, raise it, passing the point of resistance, to the high position.

Storage drawer
It is located under the driver's seat (manual adjustment).
Opening
 Raise the front of the drawer and pull it. Do not place heavy objects in the drawers. On the passenger side, do not forget to fold the "aircraft" type table before placing the seat in the table position. Do not place hard or heavy objects on the table. They could become dangerous projectiles in the event of emergency braking or impact.

Fittings
122

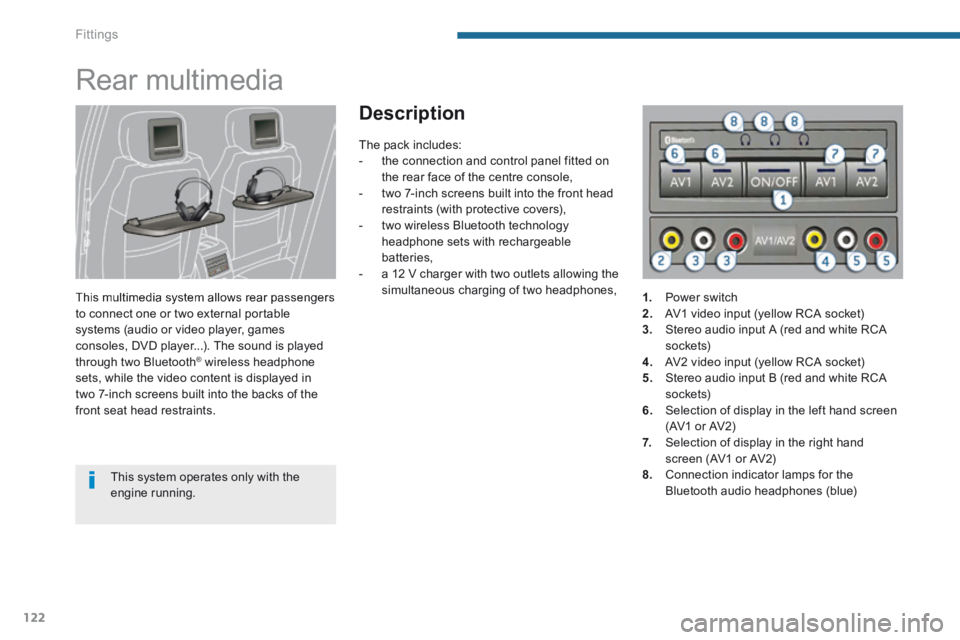

Rear multimedia
This multimedia system allows rear passengers to connect one or two external portable systems (audio or video player, games consoles, DVD player...). The sound is played through two Bluetooth ® wireless headphone ® wireless headphone ®
sets, while the video content is displayed in two 7-inch screens built into the backs of the front seat head restraints.
Description
This system operates only with the engine running.
The pack includes: - the connection and control panel fitted on the rear face of the centre console, - two 7-inch screens built into the front head restraints (with protective covers), - two wireless Bluetooth technology headphone sets with rechargeable batteries, - a 12 V charger with two outlets allowing the simultaneous charging of two headphones, 1. Power switch 2. AV1 video input (yellow RCA socket) 3. Stereo audio input A (red and white RCA s o c ket s) 4. AV2 video input (yellow RCA socket) 5. Stereo audio input B (red and white RCA s o c ket s) 6. Selection of display in the left hand screen (AV1 or AV2)
7. Selection of display in the right hand screen (AV1 or AV2) 8. Connection indicator lamps for the Bluetooth audio headphones (blue)

6
Fittings123

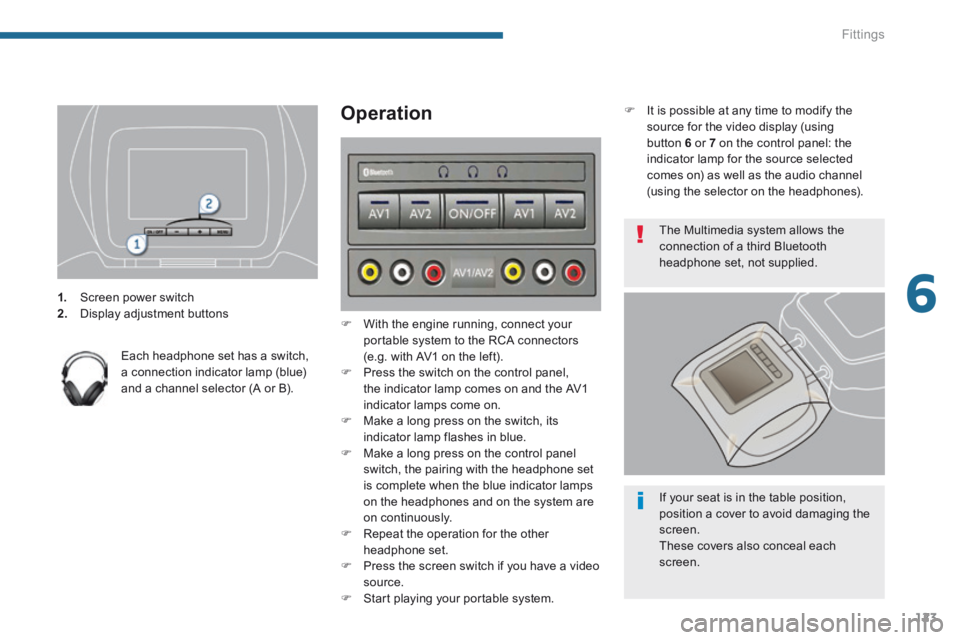

1. Screen power switch 2. Display adjustment buttons
Each headphone set has a switch, a connection indicator lamp (blue) and a channel selector (A or B).
Operation
 With the engine running, connect your portable system to the RCA connectors (e.g. with AV1 on the left).  Press the switch on the control panel, the indicator lamp comes on and the AV1 indicator lamps come on.  Make a long press on the switch, its
indicator lamp flashes in blue.  Make a long press on the control panel switch, the pairing with the headphone set is complete when the blue indicator lamps on the headphones and on the system are on continuously.  Repeat the operation for the other headphone set.  Press the screen switch if you have a video source.  Start playing your portable system.
 It is possible at any time to modify the source for the video display (using button 6 or 7 on the control panel: the indicator lamp for the source selected comes on) as well as the audio channel (using the selector on the headphones).
The Multimedia system allows the connection of a third Bluetooth headphone set, not supplied.
If your seat is in the table position, position a cover to avoid damaging the screen. These covers also conceal each screen.

Fittings
124

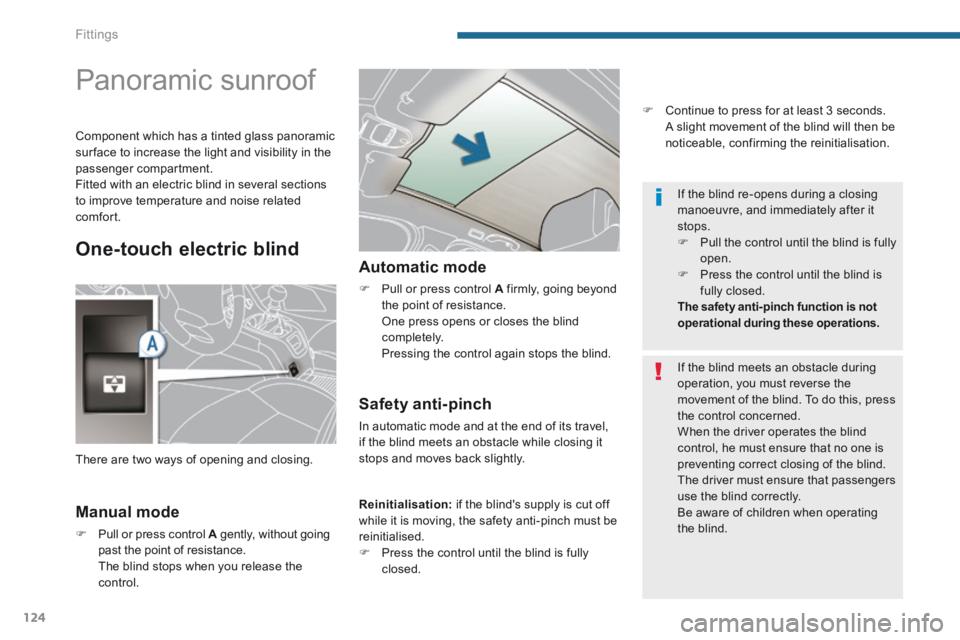

Panoramic sunroof
Manual mode
 Pull or press control A gently, without going A gently, without going Apast the point of resistance. The blind stops when you release the control.
Automatic mode
 Pull or press control A firmly, going beyond the point of resistance. One press opens or closes the blind completely. Pressing the control again stops the blind.
Safety anti-pinch
In automatic mode and at the end of its travel, if the blind meets an obstacle while closing it stops and moves back slightly. There are two ways of opening and closing.
If the blind meets an obstacle during operation, you must reverse the movement of the blind. To do this, press the control concerned. When the driver operates the blind control, he must ensure that no one is preventing correct closing of the blind. The driver must ensure that passengers use the blind correctly. Be aware of children when operating the blind.
If the blind re-opens during a closing manoeuvre, and immediately after it stops.  Pull the control until the blind is fully open.  Press the control until the blind is fully closed. The safety anti-pinch function is not operational during these operations.
 Continue to press for at least 3 seconds. A slight movement of the blind will then be noticeable, confirming the reinitialisation.
Reinitialisation: if the blind's supply is cut off while it is moving, the safety anti-pinch must be reinitialised.  Press the control until the blind is fully closed.
Component which has a tinted glass panoramic sur face to increase the light and visibility in the passenger compartment. Fitted with an electric blind in several sections to improve temperature and noise related comfort.
One-touch electric blind

6
Fittings125

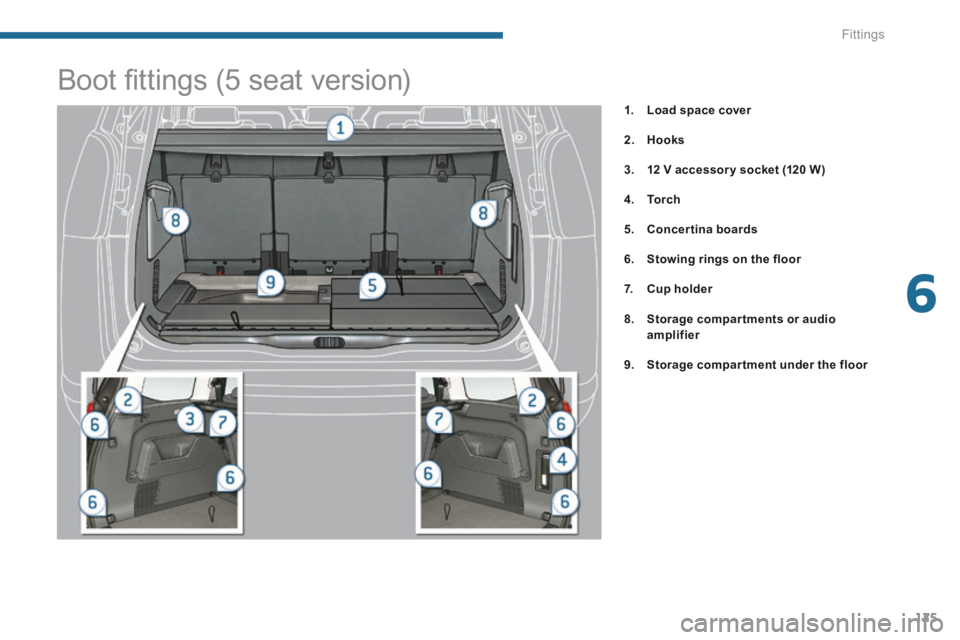

Boot fi ttings (5 seat version)
1. Load space cover
2. Hooks
3. 12 V accessor y socket (120 W)
4. To r c h
5. Concertina boards
6. Stowing rings on the floor
7. Cup holder
8. Storage compartments or audio amplifier
9. Storage compartment under the floor

Fittings
126
1. Load space cover
2. Hooks
3. 12 V accessor y socket (120 W)
4. To r c h
5. Concertina boards
6. Stowing rings on the floor
7. Cup holder
8. Armrests
9. Storage compartments or audio amplifier
10. 3 rd row seat belt buckles

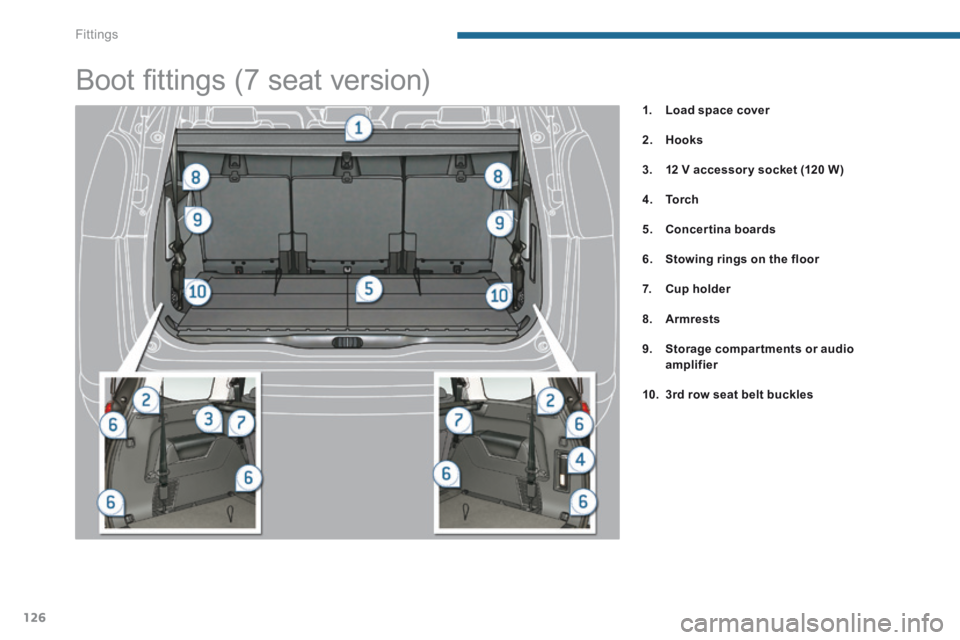

Boot fi ttings (7 seat version)

6
Fittings127

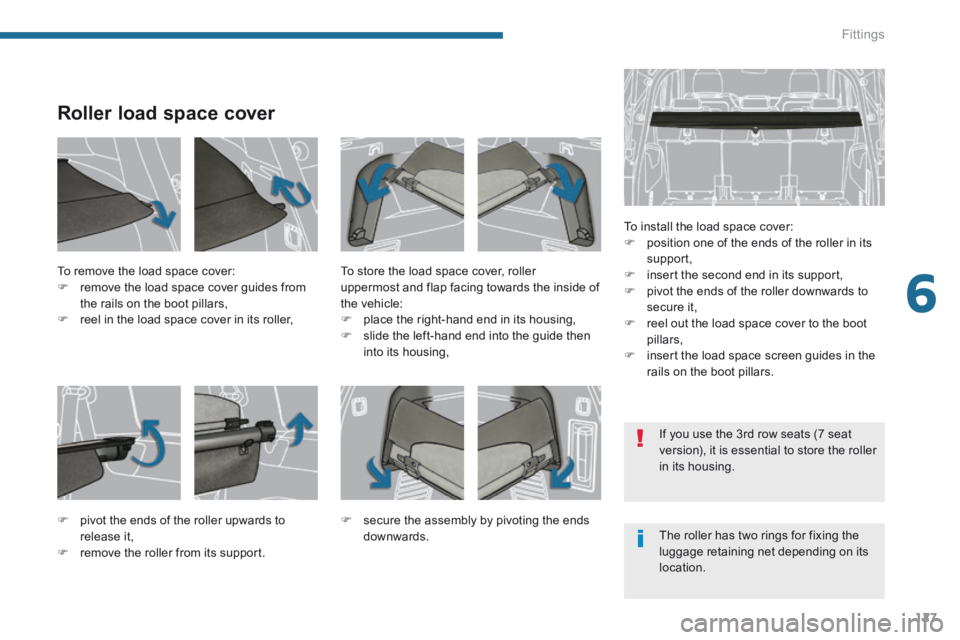

Roller load space cover
To install the load space cover:  position one of the ends of the roller in its support,  insert the second end in its support,  pivot the ends of the roller downwards to secure it,  reel out the load space cover to the boot pillars,  insert the load space screen guides in the rails on the boot pillars.
To remove the load space cover:  remove the load space cover guides from the rails on the boot pillars,  reel in the load space cover in its roller,
To store the load space cover, roller uppermost and flap facing towards the inside of the vehicle:  place the right-hand end in its housing, slide the left-hand end into the guide then into its housing,
 pivot the ends of the roller upwards to release it,  remove the roller from its support.
 secure the assembly by pivoting the ends downwards. The roller has two rings for fixing the luggage retaining net depending on its location.
If you use the 3 rd row seats (7 seat version), it is essential to store the roller in its housing.

Fittings
128

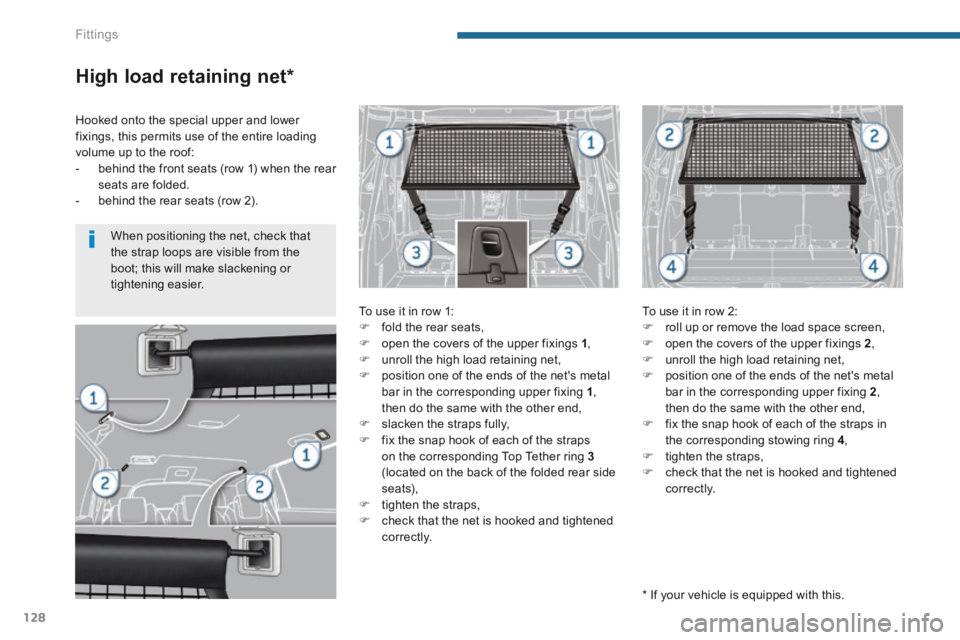

High load retaining net *
To use it in row 1:  fold the rear seats,  open the covers of the upper fixings 1 ,  unroll the high load retaining net,  position one of the ends of the net's metal bar in the corresponding upper fixing 1 , then do the same with the other end,  slacken the straps fully,  fix the snap hook of each of the straps on the corresponding Top Tether ring 3(located on the back of the folded rear side seats),  tighten the straps,  check that the net is hooked and tightened
c o r r e c t l y.
To use it in row 2:  roll up or remove the load space screen,  open the covers of the upper fixings 2 ,  unroll the high load retaining net,  position one of the ends of the net's metal bar in the corresponding upper fixing 2 , then do the same with the other end,  fix the snap hook of each of the straps in the corresponding stowing ring 4 ,  tighten the straps,  check that the net is hooked and tightened c o r r e c t l y.
Hooked onto the special upper and lower fixings, this permits use of the entire loading volume up to the roof: - behind the front seats (row 1) when the rear seats are folded. - behind the rear seats (row 2).
* If your vehicle is equipped with this.
When positioning the net, check that the strap loops are visible from the boot; this will make slackening or tightening easier.
