The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of the
battery (up to about 8 hours).
For right-hand drive vehicles, when the
total distance recorder has reached
60
miles (100 km), it is necessary to wait
approx. 15 minutes before starting the
engine.
However, if minor problems persist following
this operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
-

t

he key with remote control or electronic key
(depending on version),
-

t

he sunroof and its electric blind,
-

t

he electric windows,
-

t

he date and time,
-

t

he preset radio stations.

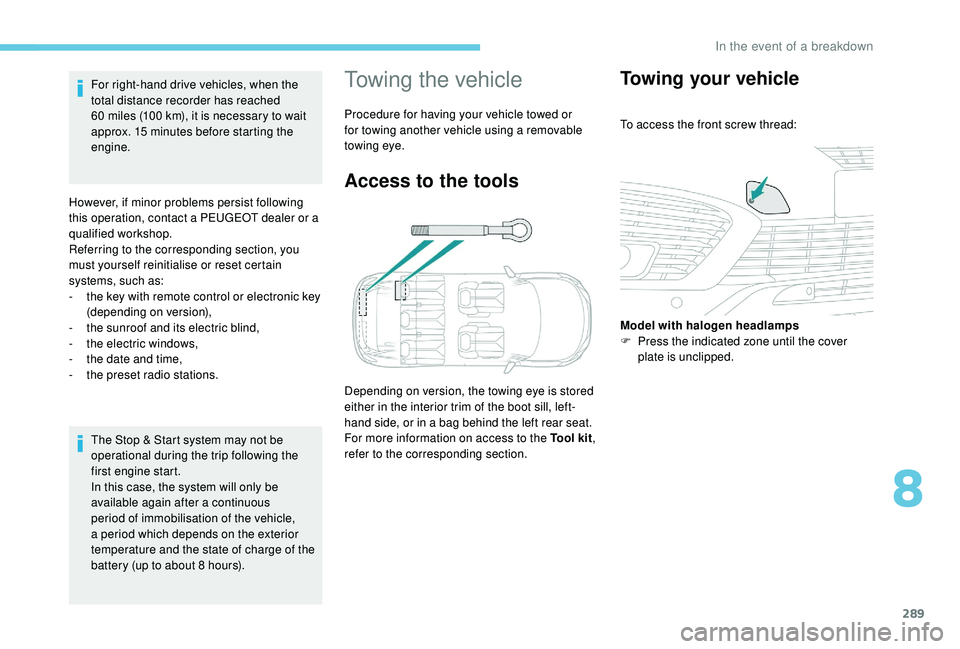

Towing the vehicle
Procedure for having your vehicle towed or
for towing another vehicle using a removable
towing eye.
Access to the tools
Depending on version, the towing eye is stored
either in the interior trim of the boot sill, left-
hand side, or in a bag behind the left rear seat.
For more information on access to the Tool kit
,
refer to the corresponding section.
Towing your vehicle
To access the front screw thread:
Model with halogen headlamps
F

P
ress the indicated zone until the cover
plate is unclipped.
8
In the event of a breakdown

290
F Move the gear lever into neutral (N mode with an automatic gearbox).
Failure to follow this instruction may cause
damage to some components (braking,
transmission, etc.) and the absence of
braking assistance when the engine is
restarted. F

S
witch on the hazard warning lamps on
both vehicles.
F
S
et off gently and drive slowly for a short
distance.

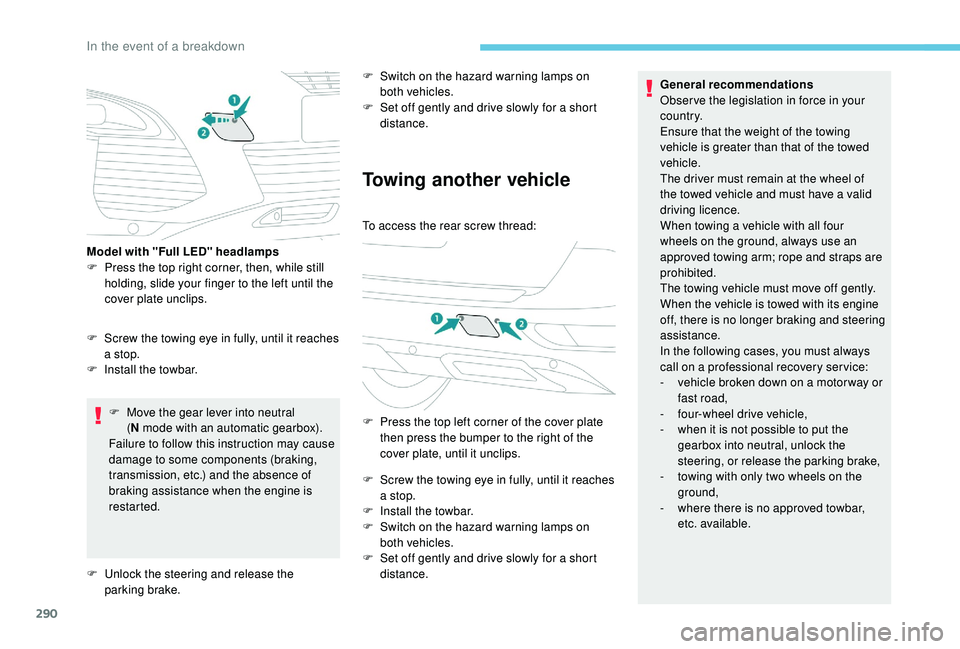

Towing another vehicle
To access the rear screw thread:
F

P
ress the top left corner of the cover plate
then press the bumper to the right of the
cover plate, until it unclips.
F

S
crew the towing eye in fully, until it reaches
a stop.
F

I
nstall the towbar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

S
et off gently and drive slowly for a short
distance. General recommendations
Obser ve the legislation in force in your
c o u nt r y.
Ensure that the weight of the towing
vehicle is greater than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps are
prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.
In the following cases, you must always
call on a professional recovery ser vice:
-

v
ehicle broken down on a motor way or
fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking brake,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towbar,
etc. available.
F

S

crew the towing eye in fully, until it reaches
a stop.
F

I

nstall the towbar.
Model with "Full LED" headlamps
F

P

ress the top right corner, then, while still
holding, slide your finger to the left until the
cover plate unclips.
F

U

nlock the steering and release the
parking brake.
In the event of a breakdown

291

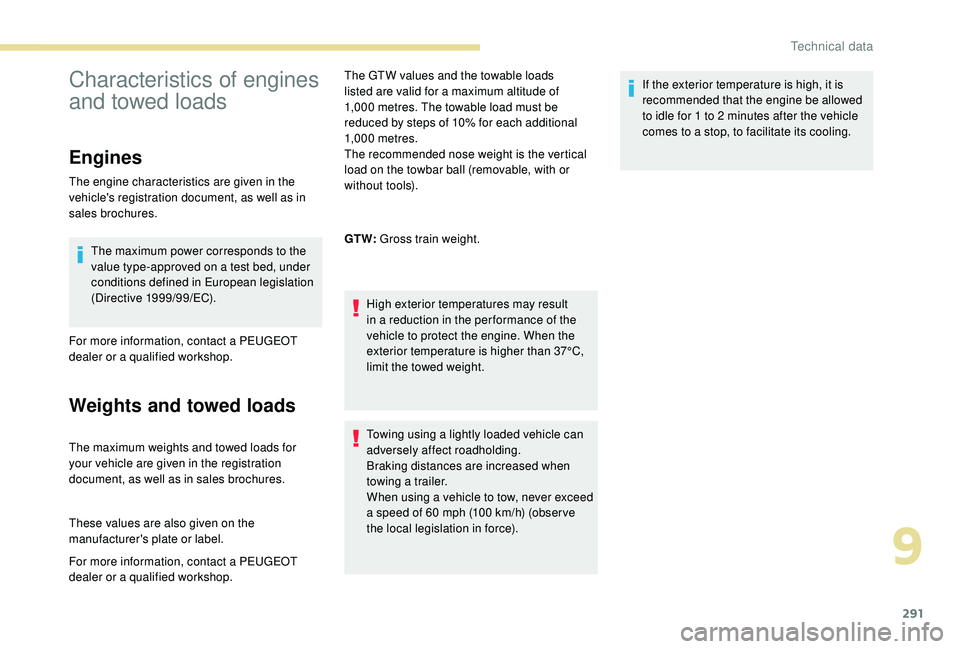

Characteristics of engines
and towed loads
Engines
The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.The maximum power corresponds to the
value type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).
For more information, contact a PEUGEOT
dealer or a qualified workshop.
Weights and towed loads
The maximum weights and towed loads for
your vehicle are given in the registration
document, as well as in sales brochures.
These values are also given on the
manufacturer's plate or label.
For more information, contact a PEUGEOT
dealer or a qualified workshop. The GTW values and the towable loads
listed are valid for a maximum altitude of
1,000
metres. The towable load must be
reduced by steps of 10% for each additional
1,000

metres.
The recommended nose weight is the vertical
load on the towbar ball (removable, with or
without tools).
GT W: Gross train weight.
High exterior temperatures may result
in a reduction in the per formance of the
vehicle to protect the engine. When the
exterior temperature is higher than 37°C,
limit the towed weight.
Towing using a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
When using a vehicle to tow, never exceed
a speed of 60 mph (100 km/h) (obser ve
the local legislation in force). If the exterior temperature is high, it is
recommended that the engine be allowed
to idle for 1
to 2 minutes after the vehicle
comes to a stop, to facilitate its cooling.
9
Technical data

292

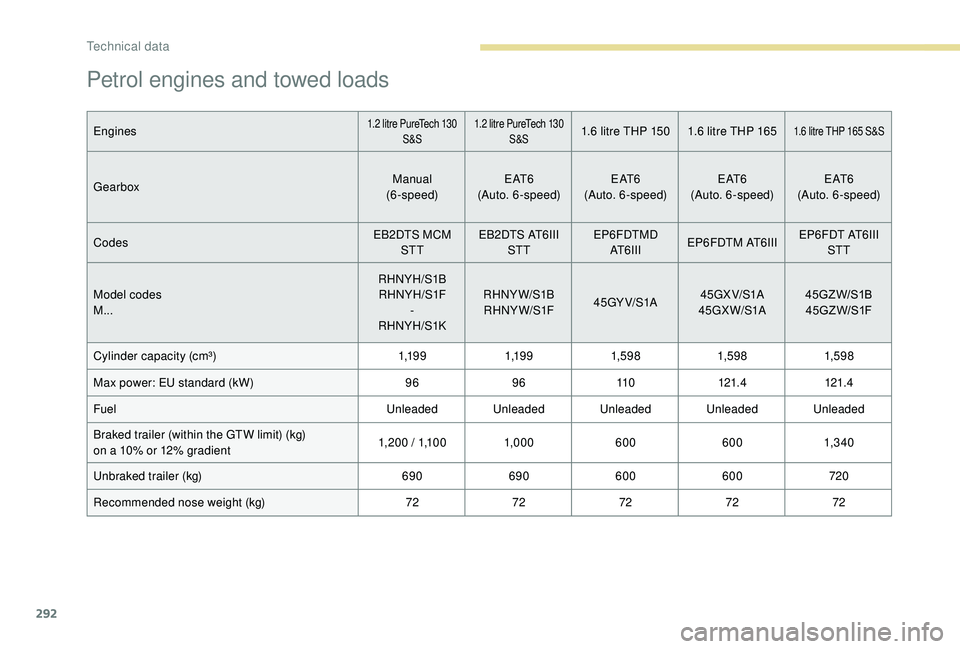

Petrol engines and towed loads
Engines1.2 litre PureTech 130
S&S 1 .2 litre PureTech 130
S&S1.6 litre THP 150 1 .6 litre THP 1651.6 litre THP 165 S&S
Gearbox Manual
(6-speed) E AT 6
(Auto. 6-speed) E AT 6
(Auto. 6-speed) E AT 6
(Auto. 6-speed) E AT 6
(Auto. 6-speed)
Codes EB2DTS MCM
STT EB2DTS AT6III
STT EP6FDTMD
AT6III EP6FDTM AT6III EP6FDT AT6III
STT
Model codes
M... RHNYH/S1B
RHNYH/S1F -
RHNYH/S1K RHNYW/S1B
RHNYW/S1F 45GY V/S1A45GX V/S1A
45GX W/S1A 45GZ W/S1B
45G Z W/S1F
Cylinder capacity (cm³) 1,1 9 91,1 9 91,59 8 1,59 81,59 8
Max power: EU standard (kW) 969611 0121.4 121.4
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1, 20 0


/ 1,10 01,000 6006001,3 4 0
Unbraked trailer (kg) 690690600 600 720
Recommended nose weight (kg) 7272727272
Technical data

293

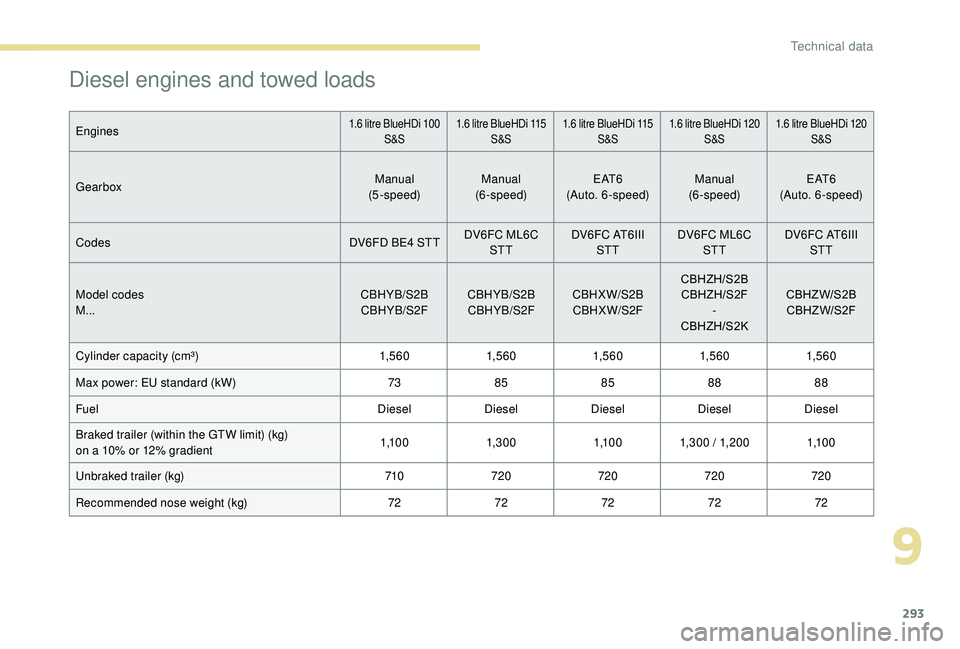

Diesel engines and towed loads
Engines1.6 litre BlueHDi 100
S&S 1 .6 litre BlueHDi 115
S&S 1 .6 litre BlueHDi 115
S&S 1 .6 litre BlueHDi 120
S&S 1 .6 litre BlueHDi 120
S&S
Gearbox Manual
(5-speed) Manual
(6-speed) E AT 6
(Auto. 6-speed) Manual
(6-speed) E AT 6
(Auto. 6-speed)
Codes DV6FD BE4
STTDV6FC ML6C
STT DV6FC AT6III
STT DV6FC ML6C
STT DV6FC AT6III
STT
Model codes
M... CBHYB/S2B
CBHYB/S2F CBHYB/S2B
CBHYB/S2F CBHXW/S2B
CBHXW/S2F CBHZH/S2B
CBHZH/S2F -
CBHZH/S2K CBHZW/S2B
CBHZW/S2F
Cylinder capacity (cm³) 1,5 6 01,5 6 01,5 6 01,5 6 01,5 6 0
Max power: EU standard (kW) 7385 8588 88
Fuel DieselDieselDieselDieselDiesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 1,1 0 0
1,3 0 0 1,1 0 01,3 0 0


/ 1, 20 01,1 0 0
Unbraked trailer (kg) 710720 720720720
Recommended nose weight (kg) 7272727272
9
Technical data

294
Diesel engines and towed loads
Engines2.0 litre HDi 150 2.0 litre HDi 1502.0 litre BlueHDi 150
S &S2.0
litre BlueHDi 180
S &S
Gearbox Manual
(6-speed) E AT 6
(Auto. 6-speed) Manual
(6-speed) E AT 6
(Auto. 6-speed)
Codes DW10FD ML6C DW10FD AM6IIIDW10FD ML6C STT DW10FC AM6III STT
Model codes
M... JAHXG/S2 A
JAHX V/S2 AJAHXH/S2B
JAHXH/S2F JAHWW/S2B
JAHWW/S2F
Cylinder capacity (cm³) 1,9 971,9 971,9 971,9 97
Max power: EU standard (kW) 11 011 011 013 3
Fuel DieselDieselDieselDiesel
Braked trailer (within the GTW limit) (kg)
on a 10% or 12% gradient 600
6001,8 0 0 1,5 0 0
Unbraked trailer (kg) 600600 750750
Recommended nose weight (kg) 72727272
Technical data

295
Dimensions (in mm)
These dimensions have been measured on an
unladen vehicle.
9
Technical data

296
Identification markings
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30
mph (50 km/h), the tyres will be
warm; in this case 0.3
bar (30 kPa) should be
added to the pressures given on the label.
Never reduce the pressure of a warm tyre.
Low tyre pressures increase fuel
consumption.
Different visible markings for the identification and localisation of your vehicle.
A.
V

ehicle identification number (VIN),
under the bonnet.
The number is engraved on the body structure.
B.
V

ehicle identification number (VIN), on
the dashboard.
The number is on a label, visible through the
windscreen.
C.
M

anufacturer's label.
This tamperproof label is affixed to the right-
hand door.
It bears the following information:
-

t

he name of the manufacturer, -

t

he European Whole Vehicle Type Approval
number,
-

t

he vehicle identification number (VIN),
-

t

he maximum authorised vehicle weight (the
Gross Vehicle Weight or GV W),
-

t

he maximum authorised vehicle + trailer
weight (the Gross Train Weight or GTW),
-

t

he maximum weight on the front axle,
-

t

he maximum weight on the rear axle.
D.

T

yres / paint code label.
This label is affixed to the driver's door
aperture.
It bears the following information about the
tyres:
-

t

he tyre pressures, unladen and laden, -

t
he tyre specification, made up of the
dimensions and type as well as the load and
speed indices,
-
t
he spare tyre pressure.
It also indicates the paint colour code.
The vehicle may be originally equipped
with tyres with higher load and speed
indices than those indicated on the label,
without affecting inflation pressure.
Technical data

1

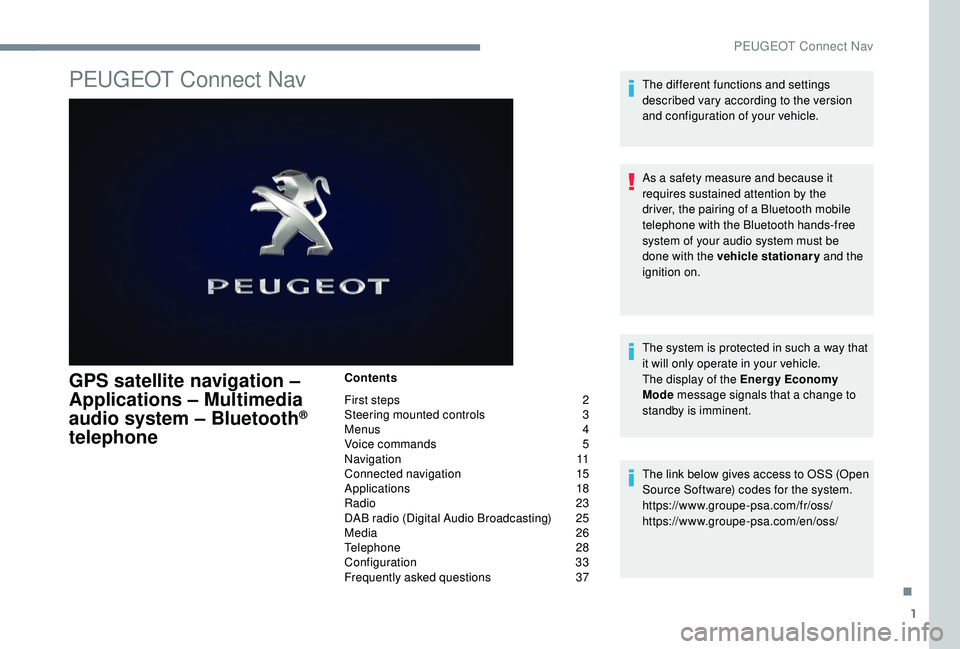

PEUGEOT Connect Nav
GPS satellite navigation –
Applications – Multimedia
audio system – Bluetooth
®
telephone
Contents
First steps

2
S

teering mounted controls
3
M

enus
4
V

oice commands
5
N

avigation
1
1
Connected navigation

1
5
Applications

1
8
Radio

2
3
DAB radio (Digital Audio Broadcasting)

2
5
Media

26
T

elephone
2
8
Configuration

3
3
Frequently asked questions

3
7The different functions and settings
described vary according to the version
and configuration of your vehicle.
As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-free
system of your audio system must be
done with the vehicle stationary
and the
ignition on.
The system is protected in such a way that
it will only operate in your vehicle.
The display of the Energy Economy
Mode message signals that a change to
standby is imminent.
The link below gives access to OSS (Open
Source Software) codes for the system.
https://www.groupe-psa.com/fr/oss/
https://www.groupe-psa.com/en/oss/
PEUGEOT Connect Nav
.
PEUGEOT Connect Nav

2
12:13
18,5 21,5

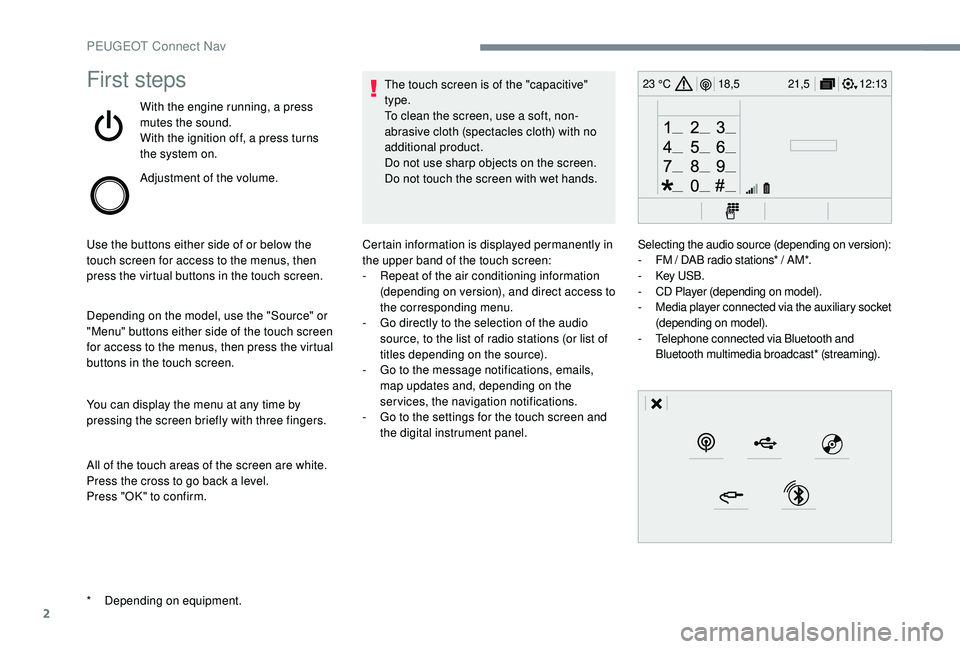

23 °CFirst steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns
the system on.
Adjustment of the volume.
Use the buttons either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen.
Depending on the model, use the "Source" or
"Menu" buttons either side of the touch screen
for access to the menus, then press the virtual
buttons in the touch screen.
You can display the menu at any time by
pressing the screen briefly with three fingers.
All of the touch areas of the screen are white.
Press the cross to go back a level.
Press "OK" to confirm. The touch screen is of the "capacitive"
type.
To clean the screen, use a soft, non-
abrasive cloth (spectacles cloth) with no
additional product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
*
D

epending on equipment. Certain information is displayed permanently in
the upper band of the touch screen:
-

R
epeat of the air conditioning information
(depending on version), and direct access to
the corresponding menu.
-

G
o directly to the selection of the audio
source, to the list of radio stations (or list of
titles depending on the source).
-

G
o to the message notifications, emails,
map updates and, depending on the
services, the navigation notifications.
-

G
o to the settings for the touch screen and
the digital instrument panel. Selecting the audio source (depending on version):
-

F
M / DAB radio stations* / AM*.
-

K
ey USB.
-

C
D Player (depending on model).
-

M
edia player connected via the auxiliary socket
(depending on model).
-

T
elephone connected via Bluetooth and
Bluetooth multimedia broadcast* (streaming).
PEUGEOT Connect Nav
