Familiarisation
Interior
Interior mood lighting
This subdued passenger compar tment lighting
improves visibility inside the vehicle in low light conditions.
Head-up display
This system projects speed and cruise control/
speed limiter information onto a smoked stripin the driver's field of vision, so that they do not
need to take their eyes off the road.
Digital air conditioning
After setting the desired level of comfor t, the system then automatically controls this level
according to the ambient conditions.
Dual-zone
Audio and communication system
This system benefits from the latest technology: MP3 compatible audio system, USB player,
Bluetooth hands-free system, satellite navigation system with colour screen, auxiliary
inputs, Hi-Fi audio system, ... 157
131
10
8
235
11
1
Quad-zone
If your vehicle is fitted with a JBL Hi-Fi audio system, this
is designed specifically for the
passenger compar tment of your
vehicle. Peu
geot Connect Navigation (RT6)
R
efer to the "Audio and telematics" section.
Page 12 of 304
10
Familiarisation
Illumination of the lamp indicates the state of
the corresponding function.

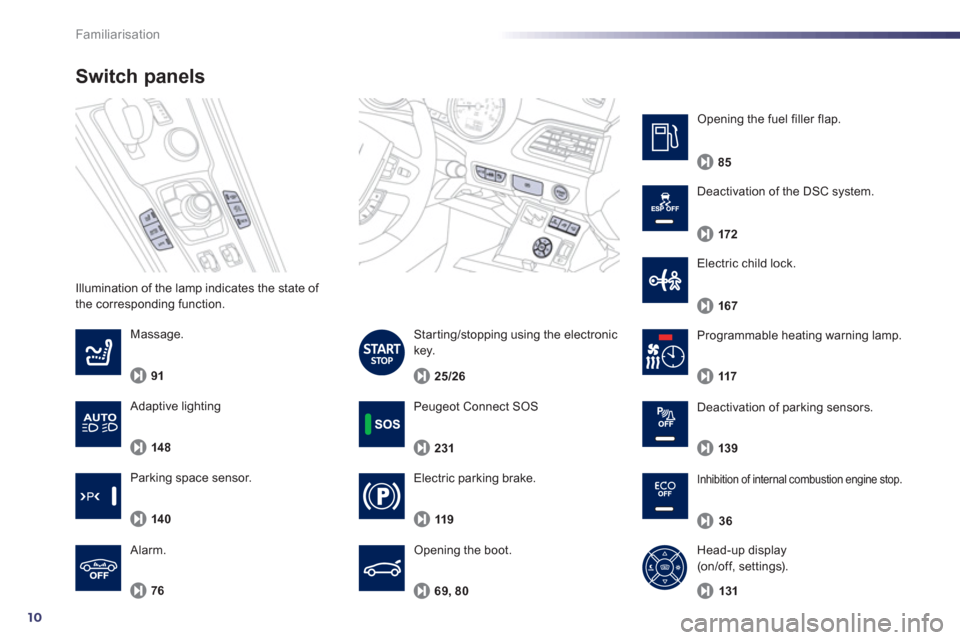

Switch panels
Electric parking brake.
Opening the boot.
119
Massage.
91
76
Al
arm.
El
ectric child lock.
69
, 80
167
Peu
geot Connect SOS
231
Starting/stopping using the electronic
key.
25/26
Deactivation of parking sensors.
139
Inhibition of internal combustion engine stop.
36
Programmable heating warning lamp.
117
Parkin
g space sensor.
140
Deactivation o
f the DSC system.
172
Opening the fuel filler flap.
85
Adaptive lighting
148
Head-up displa
y (on/off, settings).
13
1
Page 13 of 304
.
11
Familiarisation
Sitting comfortably
Front seats

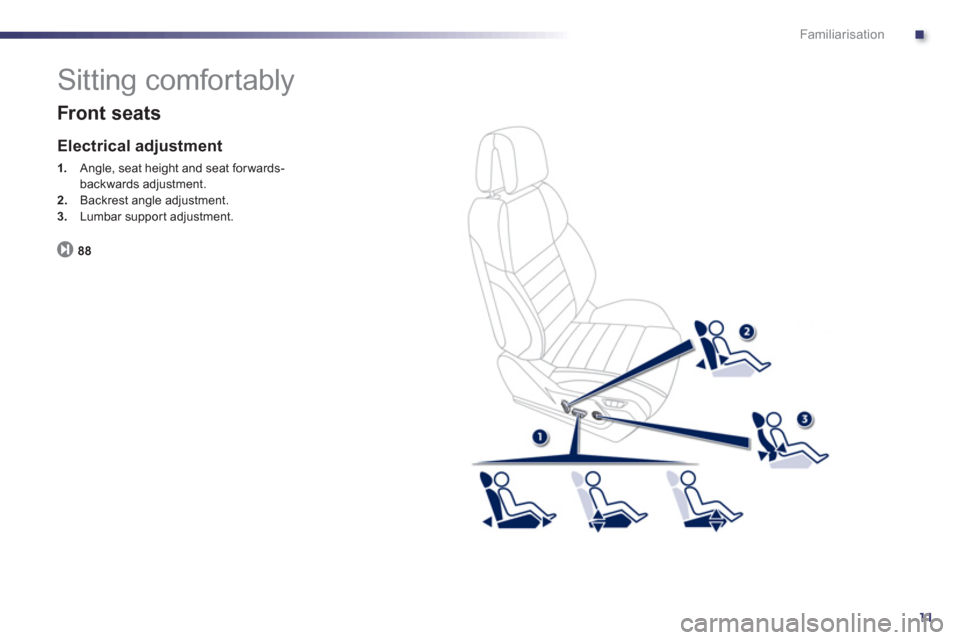

Electrical adjustment
1.
Angle, seat height and seat forwards-backwards adjustment. 2.Backrest angle adjustment.3.Lumbar suppor t adjustment.
88
Page 14 of 304
12
Familiarisation
11.Front door window demisting/defrostingvent.
12.Windscreen demisting/defrosting vent.
13
. Steering lock and star ting with the key. 14 .
Starting using the electronic key.
15. Audio equipment steering wheel controls.
16.Wiper / screenwash / trip computer stalk.
17. Central locking and hazard warningbuttons.
18. Screen.
19.Central adjustable air vents.
20.Passenger's airbag. 21. Side adjustable air vents.

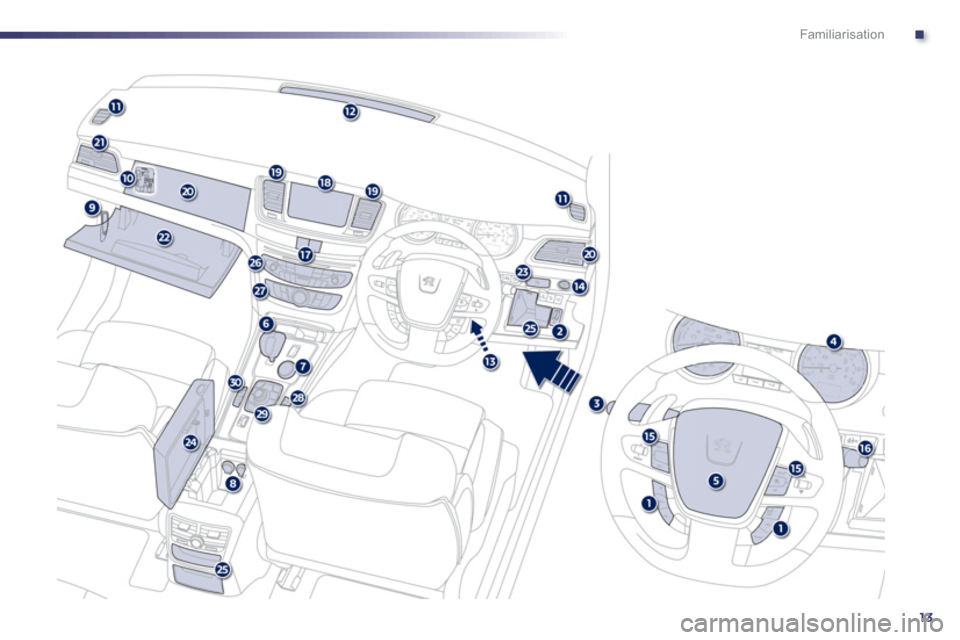

Instruments and controls
1.
Cruise control / speed limiter controls. 2.
Headlamp height adjustment. 3.
Lighting and direction indicator stalk
4.
Instrument panel. 5.
Driver's airbag.Horn.
6.Gear selector.
7. HYbrid4 mode selector. 8.12 V accessory socket
USB por t / auxiliary socket. 9. Bonnet release lever.10.Fusebox.
22.
Glove box / Passenger's airbag deactivation. 23.
Electric parking brake.
24.
Central armrest with storage. 25.Storage (according to version).26.Audio system. 27.
Heating / air conditioning controls.28.
Alarm / Peugeot Connect SOS -
Peugeot Connect Assistance.29. Peugeot Connect Navigation (RT6)controls. 30.
Massage / Adaptive lighting / Parkingspace sensor.
Page 15 of 304
.
13
Familiarisation
Page 16 of 304
14
Familiarisation
Sitting comfortably

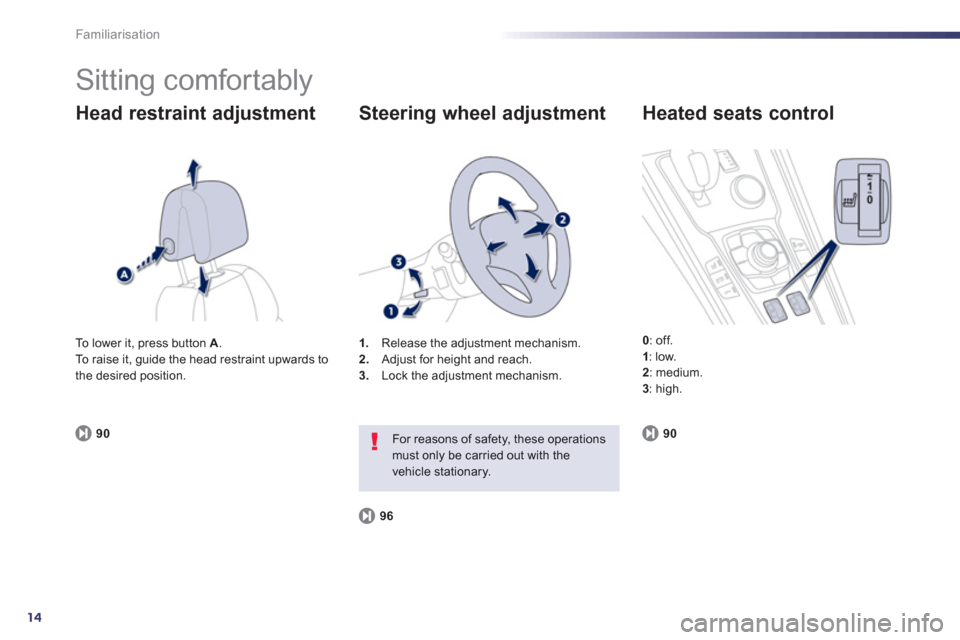

Head restraint adjustment
901
.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.
Steering wheel adjustment
96
For reasons of safety, these operations must only be carried out with thevehicle stationary.
Heated seats control
0
: off.1: low.2
: medium. 3
: high. To lower it, press button
A.
To raise it, guide the head restraint upwards to
the desired position.
90
Page 17 of 304
.
15
Familiarisation
Sitting comfortably
Door mirrors
Adjustment
1.
Selection of the mirror. 2.Adjusting the position of the mirror glass. 3.De-selection and folding/unfolding the mirrors.
94
Other functions... Automatic dipping in reverse.
Rear view mirror
Manual day/night model
1.Selecting the "day" position of the rear view mirror. 2.
Rear view mirror adjustment.
Automatic day/night model
96
1.Automatic detection of day/night mode.
2. Rear view mirror adjustment. 1
. Fitting the belt.2.Fastening.3.Check that the belt is correctly fastened by pulling on the belt webbing.
Front seat belts
173
Page 18 of 304
16
Familiarisation
Seeing clearly
Lighting

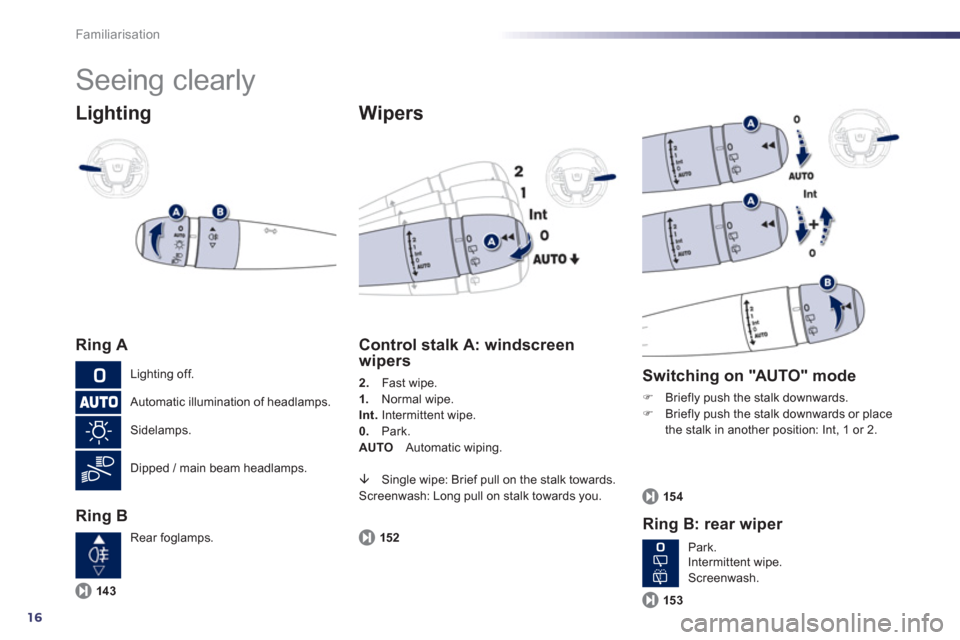

Ring A
Ring B
Wipers
143
Control stalk A: windscreen
wipers
2. Fast wipe.1. Normal wipe. Int. Intermittent wipe.
0. Park.
AUTO Automatic wiping.
È Single wipe: Brief pull on the stalk towards.
Screenwash: Long pull on stalk towards you.
152
Switching on "AUTO" mode
)Briefly push the stalk downwards. )Briefly push the stalk downwards or place
the stalk in another position: Int, 1 or 2.
Ring B: rear wiper
154
15 3 Li
ghting off.
Automatic illumination o
f headlamps.
Sidelamps.
Dipped / main beam headlamps.
Rear
foglamps.
Park.
Intermittent wipe.
Screenwash.
Page 19 of 304
.
17
Familiarisation

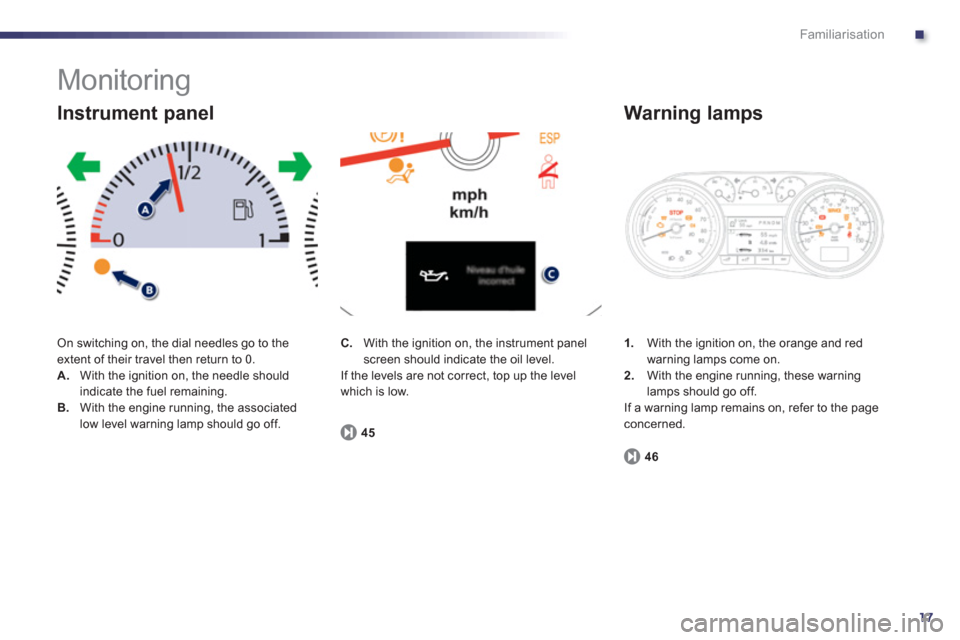

Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0.
A.With the ignition on, the needle should
indicate the fuel remaining.B.With the engine running, the associatedlow level warning lamp should go off.
Instrument panel
1.
With the ignition on, the orange and red
warning lamps come on. 2.With the engine running, these warninglamps should go off.
If a warning lamp remains on, refer to the page concerned.
Warning lamps
46
C.
With the ignition on, the instrument panelscreen should indicate the oil level.
If the levels are not correct, top up the level
which is low.
45
Page 20 of 304
18
Familiarisation
Passenger safety
1.
Open the glove box.2.
Inser t the key.3.Select position:
"ON"
(activation), with front passenger or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat.4.
Remove the key keeping the switch in the new position.

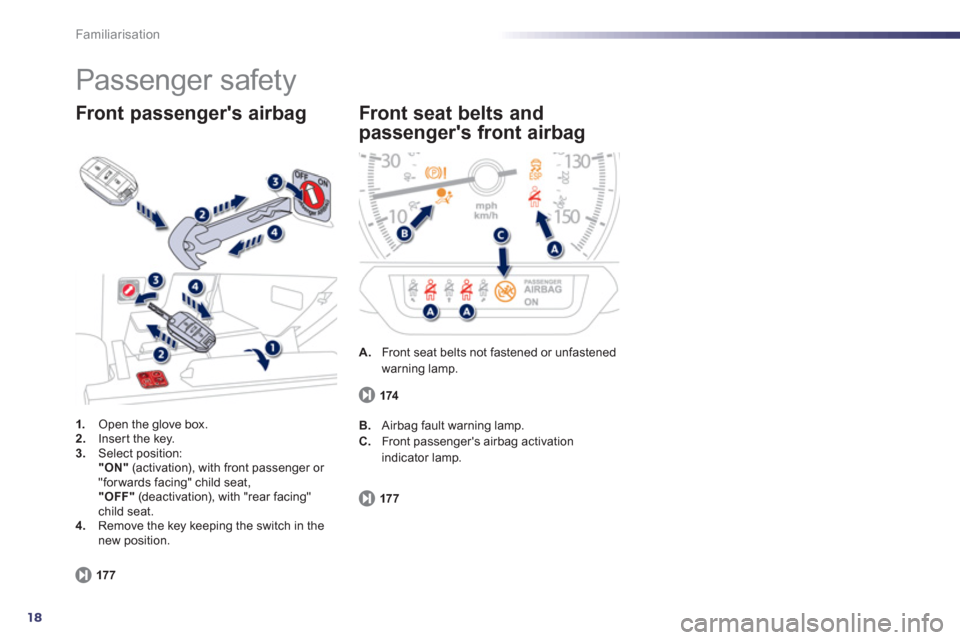

Front passenger's airbag
177
A.
Front seat belts not fastened or unfastenedwarning lamp.
Front seat belts and
passenger's front airbag
177 B
. Airbag fault warning lamp.
C.
Front passenger's airbag activation indicator lamp.
174
