Peugeot 508 RXH 2012 Owner's Manual - RHD (UK, Australia)

4
139
Driving
In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear isengaged, an audible signal (long beep)indicates that the sensors may be dirty.
When the vehicle is moving at a speed below 6 mph (10 km/h), cer tain soundsources (motorcycle, lorry, pneumatic
drill, etc.) may trigger the audible signals of the parking sensor system.
In th
e event of a malfunction
of the system, when reversegear is engaged this warning
lamp is displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal (short beep).
Contact a PEUGEOT dealer or a qualified
wor
kshop.

Operating fault

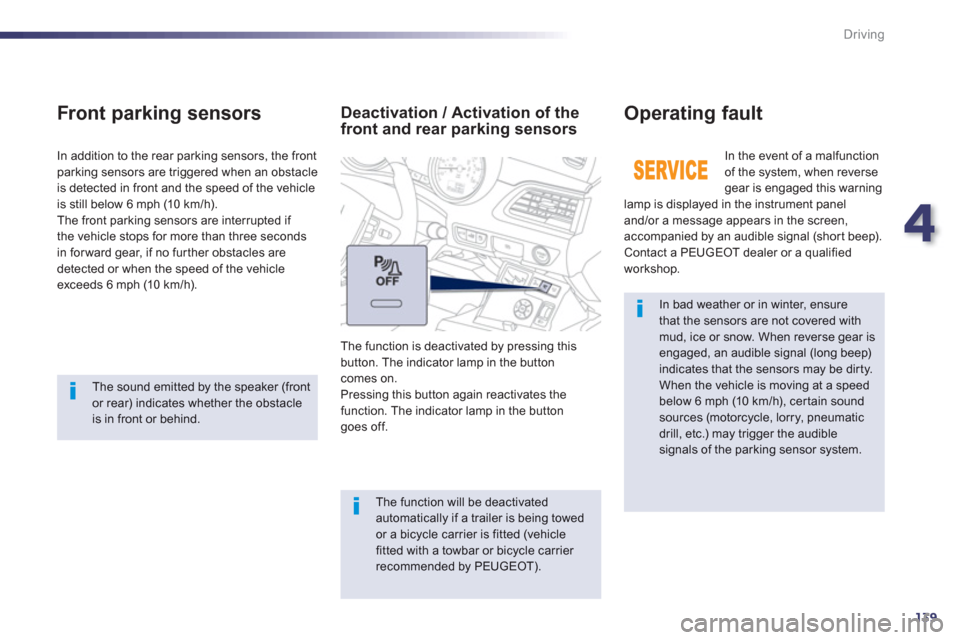

In addition to the rear parking sensors, the front
parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph
(10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in
forward gear, if no fur ther obstacles are
detected or when the speed of the vehicle exceeds 6 mph (10 km/h).
Front par king sensors
The function will be deactivated automatically if a trailer is being towedor a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by PEUGEOT).

Deactivation / Activation of thefront and rear parking sensors
The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.
Pressing this button again reactivates thefunction. The indicator lamp in the buttongoes off.



The sound emitted by the speaker (frontor rear) indicates whether the obstacle is in front or behind.

140
Driving

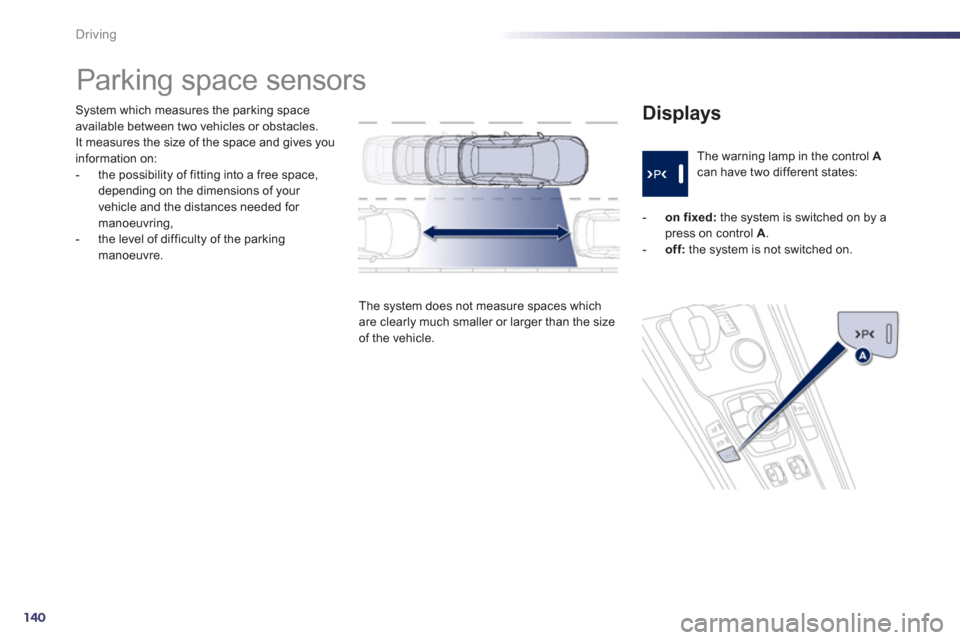

System which measures the parking spaceavailable between two vehicles or obstacles.
It measures the size of the space and gives you
information on:
- the possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances needed for manoeuvring,
- the level of difficulty of the parkingmanoeuvre.

The system does not measure spaces whichare clearly much smaller or larger than the size of the vehicle.
The warning lamp in the control A
can have two different states:

Displays


-
on fixed:
the system is switched on by a press on control A.

- off:the system is not switched on.






Parking space sensors

4
141
Driving
When you have identified a parking space:
)Put the gear selector in position A
. )Press button Ato star t the system. )Operate the direction indicator on theside where the space is to be measured; a message is displayed and the warning
lamp flashes to confirm that measurement
is in progress. )During measurement, go for ward the
length of the space, at a speed less than
12 mph (20 km/h), to prepare for your manoeuvre.)Once the measurement has beencompleted, the system informs you of
the level of difficulty of the manoeuvre
by a message in the multifunction screen accompanied by an audible signal.
The system displays one of the following messages:
Parking possible
Parking difficult
Parking not advised


If the lateral distance between your vehicle and the parking space is toogreat, the system may not be able to measure the space.


The system remains available after each measurement and can therefore measure several spaces in succession. In poor or wintry weather, ensure thatthe sensors are free of dir t, ice or snow. The parking space sensor systemdeactivates the front parking sensorswhen measuring forwards.
If there is a fault, have the system checked by a PEUGEOT dealer or a qualified workshop.
The s
ystem switches itself off automatically:


- when you engage reverse gear,

- when
you switch off the ignition,

- if measuring is not requested,

- within five minutes of switching on thesystem,

- if the vehicle speed exceeds the threshold
o
f 45 mph (70 km/h) for one minute.

142
Visibility

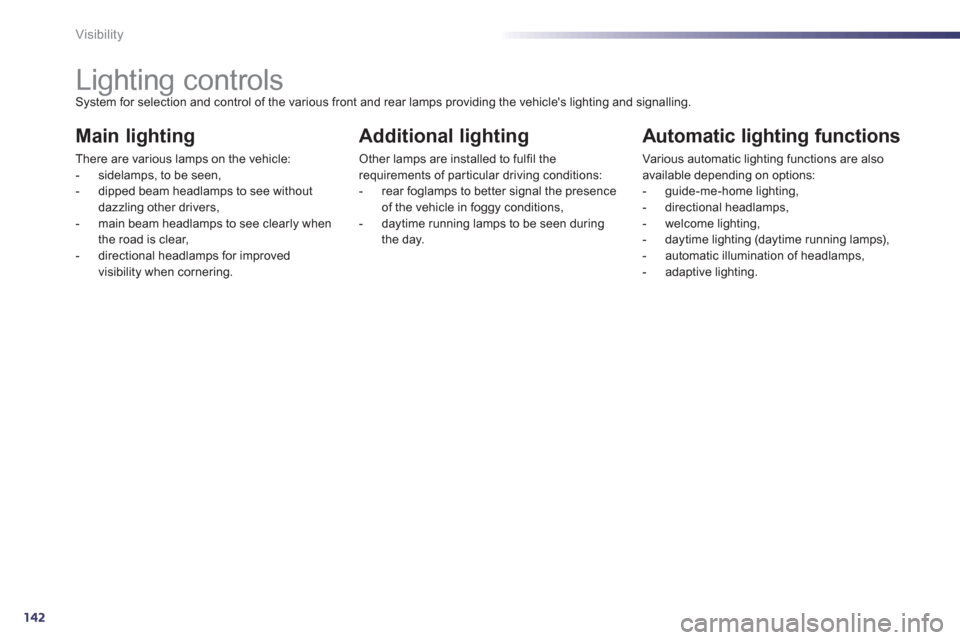

Lighting controls System for selection and control of the various front and rear lamps providing the vehicle's lighting and signalling.
Main lighting
There are various lamps on the vehicle:
- sidelamps, to be seen,
- dipped beam headlamps to see without
dazzlin
g other drivers,
- main beam headlamps to see clearly when
the road is clear,
- directional headlamps for improved
visibility when cornering.



Additional lighting
Other lamps are installed to fulfil the requirements of particular driving conditions:


- rear foglamps to better signal the presence of the vehicle in foggy conditions,

- daytime running lamps to be seen duringthe day.



Automatic lighting functions

Various automatic lighting functions are also
available depending on options:


- guide-me-home lighting,

- directional headlamps,

- welcome li
ghting,

- daytime lighting (daytime running lamps),

- automatic illumination of headlamps,

- adaptive lighting.

5
143
Visibility

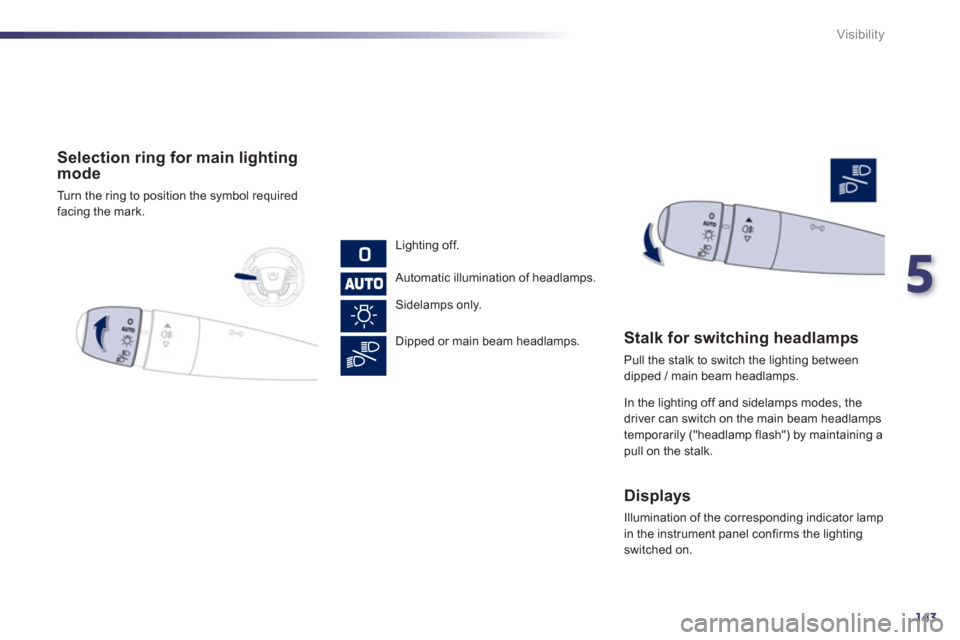

Selection ring for main lighting mode

Turn the ring to position the symbol required
facing the mark.

Li
ghting off.
Automatic illumination of headlamps.


Sidelamps onl
y.

Dipped or main beam headlamps.


Stalk for switching headlamps

Pull the stalk to switch the lighting between
dipped / main beam headlamps.

In the li
ghting off and sidelamps modes, the driver can switch on the main beam headlamps
temporaril
y ("headlamp flash") by maintaining apull on the stalk.


Displays

Illumination of the corresponding indicator lamp
in the instrument panel confirms the lighting switched on.

144
Visibility
Foglamps selection ring
The foglamps operate with dipped and main beam headlamps.
Rear foglamps
When the headlamps switch off with automatic
illumination of headlamps (AUTO model) or
when the dipped beam headlamps are switched
o
ff manually, the foglamps and sidelampsremain on.) Turn the ring rear wards to switch off the foglamps, the sidelamps will then switchoff.
In good or rainy weather, both day andnight, use of the the rear foglamps is prohibited. In these situations, thepower of their beams may dazzle other drivers. They should only be used in fog or snow.
In these weather conditions, it is your responsibility to switch on the foglamps and dipped headlamps manually as the sunshine sensor may detect sufficientlight.
Do not forget to switch off the rear foglamps when they are no longer needed.
)Turn the ring for wards and release to
switch on the rear foglamps.

5
145
Visibility
signal

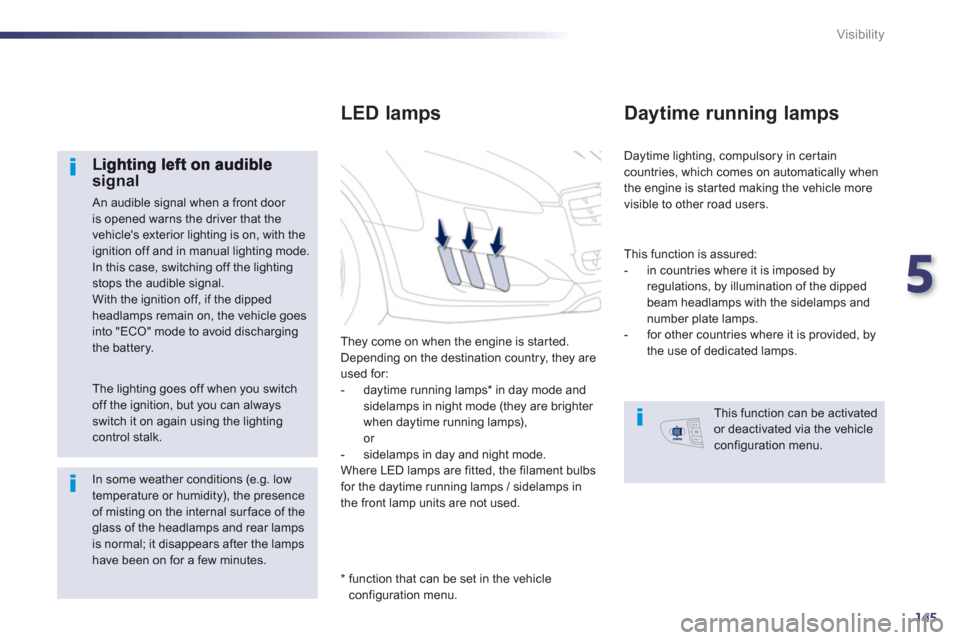

An audible signal when a front door is opened warns the driver that the vehicle's exterior lighting is on, with theignition off and in manual lighting mode. In this case, switching off the lighting stops the audible signal.
With the ignition off, if the dipped headlamps remain on, the vehicle goes into "ECO" mode to avoid discharging the battery.

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.

Daytime lighting, compulsory in cer tain
countries, which comes on automatically when
the engine is star ted making the vehicle more
visible to other road users.
Daytime running lamps

This function is assured:


- in countries where it is imposed by
regulations, by illumination of the dippedbeam headlamps with the sidelamps and number plate lamps.

- for other countries where it is provided, by
the use of dedicated lamps.

This function can be activatedor deactivated via the vehicleconfiguration menu.



The lighting goes off when you switchoff the ignition, but you can always switch it on again using the lighting control stalk.
*
f
unction that can be set in the vehicle
configuration menu.
LED lamps
They come on when the engine is started.Depending on the destination country, they are used for:
- daytime running lamps *
in day mode andsidelamps in night mode (they are brighter
when daytime running lamps),
or
- sidelamps in day and night mode.
Where LED lamps are fitted, the filament bulbs
for the da
ytime running lamps / sidelamps in
the front lamp units are not used.

146
Visibility

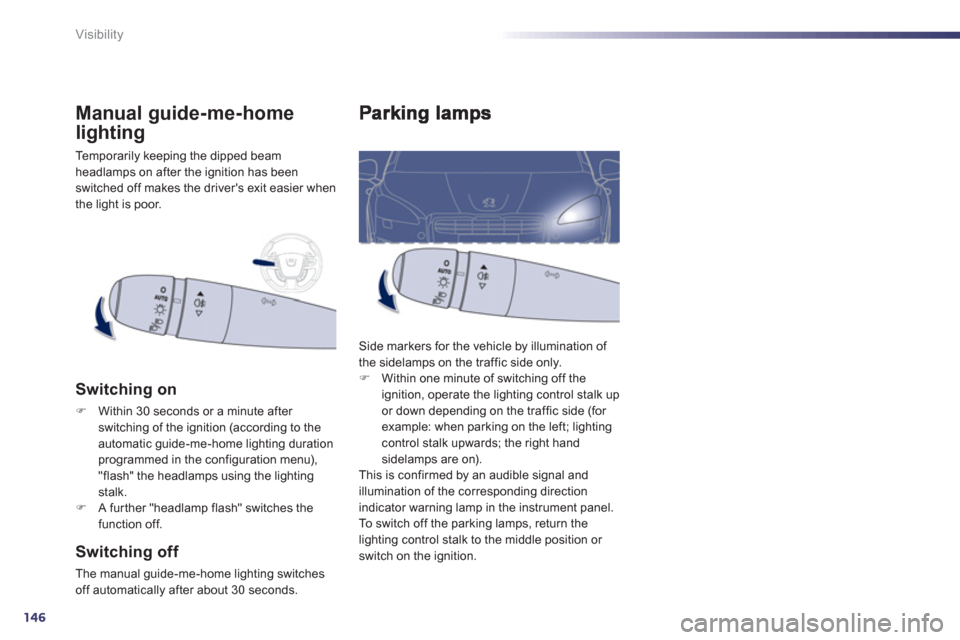

Side markers for the vehicle by illumination of
the sidelamps on the traffic side only. ) Within one minute of switching off the
ignition, operate the lighting control stalk upor down depending on the traffic side (for example: when parking on the left; lightingcontrol stalk upwards; the right hand sidelamps are on).
This is confirmed by an audible signal and
illumination of the corresponding direction
indicator warning lamp in the instrument panel.
To switch off the parking lamps, return the
lighting control stalk to the middle position or
switch on the ignition.
Temporarily keeping the dipped beam
headlamps on after the ignition has beenswitched off makes the driver's exit easier when
the light is poor.
Manual guide-me-home
lighting
Switching on
)Within 30 seconds or a minute after
switching of the ignition (according to theautomatic guide-me-home lighting durationprogrammed in the configuration menu), "flash" the headlamps using the lighting stalk.)A further "headlamp flash" switches the
function off.

Switching off
The manual guide-me-home lighting switches
off automatically after about 30 seconds.

5
147
Visibility

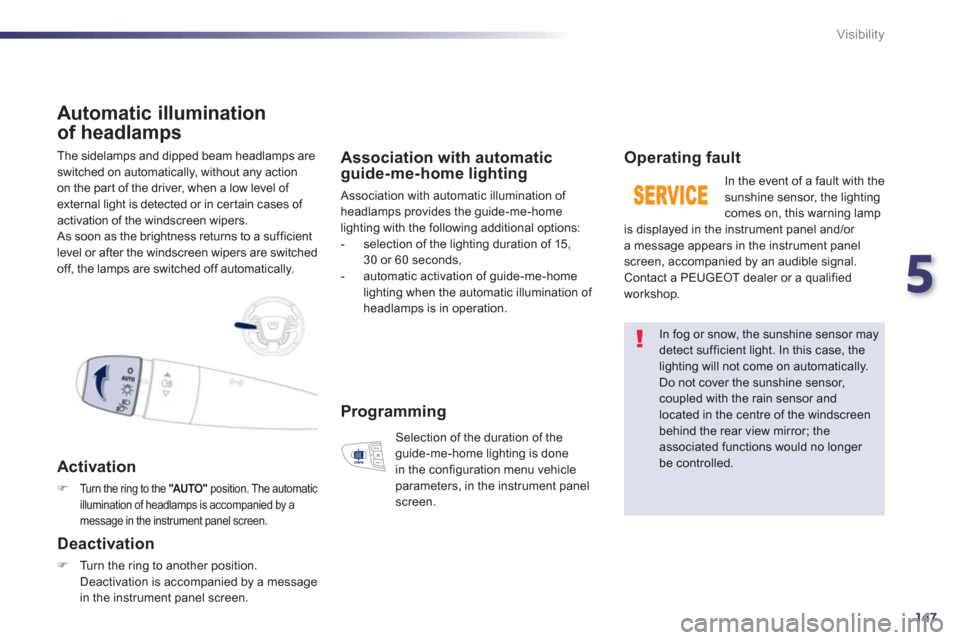

The sidelamps and dipped beam headlamps are
switched on automatically, without any action
on the part of the driver, when a low level of external light is detected or in certain cases of
activation of the windscreen wipers.

As soon as the brightness returns to a sufficient
level or after the windscreen wipers are switched
o
ff, the lamps are switched off automatically.
Automatic illumination
of headlam
ps

Activation
)Turn the ring to the "AUTO"position. The automatic
illumination of headlamps is accompanied by a message in the instrument panel screen.


Deactivation
)Turn the ring to another position.
Deactivation is accompanied by a message
in the instrument panel screen.
Association with automaticguide-me-home lighting
Association with automatic illumination of headlamps provides the guide-me-home lighting with the following additional options:
- selection of the lighting duration of 15,
30 or 60 seconds,
- automatic activation o
f guide-me-home lighting when the automatic illumination of
headlamps is in operation.

Operating fault

In the event of a fault with the sunshine sensor, the lighting comes on, this warning lamp
is displayed in the instrument panel and/or
a message appears in the instrument panel screen, accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.
In fog or snow, the sunshine sensor maydetect sufficient light. In this case, the lighting will not come on automatically. Do not cover the sunshine sensor,coupled with the rain sensor and located in the centre of the windscreenbehind the rear view mirror; theassociated functions would no longer be controlled.
Programming
Selection of the duration of theguide-me-home lighting is done
in the configuration menu vehicle
parameters, in the instrument panel screen.

148
Visibility

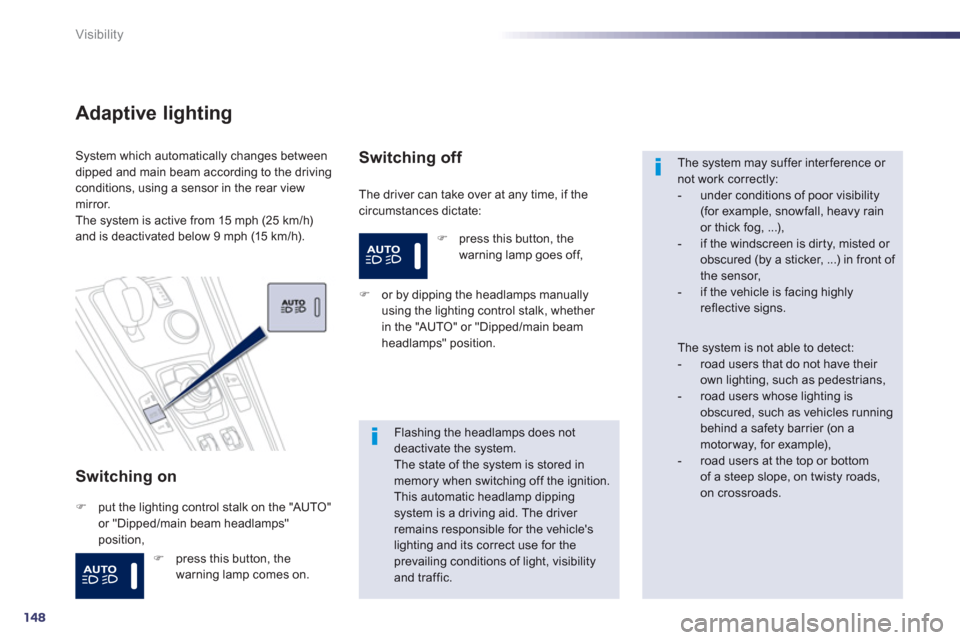

Adaptive lighting
Switching on
The driver can take over at any time, if thecircumstances dictate:
System which automatically changes betweendipped and main beam according to the driving conditions, using a sensor in the rear view mirror.
The system is active from 15 mph (25 km/h) and is deactivated below 9 mph (15 km / h).
)put the lighting control stalk on the "AUTO"
or "Dipped/main beam headlamps"
position,

Switching off
)
or by dipping the headlamps manually using the lighting control stalk, whether
in the "AUTO" or "Dipped/main beam
headlamps" position.

Flashing the headlamps does notdeactivate the system.The state of the system is stored in memory when switching off the ignition. This automatic headlamp dipping system is a driving aid. The driver remains responsible for the vehicle'slighting and its correct use for theprevailing conditions of light, visibility and traffic.


The system may suffer interference or not work correctly:


- under conditions of poor visibility(for example, snowfall, heavy rain or thick fog, ...),

- if the windscreen is dir ty, misted or obscured (by a sticker, ...) in front of the sensor,

- if the vehicle is facing highly reflective signs.


The system is not able to detect:


- road users that do not have their own lighting, such as pedestrians,

- road users whose lighting isobscured, such as vehicles running behind a safety barrier (on amotorway, for example),

- road users at the top or bottomof a steep slope, on twisty roads, on crossroads.


)press this button, the
warning lamp goes off,
) press this button, the
warning lamp comes on.
