Driving
It is recommended that you do not apply the parking brake in very cold conditions (ice) and during towing
(recovery, ...). Deactivate the automaticfunctions and release the parking brakemanually.



Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and the control lever Aare on, not flashing.

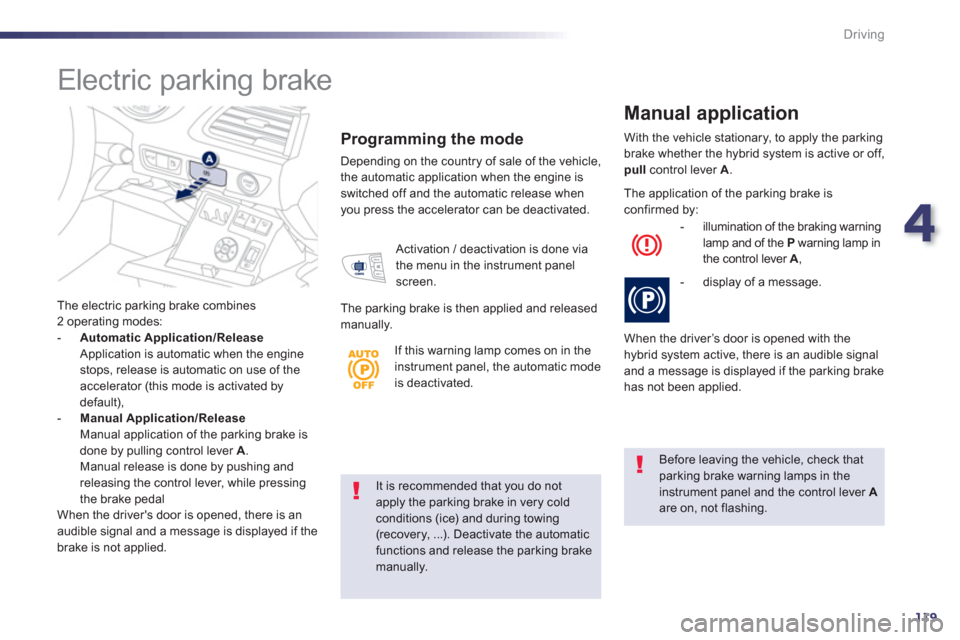

The electric parking brake combines
2 operating modes:

-
Automatic Application/Release Application is automatic when the engine stops, release is automatic on use of the accelerator (this mode is activated by
default), -Manual Application/Release Manual application of the parking brake is done by pulling control lever A. Manual release is done by pushing andreleasing the control lever, while pressing
the brake pedal
When the driver's door is opened, there is an
audible si
gnal and a message is displayed if the
brake is not applied.

Programming the mode
Depending on the country of sale of the vehicle,
the automatic application when the engine is switched off and the automatic release whenyou press the accelerator can be deactivated. With the vehicle stationary, to apply the parking
brake whether the h
ybrid system is active or off,
pull
control lever A
.


Manual application
Activation / deactivation is done via
the menu in the instrument panel
screen.
The parkin
g brake is then applied and released
manually. The application o
f the parking brake isconfirmed by:


- illumination o
f the braking warning lamp and of the P
warning lamp in
the control lever A ,

- displa
y of a message.
When the driver’s door is opened with the
h
ybrid system active, there is an audible signal
and a message is displayed if the parking brake
has not been applied.








Electric parking brake
If this warning lamp comes on in the instrument panel, the automatic modeis deactivated.

120
Driving
With the ignition on or the hybrid system active,
to release the parking brake, pressthe brakepedal, pull
then release control lever A.
The full release of the parking brake is confirmed by:

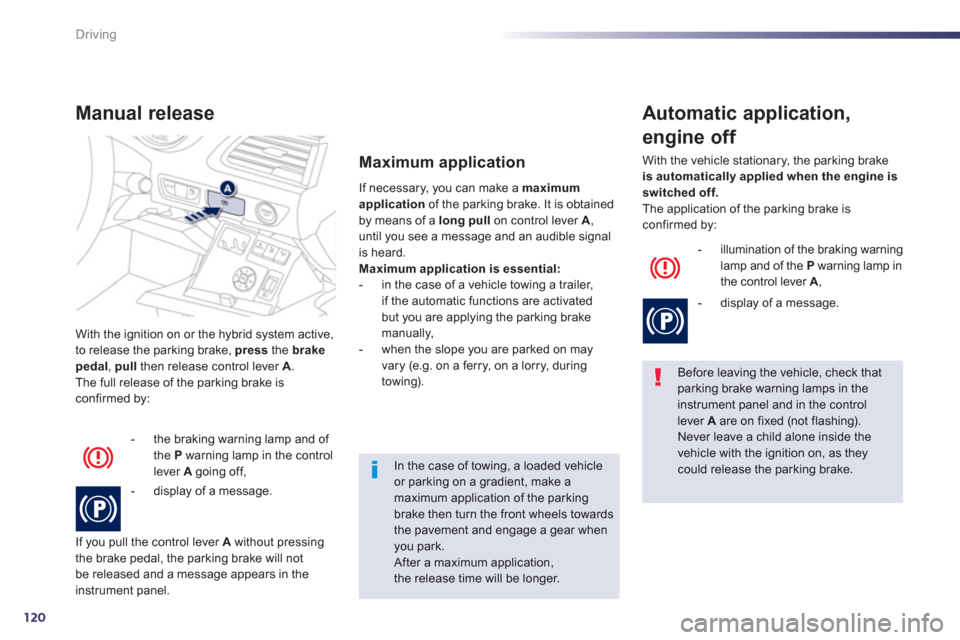

Manual release
- the braking warning lamp and of
the P warning lamp in the controllever A
going off,
- displa
y of a message.
I
f you pull the control lever Awithout pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel. If necessar
y, you can make a maximum
applicationof the parking brake. It is obtained by means of a long pullon control lever A,
until you see a message and an audible signal is heard.Maximum application is essential:


- in the case of a vehicle towing a trailer,
if the automatic functions are activatedbut you are applying the parking brake
manually,

- when the slope you are parked on mayvary (e.g. on a ferry, on a lorry, during
towing).
Maximum application


Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and in the control lever Aare on fixed (not flashing).

Never leave a child alone inside thevehicle with the ignition on, as they could release the parking brake.



Automatic application,

en
gine off



- illumination of the braking warning
lamp and of the Pwarning lamp in
the control lever A ,

- displa
y of a message.
With the vehicle stationary, the parking brake is automatically applied when the engine is
switched off. The application of the parking brake is confirmed by:
In the case of towing, a loaded vehicleor parking on a gradient, make amaximum application of the parkingbrake then turn the front wheels towards the pavement and engage a gear whenyou park.
After a maximum application,the release time will be longer.

4
121
Driving

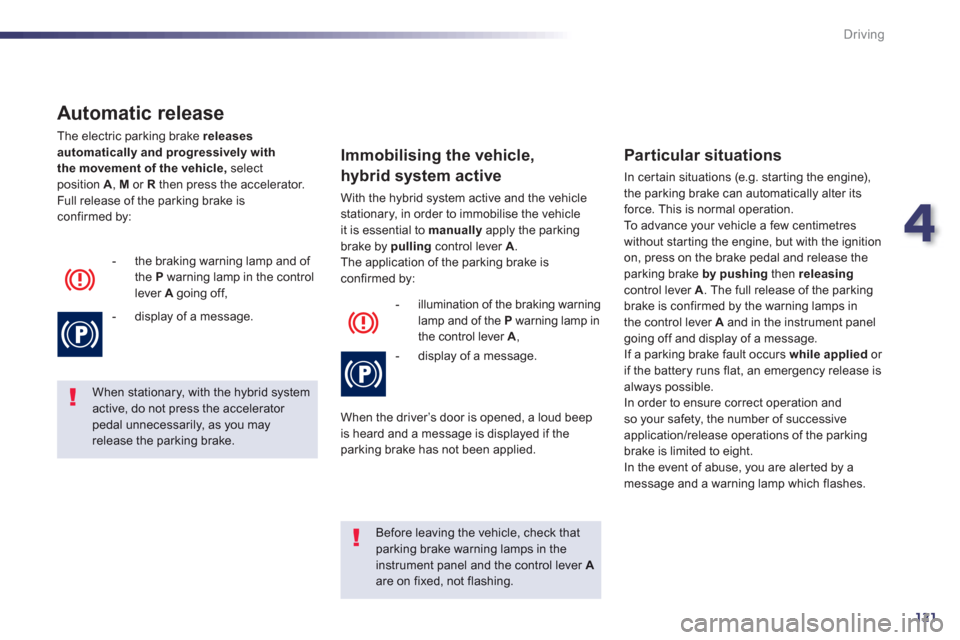

Automatic release

The electric parking brake releases automatically and progressively with
the movement of the vehicle,
selectposition A , Mor R
then press the accelerator.
Full release of the parking brake is confirmed by:
- the brakin
g warning lamp and of
the Pwarning lamp in the control lever A
going off,
- displa
y of a message.


When stationary, with the hybrid system active, do not press the accelerator pedal unnecessarily, as you may release the parking brake.
Before leaving the vehicle, check thatparking brake warning lamps in theinstrument panel and the control lever Aare on fixed, not flashing.


Immobilising the vehicle,
hybrid system active
With the hybrid system active and the vehicle
stationary, in order to immobilise the vehicle it is essential to manually
apply the parking
brake by pulling
control lever A.
The application of the parking brake is confirmed by:


- illumination o
f the braking warning
lamp and of the Pwarning lamp in
the control lever A ,

- displa
y of a message.
When the driver’s door is opened, a loud beep
is heard and a message is displayed if theparking brake has not been applied.
Particular situations

In cer tain situations (e.g. star ting the engine),
the parking brake can automatically alter itsforce. This is normal operation.
To advance your vehicle a few centimetres
without star ting the engine, but with the ignition on, press on the brake pedal and release the
parking brake by pushing then releasingcontrol lever A
. The full release of the parking
brake is confirmed by the warning lamps in
the control lever Aand in the instrument panel going off and display of a message.
If a parking brake fault occurs while appliedor
if the battery runs flat, an emergency release is
always possible.
In order to ensure correct operation and
so your safety, the number of successive
application/release operations of the parkin
g
brake is limited to eight.
In the event of abuse, you are aler ted by a
message and a warning lamp which flashes.

122
Driving
Emergency braking
In the event of a failure of the main servicebrake, a continuous pull on the control lever Awill stop the vehicle.
The dynamic stability control provides stability
during emergency braking.
If the emergency braking malfunctions, a message will be displayed.

I
f a failure of the DSC system is
signalled by the lighting of this
warning lamp, then braking stability is
not
guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release" actions on the control lever A.
Emergency parking brake release
)if your vehicle has one, take out the vehicle chock B , located behind the rear seats.)On a slope, immobilise the vehicle byplacing a chock in front or behind one of
the front wheels, opposing the slope. On level ground, immobilise the vehicle byplacing a chock in front or behind one of
the front wheels.
In the event o
f fault with the electric parkingbrake or a battery failure, an emergencymechanical control can be used to manually
releasethe parking brake.) Immobilise the vehicle (or chock it if the
brake pedal has not been released), with
the hybrid system active, place the gear selector in position M or R.)
Switch of the hybrid system, but leave the
ignition on. If you are unable to immobilise
the vehicle, do not operate this control and contact a PEUGEOT dealer or a qualified
workshop as soon as possible.
The emergency braking must only be used in exceptional circumstances.

4
123
Driving

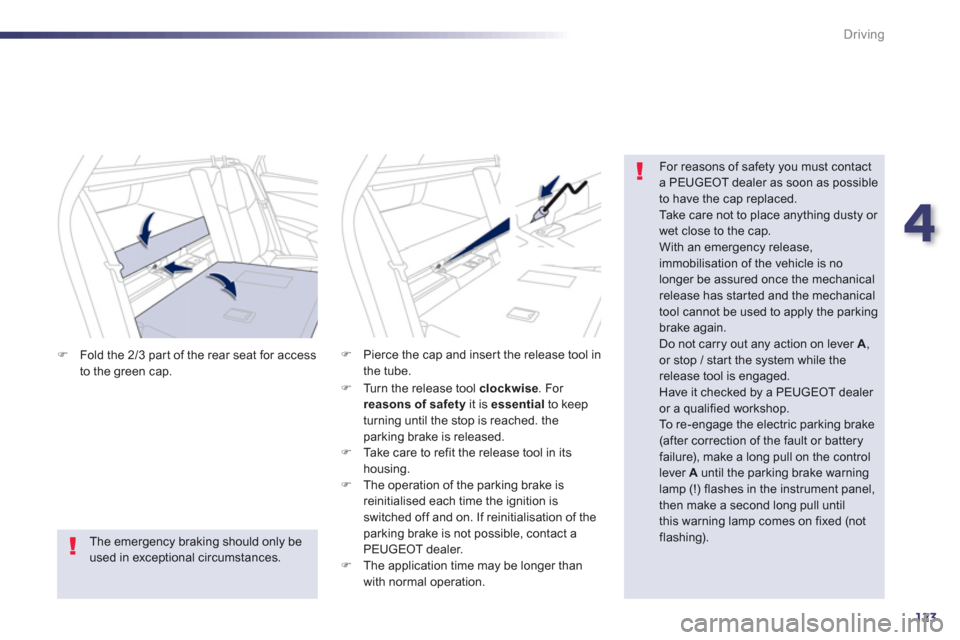

)Fold the 2/3 par t of the rear seat for access
to the green cap.

For reasons of safety you must contact a PEUGEOT dealer as soon as possibleto have the cap replaced.
Take care not to place anything dusty or
wet close to the cap.
With an emergency release,immobilisation of the vehicle is nolonger be assured once the mechanical release has started and the mechanicaltool cannot be used to apply the parking brake again.
Do not carry out any action on lever A
, or stop / star t the system while therelease tool is engaged.
Have it checked by a PEUGEOT dealer or a qualified workshop.
To r e - e ngage the electric parking brake(after correction of the fault or batteryfailure), make a long pull on the controllever A
until the parking brake warninglamp (!) flashes in the instrument panel, then make a second long pull until this warning lamp comes on fixed (not flashing).
)
Turn the release tool clockwise
. For
reasons of safetyit is essential
to keep
turning until the stop is reached. the
parking brake is released. ) Take care to refit the release tool in its
housing. ) The operation of the parking brake isreinitialised each time the ignition isswitched off and on. If reinitialisation of theparking brake is not possible, contact aPEUGEOT dealer. )
The application time may be longer than
with normal operation.
) Pierce the cap and inser t the release tool in
the tube.

The emergency braking should only be used in exceptional circumstances.

124
Driving

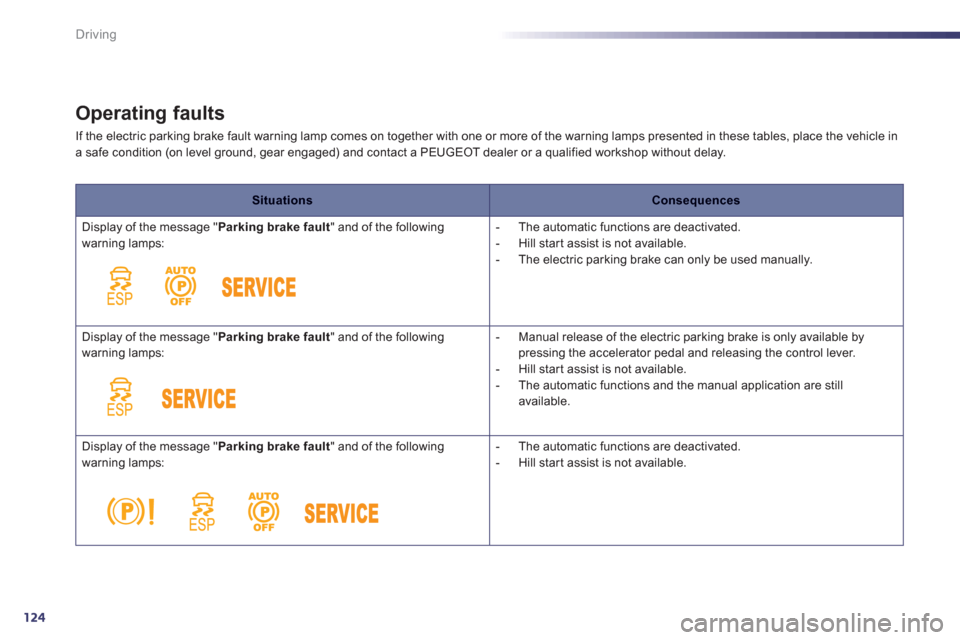

Operating faults
If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these tables, place the vehicle ina safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer or a qualified workshop without delay.

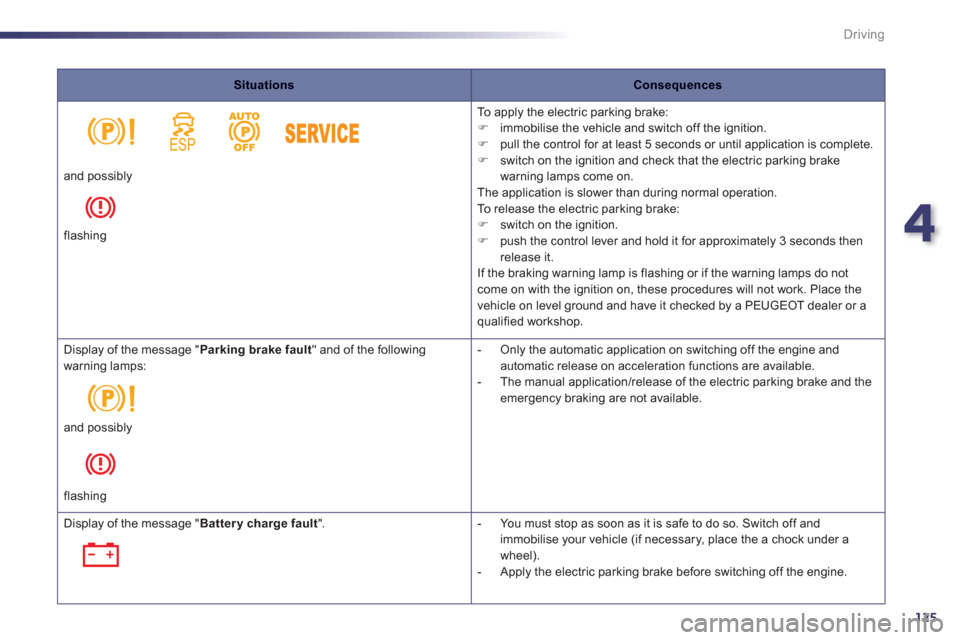

SituationsConsequences
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.

- The electric parking brake can only be used manually.
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- Manual release of the electric parking brake is only available by pressing the accelerator pedal and releasing the control lever.

- Hill start assist is not available.

- The automatic functions and the manual application are still available.
Displa
y of the message "Parking brake fault" and of the following
warning lamps:

- The automatic functions are deactivated.

- Hill start assist is not available.

4
125
Driving
SituationsConsequences
To apply the electric parking brake: ) immobilise the vehicle and switch off the ignition. )
pull the control for at least 5 seconds or until application is complete.)
switch on the ignition and check that the electric parking brake
warning lamps come on.
The application is slower than during normal operation.
To release the electric parking brake:
)
switch on the ignition. )
push the control lever and hold it for approximately 3 seconds then
release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with the ignition on, these procedures will not work. Place the
vehicle on level ground and have it checked by a PEUGEOT dealer or aqualified workshop. and possibl
y

flashing
Display of the message "Parking brake fault" and of the following warning lamps:

- Only the automatic application on switching off the engine andautomatic release on acceleration functions are available.

- The manual application/release of the electric parking brake and theemergency braking are not available.
and possibly
flashin
g

Display of the message "Battery charge fault".

- You must stop as soon as it is safe to do so. Switch off and
immobilise
your vehicle (if necessary, place the a chock under a
wheel).

- Apply the electric parking brake before switching off the engine.

126
Driving

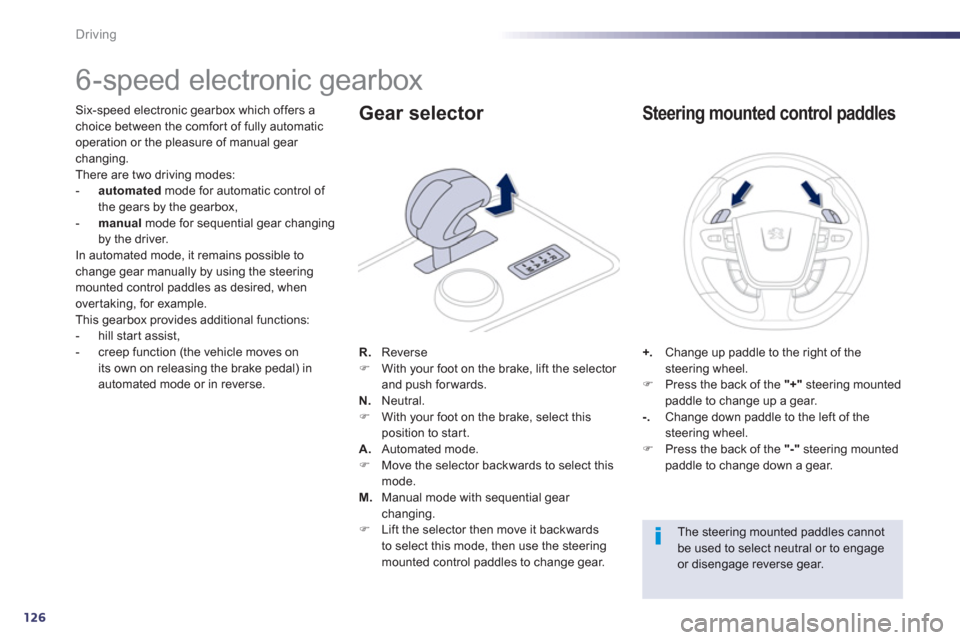

6-speed electronic gearbox
Six-speed electronic gearbox which offers achoice between the comfor t of fully automatic
operation or the pleasure of manual gear changing.There are two driving modes: -automatedmode for automatic control of
the gears by the gearbox,- manualmode for sequential gear changing
by the driver.
In automated mode, it remains possible to
change gear manually by using the steering mounted control paddles as desired, when
over taking, for example.
This gearbox provides additional functions:
- hill star t assist,
- creep function (the vehicle moves on its own on releasing the brake pedal) in automated mode or in reverse.R
. Reverse )
With your foot on the brake, lift the selector
and push forwards.
N
. Neutral. ) With your foot on the brake, select this
position to start.A. Automated mode.)
Move the selector backwards to select this
mode. M. Manual mode with sequential gear changing. )
Lift the selector then move it backwards
to select this mode, then use the steeringmounted control paddles to change gear.



Gear selector
+. Change up paddle to the right of the steering wheel.)Press the back of the "+"
steering mounted paddle to change up a gear.-.
Change down paddle to the left of thesteering wheel.)Press the back of the "-"steering mounted paddle to change down a gear.


Steering mounted control paddles


The steering mounted paddles cannot
be used to select neutral or to engageor disengage reverse gear.

4
127
Driving

Engagement of reverse gear isaccompanied by an audible signal.
If you leave the vehicle, place the gear
selector in position Nand then you must stop the hybrid system by switching off the ignition (Ready
lamp off).
If the gear selector is not in position Non starting, Nflashes in the instrumentpanel, accompanied by an audiblesignal and a message in the instrument panel screen. Foot on brakeflashes on the instrument panel, accompanied by anaudible signal and a message in the instrument panel screen, if the brakepedal is not pressed on starting.


For optimum acceleration, for example
when overtaking another vehicle, pressthe accelerator pedal firmly past the point of resistance.

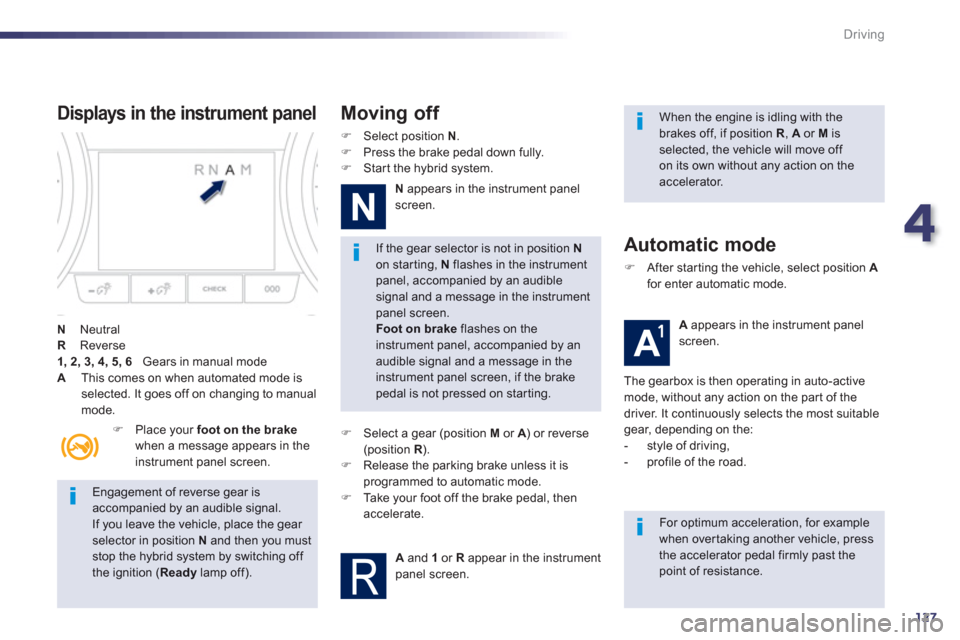

Displays in the instrument panel
N Neutral
R Reverse1, 2, 3, 4, 5, 6
Gears in manual mode A This comes on when automated mode is
selected. It goes off on changing to manual mode.
)Place your foot on the brakewhen a message appears in the
instrument panel screen.

Moving off
)
Select position N . )
Press the brake pedal down fully. )
Star t the hybrid system.
N
appears in the instrument panelscreen.
)
Select a gear (position M
or A
) or reverse A(position R).R)
Release the parking brake unless it is
programmed to automatic mode. ) Ta k e your foot off the brake pedal, thenaccelerate.
Aand 1or R
appear in the instrumentpanel screen.


Automatic mode
)
After star ting the vehicle, select position Afor enter automatic mode.
A
appears in the instrument panel screen.
The
gearbox is then operating in auto-active
mode, without any action on the par t of the driver. It continuously selects the most suitablegear, depending on the:


- st
yle of driving,

- profile of the road.


When the engine is idling with thebrakes off, if position R, Aor M
is selected, the vehicle will move off
on its own without any action on theaccelerator.

128
Driving
Manual gear changing
) When the vehicle has moved off, select
position M to change to manual mode.)
Operate the +
or -steering mounted control paddles.


At very low speed, if reverse gear isrequested, this will only be taken intoaccount when the vehicle is immobilised(foot on the brake). A warning lamp appears in the instrument panel screen.

On sharp acceleration in manual mode,the gearbox will not change up unless the driver acts on the gear lever or thesteering mounted paddles.
Never select neutral N
while the vehicleis moving. Only engage reverse gear Rwhen thevehicle is immobilised with the brakepedal pressed.
A
disappears and the gears engaged
appear successively in the instrument
panel screen.

The
gear change commands are only carried
out if the engine speed permits. The internal combustion engine is still running.
It is not necessary to release the accelerator
during gear changes.
When brakin
g or slowing down, the gearbox changes down automatically to permit
acceleration in the correct gear. This selective
gear change mode enables you
to over take, for example, while still remaining in automatic mode.)Operate the +or - steering mounted controlpaddle.
The gearbox engages the gear requested if theengine speed permits. A is still displayed in theinstrument panel.
After a few moments without any action on
the controls, the gearbox resumes automatic control of the gears.

Manual mode
